Ecler VEO-XTI2L User manual

V20220105
VEO-XTI2L / VEO-XRI2L
VIDEO OVER IP DISTRIBUTION
Low latency 4K over IP video extenders with KVM and
video wall functionality
USER MANUAL

2
CONTENTS
IMPORTANT REMARK ..........................................................................................................5
IMPORTANT SAFETY INSTRUCTIONS .............................................................................5
NOTA IMPORTANTE .............................................................................................................7
INTRODUCTION ..................................................................................................................... 7
PACKAGE CONTENTS ..........................................................................................................8
PANEL DESCRIPTIONS......................................................................................................... 9
6.1. Transmitter................................................................................................................................... 9
6.1.1. Front panel............................................................................................................................ 9
6.1.2. Rear panel...........................................................................................................................10
6.2. Receiver.......................................................................................................................................11
6.2.1. Front panel..........................................................................................................................11
6.2.2. Rear panel...........................................................................................................................12
6.3. IR sensor and emitter connections .....................................................................................12
6.4. Group ID selection using remote control ..........................................................................13
6.5. Description of the function buttons....................................................................................14
6.6. Description of the audio control button.............................................................................14
INSTALLATION AND CONFIGURATION.........................................................................15
7.1. Start-up .......................................................................................................................................15
7.2. How to find out the IP address of devices .......................................................................15
7.3. Requirements and recommendations for using a VEO IP video network ..............17
SYSTEM TOPOLOGY AND CONFIGURATIONS ............................................................18
8.1. Point-to-point connection .....................................................................................................18
8.2. Point-to-multipoint connections and operations ...........................................................18
8.3. Multipoint-to-multipoint connections and operations ..................................................19
8.4. Connections for interactive applications...........................................................................19
8.5. Video wall mode.......................................................................................................................20

3
CONFIGURATION USING ECLERNET MANAGER.........................................................21
9.1. How to find devices in EclerNet Manager ........................................................................21
9.2. How to add VEO-XTI2l and VEO-XRI2L to an EclerNet Manager project.............23
9.3. Which functions are available when operating the devices via EclerNet Manager?
................................................................................................................................................................26
9.3.1. VEO-XTI2L Transmitter Associated Functions .......................................................26
9.3.2. VEO-XRI2L Transmitter Associated Functions.......................................................27
9.3.3. How to add control functions to a UCP (User Control Panel) ............................28
CONFIGURATION USING VEO XTI2L - XRI2L CONTROL CENTRE..........................29
10.1. How to find devices using Control Center.....................................................................29
10.2. Configuring the Casting mode using the Control Centre..........................................30
10.3. Configuring video wall mode using the Control Centre ............................................31
CONFIGURATION USING THE WEB INTERFACE.........................................................33
11.1. Configuring the system settings.......................................................................................33
11.1.1. Firmware information and updating.........................................................................33
11.1.2. Utilities...............................................................................................................................34
11.1.3. Statistics............................................................................................................................35
11.2. Configuring video wall mode using the web interface ..............................................36
11.2.1. Basic configuration procedure ...................................................................................36
11.2.2. Bevel and gap compensation:....................................................................................37
11.2.3. Size of the structure and position layout ................................................................38
11.2.4. Preferences ......................................................................................................................39
11.2.5. Apply to.............................................................................................................................40
11.2.6. Advanced configuration...............................................................................................41
11.3. Configuring network settings ............................................................................................45
11.3.1. Auto IP..............................................................................................................................45
11.3.2. DHCP (Dynamic Host Configuration Protocol).....................................................46
11.3.3. Configuring a static IP address..................................................................................47
11.3.4. Casting Mode ..................................................................................................................48

4
11.4. Configuring operating functions .......................................................................................49
11.4.1. Setting the video output mode for the receiver....................................................50
11.4.2. Setting the scalar output mode for the transmitter.............................................52
11.4.3. USB over IP data extension ........................................................................................52
FIBRE OPTIC CONNECTION ..............................................................................................54
FACTORY RESET..................................................................................................................54
TECHNICAL SPECIFICATIONS..........................................................................................55

5
IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

6
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods of
time.
13. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Disconnecting from mains: When switching off the POWER switch, all the
functions and light indicators of the unit will be stopped, but fully disconnecting
the device from mains is done by unplugging the power cable from the mains input
socket. For this reason, it always shall remain easily accessible.
15. Equipment is connected to a socket-outlet with earthing connection by means of
a power cord.
16. The marking information is located at the bottom of apparatus.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused
to people, animal or objects due to failure to comply with the warnings above.

7
NOTA IMPORTANTE
Thank you for choosing our VEO-XTI2L & VEO-XRI2L Low Latency 4K Video Over IP
Extenders!
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its maintenance
be carried out by our authorised Technical Services.
Ecler VEO-XTI2L & VEO-XRI2L comes with a 3-year warranty.
INTRODUCTION
The VEO-XTI2L and VEO-XRI2L represent a highly versatile solution for distributing
video, audio and control signals over a local area network (LAN). They can be used as 4K
over IP video, audio and KVM extenders, in multiple configurations, such as point-to-
point, point-to-multipoint and multipoint-to-multipoint, or as a device for putting together
video wall structures. They also include USB, RS232 and IR signal pass-through control
functions, and can be easily configured and managed using EclerNet Manager, which is a
piece of utility software for PC (as they are compatible devices), or through the web
interface.
Features:
•4K UHD HDMI over IP/Fibre Extension
•USB2.0 over IP extension
•Support for transmission distances of up to 120m, over a single Cat 5e/6 cable
•Support for fibre optic extensions of up to 60Km (Single-mode)
•Supports up to 3840x2160@60Hz input YUV 4:2:0 and 3840x2160@30Hz output.
•HDCP 2.2 / HDCP1.4 compliant
•Support for bi-directional wide band IR (38KHZ-56KHZ) pass-through
•Support for RS232 pass-through and Telnet control
•Includes remote control for infrared/front panel for the group identification channel,
with LED display to show group identification in use
•Support for Dolby True HD and DTS-HD Master audio formats
•Support for 3D video formats
•Embedded and unembedded 5.1 SPDIF and analogue stereo L/R
•Support for putting together video wall structures (Maximum size is 8x8)
•Easy installation over gigabit- and IGMP-compliant LANs

8
•Support for PoE (Power over Ethernet) or 5V-18V external power.
PACKAGE CONTENTS
VEO-XTI2L Package
•1 x 4K over IP transmitter
•1 x IR remote control
•1 x IR TX cable
•2 x IR RX cable
•1 x Phoenix connector (Euroblock) for the end of the RS232 cable
•4 x screws
•2 x detachable mounting tabs
•1 x 5VDC power adaptor with international pins
VEO-XRI2L Package
•1 x 4K over IP receiver
•1 x IR remote control
•1 x IR TX cable
•2 x IR RX cable
•1 x Phoenix connector (Euroblock) for the end of the RS232 cable
•4 x screws
•2 x detachable mounting tabs
•1 x 5VDC power adaptor with international pins

9
PANEL DESCRIPTIONS

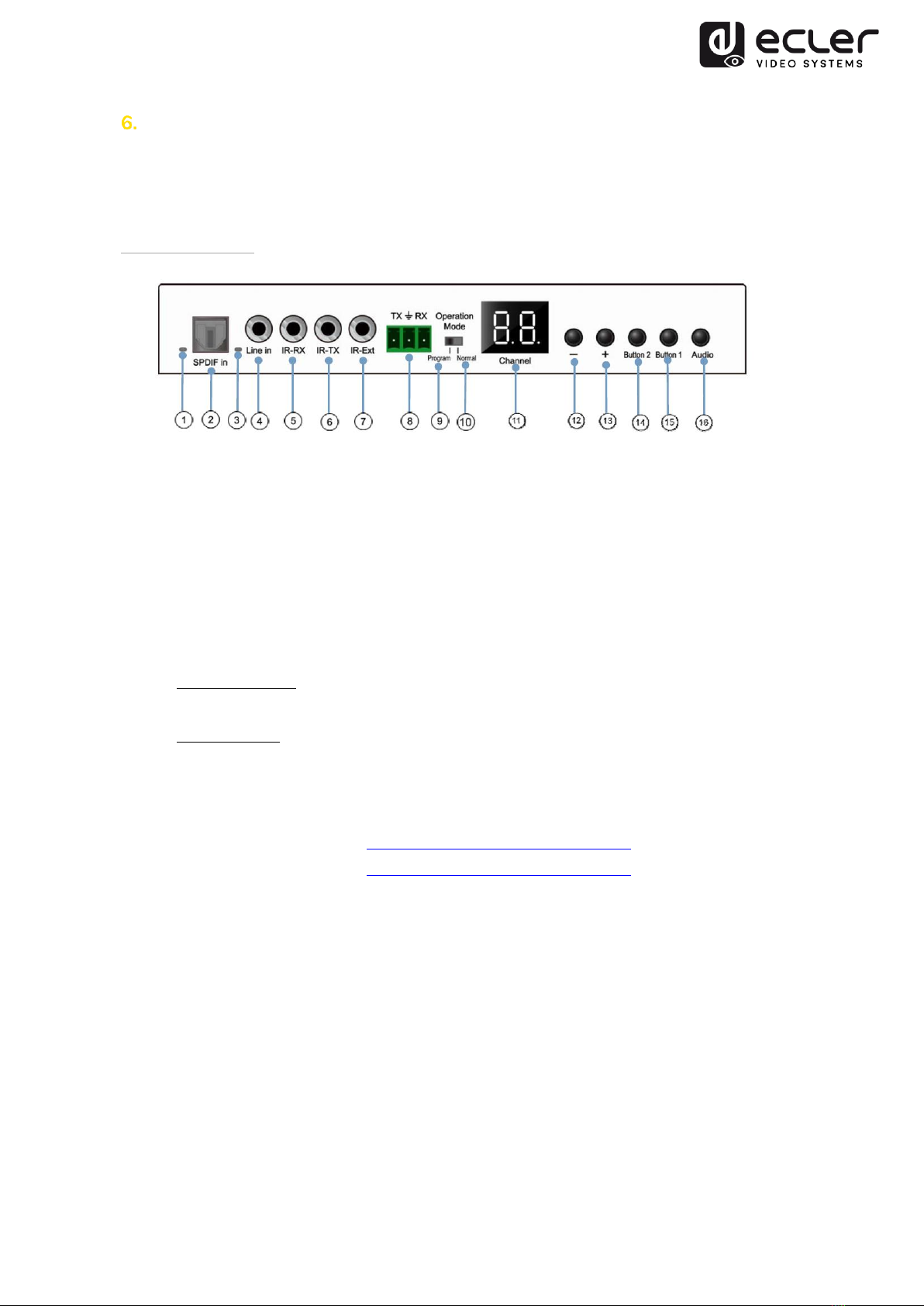

6.1. Transmitter
6.1.1. Front panel
1. Not enabled
2. Not enabled
3. Analogue audio status indicator
4. Line input connector for analogue audio
5. IR-RX connector for IR sensor
6. IR-TX connector for IR emitter
7. IR sensor for remote control
8. RS232 Full-Duplex Port
9. Program mode: In this mode, the RS232 port is used to control the unit,
deactivating the IR-EXT port
10. Normal Mode: In this mode, the RS232 port will act as a pass-through extension
11. Group ID LED screen
12. Group ID DECREASE button
13. Group ID INCREASE button
14. Function button (see the Description of the function buttons chapter)
15. Function button (see the Description of the function buttons chapter)
16. HDMI, S/PDIF or Analogue Audio selection button (the default audio selection is
HDMI)

10
6.1.2. Rear panel

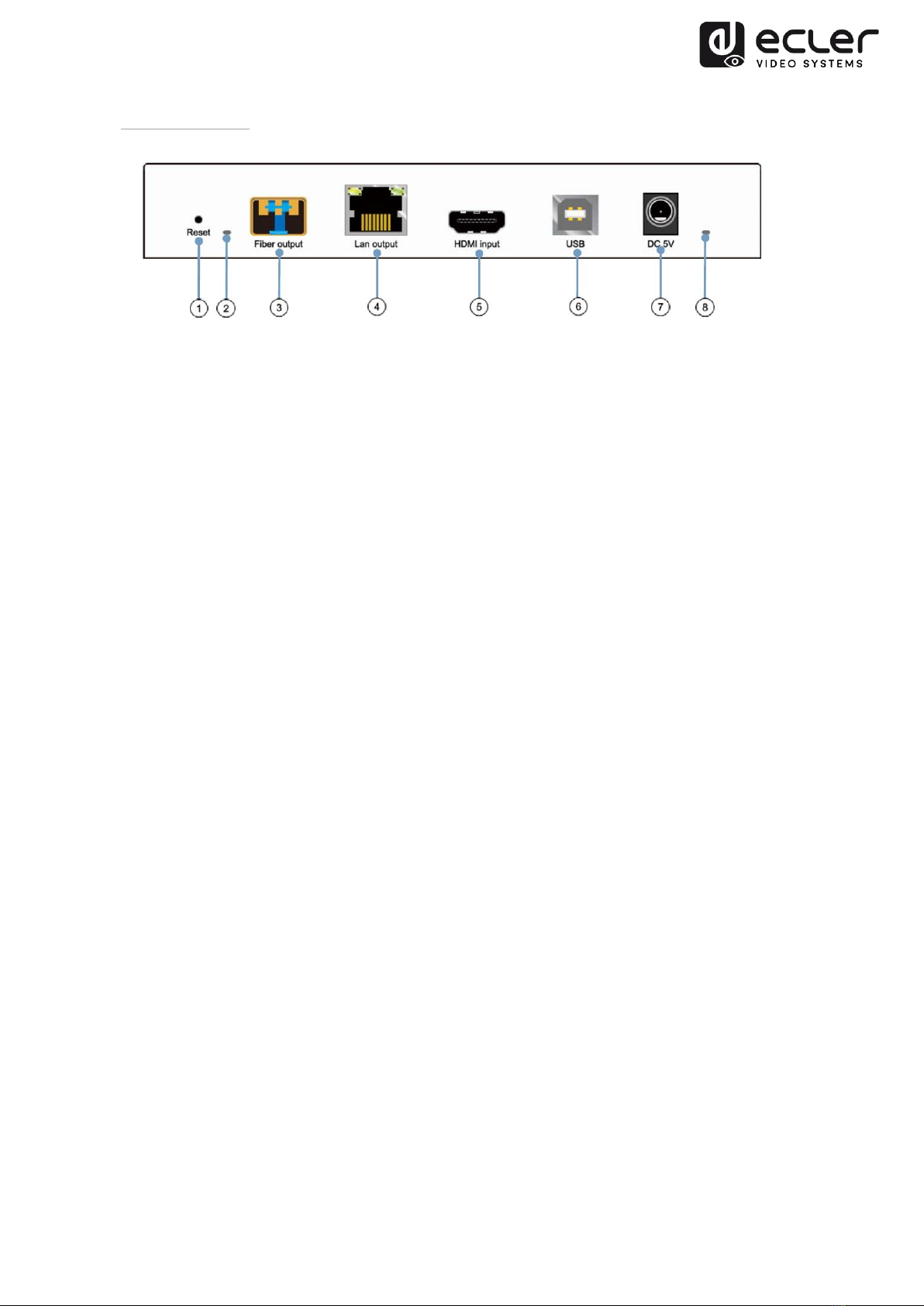

1. Reset button (push for 1 second to reset the device)
2. Fibre optic connection indicator
3. Fibre optic SFP receptacle
4. Cat. 5e/6 connector
5. HDMI input port
6. USB input (Type B)
7. DC 5V input connector
8. LED power indicator

11
6.2. Receiver
6.2.1. Front panel

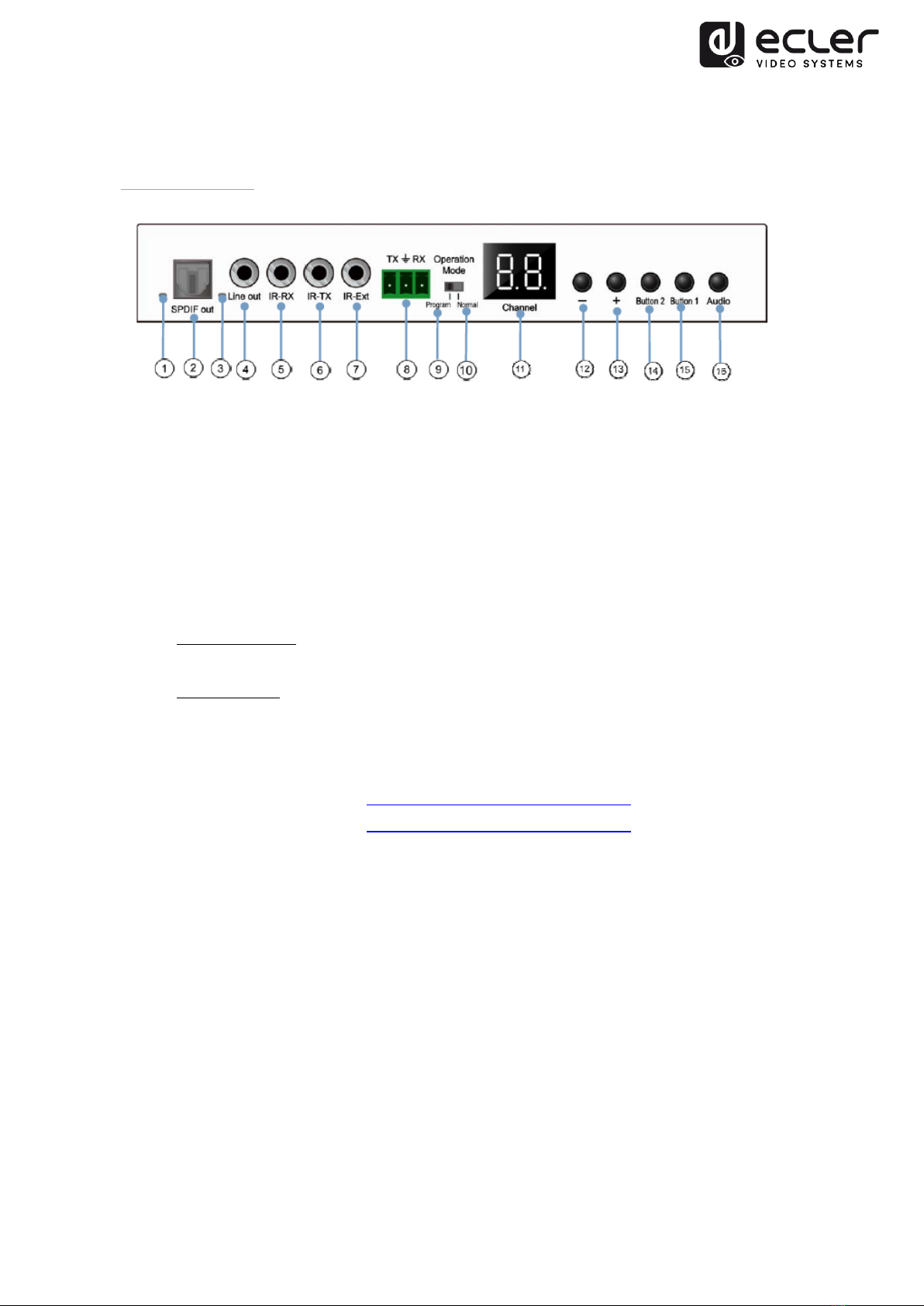

1. S/PDIF status indicator
2. Audio Output S/PDIF Connector
3. Analogue audio status indicator
4. Analogue audio line out connector
5. IR-RX connector for IR sensor
6. IR-TX connector for IR emitter
7. IR sensor for remote control
8. RS232 Full-Duplex Port
9. Program Mode: In this mode, the RS232 port is used to control the unit,
deactivating the IR-EXT port
10. Normal Mode: In this mode, the RS232 port will act as a pass-through extension
11. Group ID LED screen
12. Group ID DECREASE button
13. Group ID INCREASE button
14. Function button (see the Description of the function buttons chapter)
15. Function button (see the Description of the function buttons chapter)
16. HDMI, S/PDIF or Analogue Audio selection button (the default audio selection is
HDMI)

12
6.2.2. Rear panel
1. Reset button (push for 1 second to reset the device)
2. Fibre optic connection indicator
3. Fibre optic SFP receptacle
4. Cat. 5e/6 connector
5. HDMI output port
6. USB input (Type A)
7. DC 5V input connector
8. LED power indicator
6.3. IR sensor and emitter connections

13
6.4. Group ID selection using remote control
The Group ID, or group identifier can be selected using the IR remote controller included.
You must ensure that the IR-Ext sensor is connected (see ‘Package contents’ chapter).
The remote control can be used to change the group ID, as explained below.
•Once the two-digit group number is displayed, press "+" or "-" to select the previous
group ID, or the next one
•Press the numbers to select the desired group ID. For example, if you need to
change to 01, press "0", and then press "1"
Example:

14
6.5. Description of the function buttons
Transmitter
Receiver
Button One
Button Two
Button One
Button Two
Link ON/OFF
Video/Graphic Mode
Link ON/OFF
Video/Graphic Mode
Characteristic
Description
Link
By pressing this button, you can activate or deactivate the video streaming.
When the video signal is deactivated, the standby screen will reappear on the
target monitor, indicating the current status, until transmission is no longer
enabled.
Video/Graphic
Mode
The user can select video mode or graphic mode by pressing this button:
•Video mode: Video stability will be prioritized over bandwidth and
resolution, in order to ensure a smooth playback experience
•Graphic mode: The best viewing experience will be ensured, for
graphic/text dominated streams
When you press the button to switch between the modes, text will appear in the
centre of the target monitor, in green, indicating which mode is active ("Graphic
Mode" or "Video Mode")
Note: The status of the buttons will be stored in the internal flash memory, and will be
remembered after it is rebooted
6.6. Description of the audio control button
Transmitter
The "Audio" button on the VEO-XTI2L transmitter allows the "Line in" input to be
selected. The external audio will be embedded in the video stream of the HDMI input,
overwriting any original audio that may exist
Receiver
The "Audio" button on the VEO-XRI2L receiver selects between the "Line out" and
"SPDIF out" outputs, through which a copy of the audio received from the transmitter will
be extracted. The audio from the HDMI video signal will still be present in the video stream
in either case

15
INSTALLATION AND CONFIGURATION
7.1. Start-up
1. Check that the power supply is unplugged
2. Connect the transmitter to the video source, and the receiver to a monitor or
display, using HDMI cables
3. Connect the USB cables from the transmitter to the PC, and connect additional
USB devices such as the USB mouse, USB keyboard and USB memory stick to the
receiver
4. Connect the transmitter and receiver to the Ethernet switch using the network
cable
5. Switch on and activate all connected devices
6. Switch on the transmitter, receiver or PoE switch
7. Connect the IR extension cable to the transmitter, and the IR receiver cable to the
receiver, in order to have remote control
7.2. How to find out the IP address of devices
VEO-XTI2L and VEO-XRI2L devices have the "Auto IP" function set by default. This
provides automatic IP address assignment on devices that are connected to the same
network. The factory-set IP subnet is 169.254.x.y.
To find out the IP for each device, it is recommended to consult the ‘How to find devices
in EclerNet Manager’ and ‘How to find devices using Control Centre’ chapters.
If you do not have a PC, it is also possible to find out the IP address using the following
procedure:

16
Receiver

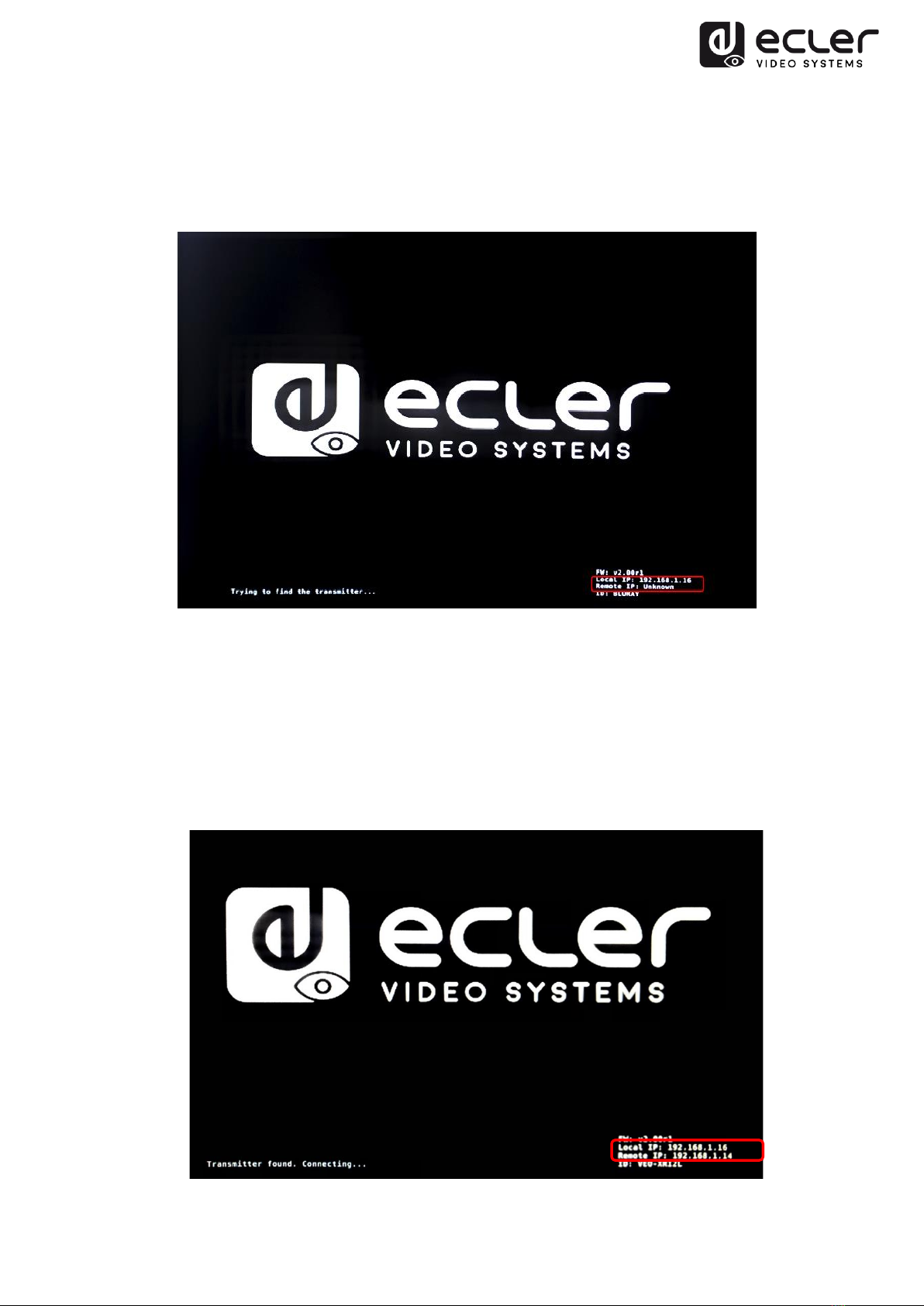

•Connect the HDMI output of the receiver to a display. The receiver will display the
IP address information in the lower right-hand corner of the monitor. The 'Local IP'
is the address for the receiver
Transmitter
•Connect the transmitter, with no source connected to the HDMI input on the
receiver. Then, with the RX connected to a display via the HDMI output, select the
same Group ID for both devices using the front panel buttons. The IP address
information for both devices will be displayed in the lower right-hand corner of the
monitor. The 'Local IP' is the address of the receiver and the 'Host IP' is the address
of the transmitter.

17
7.3. Requirements and recommendations for using a VEO IP video network
It is necessary to use gigabit switches with support for Jumbo Frame (or, if this is not
available, the ability to extend the size of the IP packet) and IGMP. This will create the
most appropriate scenario both for standalone IP video networks, and for cases where IP
video systems share the network with other data streams.
The typical transmission speed generated by these devices is approximately 300Mbps,
so the use of dedicated networks or VLANs is highly recommended. You must ensure that
the processing performance of the gigabit switch is greater than the performance
required by the VEO system.
The measured bandwidth shows the video traffic in a typical installation, providing both
the average value and the minimum and maximum performance variations (Mbps) in the
table below:
Video Resolution
Quality Level
Max Frame
Rate
Average Network
Bandwidth (Mbps)
3840x2160
(2160p30)
Auto
30
218 (146~268)
1920x1080 (1080p)
Auto
60
133 (80~210)
1280x720 (720p)
Auto
60
147 (112~177)
1600x1200 (UXGA)
Auto
60
81 (57~105)
1280x1024 (SXGA)
Auto
60
113 (79~150)
1024x768 (XGA)
Auto
60
81 (72~120)
800x600 (SVGA)
Auto
60
66 (49~82)
640x480 (VGA)
Auto
60
43 (29~56)

18
SYSTEM TOPOLOGY AND CONFIGURATIONS
Note: Connecting or disconnecting HDMI cables while VEO devices are switched on may
result in video signal dropouts while a stable connection is re-established.

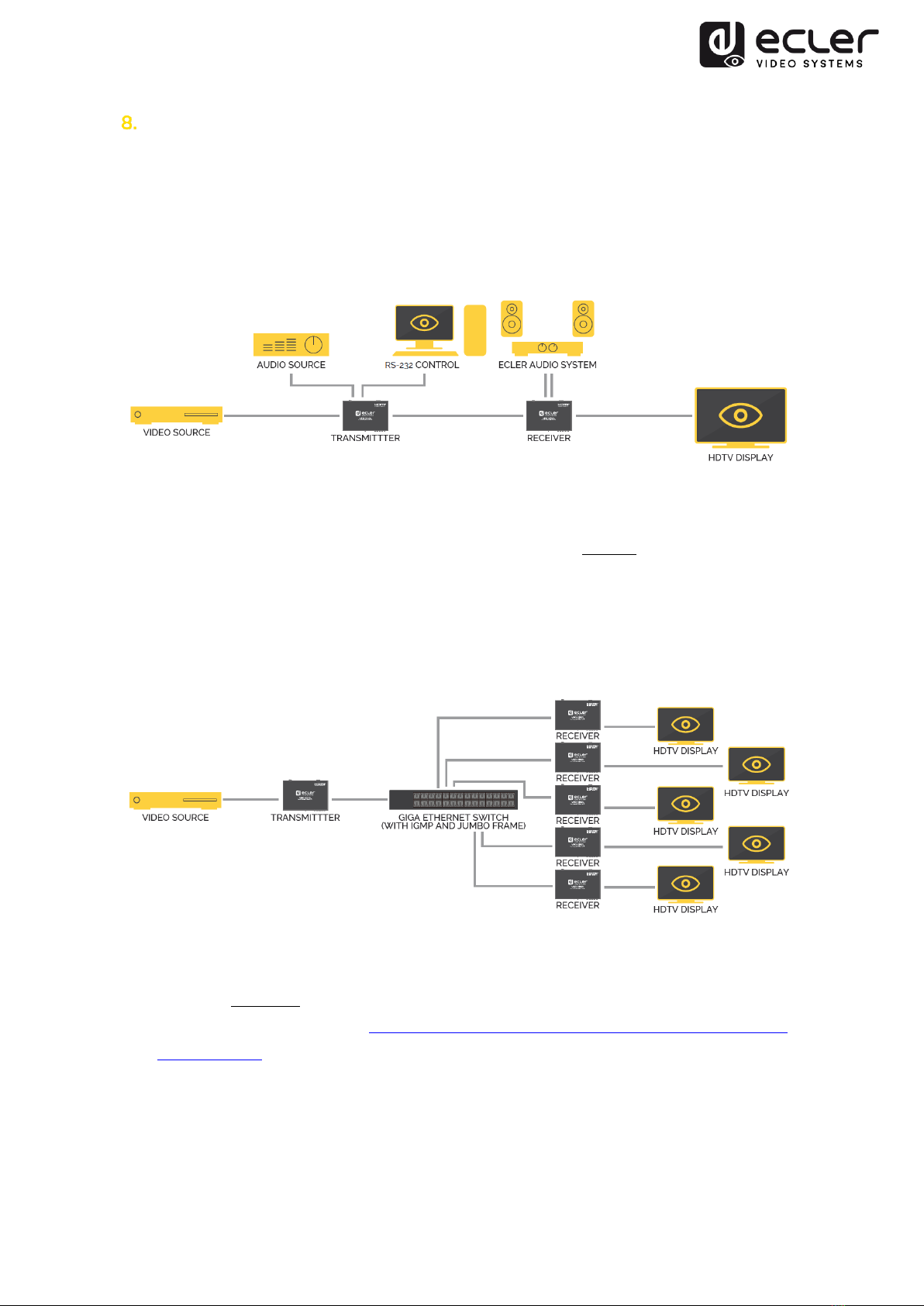

8.1. Point-to-point connection
When the VEO-XTI2L and VEO-XRI2L are connected as a simple extension within a
point-to-point topology, no configuration is required. The devices have a default setting
of "Auto IP" (169.254.x.x), and each transmitter will send a unicast video stream to the
corresponding receiver when the same Group ID is selected. Point-to-point connection is
the default.
8.2. Point-to-multipoint connections and operations
When the VEO-XTI2L and VEO-XRI2L are connected as a distribution system within a
point-to-multipoint connection, both the transmitters and the receivers must be
configured as multicast (refer to the ‘Which functions are available when operating the
devices via EclerNet Manager?’, ‘Configuring the Casting Mode using the Control Centre’
and ‘Casting Mode’ chapters in this manual). Each receiver must be set to the same group
ID as the transmitter.

19
8.3. Multipoint-to-multipoint connections and operations
When the VEO-XTI2L and VEO-XRI2L are to be used as an IP matrix system within a
multipoint-to-multipoint connection, both the transmitters and the receivers must be
configured as multicast devices. Each receiver can decode the stream related to the group
ID of the desired transmitter.
8.4. Connections for interactive applications
When it is necessary to control interactive video content via touch screens, or to have
KVM extensions (keyboard, mouse, video), the USB signals must be extended, in addition
to the video signals. Refer to the ‘USB data over IP Extension’ chapter of this manual for
further instructions.

20
8.5. Video wall mode
When the VEO-XTI2L and VEO-XRI2L are to be used in video wall mode, both the
transmitters and the receivers must be configured as multicast devices. Each receiver
must be set to the same Group ID as the transmitter, following the instructions provided
in the ‘Configuring video wall mode using the control centre’ and ‘Configuring video wall
mode using the web interface’ chapters of this manual.
In a video wall type structure, configurations should not exceed the following:
•More than 253 transmitters
•More than 64 receivers (dimensions 8x8, 64x1, etc.)
Note: In a class B network, the total number of VEO devices (transmitters and receivers)
cannot exceed 65000 units.
