further alarms tted on each upstairs landing. This includes basements but excludes crawl spaces and unnished
attics. See Figure 2 for examples.
NOTE: For maximum protection an alarm should be tted in every room (except kitchen, bathroom and garage).
DO NOT FIT AN ALARM IN THE KITCHEN OR BATHROOM, as cooking fumes or steam may trigger the alarm.
DO NOT FIT ALARM IN GARAGE, as exhaust fumes are likely to set it off.
POSITIONING THE SMOKE ALARM
Ceiling Mounting
As hot smoke rises and spreads out, it is advisable to mount
the alarm on a ceiling in a central position. Avoid areas
where there is no air circulation. e.g.corners of rooms and
keep away from items which may prevent the free ow of
air. Place the unit at least 300 mm from and light tting or
decorative object which might obstruct smoke entering the
alarm. Keep at least 300 mm away from walls. See Figure
3i.
Wall Mounting
Do not mount tight into the corners. Put the top edge of your smoke alarm between 150 and 300mm below the ceiling.
Keep at least 300mm from room corners. See Figure 3i
On a Sloping Ceiling
In areas with sloping or peaked ceilings install your Smoke Alarm 900mm from the highest point measured horizontally
because “dead air” at the apex may prevent smoke from reaching the unit. See Figure 3ii.
Figure 3i - Positioning the smoke / heat detector Figure 3ii
Areas to be avoided include the following :-
• Situations where the temperature may fall below 0°or rise above 40°
• Humid areas such as bathrooms, kitchens, shower rooms where the relative humidity may exceed 90%
• Near a decorative object, door, light tting, window molding etc., that may prevent smoke from entering the alarm.
• Fume lled environments such as garages. Exhaust gases may cause false alarms.
• Adjacent to or directly above hot components such as radiators or wall vents that can affect the direction of air
currents.
• In very dusty or dirty environments such as workshops.
• Locate unit at least 1.5m and route wiring at least 1m away for uorescent light ttings as electrical “noise” and/or
ickering may affect the unit. Do not wire into the same circuit as uorescent lights or dimmers.
• Do not locate in insect infested areas. Insects and contamination on the alarm sensor can increase its response
time.
INSTALLING THE SMOKE ALARM
WARNING – This smoke alarm is mains powered and requires wiring by a qualied electrician in accordance
with the current IEE Regulations for Electrical Installations (BS7671).
The circuit used to power the smoke alarm must be a dedicated permanent supply that cannot be switched off
accidentally by the normal user. Before installing ensure the electrical supply is isolated.
WARNING : To prevent injury, this smoke alarm must be securely attached to the ceiling/wall in accordance
with the installation instructions.
IMPORTANT A correct AC Quick Connector Plug should have a Brown, Blue, White wire on it as the conguration on
Figure A above. If the AC Quick Connector Plug does not have the correct colour order, please STOP USING IT and
contact your retailer store immediately to replace with a new AC Quick Connector.
The Smoke Alarm will function correctly either as a stand-alone alarm or inter-connected. All interconnected
Smoke Alarms must be supplied from a single power circuit.
A common neutral must be used for the interconnect to function. Do not connect the Inter-connect wire to Live
or Neutral.
• Disconnect the AC main power from the circuit that is
going to be used.
• Having established the mounting location install a junction
box suitable for locating the termination point. Ensure that
there is no other electrical wiring or pipe work in the area
adjacent to the mounting surface.
• Unlock the detector unit from the base by push back the
snap lock with a screw driver and turn the alarm unit anti-
clockwise to release it. See Figure 5 and Figure 6
• Fix mounting plate in position.
• Strip the Live / Neutral and Inter-connect (if used) wires.
• Connect the wires correctly. If the smoke alarms are to be
interconnected, connect the white wire. For Alarm that are used as single station, DO NOT CONNECT THE WHITE
WIRE TO ANYTHING. Ensure the screws are fully tightened. See Figure 6.
• The alarm must be wired in accordance with National wiring codes. LIVE - connect to house wires coloured
Brown, Red or marked with L. NEUTRAL - connect to house wires coloured Blue, Black or marked with N.
INTERCONNECT - connect to the third wire. If you are not interconnecting to other units, do not connect this wire.
• Insert a 9V battery rmly into battery compartment on the rear of the alarm. NOTE POLARITY OF CONNECTIONS.
• Ensure the metal tab is fully depressed when the battery has been tted. NOTE – For the safety of the end user, the
smoke alarm cannot be tted without its battery.
• Before assembly to base plate test the correct operation of the smoke alarm (operating from the battery only) by
depressing the test button on the front of the alarm. The unit should emit a loud pulsating alarm.
• Assemble alarm unit onto the mounting plate by turning the alarm unit counter-clockwise. See Figure 4
• Restore the AC supply by pluging the AC QUICK CONNECTOR into the back of the alarm (see Figure 4). Make sure
that the locks on the connector snap into place.
• Test the correct operation of the smoke alarm by depressing the test button on the front of the detector. The unit
should emit a loud pulsating alarm.
• Should use 2.1mm wire for connection.
OPERATING YOUR SMOKE ALARM
Once the smoke alarm has been installed a small GREEN indicator light (LED) should be visible through the alarm
grill indicating that AC supply is healthy. A RED indicator light (LED) should also ash approximately once a minute to
indicate the battery is healthy and the unit is operating properly.
If smoke is detected, the unit will emit a load pulsating alarm and a RED indicator light (LED) will be ashing quickly at
the same time until the air is clear.
TESTING YOUR SMOKE ALARM
It is recommended that you test your smoke alarm once a week to ensure the detector is working correctly.
Push and hold the test button for approximately 3 seconds. A loud pulsating alarm should sound and a RED indicator
light (LED) will ash at the same time.
NOTE – for multiple interconnected smoke alarms, only the RED indicator light (LED) of the originating unit will ash
rapidly. All other units in the interconnect system will sound an alarm but their RED indicator light (LED) will NOT ash.
Test each alarm checking that the alarm is triggered on all other alarms installed.
HUSH OR SILENCE FEATURE
This Smoke Alarm has a built-in Hush or Silence feature incorporated into the
Test button. If cooking or other non-hazardous sources cause the unwanted
alarm, it can be temporarily silenced by depressing the test button and holding
for approximately 3 seconds. The alarm will enter a dormant period for 10
minutes. The red LED will ash every 10 seconds to indicate the sensitivity is
reduced. At the end of the hush period the alarm will reset to normal sensitivity.
NOTE – If the smoke density increase during this period (i.e. from a re) the unit
will go into alarm mode.
LOW BATTERY WARNING
If the smoke alarm emits a short ‘beep’ once a minute the battery is at the end
of its life and should be replaced immediately. This low voltage warning will be
given for at least 30 days. In this case, the other interconnected units in the
system which are not in low battery condition will chirps for a few seconds once
an hour as long as the detector with the “dead” battery beeps. If the red indicator
light (LED) does not ash every minute then replace the battery.
MAINTAINING YOUR SMOKE ALARM
Clean your smoke alarm at least once every six months to prevent dust build up. This can be done using a vacuum
cleaner with the brush attachment. Clean gently around the front grilled section and sides. The apparatus shall not be
exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.
220~240V
AC OPERATED
INTERCONNECTABLE
PHOTOELECTRIC SMOKE
ALARM
MODEL: SGD1236
(With 9V Battery Back-up)
Main Features :
This instruction leaflet contains important information on
the correct installation and operation of your smoke alarm.
Read this leaflet fully before attempting installation and
retain for future reference.
SPECIFICATION
Power Source : 220-240Vac~ 50-60Hz with 9V
battery back-up (battery included)
Battery Back-up
Battery Back-up Life : In the event of a break in the mains supply
the battery will give detector operation for
1 month minimum
Operation Current : <40mA operation (In Alarm)
Sensitivity to smoke : 0.08-0.18db/m
Operation Temperature : 0
o
C - 40
o
C
Ambient Humidity : 10%-90%
Alarm Sound Level : 85 Decibels at 3 metres
Interconnect facility : 20 smoke detector over 150
metres maximum
Approved to : BS EN14604:2005

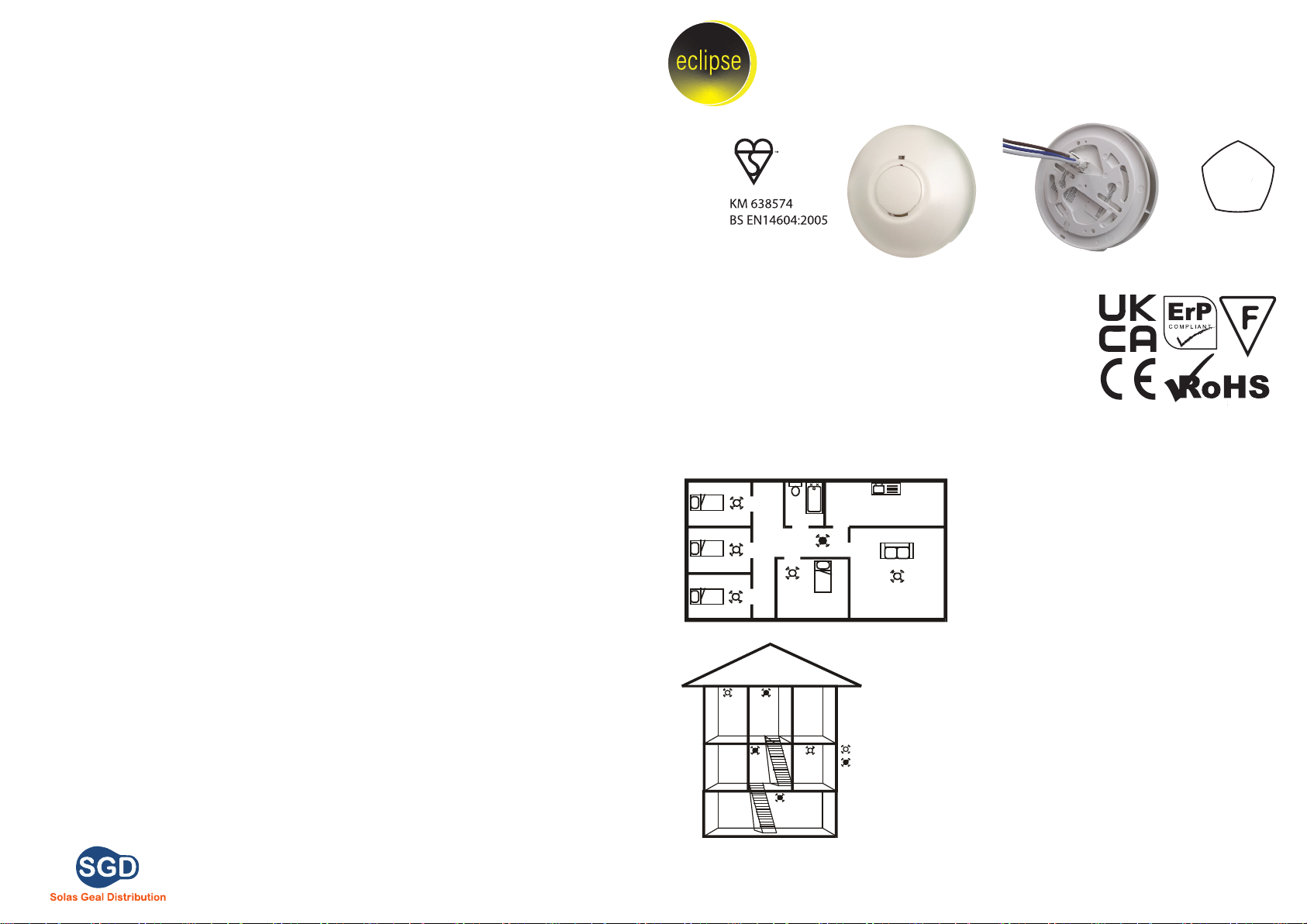

PRODUCT DESCRIPTION
LOCATING THE SMOKE ALARM
If your dwelling is multi-storey, for minimum protection one alarm
should be fitted at the bottom of the staircase with further alarms fitted
on each upstairs landing. This includes basements but excludes crawl
spaces and unfinished attics. See Figure 2 for examples.
NOTE: For maximum protection an alarm should be fitted in every
room (except kitchen, bathroom and garage).
DO NOT FIT AN ALARM IN THE KITCHEN OR BATHROOM, as
cooking fumes or steam may trigger the alarm.
DO NOT FIT ALARM IN GARAGE, as exhaust fumes are likely to set
it off.
POSITIONING THE SMOKE ALARM
Ceiling Mounting
As hot smoke rises and spread out, it is advisable to mount on a
ceiling in a central position. Avoid areas where there is no air
circulation. E.g. Corners of rooms and keep away from items
which may prevent the free flow of air. Place the unit at least 300
mm from and light fitting or decorative object which might obstruct
smoke entering the alarm. Keep at least 300 mm away from walls.
See Figure 3i.
Wall Mounting
Do not mount tight into the corners. Put the top edge of your
smoke alarm between 150 and 300mm below the ceiling. Keep at
least 300mm from room corners. See Figure 3i
On a Sloping Ceiling
In areas with sloping or peaked ceilings install your Smoke Alarm
900mm from the highest point measured horizontally because
“dead air” at the apex may prevent smoke from reaching the unit.
See Figure 3ii.
Areas to be avoided include the following :-
Situations where the temperature may fall below 0℃or
rise above 40℃
Humid areas such as bathrooms, kitchens, shower rooms
where the relative humidity may exceed 90%
Near a decorative object, door, light fitting, window molding
etc., that may prevent smoke from entering the alarm.
Fume filled environments such as garages. Exhaust gases
may cause false alarms.
Adjacent to or directly above hot components such as
radiators or wall vents that can affect the direction of air
currents.
In very dusty or dirty environments such as workshops.
Locate unit at least 1.5m and route wiring at least 1m away
for fluorescent light fittings as electrical “noise” and/or
flickering may affect the unit. Do not wire into the same circuit
as fluorescent lights or dimmers.
Do not locate in insect infested areas. Insects and contamination on
the alarm sensor can increase its response time.
INSTALLING THE SMOKE ALARM
WARNING – This smoke alarm is mains powered and requires
wiring by a qualified electrician in accordance with the current
IEE Regulations for Electrical Installations (BS7671).
The circuit used to power the smoke alarm must be a dedicated
permanent supply that cannot be switched off accidentally by the
normal user. Before installing ensure the electrical supply is isolated.
WARNING : To prevent injury, this smoke alarm must be securely
attached to the ceiling/wall in accordance with the installation
instructions.
Figure A
! Important ! A correct AC Quick Connector Plug should have a
Brown, Blue, White wire on it as the configura�on on Figure A
above. If the AC Quick Connector Plug does not have the correct
color order, please STOP USING IT and contact your retailer
store immediately to replace for a new AC Quick Connector.
The Smoke Alarm will function correctly either as a stand-alone
alarm or inter-connected.
All interconnected Smoke Alarms must be supplied from a
single power circuit.
A common neutral must be used for the interconnect to function.
Do not connect the Inter-connect wire to Live or Neutral.
Disconnect the AC main power from the circuit that is going to be
used.
Having established the mounting location install a junction box
suitable for locating the termination point. Ensure that there is no
other electrical wiring or pipe work in the area adjacent to the
mounting surface.
Unlock the detector unit from the base by push back the snap lock
with a screw driver and turn the alarm unit anti-clockwise to release
it. See Figure 5 and Figure 6
Fix mounting plate in position.
Strip the Live / Neutral and Inter-connect (if used) wires.
Connect the wires correctly. If the smoke alarms are to be
interconnected, connect the white wire. For Alarm that are used as
single
station, DO NOT CONNECT THE WHITE WIRE TO ANYTHING.
Ensure the screws are fully tightened. See Figure 6.
The alarm must be wired in accordance with National wiring codes.
LIVE - connect to house wires coloured Brown, Red or marked
with L.
LIVING
ROOM
BATHROOM
KITCHEN
BEDROOM
BEDROOM
BEDROOM
BEDROOM
HALL
LANDING
HALL
BATHROOMBEDROOM
LIVING
ROOM
KITCHEN
BASEMENT
MAXIMUM PROTECTION
MINIMUM PROTECTION
KEY
FIGURE 1 - SINGLE STOREY DWELLING
FIGURE 2 - 2/3 STOREY DWELLING
eclipse
2797-CPR-638573
KM 638574
BS
EN14604:2005
NEUTRAL -
connect to house wires coloured Blue, Black or marked with N.
Figure 3i - Positioning the smoke / heat detector Figure 3ii
CEILING
BEST IN CENTRE OF ROOM
15 cm Min.
Do not mount lower
than 30 cm
DEAD AIR SPACE,
Do not mount
within this area
900 mm
(3 ft)
CLASS II
APPARATUS
• Photoelectric Sensor For Slow
Smoldering Fires
• Power / Alarm Test Button
• HUSH FEATURE
• Battery Back-Up
• Low Battery Warning
• INTERCONNECTABLE (UP TO 20 HEAT
AND/OR SMOKE ALARMS)
• Kitemark Approved – BS EN14604:
2005
• Supplied with Fixing Kit
• Loud 85dB Alarm Signal
• Fault signal
: 9V DC Carbon Zinc Battery (Peak
Power 1604E Golden Power 1604D,
Gold Peak 1604P),
Alkaline Battery (Gold Peak 1604A,
Energizer 522, Duracell MN1604) or
Lithium Battery (EVE CR9V/P)
All the Smoke Alarms should be interconnected to ensure the
early warning will be heard, particularly by somebody sleeping. A
properly designed early warning fire system ensures the alarm is
given before the escape routes become blocked with smoke.
If your dwelling is on a single storey, for minimum protection you
should fit an alarm in a corridor or hallway between the sleeping
and living areas (incl. Kitchens). Place it as near to the living
areas as possible and ensure the audible alarm can be heard
when the bedrooms are occupied. See Figure 1 for examples.
SGD1236 is a multiple station photoelectric smoke alarm and can
be connected to other alarms of the same make and type. This
interconnect feature allow up to 20 units to be connected together
over 150 metres maximum, using the single white wire, and thus
allowing all alarms to sound when any one is activated.
Note: This smoke alarm cannot be connected to any other
device such as a fire alarm panel.
INTERCONNECT - connect to the third wire. If you are
not interconnecting to other units, do no
t connect this wire.
Insert a 9V battery firmly into battery compartment on
the rear of the alarm. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully depressed
when the battery has been
fitted.
NOTE – For the safety of the
end user, the smoke alarm
cannot be fitted without its
battery.
Before assembly to base
plate test the correct
operation of the smoke
alarm (operating from the
battery only) by depressing
the test button on the front of
the alarm. The unit should emit a loud pulsating alarm.
Assemble alarm unit onto the mounting plate by turning
the alarm unit counter-clockwise. See Figure 4
Restore the AC supply by pluging the AC QUICK
CONNECTOR into the back of the alarm (see Figure 4).
Make sure that the locks on the connector snap into place.
Test the correct operation of the smoke alarm by
depressing the test button on the front of the detector.
The unit should emit a loud pulsating alarm.
Should use 2.1mm wire for connection.
OPERATING YOUR SMOKE ALARM
Once the smoke alarm has been installed a small GREEN indicator light
(LED) should be visible through the alarm grill indicating that AC supply
is healthy. A RED indicator light (LED) should also flash approximately
once a minute to indicate the battery is healthy and the unit is operating
properly.
If smoke is detected, the unit will emit a load pulsating alarm and a RED
indicator light (LED) will be flashing quickly at the same time until the
air is clear.
TESTING YOUR SMOKE ALARM
It is recommended that you test your smoke alarm once a week to
ensure the detector is working correctly.
Push and hold the test button for approximately 3 seconds. A loud
pulsating alarm should sound and a RED indicator light (LED) will
flash at the same time.
NOTE – for multiple interconnected smoke alarms, only the RED
indicator light (LED) of the originating unit will flash rapidly. All other
units in the interconnect system will sound an alarm but their RED
indicator light (LED) will NOT flash. Test each alarm checking that the
alarm is triggered on all other alarms installed.
HUSH OR SILENCE FEATURE
This Smoke Alarm has a built-in Hush or Silence feature incorporated
into the Test button. If cooking or other non-hazardous sources
cause the unwanted alarm, it can be temporarily silenced by depressing
the test button and holding for approximately 3 seconds. The alarm
will enter a dormant period for 10 minutes. The red LED will flash
every 10 seconds to indicate the sensitivity is reduced. At the end of
the hush period the alarm will reset to normal sensitivity.
NOTE – If the smoke density increase during this period (i.e. from a fire)
the unit will go into alarm mode.
LOW BATTERY WARNING
If the smoke alarm emits a short ‘beep’ once a minute the battery is at
the end of its life and should be replaced immediately. This low voltage
warning will be given for at least 30 days. In this case, the other
interconnected units in the system which are not in low battery condition
will chirps for a few seconds once an hour as long as the detector with
the “dead” battery beeps.
If the red indicator light (LED) does not flash every minute then replace
the battery.
MAINTAINING YOUR SMOKE ALARM
Clean your smoke alarm at least once every six months to prevent dust
build up. This can be done using a vacuum cleaner with the brush
attachment. Clean gently around the front grilled section and sides.
The apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the app
aratus.
BATTERY REPLACEMENT
Always TURN OFF the A.C. supply to the Smoke Alarm before
replacing the battery. Replace the battery at least once annually, or
immediately when the low battery signal sounds once a minute,
even though the Smoke Alarm is receiving A.C. power.
Test the alarm for correct operation using the test facility
whenever the battery is replaced.
WARNING: DANGER OF EXPLOSION IF BATTERY
IS INCORRECTLY REPLACED. THE USE OF BATTERIES
OTHER THAN THOSE RECOMMENDED ON THE BACK OF
THE SMOKE ALARM MAY BE DETRIMENTAL TO ITS
OPERATION
The battery should only be replaced by a qualified electrician
or similarly qualified person.
Turn off the A C power supply to the Smoke Alarm.
Gently unlock the detector unit from the base by push
back the snap lock with a screw driver and turn the alarm
unit clockwise to release it. See Figure 5 and Figure 6
Remove the battery from the compartment.
Insert a new, healthy 9V battery. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully
depressed when the battery has been fitted
Using the Push-to-Test button, test the smoke alarm to verify
9V DC battery back-up. See “TESTING YOUR SMOKE
ALARM”
Reattached the Smoke alarm to the mounting plate by
rotating the alarm unit counter-clockwise until the it snaps
into place. (see Figure 4)
Turn on the AC power and test the Smoke Alarm using the
Push-to-Test button. See “TESTING YOUR SMOKE ALARM”
IMPORTANT SAFEGUARDS
Installation of your smoke alarm is only one step in your safety plan.
Other important steps should be taken to further improve your safety:-
Install the smoke alarm properly, following this instruction
leaflet
Test your smoke alarm weekly
Replace the battery immediately once depleted
Do not smoke in bed
Keep matches & lighters away from children
Store flammable materials in a proper manner and never use
them near naked flames or sparks
Maintain emergency equipment such as Fire Extinguishers,
escape ladders etc and ensure all occupants know how to
use them correctly.
Plan an escape route/s from your building in advance and
ensure all occupants are aware of them. Re-enforce this
awareness periodically through-out the year.
Make sure escape routes remain free of any obstructions.
IS DUE TO AN ACTUAL FIRE AND THE DWELLING SHOULD BE
EVACUATED IMMEDIATELY.
THIS PRODUCT IS A SEALED UNIT AND CANNOT BE REPAIRED – IF
THE UNIT IS TAMPERED WITH IT WILL INVALIDATE THE WARRANTY.
IF THE UNIT IS FAULTY PLEASE RETURN IT TO YOUR ORIGINAL
SUPPLIER WITH YOUR PROOF OF PURCHASE.
YOUR SMOKE ALARM WARRANTY
These smoke alarms are warranty to be free from defects in materials and
workmanships under normal use and service for a period of five years
from date of purchase. The company will not be obligated to repair or
replace parts which are found to be in need of repair because of misuse,
damage or alterations occur after the date of purchase. Send the
Smoke Alarm with proof of purchase, postage and return postage prepaid,
to local distributor. The liability of the company arising from the sale of
this smoke alarm shall not in any case exceed the cost of replacement of
smoke alarm and in no case shall the company be liable for consequential
loss or damages resulting from the failure of the smoke alarm.
SOLAS GEAL DISTRIBUTION LTD. SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY OR PROPERTY DAMAGE, OR ANY SPECIAL
INCIDENTAL, CONTINGENT OR CONSEQUENTIAL DAMAGE OF ANY
KIND RESULTING FROM A FIRE. THE EXCLUSIVE REMEDY FOR
BREACH OF THE LIMITED WARRANTY CONTAINED HEREIN IS THE
REPAIR OR REPLACEMENT OF THE DETECTIVE PRODUCT AT
SOLAS GEAL DISTRIBUTION LTD. OPTION. IN NO CASE SHALL
SOLAS GEAL DISTRIBUTION LTD.’S LIABILITY UNDER ANY OTHER
REMEDY PRESCRIBED BY LAW EXCEED THE PURCHASE PRICE.
YOUR SMOKE ALARMS IS NOT A SUBSTITUTE FOR PROPERTY,
DISABILITY, LIFE OR OTHER INSURANCE OF ANY KIND.
APPROPRIATE COVERAGE IS YOUR RESPONSIBILITY. CONSULT
YOUR INSURANCE AGENT.
This does not affect your statutory rights.
This alarm is only suitable for single occupancy private dwellings only and
not intended for multi occupancy private dwellings or commercial or
industrial dwellings.
Waste electrical products should not be disposed of with normal
household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice. New regulation will
encourage the recycling of Waste from Electrical and Electronic
Equipment (European "WEEE Directive" effective August 2005).
Importer: Solas Geal Distribution Ltd.
Unit 8 Ashbourne Business Centre,
Ballybin Road, Ashbourne, Co. Meath,
Ireland
Ver: 13-MAY-2017
Figure 5
Turn the alarm units clockwise until the snap lock
engages.
Figure 6 – Push Back the snap lock and turn the
Alarm anti-clockwise
Figure 4
Plug the AC QUICK
CONNECTOR into the
back of the alarm.
WARNING: IF THERE IS ANY QUESTION AS TO THE CAUSE
OF AN ALARM IT SHOULD BE ASSUMED THAT THE ALARM
unlock
220~240V
AC OPERATED
INTERCONNECTABLE
PHOTOELECTRIC SMOKE
ALARM
MODEL: SGD1236
(With 9V Battery Back-up)
Main Features :
This instruction leaflet contains important information on
the correct installation and operation of your smoke alarm.
Read this leaflet fully before attempting installation and
retain for future reference.
SPECIFICATION
Power Source : 220-240Vac~ 50-60Hz with 9V
battery back-up (battery included)
Battery Back-up
Battery Back-up Life : In the event of a break in the mains supply
the battery will give detector operation for
1 month minimum
Operation Current : <40mA operation (In Alarm)
Sensitivity to smoke : 0.08-0.18db/m
Operation Temperature : 0
o
C - 40
o
C
Ambient Humidity : 10%-90%
Alarm Sound Level : 85 Decibels at 3 metres
Interconnect facility : 20 smoke detector over 150
metres maximum
Approved to : BS EN14604:2005
PRODUCT DESCRIPTION
LOCATING THE SMOKE ALARM
If your dwelling is multi-storey, for minimum protection one alarm
should be fitted at the bottom of the staircase with further alarms fitted
on each upstairs landing. This includes basements but excludes crawl
spaces and unfinished attics. See Figure 2 for examples.
NOTE: For maximum protection an alarm should be fitted in every
room (except kitchen, bathroom and garage).
DO NOT FIT AN ALARM IN THE KITCHEN OR BATHROOM, as
cooking fumes or steam may trigger the alarm.
DO NOT FIT ALARM IN GARAGE, as exhaust fumes are likely to set
it off.
POSITIONING THE SMOKE ALARM
Ceiling Mounting
As hot smoke rises and spread out, it is advisable to mount on a
ceiling in a central position. Avoid areas where there is no air
circulation. E.g. Corners of rooms and keep away from items
which may prevent the free flow of air. Place the unit at least 300
mm from and light fitting or decorative object which might obstruct
smoke entering the alarm. Keep at least 300 mm away from walls.
See Figure 3i.
Wall Mounting
Do not mount tight into the corners. Put the top edge of your
smoke alarm between 150 and 300mm below the ceiling. Keep at
least 300mm from room corners. See Figure 3i
On a Sloping Ceiling
In areas with sloping or peaked ceilings install your Smoke Alarm
900mm from the highest point measured horizontally because
“dead air” at the apex may prevent smoke from reaching the unit.
See Figure 3ii.
Areas to be avoided include the following :-
Situations where the temperature may fall below 0℃or
rise above 40℃
Humid areas such as bathrooms, kitchens, shower rooms
where the relative humidity may exceed 90%
Near a decorative object, door, light fitting, window molding
etc., that may prevent smoke from entering the alarm.
Fume filled environments such as garages. Exhaust gases
may cause false alarms.
Adjacent to or directly above hot components such as
radiators or wall vents that can affect the direction of air
currents.
In very dusty or dirty environments such as workshops.
Locate unit at least 1.5m and route wiring at least 1m away
for fluorescent light fittings as electrical “noise” and/or
flickering may affect the unit. Do not wire into the same circuit
as fluorescent lights or dimmers.
Do not locate in insect infested areas. Insects and contamination on
the alarm sensor can increase its response time.
INSTALLING THE SMOKE ALARM
WARNING – This smoke alarm is mains powered and requires
wiring by a qualified electrician in accordance with the current
IEE Regulations for Electrical Installations (BS7671).
The circuit used to power the smoke alarm must be a dedicated
permanent supply that cannot be switched off accidentally by the
normal user. Before installing ensure the electrical supply isisolated.
WARNING : To prevent injury, this smoke alarm must be securely
attached to the ceiling/wall in accordance with the installation
instructions.
F
igure A
! Important ! A correct AC Quick Connector Plug should have a
Brown, Blue, White wire on it as the configura�on on Figure A
above. If the AC Quick Connector Plug does not have the correct
color order, please STOP USING IT and contact your retailer
store immediately to replace for a new AC Quick Connector.
The Smoke Alarm will function correctly either as a stand-alone
alarm or inter-connected.
All interconnected Smoke Alarms must be supplied from a
single power circuit.
A common neutral must be used for the interconnect to function.
Do not connect the Inter-connect wire to Liveor Neutral.
Disconnect the AC main power from the circuit that is going to be
used.
Having established the mounting location install a junction box
suitable for locating the termination point. Ensure that there is no
other electrical wiring or pipe work in the area adjacent to the
mounting surface.
Unlock the detector unit from the base by push back the snap lock
with a screw driver and turn the alarm unit anti-clockwise to release
it. See Figure 5 and Figure 6
Fix mounting plate in position.
Strip the Live / Neutral and Inter-connect (if used) wires.
Connect the wires correctly. If the smoke alarms are to be
interconnected, connect the white wire. For Alarm that are used as
single
station, DO NOT CONNECT THE WHITE WIRE TO ANYTHING.
Ensure the screws are fully tightened. See Figure 6.
The alarm must be wired in accordance with National wiring codes.
LIVE - connect to house wires coloured Brown, Red or marked
with L.
LIVING
ROOM
BATHROOM
KITCHEN
BEDROOM
BEDROOM
BEDROOM
BEDROOM
HALL
LANDING
HALL
BATHROOMBEDROOM
LIVING
ROOM
KITCHEN
BASEMENT
MAXIMUM PROTECTION
MINIMUM PROTECTION
KEY
FIGURE 1 - SINGLE STOREY DWELLING
FIGURE 2 - 2/3 STOREY DWELLING
eclipse
2797-CPR-638573
KM 638574
BS
EN14604:2005
NEUTRAL -
connect to house wires coloured Blue, Black or marked with N.
Figure 3i - Positioning the smoke / heat detector Figure 3ii
CEILING 30 cm
BEST IN CENTRE OF ROOM
15 cm Min.
Do not mount lower
than 30 cm
DEAD AIR SPACE,
Do not mount
within this area
WALL
900 mm
(3 ft)
CLASS II
APPARATUS
• Photoelectric Sensor For Slow
Smoldering Fires
• Power / Alarm Test Button
• HUSH FEATURE
• Battery Back-Up
• Low Battery Warning
• INTERCONNECTABLE (UP TO 20 HEAT
AND/OR SMOKE ALARMS)
• Kitemark Approved – BS EN14604:
2005
• Supplied with Fixing Kit
• Loud 85dB Alarm Signal
• Fault signal
: 9V DC Carbon Zinc Battery (Peak
Power 1604E Golden Power 1604D,
Gold Peak 1604P),
Alkaline Battery (Gold Peak 1604A,
Energizer 522, Duracell MN1604) or
Lithium Battery (EVE CR9V/P)
All the Smoke Alarms should be interconnected to ensure the
early warning will be heard, particularly by somebody sleeping. A
properly designed early warning fire system ensures the alarm is
given before the escape routes become blocked with smoke.
If your dwelling is on a single storey, for minimum protection you
should fit an alarm in a corridor or hallway between the sleeping
and living areas (incl. Kitchens). Place it as near to the living
areas as possible and ensure the audible alarm can be heard
when the bedrooms are occupied. See Figure 1 for examples.
SGD1236 is a multiple station photoelectric smoke alarm and can
be connected to other alarms of the same make and type. This
interconnect feature allow up to 20 units to be connected together
over 150 metres maximum, using the single white wire, and thus
allowing all alarms to sound when any one is activated.
Note: This smoke alarm cannot be connected to any other
device such as a fire alarm panel.
INTERCONNECT - connect to the third wire. If you are
not interconnecting to other units, do no
t connect this wire.
Insert a 9V battery firmly into battery compartment on
the rear of the alarm. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully depressed
when the battery has been
fitted.
NOTE – For the safety of the
end user, the smoke alarm
cannot be fitted without its
battery.
Before assembly to base
plate test the correct
operation of the smoke
alarm (operating from the
battery only) by depressing
the test button on the front of
the alarm. The unit should emit a loud pulsating alarm.
Assemble alarm unit onto the mounting plate by turning
the alarm unit counter-clockwise. See Figure 4
Restore the AC supply by pluging the AC QUICK
CONNECTOR into the back of the alarm (see Figure 4).
Make sure that the locks on the connector snap into place.
Test the correct operation of the smoke alarm by
depressing the test button on the front of the detector.
The unit should emit a loud pulsating alarm.
Should use 2.1mm wire for connection.
OPERATING YOUR SMOKE ALARM
Once the smoke alarm has been installed a small GREEN indicator light
(LED) should be visible through the alarm grill indicating that AC supply
is healthy. A RED indicator light (LED) should also flash approximately
once a minute to indicate the battery is healthy and the unit is operating
properly.
If smoke is detected, the unit will emit a load pulsating alarm and a RED
indicator light (LED) will be flashing quickly at the same time until the
air is clear.
TESTING YOUR SMOKE ALARM
It is recommended that you test your smoke alarm once a week to
ensure the detector is working correctly.
Push and hold the test button for approximately 3 seconds. A loud
pulsating alarm should sound and a RED indicator light (LED) will
flash at the same time.
NOTE – for multiple interconnected smoke alarms, only the RED
indicator light (LED) of the originating unit will flash rapidly. All other
units in the interconnect system will sound an alarm but their RED
indicator light (LED) will NOT flash. Test each alarm checking that the
alarm is triggered on all other alarms installed.
HUSH OR SILENCE FEATURE
This Smoke Alarm has a built-in Hush or Silence feature incorporated
into the Test button. If cooking or other non-hazardous sources
cause the unwanted alarm, it can be temporarily silenced by depressing
the test button and holding for approximately 3 seconds. The alarm
will enter a dormant period for 10 minutes. The red LED will flash
every 10 seconds to indicate the sensitivity is reduced. At the end of
the hush period the alarm will reset to normal sensitivity.
NOTE – If the smoke density increase during this period (i.e. from a fire)
the unit will go into alarm mode.
LOW BATTERY WARNING
If the smoke alarm emits a short ‘beep’ once a minute the battery is at
the end of its life and should be replaced immediately. This low voltage
warning will be given for at least 30 days. In this case, the other
interconnected units in the system which are not in low battery condition
will chirps for a few seconds once an hour as long as the detector with
the “dead” battery beeps.
If the red indicator light (LED) does not flash every minute then replace
the battery.
MAINTAINING YOUR SMOKE ALARM
Clean your smoke alarm at least once every six months to prevent dust
build up. This can be done using a vacuum cleaner with the brush
attachment. Clean gently around the front grilled section and sides.
The apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the app
aratus.
BATTERY REPLACEMENT
Always TURN OFF the A.C. supply to the Smoke Alarm before
replacing the battery. Replace the battery at least once annually, or
immediately when the low battery signal sounds once a minute,
even though the Smoke Alarm is receiving A.C. power.
Test the alarm for correct operation using the test facility
whenever the battery is replaced.
WARNING: DANGER OF EXPLOSION IF BATTERY
IS INCORRECTLY REPLACED. THE USE OF BATTERIES
OTHER THAN THOSE RECOMMENDED ON THE BACK OF
THE SMOKE ALARM MAY BE DETRIMENTAL TO ITS
OPERATION
The battery should only be replaced by a qualified electrician
or similarly qualified person.
Turn off the A C power supply to the Smoke Alarm.
Gently unlock the detector unit from the base by push
back the snap lock with a screw driver and turn the alarm
unit clockwise to release it. See Figure 5 and Figure 6
Remove the battery from the compartment.
Insert a new, healthy 9V battery. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully
depressed when the battery has been fitted
Using the Push-to-Test button, test the smoke alarm to verify
9V DC battery back-up. See “TESTING YOUR SMOKE
ALARM”
Reattached the Smoke alarm to the mounting plate by
rotating the alarm unit counter-clockwise until the it snaps
into place. (see Figure 4)
Turn on the AC power and test the Smoke Alarm using the
Push-to-Test button. See “TESTING YOUR SMOKE ALARM”
IMPORTANT SAFEGUARDS
Installation of your smoke alarm is only one step in your safety plan.
Other important steps should be taken to further improve your safety:-
Install the smoke alarm properly, following this instruction
leaflet
Test your smoke alarm weekly
Replace the battery immediately once depleted
Do not smoke in bed
Keep matches & lighters away from children
Store flammable materials in a proper manner and never use
them near naked flames or sparks
Maintain emergency equipment such as Fire Extinguishers,
escape ladders etc and ensure all occupants know how to
use them correctly.
Plan an escape route/s from your building in advance and
ensure all occupants are aware of them. Re-enforce this
awareness periodically through-out the year.
Make sure escape routes remain free of any obstructions.
IS DUE TO AN ACTUAL FIRE AND THE DWELLING SHOULD BE
EVACUATED IMMEDIATELY.
THIS PRODUCT IS A SEALED UNIT AND CANNOT BE REPAIRED – IF
THE UNIT IS TAMPERED WITH IT WILL INVALIDATE THE WARRANTY.
IF THE UNIT IS FAULTY PLEASE RETURN IT TO YOUR ORIGINAL
SUPPLIER WITH YOUR PROOF OF PURCHASE.
YOUR SMOKE ALARM WARRANTY
These smoke alarms are warranty to be free from defects in materials and
workmanships under normal use and service for a period of five years
from date of purchase. The company will not be obligated to repair or
replace parts which are found to be in need of repair because of misuse,
damage or alterations occur after the date of purchase. Send the
Smoke Alarm with proof of purchase, postage and return postage prepaid,
to local distributor. The liability of the company arising from the sale of
this smoke alarm shall not in any case exceed the cost of replacement of
smoke alarm and in no case shall the company be liable for consequential
loss or damages resulting from the failure of the smoke alarm.
SOLAS GEAL DISTRIBUTION LTD. SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY OR PROPERTY DAMAGE, OR ANY SPECIAL
INCIDENTAL, CONTINGENT OR CONSEQUENTIAL DAMAGE OF ANY
KIND RESULTING FROM A FIRE. THE EXCLUSIVE REMEDY FOR
BREACH OF THE LIMITED WARRANTY CONTAINED HEREIN IS THE
REPAIR OR REPLACEMENT OF THE DETECTIVE PRODUCT AT
SOLAS GEAL DISTRIBUTION LTD. OPTION. IN NO CASE SHALL
SOLAS GEAL DISTRIBUTION LTD.’S LIABILITY UNDER ANY OTHER
REMEDY PRESCRIBED BY LAW EXCEED THE PURCHASE PRICE.
YOUR SMOKE ALARMS IS NOT A SUBSTITUTE FOR PROPERTY,
DISABILITY, LIFE OR OTHER INSURANCE OF ANY KIND.
APPROPRIATE COVERAGE IS YOUR RESPONSIBILITY. CONSULT
YOUR INSURANCE AGENT.
This does not affect your statutory rights.
This alarm is only suitable for single occupancy private dwellings only and
not intended for multi occupancy private dwellings or commercial or
industrial dwellings.
Waste electrical products should not be disposed of with normal
household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice. New regulation will
encourage the recycling of Waste from Electrical and Electronic
Equipment (European "WEEE Directive" effective August 2005).
Importer: Solas Geal Distribution Ltd.
Unit 8 Ashbourne Business Centre,
Ballybin Road, Ashbourne, Co. Meath,
Ireland
Ver: 13-MAY-2017
Figure 5
Turn the alarm units clockwise until the snap lock
engages.
Figure 6 – Push Back the snap lock and turn the
Alarm anti-clockwise
Figure 4
Plug the AC QUICK
CONNECTOR into the
back of the alarm.
WARNING: IF THERE IS ANY QUESTION AS TO THE CAUSE
OF AN ALARM IT SHOULD BE ASSUMED THAT THE ALARM
unlock
Insert a 9V battery firmly into battery compartment on
the rear of the alarm. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully depressed
when the battery has been
fitted.
NOTE – For the safety of the
end user, the smoke alarm
cannot be fitted without its
battery.
Before assembly to base
plate test the correct
operation of the smoke
alarm (operating from the
battery only) by depressing
the test button on the front of
the alarm. The unit should emit a loud pulsating alarm.
Assemble alarm unit onto the mounting plate by turning
the alarm unit counter-clockwise. See Figure 4
Restore the AC supply by pluging the AC QUICK
CONNECTOR into the back of the alarm (see Figure 4).
Make sure that the locks on the connector snap into place.
Test the correct operation of the smoke alarm by
depressing the test button on the front of the detector.
The unit should emit a loud pulsating alarm.
Should use 2.1mm wire for connection.
OPERATING YOUR SMOKE ALARM
Once the smoke alarm has been installed a small GREEN indicator light
(LED) should be visible through the alarm grill indicating that AC supply
is healthy. A RED indicator light (LED) should also flash approximately
once a minute to indicate the battery is healthy and the unit is operating
properly.
If smoke is detected, the unit will emit a load pulsating alarm and a RED
indicator light (LED) will be flashing quickly at the same time until the
air is clear.
TESTING YOUR SMOKE ALARM
It is recommended that you test your smoke alarm once a week to
ensure the detector is working correctly.
Push and hold the test button for approximately 3 seconds. A loud
pulsating alarm should sound and a RED indicator light (LED) will
flash at the same time.
NOTE – for multiple interconnected smoke alarms, only the RED
indicator light (LED) of the originating unit will flash rapidly. All other
units in the interconnect system will sound an alarm but their RED
indicator light (LED) will NOT flash. Test each alarm checking that the
alarm is triggered on all other alarms installed.
HUSH OR SILENCE FEATURE
This Smoke Alarm has a built-in Hush or Silence feature incorporated
into the Test button. If cooking or other non-hazardous sources
cause the unwanted alarm, it can be temporarily silenced by depressing
the test button and holding for approximately 3 seconds. The alarm
will enter a dormant period for 10 minutes. The red LED will flash
every 10 seconds to indicate the sensitivity is reduced. At the end of
the hush period the alarm will reset to normal sensitivity.
NOTE – If the smoke density increase during this period (i.e. from a fire)
the unit will go into alarm mode.
LOW BATTERY WARNING
If the smoke alarm emits a short ‘beep’ once a minute the battery is at
the end of its life and should be replaced immediately. This low voltage
warning will be given for at least 30 days. In this case, the other
interconnected units in the system which are not in low battery condition
will chirps for a few seconds once an hour as long as the detector with
the “dead” battery beeps.
If the red indicator light (LED) does not flash every minute then replace
the battery.
MAINTAINING YOUR SMOKE ALARM
Clean your smoke alarm at least once every six months to prevent dust
build up. This can be done using a vacuum cleaner with the brush
attachment. Clean gently around the front grilled section and sides.
The apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the app
aratus.
BATTERY REPLACEMENT
Always TURN OFF the A.C. supply to the Smoke Alarm before
replacing the battery. Replace the battery at least once annually, or
immediately when the low battery signal sounds once a minute,
even though the Smoke Alarm is receiving A.C. power.
Test the alarm for correct operation using the test facility
whenever the battery is replaced.
WARNING: DANGER OF EXPLOSION IF BATTERY
IS INCORRECTLY REPLACED. THE USE OF BATTERIES
OTHER THAN THOSE RECOMMENDED ON THE BACK OF
THE SMOKE ALARM MAY BE DETRIMENTAL TO ITS
OPERATION
The battery should only be replaced by a qualified electrician
or similarly qualified person.
Turn off the A C power supply to the Smoke Alarm.
Gently unlock the detector unit from the base by push
back the snap lock with a screw driver and turn the alarm
unit clockwise to release it. See Figure 5 and Figure 6
Remove the battery from the compartment.
Insert a new, healthy 9V battery. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully
depressed when the battery has been fitted
Using the Push-to-Test button, test the smoke alarm to verify
9V DC battery back-up. See “TESTING YOUR SMOKE
ALARM”
Reattached the Smoke alarm to the mounting plate by
rotating the alarm unit counter-clockwise until the it snaps
into place. (see Figure 4)
Turn on the AC power and test the Smoke Alarm using the
Push-to-Test button. See “TESTING YOUR SMOKE ALARM”
IMPORTANT SAFEGUARDS
Installation of your smoke alarm is only one step in your safety plan.
Other important steps should be taken to further improve your safety:-
Install the smoke alarm properly, following this instruction
leaflet
Test your smoke alarm weekly
Replace the battery immediately once depleted
Do not smoke in bed
Keep matches & lighters away from children
Store flammable materials in a proper manner and never use
them near naked flames or sparks
Maintain emergency equipment such as Fire Extinguishers,
escape ladders etc and ensure all occupants know how to
use them correctly.
Plan an escape route/s from your building in advance and
ensure all occupants are aware of them. Re-enforce this
awareness periodically through-out the year.
Make sure escape routes remain free of any obstructions.
IS DUE TO AN ACTUAL FIRE AND THE DWELLING SHOULD BE
EVACUATED IMMEDIATELY.
THIS PRODUCT IS A SEALED UNIT AND CANNOT BE REPAIRED – IF
THE UNIT IS TAMPERED WITH IT WILL INVALIDATE THE WARRANTY.
IF THE UNIT IS FAULTY PLEASE RETURN IT TO YOUR ORIGINAL
SUPPLIER WITH YOUR PROOF OF PURCHASE.
YOUR SMOKE ALARM WARRANTY
These smoke alarms are warranty to be free from defects in materials and
workmanships under normal use and service for a period of five years
from date of purchase. The company will not be obligated to repair or
replace parts which are found to be in need of repair because of misuse,
damage or alterations occur after the date of purchase. Send the
Smoke Alarm with proof of purchase, postage and return postage prepaid,
to local distributor. The liability of the company arising from the sale of
this smoke alarm shall not in any case exceed the cost of replacement of
smoke alarm and in no case shall the company be liable for consequential
loss or damages resulting from the failure of the smoke alarm.
SOLAS GEAL DISTRIBUTION LTD. SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY OR PROPERTY DAMAGE, OR ANY SPECIAL
INCIDENTAL, CONTINGENT OR CONSEQUENTIAL DAMAGE OF ANY
KIND RESULTING FROM A FIRE. THE EXCLUSIVE REMEDY FOR
BREACH OF THE LIMITED WARRANTY CONTAINED HEREIN IS THE
REPAIR OR REPLACEMENT OF THE DETECTIVE PRODUCT AT
SOLAS GEAL DISTRIBUTION LTD. OPTION. IN NO CASE SHALL
SOLAS GEAL DISTRIBUTION LTD.’S LIABILITY UNDER ANY OTHER
REMEDY PRESCRIBED BY LAW EXCEED THE PURCHASE PRICE.
YOUR SMOKE ALARMS IS NOT A SUBSTITUTE FOR PROPERTY,
DISABILITY, LIFE OR OTHER INSURANCE OF ANY KIND.
APPROPRIATE COVERAGE IS YOUR RESPONSIBILITY. CONSULT
YOUR INSURANCE AGENT.
This does not affect your statutory rights.
This alarm is only suitable for single occupancy private dwellings only and
not intended for multi occupancy private dwellings or commercial or
industrial dwellings.
Waste electrical products should not be disposed of with normal
household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice. New regulation will
encourage the recycling of Waste from Electrical and Electronic
Equipment (European "WEEE Directive" effective August 2005).
Importer: Solas Geal Distribution Ltd.
Unit 8 Ashbourne Business Centre,
Ballybin Road, Ashbourne, Co. Meath,
Ireland
Ver: 13-MAY-2017
Figure 5
Turn the alarm units clockwise until the snap lock
engages.
Figure 6 – Push Back the snap lock and turn the
Alarm anti-clockwise
Figure 4
Plug the AC QUICK
CONNECTOR into the
back of the alarm.
WARNING: IF THERE IS ANY QUESTION AS TO THE CAUSE
OF AN ALARM IT SHOULD BE ASSUMED THAT THE ALARM
unlock
Insert a 9V battery firmly into battery compartment on
the rear of the alarm. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully depressed
when the battery has been
fitted.
NOTE – For the safety of the
end user, the smoke alarm
cannot be fitted without its
battery.
Before assembly to base
plate test the correct
operation of the smoke
alarm (operating from the
battery only) by depressing
the test button on the front of
the alarm. The unit should emit a loud pulsating alarm.
Assemble alarm unit onto the mounting plate by turning
the alarm unit counter-clockwise. See Figure 4
Restore the AC supply by pluging the AC QUICK
CONNECTOR into the back of the alarm (see Figure 4).
Make sure that the locks on the connector snap into place.
Test the correct operation of the smoke alarm by
depressing the test button on the front of the detector.
The unit should emit a loud pulsating alarm.
Should use 2.1mm wire for connection.
OPERATING YOUR SMOKE ALARM
Once the smoke alarm has been installed a small GREEN indicator light
(LED) should be visible through the alarm grill indicating that AC supply
is healthy. A RED indicator light (LED) should also flash approximately
once a minute to indicate the battery is healthy and the unit is operating
properly.
If smoke is detected, the unit will emit a load pulsating alarm and a RED
indicator light (LED) will be flashing quickly at the same time until the
air is clear.
TESTING YOUR SMOKE ALARM
It is recommended that you test your smoke alarm once a week to
ensure the detector is working correctly.
Push and hold the test button for approximately 3 seconds. A loud
pulsating alarm should sound and a RED indicator light (LED) will
flash at the same time.
NOTE – for multiple interconnected smoke alarms, only the RED
indicator light (LED) of the originating unit will flash rapidly. All other
units in the interconnect system will sound an alarm but their RED
indicator light (LED) will NOT flash. Test each alarm checking that the
alarm is triggered on all other alarms installed.
HUSH OR SILENCE FEATURE
This Smoke Alarm has a built-in Hush or Silence feature incorporated
into the Test button. If cooking or other non-hazardous sources
cause the unwanted alarm, it can be temporarily silenced by depressing
the test button and holding for approximately 3 seconds. The alarm
will enter a dormant period for 10 minutes. The red LED will flash
every 10 seconds to indicate the sensitivity is reduced. At the end of
the hush period the alarm will reset to normal sensitivity.
NOTE – If the smoke density increase during this period (i.e. from a fire)
the unit will go into alarm mode.
LOW BATTERY WARNING
If the smoke alarm emits a short ‘beep’ once a minute the battery is at
the end of its life and should be replaced immediately. This low voltage
warning will be given for at least 30 days. In this case, the other
interconnected units in the system which are not in low battery condition
will chirps for a few seconds once an hour as long as the detector with
the “dead” battery beeps.
If the red indicator light (LED) does not flash every minute then replace
the battery.
MAINTAINING YOUR SMOKE ALARM
Clean your smoke alarm at least once every six months to prevent dust
build up. This can be done using a vacuum cleaner with the brush
attachment. Clean gently around the front grilled section and sides.
The apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the apparatus.
BATTERY REPLACEMENT
Always TURN OFF the A.C. supply to the Smoke Alarm before
replacing the battery. Replace the battery at least once annually, or
immediately when the low battery signal sounds once a minute,
even though the Smoke Alarm is receiving A.C. power.
Test the alarm for correct operation using the test facility
whenever the battery is replaced.
WARNING: DANGER OF EXPLOSION IF BATTERY
IS INCORRECTLY REPLACED. THE USE OF BATTERIES
OTHER THAN THOSE RECOMMENDED ON THE BACK OF
THE SMOKE ALARM MAY BE DETRIMENTAL TO ITS
OPERATION
The battery should only be replaced by a qualified electrician
or similarly qualified person.
Turn off the A C power supply to the Smoke Alarm.
Gently unlock the detector unit from the base by push
back the snap lock with a screw driver and turn the alarm
unit clockwise to release it. See Figure 5 and Figure 6
Remove the battery from the compartment.
Insert a new, healthy 9V battery. NOTE POLARITY OF
CONNECTIONS. Ensure the metal tab is fully
depressed when the battery has been fitted
Using the Push-to-Test button, test the smoke alarm to verify
9V DC battery back-up. See “TESTING YOUR SMOKE
ALARM”
Reattached the Smoke alarm to the mounting plate by
rotating the alarm unit counter-clockwise until the it snaps
into place. (see Figure 4)
Turn on the AC power and test the Smoke Alarm using the
Push-to-Test button. See “TESTING YOUR SMOKE ALARM”
IMPORTANT SAFEGUARDS
Installation of your smoke alarm is only one step in your safety plan.
Other important steps should be taken to further improve your safety:-
Install the smoke alarm properly, following this instruction
leaflet
Test your smoke alarm weekly
Replace the battery immediately once depleted
Do not smoke in bed
Keep matches & lighters away from children
Store flammable materials in a proper manner and never use
them near naked flames or sparks
Maintain emergency equipment such as Fire Extinguishers,
escape ladders etc and ensure all occupants know how to
use them correctly.
Plan an escape route/s from your building in advance and
ensure all occupants are aware of them. Re-enforce this
awareness periodically through-out the year.
Make sure escape routes remain free of any obstructions.
IS DUE TO AN ACTUAL FIRE AND THE DWELLING SHOULD BE
EVACUATED IMMEDIATELY.
THIS PRODUCT IS A SEALED UNIT AND CANNOT BE REPAIRED – IF
THE UNIT IS TAMPERED WITH IT WILL INVALIDATE THE WARRANTY.
IF THE UNIT IS FAULTY PLEASE RETURN IT TO YOUR ORIGINAL
SUPPLIER WITH YOUR PROOF OF PURCHASE.
YOUR SMOKE ALARM WARRANTY
These smoke alarms are warranty to be free from defects in materials and
workmanships under normal use and service for a period of five years
from date of purchase. The company will not be obligated to repair or
replace parts which are found to be in need of repair because of misuse,
damage or alterations occur after the date of purchase. Send the
Smoke Alarm with proof of purchase, postage and return postage prepaid,
to local distributor. The liability of the company arising from the sale of
this smoke alarm shall not in any case exceed the cost of replacement of
smoke alarm and in no case shall the company be liable for consequential
loss or damages resulting from the failure of the smoke alarm.
SOLAS GEAL DISTRIBUTION LTD. SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY OR PROPERTY DAMAGE, OR ANY SPECIAL
INCIDENTAL, CONTINGENT OR CONSEQUENTIAL DAMAGE OF ANY
KIND RESULTING FROM A FIRE. THE EXCLUSIVE REMEDY FOR
BREACH OF THE LIMITED WARRANTY CONTAINED HEREIN IS THE
REPAIR OR REPLACEMENT OF THE DETECTIVE PRODUCT AT
SOLAS GEAL DISTRIBUTION LTD. OPTION. IN NO CASE SHALL
SOLAS GEAL DISTRIBUTION LTD.’S LIABILITY UNDER ANY OTHER
REMEDY PRESCRIBED BY LAW EXCEED THE PURCHASE PRICE.
YOUR SMOKE ALARMS IS NOT A SUBSTITUTE FOR PROPERTY,
DISABILITY, LIFE OR OTHER INSURANCE OF ANY KIND.
APPROPRIATE COVERAGE IS YOUR RESPONSIBILITY. CONSULT
YOUR INSURANCE AGENT.
This does not affect your statutory rights.
This alarm is only suitable for single occupancy private dwellings only and
not intended for multi occupancy private dwellings or commercial or
industrial dwellings.
Waste electrical products should not be disposed of with normal
household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice. New regulation will
encourage the recycling of Waste from Electrical and Electronic
Equipment (European "WEEE Directive" effective August 2005).
Importer: Solas Geal Distribution Ltd.
Unit 8 Ashbourne Business Centre,
Ballybin Road, Ashbourne, Co. Meath,
Ireland
Ver: 13-MAY-2017
Figure 5
Turn the alarm units clockwise until the snap lock
engages.
Figure 6 – Push Back the snap lock and turn the
Alarm anti-clockwise
Figure 4
Plug the AC QUICK
CONNECTOR into the
back of the alarm.
WARNING: IF THERE IS ANY QUESTION AS TO THE CAUSE
OF AN ALARM IT SHOULD BE ASSUMED THAT THE ALARM
unlock
Figure 4
Plug the AC Quick Connector
into the back of the alarm
Figure 5
Turn the alarm units clockwise until the snap
lock engages
Figure 6
Push back the snap lock and turn
the alarm anti-clockwise
Figure 7
Wiring and interconnect facility
Figure 3i Figure 3ii
Positioning the smoke / heat detector
