IAQH-1000 Manual
A. PREFACE
a. Description of the User
This manual is intended for both the installer and commissioning technician, and operator of the
IAQH Control System. There are multiple user types. Typically in most jurisdictions the installer
and commissioning technician are required to be trained and ticked professionals. Consult your
local jurisdiction having authority.
This document is intended for the equipment operator and the equipment installer of the IAQH.
The IAQH series of indirect fired heaters are designed to support temporary construction heating
applications that support a wide variety of temporary heating. The user of the product is
intended to be qualified to install and connect the system. There are three main users of this
product: the installer, the operator, and the end-user.
This document is intended to support all levels of the above users.
Consult your local justification having authority regarding restrictions on the users who are
permitted to use and install this product, in most jurisdictions a ticketed gas fitter and or
electrician may be required to connect and install this product. The operators and end users of
this product should be qualified and trained for this product, having read and understood this
manual. Eco Power Equipment does offer operator training programs, contact us for more
information.
b. Conventions Used in This Manual
The following style conventions are used in this document:
Bold
Names of product elements, commands, options, programs, processes, services, and utilities
Names of interface elements (such windows, dialog boxes, buttons, fields, and menus)
Interface elements the user selects, clicks, presses, or types
Italic
Publication titles referenced in text
Emphasis (for example a new term)
Variables
Courier
System output, such as an error message or script
URLs, complete paths, filenames, prompts, and syntax
9

IAQH-1000 Manual
User input variables
< > Angle brackets surround user-supplied values
Square brackets surround optional items
| Vertical bar indicates alternate selections - the bar means “or”
10

IAQH-1000 Manual
c. Explanation of Safety Warnings
Danger indicates a hazardous situation that, if not avoided, will result in death or serious injury
Warning indicates a hazardous situation that, if not avoided, may result in death or serious
injury.
Caution indicates a hazardous situation that, if not avoided, may result in minor or moderate
injury.
Indicates information considered important, but not hazard-related.
d. Retaining Instructions
Read and understand this manual and
its safety instructions before using this
product. Failure to do so can result in
serious injury or death.
Follow all the instructions. This will avoid fire, explosions, electric shocks or other hazards that
may result in damage to property and/or severe or fatal injuries.
The product shall only be used by persons who have fully read and understand the contents of
this user manual.
Keep all safety information and instructions for future reference and pass them on to
subsequent users of the product.
The manufacturer is not liable for cases of material damage or personal injury caused by
incorrect handling or non-compliance with the safety instructions. In such cases, the warranty
will be voided.
11

IAQH-1000 Manual
e. Obtaining Documentation and Information
i. Internet
The latest version of the documentation is available at the following address:
http://www.ecopowerequip.com
ii. Ordering Documentation
Documentation, user instructions, and technical information can be ordered by calling Eco Power
Equipment Ltd. at 1-833-249-2417.
iii. Other languages
This is the English user manual. Manuals in French are available upon request.
iv. Documentation Feedback
If you are reading Eco Power Equipment Ltd. product documentation on the internet, any
comments can be submitted on the support website. Comments can also be sent to
[e-mail].
We appreciate your comments.
v. Support and service
For information about special tools and materials; for questions, information, technical
assistance, or ordering user instructions; or for service related questions please contact:
Eco Power Equipment Ltd.
#8, 26004 TWP 544, Sturgeon County, AB, T8T 0B6
1-833-249-2417
www.ecopowerequip.com
12

IAQH-1000 Manual
B. DESCRIPTION OF THE PRODUCT
a. Intended Use and Reasonably Foreseeable Misuse
The IAQH is intended to be used as a temporary construction heater, primarily intended for
temporary use in heating buildings or structures under construction, alteration, or repair. The
unit is ideal for large scale commercial and industrial heating. The unit is intended for indoor air
heating and air quality maintenance. It is ideal for construction projects including hospitals, high
rise, big-box stores, distribution centers, wood frame multi-family low rise, and other heating
and air quality control applications.
The IAQH shall not be used as a permanent heating system, it has been designed and complies
with CSA 2.14 and ANSI Z83.7 directives, which are specific to temporary heating of a building
structure under construction, alteration, or repair.
Adequate ventilation is critical to application safety and performance, see below for more
details.
The heater is designed and approved for use as a construction heater in accordance with the
Standard for Gas-Fired Construction Heaters ANSI 283.7 • CSA 2.14. CHECK WITH YOUR LOCAL
FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.
Other standards govern the use of fuel gases and heat producing products in specific
applications. Your local authority can advise you about these other standards.
The IAQH shall be used with the following original accessories and components only:
●Eco Power Equipment EHT and ERA Type Ducting
●IAQH Remote Thermostat
●IAQH Temporary Flue System
13

IAQH-1000 Manual
b. Process Overview
The indirect heat transfer process relies on the heat from the heat exchanger to heat the air
through convection, conduction, and radiation. The combustion air does not come in direct
contact with air in this process.
14

IAQH-1000 Manual
c. Technical Data
Parameter
Unit
Device name
IAQH Indirect Fired Heater
Designation
IAQH-1000
Type
Indirect Fired
Technical life span
10,000+ Hours
Maximum Input BTU
1,000,000 BTU/HR / 293 kW
Energy consumption
Natural Gas: 1.0551 GJ/hour, 985 ft³/hour, 27.89 m³/
hour
Liquid Propane: 41.32 LPH / 10.92 GPH
Gas Types
Natural Gas: (Pipeline Quality) (1075 BTH/ft³) (40.1
MJ/m³)
Liquid Propane: (HD-5 Spec) (2500 BTU/ft³) (93.1 MJ/m³)
Weight
2200 lbs / 1225 kg
Input Gas Pressure
10 inH20 / 24.8 mbar / 0.36 psi
Voltage
208/240 Three Phase
Recommended Circuit Size
30 Amps
Full Load Amps
24 Amps
Frequency
60 Hertz
SCCR Rating
10 kA
Max Heater Efficiency
82%
Blower Type
Backwards Inclined EC Type Blower
Heater Air CFM Rating
10 000 CFM
Compliance
ANSI Z83.7 / CSA 2.14 / CSA C22.2 No. 3
Product Certification Agency
Intertek cETLus
Full Load Operating Sound Level
58 dBa @ 7 Meters (with ducting connected to building)
Installation Details
For installation above 2000 ft (610 m), see the
“high-altitude rating plate."
Unit is automatically de-rated in high elevation conditions.
15

IAQH-1000 Manual
d. Product Compliance
This product complies with all relevant legislation for portable gas fired construction heaters.
The product is in conformity with the following relevant product safety standards:
●ANSI Z83.7-2017: Gas fired construction heaters
●CSA 2.14-2017: Gas fired construction heaters
●CSA C22.2
16

IAQH-1000 Manual
e. Product Elements
A. Element A: Combustion Exhaust Flue Connection Point, 8”
B. Element B: Lifting Points Connection - See lifting guide below
C. Element C: Stacking Points
D. Element D: Unit control and operating panel
E. Element E: Forklift Pockets
F. Element F: Air Inlet Ducting
G. Element G: Power inlet
17

IAQH-1000 Manual

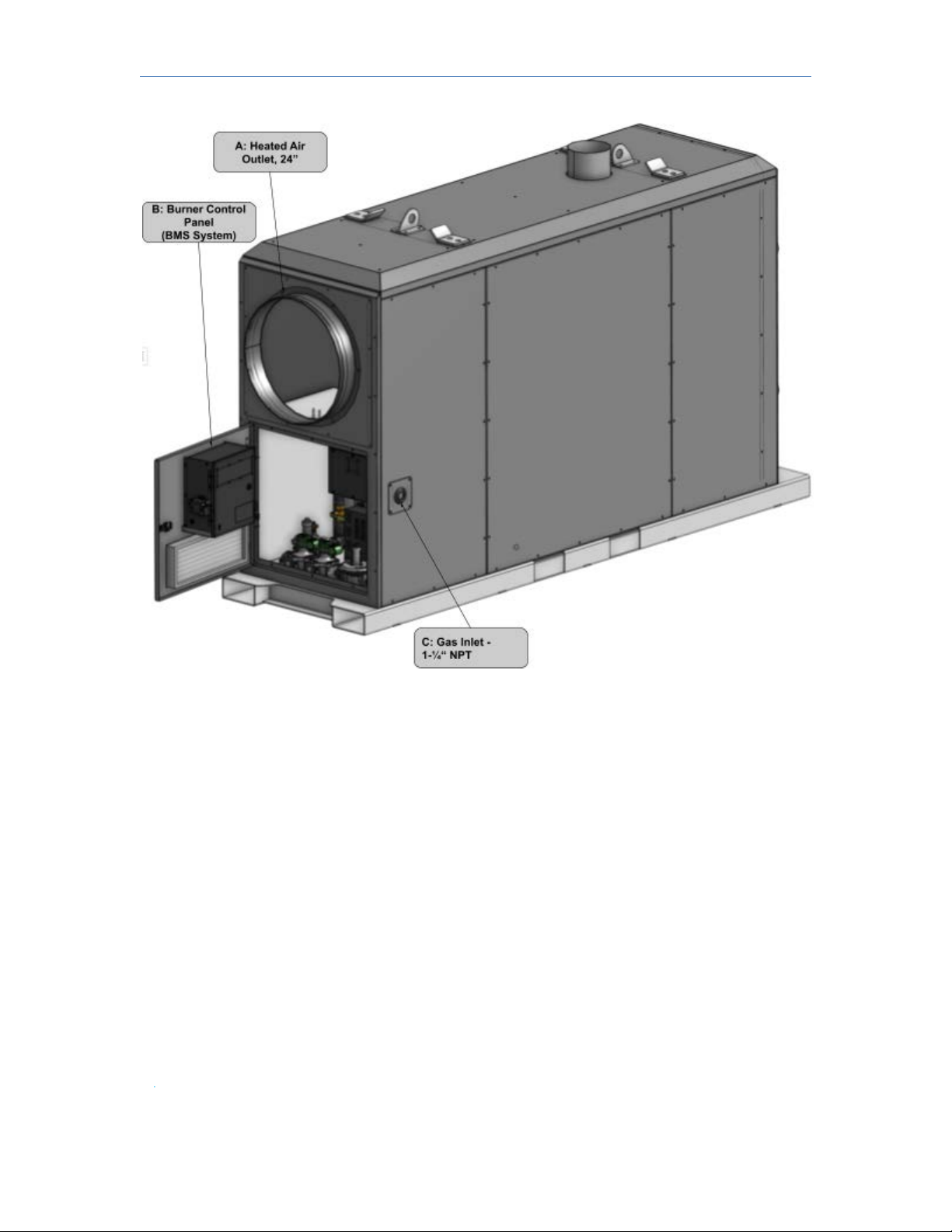

Element A: Heated Air Outlet, 24” Round
Element B: Burner Control Panel and Burner Management System (BMS)
Element C: Fuel Gas Inlet, 10” WC, 1-¼” NPT
18

IAQH-1000 Manual
f. Machine guards
A. Guard A: Inlet fan guard system. Ensure the inlet is free and clear. We recommend
filtration for inlet make-up air.
19

IAQH-1000 Manual
g. Understanding the user interface
The main user interface of the machine is located in the operating and control panel of the
machine. The system utilizes a touchscreen display to allow the user complete control over the
unit’s operation.
When looking at the front panel of the display, at the bottom of the display are four push
buttons.
Home: Will always return to the home screen
Menu: Will provide access to the controller settings, as shown below
Return: When pressed will take the user back to the previous screen
Help: Will display the help panel with revision and software information
Understanding the menus:
20
