EUROM Fanheater 600 User manual

(pag. 7) Instruction
manual (EN)
Instruktionsbok (SV)
Fanheater 600
Art.nr. 428742
Dit product is uitsluitend geschikt voor goed geïsoleerde plaatsen of voor
incidenteel gebruik.
Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch
geeignet.
This product is only suitable for well insulated spaces of occasional use.
Ce produit ne peut être utilisé que dans des locaux bien isolés ou de manière
occasionnelle.

5
Information requirment for the electric local space heaters
Model identifier(s): Fanjeater 600
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat output
Pnom
0,6
kW
manual heat charge control, with integrated
thermostat
No
Minimum heat output
(indicative)
Pmin
0,6
kW
manual heat charge control with room and/or
outdoor temperature feedback
No
Maximum continuous heat
output
Pmax,c
0,6
kW
electronic heat charge control with room
and/or outdoor temperature feedback
No
Auxiliary electricity consumption
fan assisted heat output
No
At nominal heat output
elmax
N/A
kW
Type of heat output/room temperature control (select
one)
At minimum heat output
elmin
N/A
kW
single stage heat output and no room
temperature control
No
In standby mode
elSB
0
kW
Two or more manual stages, no room
temperature control
No
with mechanic thermostat room temperature
control
Yes
with electronic room temperature control
No
electronic room temperature control plus day
timer
No
electronic room temperature control plus
week timer
No
Other control options (multiple selections possible)
room temperature control, with presence
detection
No
room temperature control, with open window
detection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact details
Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands

25
Thank you
Thank you very much for choosing for a EUROM device. You have made a good
choice! We hope you will be satisfied about its functioning.
To get maximum profit from your product, it is important to read this manual
attentive and totally before use, and to understand what is written. Read especially
the safety instructions: they are there to protect you and your environment.
Keep the manual in a safe place for future reference. Store also the package: that
is the best protection for your product in times of no-use. And if you at any time
pass the appliance on, pass on the manual and package too.
We wish you a lot of fun with the Fanheater 600!
Eurom
Kokosstraat 20
8281 JC Genemuiden (NL)
[email protected]
www.eurom.nl
This manual has been complied with the utmost care. Nevertheless, we reserve the
right to optimize this manual at any time and to adjust it technically. The image
used may differ.
___________________________________________________________
Symbol Explanation
Do not cover the device
Technical data
Supply voltage
230V~50Hz
Maximum capacity
600 W
Thermostat
+
Dimensions
10 x 11 x 18,5 cm
Weight
0,47 kg

26
Warning electric heaters
Safety warning –general
1. Read the user instructions carefully and completely before using
(and installing) this device. Keep the instruction leaflet somewhere
safe so that you can consult it and pass it on in future.
2. Before use, check your new device (including cable and plug) for
any visible damage. Never use a damaged device but take it back
to the supplier for a replacement.
3. In the event of incorrect usage or installation, there is a risk of
electric shocks and/or a fire hazard.
Device position warnings
1. This device is not suitable for wall or ceiling installation.
2. Do not use this device in the immediate vicinity of a bath, shower
or swimming pool.
3. This device is not suitable for use in damp spaces such as
bathrooms, wash rooms etc. Never locate the device near water-
points and reservoirs (tap, bath, shower, toilet, sink, swimming
pool, etc.). Make sure that the device cannot fall into water and
that it cannot be penetrated by water. If the device falls into water
make sure you remove the plug from the socket! Do not use a
device that is wet inside but take it to be repaired. Never immerse
the device, cable or plug in water or any other fluid and never touch
device with wet hands.
4. The air around the device must be able to circulate freely. Never
install it too close to walls or large objects and never under a shelf,
cupboard, curtains or similar. When locating the device, make sure
you have the following minimum free space:
Front, minimum free space 75 cm
Back, minimum free space 30 cm
Sides, minimum free space 30 cm
Top, minimum free space 30 cm
5. Always place the unit on a sturdy, flat horizontal surface
6. The base on which the device is placed must not be made of
flammable materials. It must be resistant to temperatures of at
least 125°C without burning, melting, deforming or bursting into
flames. Check regularly to ensure that the surface is not
overheating; this could be dangerous!

27
7. Never place the device on surfaces such as beds or deep-pile carpet
as openings could be blocked.
8. Do not place the device near an open window as rain could blow in;
do not place on wet surfaces and avoid any liquids being spilt
nearby. Do not place the device behind a door or along a walking
route to avoid accidental trips.
9. Do not place the device near, under or facing an electrical socket
and not in the vicinity of an open fire or heat source.
10. Do not use the device nearby or facing furniture, curtains, paper,
clothing, bedding or other flammable materials. Keep at least 1
metre from device!
11. Do not use the heater outdoors or in areas that are smaller than
10m³.
12. The device contains hot and/or glowing and sparking components.
Do not, therefore, use where fuels, paint, flammable fluids and/or
gases are stored. Do not use the device in an environment that
poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is
an explosion and fire risk!
Warnings –use
1. Do not use additions/accessories on the device that have not been
supplied or approved by the manufacturer.
2. Only use the device for its intended purpose and in the manner set
out in this instruction leaflet.
3. Some parts of this device will get very hot and could cause
burns. You must pay particular attention to children,
vulnerable persons and pets that are present near the
device. Never leave them alone with a working device.
4. Never cover or block the device; it will overheat and this could lead
to a fire risk. Never hang or place objects such as clothing,
blankets, cushions, paper, etc. on the device. The minimum
distance of 1 metre between the device and flammable materials
must always be applied. Ventilation openings should never be
blocked as this may pose a fire risk. Never use the device to dry
clothing or place anything on it. Do not let anything lean against
the device!
5. Do not set the device to come on automatically using a timer, clock
or other facility. You must always check for safe conditions before
using the fireplace! Never use the device with an external voltage
regulator such as a dimmer or similar, as this could be dangerous!

28
6. The device is exclusively intended for normal, household usage.
Only use for providing heat in your home.
7. Connection voltage and frequency, as given on the device, must
correspond to that of the socket to be used and the electrical
installation must be equipped with an earth leakage circuit breaker
of 30 mA . The electrical socket that you are using must be to hand
at all times in order to be able to remove the plug from the socket
in the event of an emergency.
8. To avoid overloading and/or fuses being blown, do not use any
other equipment on the same socket or electrical group as the one
used for the device.
9. Unroll the electric cable for the device fully before inserting the plug
into the socket and ensure that the electrical cable does not come
into contact with the fireplace or get hot. Do not run the electrical
cable under carpet, cover with mats, runners or similar and do not
place in areas that are walked on frequently. Ensure that it cannot
be stepped on and that no furniture is placed on top of it. Do not
bend the electrical cable around sharp corners and do not roll up
too tightly after use! Prevent the electrical cable coming into
contact with oil, solvents and sharp objects. Check the cable and
plug regularly for damage. Do not bend or pinch the electrical cable
and do not wind it around the device; this could damage the
insulation!
10. The use of an extension cable is not advised as this can lead to
overheating and fire. If the use of an extension cable is
unavoidable, make sure that it is not damaged and that it is an
approved extension cable with a minimum diameter of 2x1,5 mm²
and a minimum permitted capacity of 1000 Watt. Always fully
extend the cable in order to prevent overheating.
11. Only connect the device to a fixed socket. Do not use multi-plug
adapters or similar.
12. During use, the plug may begin to feel warm; this is normal. If it’s
really warm, there may be something wrong with the socket. Please
contact your electrician.
13. Always turn off the device and remove the plug from the power
socket: Never turn the device off using the plug!
14. Prevent foreign objects entering the radiation/ventilation or outlet
openings on the device. This may cause electric shock, fire or
damage.

29
15. Never leave a working device unattended but switch off and then
remove the plug from the socket.
16. Always remove the plug from the socket when the unit is not in
use! Always remove plug by pulling on the plug itself; never pull on
the electrical cable!
17. This device gets hot during use. Never touch the device when it is
on or shortly thereafter; it could burn you.
18. Never operate the device with wet hands.
Warnings by whom the device may be used
1. Children younger than 3 must be kept out of the vicinity of the
device unless they are continuously supervised.
2. Children between the ages of 3 and 8 may only switch the device
on or off if it is set up or installed at its usual location and they are
supervised or have received instructions regarding the safe use of
the device and understand the corresponding hazards. Children
between the ages of 3 and 8 may not insert the plug into the
socket, adjust the device settings or clean or maintain it.
3. This device can only be used by children from the age of 8 and
elderly persons and persons with diminished physical or mental
capacities or a lack of experience and expertise if they are
supervised or have received instructions regarding the safe use of
the device and understand the corresponding hazards.
4. Children may not clean or maintain the device without supervision.
5. Children may not play with the device.
Warnings for maintenance
1. Keep the device clean. Dust, dirt and/or deposits in the device often
lead to overheating. Ensure that this type of build-up is regularly
removed.
2. Always switch the device off, remove plug from socket and let the
device cool down before you:
- clean the device
- users maintain the device.
- touch or move the device.
3. Never switch the device on if you have noticed damage to the
device itself, the cable or plug or if it does not work properly,
makes strange noises, smells odd or you can see smoke, or if it has
fallen or shows any other signs of damage. Remove the plug from
the socket immediately. Take the entire device back to your

30
supplier or a recognised electrician to be checked and/or repaired.
Always ask for original parts to be used.
4. The device may only be opened and/or repaired by a competent
and qualified person. Do not carry our your own repairs as this
could be dangerous! Repairs carried out by unauthorised persons or
changes made to the device could damage the dust/waterproof
capacity of the device and will nullify the guarantee and the
manufacturer’s liability.
5. If the electrical cable is damaged, it must be replaced by the
manufacturer, their service department or somebody with similar
qualifications in order to prevent creating a hazard.
Failing to adhere to points 3, 4, 5, could lead to damage, fire and/or
personal injury. They will invalidate the guarantee and the supplier,
importer and/or manufacturer shall not be liable for the consequences

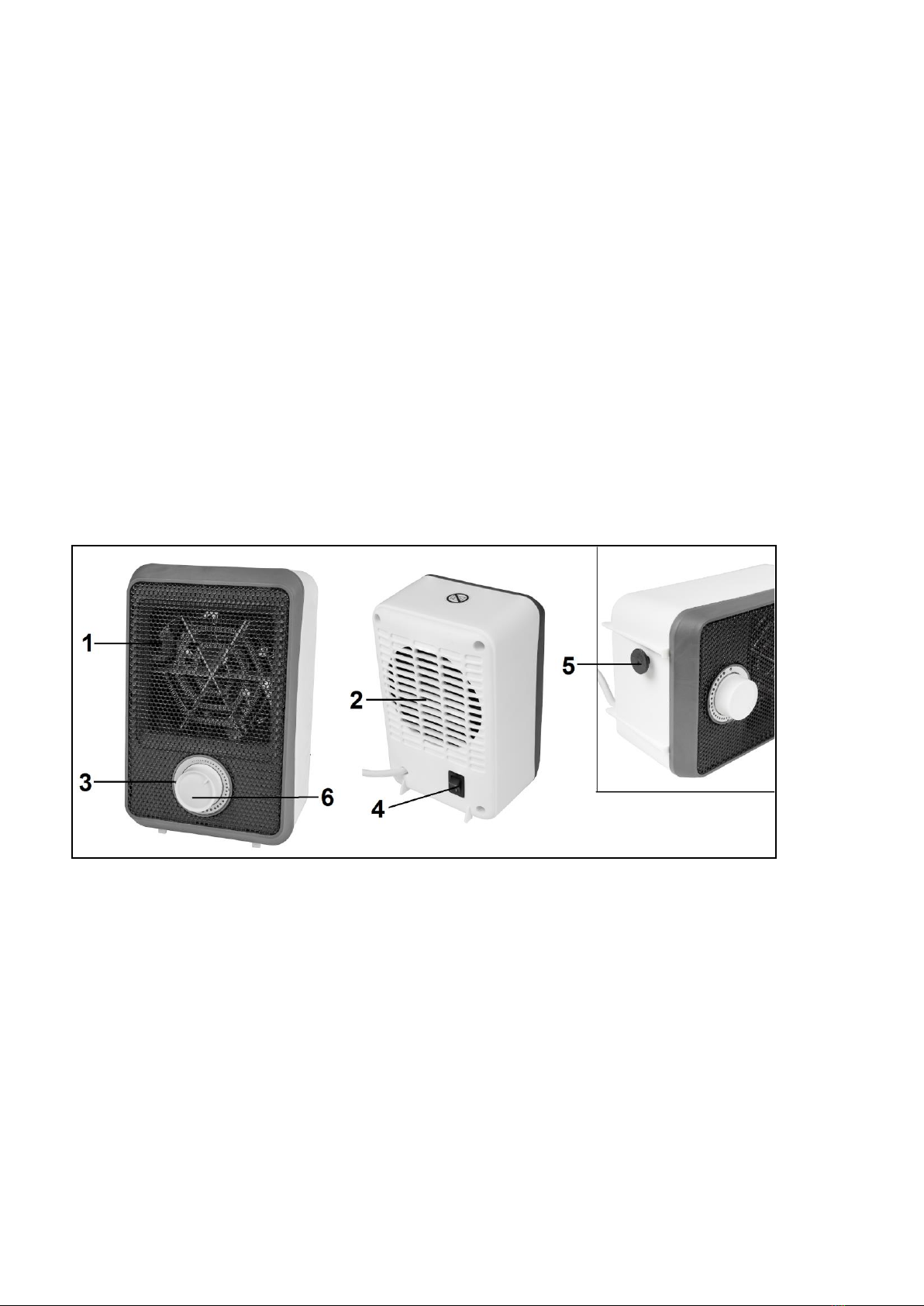

Description
1. Front air outlet grill
2. Back air intake grill
3. Pilot light
4. On/Off switch
5. Tipping safeguard
6. Thermostat dial
Set-up and operation
Remove all packaging material and keep out of reach of children. After
removing the packaging, check the appliance for damage or other signs of a
fault/defect/malfunction. In case of doubt, do not use the appliance and contact
your vendor for inspection or replacement.
Select a suitable location for the device taking into account all the
aforementioned warnings in this manual.
Make sure that the heater is switched off (O pressed).

31
Turn the thermostat dial to maximum (clockwise as far as possible).
Then plug into a correctly functioning 230V socket.
Turn the heater on by pushing the on/off switch on (I pressed). The heater will
now begin to disseminate hot air and the pilot light lights up.
Once the desired temperature is reached, turn the thermostat dial back slowly
until you hear a click. The temperature is now set. The heater will automatically
switch on and off to maintain the set temperature. When the heater switches
off, the pilot light turns off as well. To set a higher or lower temperature, turn
the thermostat dial either clockwise or anticlockwise.
If you want to turn the heater off, push the on/off switch and then remove the
plug from the socket.
Safety features
Tipping safeguard
The heater is fitted with a tipping safeguard which automatically shuts off the
appliance if it inadvertently falls over. The heater will function as normal once it is
returned to its upright position. You are advised, however, to check the heater for
damage and defects!
Overheating safeguard
In case of internal overheating, the overheating safeguard will switch the heater
off. This may occur if the heater cannot give off enough heat or if it cannot draw in
enough fresh air. As mentioned above, this is generally caused by (partially)
covering the heater or obstructing the air intake and/or outlet grills or installing the
heater too close to a wall or something similar. When the overheating safeguard
switches the heater off, you need to turn the switch to ‘off’ and remove the plug
from the socket. Allow the heater to cool down and make sure that whatever
caused the overheating is removed or amended. The heater can then be reused. If
the problem persists or if you cannot find an obvious cause for the overheating,
turn the heater off immediately and take the plug out of the socket. Contact a
service point for repair.
Cleaning and Maintenance
Keep the heater clean. Deposits of dust and dirt in the appliance are a common
cause of overheating so these should regularly be removed! Switch off the heater,
remove the plug from the socket and allow the heater to cool down before cleaning
or carrying out maintenance work.
Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do
not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or
chemical solutions!
Use a vacuum cleaner to carefully remove any dust and dirt from the grills and
ensure that the air intake and outlet openings are clean. Be careful not to touch
or damage any internal parts during cleaning.

32
The heater contains no other parts which need maintenance. The manufacturer
has ensured that the motor has sufficient oil for its working life so there is no
need for oil to be added.
At the end of the season, store the cleaned heater upright, in the original
packaging if possible, in a cool, dry and dust-free place.
Removal
In the EU this symbol indicates that this product may not be
disposed of as ordinary household waste. Old equipment contains
valuable materials, suitable for recycling. These materials should
be made suitable for reuse in order to prevent any adverse effects
to health and the environment caused by unregulated waste
collection. Therefore, please make sure that you bring old
equipment to a designated collection point. Alternatively, contact
the original supplier, who can make sure that as many of the
components as possible can be recycled.
CE –statement
See page 74.
