Eco A120 User manual

A120 LED BEAM HEAD
USERS GUIDE

1
1. Product Introduction:
1.1 Before unpacking the fixture, pls make sure that the packing is in good condition, following items will be found in
the box:
-The fixture
-These users guide
-3m DMX cable
-1.5m power cable with powercon
-Omega bracket for hanging installation
-Safety chain
1.2 Specification
Source
 Light source: 120w white led.
 Led life: 60.000 hours.
 Luminous Flux: 2170lumen,150000lux@5m
 Control: Remote on/off via DMX
 Ballast: switching mode power supply
Optical System
 Beam angle: 1°
X/Y
 Pan: 630° (4.3 sec) or 540°(3.9 sec), Tilt: 233° (2.2 sec)
 16-bit resolution
 Auto repositioning
Colors
 14+open, indexable, and bidirectional rainbow effect
 color bounce effect
Gobos
 17+ open fixed gobos
Features
 DMX channels: 14/16
 Full range 0-100% dimmer
 Various strobe
 Frost
 6-linear+8 facets prism can be overlap
 RDM function to change DMX address, display flip, X/Y Reverse and so on.
 Software upgrade via DMX or USB
 Hibernation when lost DMX for preset time.
 Indicate temperature info of base, led.
 Fan speed auto change according to temperature
Display
 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu
 Auto lock and flip
 Signal: DMX/WDMX.Artnet.sACN(optional)
 Back-up communicating IC
1.3 Description of the Device

2
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Mic
10. Left button.
11. Battery indicator
12. Down button
13. Enter button.
14. Up button
15. Right button
16. 3-pin DMX in
17. 3-pin DMX out
18. 5-pin DMX in
19. 5-pin DMX out
20. USB
21. Fuse
22. Powercon out
23. Powercon in

3
1.4 Colors and Gobos
Open
1
Red
2
Blue
3
Green
4
Orange
5
Cyan
6
Magenta
7
Cool White
8
Warm White
9
Pink
10
Purple red
11
Lime
12
Bright yellow
13
Dark yellow
14
Dark blue

4
2. Safety and maintenance Information
2.1 Safety Info
Before operate this unit, please carefully read this users guide and keep if needed in future. It’s
necessary to respect following rules.
The disposal of the device after lifecycle could damage the environment, need to take it to special
company for recycling or return to authorized dealer.
The products referred to in this manual conform to the European Community Directives and are
therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer will not take
responsibility for the damage due to any disregard of the information provided in this manual and
wrong operation.
Before operate the device, pls make sure the fixture is in good housing, ensure pan and tilt can rotate
in its complete range.
--0.5m
Pls make sure minimal 0.5m distance need to kept between the fixture to any flammable material.
The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any other wrong
power. Disconnect the device from main power before open the shield or maintenance.
The device is designed only for indoor usage, pls keep it away from moisture. Do not expose the
device under the sun or directly to any other lighting source.
Never look directly into the projecting lens when the fixture is power on, the light may trigger
epileptic seizures in photosensitive persons or persons with epilepsy. Especially at beam effect,
extreme caution and observance of these safety instructions is mandatory.
Don’t put or install the device on a surface that subject to vibration or bumps.
Ta=45℃
The device is supposed to work in the temperate range -15° C and +45° C, do not use the device
when the temperate exceed this range.
Static gobo wheel

5
The lens, shield need to be replaced when obviously broken, never use the device when the shield is
not completed closed.
Safety I class device, need to be earth connected.
When the fixture is hanged overhead, the safety rope must be fixed to the bottom of the device to
the appropriate fixing point.
Always carry the device by the handles, do not take the head or arm directly for transportation.
2.2 Maintenance
2.2.1 Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts
inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service
only leaves to authorized dealers.
2.2.3 Never allow the optical components contact with oil, fat or any other liquid.
2.2.4 A regular clearance of the device is needed for long-term usage, this is very helpful to maintain the lifetime and
brightness need to use a soft and lint-free cloth to clean the optical system, fan and air flowing tunnel.
2.2.5. Trouble Shooting
Problems
Possible reasons
Checking or solutions
Device not power up
Powercon or power cable damaged
Faulty power supply
Change a good power cable to try
Replace new power supply
Pan/Tilt error or vibrate
Faulty Pan/Tilt PCB
Faulty opto sensor
Cable loosen
Replace PT004 PCB
Replace opto sensor OP001
Check the cable connect to OP001
LED off
Temperature protection
Fan not working
Faulty LED
Dimmer and strobe set at 0
Faulty power supply
Check the temperature from menu
Check the fan speed info from menu
Replace new LED
Set dimmer and strobe channel at 255
Replace new power supply
Device not response to DMX
Faulty communication IC
Faulty display PCB
Wrong DMX addressing
Faulty DMX cable
Replace the IC with back-up one in the display PCB
Replace new display PCB
Check the address and setting
Change to a good DMX cable
2.2.6 Replacement of the fuse
Need to replace with same type and rating, which originally installed in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the housing with a screwdriver.
Step Three: Remove the broken fuse and replace with an exact same type of new fuse.
Step Four: Insert the fuse holder back to the housing and screw tight and reconnect power.

6
3. Installation

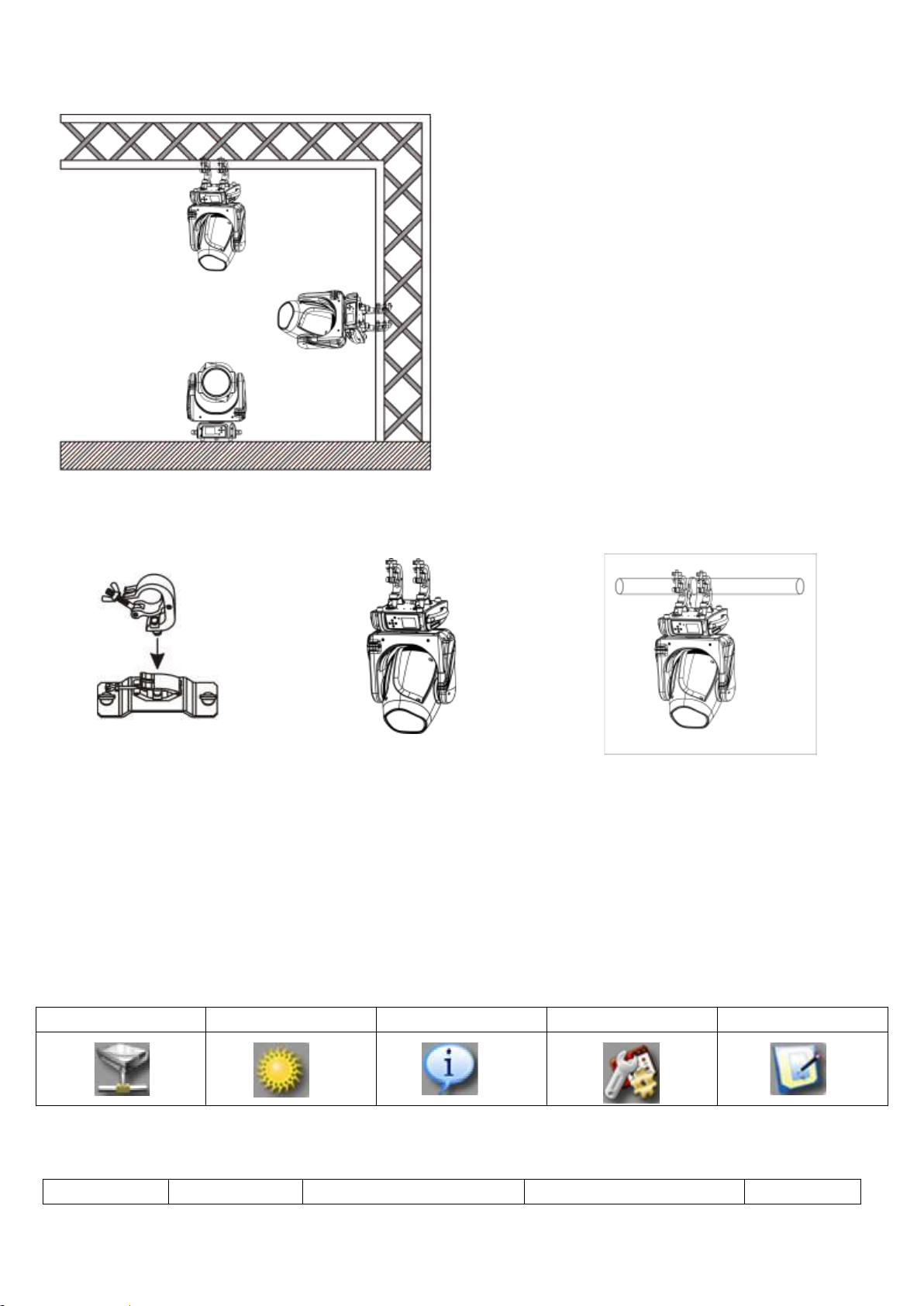

3.1 The device could be either put on a solid and
even Surface, or mounted upside down or sideways
like left picture.
3.2 The mounting place must be sufficient stable
and be able to support a weight of 10 times of the
unit’s weight. When the fixture is hanged, always
additionally secure the device with the safety chain,
fasten the safety rope at a suitable position so that
the maximum fall of the projector will be 20 cm
3.3 How to do mounting installation.
Step one: Installation the clamp onto the omega bracket;
Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks;
Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or
other fixing point at a suitable position that drop down distance not exceed 20 cm.
4. Control menu
4.1 Meaning of the icon in menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM
4.2 Menu tree
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
CONNECT
ADDRESS
VALUE (1-512)(001)

7
CONTROL
PROTOCOL
DMX/W-DMX/sACN/ARTNET
DMX MODE
STANDARD/EXTENDED
WIRELESS
WDMX ON/OFF
ON/OFF
WDMX MODE
TRANSMITTER/RECEIVER
TX LINK
ON/OFF
TX UNLINK
ON/OFF
RX RESET
ON/OFF
DMX TO WDMX (TX)
ON/OFF
WDMX TO DMX (RX)
ON/OFF
ETHERNET
SETTING
ARTNET SETTINGS
IP ADDRESS
NET
0
SUBNET
0
UNIVERSE
0
sACN SETTINGS
IP ADDRESS
UNIVERSE
0
MERGE MODE
OFF/HTP/LTP
ETHERNET TO DMX
ON
OFF
SETUP
FIXTURE
SETTINGS
DMX FAULT
HOLD/BLACKOUT
TEMPERATURE UNIT
Fahrenheit /Celsius
HIBERNATION
OFF, 01M~99M(15MIN)
FAN MODE
AUTO/HIGH/SILENT
DIMMER CURVE
LINEAR/S-CURVE/SQUARE
LAW/ INVERSE SQUARE
LAW
DIMMER SPEED
AUTO/FAST/MEDIUM/SLOW
LED FREQUENCY
600HZ/1200 HZ/2000
HZ/4000
HZ/6000HZ/25KHZ/50KHz
MENU LANGUAGE
En/Fr/Sp/简/繁(En)
TRANSFER
CONFIGURATION
WITHOUT DMX ADDRESS
WITH DMX ADDRESS
MOVEMENT
PAN REVERSE
ON/OFF
TILT REVERSE
ON/OFF
PAN/TILT FEEDBACK
ON/OFF
PAN/TILT MODE
SLOW/MEDIUM/FAST

8
TOTEM MODE
OFF/UP/DOWN
SCREEN
BACKLIGHT
ON/10S/20S/30S
FLIP DISPLAY
ON/OFF/AUTO
STATUS LED
ON/OFF
KEY LOCK
ON/OFF
INFORMATION
FIXTURE TIME
FIXTURE HOURS
TOTAL
( ONLY
READ)
PARTIAL
(READ AND
RESET)
CURRENT HOURS
TOTAL
( ONLY
READ)
PARTIAL
(READ AND
RESET)
LED HOURS
TOTAL
( ONLY
READ)
PARTIAL
(READ AND
RESET)
POWER ON CYCLE
TOTAL
( ONLY
READ)
PARTIAL
(READ AND
RESET)
TEMPERATURE
NEAR SOURCE TEMP,
DRIVER PCB TEMP, LED
PCB TEMP,…
FAN SPEED
NEAR SOURCE FAN, BASE
FAN,…
CHANNEL
VALUE
PAN...
ERROR
MESSAGE
PAN, TILT...
FIXTURE
MODEL
XXXXXXXXXX
RDM UID
(READ AND RESET)
SOFTWARE
VERSION
1U01 V1.0.00...
SERVICE
RESET
ALL
PAN & TILT
...
CALIBRATION
PASSWORD
PAN
...
FOCUS
…
ENCODER RESET
clean values in encoder pcb
MANUAL
PAN

9
CONTROL
...
RELOAD
DEFAULT
BASIC RELOAD
ON/OFF
PROGRAM RELOAD
ON/OFF
Password
FACTORY RELOAD
ON/OFF
TRANSFER
SOFTWARE
FACTORY
RDM PID CODE
xxx
LOCKING
PASSWORD
xxxHOURS
unlocking CODE
CALIBRATION
PASSWORD
PAN
...
ZOOM
FOCUS
GOBO 1 FOCUS
FOCUS
…
GOBO 8 FOCUS
FOCUS
GOBO 1 INDEX
INDEX
…
GOBO 8 INDEX
INDEX
…
MAX TEMPERATURE
80~139°C/176~282°C
Reset All Data
xxx
5. DMX connection and DMX protocol
5.1 DMX addressing:
5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 13/14, if we set the mode at standard 13 channels
mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and
second fixture at 14, third one at 28, etc.
If the devices have the same address, they will behave synchronically.
DMX addressing is limited, don’t set the address so high that without enough control channels for the fixtures.
Display is flashing when no DMX signal is received.

10

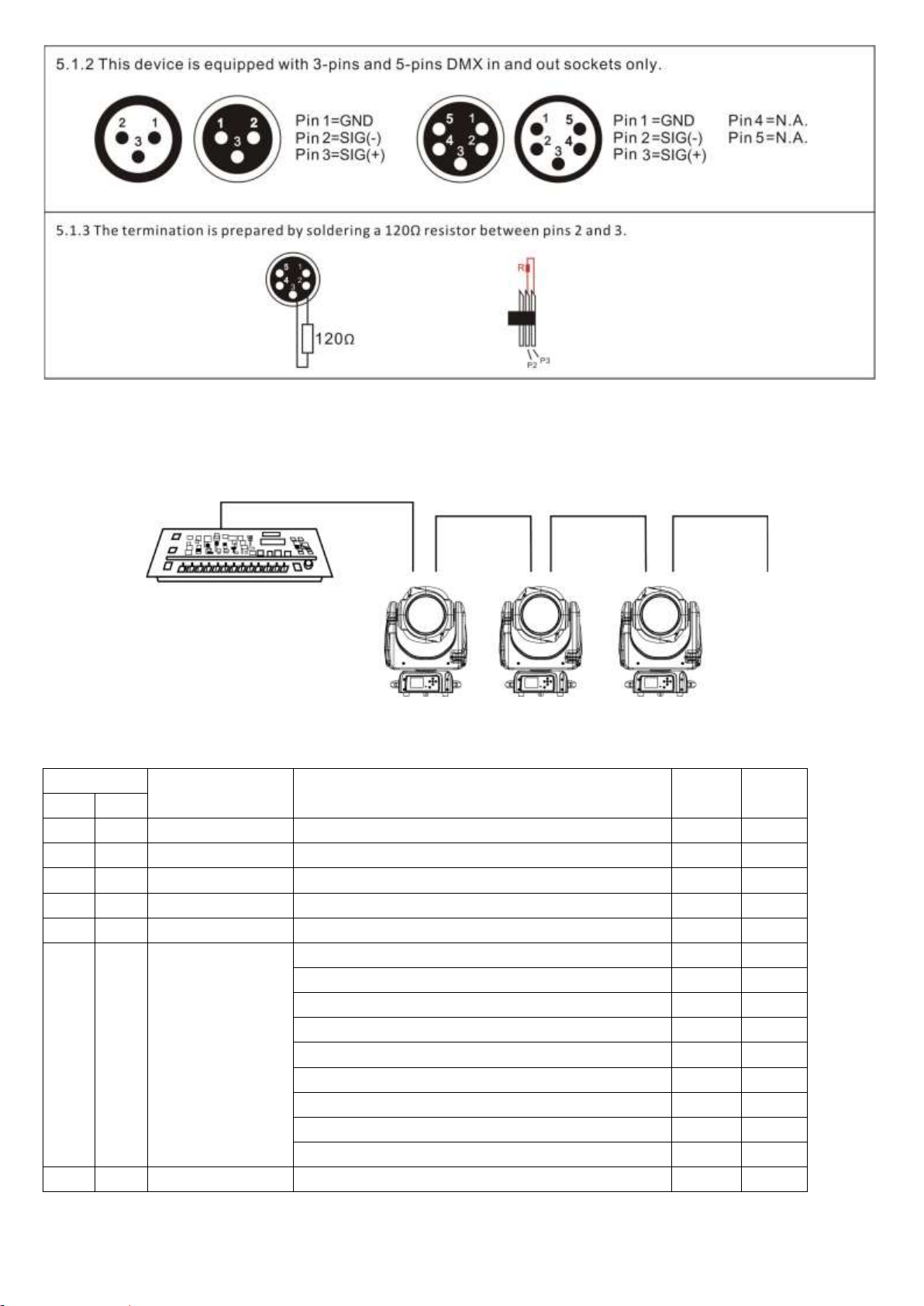

5.1.4 Connection: use DMX cable with 3+5 pin XLR-plugs to connect the controller with the fixture or one fixture with
another.
5.2 DMX chart
Channel
name
function
Min
DMX
Max
DMX
Std
Ex
1
1
Pan
Pan Coarse
0
255
2
2
Pan fine
Pan Fine
0
255
3
3
Tilt
Tilt Coarse
0
255
4
4
Tilt fine
Tilt Fine
0
255
5
5
XY speed
fastest to Slowest
0
255
6
6
Shutter
Shutter closed
0
1
Strobe effect slow to fast
2
62
No function (shutter open)
63
64
Pulse in from slow to fast
65
125
No function (shutter open)
126
127
Pulse out from slow to fast
128
188
No function (shutter open)
189
190
Random strobe effect slow to fast
191
251
No function (shutter open)
252
255
7
7
Dimmer
Dimmer(0->100%)
0
255

11
8
Dimmer Fine
Dimmer(0->100%)
0
255
8
9
Color
Indexed
Position 1 (Open)
0
1
Position 2
2
3
Position 3
4
5
Position 4
6
7
Position 5
8
9
Position 6
10
11
Position 7
12
13
Position 8
14
15
Position 9
16
17
Position 10
18
19
Position 11
20
21
Position 12
22
23
Position 13
24
25
Position 14
26
27
Position 15
28
29
Position 16
30
31
Position 17
32
33
Position 18
34
35
Position 19
36
37
Position 20
38
39
Position 21
40
41
Position 22
42
43
Position 23
44
45
Position 24
46
47
Position 25
48
49
Position 26
50
51
Position 27
52
53
Position 28
54
55
Position 29
56
57
Color Bounce
Position 2 to 4(Slow To Fast)
58
62
Position 3 to 5(Slow To Fast)
63
67
Position 4 to 6(Slow To Fast)
68
72
Position 5 to 7(Slow To Fast)
73
77
Position 6 to 8(Slow To Fast)
78
82
Position 7 to 9(Slow To Fast)
83
87
Position 8 to 10(Slow To Fast)
88
92
Position 9 to 11(Slow To Fast)
93
97
Position 10 to 12(Slow To Fast)
98
102
Position 11 to 13(Slow To Fast)
103
107
Position 12 to 14(Slow To Fast)
108
112
Position 13 to 15(Slow To Fast)
113
117
Position 14 to 16(Slow To Fast)
118
122
Position 15 to 17(Slow To Fast)
123
127

12
Position 16 to 18(Slow To Fast)
128
132
Position 17 to 19(Slow To Fast)
133
137
Position 18 to 20(Slow To Fast)
138
142
Position 19 to 21(Slow To Fast)
143
147
Position 20 to 22(Slow To Fast)
148
152
Position 21 to 23(Slow To Fast)
153
157
Position 22 to 24(Slow To Fast)
158
162
Position 23 to 25(Slow To Fast)
163
167
Position 24 to 26(Slow To Fast)
168
172
Position 25 to 27(Slow To Fast)
173
177
Position 26 to 28(Slow To Fast)
178
182
Position 27 to 29(Slow To Fast)
183
187
Wheel Spin
CW Fastest to Slow
188
219
Stop
220
223
CCW Slow to Fastest
224
255
9
10
Gobo
Indexed
Gobo 1 (Open)
0
1
Gobo 2
2
4
Gobo 3
5
7
Gobo 4
8
10
Gobo 5
11
13
Gobo 6
14
16
Gobo 7
17
19
Gobo 8
20
22
Gobo 9
23
25
Gobo 10
26
28
Gobo 11
29
31
Gobo 12
32
34
Gobo 13
35
37
Gobo 14
38
40
Gobo 15
41
43
Gobo 16
44
46
Gobo 17
47
49
Gobo 18
50
51
Indexed With Shake
Gobo 2 (From Slow To Fast)
52
59
Gobo 3 (From Slow To Fast)
60
67
Gobo 4 (From Slow To Fast)
68
75
Gobo 5 (From Slow To Fast)
76
83
Gobo 6 (From Slow To Fast)
84
91
Gobo 7 (From Slow To Fast)
92
99
Gobo 8 (From Slow To Fast)
100
107
Gobo 9 (From Slow To Fast)
108
115
Gobo 10 (From Slow To Fast)
116
123
Gobo 11 (From Slow To Fast)
124
131

13
Gobo 12 (From Slow To Fast)
132
139
Gobo 13 (From Slow To Fast)
140
147
Gobo 14 (From Slow To Fast)
148
155
Gobo 15 (From Slow To Fast)
156
163
Gobo 16 (From Slow To Fast)
164
171
Gobo 17 (From Slow To Fast)
172
179
Gobo 18 (From Slow To Fast)
180
187
Wheel Spin
CW Fastest to Slow
188
219
Stop
220
223
CCW Slow to Fastest
224
255
10
11
Prism 1
Indexed
Lineary from 0° to 360°
0
187
Prism Rotation Spin
CW Fastest to Slow
188
219
Stop
220
223
CCW Slow to Fastest
224
255
11
12
Prism 2
Indexed
Lineary from 0° to 360°
0
187
Prism Rotation Spin
CW Fastest to Slow
188
219
Stop
220
223
CCW Slow to Fastest
224
255
12
13
Frost
Lineary from in to out
0
255
13
14
Focus
Lineary from in to out
0
255
15
Focus Fine
Lineary from in to out
0
255
14
16
Control
No Function/Safe
0
5
Pan Reverse On
6
7
Pan Reverse Off
8
9
Tilt Reverse On
10
11
Tilt Reverse Off
12
13
XY Speed Mode Fast
14
15
XY Speed Mode Medium
16
17
XY Speed Mode Slow
18
19
XY Blackout On
20
21
XY Blackout Off
22
23
Color Wheel Blackout On (index)
24
25
Color Wheel Blackout Off (index)
26
27
Fixed Gobo Wheel Blackout On (index)
28
29
Fixed Gobo Wheel Blackout Off (index)
30
31
All Blackout On
32
33
All Blackout Off
34
35
Flip Display On
36
37
Flip Display Off
38
39
Flip Display Auto
40
41
No Signal Hold
42
43

14
No Signal Blackout
44
45
Status Led On
46
47
Status Led Off
48
49
Reset All
50
51
Reset Pan/Tilt
52
53
Reset Color
54
55
Reset Gobo
56
57
Reset Other
58
59
Reserved
60
253
FACTORY DEFAULT OF CONTROL FUNCTIONS
254
255
6. Unique Features
6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device,
such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature,
power consumption, fan speed. Etc. Every single device has a unique RDM code before left factory to distinguish from
each other, usually not suggest users change this code freely.
6.2 Software upgrade function via DMX cable, if there is any new firmware for this device come out, it can be upgraded
simply via a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the
package, if need any further assistance pls just contact authorized dealers.
6.3 Hibernation, the device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
6.4 Display battery, this function is prepaid in the display PCB, users just need to install a normal 10440 600mAh 3.7V
rechargeable lithium battery, then users could power on the display and do setting without connect to main power.
6.5 Display back-up communication IC, there is a back-up communication IC installed in the display PCB, so users could
replace at once if the working one is broken, no need to wait long time from service.
6.6 Display flip, by press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.

15

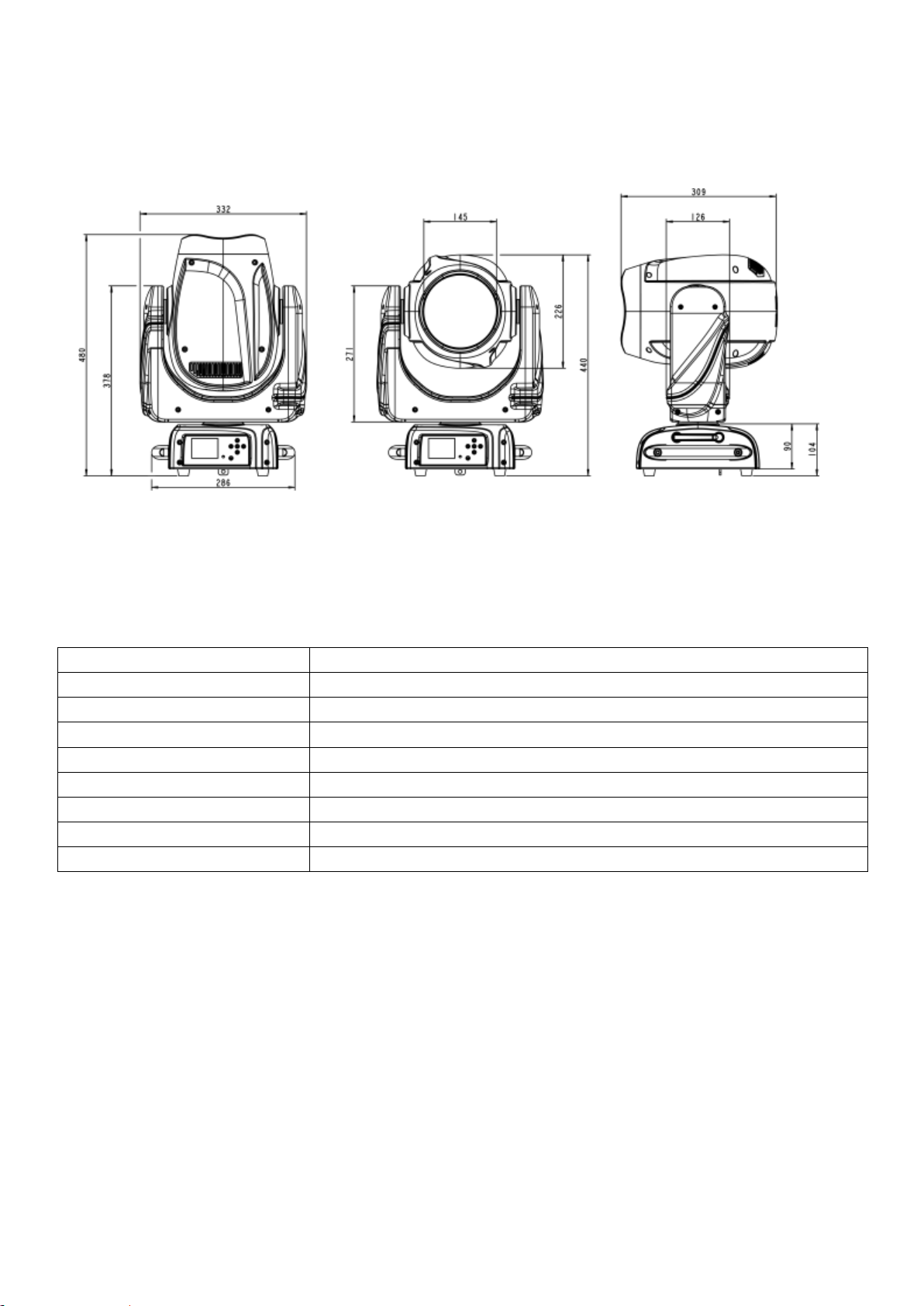

7. Dimensions Drawing
8. Technical specification
Power supply
100-240 V AC, 50/60 Hz ~
Power consumption
172W
LED
120w white led
DMX channels
14/16 ch
Beam angle
1°
Luminous flux
2170lumen,150000lux@5m
Fuse
T 3.15 A, 250 V
Device dimensions
332x309x480mm
Net Weight
12.75KG
