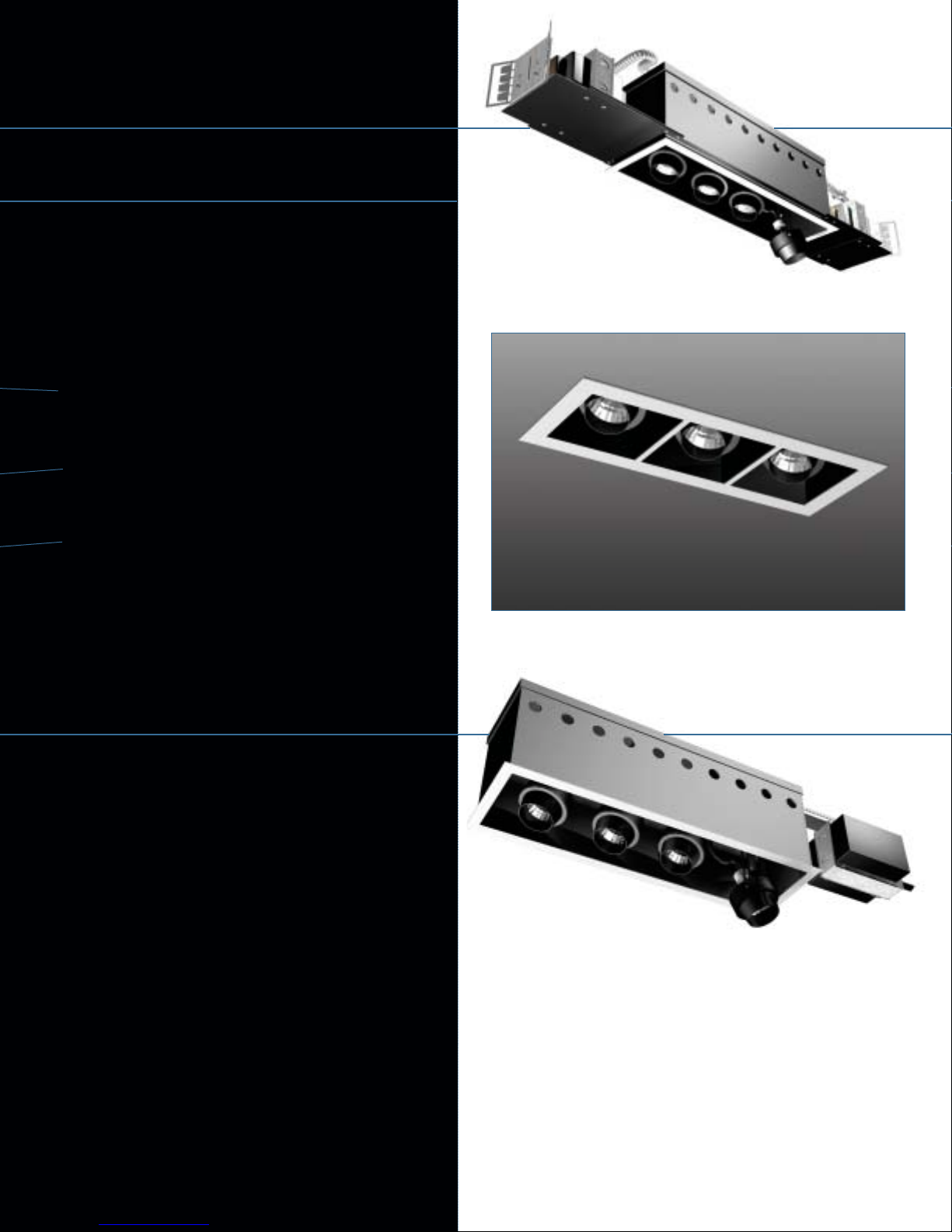

COMBOLIGHT®CO Series Recessed
Trim
Detail
3/4" Trim
380º Rotation
1. Push up to unlock
2. Rotate to desired position
3. Release to lock into position
Standard Locking Adjustable Yoke

3/4” Trim Fixture
New Construction Housing
Remodel Housing
Also available with lamp cell dividers. Dividers are the
same color as the trim. Specify “DV” when ordering.
• Suitable for recessed new construction
downlighting applications where multiple
lamps from a single electrical
connection is desired
• Fixture is comprised of sturdy steel
construction with a durable powder coat
finish inside and out
• Transformers and electrical are
conveniently located on the fixtures
mounting frame
• Includes a trim sleeve with a 3/4” below
ceiling trim that also hides unsightly
internal mechanics.
• Adjustable plaster frame can accommo-
date 1/2” to 1” ceiling thickness
• Available with Magnetic or Electronic
transformer with fuse and short circuit
protection (low voltage models)
• Suitable for recessed remodel or retrofit
downlighting applications where a multi-
lamp, single electrical connection is desired
All Combolight CO Series fixtures are New York Calendar
numbered. All Combolight CO Series fixtures are available
with Chicago Plenum (specify “-CP”).

8
2.88"
6.00" A
B
C
COMBOLIGHT®RECESSED MR11 w/ TRIM
FIXTURE TYPE
Catalog # Description
CO111S
CO112S
CO113S
CO114S
CO115S
CO106S
CO114SSQ
(1) One Light MR11
(2) Two Light MR11
(3) Three Light MR11
(4) Four Light MR11
(5) Five Light MR11
(6) Six Light MR11
(4) Four Light Square MR11
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
20
35
20 Watt MR11 Bi-Pin 12V
35 Watt MR11 Bi-Pin 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
CO STANDARD w/ TRIM
1
2
3
4
5
6
7
Recessed Low Voltage MR11
Standard Fixture w/ 3/4” Trim
• Standard new construction fixture with 3/4” trim
• Adjustable Plaster Frame can accommodate 1/2” to 1”
Ceiling Thickness
• Electrical J-Box and Transformers located in plaster frame with
easy below-ceiling access
• Includes butterfly brackets for black iron installations
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
CO4114S WH BK 35 RT MAG 120
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light Mag. Xfmr. 13.59” 5.18” 3.03”
3.75” x 4.11”
1 Light Elec. Xfmr. 13.59” 5.18” 3.03”
2 Light Mag. Xfmr. 18.10” 5.18” 5.54”
3.75” x 6.62”
2 Light Elec. Xfmr. 18.10” 5.18” 5.54”
3 Light Mag. Xfmr. 25.75” 5.18” 8.19”
3.75” x 9.27”
3 Light Elec. Xfmr. 20.75” 5.18” 8.19”
4 Light Mag. Xfmr. 28.35” 5.18” 10.79”
3.75” x 11.87”
4 Light Elec. Xfmr. 23.35” 5.18” 10.79”
5 Light Elec. Xfmr. 26.00” 5.18” 13.44” 3.75” x 14.52”
6 Light Elec. Xfmr. 28.65” 5.18” 16.09” 3.75” x 17.17”
4 Light Sq. Mag. Xfmr. 23.69” 5.18” 6.13”x 6.25”
7.21” x 7.21”
4 Light Sq. Elec. Xfmr. 18.69” 5.18” 6.13”x 6.25
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO114S WH BK 35 RT MAG 120
Four Light CO Series New Construction Fixture, White Trim, Black Interior, MR11 35 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
Retractable
Yoke
(Optional)
Double Gimbal
(Optional)
90º x 90º
Spill Shield
(Optional)
Snoot
(Optional)
Trim
Detail
3/4" Trim
CO SERIES

9
3.80"
4.30" A
B
C
Recessed Low Voltage MR11
Remodel Fixture w/ 3/4” Trim
• Remodel fixture with 3/4” trim
• Can accommodate 1/2” to 1 3/4” Ceiling Thickness
• Electrical J-Box and Transformers attached to fixture with easy
below-ceiling access
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
• Suitable for remodel / retrofit applications
CO REMODEL w/ TRIM
COMBOLIGHT®RECESSED MR11 w/ TRIM
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light
Electronic or magnetic xfmr. 15.75” 5.18” 3.03” 4.47”x 4.47”
2 Light
Electronic or magnetic xfmr. 18.00” 5.18” 5.54” 8.82”x 4.47”
3 Light
Electronic or magnetic xfmr. 8.95” 5.18” 8.19” 12.62”x 4.47”
4 Light
Electronic or magnetic xfmr. 11.55” 5.18” 10.79” 16.39”x 4.47”
5 Light
Electronic or magnetic xfmr. 14.20” 5.18” 13.44” 20.23”x 4.47”
6 Light
Electronic or magnetic xfmr. 16.85” 5.18” 16.09” 24.05”x 4.47”
4 Light Square
Electronic or magnetic xfmr. 6.75”25.18” 6.13”x 6.25 7.21”x 7.21”
FIXTURE TYPE
Catalog # Description
CO111S-RMD
CO112S-RMD
CO113S-RMD
CO114S-RMD
CO115S-RMD
CO106S-RMD
CO114SSQ-RMD
(1) One Light MR11 Remodel
(2) Two Light MR11 Remodel
(3) Three Light MR11 Remodel
(4) Four Light MR11 Remodel
(5) Five Light MR11 Remodel
(6) Six Light MR11 Remodel
(4) Four Lt. Square MR11 Remodel
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
20
35
20 Watt MR11 Bi-Pin 12V
35 Watt MR11 Bi-Pin 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
1
2
3
4
5
6
7
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO114S-RMD WH BK 35 RT MAG 120
Four Light CO Series Remodel Fixture, White Trim, Black Interior, MR11 35 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
A
Electronic
or Magentic
Transformers in
remote enclosure.
3 Light - 8x8x4 Box
4 Light - 10x10x4 Box
5 or 6 Light - 12x12x4 Box
“A” dimension for three,
four, five, six and four
light square fixtures
designates the total
length of the fixture
housing only.
One and two light remodel fixtures ship with transformers and j-box
mounted to the housing. Three, four, five, six and four light square fix-
tures ship with transformers mounted in a remote enclosure wired to
the housing and connected via flexible conduit.
CO SERIES
Use only dimmers specifically designed for use with magnetic or
electronic transformers. Low voltage fixtures using magnetic trans-
formers may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.

10
3.80"
6.00" A
B
C
COMBOLIGHT®RECESSED MR16 w/ TRIM
FIXTURE TYPE
Catalog # Description
CO116S
CO216S
CO316S
CO416S
CO516S
CO616S
CO416SSQ
(1) One Light MR16
(2) Two Light MR16
(3) Three Light MR16
(4) Four Light MR16
(5) Five Light MR16
(6) Six Light MR16
(4) Four Light Square MR16
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
50
75
50 Watt MR16 Bi-Pin 12V (Standard)
75 Watt MR16 Bi-Pin 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
CO STANDARD w/ TRIM
1
2
3
4
5
6
7
Recessed Low Voltage MR16
Standard Fixture w/ 3/4” Trim
• Standard new construction fixture with 3/4” trim
• Adjustable Plaster Frame can accommodate 1/2” to 1”
Ceiling Thickness
• Electrical J-Box and Transformers located in plaster frame with
easy below-ceiling access
• Includes butterfly brackets for black iron installations
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
CO416S WH BK 50 RT MAG 120 (Shown with Snoot Accessory)
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light Mag. Xfmr. 16.51” 6.55” 3.80”
4.67” x 5.09”
1 Light Elec. Xfmr. 16.51” 6.55” 3.80”
2 Light Mag. Xfmr. 20.50” 6.55” 7.95”
4.67” x 9.03”
2 Light Elec. Xfmr. 20.50” 6.55” 7.95”
3 Light Mag. Xfmr. 29.30” 6.55” 11.75”
4.67” x 12.77”
3 Light Elec. Xfmr. 24.30” 6.55” 11.75”
4 Light Mag. Xfmr. 33.06” 6.55” 15.50”
4.67” x 16.60”
4 Light Elec. Xfmr. 28.06” 6.55” 15.50”
5 Light Elec. Xfmr. 31.91” 6.55” 19.35” 4.67” x 20.41”
6 Light Elec. Xfmr. 35.72” 6.55” 23.16” 4.67” x 24.22”
4 Light Sq. Mag. Xfmr. 25.38” 6.55” 8.06” x 7.94”
8.93” x 8.91”
4 Light Sq. Elec. Xfmr. 20.38” 6.55” 8.06” x 7.94”
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO416S WH BK 50 RT MAG 120
Four Light CO Series New Construction Fixture, White Trim, Black Interior, MR16 50 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
Retractable
Yoke
(Optional)
Double Gimbal
(Optional)
90º x 90º
Spill Shield
(Optional)
Snoot
(Optional)
Trim
Detail
3/4" Trim
CO SERIES

11
3.80"
4.30" A
B
C
Recessed Low Voltage MR16
Remodel Fixture w/ 3/4” Trim
• Remodel fixture with 3/4” trim
• Can accommodate 1/2” to 1 3/4” Ceiling Thickness
• Electrical J-Box and Transformers attached to fixture with easy
below-ceiling access
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
• Suitable for remodel / retrofit applications
CO REMODEL w/ TRIM
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light
Electronic or magnetic xfmr. 16.25” 6.55” 3.80” 4.47”x 4.67”
2 Light
Electronic or magnetic xfmr. 20.50” 6.55” 7.95” 8.82”x 4.67”
3 Light
Electronic or magnetic xfmr. 12.50” 6.55” 11.75” 12.62”x 4.67”
4 Light
Electronic or magnetic xfmr. 16.26” 6.55” 15.50” 16.39”x 4.67”
5 Light
Electronic or magnetic xfmr. 20.11” 6.55” 19.35” 20.23”x 4.67”
6 Light
Electronic or magnetic xfmr. 23.92” 6.55” 23.16” 24.05”x 4.67”
4 Light Square
Electronic or magnetic xfmr. 8.58”26.55” 8.06” x 7.94” 8.91”x 8.91”
FIXTURE TYPE
Catalog # Description
CO116S-RMD
CO216S-RMD
CO316S-RMD
CO416S-RMD
CO516S-RMD
CO616S-RMD
CO416SSQ-RMD
(1) One Light MR16 Remodel
(2) Two Light MR16 Remodel
(3) Three Light MR16 Remodel
(4) Four Light MR16 Remodel
(5) Five Light MR16 Remodel
(6) Six Light MR16 Remodel
(4) Four Lt. Square MR16 Remodel
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
50
75
50 Watt MR16 Bi-Pin 12V (Standard)
75 Watt MR16 Bi-Pin 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
1
2
3
4
5
6
7
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO416S-RMD WH BK 50 RT MAG 120
Four Light CO Series Remodel Fixture, White Trim, Black Interior, MR16 50 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
A
Electronic
or Magentic
Transformers in
remote enclosure.
3 Light - 8x8x4 Box
4 Light - 10x10x4 Box
5 or 6 Light - 12x12x4 Box
“A” dimension for three,
four, five, six and four
light square fixtures
designates the total
length of the fixture
housing only.
One and two light remodel fixtures ship with transformers and j-box
mounted to the housing. Three, four, five, six and four light square fix-
tures ship with transformers mounted in a remote enclosure wired to
the housing and connected via flexible conduit.
CO SERIES COMBOLIGHT®RECESSED MR16 w/ TRIM
Use only dimmers specifically designed for use with magnetic or
electronic transformers. Low voltage fixtures using magnetic trans-
formers may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.

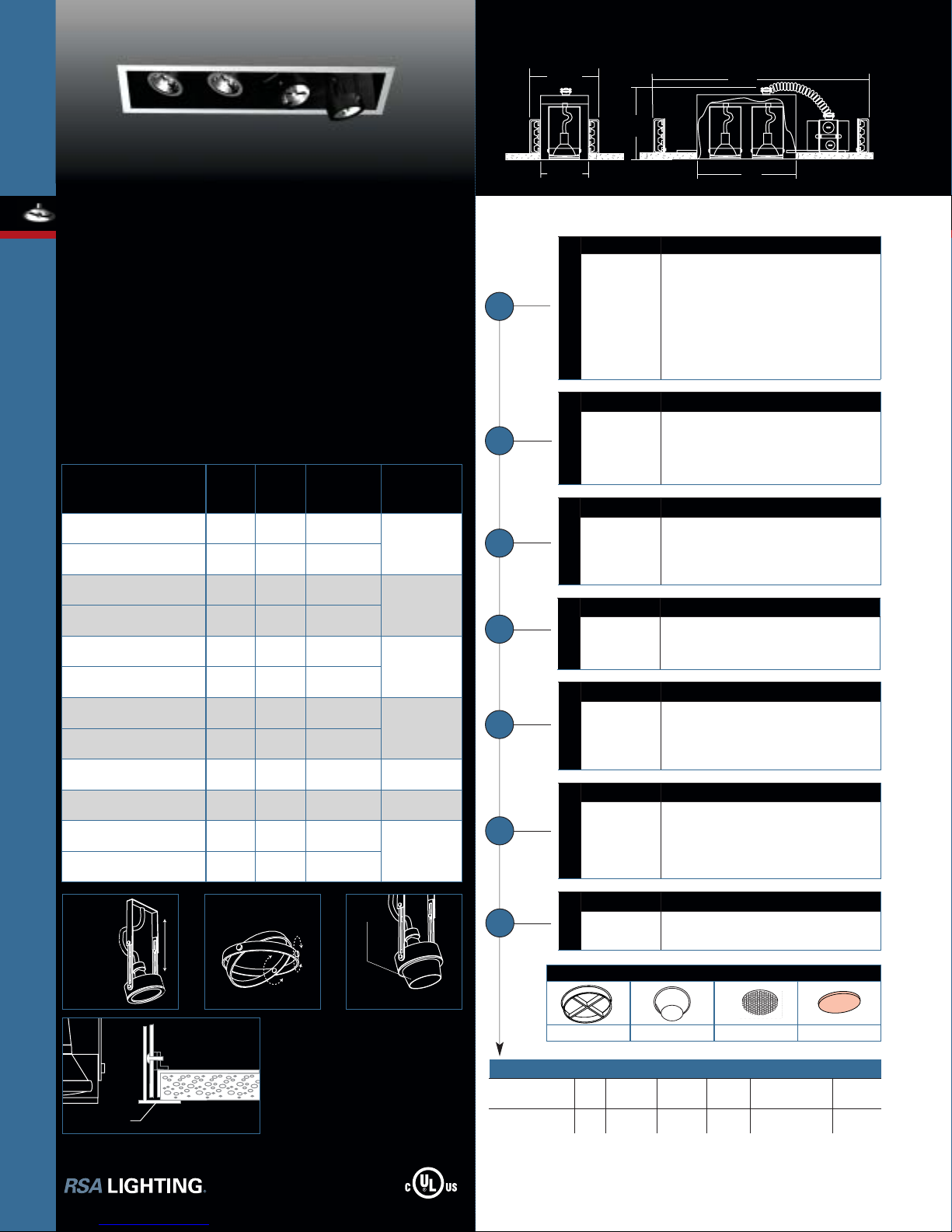

12
3.80"
6.00" A
B
C
CO SERIES
COMBOLIGHT®RECESSED AR70 w/ TRIM
FIXTURE TYPE
Catalog # Description
CO170S
CO270S
CO370S
CO470S
CO570S
CO670S
CO470SSQ
(1) One Light AR70
(2) Two Light AR70
(3) Three Light AR70
(4) Four Light AR70
(5) Five Light AR70
(6) Six Light AR70
(4) Four Light Square AR70
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
20
50
20 Watt AR70 Bayonet 12V
50 Watt AR70 Bayonet 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
CO STANDARD w/ TRIM
1
2
3
4
5
6
7
Recessed Low Voltage AR70
Standard Fixture w/ 3/4” Trim
• Standard new construction fixture with 3/4” trim
• Adjustable Plaster Frame can accommodate 1/2” to 1”
Ceiling Thickness
• Electrical J-Box and Transformers located in plaster frame with
easy below-ceiling access
• Includes butterfly brackets for black iron installations
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
CO470S WH WH 50 RT MAG 120
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO470S WH WH 50 RT MAG 120
Four Light CO Series New Construction Fixture, White Trim, White Interior, AR70 50 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
Retractable
Yoke
(Optional)
Double Gimbal
(Optional)
90º x 90º
Snoot
(Optional)
Trim
Detail
3/4" Trim
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light Mag. Xfmr. 16.51” 6.55” 3.80”
4.67” x 5.09”
1 Light Elec. Xfmr. 16.51” 6.55” 3.80”
2 Light Mag. Xfmr. 20.50” 6.55” 7.95”
4.67” x 9.03”
2 Light Elec. Xfmr. 20.50” 6.55” 7.95”
3 Light Mag. Xfmr. 29.30” 6.55” 11.75”
4.67” x 12.77”
3 Light Elec. Xfmr. 24.30” 6.55” 11.75”
4 Light Mag. Xfmr. 33.06” 6.55” 15.50”
4.67” x 16.60”
4 Light Elec. Xfmr. 28.06” 6.55” 15.50”
5 Light Elec. Xfmr. 31.91” 6.55” 19.35” 4.67” x 20.41”
6 Light Elec. Xfmr. 35.72” 6.55” 23.16” 4.67” x 24.22”
4 Light Sq. Mag. Xfmr. 25.38” 6.55” 8.06” x 7.94”
8.93” x 8.91”
4 Light Sq. Elec. Xfmr. 20.38” 6.55” 8.06” x 7.94”

3.80"
6.00" A
B
C
Recessed Low Voltage AR70
Remodel Fixture w/ 3/4” Trim
• Remodel fixture with 3/4” trim
• Can accommodate 1/2” to 1 3/4” Ceiling Thickness
• Electrical J-Box and Transformers attached to fixture with easy
below-ceiling access
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
• Suitable for remodel / retrofit applications
CO REMODEL w/ TRIM
FIXTURE TYPE
Catalog # Description
CO170S-RMD
CO270S-RMD
CO370S-RMD
CO470S-RMD
CO570S-RMD
CO670S-RMD
CO470SSQ-RMD
(1) One Light AR70 Remodel
(2) Two Light AR70 Remodel
(3) Three Light AR70 Remodel
(4) Four Light AR70 Remodel
(5) Five Light AR70 Remodel
(6) Six Light AR70 Remodel
(4) Four Lt. Square AR70 Remodel
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
20
50
20 Watt AR70 Bayonet 12V
50 Watt AR70 Bayonet 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
1
2
3
4
5
6
7
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO470S-RMD WH WH 50 RT MAG 120
Four Light CO Series Remodel Fixture, White Trim, White Interior, AR70 50 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
A
Electronic
or Magentic
Transformers in
remote enclosure.
3 Light - 8x8x4 Box
4 Light - 10x10x4 Box
5 or 6 Light - 12x12x4 Box
“A” dimension for three,
four, five, six and four
light square fixtures
designates the total
length of the fixture
housing only.
One and two light remodel fixtures ship with transformers and j-box
mounted to the housing. Three, four, five, six and four light square fix-
tures ship with transformers mounted in a remote enclosure wired to
the housing and connected via flexible conduit.
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light
Electronic or magnetic xfmr. 16.25” 6.55” 3.80” 4.47”x 4.67”
2 Light
Electronic or magnetic xfmr. 20.50” 6.55” 7.95” 8.82”x 4.67”
3 Light
Electronic or magnetic xfmr. 12.50” 6.55” 11.75” 12.62”x 4.67”
4 Light
Electronic or magnetic xfmr. 16.26” 6.55” 15.50” 16.39”x 4.67”
5 Light
Electronic or magnetic xfmr. 20.11” 6.55” 19.35” 20.23”x 4.67”
6 Light
Electronic or magnetic xfmr. 23.92” 6.55” 23.16” 24.05”x 4.67”
4 Light Square
Electronic or magnetic xfmr. 8.58”26.55” 8.06” x 7.94” 8.91”x 8.91”
13
CO SERIES COMBOLIGHT®RECESSED AR70 w/ TRIM
Use only dimmers specifically designed for use with magnetic or
electronic transformers. Low voltage fixtures using magnetic trans-
formers may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.

14
A
C
6.50"
8.75"
B
CO SERIES
COMBOLIGHT®RECESSED AR111 w/ TRIM
FIXTURE TYPE
Catalog # Description
CO1010S
CO1000S
CO1100S
CO1200S
CO1250S
CO1260S
CO1200SSQ
(1) One Light AR111
(2) Two Light AR111
(3) Three Light AR111
(4) Four Light AR111
(5) Five Light AR111
(6) Six Light AR111
(4) Four Light Square AR111
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
35
50
75
100
35 Watt AR111 12V
50 Watt AR111 12V
75 Watt AR111 12V
100 Watt AR111 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
CO STANDARD w/ TRIM
1
2
3
4
5
6
7
Recessed Low Voltage AR111
Standard Fixture w/ 3/4” Trim
• Standard new construction fixture with 3/4” trim
• Adjustable Plaster Frame can accommodate 1/2” to 1”
Ceiling Thickness
• Electrical J-Box and Transformers located in plaster frame with
easy below-ceiling access
• Includes butterfly brackets for black iron installations
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
CO1200S WH BK 50 RT MAG 120
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light Mag. Xfmr. 19.21” 8.20” 6.65”
7.37”x 7.73”
1 Light Elec. Xfmr. 19.21” 8.20” 6.65”
2 Light Mag. Xfmr. 26.75” 8.20” 14.19”
7.37”x 15.27”
2 Light Elec. Xfmr. 26.75” 8.20” 14.19”
3 Light Mag. Xfmr. 38.60” 8.20” 21.04”
7.37”x 22.12”
3 Light Elec. Xfmr. 33.60” 8.20” 21.04”
4 Light Mag. Xfmr. 45.45” 8.20” 27.89”
7.37”x 28.97”
4 Light Elec. Xfmr. 40.45” 8.20” 27.89”
5 Light Elec. Xfmr. 47.35” 8.20” 34.79” 7.37”x 35.87”
6 Light Elec. Xfmr. 54.20” 8.20” 41.64” 7.37”x 42.72”
4 Light Sq. Mag. Xfmr. 30.94” 8.20” 13.50” x 13.38”
14.37”x 14.46”
4 Light Sq. Elec. Xfmr. 25.94” 8.20” 13.50” x 13.38”
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO1200S WH BK 50 RT MAG 120
Four Light CO Series New Construction Fixture, White Trim, Black Interior,
AR111 50 Watt, Retractable Yoke, Magnetic Transformer, 120 Volt
Retractable
Yoke
(Optional)
Double Gimbal
(Optional)
90º x 90º
Snoot
(Optional)
Trim
Detail
3/4" Trim

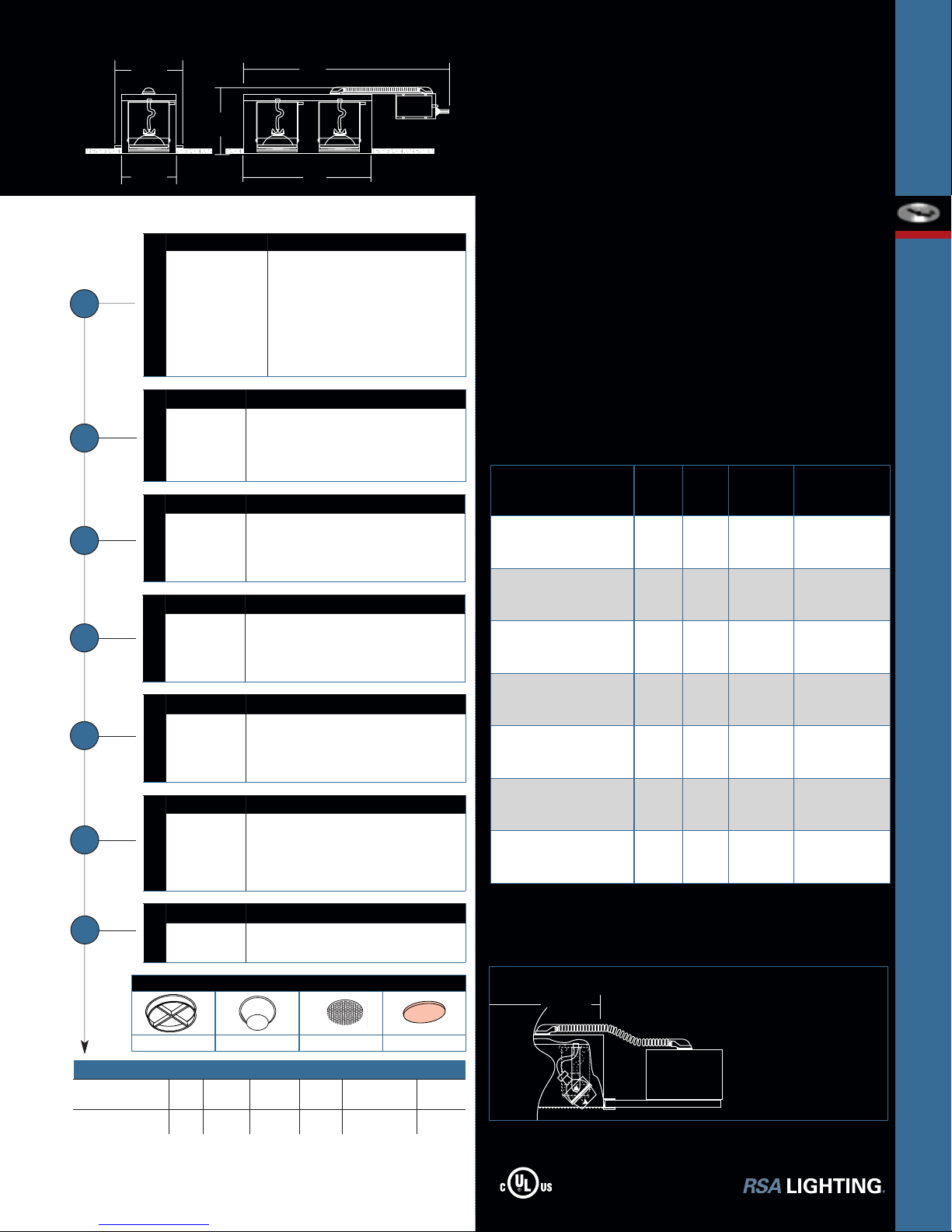

A
C
6.50"
8.75"
B
Recessed Low Voltage AR111
Remodel Fixture w/ 3/4” Trim
• Remodel fixture with 3/4” trim
• Can accommodate 1/2” to 1 3/4” Ceiling Thickness
• Electrical J-Box and Transformers attached to fixture with easy
below-ceiling access
• Low voltage models offered with magnetic transformer or
electronic transformer with fuse and short circuit protection
• Suitable for remodel / retrofit applications
CO REMODEL w/ TRIM
FIXTURE TYPE
Catalog # Description
CO1010S-RMD
CO1000S-RMD
CO1100S-RMD
CO1200S-RMD
CO1250S-RMD
CO1260S-RMD
CO1200SSQ-RMD
(1) One Light AR111 Remodel
(2) Two Light AR111 Remodel
(3) Three Light AR111 Remodel
(4) Four Light AR111 Remodel
(5) Five Light AR111 Remodel
(6) Six Light AR111 Remodel
(4) Four Lt. Square AR111 Remodel
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
WATTAGE
Catalog # Description
35
50
75
100
35 Watt AR111 12V
50 Watt AR111 12V
75 Watt AR111 12V
100 Watt AR111 12V
TRANSFORMER
Catalog # Description
ELC
MAG
Electronic Transformer
Magnetic Transformer
VOLTAGE
Catalog # Description
120
277
120 Volt (Standard)
277 Volt
1
2
3
4
5
6
7
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR WATTAGE LAMP
HOLDER TRANSFORMER VOLTAGE
CO1200S-RMD WH BK 50 RT MAG 120
Four Light CO Series Remodel Fixture, White Trim, Black Interior, AR111 50 Watt,
Retractable Yoke, Magnetic Transformer, 120 Volt
A
Electronic
or Magentic
Transformers in
remote enclosure.
3 Light - 8x8x4 Box
4 Light - 10x10x4 Box
5 or 6 Light - 12x12x4 Box
“A” dimension for three,
four, five, six and four
light square fixtures
designates the total
length of the fixture
housing only.
One and two light remodel fixtures ship with transformers and j-box
mounted to the housing. Three, four, five, six and four light square fix-
tures ship with transformers mounted in a remote enclosure wired to
the housing and connected via flexible conduit.
15
CO SERIES COMBOLIGHT®RECESSED AR111 w/ TRIM
Use only dimmers specifically designed for use with magnetic or
electronic transformers. Low voltage fixtures using magnetic trans-
formers may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light
Electronic or magnetic xfmr. 17.00” 8.20” 6.65” 7.37”x 7.73”
2 Light
Electronic or magnetic xfmr. 24.25” 8.20” 14.19” 7.37”x 15.27”
3 Light
Electronic or magnetic xfmr. 21.80” 8.20” 21.04” 7.37”x 22.12”
4 Light
Electronic or magnetic xfmr. 28.65” 8.20” 27.89” 7.37”x 28.97”
5 Light
Electronic or magnetic xfmr. 35.55” 8.20” 34.79” 7.37”x 35.87”
6 Light
Electronic or magnetic xfmr. 42.40” 8.20” 41.64” 7.37”x 42.72”
4 Light Square
Electronic or magnetic xfmr. 14.14”28.20” 13.50” x
13.38” 14.37”x 14.46”

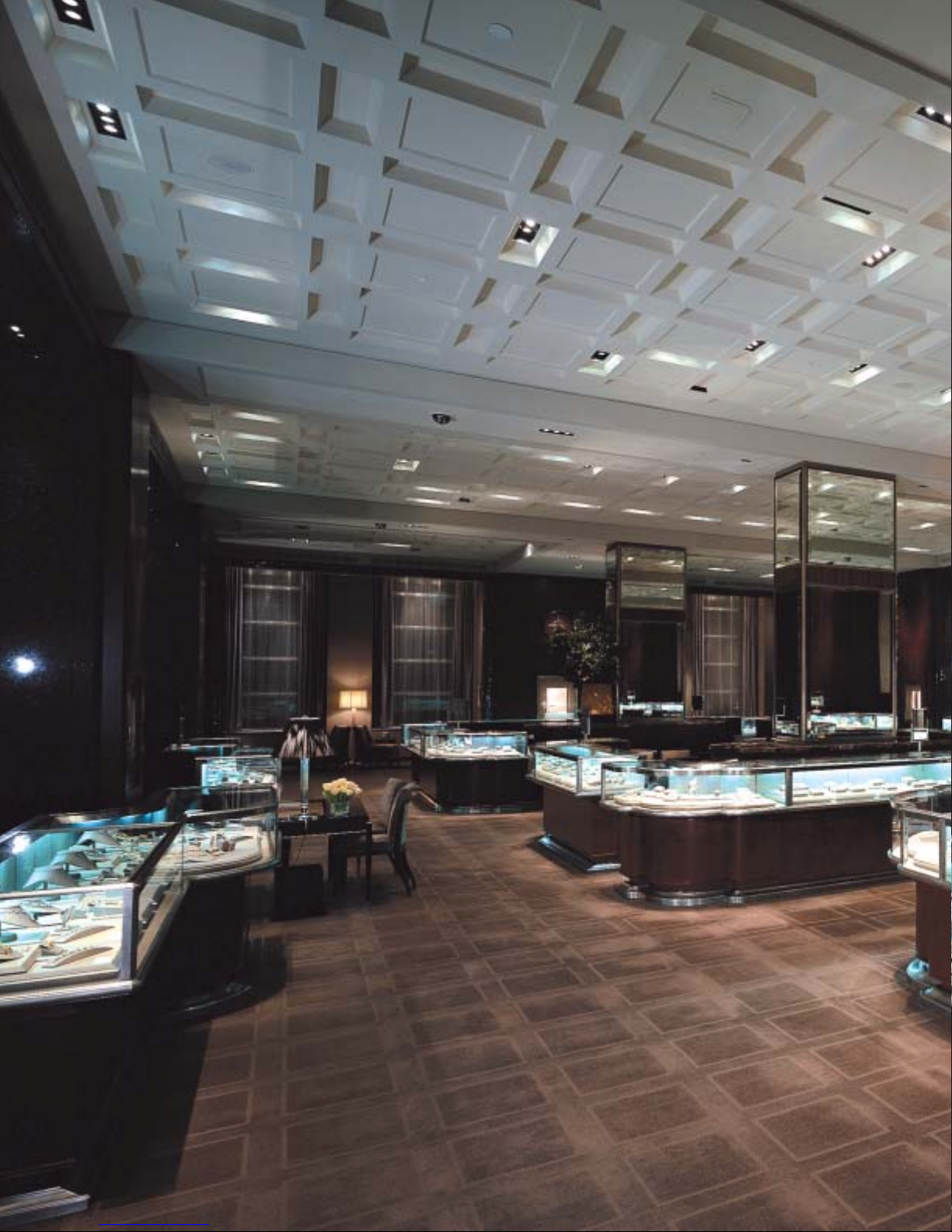

ComboLight “CO” Series
Tiffany & Co. Flagship Store
New York, New York
Lighting Design: Cooley Monato Studio

COMBOLIGHT®

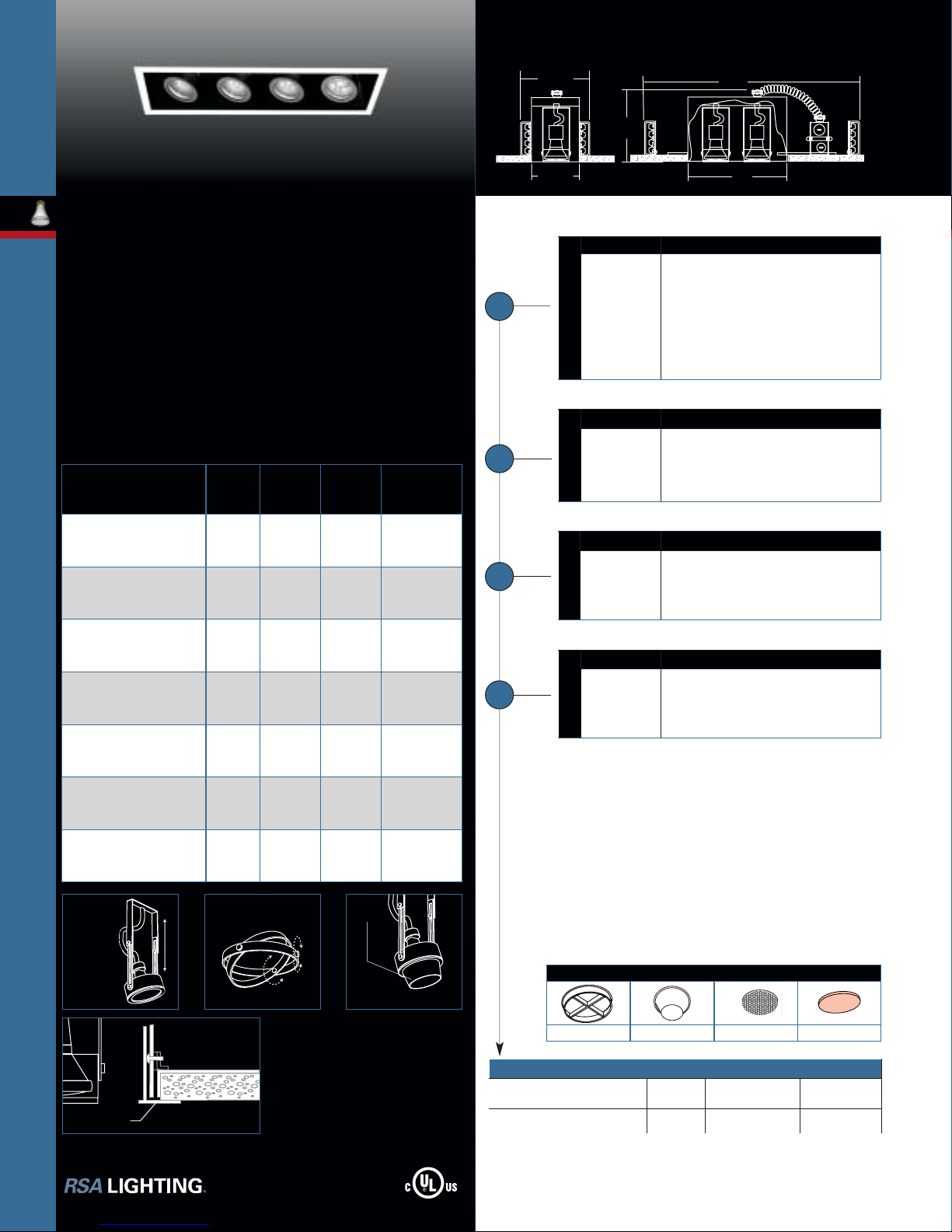

18
3.80"
6.00" A
B
C
CO SERIES
COMBOLIGHT®RECESSED PAR16 w/ TRIM
FIXTURE TYPE
Catalog # Description
CO1610IS
CO1620IS
CO1630IS
CO1640IS
CO1650IS
CO1660IS
CO1640ISSQ
(1) One Light PAR16
(2) Two Light PAR16
(3) Three Light PAR16
(4) Four Light PAR16
(5) Five Light PAR16
(6) Six Light PAR16
(4) Four Light Square PAR16
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
CO STANDARD w/ TRIM
1
2
3
4
Recessed Line Voltage PAR16
Standard Fixture w/ 3/4” Trim
• Standard new construction fixture with 3/4” trim
• Adjustable Plaster Frame can accommodate 1/2” to 1”
Ceiling Thickness
• Electrical J-Box located in plaster frame with easy
below-ceiling access
• Includes butterfly brackets for black iron installations
CO1640S WH BK RT
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR LAMP HOLDER
CO1640IS WH BK RT
Four Light CO Series New Construction Fixture, White Trim, Black Interior, PAR16,
Retractable Yoke
Retractable
Yoke
(Optional)
Double Gimbal
(Optional)
90º x 90º
Snoot
(Optional)
Trim
Detail
3/4" Trim
Fixture
Configuration
A
Length
B
Height
C
Aperture
Length
Ceiling
Cut-out
1 Light 16.51” 6.55” 3.80” 4.67” x 5.09”
2 Light 20.50” 6.55” 7.95” 4.67” x 9.03”
3 Light 24.30” 6.55” 11.75” 4.67” x 12.77”
4 Light 28.06” 6.55” 15.50” 4.67” x 16.60”
5 Light 31.91” 6.55” 19.35” 4.67” x 20.41”
6 Light 35.72” 6.55” 23.16” 4.67” x 24.22”
4 Light Square 25.38” 6.55” 8.06” x
7.94” 8.93” x 8.91”

3.80"
6.00" A
B
C
Recessed Line Voltage PAR16
Remodel Fixture w/ 3/4” Trim
• Remodel fixture with 3/4” trim
• Can accommodate 1/2” to 1 3/4” Ceiling Thickness
• Electrical J-Box attached to fixture with easy
below-ceiling access
• Suitable for remodel / retrofit applications
CO REMODEL w/ TRIM
FIXTURE TYPE
Catalog # Description
CO1610IS-RMD
CO1620IS-RMD
CO1630IS-RMD
CO1640IS-RMD
CO1650IS-RMD
CO1660IS-RMD
CO1640ISSQ-RMD
(1) One Light PAR16 Remodel
(2) Two Light PAR16 Remodel
(3) Three Light PAR16 Remodel
(4) Four Light PAR16 Remodel
(5) Five Light PAR16 Remodel
(6) Six Light PAR16 Remodel
(4) Four Lt. Square PAR16 Remodel
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
1
2
3
4
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR LAMP HOLDER
CO1640IS-RMD WH BK RT
Four Light CO Series Remodel Fixture, White Trim, Black Interior, PAR16, Retractable Yoke
Fixture
Configuration
A
Length
B
Height
C
Aperture Length
Ceiling
Cut-out
1 Light 16.25” 6.55” 3.80” 4.47”x 4.67”
2 Light 20.50” 6.55” 7.95” 8.82”x 4.67”
3 Light 12.50” 6.55” 11.75” 12.62”x
4.67”
4 Light 16.26” 6.55” 15.50” 16.39”x
4.67”
5 Light 20.11” 6.55” 19.35” 20.23”x
4.67”
6 Light 23.92” 6.55” 23.16” 24.05”x
4.67”
4 Light Square 8.58”26.55” 8.06” x
7.94” 8.91”x 8.91”
19
CO SERIES COMBOLIGHT®RECESSED PAR16 w/ TRIM

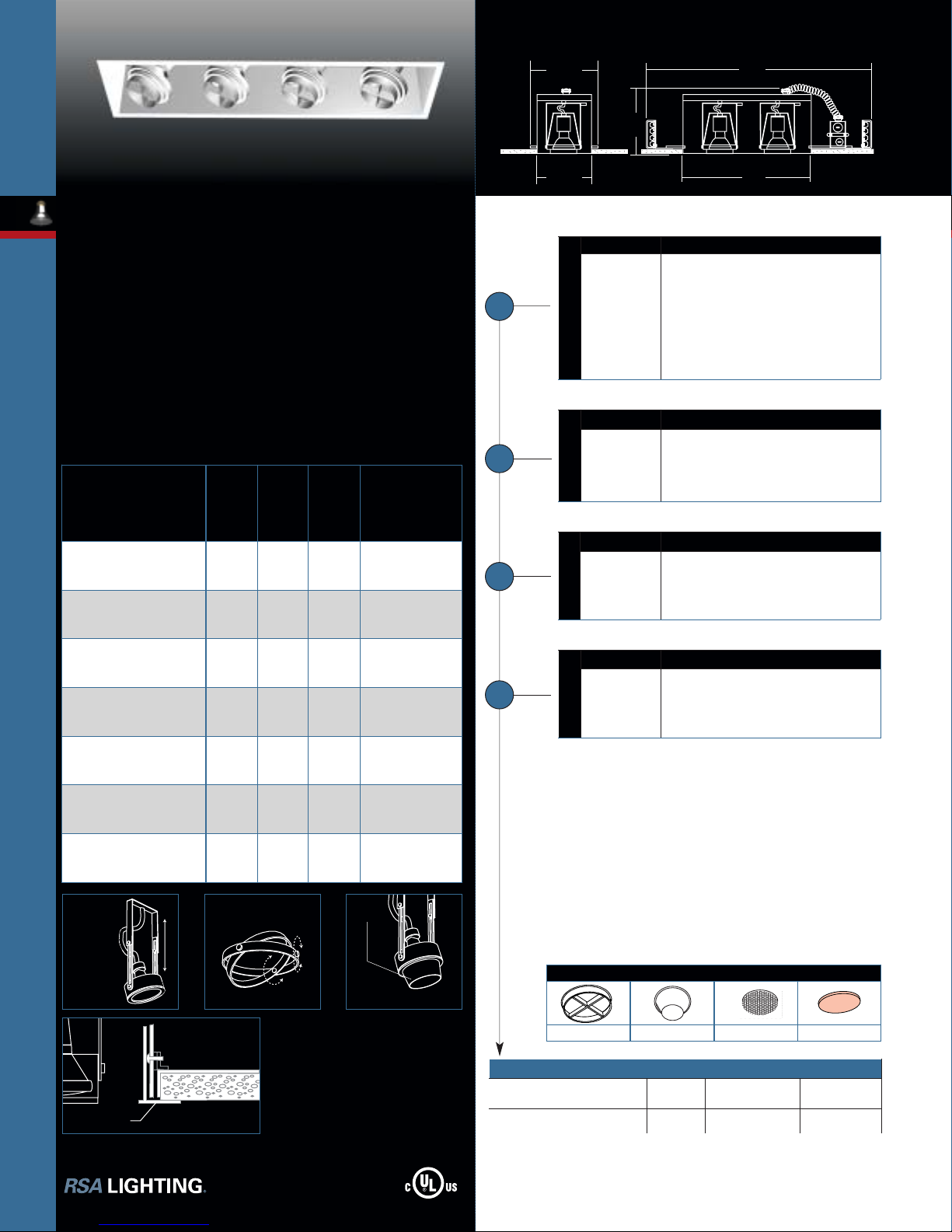

20
A
C
6.50"
8.75"
B
CO SERIES
COMBOLIGHT®RECESSED PAR20 w/ TRIM
FIXTURE TYPE
Catalog # Description
CO2010IS
CO2000IS
CO2003IS
CO2005IS
CO2050IS
CO2060IS
CO2005ISSQ
(1) One Light PAR20
(2) Two Light PAR20
(3) Three Light PAR20
(4) Four Light PAR20
(5) Five Light PAR20
(6) Six Light PAR20
(4) Four Light Square PAR20
TRIM
Catalog # Description
BK
WH
S
PT
Black Trim
White Trim
Industrial Silver Trim
Custom Color (Specify)
INTERIOR
Catalog # Description
BK
WH
S
PT
Black
White
Industrial Silver
Custom Color (Specify)
LAMP HOLDER
Catalog # Description
YK
RT
DG
Regular Yoke (Standard)
Retractable Yoke
Double Gimbal
CO STANDARD w/ TRIM
1
2
3
4
Recessed Line Voltage PAR20
Standard Fixture w/ 3/4” Trim
• Standard new construction fixture with 3/4” trim
• Adjustable Plaster Frame can accommodate 1/2” to 1”
Ceiling Thickness
• Electrical J-Box located in plaster frame with easy
below-ceiling access
• Includes butterfly brackets for black iron installations
CO2005S WH WH RT (Shown with Cross Baffle Accessory)
Fixture
Configuration
A
Length
B
Height
C
Aperture
Length
Ceiling
Cut-out
1 Light 19.21” 8.20” 6.65” 7.37”x 7.73”
2 Light 26.75” 8.20” 14.19” 7.37”x 15.27”
3 Light 33.60” 8.20” 21.04” 7.37”x 22.12”
4 Light 40.45” 8.20” 27.89” 7.37”x 28.97”
5 Light 47.35” 8.20” 34.79” 7.37”x 35.87”
6 Light 54.20” 8.20” 41.64” 7.37”x 42.72”
4 Light Sq. 25.94” 8.20” 13.50” x
13.38” 14.37”x 14.46”
Optional Accessories - See page 216 for details.
Baffle Snoots Louvers Lenses
Ordering Example
FIXTURE TYPE TRIM INTERIOR LAMP HOLDER
CO2005IS WH WH RT
Four Light CO Series New Construction Fixture, White Trim, White Interior, PAR20,
Retractable Yoke
Retractable
Yoke
(Optional)
Double Gimbal
(Optional)
90º x 90º
Snoot
(Optional)
Trim
Detail
3/4" Trim
