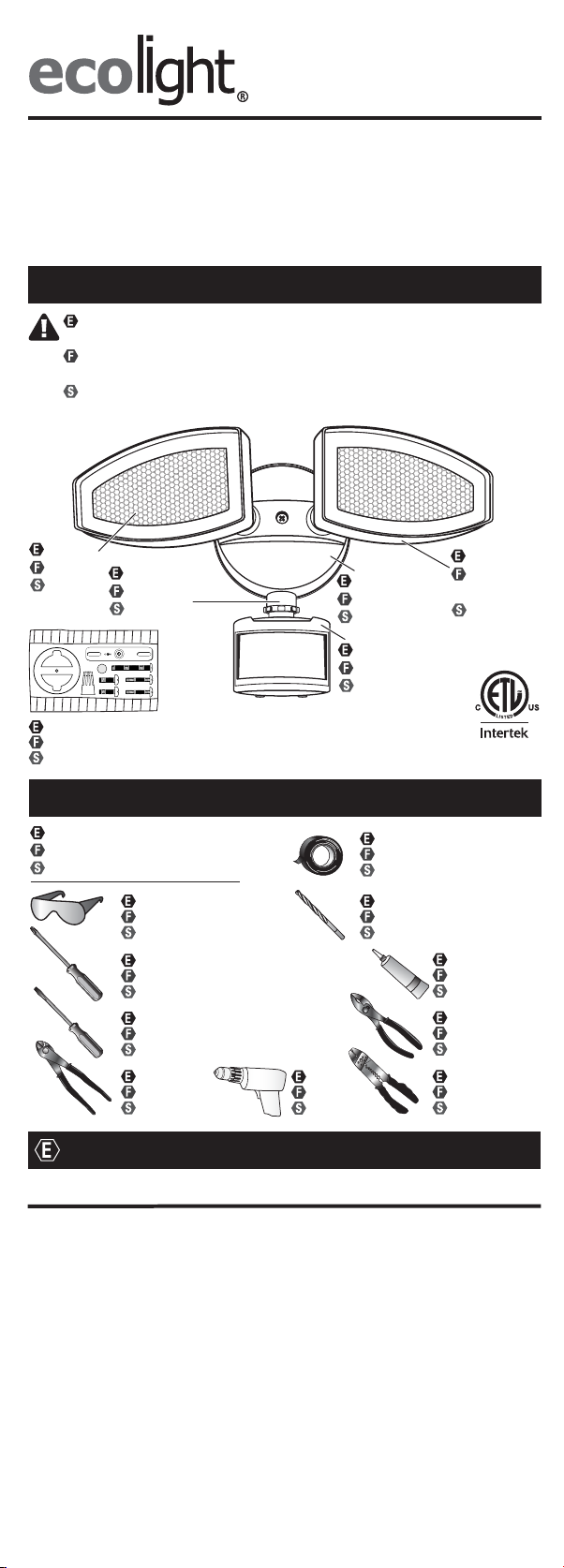

WARNING: Please read this entire manual before installation.

Verify the following contents:

AVERTISSEMENT : Veuillez lire ce mode d'emploi du début à la fin avant

de commencer l'installation. Vérifiez le contenu suivant :

ADVERTENCIA: Por favor, lea este manual completo antes de realizar la

instalación. Verifique el siguiente contenido:

Model/Modèle/Modelo #:

SE1039-TBZ-02LF0-E

SE1039-WH3-02LF0-E

MOTION ACTIVATED LED SECURITY LIGHT (Page 1)

ÉCLAIRAGE DE SÉCURITÉ ACTIVÉ PAR

LES MOUVEMENTS

(Page 6)

LUZ LED DE SEGURIDAD ACTIVADA

POR MOVIMIENTO

(Página 11)

To Begin/Pour commencer/Para comenzar

Required/Nécessaire/Se necesita

Safety glasses

Lunettes desécurité

Gafas de seguridad

Flathead screwdriver

Tournevis à tête plate

Destornillador de cabeza plana

Phillips screwdriver

Tournevis cruciforme

Destornillador Phillips

Installation time: 45 minutes

Temps d’installation : 45 minutes

Tiempo de instalación: 45 minutos

Drill bits 1/16 in.

Forets de 1/16 po

Brocas para taladro de 1/16 pulg

Electrical tape

Ruban isolant

Cinta aislante

Drill

Perceuse

Taladro

Pliers

Pinces

Pinzas

Wire cutters

Coupe-fil

Pinzas cortacables

Wire strippers

Pinces à dénuder

Pinzas pelacables

Hardware kit (Actual hardware may differ from illustration).

Trousse de quincaillerie (La quincaillerie incluse peut être différente de l’illustration.)

Kit de aditamentos (Los aditamentos reales pueden diferir de los que se muestran en la ilustración.)

Diffuser

Diffuseur

Difusor Sensor arm

Bras du détecteur

Brazo del sensor

Wall plate

Plaque murale

Pared plana

Sensor head

Tête du détecteur

Cabezal del sensor

Light head

Tête de

lampe

Cabeza

de luz

Silicone

Silicona

GND

FRONT

Keep this guide handy for

ordering replacement parts.

Hardware Kit

ZH-SE1039F02-TBZ

IMPORTANT: This light fixture uses light emitting diodes (LEDs) to provide

light. LEDs do not have a filament to burn out like a traditional light bulb.

LEDs gradually emit less light over their lifetime, but will typically last 50,000

hours in a residential environment.

Periodically clean the fixture and diffuser using a mild, non-abrasive cleaner

and soft cloth. When cleaning the fixture, make sure the power is turned off.

Do not spray cleaner directly onto any part of the fixture or LEDs.

Extreme hot or cold weather could affect the performance of the built-in sensors that detect

body heat. Certain winter clothing can shield a person’s body heat from the sensor during

extreme cold weather. During extreme hot weather, the sensor may not be able to distinguish

the difference between normal body temperatures and the surrounding high temperatures.

The sensor will begin working normally once weather conditions return to normal.

In the event you are missing a part or have questions regarding installation

please visit our website at www.goodearthlighting.com/support or

call the Customer Care Center 1-800-291-8838,

8:30 a.m.-5 p.m., CST, Monday-Friday.

Need Help?

Replacement Parts List

Care and Maintenance

Disconnect power to the electrical box and remove the old fixture. If more than two

wire leads are present, keep track of which wires were connected together.

Installation For Round Surface Mount Electrical Boxes

Disconnect power to the electrical box and remove the old fixture. If more than two

wire leads are present, keep track of which wires were connected together.

Installation For Recessed Electrical Boxes

Security Light Operation

The motion sensor on this fixture has a built in

Dusk-to-Dawn

sensor. The

Dusk-to-Dawn

sensor disables the motion sensor during daylight hours. The

motion sensor will not activate during daylight hours regardless of motion detection.

Operating Instructions

MODE TIMER KNOB WALL SWITCH SENSITIVITY KNOB

Test mode. Test area. On. Any setting.

AUTO motion sensor mode. Timer area. On. Any setting.

Manual “ON” mode. Timer area. Toggle OFF and ON Any setting.

within two seconds.

Return to AUTO motion Timer area. On. Any setting.

sensor mode

Problem Cause Solution

Light does not come on 1. No power is being 1. Check that circuit breaker and/or

at night when motion delivered to the fixture. wall switch power is on.

is detected.

2. Another light source is 2. Turn off surrounding lights and/or

causing the security light re-aim the sensor head.

to think it is daylight.

3. Wiring inside electrical 3. AFTER turning power off to the

box came loose. fixture, reconnect any loose wiring.

Security light comes on 1. Dusk-to-dawn sensor is in 1. Shine a flashlight onto the light

on during the day. a shaded area and is fooled sensor. If the security light turns off

into thinking it is nighttime. then the fixture is mounted in an

area that does not allow enough

light to enter the sensor. Relocate

the security light.

1. Dusk-to-dawn sensor 2. If under warranty, contact

is faulty. Customer Service.

Security light cycles ON 1. Dusk-to-dawn sensor is 1. Change the position of the light head,

and OFF continuously. sensing reflected light aim light away from the reflecting

from the security light. surfaces.

2. Put a small piece of black electrical

tape over the Dusk-to-dawn sensor.

3. Relocate the security light to a

different location where it no longer

causes reflected light.

Security light comes on for 2. Light is sensing motion in 1. Make sure the sensor is not picking

on for no apparent reason the detection zone. up moving objects such as bushes,

at night. trees, traffic, water, etc.

2. Test the motion sensor by covering

up the front curved lens with a

cardboard to block the view. If the

light turns off then something in the

detection zone is triggering the

sensor. Reposition the motion sensor

or change the sensitivity (distance)

of the sensor.

Troubleshooting Guide

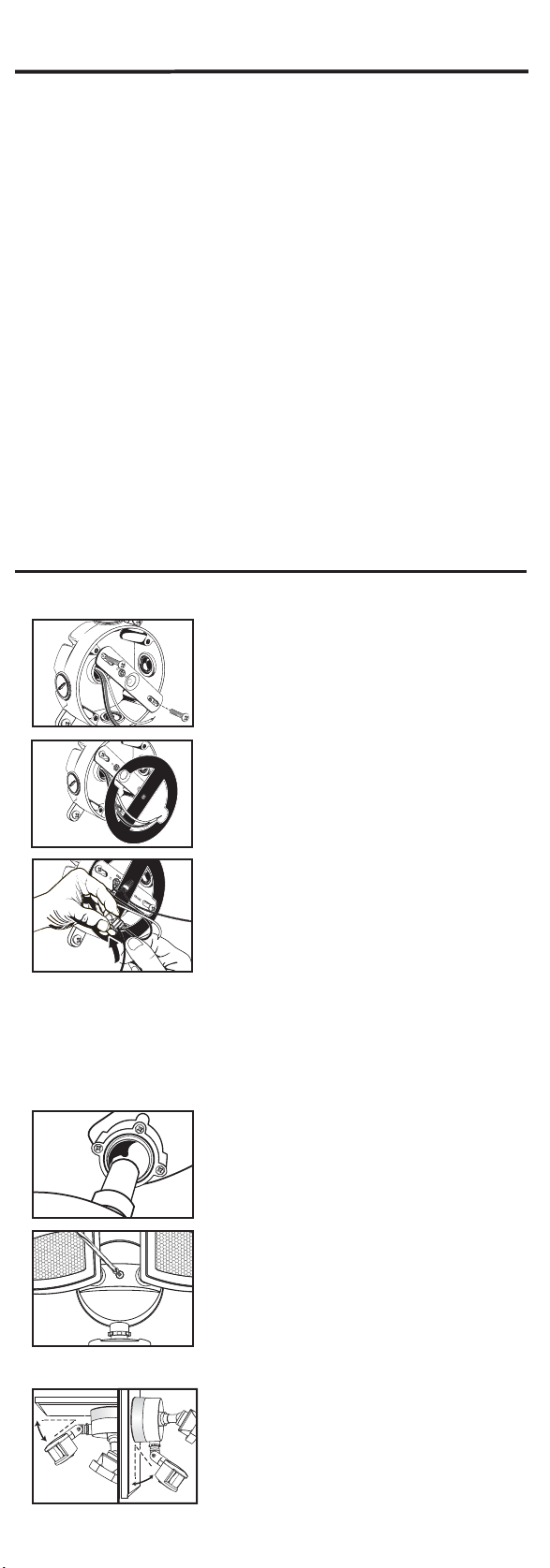

Pull the supply wires out of the electrical box. Using the

machine screws that fit the electrical box, secure the

mounting strap to the electrical box, making sure that

the side marked “FRONT” is facing out (Fig. 1).

Fig. 1

Position the wall plate over the mounting strap so the

center hole of the wall plate aligns with the center hole

in the mounting strap. While holding the wall plate in

place, put the long machine screw through the center

hole of the wall plate and mounting strap. Tighten the

screw properly to secure the wall plate onto the

electrical box (Fig. 5). NOTE: Make sure the gasket

properly seals the gap between the wall plate and the electrical box to prevent water

seepage into the electrical box.

If eave mounting the fixture, position the sensor head

with the adjustment controls and drain holes facing

downward to prevent water damage (Fig. 6). The

position of the sensor head should not exceed 45

degrees from horizontal.

GND

FRONT

Pull the supply wires out of the electrical box. Using the

machine screws that fit the electrical box, secure the

mounting strap to the electrical box, making sure that

the side marked “FRONT” is facing out (Fig. 1).

Fig. 1

English

Warnings and Cautions

WARNING

• Shut off power at the circuit breaker or fuse panel before removing the

old fixture or installing the new one.

• LEDs can be damaged by electrostatic discharge (ESD) shock. Before

installation, discharge yourself by touching a grounded bare metal

surface to remove this hazard. To avoid damage, do not remove the

clear lens over the LED module.

CAUTION

• DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT. If dimmer

controls are present, remove them and replace them with regular

electrical switches. If a three-way dimmer is present, replace it with a

regular three-way switch. If unfamiliar with electrical installations, it is

recommended a qualified electrician do the installation.

• This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Important Safety Instructions

WARNING: To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS:

1. Do NOT touch LEDs.

2. Do NOT remove the protective clear LED lens.

3. Do NOT look directly at lighted LEDs for any length of time.

4. Do NOT touch, operate, or install fixture while in contact with water.

5. For electrical requirements, see back of the fixture. Minimum 90° supply

conductors.

6. Do not leave bare wires exposed outside the wall canopy enclosure.

7. Suitable for installation onto round surface mount electrical boxes or

recessed electrical boxes rated for wet locations. Fixture can be wall or

eave mounted. NOT suitable for ground mount installations.

8. Do NOT allow the sensor head to touch the LED head housing. Maintain

at least 1 in. spacing between the LED heads and the sensor head.

9. For proper operation and protection against water damage, the motion

sensor head controls MUST be facing downward.

10. Do NOT mount below 5 ft.

SAVE THESE INSTRUCTIONS IN A LOCATION CLOSE TO THE FIXTURE TO

REFER TO THEM AT A LATER TIME.

Select the installation location carefully. Do not install in areas having

pedestrian or motorized traffic, pools or bodies of water, or trees/bushes

that move in the wind. All of these may trigger the motion sensor security

light and may be disruptive to the intended operation of the light. Do NOT

install near other sources of light, as this can fool the Dusk-to-Dawn sensor

into thinking it is daylight.

Fig. 5

Fig. 7

Fig. 5

45°

Restore power to the electrical box at the circuit

breaker or fuse panel. Make sure the wall switch that

controls the electrical box for your security light is

returned to the “ON”position and check that your light is

functioning properly. If the light is functioning properly,

fit the silicone cap into the mounting screw opening to

prevent water seepage into the housing (Fig. 7).

Position the wall plate over the mounting strap so

the center hole of the wall plate aligns with the center

hole in the mounting strap. While holding the wall plate

place the long machine screw through the center

hole of the wall plate and mounting strap. Tighten

the screw properly to secure the wall plate onto the

mounting surface (Fig. 4).

If eave mounting the fixture, position the sensor head

with the adjustment controls and drain holes facing

downward to prevent water damage (Fig. 5). The

position of the sensor head should not exceed 45

degrees from horizontal.

Restore power to the electrical box at the circuit

breaker or fuse panel. Make sure the wall switch that

controls the electrical box for your security light is

returned to the “ON” position and check that your light

is functioning properly. If the light is functioning

properly, use silicone adhesive caulking (not included)

to caulk the gap between the wall plate and the

mounting surface to prevent water seepage into the electrical enclosure (Fig. 6).

Fit the silicone cap into the mounting screw

opening to prevent water seepage into the

housing (Fig. 7).

Fig. 4

The motion sensor must be tested before setting the

time and sensitivity levels. The TEST option is located

on the TIMER control knob on the underside of the

sensor head. To test the fixture, switch the wall switch

that controls power to the fixture to the ON position and

turn the rotary knob to the “TEST” area. [The lights will

come on for 40 seconds regardless of whether there is

motion or not, and regardless of whether it is day or night.] Leave the rotary knob in

the “TEST” area and test the sensitivity by crossing in the path of the sensor. The light

will come on only if it senses movement. Once movement stops, it will turn off in 5

seconds (Fig. 1). The test is now complete.

The control knob located on the opposite side is marked

SENSITIVITY, which determines the degree of motion

detection. Rotating this knob clockwise raises the

sensitivity of the motion sensor for up to 60 ft. of distance.

Rotating the knob counterclockwise lowers the sensitivity

down to as close as 5 ft. It may be necessary to adjust the

“SENSITIVITY” knob several times until the proper setting

is achieved (Fig. 2). NOTE: The higher sensitivity level increases the likelihood of a false

activation being triggered. For maximum range performance, allow the fixture to operate

in any setting (with power) for at least 48 hours.

The 180 degree coverage of the motion sensor is

measured side to side (Fig. 3). Therefore, the sensor will

better detect motion across the field of view

(side-to-side), rather than motion coming straight at the

sensor (in-and-out). Adjust the motion sensor head so

that it detects motion moving across the coverage area.

The position of the sensor head should not exceed 45

degrees from horizontal (Fig. 4). Do not aim the motion

sensor at a body of water, bushes or plants that may move in the wind, pedestrian

traffic, moving cars, etc., as this will trigger the motion sensor. NOTE: If the sensor

arm becomes loose, it will not hold the sensor head at the proper angle. Readjust the

sensor head and tighten the joint screw on the sensor arm.

Fig. 3

Fig. 4

Once the fixture has been tested for proper operation

and sensitivity, rotate the rotary knob on the TIMER

control to the “TIMER” area. The “TIMER” position

allows the fixture to go into AUTO motion sensor mode.

Rotating the knob clockwise increases the duration of

light up to 5 minutes once motion is detected. Rotating

the knob counterclockwise decreases the duration of

light down to 10 seconds once motion is detected. It may be necessary to adjust the

“TIMER” knob several times until the desired length of time is determined (Fig. 5).

To control the security light from inside the home, activate manual “ON” mode by

toggling the wall light switch OFF and ON within 2 seconds. The security light will turn

on and stay on for approximately 8 hours, or until the dusk-to-dawn sensor detects light

in the morning. Once the dusk-to-dawn sensor detects light, the manual “ON” mode

will automatically go back to its original settings of the AUTO motion sensor mode.

If the light head is loose and will not hold its position

tighten the screws located on the backside of the light

head that surround the pivot joint (Fig. 3). NOTE: Tighten

the screws before securing the fixture to the electrical

box.

Fig. 7

Fig. 1

Fig. 2

Fig. 5

45°

Fig. 6

45°

Fig. 3

Fig. 4

Printed in China

6 YEAR LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and

workmanship for a period of (6) years from the date of original purchase by the

consumer. The fixture is not warrantied for use in a commercial or retail application.

The warranty is limited to use in a residential environment. We will repair or replace (at

our option) the unit in the original color and style if available, or in a similar color and

style if the original item has been discontinued, without charge. Defective units must be

properly packed and returned to the manufacturer with a letter of explanation and your

original purchase receipt showing date of purchase. Call 1-800-291-8838 to obtain a

return authorization number and an address where to ship your defective product.

Note: C.O.D. shipments will NOT be accepted. The liability of the manufacturer is in any

case limited to replacement of the defective light fixture product. The manufacturer will

not be liable for any other loss, damage, labor costs or injury which is caused by the

product. This limitation upon the liability of the manufacturer includes any loss,

damage, labor costs or injury which is (I) to person or property or otherwise; (II)

incidental or consequential in nature; (III) based upon theories of warranty, contract,

negligence, strict liability, tort, or otherwise; or (IV) directly, or indirectly related to the

sale, use, or repair of the product. This warranty gives you specific rights, and you may

also have other rights which vary from state to state.

Ecolight® 1400 East Business Center Drive, Ste. 108 Mount Prospect, IL 60056

Remove the protective paper barrier from the adhesive

face of the foam gasket. Trace the supply wires through

the openings in the gasket and adhere the gasket to the

mounting strap and outer edge of the round surface

mount electrical box (Fig. 2).

Fig. 2

GND

FRONT

For safety and proper installation, the fixture must be

properly grounded. If unfamiliar with the methods of

properly grounding the fixture, consult with a qualified

electrician. A green copper ground wire is

pre-attached to the fixture. If the electrical box is made

of plastic and/or has a green or bare copper grounding

wire inside, the fixture grounding wire and the

electrical box ground wire should be connected together using the wire nut. If the

electrical box is made of metal and already grounded, secure the bare end of the

fixture ground wire to the mounting strap marked “GND” using the green grounding

screw. Push-in connectors are pre-installed onto the fixture’s wire leads to allow for

easy connection. Insert the black lead from the electrical box into the black wire

push-in connector

(Fig. 3)

. Repeat with the white leads. Push the excess wires back

into the electrical box.

Fig. 3

If the light head is loose and will not hold its position

tighten the screws located on the backside of the light

head that surround the pivot joint (Fig. 4). NOTE: Tighten

the screws before securing the fixture to the electrical

box.

For safety and proper installation, the fixture must be

properly grounded. If unfamiliar with the methods of

properly grounding the fixture, consult with a qualified

electrician. A green copper ground wire is

pre-attached to the fixture. If the electrical box is made

of plastic and/or has a green or bare copper grounding

wire inside, the fixture grounding wire and the

electrical box ground wire should be connected together using the wire nut. If the

electrical box is made of metal and already grounded, secure the bare end of the

fixture ground wire to the mounting strap marked “GND” using the green grounding

screw. Push-in connectors are pre-installed onto the fixture’s wire leads to allow for

easy connection. Insert the black lead from the electrical box into the black wire

push-in connector

(Fig. 2)

. Repeat with the white leads. Push the excess wires back

into the electrical box.

Fig. 2

Warranty
