Ecom Smart Ex 02 User manual

Battery
The battery of the smartphone is not fully charged.
It is recommended to charge the phone for five hours before
using it for the first time. The full capacity of the battery is
reached after 3-4 complete charge/discharge cycles.
Warranty
The warranty of this product follows the General Conditions
of Delivery and Payment of Pepperl+Fuchs GmbH, which are
available at www.pepperl-fuchs.com, or alternatively they can
be requested directly from the manufacturer.
Support
E-Mail: [email protected]
Note:
Please also observe the safety requirements in the specific
safety instructions and the information in the full user guide
for your device. The documents can be downloaded from the
relevant product page at www.ecom-ex.com

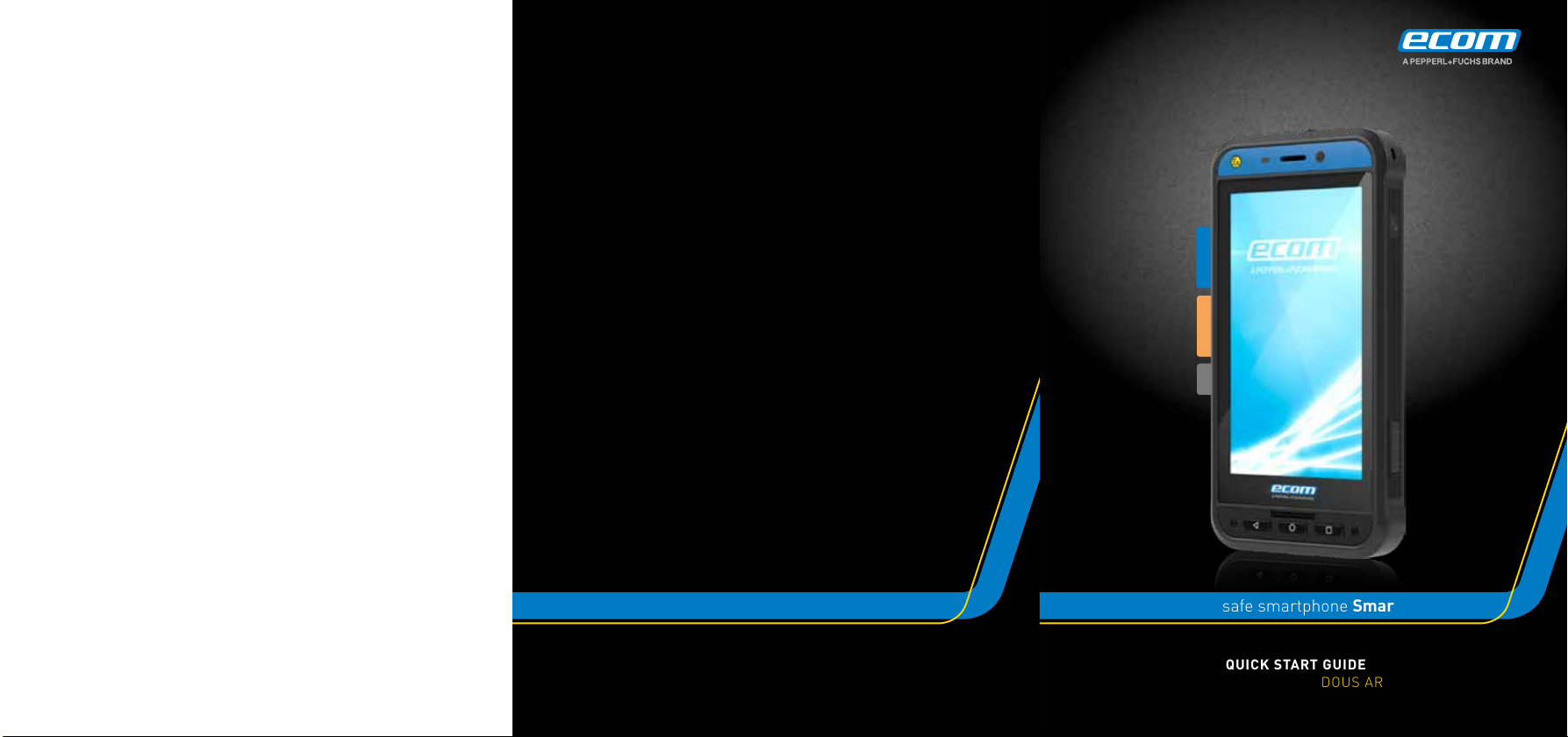

QUICK START GUIDE
FOR GLOBAL HAZARDOUS AREAS
ecom instruments GmbH | Industriestraße 2 | 97959 Assamstadt | Germany
Phone [phone] | Fax [phone]
[e-mail] | www.ecom-ex.com
DOCT-6475 | 07/2019
WEEE-Reg.-Nr. DE 934 99306
Subject to change without notice.
Copyright© 2019 ecom instruments GmbH.
The contents of this document, either in part or in their entirety, may not be reproduced, forwarded, distributed
or saved in any way without ecom instruments GmbH prior written consent.
The contents of this document are presented as they currently exist. ecom instruments GmbH does not provide
any express or tacit guarantee for the correctness or completeness of the contents of this document, including,
but not restricted to, the tacit guarantee of market suitability or tness for a specic purpose unless applicable
laws or court decisions make liability mandatory. ecom instruments GmbH reserves the right to make changes
to this document or to withdraw it any time without prior notice.
Intrinsically safe smartphone Smart Ex®02
Zone 1/21, Div. 1
Zone 2/22, Div.2rugged

1Ear-piece
2Alarm key
3Camera
4Power key
5Display screen
6Camera key
7Home key
8Recent apps key
9Charging port
10 Back key
11 Loudspeaker
12 Volume keys
13 PTT Key
14 Headset port
15 Proximity/Light sensor
How to insert the nano-SIM card
and the battery pack
Step 1
To insert the nano-SIM card
unscrew the two cover screws in
a counter clockwise direction and
remove the battery cover.
Please use the screwdriver Torx T8
provided with the phone.
Step 2
Insert the nano-SIM card with
the gold-colored contacts facing
downwards by pushing it upward in
the designated slot.
Step 3
Insert the battery into the battery
slot in the prescribed order as
shown in the illustration on the left.
Step 4
Reattach the battery cover
and screw down the two cover
screws in a clockwise direction.
Please use the screwdriver Torx
T8 and ensure not to overtighten
the screws.
2
3
15
14 1
4
6
5
8
7
9
10
11
12 13
STEP 1
STEP 2
