1 Product introduction
.1.1 Features
Air-condition and water heater integrated unit integrates air cooling modular chiller(heat pump)
and heat pump water heater two major product function, using a water-cooled condenser as a hot
water generator, an air-cooled condenser as a compensation device, and a water-evaporator as the
cooling(air-condition) produced devices. It is able to provide heat water and air-condition cold water,
refrigeration and air-condition with heater, as well as the two function, so it has several advantages
what other air-conditioning system and hot water systems do not have .
E
EE
Energy
nergynergy
nergy-
--
-saving
saving saving
saving affection
affectionaffection
affection evidence
evidence evidence
evidence
Air-condition and water heater integrated unit has two purpose, be able to provide
air-conditioning in summer and sanitation heat water, and Synthesis COP is up to 6.5 above, is
equivalent to the use of air-conditioning ,then to provide free sanitation heat water, reducing running
costs.
Full Functional
Full FunctionalFull Functional
Full Functional
Compared with other products, Air-condition and water heater integrated unit has a
comprehensive function, can be provided air-condition cold water or sanitation heat water by oneself,
as well as Air-condition and water heater integrated of three kind functions, In Winter, it can be
provided air-condition heat water or sanitation heat water by oneself, Do not use air conditioning at
night, then provides sanitation heat water, the Unit meets the needs of users in a variety of places.
Convenient operation
Convenient operationConvenient operation
Convenient operation
Microelectronics control, all temperature settings are set by manufacturer. System tests water
temperature and adjust water temperature automatically, all user needs to do is just to press ON/OFF
button. System finishes the other operation automatically.
Excellent performance
Excellent performanceExcellent performance
Excellent performance
Adopt world famous components, and the best match of system design. Scroll compressor with
high EER and low noise. High efficient heat exchanger insures the utmost using of system capacity.

- 4 -
Professional air conditioner water pump insures smooth quiet operation.
Models adopting two compressors system may operate with one compressor on condition of
partial load, energy saving design.
Easy to install
Easy to install Easy to install
Easy to install
The system is designed with full consideration of insuring installation as easy as possible.
Refrigerant circle is a sealed complete system finished by manufacturer. No needs for users to
connect copper pipes or refrigerant charging. Hydraulic circle of system can be connected to
hydraulic terminals by two tubes.
Operating protection
Operating protectionOperating protection
Operating protection
System is designed with over voltage, under voltage, over load protection to insure safe
operation. The microelectronics controller can start or switch off the machine by judging the water
temperature. If the water temperature is lower than designed water temperature, the machine will be
switch off to avoid freezing. The microelectronics controller can also supervise the status of
components. Malfunction occurred would be transmitted to the controller and displayed through
malfunction code.
Flexible applicability
Flexible applicabilityFlexible applicability
Flexible applicability
Compact design.System can run at conditions high ambient temperature or low ambient
temperature with high EER.
Convenient for maintenance
Convenient for maintenanceConvenient for maintenance
Convenient for maintenance
Suppose system is stopped by malfunction, special malfunction code will be displayed. The
cause may be found out easily.
.1.2 Definition of specification
The specification of heaters are defined according to following rules：

- 5 -
Exampl e: On behal f of about 20 t hermal 19. 0KW
Heat i ng capaci t y =XXX (kW)
Ai r Sour ce Heat Pump
Product desi gn code
CM20-
A
2 Technical data
.2.1 Specification parameter
model CAM- 20XB
kW 19.0
Rated heating capacity kcal/h 16358
Heating power Input kW 4.07
Heating running
Current A 7.76
Sanitation
heated water
condition
COP kW/kW 4.7
kW 12.4
Rated cooling capacity kcal/h 10659.9
Rated water flow
（air-condition）T/h
2.1
Cooling power Input kW 4.3
Cooling running
Current A 7.6
Cooled water
condition(air-c
ondition)
E.E.R kW/kW 2.9
kW 13.2Rated heating capacity
（air-condition）kcal/h 11346.1
Rated water flow T/h 2.3
Heating power Input kW 4.0
Heating running
current A 7.6
Heated water
condition(air-c
ondition)
COP kW/kW 3.3
kW 13.0
Equipment performance
Alliance for
cool and heat
Average cooling
capacity kcal/h 11475.7

- 6 -
model CAM- 20XB
Rated water flow T/h 2.2
kW 16.5Average heating
capacity kcal/h 14188.7
Average power Input kW 3.7
Average running
Current A 7.1
conditions
Synthesis COP kW/kW 7.9
Max. Running Current A 12
Power source V/Ph/H
z
380V/3
N/50Hz
Compressor type scroll
Charged refrigerant R417A 2.5
Connection pipe Rc 1``
Noise level dB(A) 60
W mm 810
D mm 780
Dimension
H mm 1050
Net weight kg 175
Enclosure Class IPX4
Date,S/N:
Note：
：：
： 1. Sanitation heated water condition: Rated environment temp.18/23Deg.C,heating water
temp.15/55Deg.C.
Cooled water condition (air-condition): Rated environment temp.32/36Deg.C,cooling water
temp.12/7Deg.C.
Heated water condition (air-condition): Rated environment temp.7Deg.C,cooling water
temp.40/45Deg.C. The same to water flow in the summer.
Alliance for cool and heat conditions: Heating water temp.15/55Deg.C. cooling water
temp.12/7Deg.C.
2.Manufacturer tests the noise level showed above in lab. The noise level of installed unit could be
different with above data due to the surrounding condition.
3. Manufacturer keeps the right to change technical data due to technical improvement.

- 7 -
.2.2 The figure of working principle
I nl et heat i ng wat er
Out l et heat i ng wat er
Out l et cool i ng wat er
I nl et cool i ng wat er
He a t i n g f l o w
1 Compressor 2 Four-way valve 3 heat exchanger
4 Pressure switch 5 Pump 6 Drier and Filter
7 Liquid tank 8 Thermal Expansion Valves 9 Fan
10 Fin/tube heat exchanger 11 Gas-liquid segregator 12 Low－pressure switch
13 High－pressure switch 14 Tube in tube heat exchanger

- 8 -
.2.3 Figure dimension
A/Cwater inlet
A/Cwater outlet
heat water outlet
heat water inlet
CAM-20XB
3 Installation Instruction
.3.1 Installation
The installation must be done by qualified professionals. Make sure the
The installation must be done by qualified professionals. Make sure the The installation must be done by qualified professionals. Make sure the
The installation must be done by qualified professionals. Make sure the
installation match
installation matchinstallation match
installation matching
inging
ing the following conditions.
the following conditions. the following conditions.
the following conditions.
The selection of installation location
The installation location must match the following conditions：
 Make sure the installation environment is open surrounding and good ventilation.
 This unit cannot be installed at hot and humid place like laundry.
 Released condensing air must not be sucked directly by the machine itself or other
machines；

- 9 -
 Suppose the machine is installed room inside and ventilation is not good, air duct is needed
to conduct condensing air outside. But the duct should be as short as possible to avoid big
pressure drop；
 The machine may be installed above the ground or the roof, keeping enough space between
the bottom plate and ground. In order to assure draining water effectively. And the bracket must
has enough carrying capacity;
 Hydraulic circle charged with clean water, no dust or oil. Soft water is recommended；
 Make sure no barrier around the unit, ensure the good ventilation of condensing air flowing.
 Make sure that the released air from condenser or unit operating noise will not impact the
living of neighbor.
 The unit must be installed firmly, and the bottom of unit must be horizontal (the gradient
must be less 5 degree)
 Keep enough space between the machine and wall. It is convenient for unit's repairment and
maintenance: and also you shouldn't lay the pipelines and top-ray tubes on the unit. The

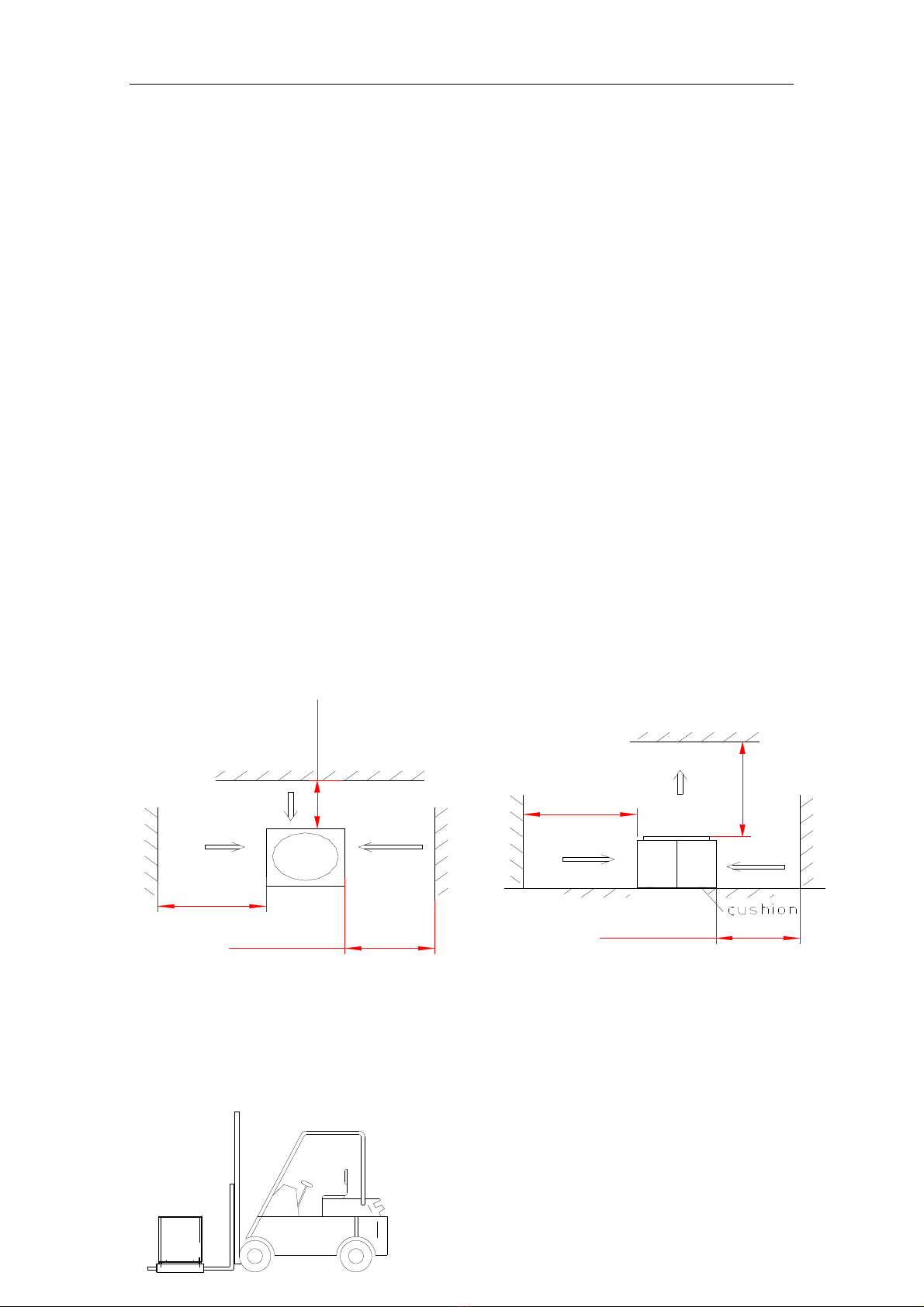

suggested installation location as below. (Unit: mm)
o v e r 1 0 0 0
over 1000
o v e r 1 0 0 0
over 300
over 1000
over 3000
s u c k i n s u c k i n
s u c k i n
exhaust
②
②②
② Attention of moving machine
 Fork lift stacker or crane is suggested to move the machine；
 The surrounding ambient temperature of unit during transportation must be among –25 to 55

- 10 -


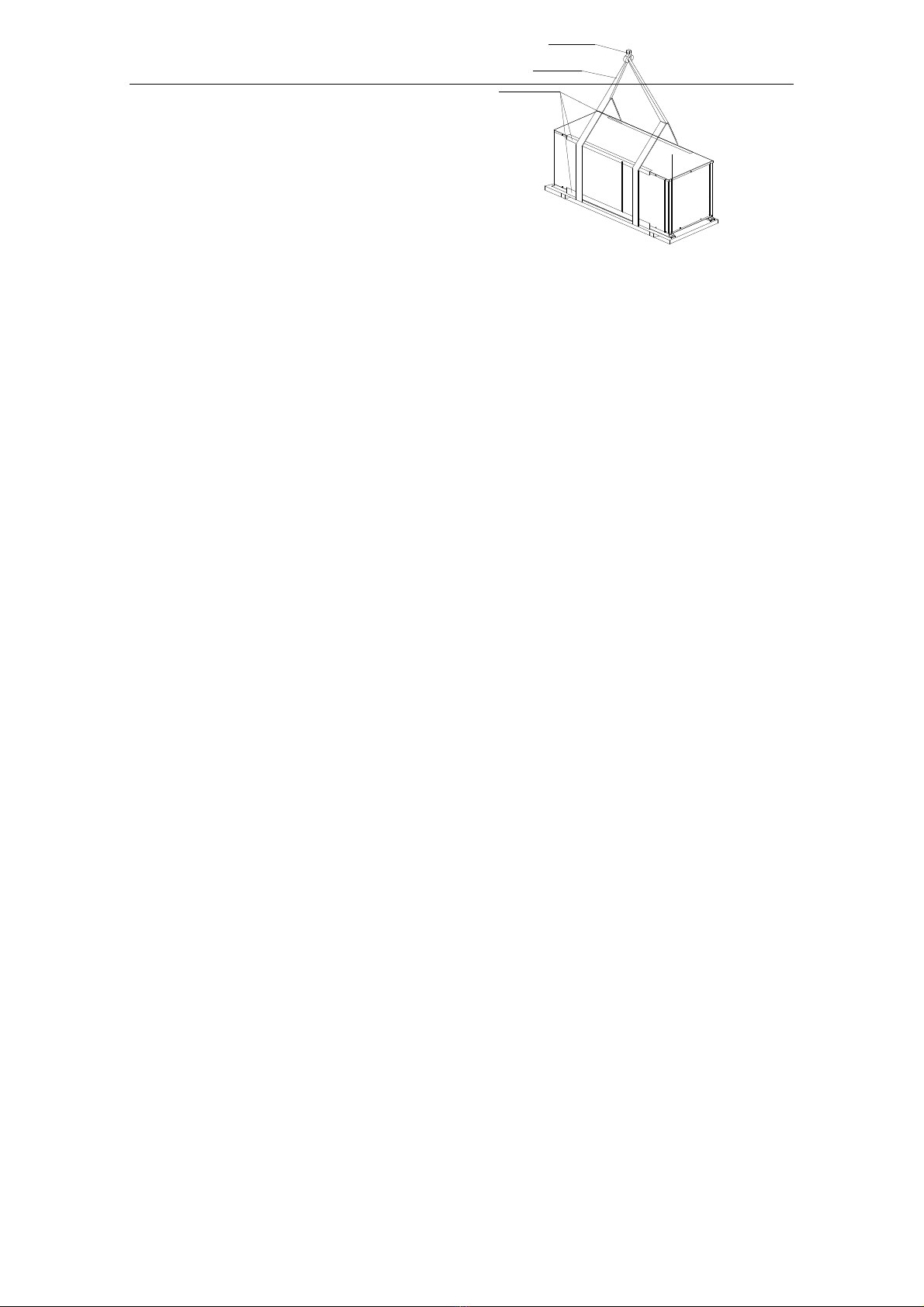

 While suspending the machine, crane cable must be tie to machine tightly, keeping the machine
horizontal.
 disassemble the ground bolt in the pallet after the machine is well located, and take the pallet
aside。
Fixation
 Rubber gasket is recommended to reduce vibration and noise while rivet the bottom plate.
④Water pipe connection
 Heated water pipe must be packed with thermal isolation material to avoid thermal capacity loss or
dew dropping.
 Inlet connection pipe must be equipped with a water filter.
 The connection water pipes must be well matched (refer to specification parameters sheet).
 PVC or PP-R pipe is recommended to use as water pipe.
 Hot water pipe must be equipped with water pump 、Soft tie-in、a water filter、One way valve、
Flow meter、exhaust valve、Drain valve、Shutoff valve and so on。
 Heating pipe must be equipped with Soft tie-in、a water filter、One way valve、Flow meter、Drain
valve、Shutoff valve ,And then connected to underground inlet/outlet water pipe.
 Drain cock should be installed at the highest point of hydraulic circle. After the hydraulic circle is
connected completely, exhaust air inside hydraulic circle.
 Drain valve should be installed at the lowest point of water pipe.
Please note:
 The appliance shall be installed in accordance with national wiring regulations.
 Please make sure the following working conditions. the voltage can not be more or less than 10%
of rated voltage and the frequency can not be more or less than 1% of rated frequency. The height
above sea level should be less than 1,000 meters.
 Working water temperature available from 8～50, maximum water pressure 10 bar.
 Wires must be connected according to the instruction of electrical connection diagram.
c r a ne h oo k
c r a ne c a bl e
pr o e c t i ng c hi p bo ar d

- 11 -
 Also an all-pole air-break switch is needed and the pole clearance should be more than 3mm.
 The ground wire must be well connected. Ground wire can’t be connected to coal gas pipe, water
pipe or telephone wire.
 The supply power must have over voltage and low voltage protection equipment. Make sure no
phase disorder (L1 to R, L2 to S, L3 to T). Suppose phase disordered, system can’t be started, and no
display in controller.
 Drain electricity protection switch is needed for the system. No drain electricity protection switch
may cause electrical shock.
 The operation handle of power switch is suggested to be black or gray, and it can be fixed at OFF
status. The installation location of power switch is suggested among 0.6 to 1.7 m. electrical short
circuit protection is needed.
 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
dispose
 Do not dispose this product as unsorted municipal waste. Collection of such waste separately for
special treatment is necessary.
 Meaning of crossed-out wheeled dustbin: Do not dispose of
electrical appliances as unsorted municipal waste, use separate
collection facilities.
 Contact you local government for information regarding the
collection systems available.
 If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the
food chain, damaging your health and well-being.
 When replacing old appliances with new ones ,the retailer is legally obligated to take back your old
appliance for disposal at least free of charge.
 It is prohibited to dispose of this appliance in domestic household waste. for disposal there are
several possibilities:
a) The municipality has established collection systems, where electronic waste can be disposed of at

- 12 -
least free of charge to the user.
b) When buying a new product , the retailer will take back the old product at least free of charge.
c) The manufacturer will take back the old appliance for disposal at least free of charge to the user.
d) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous
substances leak into the ground-water and find their way into the food chain.
Warning

.3.2
.3.2.3.2
.3.2 Water
WaterWater

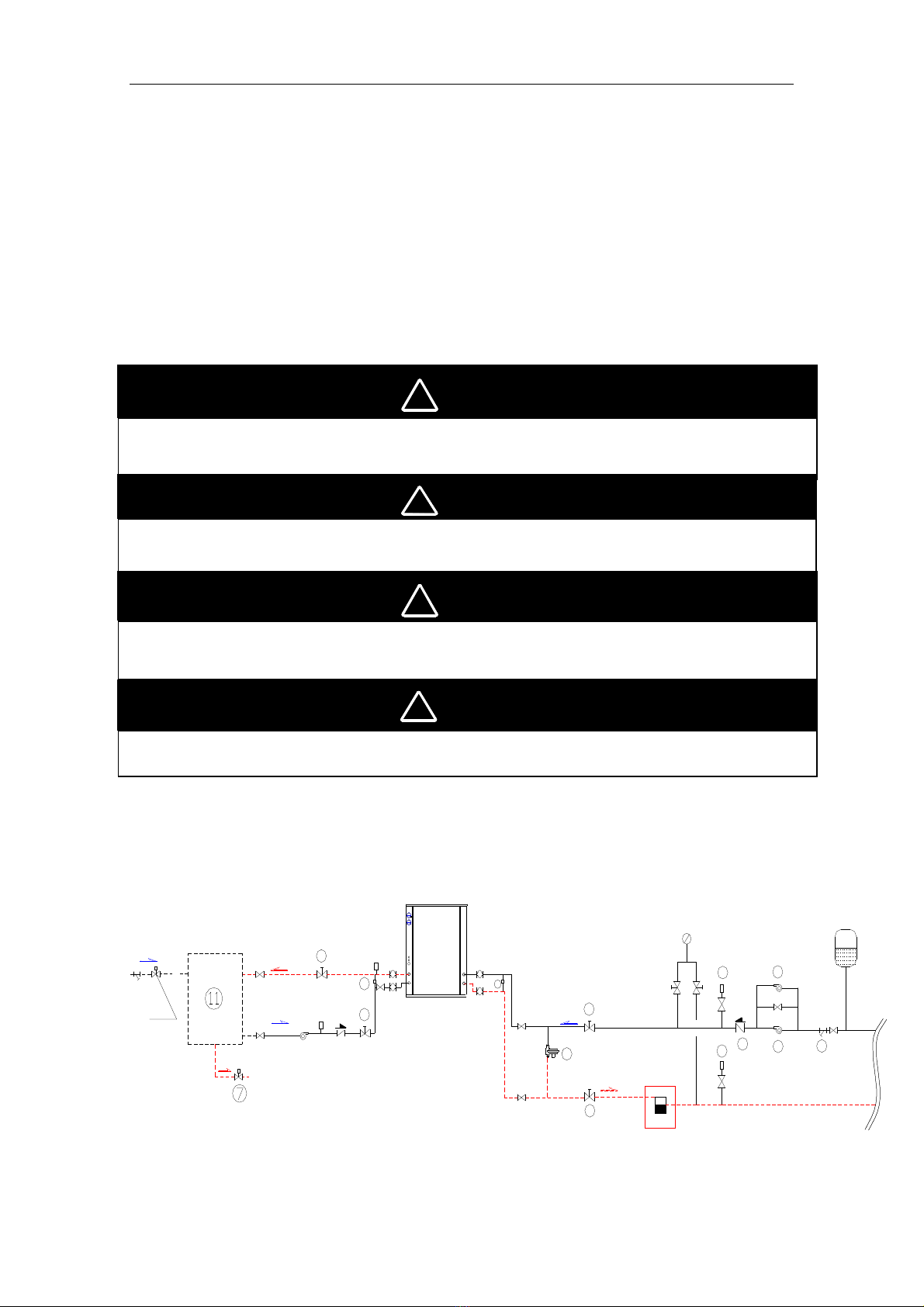

Water system
systemsystem
system installation chart
installation chart installation chart
installation chart
⑥
⑥
②
①
10
Indoor
terminal
12
12 45
5
⑥⑥
Storage
water
tank
Expansion Tank
15
13
14
③
⑤④⑥
⑥
⑩
⑧
Outl et heat ed wat er
Inl et wat er 14
③
14
⑥
15 15
Warning
Any abnormal accident, such as burning smell, switch off the machine immediately. Contact
!
Warning
It is forbidden to clean the hydraulic circle by water pump inside system.
!
Warning
Make sure the machine has been power connected over 12 hours before starting the system. Otherwise,
machine could be damaged.
!
Warning
Don’t touch the fan with hand or stick. It may hurt, and damage the machine.
!

- 13 -
1 Air-condition and water
heater integrated unit 2 Soft tie-in 3 Pressure drop switch 4 Check Valve
5 Flow Control Valve 6 Shutoff valve 7 Thermometer 8 Storage tanks
9 Circulating Pump 10 Y type filter 11 Water tanks 12 Water valve
13 Water flow switch 14 Water supply valve 15 solenoid valve
Hydraulic circle is recommended while installing Water Source Heat Pump units . The
installation of hydraulic circle can be finished according to above chart.
NOTES：
：：
：A、
、、
、Please do exhaust the air in water system before running the machine, if you
completely finished the circulating water system piping.
B、
、、
、The water flow switch must be installed at the straight pipeline section of the same level, from the
elbow, valves and other pieces of partial resistance to more than 5 times the diameter.
C、
、、
、The pipe must be insulated closely in order to improve cooling (heating) effect and energy
conservation.
D、
、、
、The take-over of this unit must be installed with drainpipe to make it convient to drain water inside
the unit and prevent it from freezing.

- 14 -
.3.3

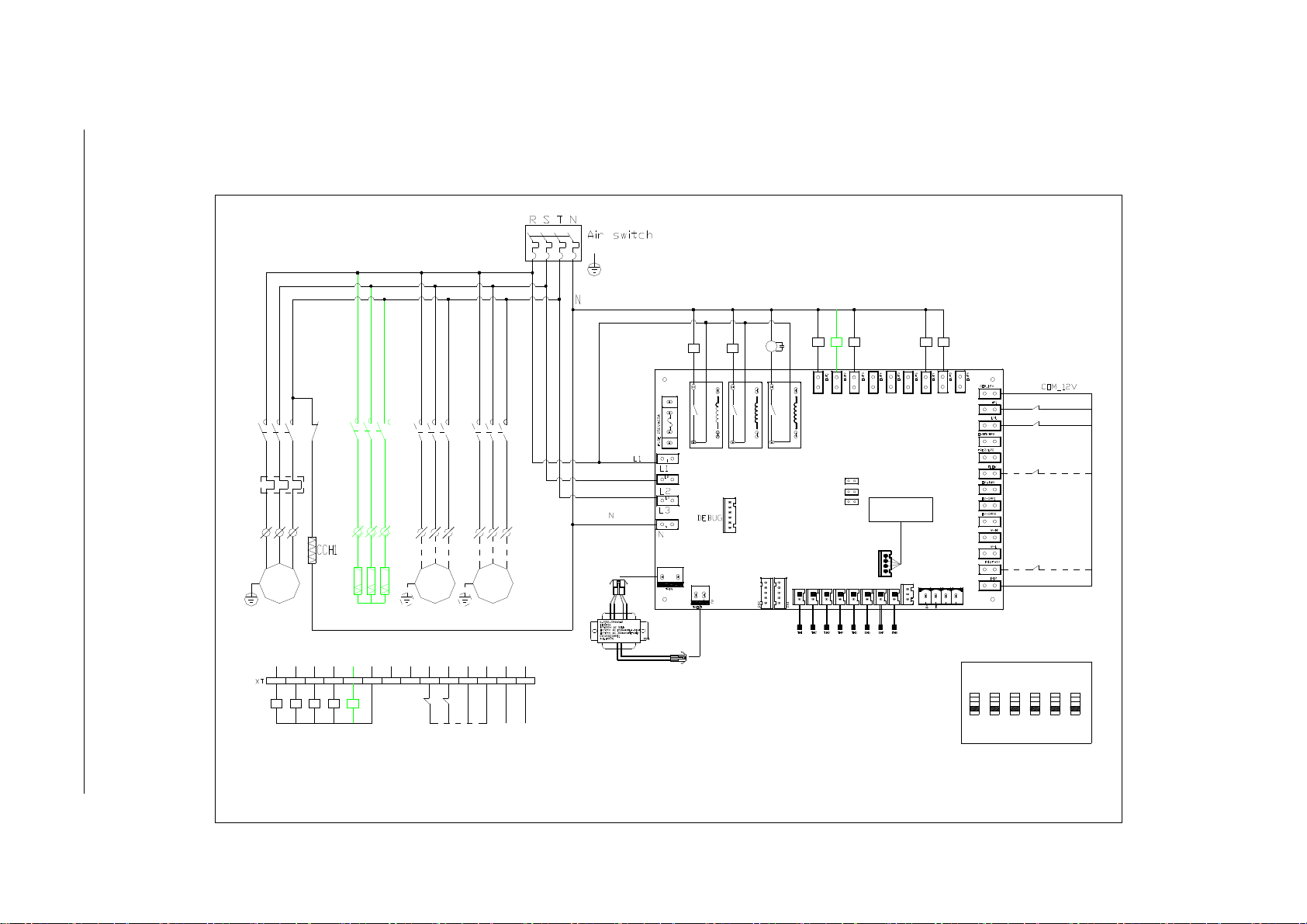

Electrical diagram.
Fan
15 μ F
KM1KM4KM3
W1
11
10
KM1
V1U1
FR1
KM1
Pump
(air-condition)
KM3
Pump
(heater water)
KM4
0
Pump(ai r - condi t i on)
El ect r omagnet i c val ve
Comp.
Pump( heat er wat er )
9
8
1
3
6
57
32
35
36
31
20
KM4 KM3
35 36 00
0
9865
121110987654321
20 20
13 14
20 20
1# 3# 7#5#
Hi gh Vol t age
Swi t chgear
Low- vol t age
swi t ch
Wat er f l ow
swi t ch( ai r - condi t i on)
Wat er f l ow swi t ch
( heat er wat er )
Oper at i on panel
Wat er f l ow swi t ch( heat er
wat er )
Wat er f l ow
swi t ch( ai r - condi t i on)
4VW
Comp.
TH6： Sensor of t ank wat er t emp.
TH2： Sensor of l eavi ng wat er t emp. ( ai r - condi t i on)
TH1： Sensor of ent er i ng wat er t emp. ( ai r- condi t i on)
TH3： Sensor of ambi ent t emp.
Dot t ed l i ne i s used f or t he cl i ent
connect i on par t .
Model ：CAM- 20XB
TH4： Sensor of def r ost t emp. 1
TH5： Sensor of def r ost t emp. 2
TH7： Sensor of di scharge t emp. 1
TH8： Sensor of di scharge t emp. 2
( heat er wat er)
( ai r - condi t i on) El ect r omagnet i c val ve
El ect r omagnet i c val ve ( ai r - condi t i on)
( heat er wat er) El ect r omagnet i c val ve
Pumo( heat er wat er )
Pump( ai r - condi t i on)
Tr ansf or mer
i nl et
Tr ansf or mer out l et
NO: K09080098
Dat e: 12. 2009
CliTech
SW
1 2 3 4 5 6
ON
KM2
2
Four - way val ve Hot wat er El ect r i c heat i ng
KM2
U1 V1W1
Hot wat er
El ect r i c heat i ng
2
Hot wat er
El ect r i c heat i ng
KM2
从机( sl ave)
单系统( si ngl e)
单相电
( Si ngl e- phase)
主机( host )
双系统( doubl e)
三相电
( t hr ee phase)

- 15 -
①
①①
①unit wiring
Model Power Voltage (V) Power wire（
mm
2
）
Allowed max
current (A)
CAM-20XB
380V/3N～/50HZ
342-418 ≥4.0 12.0A
②
②②
② attentions of wire connecting
 All wires must be well connected.
 All wire should avoid touching refrigerant tube. If it is not avoidable, vibration protection and
isolation must be well done.
 All wire no touch to compressor or any other kinetic components.
.3.4 System test
○
○○
○
1Checking items before test run of system
1)、Seal test to make sure system is well sealed.
2)、Power source checking to make sure required voltage and current are available.
3)、Pressure inside hydraulic circle reaches to operating pressure（1-3）kgf/cm
2
。
4)、Make sure hydraulic system inside is clean and no jam.
5)、make sure hydraulic circle is fully filled with water and no air inside.
6)、Check to make sure all valves are switched on, well thermal isolated.
7)、Make sure all electrical wires are connected correctly according to wiring instruction, and wiring
screws are driven properly.
8)、Exhaust the air inside hydraulic circle by manual drain cock in hydraulic tube and drain cock on the
water pump.
9)、Check if there is visual damage caused during transportation.
10)、make sure all wiring correct.
②
②②
② Commissioning

- 16 -
1)、Make sure all above checking items are passed.
2)、Open controller cover, then connect the power source wires. If the power source is three phases, check
the phase order immediately. Red lamp on controller board will light while phase order is correct. Check if
water pump works smoothly. If there is scream from water pump, it means there is air inside the water
circle. In this case, stop the machine and exhaust air inside water circle. Then start machine again. The
compressor will start to run 3 minutes after the system is switched on. Check if compressor run at right
direction.
3)、Check if there is unusual noise from system by listening. If there is, switch off the machine and check
system. If no unusual noise, let system running.
4)、If all checking items passed, keep system running.
5)、All hydraulic circle filters must be cleaned after finishing test run.
③
③③
③Normal operation：
：：
：
When the entire system to conduct a comprehensive inspection to confirm compliance with
requirements, may be an overall commissioning, pre-commissioning, the compressor should be
warm-up 12 hours a day.
1). connected to power, to open several air-conditioners, host delay to start after three minutes.
Fans, water pumps, steering is correct, if not immediately turn off the power, whether the current
measurement of the normal operation of the compressor, with or without abnormal noise.
2). inspection of each unit whether it is normal for the conversion of cold to observe pressure
gauge, pressure gauge to see whether it is normal.
3). to adjust the room air-conditioning fan coil water valve, so that each room up to a certain flow
of water.
4). in accordance with the requirements of your good three speed settings (temperature control)
switches work, and to observe compliance with the requirements of the work.
5). observation room temperature whether it meets the requirements. Commissioning period of
time to confirm no fault (usually 3 days) will begin normal use.
6). after the commissioning of water filter should be cleaned before normal use.

- 17 -

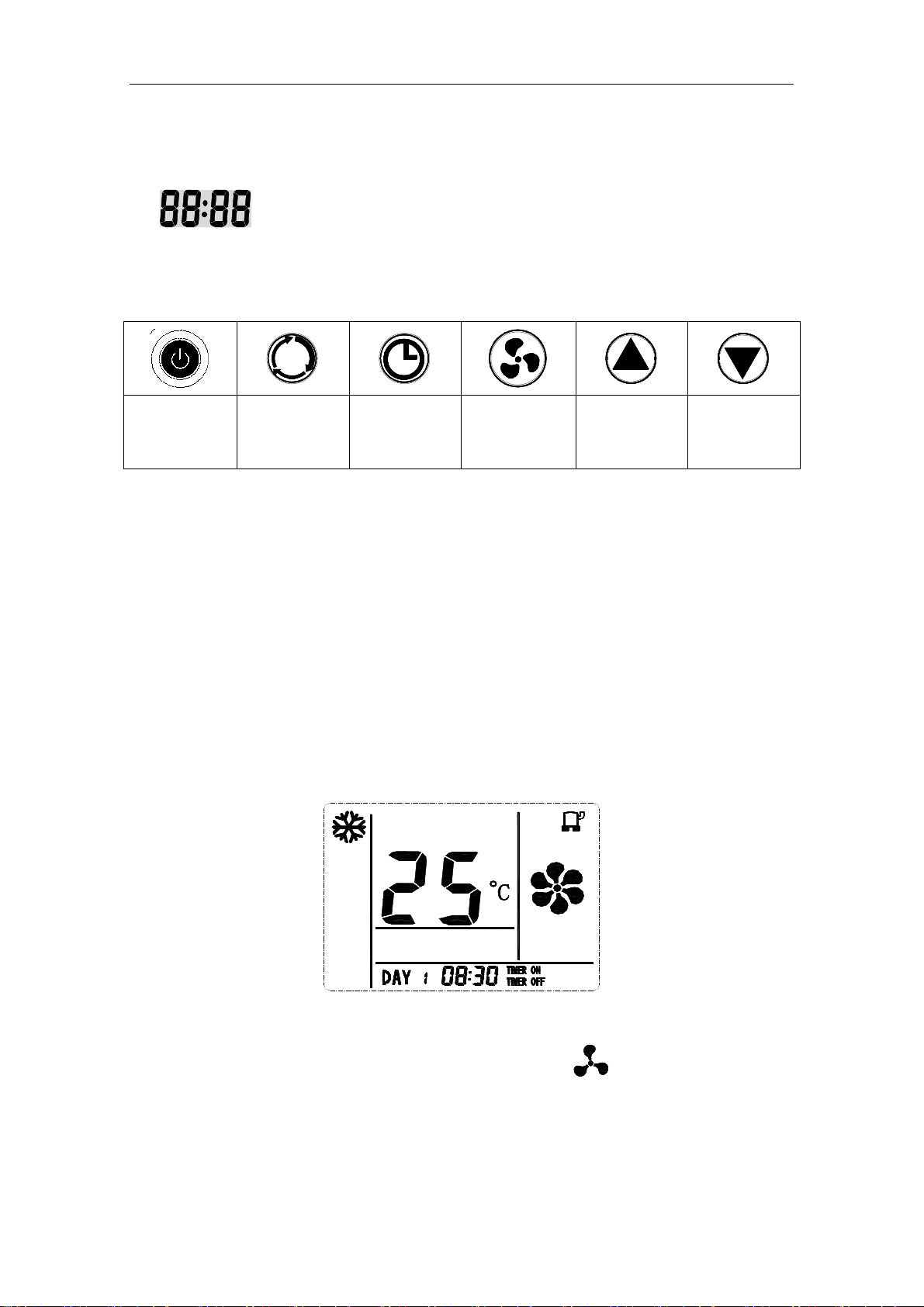

4 Panel operation
.4.1 Mode and temperature display area
this area reality content includes legend as follows.
Refrigeration mode Hot water mode Heating mode automatic mode
Week display
Setting parameter and control temp. display.
.4.2 Time and timing display area
this area reality content includes legend as follows.
On/off and timing symbol, When enter “TIME ON” displays “TIME ON” symbol; enter “TIME
OFF” displays “TIME OFF” symbol

- 18 -
Time on Time off
Time display, displays hour and minute currently, Display timing hour and minute in timing
setting.
.4.3 Button describe
On/off
Mode setting Time and timing setting
Parameter
setting and
scan
Enforce
defrost or add
one
Failure reset
or minus one
.4.4 Operation function
1)．
．．
．Correspondence connect settings
12V reverse communication.The communication distance of up to 30 meters.
2)．
．．
．Power source (DC 12V±10%)
3)．Display content describe in normal working.
Display various parameters of state of water-cooled chiller.
Example 1:
Start the unit---refrigeration mode---backwater temp.(25℃) ---time currently(Monday 8:30a.m)
The state of output currently: compressor output, on/off timing, running shows “on”.
If the unit has malfunction in running automatically, and display correspond to malfunction
code, malfunction code display in the area of the controller glint( please see the malfunction table
detailed).

- 19 -
4) Button operation
operation operation
operation
The unit and operation board is connecting with working, you can operate the unit
directly.
In Off mode, press button to modify the mode of air-condition and water
heater integrated unit: refrigeration—heating—heat water
In normal, press button last 3 second enter the air-conditioning manual
defrosting, the defrosting sign flicker, After 5 seconds reach defrost conditions
and the system is displayed , otherwise not display.
In normal, press button enter set the parameter scan ,press button again,
and enter the sensor of temperature scan ---press 、 to select the parameter
which is needed to scan .
Scan the sensor temperature sensor status browsing settings parameter status

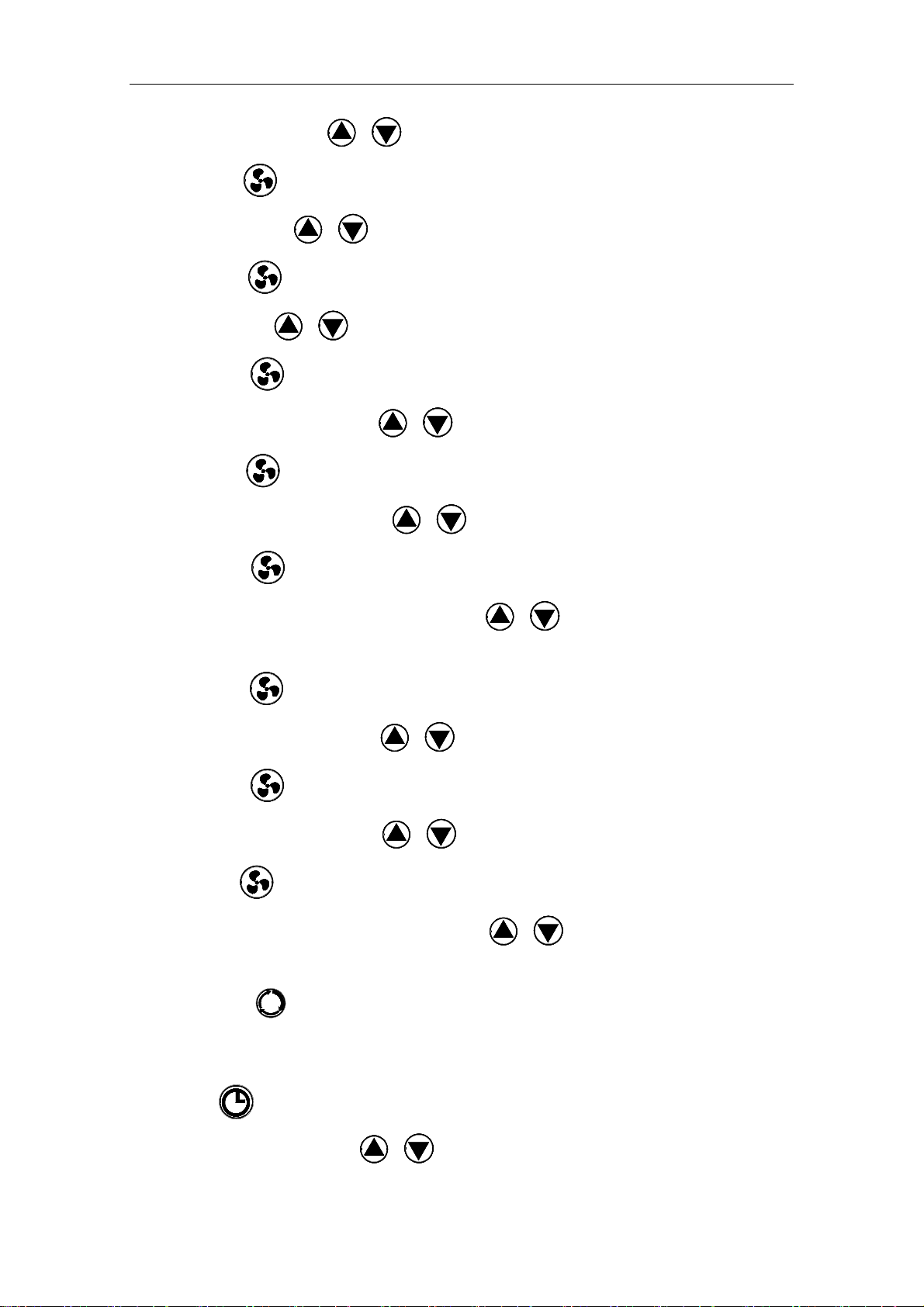

5). System parameter setting
In normal, press button 3 seconds enter the parameter setting, press 、button
may be adjusted upwards or downwards, then press button last 3 seconds enter the next
setting of the parameters .
Parameter setting states: the fifth section is -5 degrees. the middle figure is parameter settings,
The bottom of a small number for the several parameters.
（1）In Off mode, press button and enter the parameter setting of the frist section :set the

- 20 -
refrigeration temp., then press 、button may be adjusted upwards or downwards.
（2）.Press button once, and enter the parameter setting of the second section :set the
heating temp., then press 、button may be adjusted upwards or downwards.
（3）. Press button once, and enter the parameter setting of the third section :set the water
tank temp., then press 、button may be adjusted upwards or downwards.
（4）. Press button once, and enter the parameter setting of the fourth section :set the
automatic antifreeze temp., then press 、button may be adjusted upwards or downwards.
（5）. Press button once, and enter the parameter setting of the fifth section :set the leaving
water temp. in cooling mode, then press 、button may be adjusted upwards or downwards.
（6）. Press button once, and enter the parameter setting of the sixth section :set the
ambient temp. for running electric heating, then press 、button may be adjusted upwards or
downwards.
（7）. Press button once, and enter the parameter setting of the seventh section :set the
waiting time for defrosting, then press 、button may be adjusted upwards or downwards.
（8）. Press button once, and enter the parameter setting of the eighth section :set the
running time for defrosting, then press 、button may be adjusted upwards or downwards.
（9）. Press button once, and enter the parameter setting of the ninth section :set on ambient
and fin difference temp. in defrosting mode, then press 、button may be adjusted upwards or
downwards.
（10）．Press button last 3 seconds or 5 seconds, store data and exit.
6）
））
）. Clock setting
A. Press button last 3 seconds, and enter clock setting.
B. Then hour glints, and press 、button adjust hour setting
