Ecoplus 1/10 HP User manual

ECe4[s WATER CHILLERS
Thank you lor purchasing an EcoPluso Water Chiller!
To get the most out ol your chiller and enjoy safe, reliable operation, please thoroughly read
and understand this lnstruction Manual before operating. Please keep it for future reference.
Conlenls
Salety lnformation .... 1
Features ... 2
Specifications ...2-3
lnstallation. 4-5
0peration .......6
Gleaning & Storage ........7
Troubleshooting .... ..8
Parts List & Wiring Diagram... ....... I
Limited Warranty .... 10

To prwent injury to user, others and/or property damage, the lollowing safety instructions must be
followed. lgnoring these instructions may cause harm or damage due to laulty operation.
Seriousness is indicated by the following symbols:
WARI{ING!
Possible death or serious injury. GAUTIO}I
Posible injury or propefi damage.
wARl{HG!
. Do not exceed the rating of the power circuit or share the outlet with other appliances.
. Do not start or stop the chiller by switching the power source on/off or by plugging or
unplugging the power cord.
o Always use the factory-installed 3-prong, grounded, polarized power plug and cord.
o Never attempt to operate chiller with a damaged or modified power cord.
. Do not insert or remove plug from outlet with wet hands or standing in water.
. Do not place chiller near a heat source, flammable materials or hzardous chemicals.
. Disconnect the power if strange sounds, smells or smoke come from the unit.
. Never attempt to take apart or repair the chiller yourself. Repairs must be done by factory
authorized service personnel.
. Before cleaning the chiller, always turn off the power and unplug the power cord.
. Do not drink or use any water drained from the unit.
AcAuTroN
. Do not install chiller in closets, cabinets or other small spaces.
. Do not place chiller where water may splash or leak onto the unit.
. Never cover the intake or exhaust openings with clothes, towels or other objects.
. Use extreme caution when operating near children, the elderly and infirm.
. Never insert fingers or foreign objects into ventilation grilles or other openings.
. Do not place heavy objects on the power cord 0r run it under carpets and rugs.
o Do not climb, sit or stand on the chiller, or place objects on top of it.
. Clean filter every two weeks, making sure it is installed securely.
o lf water enters the chiller due to a leak or spill, turn it off and disconnect the power. Contact
a qualif ied service technician.

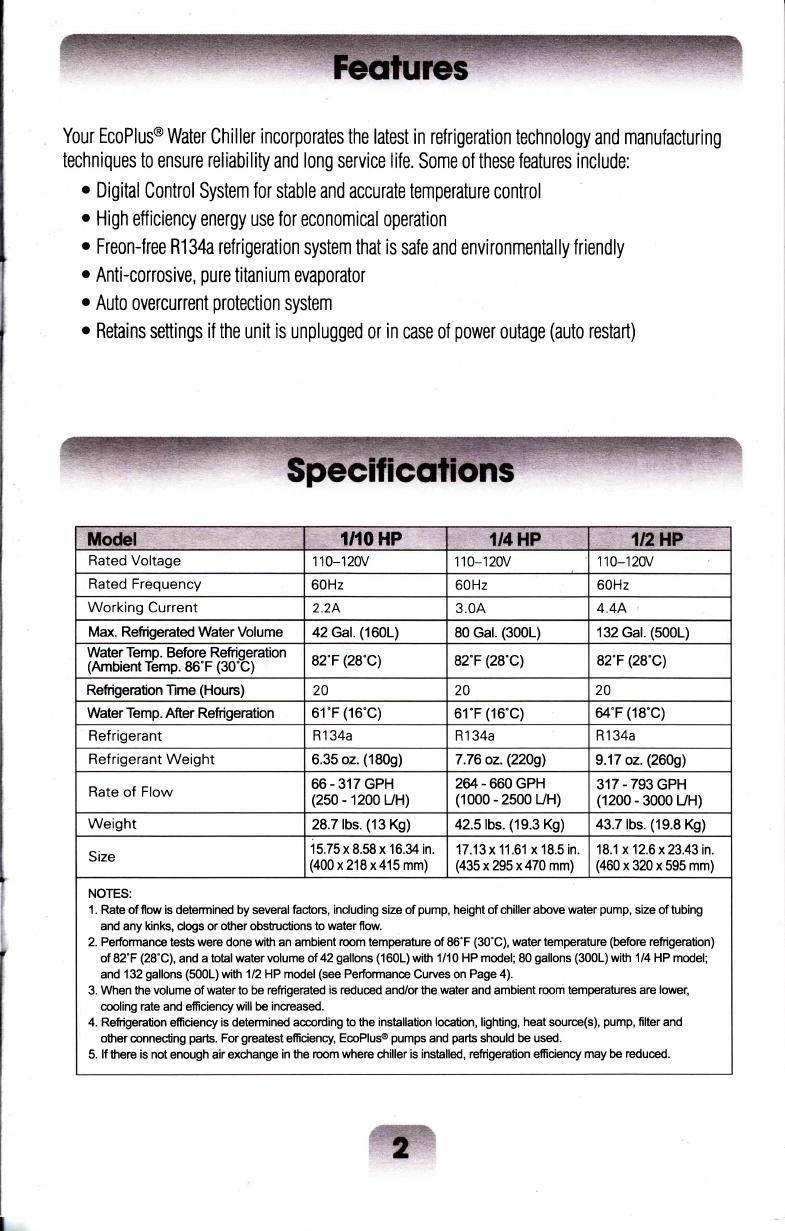

Your EcoPlus@ Water Chiller incorporates the latest in refrigeration technology and manufacturing
techniques to ensure reliability and long service life. Some of these features include:
o Digital Control System for stable and accurate temperature control
. High efficiency energy use for economical operation
o FreonjreeRl34arefrigerationsystemthatissafeandenvironmentallyfriendly
. Anti-corrosive, pure titanium evaporator
o Auto overcunent protection system
o Retains settings if the unit is unplugged or in case of power outage (auto restart)
1'{O HP
Rated Voltage 1 10-120V 1 10-120V 1 10-120V
Rated Frequency 60Hz 60Hz 60Hz
Working Current 2.24 3.04 4.44
Max. Refrigerated Water Volume 42 Gat. (1601) 80 Gal. (3001) 132 Gat. (5001)
Water Temp. Before Refrigeration
(Ambient Temp. 86'F (30'C) g2"F (29'C) 82"F (28'C) 82'F (29'C)
Reftigeration Time (Hours) 20 20 20
Water Temp. After Refiigeration 61 "F (16'C) 61 "F (16'C) u"F (19'c)
Refrigerant R134a R1 34a R1 34a
Refrigerant Weight 6.35 oz. (180g) 7.76 oz. (2209) 9.17 oz. (2609)
Rate of Flow 66 - 317 GPH
(250 - 1200 UH) 2U - 660 GPH
(1000 - 2500 uH) 317 - 793 GPH
(1200 - 3000 uH)
Weight 28.7 lbs. (13 Kg) 42.s lbs. (19.3 Ks) 43.7 lbs. (19.8 Kg)
Size 15.75 x 8.58 x 16.34 in.
(400 x 218 x415 mm) 17.13 x 11.61 x 18.5 in.
(435 x 295 x 470 mm) 18.1 x 12.6x23.43in.
(460 x 320 x 595 mm)
NOTES:
1 . Rate of flow is determined by several factors, including size of pump, height of chiller above water pump, size of fubing
and any kinks, dogs or other obstnctions to water llow.
2. Performance tests were done with an ambient room temperature of 86'F (30'C), water temperature (before refrigeration)
ol82"F (28"C), and a total water volume of 42 gallons (160L) with 1/10 HP model; 80 gallons (300L) with 1/4 HP model;
and 132 gallons (500L) with 1/2 HP model (see Performan@ Curves on Page 4).
3. When the volume of water to be refiigerated is reduced and/or the water and ambient room temperatures are lower,
cooling rate and effciency will be increased.
4. Reftigeration efficienry is determined according to the installation location, lighting, heat source(s), pump, filter and
other connecting parts. For greatest efficiency, EcoPluso pumps and parts should be used.
5. lf there is not enough air exchange in the room where chiller is instialled, refiigeration effciency may be reduced.

PERFORMA]IGE GURVES
Models:1110 HP & 1/4 HP
I
,
i
I
l
181716
ut
E
-
J
E
E
ul
L
=
lr|
F
E
lrl
l-
=
l T
E
=
l-
E
IrI
4
=
lr|
F
E
lrT
l-
k
=
'Fl'G
86.0 / 30
u.2tn
82.4128
ffi.6127
78.8 t26
77.0 125
75.21 24
73.4123
71.6122
69.8121
68.0 / 20
66.21 19
u.4 t 18
62.61 17
60.8 / 16
59.0 / 15
.F /.G
86.0 / 30
u.2 t29
82.4128
80.6127
78.8126
77.0 I 25
75.2124
73.4123
71.6 I 22
69.8121
68.0 / 20
66.2 / 19
u.4l 18
1 2 3 4 5 6 7 8 I 10 11 12 13 14 15 16 17 18 19 20
REFRIGERATION TIME (Hours)
Model: lnHP
Ambient Temperature: 86'F (30"C) Water Temperature (before refrigeration): 82"F (28"C)
Total Water Volume: 132 Gal. (5001)
Ambient Temperature: 86"F (30"C) Water Temperature (before refrigeration): 82"F (28'C)
Total Water Volume: 1110 HP - 42Gal. (1601), 1l4HP - 80 Gal. (3001)
\I\
\\L.\\\\\L-_ --
\\\\\--\-L--
L\-..- L.- -\
6 7 8 I 101112 1314 15
REFRIGERATI0N TIME (Hours) 19 20
N}TE: Lower water volumes will result in faster temperature drops.

UiIPACKII{G THE GHIIIER
Please D0 NOT dispose of any packaging until you have checked that all parts are included and
the chiller is operational. ln the unlikely event of missing parts or damage, conkct the retailer
where you purchased the unit imnediafel12 Do not leave children unattended with the chiller or
packaging. Disposal ol all materials must be canied out responsibly, salely and recycled
wherever possible.
Package Gontents:
. 1 Chiller Unit o 4lnlet/0utlet Adapters with Nuts and Rubber Seals
o 'l lnstruction Manual . 1 Spare Fuse
INSTALLING THE GHILLER
For best results and safest operation, installthe chiller indoors in a well ventilated location.
MPONTANT!
o Provide a grounded power outlet and circuit to be used only for the chiller (any electrical work
must be done by a qualified electrician).
r Power source must conlorm to the power requirements specilied on the product nameplate.
o ALWAYS disconnect the power supply when installing or cleaning the chiller.
D0 NOT install outdoors. Keep out of direct sunlight
and away from flammable
materials, moisture,
dust and any heat
s0urce.
0perate only on
a flat, stable,
horizontal surface.
Clearance: allow at least B" (20cm)
in front; 16" (40cm) in rear. Never cover during operation.
Avoid banging or shaking. Do not knock the chiller over or turn it upside down - this may cause
damage to the refrigeration system. lf unit is
tipped or knocked over, turn the power 0FF. a(
Set the unit upright and level again and
wait 20 minutes before switching it back on.

nis chilla does ll0l haye an internal panp for systen circulation.
An apprupriately sized exterml panp is reqaired.
GHOOSING THE CORRECT EXTERI{AL PUMP
Required pump size depends on chiller model, water volume and rate of circulation. Recommended
pump sizes for effective water chilling are within the following ranges:
Ghiller
Model Max. Reseruoir Uolume
Gallons (Liters) Rate ol Glrculation - Pump Size
Gallons Per Hour (Liters Per Hour)
1/10 HP
114 HP
112 HP
66 - 317 GPH (250 - 1200 LPH)
264 - 660 GPH (1000 - 2500 LPH)
317 - 7e3 GPH (1200 - 3000 LPH)
TYPICAL INSTALLATION
For the most effective water cooling and energy efficiency, locate chiller belowwaler level. lf chiller
must be placed above reservoir level, make sure height above pump does not exceed 26 ft. (8m).
For best performance, keep hoses as short as possible. The sum of all hose lengths should not
exceed 25 ft. (7.6m).
IMPORTANT! Always check the following before starting chiller:
/ Water level inside the reservoir is correct and there are n0 leaks in any hoses 0r connections.
/ Power supply is correct and the plug is inserted completely into the outlet.
/ Double-check the whole system to make sure there are n0 breaks 0r clogs.
I
Chiller Pump
(separate from nutrient pump)

"Cool ing" Indicator Light
USING THE DIGITAL GONTROL PANEL
3- D i
g it Tem pe ratu re D isp I
ay Te mp e ratu re Ad
justm e nt B utto n s
Setting Water Tempetature: To enter a temperature setting, press the SET button and hold
for more than 3 seconds. The previously set temperature will appear on the display. Press the UP
or ll0t{ll key to enter a new temperature setting from 3z-90"F (3-32'c). To accept, press the sET
button again (or just wait about B seconds and it will automatically store your new setting and
revert t0 normal operation). The actual water temperature displhys continuously while the chiller
is working. To Compare Actual and Set Water Tenperatures: Press the SET button once. The set
temperature will appear, alternating with a display of the actual water temperature (when actual
water temperature is displayed the "Cooling" indicator light goes OFF - when the set
temperature is displayed the same indicator FLASHES).
Automatic Tempetatule Gontrol: When the compressor stops for over 3 minutes and water
temperature rises 1'F above the set temperature, the chiller will automatically restart. 0nce the
set water temperature is reached, the "Cooling" indicator light will go off and the compressor
will stop. NOTE: The "Cooling" indicator light will also flash if any protection device (see below)
is activated for at least 3 minutes.
SPECIAL FUNCTIONS AND PROTECTION DEVICES
o lemq. Display Adiuslment: lf necessary, the display of actual water temperature can
be adjusted 2.4"F (1.5"c) up or down. Press the uP and lt0wll keys at the same timelor
6 seconds until the numerical display flashes. Then, press the uP or ll0l{ll keys to adjust.
. compressor Protection: lf the compressor somehow becomes overloaded, a protection
device will automatically shut it off, then attempt a restart after about 3 minutes.
c Sensor Circuit Protection: lf the water temperature sensor has an open or broken circuit,
the chiller will shut down and a "P1" or "P2" error message will be displayed.

CLEA}IING THE GHILLER
For ufe, efficient operation and long service life, it is essential to regularly clean the chiller and all
hoses, connections and other componenb in the system in which it is installed. Thorough cleaning
is recommended every 1-2 months, including:
o Rinse collected debris from filters, external reservoir pump, all inlet and outlet connections,
hoses, etc., with clear, lukewarm water. Soap, detergent or bleach is NOT recommended because
any remaining residues can contaminate the nutrient solution. The chiller housing, digital
control panel, power switch and other external surfaces must be cleaned with a soft, dry cloth.
NEVER inmerse the chiller in water or spray it down with a hose!
o Clean air filters every 2 weeks:
1. Loosen screw on front cover, turning counterclockwise (Fig. 1).
2. Gently pull cover toward you to remove (Fig. 2).
3. Loosen screws 0n attached filter and remove (Fig. 3 & 4).
4. Lift bottom clips and pull out to remove side filters (Fig. 5- 1/4 & 12 HP Models only).
5. Loosen screws 0n attached filters and remove (Fig. 6 & 7)
6. Remove dust with a brush or vacuum cleaner, or rinse well in lukewarm water (Fig. 8).
Make sure filters are thoroughly DRY belore reinstalling them.
STORING THE GHITLER
Disconnect chiller from the system. Gently tilt the unit to drain water out through the inlet and
outlet connections. D0 NOT INVERT CHILLER T0 DRAIN! Clean and dry filters, wipe down external
surfaces with a soft cloth, cover with plastic bag, insert into carton and store in a safe, dry place.

Before calling service, check the troubteshooting chart
below tor solutions to the most commnn problems.
SYMPTOM CAUSE SOLUTION
Chiller doesn't run
Display is blank
Power is not turned on Turn on the power
Not plugged all the way in Be sure the power cord is fully
plugged in
Fuse has blown Change fuse
Chiller keeps
tuming itself
on and off
Connected to wrong
voltage and frequency Apply to correct power source
according to the nameplate
Protection device
has been activated
A. Check water circulation
B. Check ventilation around unit.
lf heat is not accumulating,
wait 3 minutes and unit will
automatically restart
Water not cooling
enough (or not
at all)
Water temperature setting
is too high Lower water temperature
setting
Total water volume too high Reduce water volume
Air filters are clogged
with dust Clean air filters as directed
on Page 7
Not enough refrigerant Have qualified personnel
replenish refrigerant
Compressor runs normally,
but fan stops running and
unit can't dissipate heat
Fan may need to be replaced
by qualified service personnel
Unit is noisy
and/or rattles The base is not flat Mount it on a flat base

PARTS LIST
1. Digihl Control Panel Enclosure
2. Cirruit Board
3. Enclosure Back Cover
4. Water lnlet & 0utlet Adapte
5. Nut
6. Housing
7. Handle
B. Condenser
9. Fan
10. Compressor
1 1. Base
12. Power Switch
13. Power lnput
1 4. Fuse
15. Water Temp. Sensor
16. Water Tank
17. lntake Air Filter
18. Front Cover
WIRING DIAGRAM
ffiO HP Model Shown
TC-O1 Temperature controller
FT Fuse
PTC Motor starter
FAN Fan
MC Compressor
OL Motor protector
T Water temperature sensor

Sunlight $upplyP lnc. One-Year Limited Wananly: The EcoPlus@ Chiller covered in this manual is
wananted under normal use lor one year after purchase date. Any part determined defective in material or
workmanship can be refumed to an authorized service location designated by Sunlight Supply, shipping
prepaid, and will be repaired or replaced at the option of Sunlight Supply.
Limihtion ol Liability: To the extent allowable under applicable law, Sunlight Supply's liability lor
consequential and incidenhl damages is expresly disclaimed. Sunlight Supply's liability in all events is limited
to and shall not exceed the purchase price paid.
Wananty Disclaimer Sunlight Supply provides product information in this literature for the sole purpose ol
identification, and does shte or imply that the products are merchantable or lit lor a particular purpose, or that
the products will conform to the descriptions.
Ptoduct Suitability: Many jurisdictions have codes and regulations governing ules, conslruction, installation
and/or use of producb for certain purposes, which may vary lrom those in neighboring areas. While Sunlight
Supply attempts to assure that its products comply with such codes, it cannot guarantee compliance, and cannot
be responsible for how the product is installed or used. Belore purchase and use ol a product, revieur the
product applications, and all applicable national and local codes and regulations, and be sure that the product,
llll 1T.1Tll: :1i:l:l::l:':..-.. i., r r r r. r r r... r r r r r r r r r.. r r r r r.. r
o DMtaflrilt,
WARRAI{TY REGISTRATION F(IRM
Your EcoPlug Chiller from Sunlight Supply,o lnc. is covered for one (1) full year against manulacturer defects.
The warnnty inlormation below must be filled out and mailed back with a copy of the purchase receipt for
uarranty to be in effect. Abuse, neglect, misuse or mis-application of the product will void the warnnty.
SelectPowerModel: fl1/10HP n1/4HP E12HP
EcoPlus@ Chiller tt
PRODUCT NAME SERIAL NUMBER DATE OF PURCHASE
CITY / STATVZIP
PHONE
Where purchased:
EMAILADDRESS
STORE NAME
Mail this Product Registntion Form within l5 days of purchase to:
Sunlight Supply,o lnc., EcoPlus@ Warranty Dept.
5408 NE 88th Street - Bldg A, Vancouver WA 98665 USA

D0 NOT dispose ol this product in the trash, on the landscape
or into any unsorted waste stream! lt may contain hazardous
substances that can leach into groundwater and find their way
into the lood chain. This unit contains VALUABLE RESOURCES
that are easy to recycle and re-use. Services available
may include:
A. Municipal Collection Syslems: Most cities and towns have recycling
programs where electronic waste can be turned in for recycling
free of charge.
B. Retailer Return: When buying a new product, many retailers will take back
an old product free of charge.
C. Manulactulel Retum: Many manufacturers accept old products for
recycling free of charge.
D. Scrap Dealers: Many scrap dealers will buy old electronics or take them
free of charge.
www. ecoplususa.G0m
Excl usively distributed by:
Sunlight Supply,o lnc. / National Garden Wholesale@
5408 NE BBth Street - Bldg A
Vancouvel WA 98665 USA
www.su nl i ghtsupp ly. com
