This manual describes the
installation, operation, and
maintenance of RTWB units.
When the unit arrives, compare all
nameplate data with ordering,
submittal, and shipping information.
A typical nameplate is shown in
Figure 1.
Figure 1 –Typical unit name plate
An Owner Guide on the operation
of the UCM-CLD chiller controls is
available as a separate document.

RTWB-SVN01B-E4 5
General
Information
Unit inspection
When the unit is delivered, verify
that it is the correct unit and that it is
properly equipped.
Inspect all interior components for
visible damage. Report any apparent
damage or material shortage to the
carrier and make a “unit damage“
notation on the carrier's delivery
receipt. Specify the extent and type
of damage found and notify the
appropriateTrane sales office.
Do not proceed with the installation
of a damaged unit without sales
office approval.
Inspection checklist
To protect against loss due to
damage incurred in transit, complete
the checklist upon receipt of the unit.
•Inspect the individual pieces of the
shipment before accepting the
unit. Check for obvious damage to
the unit or packing material.
•Inspect the unit for concealed
damage as soon as possible after
delivery and before it is stored.
•Concealed damage must be
reported within 72 hours after
receipt and confirmed by
registered delivery to the carrier
and theTrane sales office.
•If concealed damage is discovered,
stop unpacking the shipment. Do
not remove the damaged material
from the receiving location.Take
photos of the damage, if possible.
The owner must provide
reasonable evidence that the
damage did not occur after
delivery.
•Notify theTrane sales
representative and arrange for
repair. Do not repair the unit,
however, until damage is
inspected by the transportation
representative.
Loose parts inventory
Check all items against the shipping
list. Water flow switch (option),
water-vessel drain plugs, isolation
pads, rigging and electrical
diagrams, and service literature are
shipped in the starter panel.

RTWB-SVN01B-E4
6
Unit description
The RTWB units are helical-rotary
type, water-cooled, liquid chillers
designed for indoor installation .The
units have two independent
refrigerant circuits, with one
compressor per circuit.
Each RTWB unit is completely
assembled, wired, leak-tested,
dehydrated, charged, and tested for
proper control operation prior to
shipment.The chilled-water inlet and
outlet openings are covered for
shipment.
The RTWB series featuresTrane's
exclusive Adaptive Control™logic
with Clear Language Display. It
monitors the control variables that
govern the operation of the unit.
Adaptive Control logic can correct
these variables, when necessary, to
optimize operational efficiencies,
avoid chiller shutdown, and keep
producing chilled water.
Compressor unloaders are oil
pressure operated. Each refrigerant
circuit is provided with filter,
electronic expansion valve, and
charging valves.

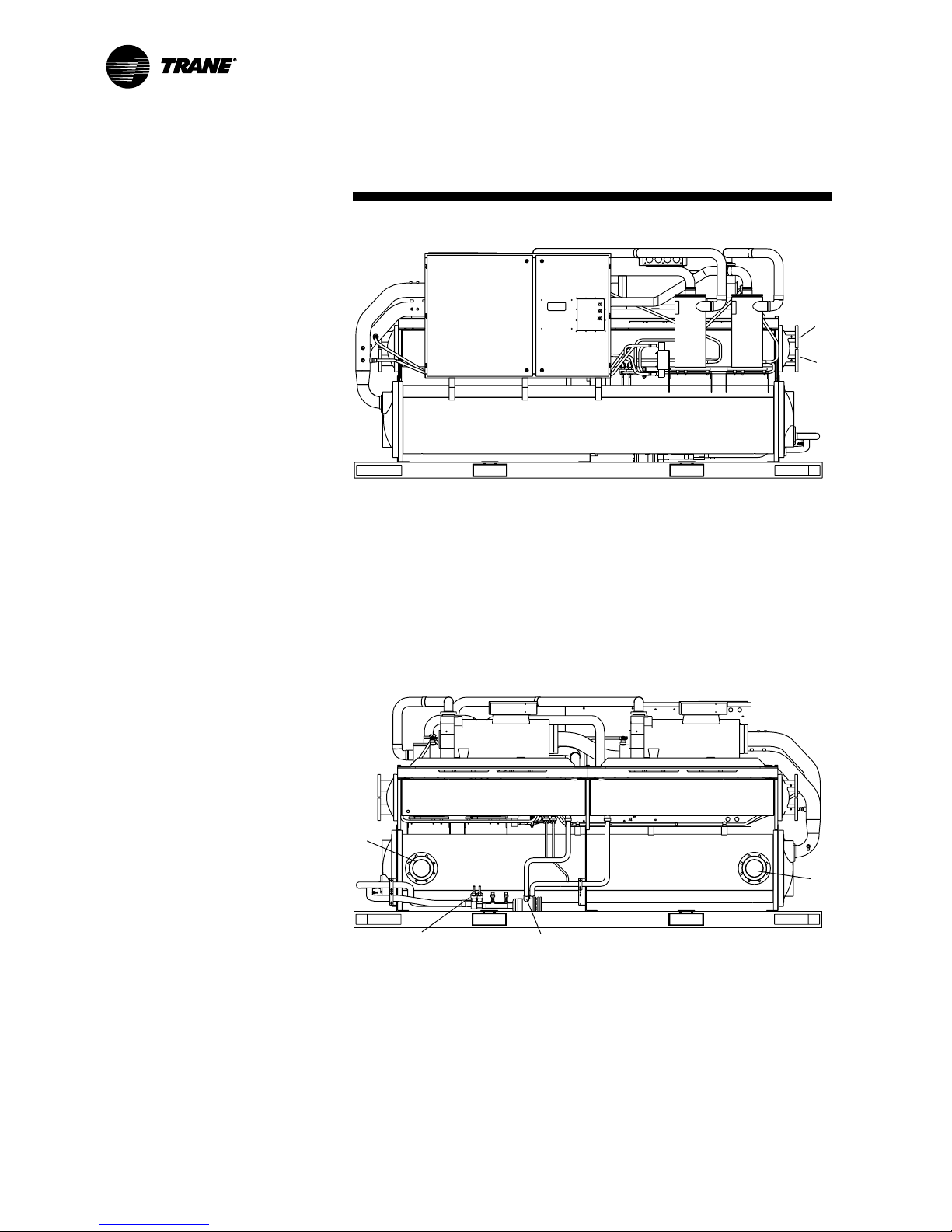

Figure 2 -– Component location for typical RTWB unit
Figure 3 – Component location for typical RTWB unit (back view)
1 Starter panel
2 Control panel
3 Evaporator
4 Oil separator
5 Helical-Rotary Compressor
7 Condenser-water outlet
8 Condenser-water inlet
3 Evaporator
5 Helical-Rotary Compressor
6 Condenser
9 Evaporator-water outlet
10 Evaporator-water inlet
11 Electronic expansion valve
12 Filter dryer
General
Information
1
2
3
44
5
7
8
55
6
3
10
12
11
9

RTWB-SVN01B-E4 7
General
Information
Installation overview
For convenience, Table 1
summarizes responsibilities that are
typically associated with the RTWB
chiller installation process.
•Locate and maintain the loose
parts, for example, isolators, bulb
wells, temperature sensors, flow
sensors, or other factory-ordered,
field-installed options, for
installation, as required.
•Install the unit on a foundation
with flat support surfaces, level
within 6 mm and of sufficient
strength to support concentrated
weight. Place the manufacturer-
supplied isolation pad assemblies
under the unit.
•Install the unit per the instructions
outlined in the mechanical
installation section. Complete all
water piping and electrical
connections.
Note: Field piping must be arranged
and supported to avoid stress on
the equipment. It is strongly
recommended that the piping
contractor provide at least 1 m of
clearance between the pre-
installation piping and the planned
location of the unit.This will allow
for proper fit-up upon arrival of the
unit at the installation site. All
necessary piping adjustments can
be made at that time.
Where specified, supply and install
valves in the water piping upstream
and downstream of the evaporator
and condenser water boxes to
isolate the shells for maintenance
and to balance and trim the system.
•Supply and install flow switches or
equivalent devices in both the
chilled-water and condenser-water
piping. Interlock each switch with
the proper pump starter and UCP2
to ensure that the unit can only
operate when water flow is
established.
•Supply and install taps for
thermometers and pressure
gauges in the water piping,
adjacent to the inlet and outlet
connections of both the
evaporator and the condenser.
•Supply and install drain valves on
each water box.
•Supply and install vents cocks on
each water box.
•Where specified, supply and install
strainers ahead of all pumps and
automatic modulating valves.
•Supply and install refrigerant
pressure-relief piping from the
pressure relief to the atmosphere.
•Start the unit under supervision of
a qualified service technician.
•Where specified, supply and
insulate the evaporator and any
other portion of the unit, as
required, to prevent sweating
under normal operating
conditions.
•For unit-mounted starters, cutouts
are provided at the top of the
panel for line-side wiring.
•Supply and install the wire
terminal lugs to the starter.
•Supply and install field wiring to
the line-side lugs of the starter.

RTWB-SVN01B-E4
8
Table 1 – Installation overview
Refer to the installation mechanical and electrical sections of this manual for detailed installation instructions.
Requirement Trane supplied Trane supplied Field supplied
Trane installed Field installed Field installed
Rigging Safety chains
Clevis connectors
Lifting beam
Isolation Isolation pads Isolation pads
Electrical Disconnect switch (optional) Disconnect switch
Flow switches (may be field supplied) BAS wiring (optional)
Water pump contactor
Water piping Flow switches (may be field supplied) Thermometers
Water flow pressure gauges
Isolation and balancing valves water piping
Vents and drain valves
Pressure relief valves
Pressure relief Relief valves Vent line
Insulation Insulation (optional) Insulation
Table 2 - General data
207 208 210 211 212 214 216 217 218 220 222 224
Evaporator type EG 120 EG 120 EG 140 EG 170 EG 170 EG 200 EG 200 EG 200 EG 250 EG 250 EG 340 EG 340
Condenser type CG 120 CG 120 CG140 CG 170 CG 170 CG 200 CG 200 CG 200 CG 230 CG 230 CG 230 CG 230
Compressor type K1/K1 K2/K2 L1/L1 L2/L1 L2/L2 M1/M1 M2/M1 M2/M2 N1/M2 N1/N1 N2/N1 N2/N2
Oil charge (l) 6/6 6/6 7/7 7/7 7/7 8/8 8/8 8/8 8/8 8/8 11/8 11/11
Oil type OIL 023 E or OIL 048 E
Refrigerant charge
(kg) 39/39 39/39 60/60 60/60 60/60 60/60 60/60 60/60 69/69 69/69 74/74 74/74
Operating weight
(kg) 2620 2620 3370 3450 3450 3725 3725 3725 4325 4500 4925 5000
Shipping weight
(kg) 2450 2450 3050 3150 3150 3500 3500 3500 3900 4050 4250 4400
Length (mm) 2880 2880 4150 4150 4150 4150 4150 4150 4150 4150 4150 4150
Width (mm) (1) 890 890 890 890 890 890 890 890 890 890 890 890
Height (mm) (1) 1789 1789 1832 1832 1832 1832 1832 1832 1932 1932 2041 2041
(1) With compressor sound enclosure and disconnect switch handle not mounted.
General
Information

RTWB-SVN01B-E4 9
Installation Mechanical

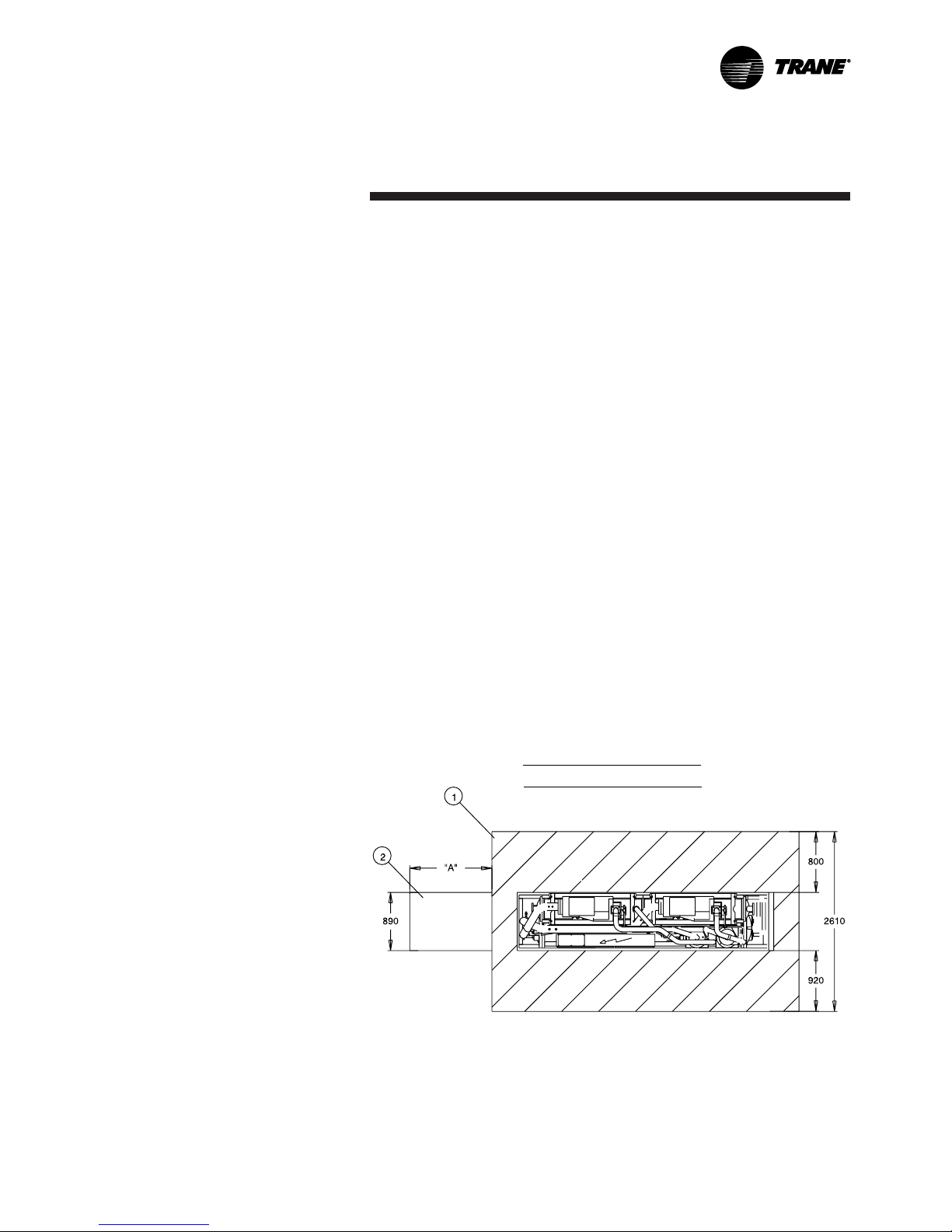

Figure 4: Minimum service clearance
1 Minimum clearance for maintenance.
2 Minimum clearance for tube removal of the evaporator or condenser (at
either end of the unit).
Dimensions in mm
Storage
If the chiller is to be stored for at
least one month prior to the
installation, observe the following
precautions:
– Do not remove the protective
coverings from the unit.
– Store the chiller in a dry, vibration-
free secure area.
– At least every three months, check
the pressure in the refrigerant
circuit. If the condensing pressure
is below 4 bar at 20°C, call a
qualified service organization and
the appropriateTrane sales office.
Location requirements
Noise considerations
– Refer to the engineering bulletin
for noise-consideration
applications.
– Locate the unit away from sound-
sensitive areas.
– Install the isolation pads under the
unit.
– Install the rubber vibration
isolators in all water piping.
– Use flexible electrical conduit.
Note: Consult an acoustical engineer
for critical applications.
Foundation
Provide rigid, non-warping
mounting pads or a concrete
foundation of sufficient strength and
mass to support the chiller operating
weight (including completed piping
and full operating charges of
refrigerant, oil, and water). Refer to
Table 2 for unit operating weights.
When in place, level the chiller
within 6 mm over its length and
width.TheTrane Company is not
responsible for equipment problems
resulting from an improperly-
designed or -constructed
foundation.
Vibration eliminators
– Provide rubber boot-type isolators
for all water piping at the unit.
– Provide flexible conduit for
electrical connections to the unit.
– Isolate all pipe hangers and be
sure they are not supported by
main structure beams that could
introduce vibration into occupied
spaces
– Make sure that the piping does
not put additional stress on the
unit.
Note: Do not use metal-braided-
type eliminators on the water
piping. Metal braided eliminators
are not effective at the frequencies
at which the unit will operate.
Clearances
Provide enough space around the
unit to allow the installation and
maintenance personnel unrestricted
access to all service points. Refer to
submittal drawings for the unit
dimensions.
Allow adequate clearance for
condenser and compressor
servicing. A minimum of 1 meter is
recommended for compressor
service and to provide sufficient
clearance for the opening of the
control panel doors. Refer to Figure
4 for minimum clearances required
for condenser-tube service. In all
cases, local codes will take
precedence over these
recommendations.
Note: Required vertical clearance
above the unit is 1 meter.There
should be no piping or conduit
located over the compressor motor.
If the room configuration requires a
variance to the clearance
dimensions, contact yourTrane sales
office representative.
Note: Maximum clearances are
given depending on the unit
configuration; some units may
require less clearance than others in
the same category.
Local regulations may provide for
specific requirements.
Size “A”
207 and 208 1615
210 to 224 2250

RTWB-SVN01B-E4
10
Ventilation
The unit produces heat even though
the compressor is cooled by the
refrigerant . Make provisions to
remove heat generated by unit
operation from the equipment room.
Ventilation must be adequate to
maintain an ambient temperature
lower than 40°C.
Vent the evaporator, condenser, and
compressor pressure-relief valves
venting.
Make provisions in the equipment
room to keep the chiller from being
exposed to freezing temperatures
(0°C).
Water drainage
Locate the unit near a large capacity
drain for water vessel drain-down
during shutdown or repair.
Condensers and evaporators are
provided with drain connections.
Refer to “water piping“.
CCAAUUTTIIOONN
To prevent unit damage, position
the lifting beam so that cables do
not come in contact with the unit.
Do not use the threaded holes in the
compressor to lift, or assist in lifting,
the unit.They are not intended for
that purpose and could create a
dangerous situation.
Do not remove the wood shipping
mounts until the unit is in its final
location. Removal of wood shipping
mounts prior to unit final locating
could result in injury or death and
equipment damage.
Connect an anti-rotation strap
between the lifting beam and the
compressor before lifting the unit.
Failure to do so may result in
personal injury or death, if a lifting
cable fails.
Installation Mechanical

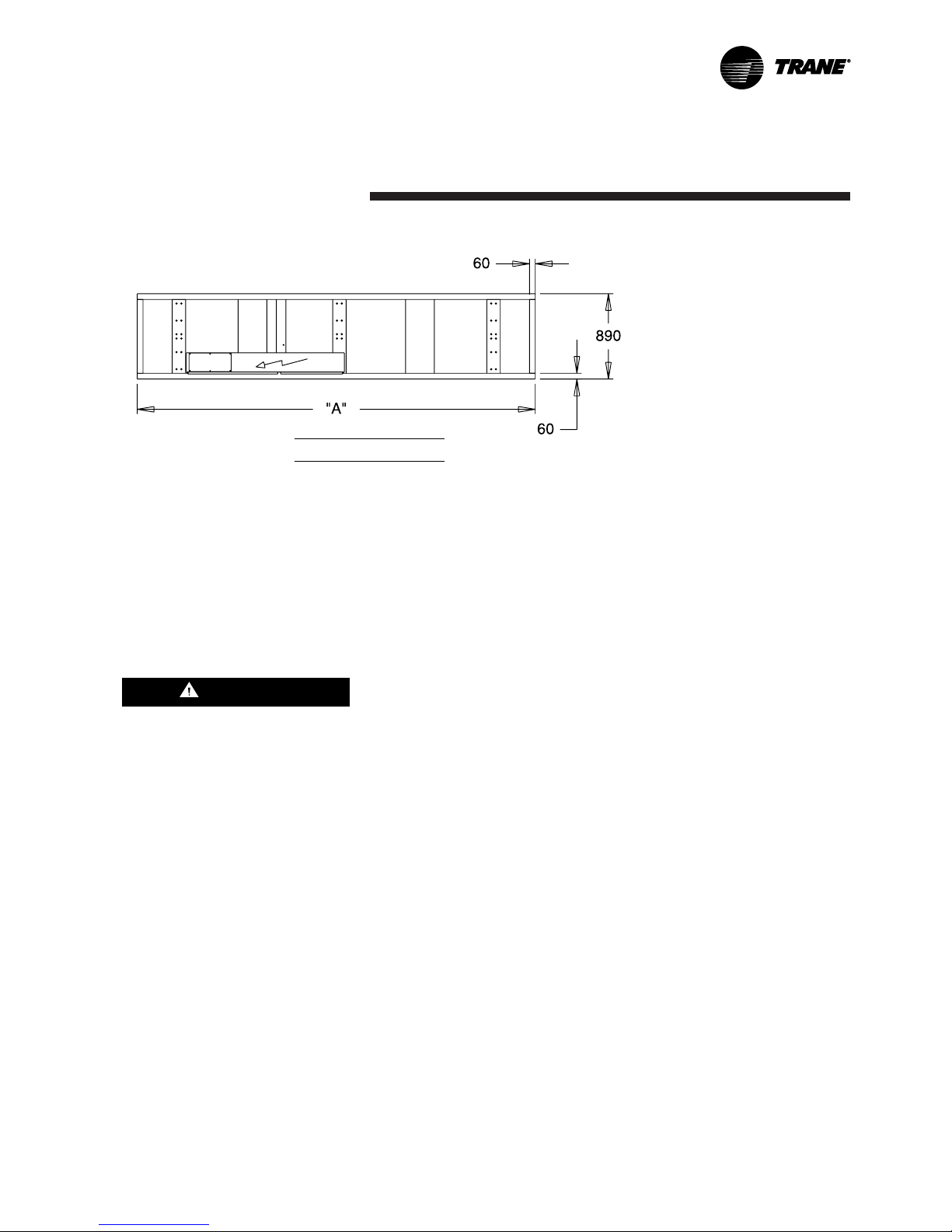

Figure 5 – Lifting and rigging
Table 3 – Shipping weights and sling lengths for lifting
1 2 3 4 5 6 Shipping Weight
Unit Size (mm) (mm) (mm) (mm) (mm) (mm) (kg)
207 - - 2500 3000 2650 2200 2600
208 - - 2500 3000 2650 2200 2600
210 2500 3030 2400 3000 3650 3050
211 2500 3030 2400 3000 3650 3150
212 2500 3030 2400 3000 3650 3150
214 2500 3030 2400 3000 3650 3500
216 2500 3030 2400 3000 3650 3500
217 2500 3030 2400 3000 3650 3500
218 2470 3060 2450 3000 3650 3900
220 2470 3060 2450 3000 3650 4050
222 2450 3100 2500 3000 3650 4250
224 2450 3100 2500 3000 3650 4400
Access restrictions
Door clearances for the RTWB units
are given in Figure 8. Refer to the
unit submittals for specific “per
unit“ dimensional information.
Lifting procedure
The unit can be moved by using a
fork lift or chains, cables, and a
lifting beam.The total lifting weight
and required lifting-beam
dimensions are shown in Figure 5
and on the lifting diagram shipped
with each unit. Lifting-beam
crossbars must be positioned so
that lifting cables do not come in
contact with the sides of the unit.
Dimension of the
holes for the forklift
Sizes 207 and 208 Sizes 210-224

RTWB-SVN01B-E4 11
Installation Mechanical
Isolation pads
The elastomeric pads shipped are
adequate for most installations. For
additional details on isolation
practices, consult an acoustical
engineer for sensitive installations.
Water piping
Piping connections
CCAAUUTTIIOONN
To prevent equipment damage,
bypass the unit if using an acidic
flushing agent.
Make water piping connections to
the evaporator and condenser.
Isolate and support piping to
prevent stress on the unit. Construct
piping according to local and
national codes. Isolate and flush
piping before connecting it to the
unit.
Figure 6 – Isolator pad location
Evaporator water piping
Figure 7 illustrates typical
evaporator piping components.
Components and layout will vary
slightly, depending on the location
of connections and the water
source.
The chilled-water connections are
on the back of the unit, when facing
the control panel.
A vent is provided on the top of the
evaporator at the return end. Be
sure to provide additional vents at
high points in the piping to bleed air
from the chilled-water system.
Install necessary pressure gauges to
monitor the entering and leaving
chilled-water pressures.
To prevent damage to chilled-water
components, do not allow
evaporator pressure (maximum
working pressure) to exceed 10 bar.
Provide shutoff valves in lines to the
gauges, in order to isolate them
from the system when they are not
in use. Use rubber vibration
eliminators to prevent vibration
transmission through the water
lines.
If desired, install thermometers in
the lines to monitor entering and
leaving-water temperatures. Install a
balancing valve in the leaving-water
line to control the balance of the
water flow. Install shutoff valves on
both the entering and leaving-water
lines so that the evaporator can be
isolated for service.
A pipe strainer should be installed in
the entering water line to prevent
water-borne debris from entering the
evaporator.
Dimensions in mm
Size “A”
207 and 208 2880
210 to 224 4150

RTWB-SVN01B-E4
12
Installation Mechanical
Flow
switch
Balance valve
Air vent
Stop valves
Thermometers
Expansion joints
Stop valves
Evaporator
Filter
Drainage
Manometer
Figure 7 – Suggested piping for typical RTWB evaporator
Evaporator piping
components
“Piping components“ include all
devices and controls used to provide
proper water-system operation and
unit operating safety.
These components and their general
location are given above:
Entering chilled-water piping
•Air vents (to bleed air from system)
•Water pressure gauges with shutoff
valves
•Vibration eliminators
•Shutoff (isolation) valves
•Thermometers (if desired)
•Cleanout tees
•Pipe strainer
To prevent tube damage, install a
strainer in the water inlet piping of
the evaporator.
Leaving chilled-water piping
•Air vents ( to bleed air from
system).
•Water pressure gauges with shutoff
valves.
•Vibration eliminators.
•Shutoff (isolation) valves.
•Thermometers.
•Cleanout tees.
•Balancing valve.
•Flow switch
•Pressure-relief valve.

RTWB-SVN01B-E4 13
Installation Mechanical
Condenser piping
components
“Piping components“ include all
devices and controls used to
provide proper water-system
operation and unit operating safety.
These components and their
general locations are given below.
Entering condenser-water piping.
•Air vents (to bleed air from
system)
•Water pressure gauges with
shutoff valves
•Vibration eliminators
•Shutoff (isolation) valves.
•Thermometers
•Cleanout tees
•Pipe strainer
Leaving condenser-water piping
•Air vents (to bleed air from
system)
•Water pressure gauges with
shutoff valves
•Pipe unions
•Vibration eliminators
•Shutoff (isolation) valve
•Thermometers
•Cleanout tees
•Balancing valve
•Pressure relief valve
To prevent condenser damage do
not exceed 10 bar water pressure.
To prevent tube damage, install a
strainer in the water inlet piping of
the condenser.
Condenser Water
Limitation (RTWB only)
The RTWB starts and operate
satisfactorily over a wide range of
load conditions with controlled
entering condenser water
temperature. Reducing the
condenser water temperature is an
effective method of lowering the
power input to the compressors.The
optimum condenser water
temperature is related to the leaving
chilled water temperature and the
percentage of load on the chiller.
Nevertheless it is required to
maintain a minimum temperature
differential of 18°C between the
leaving chilled water temperature
and the leaving condenser
temperature.This minimum
temperature differential must be
reached within 2 minutes from start-
up and maintained thereafter.
Furthermore, the entering
condenser water temperature
should never drop below 20°C,
whatever the other operating
conditions of the chiller.
When one of these 2 parameters is
expected to drop below the limit
stated here above, even at start up,
it is required that some form of
condenser water temperature
control be implemented to satisfy
compressor safety and to ensure
optimum chiller performance.
There are numerous methods to
control condenser water
temperature. Methods other than
those shown can be employed to
achieve the same results. Contact
your localTrane office for details.
Throttling valve
This method maintains condensing
pressure and temperature by
throttling water flow leaving the
condenser in response to condenser
pressure or system differential
pressures.

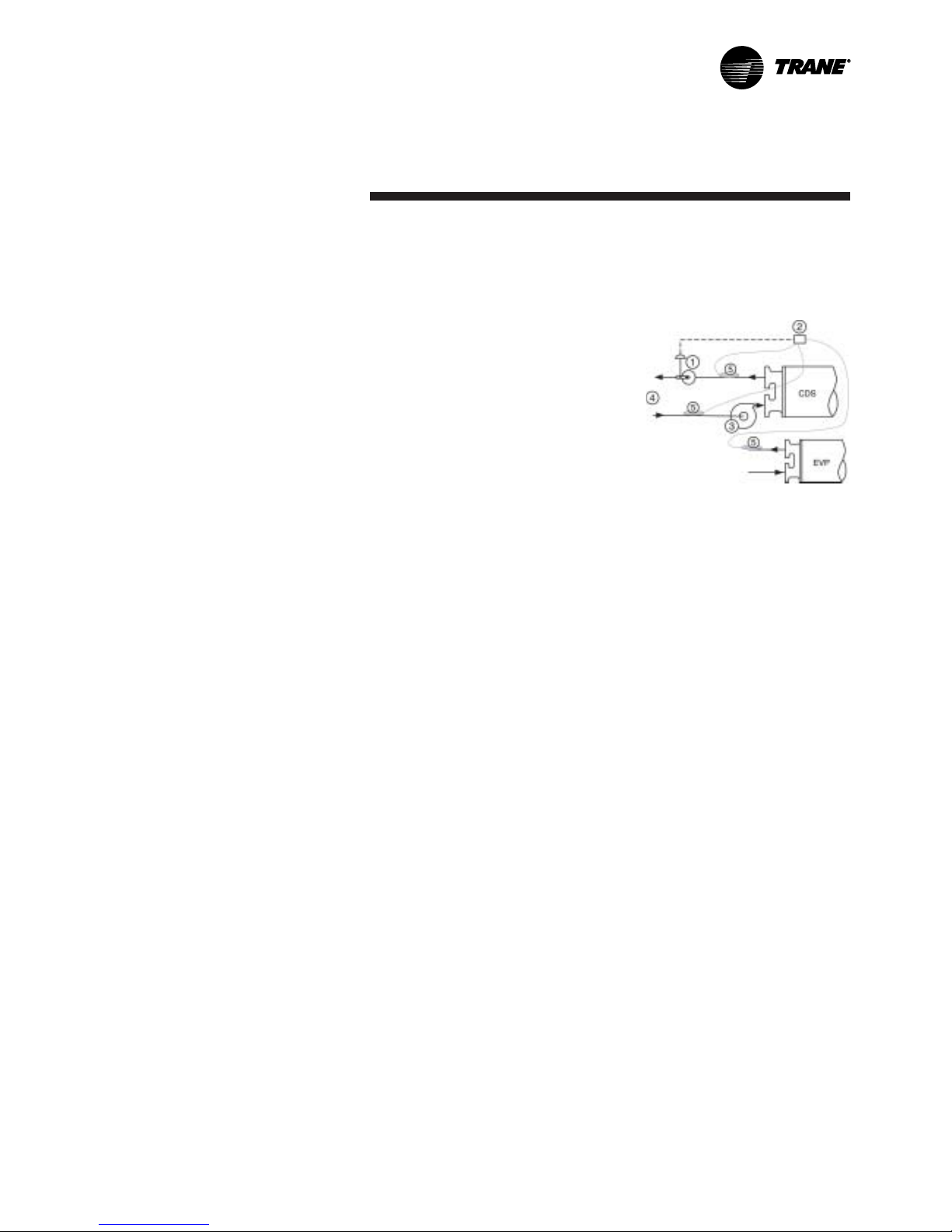

Figure 8
1 = 2-way valve
2 = Customer controller
3 = Condenser water pump
4 =To/from cooling device
5 =Temperature sensor
Advantages:
• Good control with proper valve
sizing at relatively low cost.
• Pumping cost can be reduced.
Disadvantages:
• Increased rate of fouling due to
lower condenser water velocity.
• Requires pumps that can
accommodate variable flow.

Installation Mechanical
RTWB-SVN01B-E4
14
Water treatment
Do not use untreated or improperly
treated water. Use of untreated or
improperly treated water may result
in equipment damage.
The use of improperly treated or
untreated water in this equipment
may result in scaling, erosion,
corrosion, algae or slime. The
services of a qualified water-
treatment specialist should be
engaged to determine what
treatment, if any, is advisable. The
Trane Company warranty
specifically excludes liability for
corrosion, erosion or deterioration
ofTrane equipment.Trane assumes
no responsibility for the results of
the use of untreated or improperly
treated water, or saline or brackish
water.

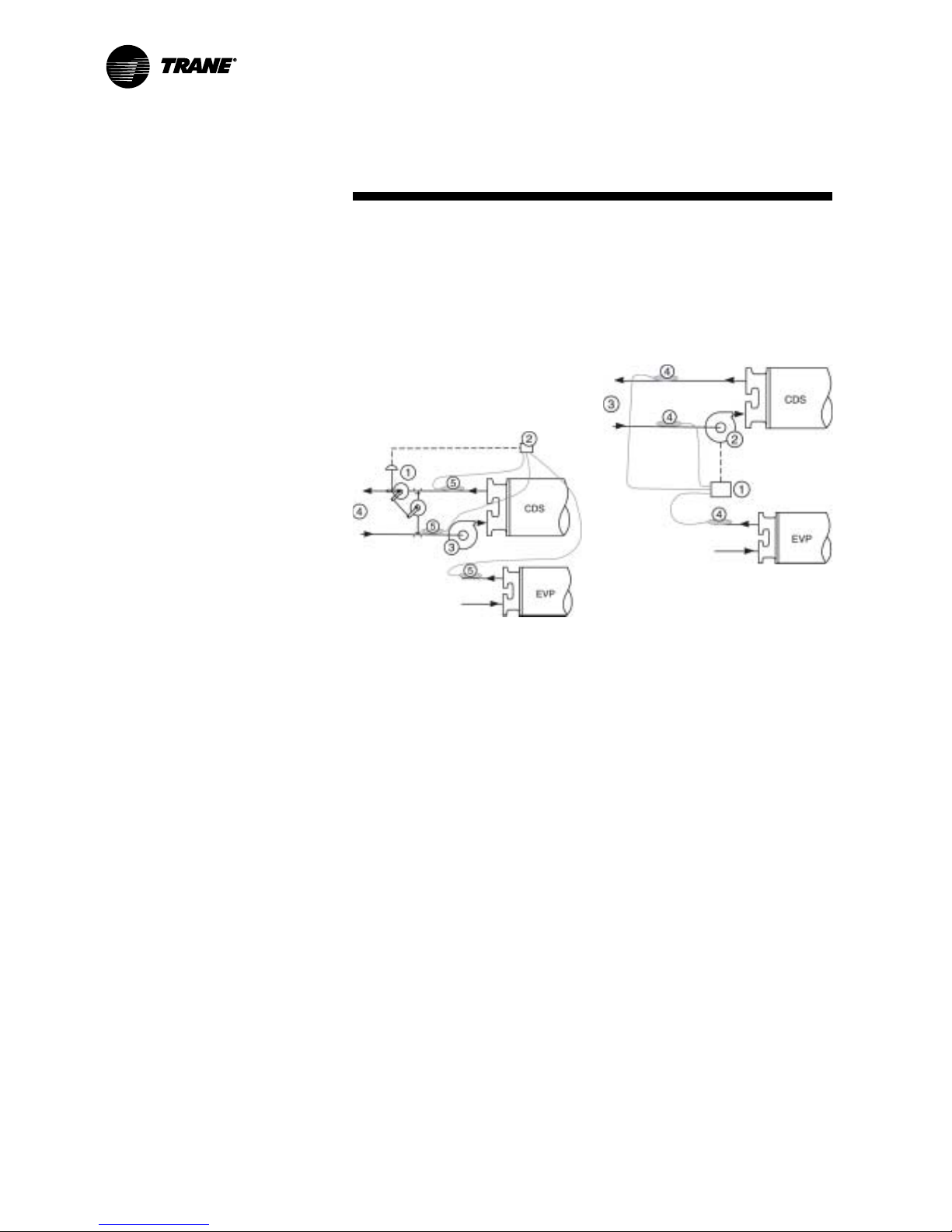

Figure 9
Cooling device bypass
Cooling device bypass is also a valid
control method if the chiller
temperature requirements can be
maintained.
1 = 3-way valve or 2 2-way valves
2 = Customer controller
3 = Condenser water pump
4 =To/from cooling device
5 =Temperature sensor
Advantage:
• Excellent control by maintaining
constant water flow through the
condenser.
Disadvantage:
• Higher cost because of the
dedicated pump required for each
chiller if condenser pressure is the
control signal.
Figure 10
Condenser water pump with
variable frequency drive
1 = Customer controller
2 = Condenser water pump with VFD
3 =To/from cooling device
4 =Temperature sensor
Advantages:
• Pumping cost can be reduced.
Good cooling device temperature
control.
• Relatively low first cost.
Disadvantages:
• Increased rate of fouling due to
lower water velocity in the
condenser.

RTWB-SVN01B-E4 15
Installation Mechanical
Water pressure gauges and
thermometers
Install field-supplied thermometers
and pressure gauges (with
manifolds, whenever practical) as
shown in Figure 7. Locate pressure
gauges or taps in a straight run of
pipes -avoid placement near elbows-
. Be sure to install the gauges at the
same elevation on each shell if the
shell has opposite-end water
connections.
To read manifolded water-pressure
gauges, open one valve and close
the other (depending upon the
reading desired).This eliminates
errors resulting from differently
calibrated gauges installed at
unmatched elevations.
Water-pressure-relief valves
Install pressure-relief valves in both
evaporator and condenser systems.
Failure to do so could result in shell
damage.
Install water-pressure-relief valves in
one of the condenser and one of the
evaporator water box drain
connections or on the shell side of
any shutoff valve. Water vessels with
close-coupled shutoff valves have a
high potential for hydrostatic
pressure buildup with a water
temperature increase. Refer to the
applicable regulation for relief-valve
installation guidelines.
Flow sensing devices
Use field-provided flow switches or
differential pressure switches with
pump interlocks to sense system
water flow. Flow switch locations are
schematically shown in Figure 7.
To provide chiller protection, install
and wire flow switches in series with
the water pump interlocks, for both
chilled-water and condenser-water
circuits (refer to the installation
electrical section). Specific
connections and schematic wiring
diagrams are shipped with the unit.
Flow switches must stop or prevent
compressor operation if either
system water flow drops off
drastically. Follow the
manufacturer's recommendations
for selection and installation
procedures. General guidelines for
flow switch installation are outlined
below.
•Mount the flow switch upright,
with a minimum of 5 pipe
diameters of straight, horizontal
run on each side.
•Do not install close to elbows,
orifices, or valves.
Note:The arrow on the switch must
point in the direction of the water
flow.
To prevent switch fluttering, remove
all air from the water system.
Note:The Unit Control Module
provides a 6-second time delay on
the flow-switch input before shutting
down the unit on a loss-of-flow
diagnostic. Contact a qualified
service organization if machine
shutdowns persist.
Adjust the switch to open when
water flow falls below nominal.
Refer to the evaporator and
condenser data table for minimum
flow recommendations. Flow-switch
contacts are closed on proof of
water flow.
WWAARRNNIINNGG
Refrigerant pressure relief-
valve venting
To prevent injury due to inhalation
of R134a gas, do not discharge
refrigerant anywhere. If multiple
chillers are installed, each unit must
have separate venting for its relief
valves. Consult local regulations for
any special relief-line requirements.
All relief-valve venting is the
responsibility of the installing
contractor.
All RTWB units use evaporator,
compressor, and condenser
pressure-relief-valves that must be
vented to the outside of the
building. Relief-valve connection
sizes and location are shown in the
unit submittals. Refer to national
regulation for relief valve vent line
sizing information.
To prevent capacity reduction and
relief-valve damage, do not exceed
vent piping code specifications.
Note: After being opened once, relief
valves tend to leak.

RTWB-SVN01B-E4
16
Figure 11 – Dimensions for RTWB units
Unit size 1 (mm) 2 (mm) 3 (mm) 4 (mm) 5 (mm) 6 (mm) 7 (mm) 8 (mm) 9 (mm) 10 (mm)
207 1800 1789 1792 544 384 911 318 215 806 1016
208 1800 1789 1792 544 384 911 318 215 806 1016
210 1898 1832 2844 653 408 959 258 279 854 1064
211 1898 1832 2844 653 408 959 258 279 854 1064
212 1898 1832 2844 653 408 959 258 279 854 1064
214 1898 1832 2844 653 408 959 258 279 854 1064
216 1898 1832 2844 653 408 959 258 279 854 1064
217 1898 1832 2844 653 408 959 258 279 854 1064
218 2008 1932 2952 599 498 1063 181 215 958 1168
220 2008 1932 2952 599 498 1063 181 215 958 1168
222 2097 2041 2952 599 522 1150 95 215 1045 1255
224 2097 2041 2952 599 522 1150 95 215 1045 1255
1: Evaporator drain
21: 1 pass condenser
22: condenser 2 passes right
23: condenser 2 passes left
Installation Mechanical
Sizes 210-224
Sizes 207-208

RTWB-SVN01B-E4 17
Installation Mechanical
Table 4 –Evaporator and condenser data
Evaporator water content Condenser water content
Model RTWB Evaporator code Condenser code Liter Liter
207 EG 120 CG 120 105 60
208 EG 120 CG 120 105 60
210 EG 140 CG 140 265 55
211 EG 170 CG 170 220 66
212 EG 170 CG 170 220 66
212 EG 170 CG 170 220 66
214 EG 200 CG 200 200 75
216 EG 200 CG 200 200 75
217 EG 200 CG 200 200 75
218 EG 250 CG 230 415 78
220 EG 250 CG 230 415 78
222 EG 340 CG 230 560 78
224 EG 340 CG 230 560 78
Minimum and maximum evaporator water flow (L/s)
Evaporator Code Pass Number Minimum Water Flow Maximum Water Flow Connection Diameter (in.)
EG 120 1 4.5 13.4 5
EG 140 1 6.0 18.0 6
EG 170 1 7.0 21.0 6
EG 200 1 9.0 25.0 6
EG 250 1 11.0 33.0 6
EG 340 1 14.0 43.0 6
Minimum and maximum condenser water flow (L/s)
Condenser Code Pass Number Minimum Water Flow Maximum Water Flow Connection Diameter (in.)
CG 120 1 8.4 31.0 5
CG 140 1 9.5 34.9 5
CG 170 1 11.9 43.7 5
CG 200 1 17.0 61.0 5
CG 230 1 17.0 61.0 5
Table 5 – RTWB Evaporator water pressure drop (kPa)
Water flow (L/s)
Model RTWB 5 10 15 20 25 30 35 40 45
207 1 6 24 - -
208 1 6 24 - -
210 1 - 57 122 -
211 1 - 29 61 104
212 1 - 29 61 104
214 1 11 24 41 62
216 1 11 24 41 62
217 1 11 24 41 62
218 1 17 29 45 64
220 1 17 29 45 64
222 1 23 35 49 66 85 106
224 1 23 35 49 66 85 106
Table 6 – RTWB Condenser water pressure drop (kPa)
Water flow (L/s)
Model RTWB 10 15 20 25 30 35 40 45 50 55 50
207 1 1020345171 - -
208 1 1020345171 - -
210 1 6 12 20 30 42 -
211 1 - 8 14 21 29 38 48
212 1 - 8 14 21 29 38 48
214 1 12 18 24 32 40 48 58 68 79
216 1 12 18 24 32 40 48 58 68 79
217 1 12 18 24 32 40 48 58 68 79
218 1 12 18 24 32 40 48 58 68 79
220 1 12 18 24 32 40 48 58 68 79
222 1 12 18 24 32 40 48 58 68 79
224 1 12 18 24 32 40 48 58 68 79
Pass
Number
Pass
Number

RTWB-SVN01B-E4
18
General recommendations
For proper electrical component
operation, do not locate the unit in
areas exposed to dust, dirt,
corrosive fumes, or excessive
humidity. If any of these conditions
exist, corrective action must be
taken.
WWAARRNNIINNGG
Disconnect all electrical power,
including remote disconnects,
before servicing. Failure to
disconnect power before servicing
can cause severe personal injury or
death.
Table 7 – Electrical data
RTWB 207 208 210 211 212 214 216 217 218 220 222 224
Nominal voltage (V) 400 400 400 400 400 400 400 400 400 400 400 400
Frequency (Hz) 50 50 50 50 50 50 50 50 50 50 50 50
(V) Mini 360 360 360 360 360 360 360 360 360 360 360 360
Maxi 440 440 440 440 440 440 440 440 440 440 440 440
Max. unit kW (kW) 90 106 132 142 152 182 202 222 243 264 292 320
(A) 147 170 215 235 255 297 329 360 396 432 477 521
Starting Amps (1) (A) 170 196 228 264 279 332 374 398 430 457 520 554
Power factor 0.91 0.92 0.90 0.89 0.88 0.89 0.90 0.90 0.89 0.89 0.89 0.89
Fuse size (2) 80A 100A 125A 60/125 160A 2*160 160+200 2*200 250+200 2*250 2*315 2*315
(A) 315 315 315 400 400 400 630 630 630 630 800 800
mm² 240 240 240 240 240 240 2*300 2*300 2*300 2*300 2*300 2*300
(1) Star delta start. Maximum starting Amps: one compressor at full load, the other one starting.
(2) With disconnect switch option
(3) mm²/phase
Note:To prevent control malfunctions, do not run low-voltage wiring (<30V) in conduits with conductors carrying more than 30 V.
All wiring must comply with
national electrical regulations.
Electrical characteristics and other
unit electrical data are on the unit
nameplate. Specific electrical
schematics and connection
diagrams are shipped with the unit.
Use copper conductors only. Unit
terminals are not designed to accept
other types of conductors. Failure to
do so may cause damage to the
equipment.
Do not allow conduits to interfere
with other components, structural
members, or equipment. All
conduits must be long enough to
allow compressor and starter
removal.
Installation Electrical
Maximum connecting
wire (2)(3)
Maximum Rated
Load Amps
Voltage utilization
range
Disconnect
switch size

RTWB-SVN01B-E4 19
Installation Electrical
Power supply wiring
Model RTWB chillers are designed
according to European standard
EN60204. All power-supply wiring
must be sized and selected
accordingly by the project engineer.
Water pump power supply
Provide power-supply wiring with
fused disconnect switch for both the
chilled-water and condenser-water
pumps.
Electrical panel power supply
Power supply wiring instructions for
the starter/control panel are: run line
voltage wiring in conduit to access
opening(s) on the starter/control
panel.
Compressor-motor phase
sequencing
Always verify that proper rotation of
the RTWB compressors is
established before the machine is
started. Proper motor rotation
requires confirmation of the
electrical phase sequence of the
power supply.The motor is
internally connected for clockwise
rotation with the incoming power
supply phased A,B,C (L1,L2,L3).
This direction may be reversed
outside the alternator by
interchanging any two of the line
wires. It is this possible interchange
of wiring that makes a phase
sequence indicator necessary if the
operator is to quickly determine the
phase rotation of the motor.

RTWB-SVN01B-E4
20
Installation Electrical
Control power transformer
The RTWB units are equipped with a control power transformer as standard. It is not necessary to provide control
power voltage to these units.

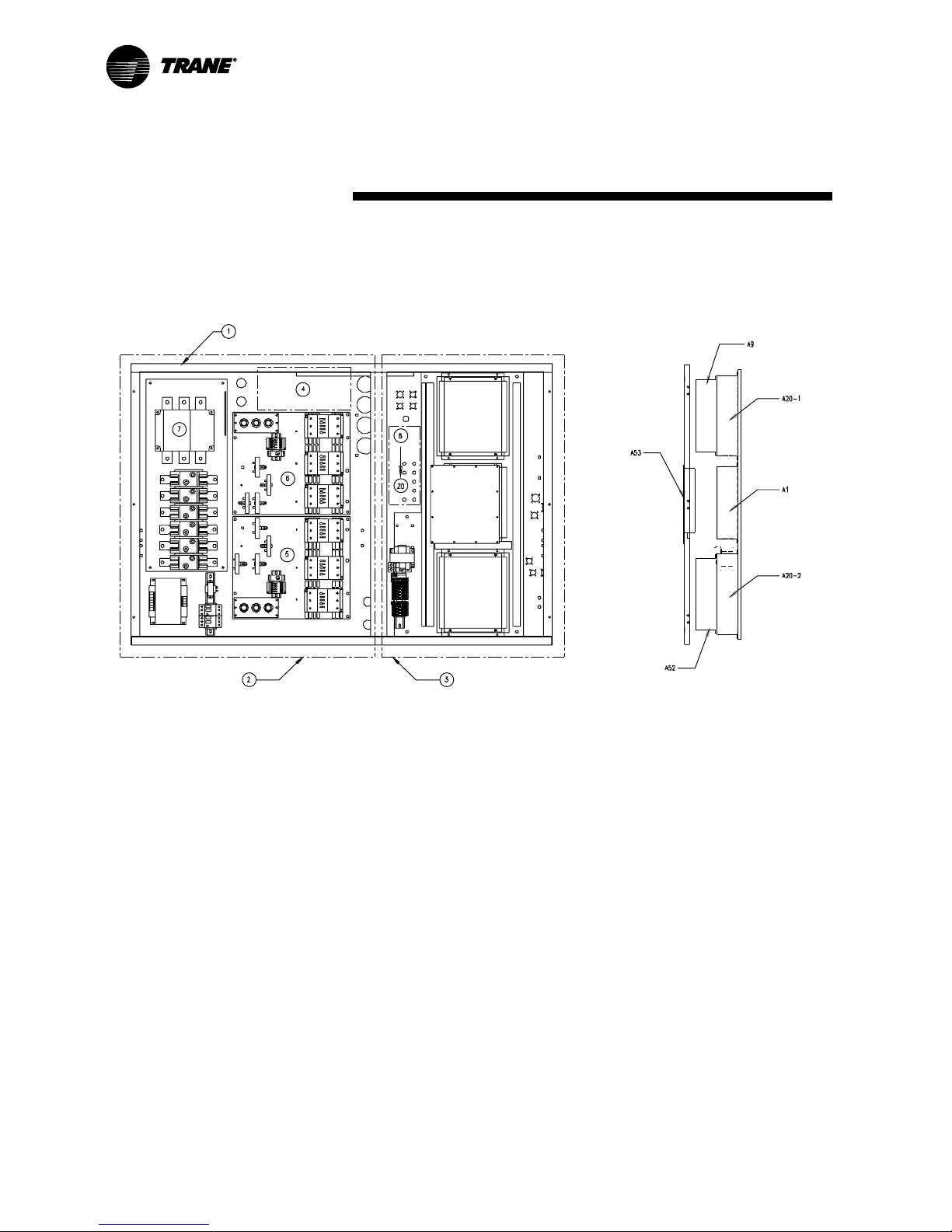

Figure 12 - Electrical panel layout
1 Line voltage entrance
2 Power section
3 Control section
4 Free space for customer pump control
5 Wye-delta, closed-transition starter circuit A
6 Wye-delta, closed-transition starter circuit B
7 Unit disconnect, non-fused
8 CKT # 1 Lockout (module A20-1 6X7-8)
9 CKT # 2 Lockout (module A20-2 6X9-10)
10 Emergency stop (Normal/Stop contact - module A1 TB1 3-4)
11 Zone temperature sensor (6R3) or ice-machine control (6S55) option (6R3 and 6S55 cannot be used together) (module A9 TB1 1-2)
12 External chilled-water setpoint 4-20 mA or 2-10 V (dc)with communication interface option (module A9TB1 4-5 7-8)
13 Communication serial link (A9TB2 1…4)
14 Leaving condenser-water temperature sensor (5R53-2) option (with option PCM A70)
15 Chilled-water flow switch (6S56 - MODULE A1TB3-4)
16 External Auto/Stop (6S1 - module A1 TB3 3-4)
17 Customer output:
Remote alarm indicator (from normally-closed signal)
Maximum capacity indicator
Compressor running indicator
Remote alarm indicator (from normally-open signal)
18 Chilled-water pump starter (TRANE UCM pump control - module A1 TB4 8-9)
19 Chilled-water pump starter (Auxiliary Interlock - MODULE A1TB3 1-2
20 Tracer (Option - module A9 TB2 1…4)
