EcoPucks GDI-EXPCBT101 User manual

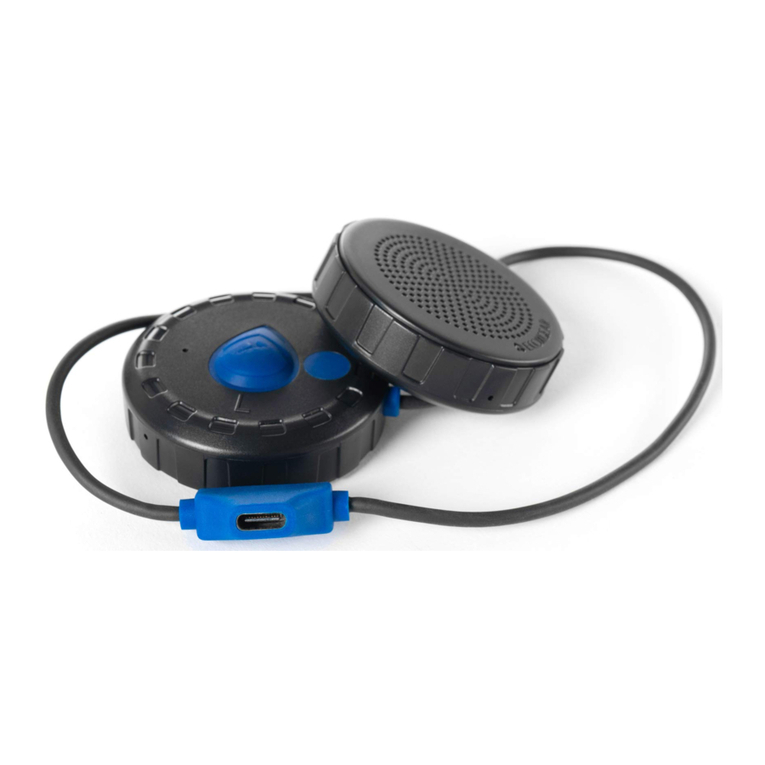

EcoPucks Bluetooth Helmet Audio
User Guide |Models: GDI-EXPCBT101
Push-to-Talk, Walkie-Talkie Smartphone App
Add the “Zello” app onto your smartphone to turn it into a walkie-talkie that works anywhere in the world as
long as you have cell signal! You can use it one-on-one with a friend or for a live group-call on the slopes.
Steps to get “Zello” up and running with your EcoPucks:
Download the Zello app onto your phone from Apple’s or Google’s app stores.
Create your profile in Zello.
Add your friends/contacts you want to talk with using Zello.
Add your EcoPucks as a “Push-to-talk” button within the Zello app, under the Options Menu. Ensure
that your EcoPucks are “Connected” as a “Push-to-talk” button.
Keep the Zello app open in the foreground or background of your smartphone.
Press & hold down the button on the right earpiece (“R”) to send a walkie-talkie message to
your friends. Make sure to hold the button while talking, and release when you’re done.
NOTE: Refer to the instructions within the Zello app for updated revisions to its operation.
Play Your Smartphone Audio on Two Sets of Bluetooth EcoPucks
Want to share your music with your buddy? Try the new “Audio Share” feature.
Power on EcoPucks A and B.
Connect EcoPucks A to your phone and play music.
Press & hold the Left and Right buttons for 2 seconds on EcoPucks A at the same time; the EcoPucks
will announce, “ShareMe enabled.”
Press & hold the Left and Right buttons for 2 seconds on EcoPucks B at the same time, the EcoPucks
will announce, “ShareMe enabled.”
Once the two EcoPucks are connected, they will announce, “ShareMe Connected.”
Your music will now play on both EcoPucks A and EcoPucks B. Enjoy!
NOTES:
•The Audio Share functionality only works when the EcoPucks are within 20 feet of each other.
•While EcoPucks B can be connected to Phone B, it cannot be playing music from Phone B while Audio
Share feature is enabled.
•Press & hold the Left and Right buttons for 2 seconds on either EcoPucks to disconnect Audio Share.
1
2
3
4
5
6
1
2
3
4
5
6
R
ECOPUCKS A ECOPUCKS B
RL
LEFT RIGHT
Audio Share
Zello
FUNCTION EARPIECE ACTION LED VOICE PROMPT
EcoTalk: Activate
Voice Assistant LEFT & RIGHT Press both buttons at the same time to activate
your phone’s voice assistant (Siri or OK Google) Siri or OK Google voice prompt
Maximum Volume Reached “Maximum volume”
Low Battery FLASH RED “Battery low”
Auto-Power Off: Inactivity EcoPucks automatically power off after 5 minutes of no Bluetooth/wired connection “Power off, your phone is disconnected”
Auto-Power Off: Low Battery EcoPucks automatically power off when the battery is too low “Power off, your phone is disconnected”
Battery Charging Use provided USB cable to charge your EcoPucks SOLID RED
Battery Fully Charged The LED will stop shining Red
Advanced Features
FUNCTION EARPIECE ACTION VOICE PROMPT
Receiving Incoming Call “Incoming call from XXXXXXXX”
Answer Call RIGHT Click to answer the call “Call accepted”
Reject Call RIGHT Press & hold to reject the call “Call rejected”
End Call RIGHT Click to end the call “Call terminated”
Phone Management
FUNCTION EARPIECE ACTION LED VOICE PROMPT
Power On / Enter Pairing Mode RIGHT Press & hold for 6 seconds FLASH RED & BLUE “Power on, pairing”
Power Off LEFT Press & hold for 4 seconds “Power off, your phone is disconnected”
Bluetooth Select ‘ECOXGEAR’ from the list of discovered devices on your smartphone SOLID BLUE “Your phone is connected”
Disconnect from Bluetooth Either turn Bluetooth off on your phone or delete the
‘ECOXGEAR’ Bluetooth selection from your phone “Your phone is disconnected”
Power On /Reconnect
to Paired Device RIGHT Press & hold for 4 seconds FLASH BLUE “Power on”
Play / Pause RIGHT Click to play track; click again to pause SOLID BLUE
Increase Volume LEFT Double-click to increase volume “Volume up”
Decrease Volume LEFT Click to decrease volume “Volume down”
Skip to Next Track LEFT Press & hold for 1.5 seconds and release to skip to the next track
Power & Music

FCC STATEMENT:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment
into an outlet on a circuit different from that to which the receiver is connected, consult the dealer or an experienced radio/TV technician for help.
RF WARNING STATEMENT:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
IC STATEMENT:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may cause undesired operation of the device.
PRODUCT USE AND PROTECTION:
Read and follow all instructions. Use only as intended.
The ECOXGEAR Bluetooth earphones are intended to be used indoors or outdoors and in land or water environments. The earphones have been tested to
IPX7 waterproofing standards, which means the earphones can be submerged in up to 3 feet of water for 30 minutes without any damage. However, the
earphones are NOT intended for constant underwater use.
If you notice a muffling of audio after submersion, gently shake the unit to clear excess water. If your earphones are exposed to salt water, clean it
thoroughly after use with fresh water.
To prevent fire or shock, do NOT attempt to charge this unit if it is wet or you suspect water has entered the unit. In this situation, please return the unit to
Grace Digital for a free assessment. If we have found that the unit has carried water, we will repair or replace the unit free of charge.
SAFETY ADVISORY & WARNING:
Read and follow all instructions. Use only as intended.
CAUTION: Do NOT open to repair. A qualified technician must carry out repair work.
ATTENTION: Do NOT charge while the earphones are wet. Towel dry the unit AND make sure all connections are dry BEFORE charging. Failure to do so
may result in electrical damage to the unit and may void the warranty.
PROPOSITION 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: EcoPucks has a built-in Lithium battery. The battery must NOT be used in or near an open heat source or excessive heat.
WARNING: Danger of explosion if battery is incorrectly replaced.
ATTENTION: Do NOT dispose of in a landfill. Contact Grace Digital at www.gracesupport.com or a certified recycling agent to dispose of the unit.
SAFETY:
This product has a limited life span of use and should be replaced when it shows obvious signs of wear.
Do not modify or remove any original component parts of the earphones. Doing so could cause damage to the unit allowing water to ingress. A unit with
water ingress should not be charged due to potential risk of fire or shock.
Please exercise care and good judgment when using your ECOXGEAR earphones. Always ensure that you can hear and be aware of any potential hazards
around you.
You should always
1) Salt water / air is particularly corrosive. Always make sure that the unit is properly rinsed off after use.
2) Properly clean the ECOXGEAR and ensure the connection points have no sand, dirt, or water on them prior to storage.
3) Completely dry and clean your ECOXGEAR prior to attempting to charge the unit.
4) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected
the integrity of the unit to take on water.
You should never
1) NEVER charge your ECOXGEAR if you suspect water has entered the device. Charging a device with water inside could be potentially hazardous and
cause fire or a spark.
2) Never use your ECOXGEAR if you have dropped it or thrown it against a hard surface which may have destroyed the integrity of the speakers or
housings. In the event of a severe impact to your unit please return the unit to Grace Digital to review for potential damage.
3) Never attempt to fix, repair your ECOXGEAR unit. Please send it back to Grace Digital for any assessments and repairs.
CARE, MAINTENANCE, & PRECAUTIONS:
1) Do NOT apply excessive force to any surfaces of the unit when wet or in a wet environment.
2) Do NOT use or store the unit in places with high temperature.
3) AVOID prolonged exposure to ultraviolet radiation (UV sunlight) and strong magnetic fields.
4) Periodically clean the earphones with a soft moist cloth and ensure no objects such as dirt, hair, or sand are on the earphones. Do NOT use any oily
solvent or chemicals for cleaning.
5) Rinse off the unit with tap water after use in salt water or swimming pool.
6) Power and / or charge the built-in rechargeable battery for portable use by connecting the USB cord to a computer USB connection or to an AC outlet
using the AC-to-USB cord 5V, 1A power adapter intended for use with the unit.
7) Noise and audio distortion may occur when the batteries are nearing end of charge.
8) Do NOT remove the built-in battery.
LIMITED MANUFACTURER’S WARRANTY:
The EcoPucks are covered by a 3 year limited warranty that covers defects in workmanship and / or materials for a period of 3 years from original purchase
date. This warranty does not apply to any products which have been abused, neglected, modified, or used for a purpose other than the one for which
they were manufactured. Please refer to the above care and maintenance instructions for suggested care details. The warranty is valid only for the original
owner who purchases the unit from an authorized dealer. Transfers do not qualify for warranty protection. Grace Digital reserves the right to replace any
out-of-stock or discontinued product with a comparable product. Discontinued products may not be available for warranty replacement. Any contents are
NOT covered by the limited manufacturer’s warranty. Warranty terms may be revised without notification at the discretion of the manufacturer. Please visit
www.ecoxgear.com for additional product & warranty information.
The LED indicator will flash RED when the battery is running low. Your EcoPucks have a USB-C port to
connect to the USB cable and charge the unit by connecting it to a USB port on a computer or to an
optional USB to wall outlet power adapter (NOT included).
The LED located on the bottom of the RIGHT earpiece indicates the charging status when connected to a
power source:
•RED LED indicates charging in process
• RED LED will turn off to indicate a full charge
NOTES:
•Approximately 1.5 hours of continuous charging time is required to fully charge your EcoPucks.
•The USB-C charge port on your EcoPucks is fully waterproof so no need to worry about it getting wet
from snow or rain. Just ensure the charge port is dry prior to charging.
RECOMMENDATION: Use the USB-C cable included in the box.
Optional USB-C to Headphone Jack Cable
Use the USB-C to headphone jack cable (for optional use on smartphones with a 3.5 mm headphone jack)
for wired use. This allows the EcoPucks to work without battery power.
• LED light remains inactive
• Adjust volume via smartphone
Optional Headphone Jack Adapter - SOLD SEPARATELY
• Headphone jack to USB-C adapter (for optional use on some Android phones with a USB Type-C
port) - SOLD SEPARATELY
• Headphone jack to Lightning adapter (for optional use on some Apple phones that do not include an
integrated headphone jack) - SOLD SEPARATELY
FUNCTION EARPIECE ACTION LED VOICE PROMPT
Disconnect From
Bluetooth LEFT or RIGHT Click to disconnect from
your Bluetooth pairing FLASH RED & BLUE “Pairing, your
phone is disconnected”
Clear Bluetooth
Pairing LEFT or RIGHT Press & hold
for 3 seconds FLASH RED & BLUE “Your phone is
disconnected”
There is a smaller button located next to the Multi-Function Button on both earpieces. With it, you can
either disconnect from your Bluetooth device or clear the memory of the EcoPucks.
Disconnect and Clear Bluetooth
Unit Weight
2.0 ounces
Frequency Range
2.4GHz-2.48GHz
Power Source
300mAh Lithium Battery
USB Input
5V, 1.0A
Play Time
15+ hours from full charge at 75% volume level
Charging Options
USB to adapter or computer
Charging Time
Approximately 1.5 hours
Optional Accessories For Charging*
AC (5V, 1A) USB Wall Outlet Power Adapter
Bluetooth
Bluetooth® 5.0; Up to 33 ft / 10 m
Supported Bluetooth Profiles
HFP, HSP, A2DP, and AVRCP
Maximum Storage (Battery) Temperature
105°F / 40.6°C
Waterproof Rating
IPX7
* Optional accessories sold separately
Unit Dimensions
Specifications
Charge Your EcoPucks
R
2”
2” 0.5”
R
Wired Connection AUX
EcoPucks by ECOXGEAR, a division of Grace Digital Inc., San Diego, California.
Designed and Engineered in the USA. Made in China.
Patent Pending.
