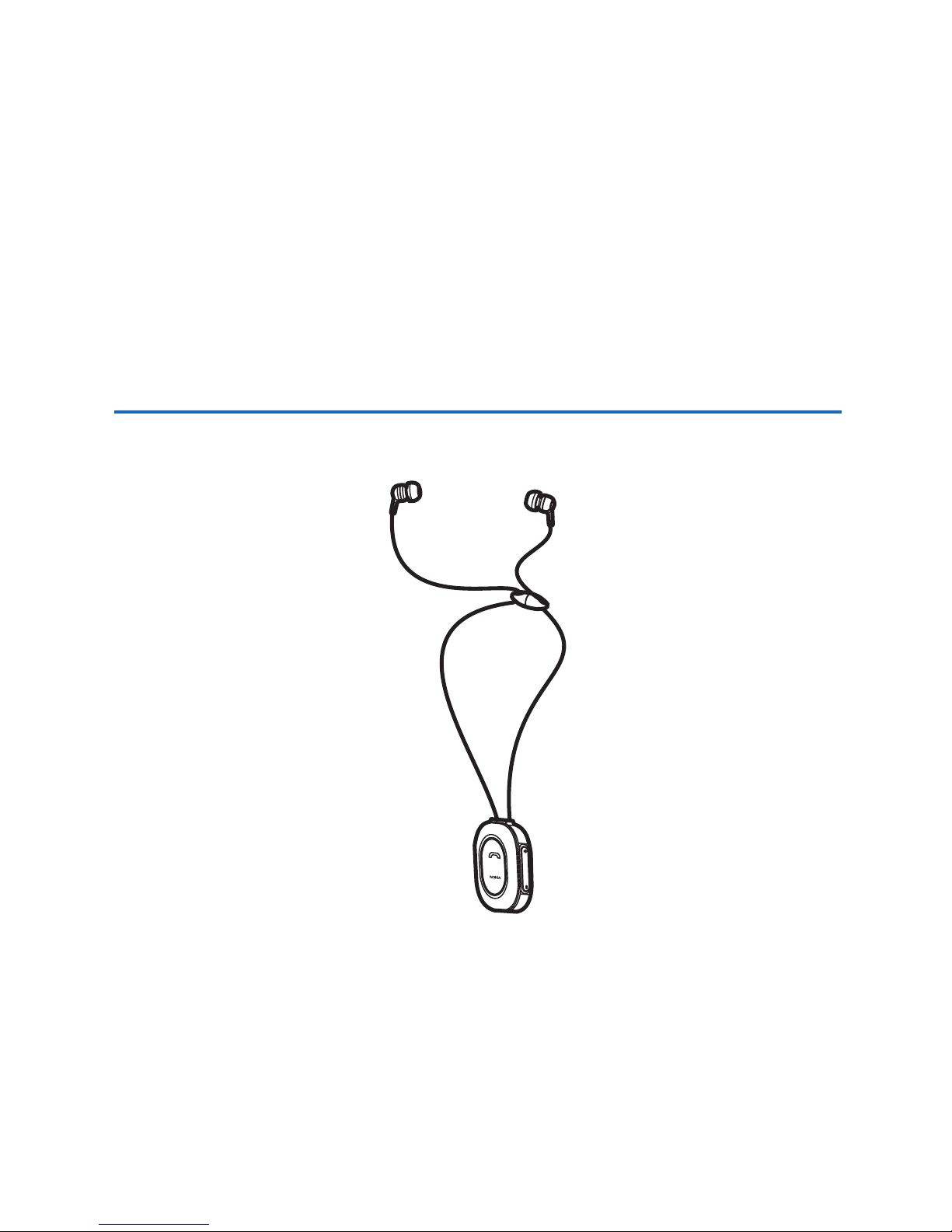

Nokia Bluetooth Stereo
Headset BH-103 User Guide
Issue 1

2
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HS-121W product
is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2008 Nokia. All rights reserved.
Nokia, Nokia Connecting People and the Nokia Original Accessories
logo are registered trademarks of Nokia Corporation. Other product
and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the
right to make changes and improvements to any of the products
described in this document without prior notice.
To the maximum extent permitted by applicable law, under no
circumstances shall Nokia or any of its licensors be responsible for
© 2008 Nokia. All rights reserved.

3
any loss of data or income or any special, incidental, consequential
or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as
required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document.
Nokia reserves the right to revise this document or withdraw it at
any time without prior notice.
The availability of particular products may vary by region. Please
check with your Nokia dealer for details.
Export controls
This device may contain commodities, technology or software
subject to export laws and regulations from the US and other
countries. Diversion contrary to law is prohibited.
Issue 1
© 2008 Nokia. All rights reserved.

Contents
4
Contents
1. Introduction .............................................................. 5
Bluetooth wireless technology............................................................... 6
2. Get started................................................................. 7
Keys and parts............................................................................................. 7
Chargers........................................................................................................ 8
Charge the battery..................................................................................... 8
Switch on or off.......................................................................................... 9
Pair the headset....................................................................................... 10
3. Basic use .................................................................. 12
Wear the headset.................................................................................... 12
Calls............................................................................................................. 13
Listen to music......................................................................................... 14
Clear settings or reset............................................................................ 14
Troubleshooting....................................................................................... 14
4. Battery information ................................................ 15
Care and maintenance ................................................ 17
© 2008 Nokia. All rights reserved.

Introduction
5
1. Introduction
With the Nokia Bluetooth Stereo Headset BH-103, you can
make and answer calls with your compatible mobile phone
and listen to music from a compatible music device.
Read this user guide carefully before using the headset.
Also, read the user guide for the device that you connect to
the headset.
See www.nokia-asia.com/support or your local Nokia
website for the latest version of the user guide and
additional information related to your Nokia product.
This product may contain small parts. Keep them out of the
reach of small children.
© 2008 Nokia. All rights reserved.

Introduction
6
■Bluetooth wireless technology
Bluetooth wireless technology
allows you to connect
compatible devices without
cables. The headset and the other
device do not need to be in line
of sight, but the maximum
distance between the devices
should be 10 metres (33 feet).

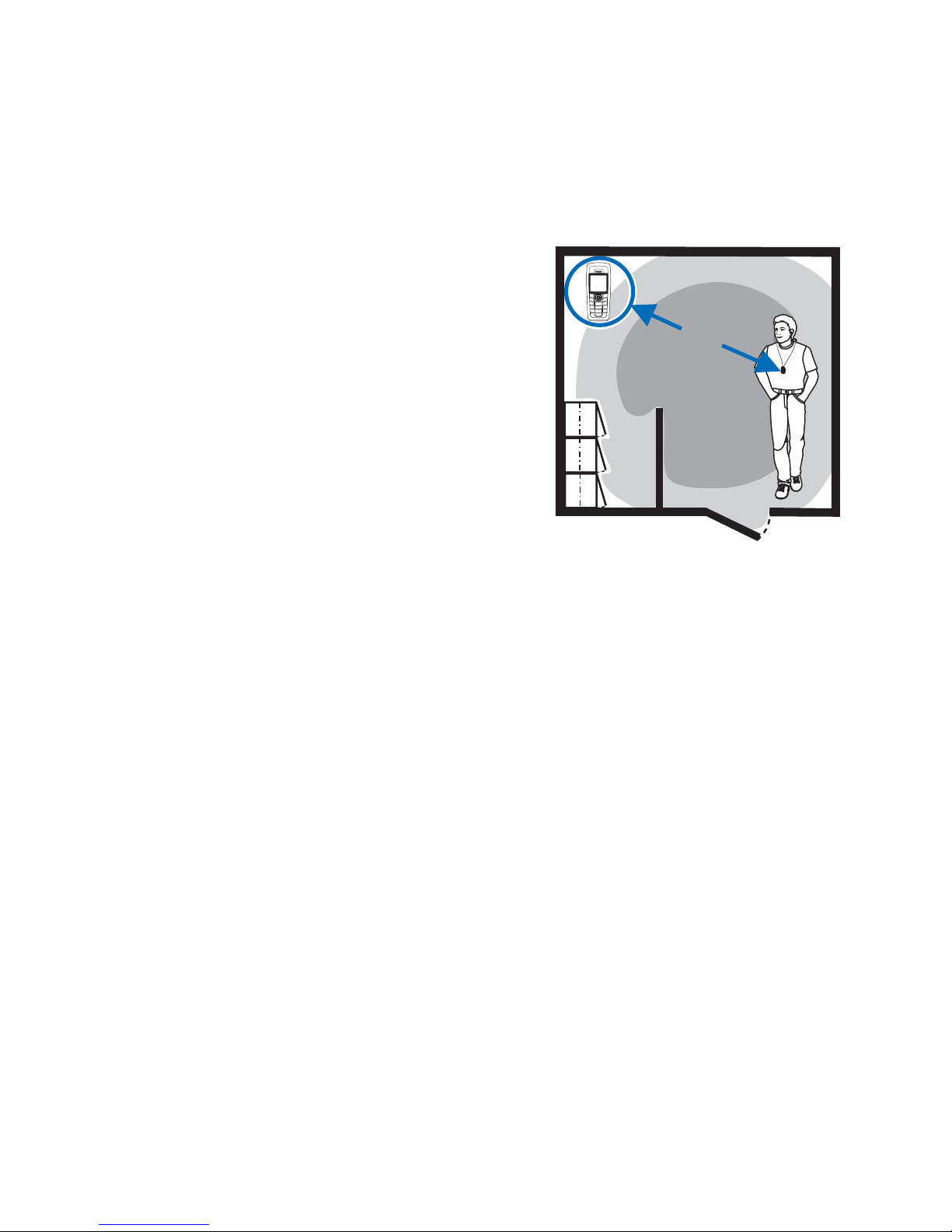

The closer the headset and the
other device are to each other, the better is the
performance. The optimal operating range is shown in dark
grey in the picture. The connection is subject to interference
from distance and obstructions (shown in light grey) or
other electronic devices.
The headset complies with the Bluetooth Specification 2.1
+ EDR that supports the following profiles: Headset Profile
1.1, Hands-Free Profile (HFP) 1.5, and Advanced Audio
Distribution Profile (A2DP) 1.2. Check with the
manufacturers of other devices to determine their
compatibility with this device.
<10m
© 2008 Nokia. All rights reserved.

Get started
7
2. Get started
■Keys and parts
The headset contains the following parts:
1. Earphones
2. Strap lock
3. Microphone
4. Multifunction key
5. Charger
connector
6. Indicator light
7. Volume key
Before using the headset, you must charge the battery and
pair the headset with a compatible device.
Parts of the device are magnetic. Metallic materials may be
attracted to the device. Do not place credit cards or other
magnetic storage media near the device, because
information stored on them may be erased.
1
2
5
3
4
6
7
© 2008 Nokia. All rights reserved.

Get started
8
■Chargers
This device is intended for use when supplied with power
from the following chargers: AC-3 and DC-4.
Warning: Use only chargers approved by Nokia for
use with this particular enhancement. The use of
any other types may invalidate any approval or
warranty, and may be dangerous.
When you disconnect the power cord of any enhancement,
grasp and pull the plug, not the cord.
■Charge the battery
Before charging the battery, carefully read “Battery
information,” p. 15.

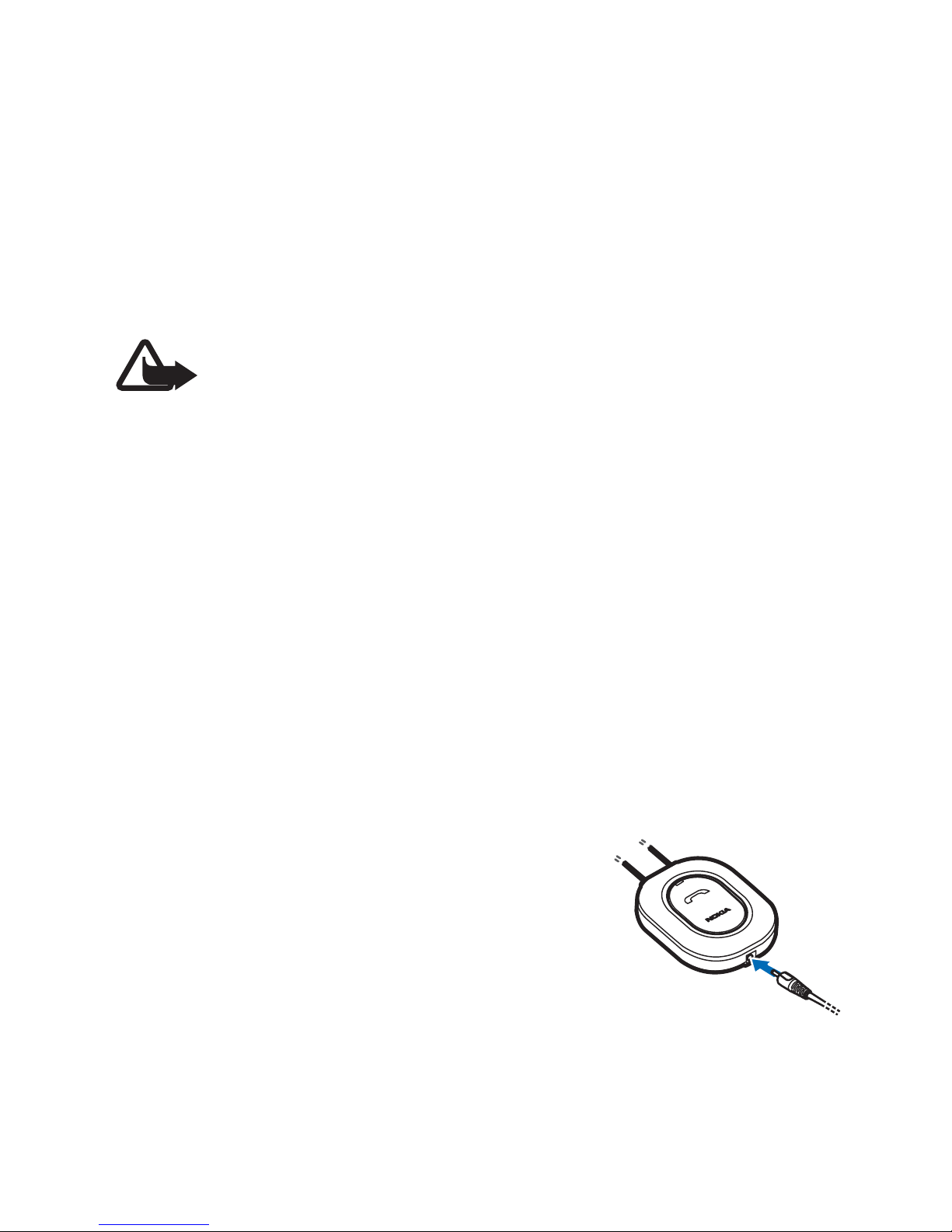

1. Connect the charger to a wall outlet.
2. Connect the charger cable to the
charger connector. The red
indicator light is displayed during
charging. Charging the battery
fully may take up to 1 hour 40
minutes.
© 2008 Nokia. All rights reserved.

Get started
9
3. When the battery is fully charged, the green indicator
light is displayed. Disconnect the charger from the
headset and the wall outlet.
The fully charged battery has power for up to 7 hours of talk
time, up to 150 hours of standby time, or up to 6 hours of
music playing time.
To check the battery charge, briefly press the multifunction
key when no call is in progress. If the indicator light is
green, the charge level is sufficient. If the light is yellow,
you may need to recharge the battery soon. If the light is
red, recharge the battery.
When the battery is discharged, the headset beeps about
every 5 minutes.
■Switch on or off
To switch on, press and hold the multifunction key for about
2 seconds. The headset beeps, and the green indicator light
is displayed. The headset tries to connect to the last used
phone and music device, if any.
© 2008 Nokia. All rights reserved.

Get started
10
To switch off, press and hold the multifunction key for
about 4 seconds. The headset beeps, and the red indicator
light is briefly displayed.
■Pair the headset
If your phone supports the A2DP Bluetooth profile and has a
music player feature, you can use the phone to make and
receive calls, and to play music with the headset.
1. Ensure that your phone or music device is on and the
headset is off.
2. Press and hold the multifunction key (for about 4
seconds) until the green indicator light starts to flash
quickly.
3. Activate the Bluetooth feature on your phone or music
player, and set it to search for Bluetooth devices.
4. Select the headset from the list of found devices on your
phone or music player.
5. Enter the passcode 0000 to pair and connect the
headset to your device. If your device does not have a
keypad, it may use this passcode by default.
© 2008 Nokia. All rights reserved.

Get started
11
In some devices, you may need to make the connection
separately after pairing.
When the headset is connected to your device and is ready
for use, the green indicator light flashes slowly.
© 2008 Nokia. All rights reserved.

Basic use
12
3. Basic use

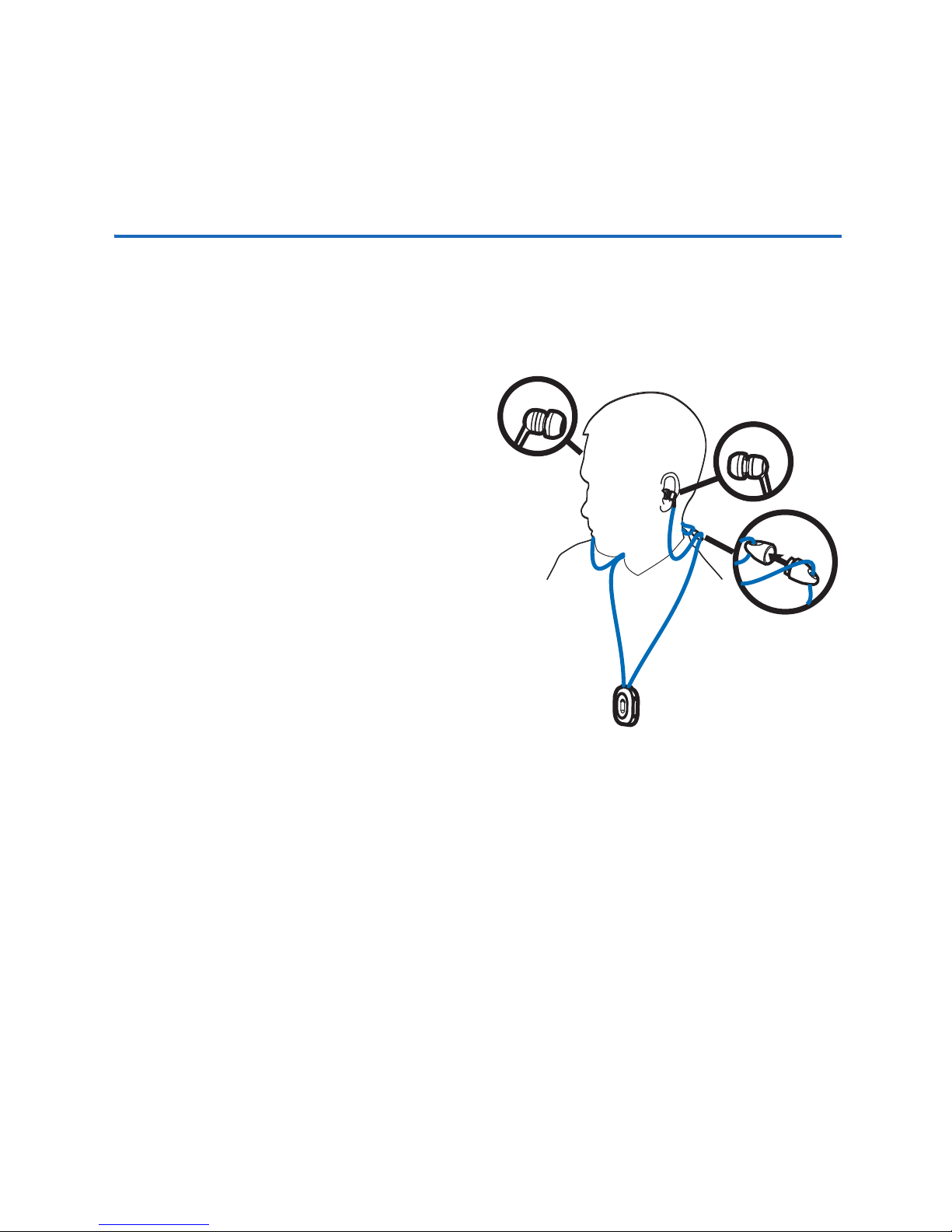

■Wear the headset
The headset may be
provided with different
sized earplugs. To change
the earplug, pull the current
earplug from the earpiece,
and push the new earplug
over the earpiece in the
same position.
To wear the headset, place
the strap around your neck,
and put the earpieces into your ears.
If you need to attach the two halves of the strap lock, press
them against each other.
© 2008 Nokia. All rights reserved.

Basic use
13
■Calls
To make a call, use your phone in the normal way when the
headset is connected to it.
To redial the number you last called (if your phone supports
this feature with the headset), when no call is in progress,
press the multifunction key twice.
To activate voice dialling (if your phone supports this
feature with the headset), when no call is in progress, press
and hold the multifunction key for about 2 seconds. Proceed
as described in the phone user guide.
To answer or end a call, press the multifunction key. To
reject a call, press this key twice.
To adjust the volume during a call or when you listen to
music, press either volume key.
To switch a call between the headset and a compatible
phone, press and hold the multifunction key for about 2
seconds.
© 2008 Nokia. All rights reserved.

Basic use
14
■Listen to music
To listen to music, pair and connect the headset to a device
that supports the A2DP Bluetooth profile (see “Pair the
headset,” p. 10). To play music, use the playback controls on
the connected device.
If you answer or make a call while listening to music, the
music is paused until you end the call.
■Clear settings or reset
To clear the headset settings, switch off the headset, and
press and hold the multifunction key for at least 8 seconds.
To reset the headset if it stops functioning, even though it is
charged, plug the headset into a charger while you press
and hold the multifunction key.
■Troubleshooting
If you cannot connect the headset to your compatible
device, check that the headset is charged, switched on, and
paired with the device.
© 2008 Nokia. All rights reserved.

Battery information
15
4. Battery information
This device has an internal, nonremovable, rechargeable
battery. Do not attempt to remove the battery from the
device as you may damage the device. The battery can be
charged and discharged hundreds of times, but it will
eventually wear out. Recharge your battery only with Nokia
approved chargers designated for this device. Use of an
unapproved charger may present a risk of fire, explosion,
leakage, or other hazard.
If a battery is being used for the first time or if the battery
has not been used for a prolonged period, it may be
necessary to connect the charger, then disconnect and
reconnect it to begin charging the battery. If the battery is
completely discharged, it may take several minutes before
the charging indicator light is displayed.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery
connected to a charger, since overcharging may shorten its
© 2008 Nokia. All rights reserved.

Battery information
16
lifetime. If left unused, a fully charged battery will lose its
charge over time.
Always try to keep the battery between 15°C and 25°C (59°F
and 77°F). Extreme temperatures reduce the capacity and
lifetime of the battery. A device with a hot or cold battery
may not work temporarily. Battery performance is
particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged.
Never use any charger that is damaged.
Important: Operating times are estimates only
and depend on network conditions, features used,
battery age and condition, temperatures to which
battery is exposed, and many other factors.
© 2008 Nokia. All rights reserved.

Care and maintenance
17
Care and maintenance
Your device is a product of superior design and
craftsmanship and should be treated with care. The
following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can contain minerals that
will corrode electronic circuits. If your device does get
wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can be
damaged.
• Do not store the device in hot areas. High temperatures
can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device
returns to its normal temperature, moisture can form
inside the device and damage electronic circuit boards.
• Do not attempt to open the device.
© 2008 Nokia. All rights reserved.

Care and maintenance
18
• Do not drop, knock, or shake the device. Rough handling
can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts
and prevent proper operation.
These suggestions apply equally to your device, charger, or
any enhancement. If any device is not working properly,
take it to the nearest authorised service facility for service.
© 2008 Nokia. All rights reserved.
