CONTENTS
1The pump funcon 3
2Characteriscs, assembly, and components 3
2.1 Technical characteriscs 3
2.2 Assembly of the unit 4
2.3 Scope of supply 4
3Installaon and connecon 5
3.1 Pump installaon safety measures 5
3.2 Connecng the unit 5
3.3 Installaon procedure 6
4Operang instrucons 7
5Troubleshoong 8
6Maintenance log 8
7Health and environmental safety 9
8Purchasing 9
9Transportaon and storage 9
10 Warranty 10
11 Authorized services in your area 10
12 Warranty card 11

ENG
32
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
1. FUNCTION
2. CHARACTERISTICS, ASSEMBLY, AND COMPONENTS
The pump is used to boost pressure in household reverse osmosis filters to avoid malfunction
where low or irregular main pressure may occur.
Package includes high and low pressure switches that prevent the pump from operating during
water outage and when pressure tank has been filled.
Parameter Value
1 Main pressure, bar 2‒4,5
2Operating pressure, bar Up to 7
3Feed water temperature, °C +4…+30
4Pump weight, kg 3,5
5Ambient temperature, °C +5…+40
6 Water main connection 1/4"
7Dimensions (h×w×d), mm 110х110х330
8Voltage, V 230
9 Transformer, VAC/VDC 230/24
2.1. TECHNICAL CHARACTERISTICS

4
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS

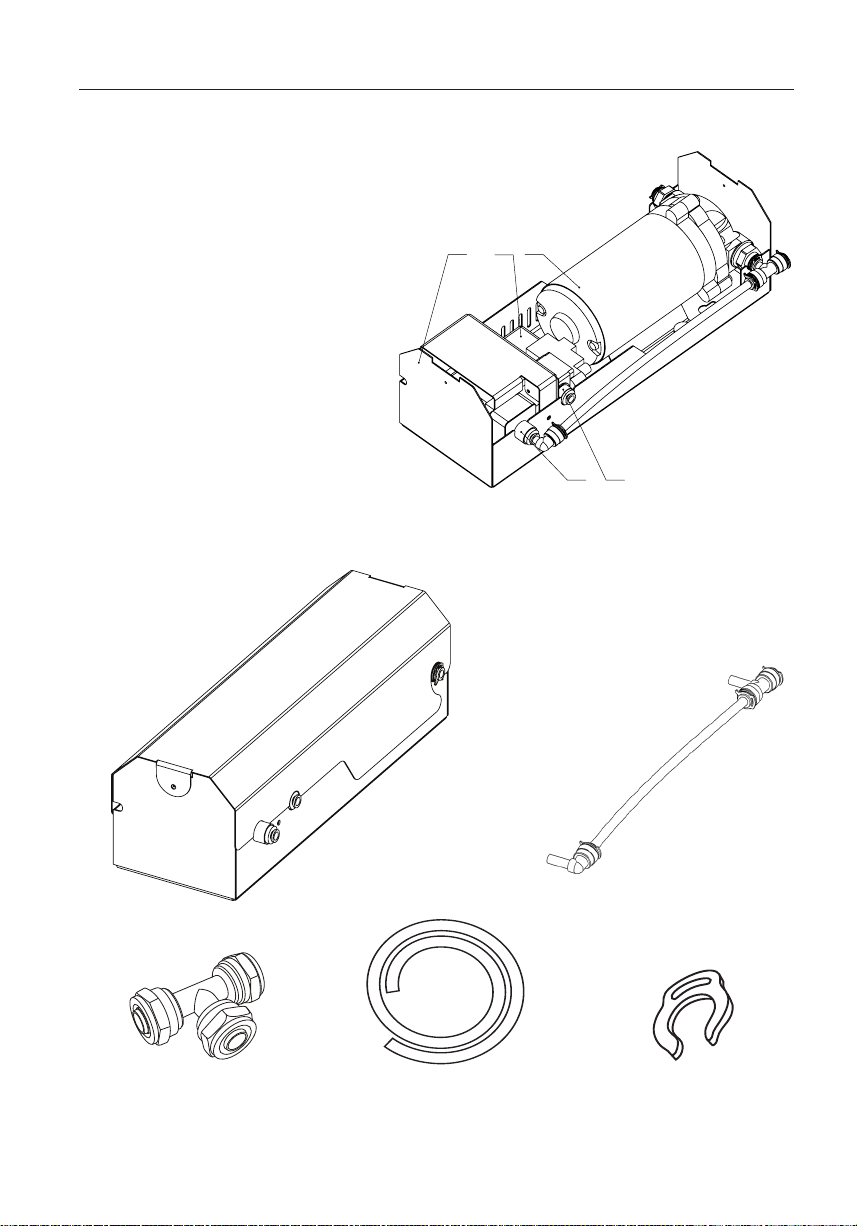

The pump elements are installed
in dismountable metal body
(pictured with cover dome open):
1. Base
2. Pump
3. Transformer
4. Low-pressure switch
5. High-pressure switch
2.2. ASSEMBLY OF THE UNIT
2.3. SCOPE OF SUPPLY
4. Pipe 1/4", 2 m3. 1/4" push-fit tee (1 pcs)
1. Complete unit 2. Assembled tube
5. Collet clip (6 pcs)
1 2
3
54

ENG
54
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
Install these
push-fit tee
and run tubes
to the pump
Remove the tube
connecting 3rd
pre-filter with
auto shut-off valve
It is necessary to read this manual carefully before installing the pump.
All of the requirements mentioned in this manual, as well as the requirements of all of the
applicable local and national building, electrical, and technical regulations and standards must be
met when installing and operating the unit.
The unit is to be supplied with single-phase 230 VAC, 50 Hz electrical power.
The unit is supplied with power cord and can be connected to a properly installed IEC 60884-1
compliant socket. Electrical specification of the unit can be found on manufacturer's factory sticker.
3.3.1. Verify that all parts listed in Section 2.3 are in the package in proper condition.
3. INSTALLATION AND CONNECTION
3.1. PUMP INSTALLATION SAFETY MEASURES
3.2. CONNECTING THE UNIT
Connect the pump
to 3rd pre-filter and
auto shut-off valve
with these tubes

6
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
Do not open plastic bag before you are certain that all parts are inside.
3.3.2. Verify that water temperature and pressure are compliant with the requirements provided
herein.
3.3.3. Provide space for pump installation. In case of insufficient space, the unit can be installed
within 0.6 m of the reverse osmosis filter. Install in places protected from moisture and heat, at
least 1 m away from heating equipment. The unit can be installed horizontally on the floor or
vertically/horizontally on a flat vertical surface.
3.3.4. Connect the pump according to the procedure below.
3.3. INSTALLATION PROCEDURE
Installation procedure

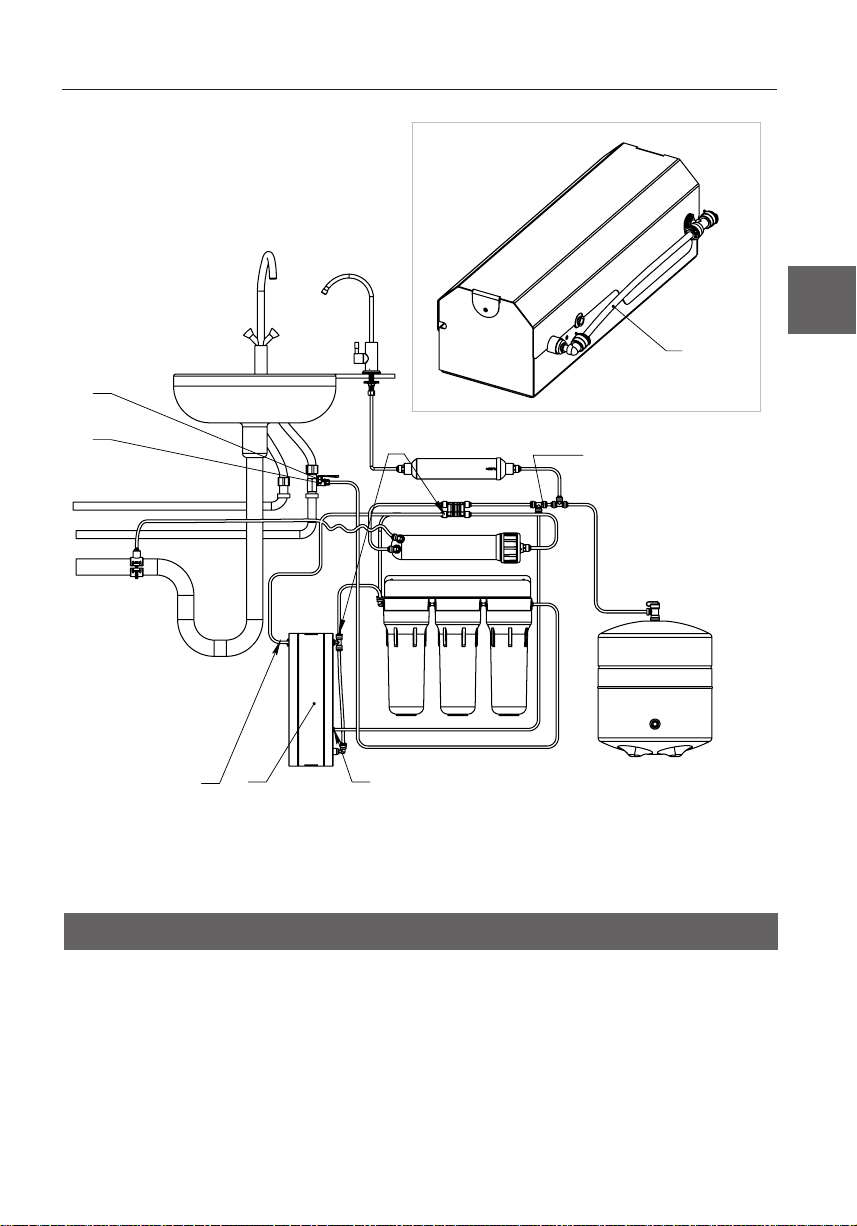

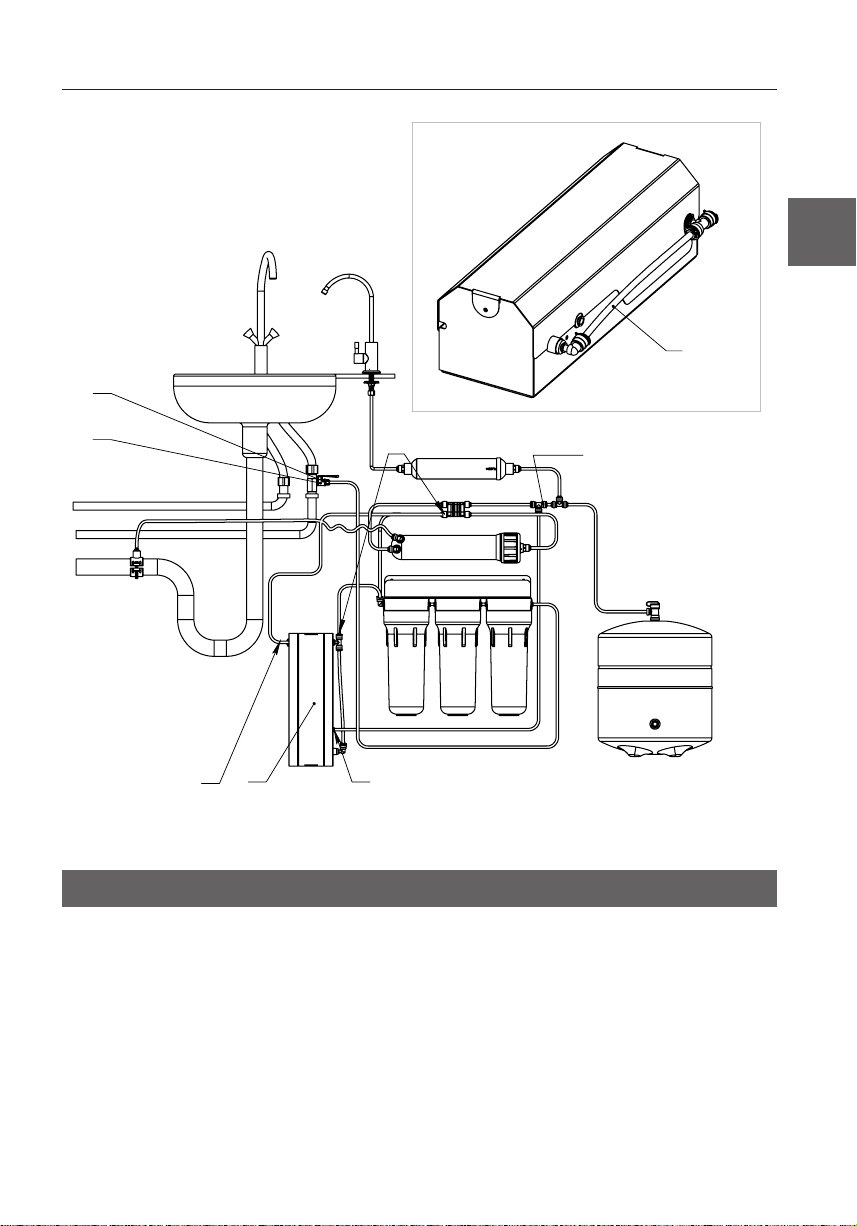

Numbers on the schematic indicate where which step of the procedure is carried out.
1. Connect the assemble tube to the pump as shown in Fig. A
2. Shut off the water supply to reverse osmosis filter.
3. Install the pump as directed in section 3.3.3.
4. Remove the tube running from 3rd pre-filter outlet to auto shut-off valve. Run the tube to
the In port of the pump unit. If the tube is not long enough, replace the tube with the one
supplied with pump unit.
5. Connect the Out port of the pump unit with the auto shut-off valve's now available outlet.
Secure every quick connection you make with a collet locking clip.
6. Select the best place to install push-fit tee on the tube spanning between auto shut-off valve
and the next tee linking to the pressure tank. Cut the tube at that place.
7. Install the second push-fit tee supplied with the pump unit.
8. Connect the third outlet of the tee to the High Pressure port of the pump unit.
9. Restore water supply to reverse osmosis filter. Make sure no leaks have appeared.
10. Check that the low pressure switch is functioning properly by shutting off water supply.
The pump must switch off and switch back on when water supply is resumed.
11. Check that the high pressure switch is functioning properly by shutting off pressure tank valve.
The pump must switch off in the matter of seconds.

ENG
76
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
Make sure power is removed from the pump when doing any procedures with it. Do not obstruct
the vent apertures in pump unit housing.
4. OPERATING INSTRUCTIONS
2
3
4 6, 7
5
9
8
Fig."А"
1

8
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
The manufacturer highly recommends recording information about your reverse osmosis filter's
operation and any maintenance in the maintenance log. The information from this log will help
specialist servicing your filter. This information may also be requested by the manufacturer in case
of any malfunctioning.
Problem Cause Solution
Fitting leaks Tube not joined tightly Unplug the tube, cut off 5 mm from its end
at at the right angle (make a level cut). Plug
the tube back in the fitting (push till snug).
Put on a collet locking clip
Too little or no
water coming from
the faucet
Pump is not functioning Make sure the pump is properly powered
Make sure water supply is sufficient, main
pressure meets the requirements, and any
shut-off valves are open
Pressure tank is deflated Pressure tank has to be pressurized to 0.4-
0.6 bar (6-9 psi). Inflate with a pump to the
above pressure if necessary
The pump will not
stop
High pressure switch fault The pump may not be generating sufficient
pressure. Replace the pump if this is the
case
Check that flow restrictor is installed
in the osmosis filter to which the pump is
connected
Pre-filters may be clogged due to normal
wear. Replace pre-filter cartridges if this is
the case
Low-pressure indicator
doesn't work in case of
water absence
To replace low-pressure indicator
The unit generates
loud noise when
operating
Air may be trapped inside
the pump
Air will naturally dissolve in water. If noise
persists for two weeks, replace the pump
Worn motor bearings and/or
brushes
Replace the pump
5. TROUBLESHOOTING
6. MAINTENANCE LOG

ENG
98
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
THE UNIT HAS BEEN INSTALLED, TESTED, AND VERIFIED TO BE FULLY FUNCTIONAL. NO
DEFECTS OR MISSING PARTS WERE FOUND, AS ATTESTED TO BY THE PRODUCT OWNER'S
SIGNATURE BELOW.
Product owner _______________________________________________________________
Signature/Full name
Installer _______________________________________________________________________
_______________________________________________________________________________
Signature/Full name
This product will not have any chemical, radiological or electrochemical impact on the environment.
It is not classified as a hazardous item and is compliant with relevant health legislation when used
as directed.
The purchase is best made from authorized sales establishments.
When purchasing, check that the packaging is intact and has no signs of mechanical damage and
other defects of the product. Verify that all components are delivered without opening the bag.
Check manual and warranty card.
The transportation of the product can be carried out using any type of vehicle (except those
unheated during cold season), in compliance with shipping rules pertaining to chosen mode of
transport.
Observe handling marking at all times when loading, unloading, and shipping goods.
The product must be stored indoors protected from mechanical damage, moisture, aggressive
chemicals. Store in OEM packaging at an ambient temperature of 5°C…40°C, relative humidity up
to 80%, at least 1 m away from heating appliances.
7. HEALTH AND ENVIRONMENTAL SAFETY
8. PURCHASING
9. TRANSPORTATION AND STORAGE

10
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2018
INSTALLATION AND USAGE OF BOOSTER PUMP FOR DOMESTIC REVERSE OSMOSIS FILTERS
We thank you for purchasing an Ecosoft product.
The manufacturer guarantees that this product contains no workmanship defects and no such
defects will arise within warranty period from the date of purchase from store provided that the
technical requirements and operating conditions specified in this manual are strictly adhered to.
To avoid misunderstanding, we urge you to carefully read the instructions on installation and
operation of the reverse osmosis filter, warranty conditions liabilities, check correctness of the
warranty card, presence of proof of purchase (receipt, invoice, or bill). Warranty card is valid only
if model, date of purchase, and stamp of selling establishment are correctly specified. For proper
installation details please read instructions on how to install and use or seek help from a qualified
professional.
The manufacturer cannot be held liable for any damage to property or other damage, including
lost profits, which arose by accident or due to use or inability to use this product. Manufacturer’s
liability in accordance with this warranty is limited to the cost of the product.
The warranty does not cover deficiencies that have not been claimed within warranty period;
damage caused by improper handling; mechanical damage, damage by heat, frozen water, hot
water, natural disasters and so on. Cases not covered under this warranty shall be resolved under
local legislation.
Attention: in the case of self-maintained pump installation the manufacturing enterprise is not
responsible for and does not accept any improper installation claims.
10. WARRANTY
11. AUTHORIZED SERVICES IN YOUR AREA
Please see our website (link below):
www.ecosoft.com
