ecoteck Monica Plus User manual

Ecoteck Monica Plus Freestanding
Wood Pellet Burning Heater
Ecoteck Monica Plus Freestanding
Wood Pellet Burning Heater
Installation Specications
Safety testing of the EcoTeck Monica Plus Freestanding Wood Pellet
Burning Heater to AS/NZS 2918:2001 Report 09/1910

2
Installation

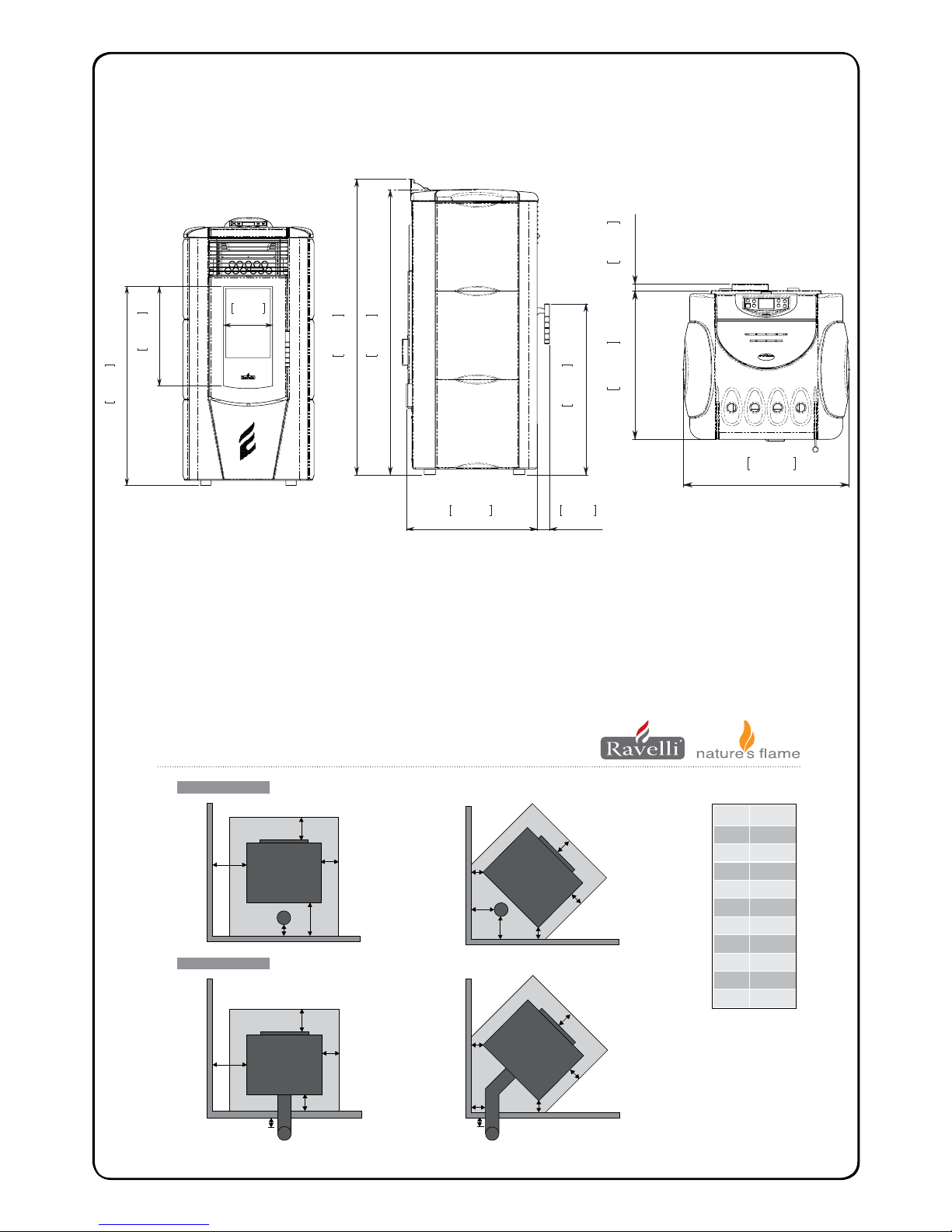

Dimensions – Monica Plus Freestanding
771mm
30,33in
385mm
15,16in
190mm
7,48in
599mm
23,59in
43mm
1,69in
459mm
18,07in
1037mm
40,81in
1000mm
39,36in
456,5mm
17,97in
20mm
0,79in
508mm
20,01in
Refer to Safety Test 09/1910 for all clearances to combustible.
Installation Clearances & Specications
Minimum clearances shown are in millimetres. All Ecoteck res are tested to AS/NZS2918:2001.
Specications were correct at time of printing but may alter and those detailed below should be used as
a guide only. Refer to the Installation and Operation Manual supplied with every Ecoteck Pellet Fire or
if in doubt, consult your Nature’s Flame Retailer.
B
J
H
A
E
External Flue
J
J
F
B
IF
E
Monica Plus Pellet Fire
Clearance to Combustibles
B
C
AE
D
G
F
B
F
G
E
Internal Flue
Location Dimension
(mm)
A 50
B 150
C* 50
D 230
E 100
F 120
G* 50
H 50
I* 50
J* 25
Freestanding
Clearances
* from shielded  ue
Note: AS/NZS 2918
requires a minimum
of 100mm clearance
for any side requiring
access.
Note: These are
minimum clearances to
combustibles. Actual
installation distances
may be greater.
Note: The above clearance to combustibles on the  ue are only applicable within the  re envelope. Clearance outside this e.g.at a ceiling / wall thimble reverts to 25mm as per ARS  ue
test 05/1185.

3
Minimum Clearance to Combustibles
Location of the Pellet Fire
Installation of the Ecoteck Monica Plus Freestanding Wood Pellet Burning Heater should
be undertaken by an experienced installer. Please read the Monica Plus Owners/Technical
Manual thoroughly before commencing installation as failure to follow the instruction could
cause damage to the pellet re or property.
Positioning the re:
Generally Monica Plus should be installed in a centrally located position within the home. When
deciding where to position the appliance in your room you need to consider the following:
Location of a power source
• Monica Plus has a convection fan which blows air through tubes in the direction that
the re faces, for optimum performance this location should be in a large room centrally
located.
• Monica Plus must be installed on a non-combustible surface. This surface must protrude
150mm from the front of the closed pellet re door.
• Monica Plus has been Safety Tested to AS/NZS 2918 using the Davins manufactured
ue. Test Report ARS 05/1185. Installation is not exclusive to these nominated kits,
though alternative ue should only be considered following consultation with your local
council.
• Please consult pages 2 & 3 for the required clearances to combustible material also
ensure the position of structural elements near the proposed ue.
• Because of the positive pressure in the ue, sealing of all 75mm stainless joints is
mandatory – use high temperature Maniseal. Both inner and outer ue joints must be
riveted.
• Seismic Restraint: Please view page 6 for requirements.
• Warranty: To validate warranty following installation a copy of the completed Warranty/
Producers Statement must be forwarded to: Nature’s Flame- Fax [phone].
Side of Unit (B) 100mm
Rear wall to Lined Flue (D, L, J) 50mm
Rear wall to Unlined Flu (D, L, J) 75mm
Rear of Unit (M) 100mm
Rear corners (Corner Installation) (G) 120mm
Floor protection (from glass) (C) 150mm

4
Internal Standard Flue Kit (50)
Internal Standard Flue Kit
Each 50 Internal Standard Flue Kit contains:-
ytitnauQnoitpircseDoNtraP
1Galvanised outer liner
ø100mm x 900mm long 1
4
3
2
1
1
1
1
1
1
2
2 Stainless steel inner liner
ø75mm x 900mm long
4a Black p/coat outer liner
ø100mm x 900mm long
5Inner/outer ue liner spacer
6c Ceiling thimble ø107mm hole
7c Ceiling decor plate
ø107mm hole – white
8Rain cap 75mm
9Rain Cap 100mm
10b Elbow 45° – ø75mm stainless
–black (painted)
12H T-adaptor/cleanout – ø75mm
–black (painted)
23 Support angle 950mm long
– 50mm x 50mm sides
This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m. The
overall height of the ue is 3.6m. The visible u e is
nished in black and the ceiling plate is white. T he
support angles for securing the liner to the ceilin g are
not shown. Kit is supplied in a carton.
Heat-resistant
oor protector
Seismic restraint
(to be tted)
50mm minimum clearance if lined ue
600mm from
roof
penetration
~210 mm
150mm
(minimum)
Note: The Davin 50 Internal Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
50
To order : Telephone [phone]. Fax [phone] [e-mail] 2006
Drawing representative only - not to scale.
This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m.
The overall height of the ue is 3.6m. The visible
ue is nished in black and the ceiling plate is
white. The support angles for securing the liner to
the ceiling are not shown. Kit is supplied in carton.

5
External Standard Flue Kit (51)
Each 51 External Standard Flue Kit contains:-
ytitnauQnoitpircseDoNtraP
1Galvanised outer liner
ø100mm x 900mm long
2 Stainless steel inner liner
ø75mm x 900mm long
5Inner/outer ue liner spacer
6w Wall thimble – 2 pieces
ø102mm holes
6s Sot thimble ø107mm hole
7w Wall decor plate
ø102mm hole – white
8Rain cap 75mm
9Rain Cap 100mm
26 Lined T-adaptor
This ue kit may be used in new and replacement
applications with the ue penetrating the wall behind
the re, running vertically up an outside wall and
penetrating the sot. The overall height of the f lue is
3.6m. All visible ue has a galvanised nish, and can be
powdercoated on request. Kit is supplied in a carton.
Note: The Davin 51 External Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
Heat-resistant
oor protector
Seismic restraint
(to be tted)
600mm from
roof penetration
100mm
(minimum)
150mm
(minimum)
External Standard Flue Kit51
4
4
2
1
1
1
1
1
1
To order :December 2006 Telephone [phone]. Fax [phone] [e-mail]
Drawing representative only - not to scale.
This ue kit may be used in new and replacement
applications with the ue penetrating the wall
behind the re, running vertically up an outside
wall and penetrating the soft. The overall
height of the ue is 3.6m. All visible ue has a
galvanised nish, and can be powdercoated on
request. Kit is supplied in a carton.

6

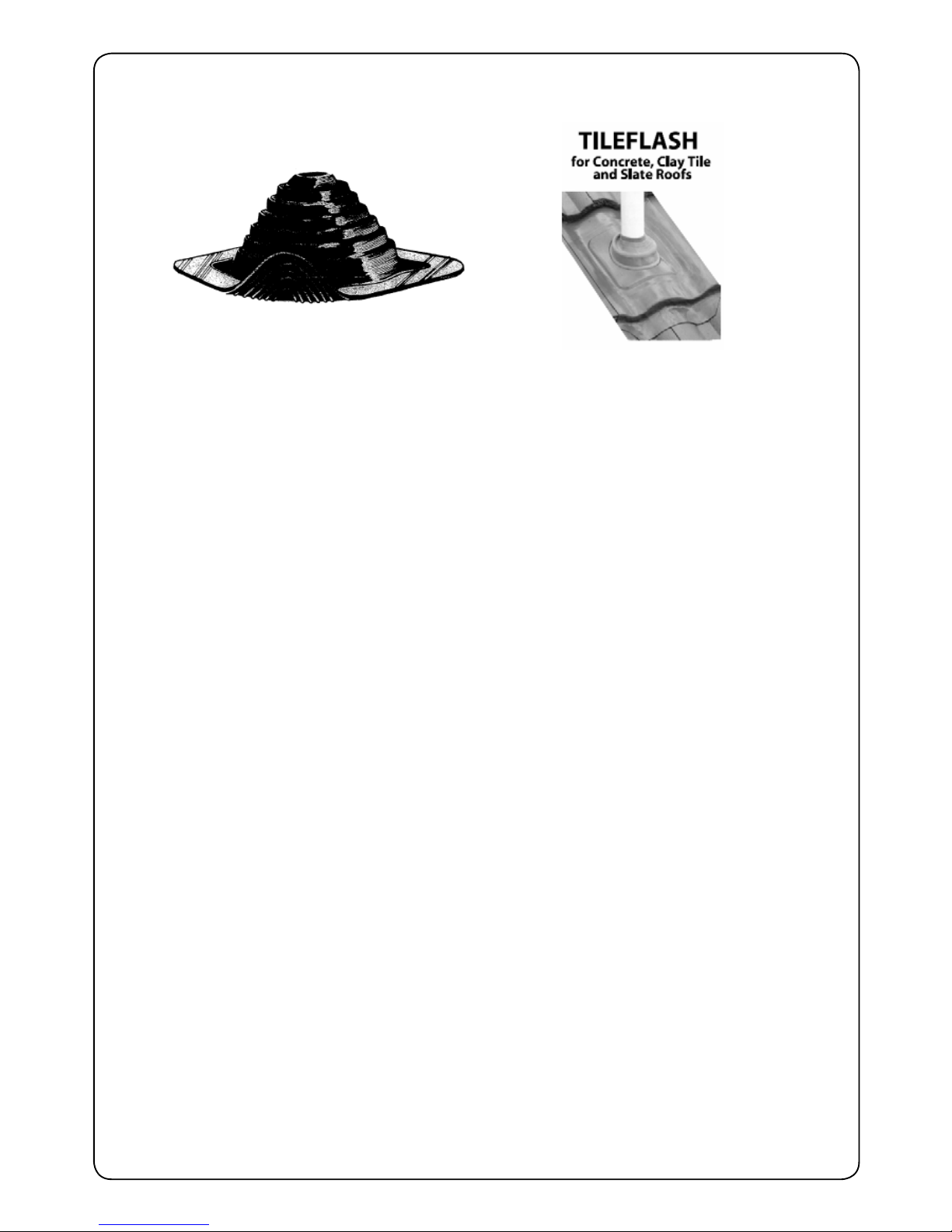

Flashing Options:
Decktite - For all Steel Roof Proles
Please circle the ashing option to be used. When considering an alternative method please consult
your local council.
SEISMIC RESTRAINT:
All installation scenarios for Monica Plus require the use of hold-down anchors (one on each side)
Fixing to Concrete Floor:
Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.
Approved Anchors: Expansion Anchors-Ramset Dynabolt and Trubolt, Hilti HAS.
Epoxy-set Anchors – Ramset Epcon, Ramset Chemset and Hilti HVU.
Fixing to Timber Floor Framing:
Minimum 14g x 60 screws (6.3mm diameter) or M10 X 90 coach-screws. These shall be xed a minimum
of 40mm into the centre-line of the existing oor joists. If screws cannot be installed directly into an
existing oor joist, solid blocking between joists (min size 90x45) shall be provided.
