Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
technician can address your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS official website:
www.ecovacs.com
The Company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
Benutzerhandbuch............................................................22
DE
Manuale d'uso ...................................................................91
IT
..................................................45
Manual de instrucciones
ES
.......................................................68
Manuel d'instructions
FR
..............................................................2
Instruction Manual
EN
Declaration of conformity ....................................................114

EN
1. Important Safety Instructions.................................................................................2
2. Package Contents and Technical Specications.............................................6
2.1 Package Contents...................................................................................................6
2.2 Specications...........................................................................................................6
2.3 Product Diagram.....................................................................................................7
3. Operating and Programming...................................................................................9
3.1 Notes Before Cleaning..........................................................................................9
3.2 Quick Start.............................................................................................................10
3.3 Cleaning Mode Selection....................................................................................13
3.4 Programming the Robot......................................................................................14
3.5 Status Indicator Light and Sounds....................................................................15
4. Maintenance...............................................................................................................16
4.1 Dust Bin and Filters.............................................................................................16
4.2 Cleaning Cloth......................................................................................................17
4.3 Suction Intake and Side Brushes......................................................................17
4.4 Other Components..............................................................................................18
4.5 Regular Maintenance..........................................................................................19
5. Troubleshooting........................................................................................................20
Contents
.......................................................68

2EN EN
1. Important Safety Instructions
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
Appliance in a safe way and understand the hazards involved.
Children shall not play with the Appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small
objects from the floor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains and
tablecloths off the oor.
3. If there is a drop off in the cleaning area due to a step or stairs,
you should operate the Appliance to ensure that it can detect the
step without falling over the edge. It may become necessary to
place a physical barrier at the edge to keep the unit from falling.
Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power
voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in
outdoor, commercial or industrial environments.
7. Non-rechargeable batteries are prohibited. For battery
information, please refer to Specications section.
8. Do not use without dust bin and/or lters in place.
9. Do not operate the Appliance in an area where there are lit
candles or fragile objects.

3
EN EN
1. Important Safety Instructions
10. Do not use in extremely hot or cold environments (below
-5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all parts of body away
from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child
is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing
water.
14. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in
areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a re.
17. Do not put objects into the suction intake. Do not use if the
suction intake is blocked. Keep the intake clear of dust, lint, hair,
or anything that may reduce air ow.
18. Take care not to damage the power cord. Do not pull on or
carry the Appliance or Charging Dock by the power cord, use
the power cord as a handle, close a door on the power cord,
or pull power cord around sharp edges or corners. Do not run
Appliance over the power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not
use the Appliance or Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors, or come in contact
with water. It must be repaired by the manufacturer or its service
agent in order to avoid a hazard.

4EN EN
1. Important Safety Instructions
22. Turn OFF the power switch before cleaning or maintaining the
Appliance.
23. The plug must be removed from the receptacle before cleaning
or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF
the power switch to the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and
regulations.
27. Do not incinerate the Appliance even if it is severely damaged.
The batteries can explode in a re.
28. When not using the Charging Dock for a long period of time,
please unplug it.
29. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused by
improper use.
30. The robot contains batteries that are only replaceable by skilled
persons. To replace or remove the battery, please contact
Customer Service.
31. If the robot will not be used for a long time, fully charge the robot
and power OFF for storage and unplug the Charging Dock.
32.WARNING: For the purposes of recharging the battery, only
use the detachable supply unit CH1465A provided with this
appliance.
33. The Remote Control pre-installs two non-rechargeable AAA
batteries. To replace the battery of the Remote Control, please
turn over the Remote Control, press and remove its Battery
Cover. Remove the batteries, and insert the new batteries with
the correct polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be recharged.

5
EN EN
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household waste throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can safely
recycle this product.
For EU Countries
1. Important Safety Instructions
35. Different types of batteries or new and used batteries are not to
be mixed.
36. Batteries of the Remote Control are to be inserted with the
correct polarity.
37. Exhausted batteries are to be removed from the Appliance and
safely disposed of.
38. If the Remote Control is to be stored unused for a long period,
the batteries should be removed.
39. The supply terminals are not to be short-circuited.

6EN EN
Model DA5G
Working voltage 10.8V DC Rated power 15W
Battery Model ZJ1450 Darfon/
DA60 Darfon Battery Specication Lithium 10.8V DC, 2600mAh
Charging Dock Model CH1465A
Rated input voltage 100-240V AC Rated output voltage 20V DC
Rated output current 1A Rated Power 20W
Remote Control Model RC1633 Remote Control Input Voltage 3V DC
Remote Control Battery
Type Designation AAA Nominal voltage 1.5V DC
Frequency bands 2412-2472MHz
Maximum RF power
transmitted in the
frequency band
Max PA output power at 72.2 Mbps: 17.5 dBm
Max PA output power in 11b mode: 21.5 dBm
2.2 Specications
*Technical and design specications may be changed in the course of continuous product improvement.
2. Package Contents and Technical Specications

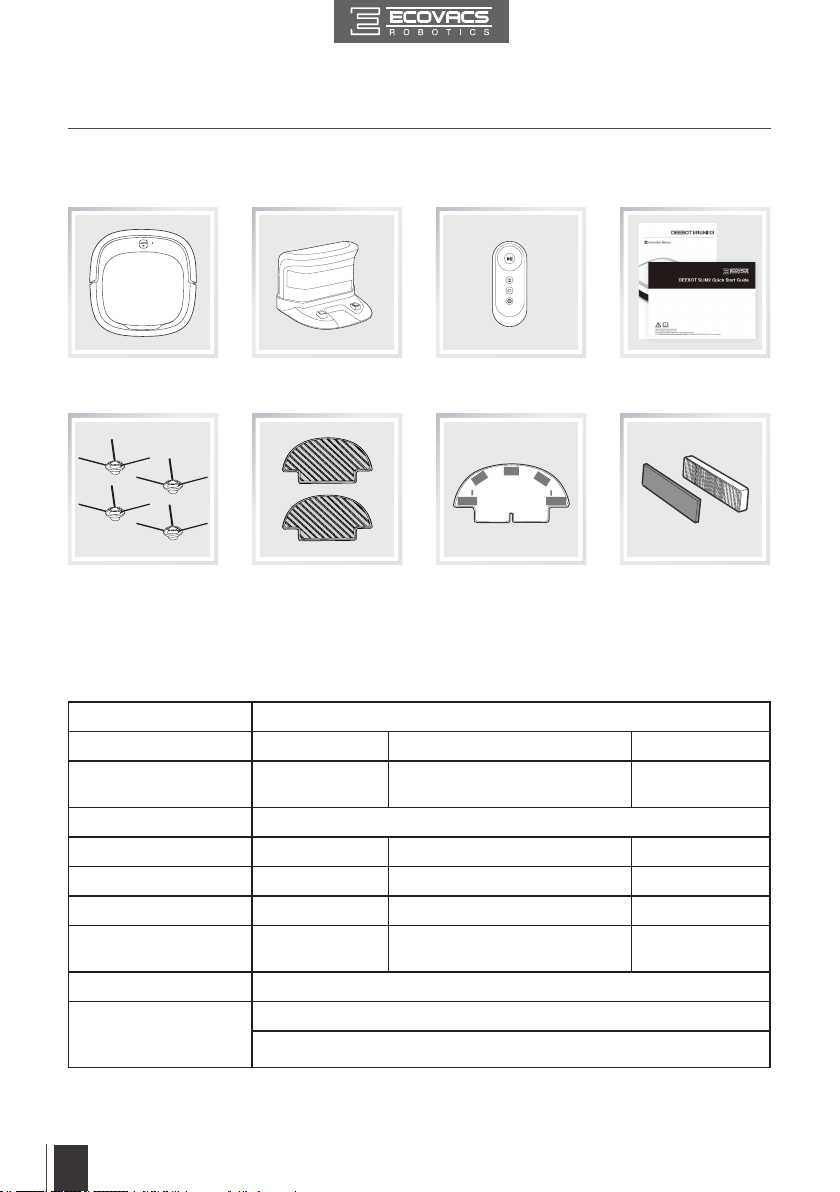

2.1 Package Contents
Robot
(4) Side Brushes
Instruction Manual +
Quick Start Guide
Charging Dock Remote Control with
Battery
(2) Washable/
Reusable Microber
Cleaning Cloths
Cleaning Cloth Plate Replacement High
Efciency Filter +
Sponge Filter

7
EN EN
2. Package Contents and Technical Specications
1
2
2.3 Product Diagram
1. Infrared Signal Generator
2. Charging Dock Pins
1. AUTO Mode Button
2. Wi-Fi Indicator
Control Panel
Charging Dock
1
2
Robot
1. Top Cover
2. AUTO Mode Button
3. Dust Bin
4. Infrared Receiver for Remote Control
5. Mechanical Cushion Bumper and
Bumper Strip
6. Anti-Collision Sensors
7. Anti-Drop Sensors
8. Side Brushes
9. Charging Contacts
10. Universal Wheel
11. Suction Intake
12. Driving Wheels
13. Cleaning Cloth Plate Slots
14. Bottom Power Switch
15. Battery Cover
16. Battery Cover Screws
1
7
8
9
10
11
12
13
14
15
16
2
3
4
5
6

8EN EN
2. Package Contents and Technical Specications
1
4
5
6
2
3

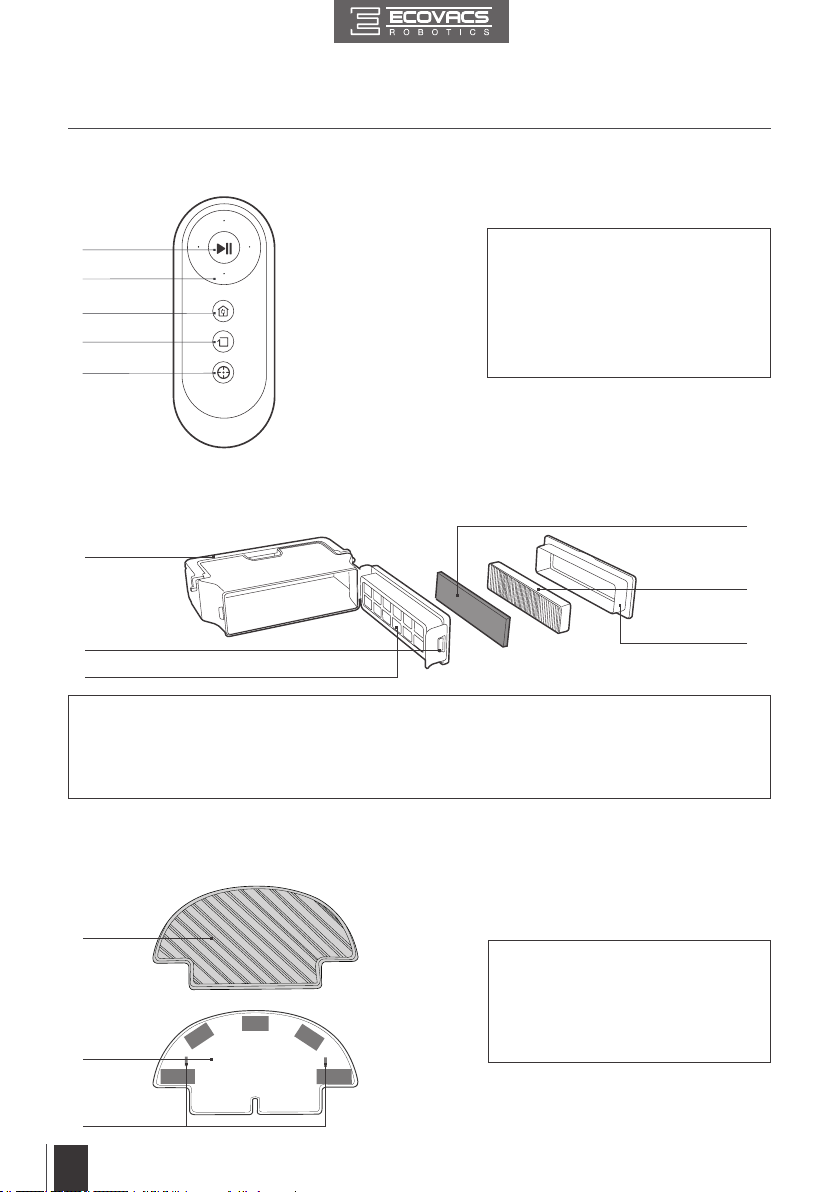

Dust Bin
Remote Control
1. Dust Bin Handle
2. Dust Bin Lock
3. Filter Net
4. Sponge Filter
5. High Efciency Filter
6. Dust Bin Cover
1. START/PAUSE Button
2. Direction Control Buttons
3. Return to Charger Mode Button
4. Edge Cleaning Mode Button
5. Spot Cleaning Mode Button
1
2
3
4
5
Cleaning Cloth and Cleaning Cloth Plate
1. Washable/Reusable Microber
Cleaning Cloth
2. Cleaning Cloth Plate
3. Cleaning Cloth Plate Tabs
1
2
3

9
EN EN
3.1 Notes before Cleaning
Before operating DEEBOT, take a few moments to survey the area to be
cleaned and remove any obstacles.
Remove power cords and small objects from
the oor that could entangle the product.
Please be aware that the robot needs at
least a 6cm (2.4”) clearance to clean under
furniture without complications.
The product is not suitable for use on carpet.
Before using the product near an area rug,
please fold area rug edges under themselves.
If there is a step or stairs in the cleaning area,
please operate DEEBOT to ensure its Anti-
Drop Sensors can detect the drop off. It may
be necessary to place a physical barrier at the
edge of the drop off to keep the unit from falling
over the edge.
3. Operating and Programming

10 EN EN
3.2 Quick Start

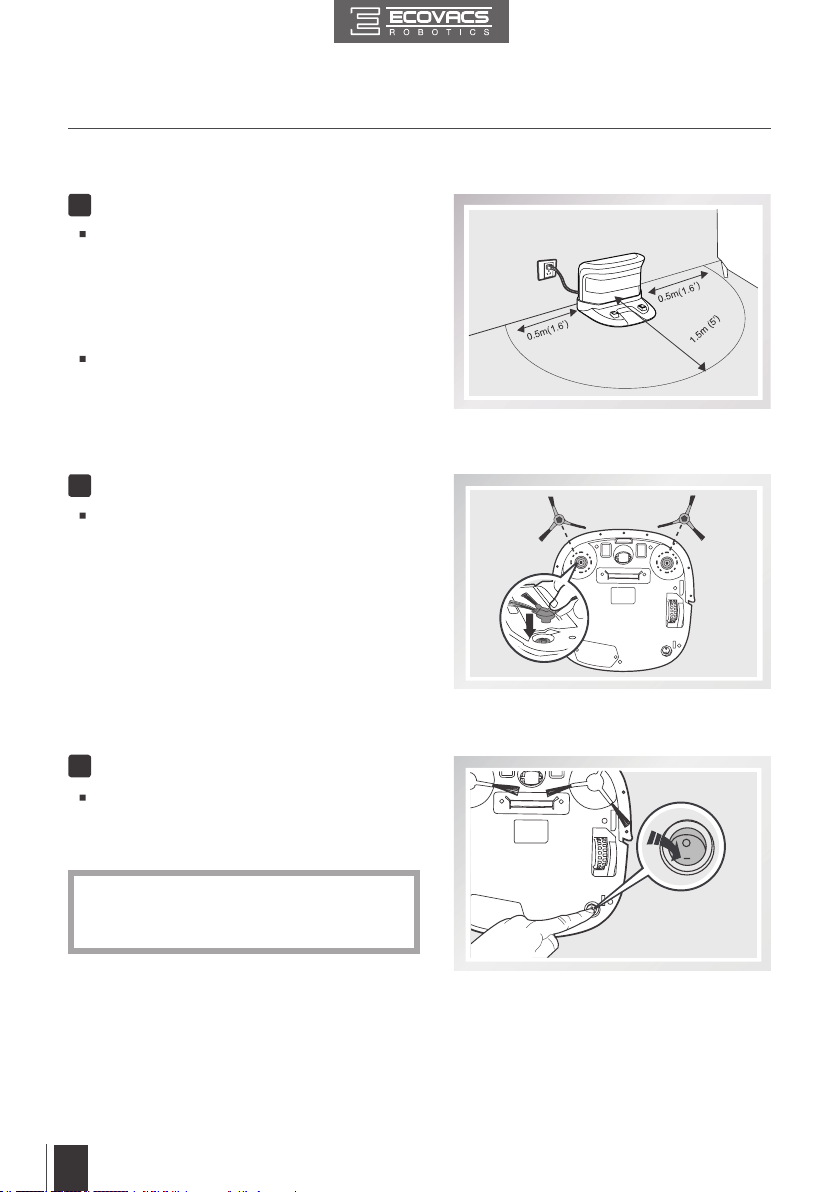

Place the Charging Dock on a level floor
surface against the wall with the base
perpendicular to the ground. Keep the
immediate area 1.5m (5') in front of the charger
and 0.5m (1.6') on both sides of the charger
clear of objects and reective surfaces.
Plug the Charging Dock in.
Charging Dock Placement
1
Install Side Brushes
Attach Side Brushes to the bottom of
DEEBOT by pressing a brush into each slot
with the matching color until it clicks.
2
Power ON
Turn the robot's Bottom Power Switch to the
ON position. "I"=power ON; "O"=power OFF.
DEEBOT is powered ON when the AUTO
Mode Button glows a continuous BLUE.
3
* When DEEBOT is not cleaning, it is
suggested to keep it powered ON and
charging instead of powered OFF.
3. Operating and Programming

11
EN EN
Charge DEEBOT
4
Place DEEBOT on the Charging Dock making
sure the Charging Contacts on DEEBOT and
the Charging Dock Pins make a connection.
Charge DEEBOT for at least 4 hours before
the rst use .
* AUTO Mode Button blinks when DEEBOT
is charging. AUTO Mode Button stops
glowing after DEEBOT is fully charged.
3. Operating and Programming
Attach Cleaning Cloth, if desired
5
*When using the optional mopping feature, fold area rug edges under themselves so DEEBOT
will avoid the rug.
To use the robot's optional mopping feature, attach the provided Cleaning Cloth.
Attach the Cleaning Cloth to the Cleaning
Cloth Plate.
Insert the Cleaning Cloth Plate tabs into the
Cleaning Cloth Plate Slots on the bottom of
the robot until you hear a click.

12 EN EN
Pause DEEBOT. Move the Bottom Power
Switch to the OFF position.
Power OFF
8
3. Operating and Programming
* When DEEBOT is not cleaning, it is
suggested to keep it powered ON and
charging.
Pause DEEBOT by pressing the AUTO Mode
Button on DEEBOT or the START/ PAUSE
Button on the Remote Control.
Pause
7
* The AUTO Mode Button on the robot’s
Control Panel stops glowing after the robot
is paused for more than 10 minutes. Press
AUTO Mode Button on the robot or press
any button on the Remote Control to wake
up the robot.
Start
6
Press the AUTO Mode Button on DEEBOT or
the START/PAUSE button on the Remote
Control. DEEBOT starts to work immediately in
AUTO Cleaning Mode.
*
*
To choose another Cleaning Mode,
please refer to section 3.3 Cleaning Mode
Selection for details.
DEEBOT can be directed using the Direction
Control Buttons on the Remote Control when
it is Paused.

13
EN EN
DEEBOT has several cleaning modes to choose from to effectively clean different floors.
Cleaning modes are selected using the Remote Control or ECOVACS App.
3.3 Cleaning Mode Selection

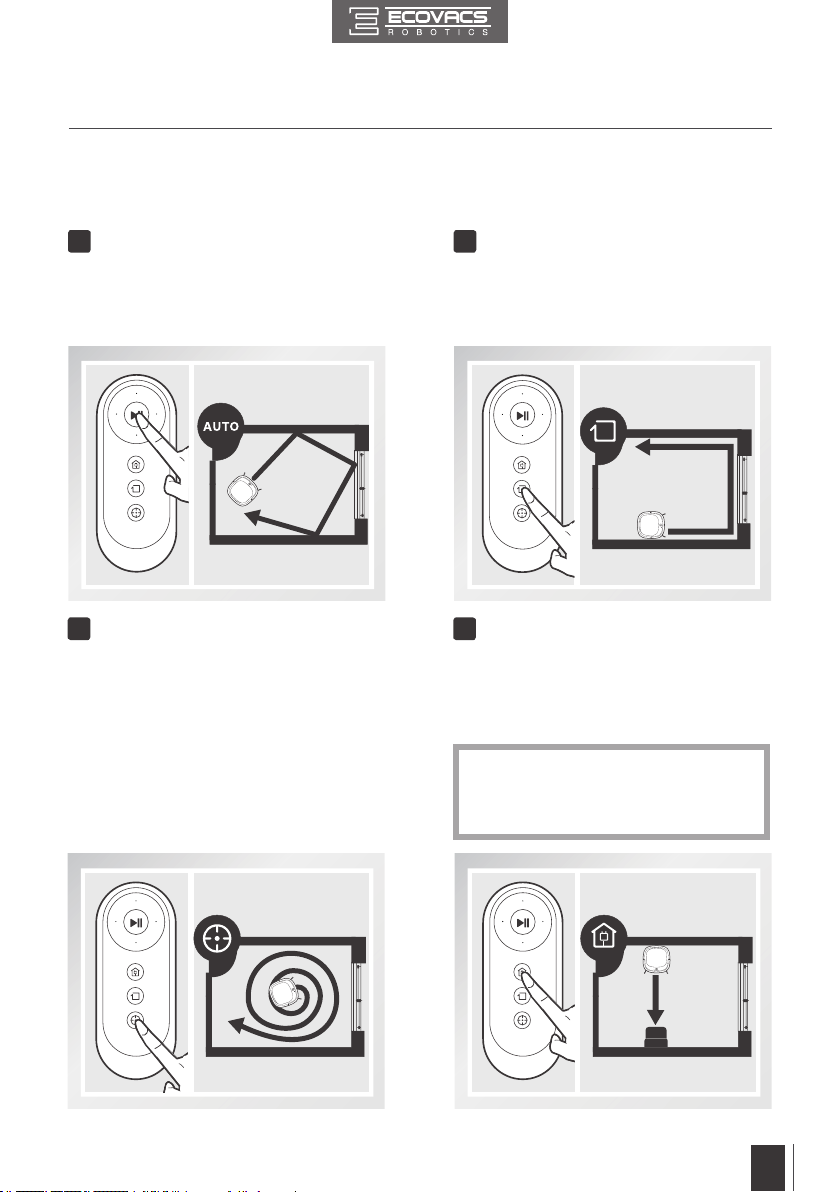

AUTO Cleaning Mode Edge Cleaning Mode
This mode is good for cleaning the edges
and corners of a room. In Edge Cleaning
Mode, DEEBOT cleans along a border (e.g.
wall).
This is the most commonly used mode. In
AUTO Cleaning Mode, DEEBOT cleans in
a straight line and changes direction when it
meets an obstacle.
1 2
3. Operating and Programming
Spot Cleaning Mode
(1.5-5 minutes)
Return to Charger Mode
When battery power gets low, DEEBOT
automatically switches to Return to Charger
Mode and returns to the Charging Dock to
recharge itself.
This mode is applicable for an area of highly
concentrated dirt or dust. In Spot Cleaning
Mode, DEEBOT focuses on a specic area
to clean.
3 4
DEEBOT can also be sent back to the
Charging Dock at any time by pressing
the Return to Charger Button on the
Remote Control.
*

14 EN EN
3. Operating and Programming
* To automatically clean at another time, rst cancel the current Intelligent Scheduling, then set
Intelligent Scheduling again at the desired time.
* If DEEBOT is turned OFF, Intelligent Scheduling is cancelled.
Cancel Intelligent Scheduling
2
Double-Click the AUTO Mode Button on DEEBOT. The robot emits a descending tune, and AUTO
Mode Button glows a continuous BLUE. Intelligent Scheduling is cancelled.

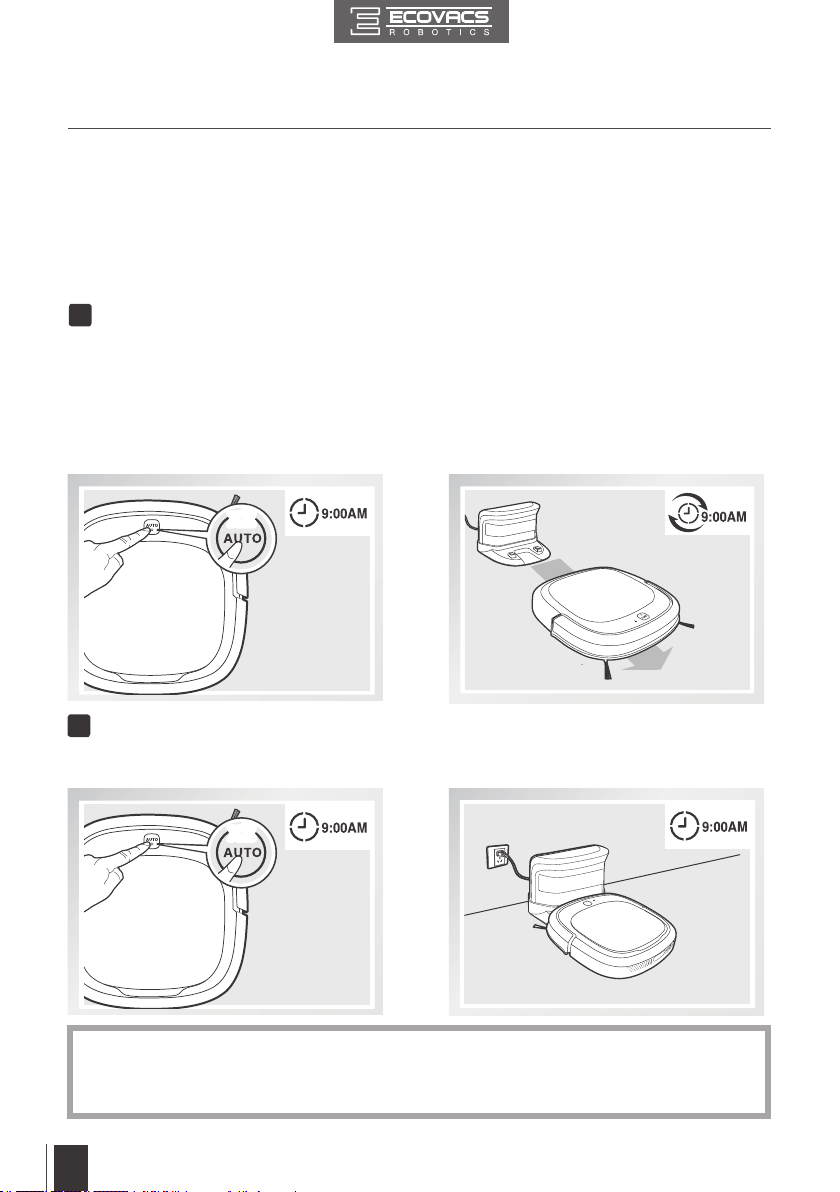

Set Intelligent Scheduling
Intelligent Scheduling
DEEBOT has an Intelligent Scheduling and a Time Scheduling function to schedule cleaning
times. DEEBOT can be programmed to automatically clean with Intelligent Scheduling using the
robot’s Control Panel. DEEBOT can also be programmed with Time Scheduling using the App.
DEEBOT can be scheduled to cleaning once per day at the same time, even if nobody is at home.
Double-click the AUTO Mode Button on DEEBOT to set the current time as the scheduled cleaning
time. Intelligent Scheduling is set when the robot emits an ascending tune and AUTO Mode Button
glows a continuous BLUE. DEEBOT will automatically clean at the set time every day.
For example: Set Intelligent Scheduling successfully at 9:00am, and DEEBOT automatically cleans
at 9:00am every day.
1
3.4 Programming the Robot
x2x2
x2x2

15
EN EN
3. Operating and Programming
3.5 Status Indicator Light and Sounds
If DEEBOT detects a problem and needs your assistance, it emits alarm beeps and the AUTO
Mode Button ashes red.
Alarm Sound Problems Solution
One Beep Driving Wheel Malfunction Check Driving Wheels for tangled hair or
debris and clean.
Three Beeps Driving Wheel Malfunction
Turn over the robot. Press Driving Wheels
to check for a clicking sound. If they do not
click, please contact Customer Service.
Four Beeps Dust Bin Malfunction
Remove the Dust Bin and re-install it
properly. If the robot still emits the alarm,
please contact Customer Service.
Five Beeps Low Battery Manually place the robot on the Charging
Dock to charge.
Seven Beeps Anti-Drop Sensor Malfunction Check Anti-Drop Sensors for dust and
clean.
Time Scheduling
Set Intelligent Scheduling
DEEBOT can be programmed weekly to clean multiple times per day at specic times using the
ECOAVCS App.
1

16 EN EN 16
*Before performing cleaning and maintenance, power OFF DEEBOT and unplug the Charging Dock.
Open the robot’s Top Cover and remove
the Dust Bin. Open the Dust Bin Cover and
empty the Dust Bin.
Remove the filters. Pat the High Efficiency
clean. Do not rinse the High Efciency Filter
under water.
Rinse the Dust Bin, Sponge Filter and Filter
Net under running water.
Dry the Dust Bin and lters completely before
reinstalling.
4.1 Dust Bin and Filters
4. Maintenance

17
EN EN 17
4. Maintenance
Remove the Cleaning Cloth Plate from the
robot and remove the Cleaning Cloth.
4.2 Cleaning Cloth
Wash and dry the Cleaning Cloth. Wipe the Cleaning Cloth Plate with a dry cloth.
Wipe the Suction Intake with a dry cloth. Remove the Side Brushes. Wipe the Side
Brushes and their slots with a clean dry cloth.
4.3 Suction Intake and Side Brushes

18 EN EN 18
4. Maintenance
4.4 Other Components

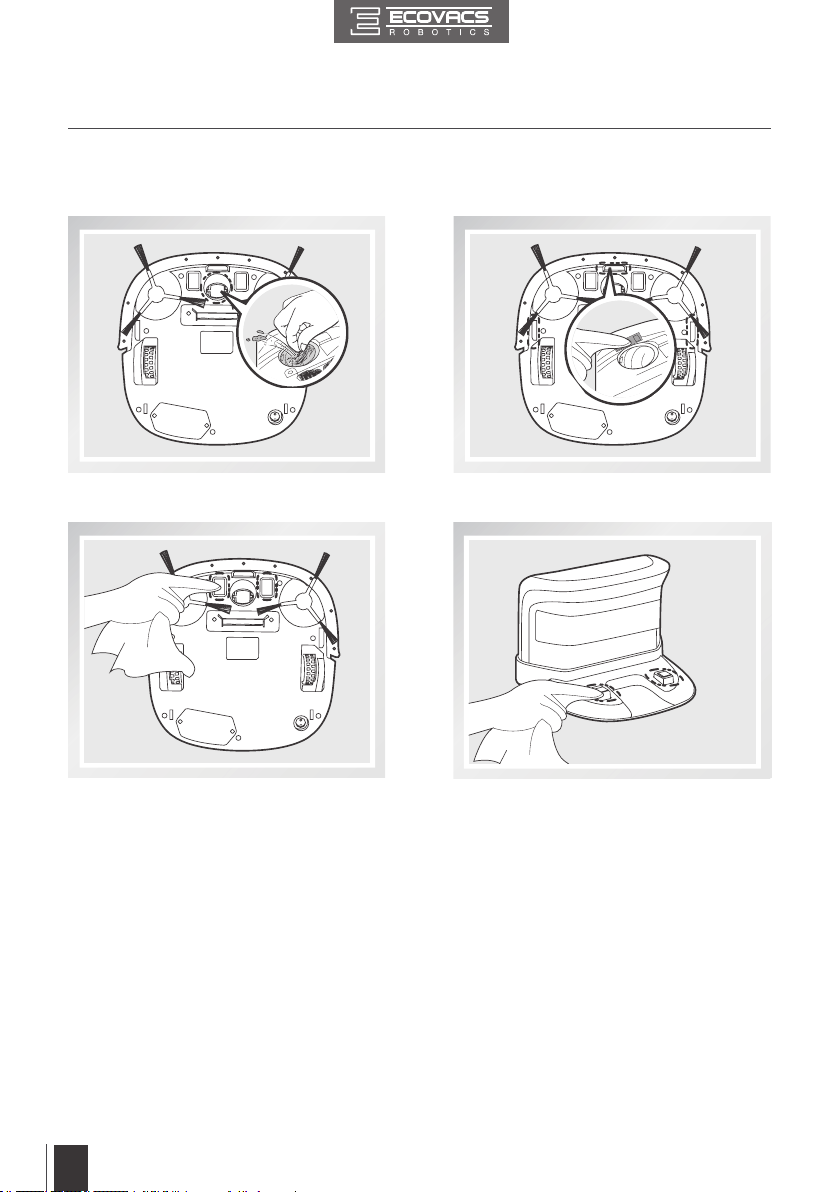

Clean the Universal Wheel by removing any
hair tangled around it.
Wipe the Anti-Drop Sensors with a dry cloth
to maintain their effectiveness.
Wipe the Charging Contacts and Charging Dock Pins with a dry cloth.
