Ecowell WDV01 User manual

SPOT CLEANER

Contents
Attentions
Instructions
Components
Preparation
Instructions
How to Use
Maintenance
Fault and Handling
2
4
6
7
8
9
13
15
·1·

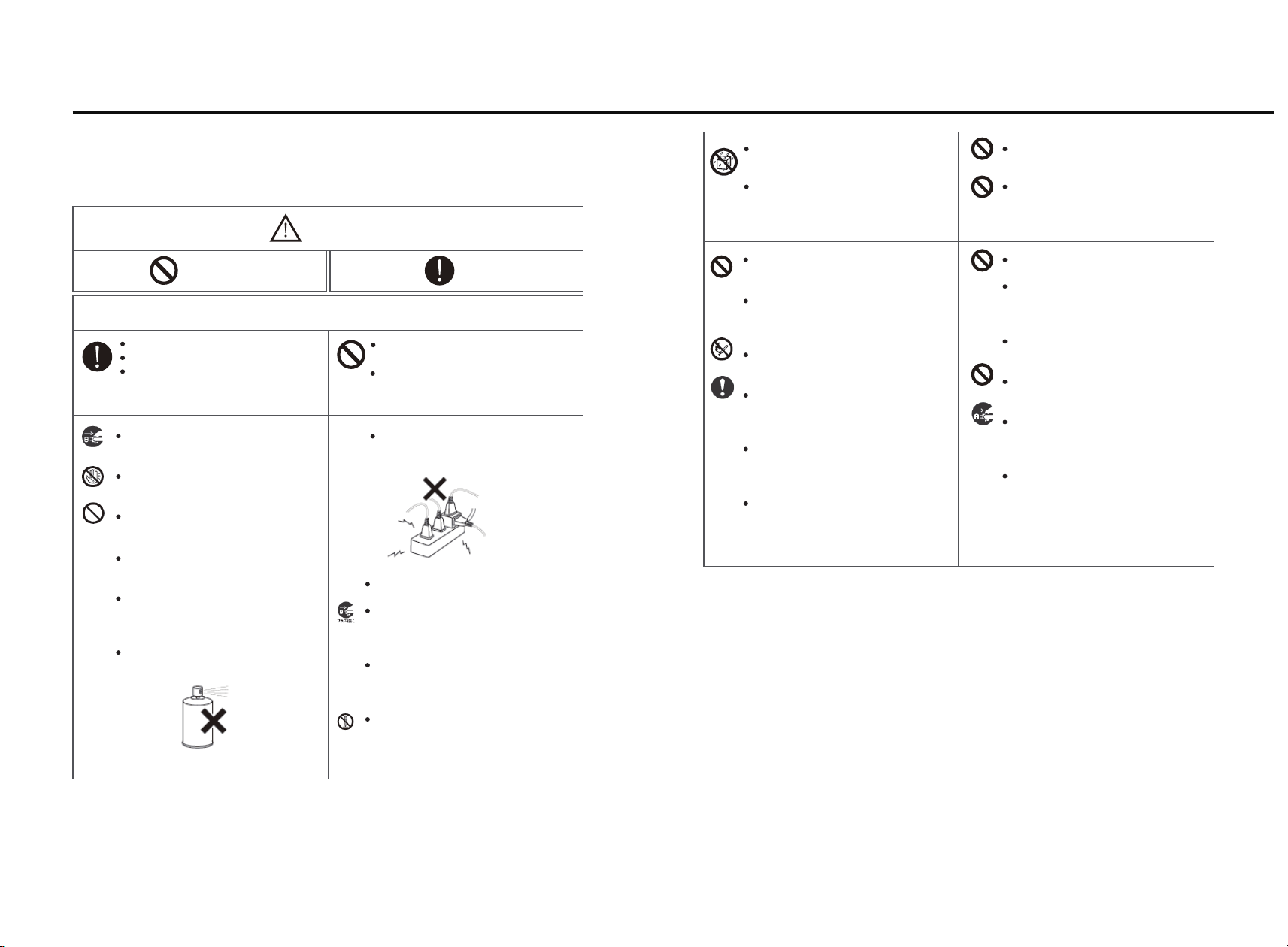

First, please read this "Attentions"carefully and use it correctly. In order to prevent
damage to people and protective measures must be taken
Warning
DO not DO
Symbols
Regularly dispose of dust on the plug.
Plug it in tightly when it is used.
Unplug the machine when it is not in use
for a long time.
Do not damage the power cord. Do not
pull it when handling.
Do not use the machine when the power
cord and plug are broken or the plug gets
loose.
Use the power cord and plug correctly
Unplug it before maintenance，
inspection and moving.
Do not touch or plug and unplug
it with wet hands.
Do not allow infants to touch the
power plug.
Do not spray pesticides, hair
colorants，lubricants and other liquid.
Do not inhale flammable and
explosive substances such as
cigarette ends.
Do not inhale oil gas heat or dry dust.
Note that the socket must not be
overloaded.
Use it under the AC 220V.
Stop use immediately, turn off the
power and unplug in the event of an
exception or failure.
Stop using and look atthe manual or
consult customer service if there are
abnormal sounds or smells.
Do not disassemble, repair or transform
it by oneself.
·2·
Attentions Attentions
Do not use in dangerous situations such
as rain water and strong wind.
Do not put the main machine in water or
water the machine. in order to avoid
electric shock and fire.
Do not inhale dirt and dust with
suspected infectious diseases
Do not use without a sewage bucket.
Do not use for purposes other than
cleaning.
This product is designed for home use
and is not suitable for commercial use.
Keep away from fireworks, heating, ete.
Stop working immediately when there
is a foreign body blocking the spray
nozzle.
Stop working immediately when a
foreign body is inhaled.
ody is inhaled.
When there is a blockage of clean
water bucket or sewage bucket by
foreign matters, pour out the water
and clean up before continuing to use
Do not lean or ride.
Do not use the machine within the
reach of young children Do not allow
children to use and play with it.
Do not use it outside.
Do not continue to use if the suction
inlet is blocked.
Do not pull the power cord when
plugging or unplugging it so as not
to cause an electric shock.
Remember to unplug the power cord
after use.
·3·

Instructions
Do not inhale the following items
This product is used to remove dirt by rinsing. Please use tap water or alkali ionized water
below 40℃.
It can not be used for cleaning arts and crafts, non-waterproof fibers (nets, acetic acid,
rayon, etc.), non-waterproof products (furs, leather products, white wood furniture, tea
sets, etc.) and vulnerable surfaces (floors, tables).
Do not tilt or drop the machine in the watering state, in order to avoid getting wet floors.
When the sewage exceeds the water level, please stop the operation immediately and
clean the sewage before using it.
When using detergent, dilute the low-foaming detergent by about 50 times and spray it
on the washing object.
When using detergent, please confirm that there is no effect on the washes before using.
When the machine is in a place such as hairy carpet, the air outlet will be blocked, and the
machine may be stopped.
If there is a lot of foam or sewage at the bottom of the machine in use, please stop using
it immediately and clean up the sewage before using it.
Do not use the foaming detergent.
Dry dust.
Large quantities of powder
(extinguishing agent, etc.)
Large quantities of sands
and pebbles.
Lots of rubbish。
Metal such as needles and
pins, glass, etc.
Big plastic bags and
stockings。
Things that tend to pile up
inside。

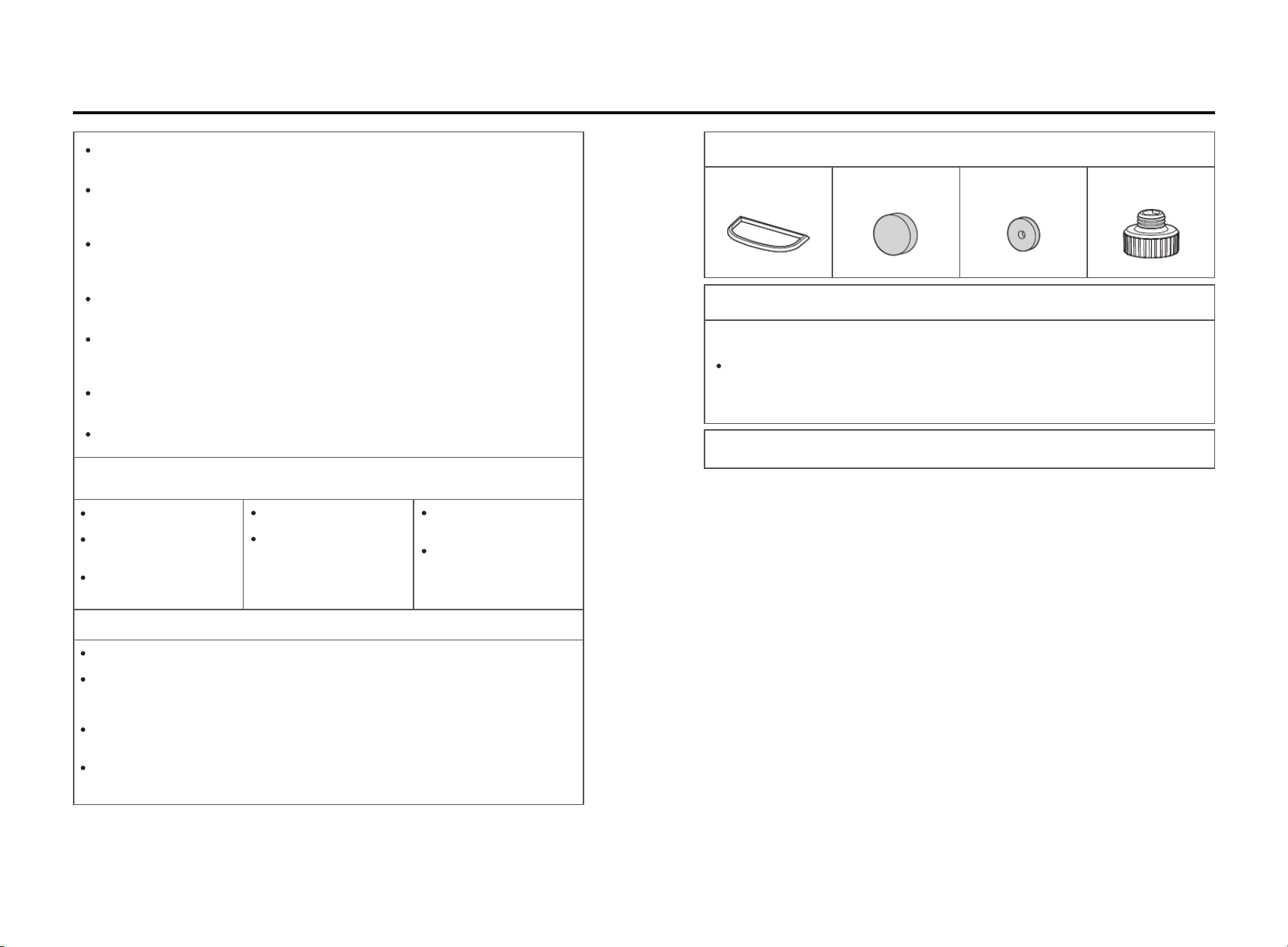

Fault Prevention
As this product is used in wet environment, please do not inhale dry dust.
After using in the low-temperature environment, please clean out the water inside the
sewage bucket, the clean water bucket and the machine in time, so as not to freeze and
affect the use.
In the dust collection process, if the hose is blocked by foreign bodies, please turn off the
power and remove the foreign bodies before use.
The consumables can be removed and replaced when damaged or lost. Be sure to install
and use.
Instructions
Consumables
Seal ring for upper cover Inlet air sponge Filtering sponge Screw cap
Protective device
When the exhaust is not smooth, the protective device will workin order to prevent the motor overheating,
and the machine will not work in a short timeeven if the power is turned on.
If the protective device is started.
· Press the power switch and pull the plug from the socket.
· Keep in a cool place.
After about 1 hour, the protection device is automatically off and the machine can be used again.
After about 1 hour, the protection device is automatically off and the machine
can be used again.
·4· ·5·

Components
Body
On/Off button
Clean water bucket
Handle
Sewage bucket
Maximum water level
Power cord
Power plug Hose handle
Watering button
Hose hook
Hose
Power cord hook
Power cord bandage
Air ontlet
Air outlet
Accessories
* The clean water pump is built into the body.
* During handling, the hose is wound around the machine and the power cord
is tied andhung from the hook, as shown in the figure above.
Suction inlet
Brush
Water outlet
Suction inlet
Water outlet Hose hook
* Water sucker with brush, for carpet, etc.
* Right-angled water sucker, for cracks andthe back of the chair.
·6·
Preparation
3
Open the screw cap and fill with clean water
The maximumwater capacity is about 1L.
·7·
Attention
After fillmg with water, screw the cap
tightly to prevent leakage.
Fill it with tap water or alkane ionized
water.
After use, pour away the residual water im
the clean water bucket to prevent leakage
and mildew.
2
Remove the cleanwater bucket from the body.
1
Insert the hose hook into the machime.
4
Install the clean water bucket into the body.
Attention
Do not shake the clean water bucket during
installation: otherwise, it may cause water
leak.
5
Insert the handle into the water sucker
6
Fix the hose and power cord before handling.
Hose hook
Body
Dust cup lock catch
Clean water bucket
Maximum water level
Body
Clean water bucket
Water sucker
Hosehandle
The two holes are
aligned during inserting。

How to Use
For stubborndirt
Clean with cleaning solvent first and then scrub.
Spray the cleaning solvent and wipe
Suck up the dirt
· Absorb the dirt and do not leave any solvent
Use of right-angled water sucker
Press the water sucker on the back of the chair and
move from top to bottom
·9·
Attention
Do not put the cleaning solvent in
the clean water bucket, make sure
the solvent is not harmful to the
carpet before use.
Do not use diluents, aniline,
chloro form and flammable
solvents.
Recommended
· Alkali ionized water
· Heavy bacteria
· Citric acid
· Hydrochloric acid water
Not recommended
· Neutral detergent for the kitchen
· Alkaline detergent
· Acid detergent
1
Apply the cleaning solvent to the carpet and
rub the dirt with a brush to lift it up.
Attention
For the amount and usage of the
cleaning solvent, please read the
manual carefully and use it correctly.
Instructions
3
Press the watering button to spray clean water
2
Tum on the power(start)
1
Plug it in
4
Absorb water
5
Tum off the power(stop)
6
Unplug it
7
Pour away clean water and sewage, and clean
the sewage bucket
Attention
Turn off the power before unplugging it.
After use, please hang the coiled power
cord back to its original place.
Spray clean water while absorbing sewage
Press the water suction inlet on the stain,
bring the water and dirt to the front and suck them.
Stop spraying, and absorb the sewage
After using the cloth on which water is easily retained,
please blow dry or air dry.
·8·
Solvent Dirt
Dirt floats
Attention
Stop using when the water i the sewage
bucket exceeds the maxim um water level,
clean the sewage bucket otherwise, the water
will flow into the machine
Foam
Maximum water level
Sewage bucket
Spray the stain with clean water to let it surface. Do not
spray continuously at the same spot. After spraying,
absorb the water, so as not to cause mildew and odor.

How to Use
Cleaning of sewage
· When the sewage reaches the maximum water level,
stop working and turn off the power
·Remove the sewage bucket in the direction of arrow.
Clean the bucket, upper cover and sealing
strip.
Install the sealing ring, cover and fasten the
sewage bucket.
Rib
Slot
The side is
buckled
This will serve as a
fulcrum
·10·
How to Use
Buckle the sewage bucket into the bod.
Pour away the remaining water in the
clean water bucke
Locking
Floating ball
Maximum water level
Automatic
Water suction
stop device
· Pour away the sewage before it exceeds the maximum
water level. If the machine continues to be used after
the sewage exceeds the maximum water level, the
floating ball will work and the suction will stop.
·11 ·

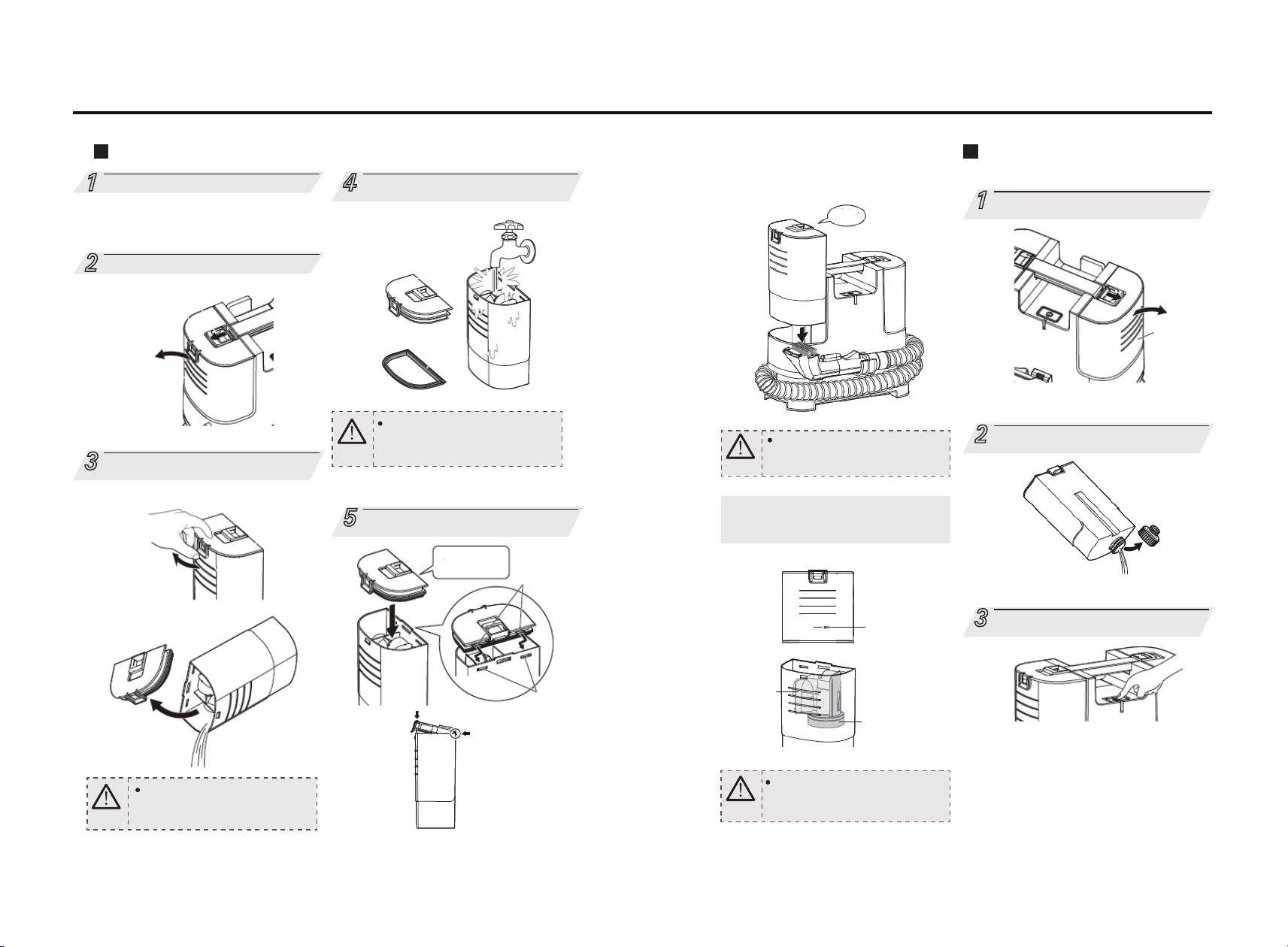

1
Turn off the power
2
Remove the sewage bucket
3
Open the upper cover of the sewage bucket and pour
away the sewage
Attention
Clean the sewage bucket in time after use,
so as not to cause bacteria and smell.
4
Clean the bucket, upper cover and sealing
strip.
5
Install the sealing ring, cover and fasten the
sewage bucket.
Attention
Do not tilt or shake the sewage bucket
when carrying it; otherwise, the sewage
will outflow easily.
1
Take out the clean water bucket in the
direction of arrow
2
Unscrew the screw cap and pour away the
remaining water
3
Install the empty bucket and then tum on
the power
Attention
Lock the sewage bucket, do not shake;
other wise, it is easy to leak and affect the
cleaning.
Attention
When the water flows into the machine,
turn off the machine and clear away the
water inside the machine, pipe and bucket.

Watering button
How to Use
·12· ·13·
Maintenance
Attention
Stop running and unplug it before
maintenance.
Do hotwater the machine to avoid electric
shock.
Do not use the detergent, diluent, benzene and
other chemical agents to cleanthe machine.
Cleaning of body
The ordinary smudges can be wiped with a damp
cloth
The stubborn dirt can be wiped with a damp cloth
with detergent and then cleaned with a dry cloth
dipped in water
Cleaning of body
After use every time
Remove them from the body, rinse thoroughly
with water and air dry
Press the
button and
pull out
Disassembly of
water sucker
Remove the front cover and then rinse the water sucker.
Disassembly of water
sucker cover
Open it with
finger and then
remove it
Transparent
water sucker
cover
Hole Water sucker cover
Pin
1 、 The pin and hole fit well
2 、 Press in until clicking sound to make sure
the installation is in place
Fastening
3 、 When cleaning the water sucker, empty
the nozzle if it is blocked.
Nozzle

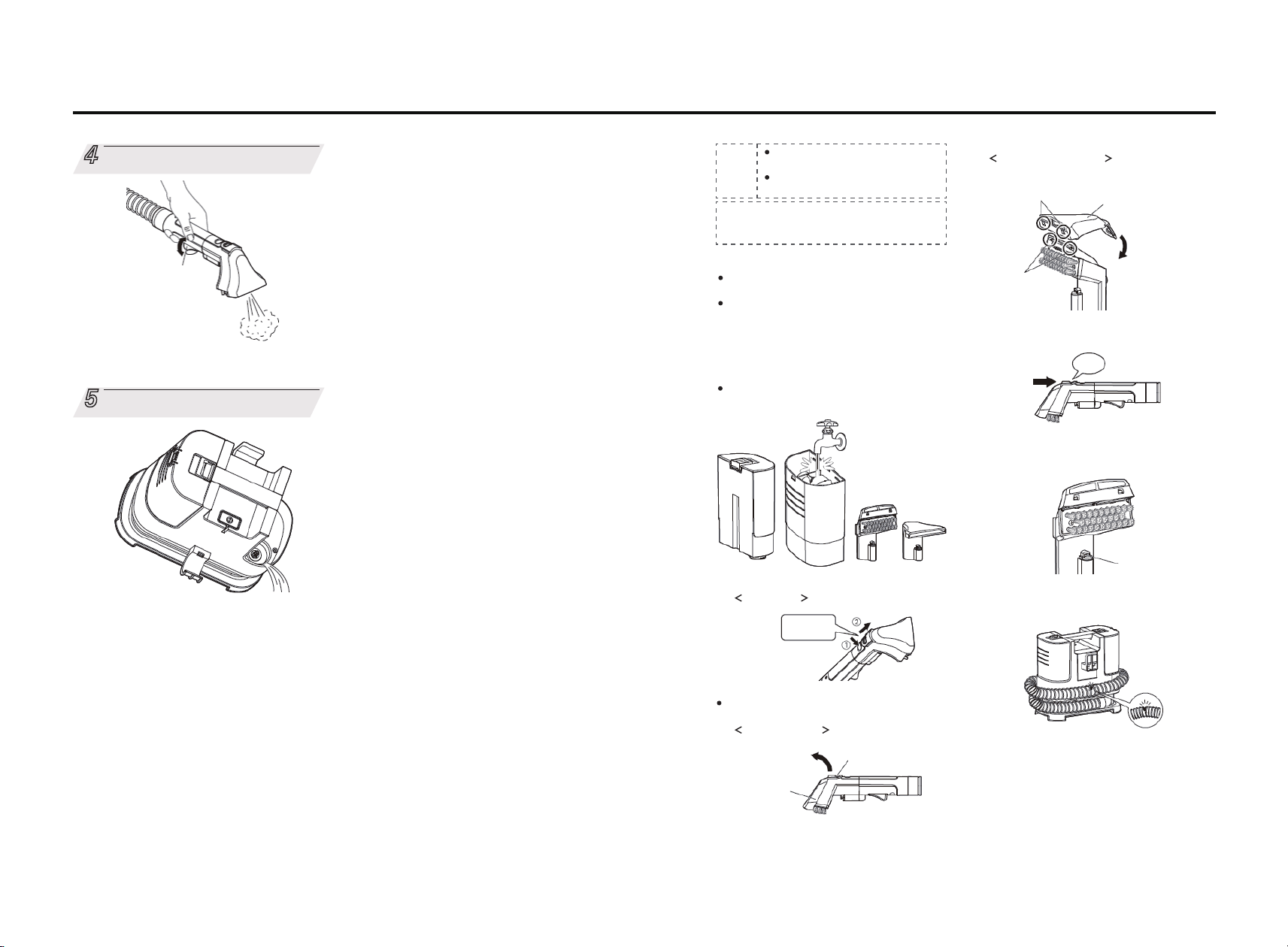

4
Press the watering button to remove the
remaining water from the machine
5
Press the watering button to remove the
remaining water from the machine
Installation of water sucker
cover
4 、 Check the hose for breakage and
leakage.

·14·

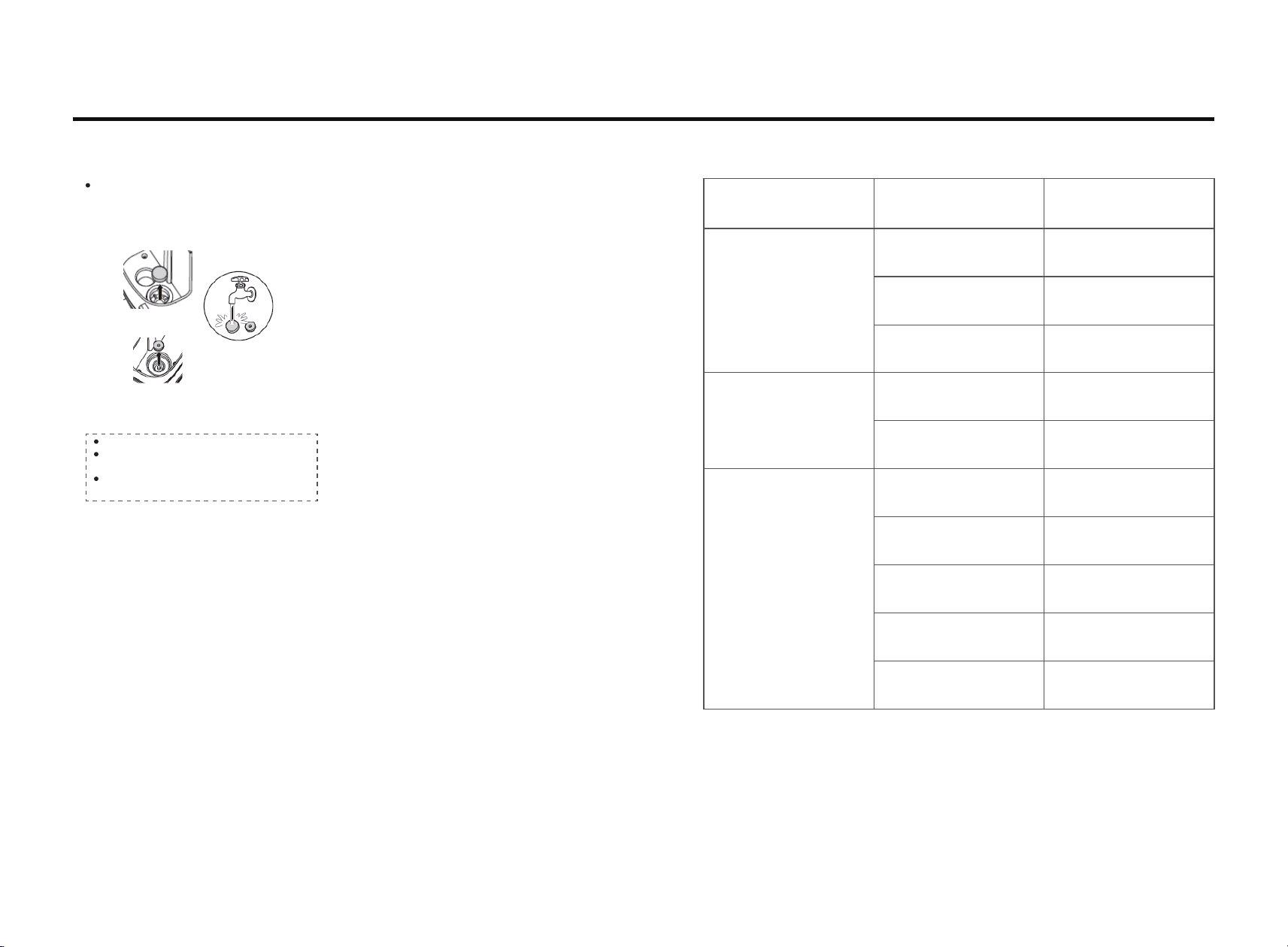

Maintenance
Cleaning of inlet air sponge and filtering
sponge
Rinse the inlet air sponge and filtering sponge
after use, and replace them if they are damaged.
Inlet air sponge.
( At the bottom of the sewage bucket )
Filtering sponge
(At the bottom of the water
bucket)
* It is more convenient
to pick up with
tweezers.
Air dry after cleaning.
Install the parts back to the machine after
maintenance.
After maintenance, keep in a dry place at room
temperature, and avoid direct sunlight.
Fault and Handling
In the event of exceptions in use, read this manual carefully and confirm the
following points before repair.
Status Fault cause analysis Handling
The machine does not
work after the switch
is turned on
The machine does not
work after the switch
is turned on
The plug is not properly connected
and loose, resulting in poor contact.
The internal line or power cord is
broken.
The machine set overheats and the
protective device operates.
Turn off the power and plug it again.
Call the repair telephone.
Refer to the instructions for protective
device.
The nozzle is blocked.
The handle or pump is damaged.
Remove the water sucker and rinse the
nozzle with clean water.
Call the repair telephone.
There is no dust
collection or the
suction is very
weak
The power switch is not turned on.
The sewage bucket is full, causing the
floating ball to work.
The hose is abnormal.
The sewage bucket is not installed
in place.
The inlet air sponge is blocked
Turn on the power switch.
Clean up the sewage and use it again.
Check the hose for cracks, breaks and
clogs.
Install the sewage bucket properly.
Clean or replace the sponge.
When we are unable to solve the problems, please consult thestore or customer service.
·15·

Alton Industry Ltd. Group
2Year Limited Warranty
This warranty covers any defects in materials or workmanship of the enclosed
product. Alton Industry Ltd. Group will repair or replace any defective materials due
to craftsmanship of the product. This warranty does not cover any problem caused
by misuse, abuse, accidents or acts of God, such as floods or hurricanes.
Consequential and incidental damages are not covered under this warranty.
Coverage terminates if you sell or otherwise transfer the ownership. If you feel you
haveadefective product, please submitacopy of your receipt to the address
below and call 1-888-899-0146 for instructions prior returning this item to the store or
sending back to:
Alton Industry Ltd. Group
643 Innovation Drive
West Chicago, IL 60185
We will inspect the product and contact you within 72 hours to give you the results
of our inspection. We reserve the right to repair or replace the product at our
discretion. However,wemay replace the product with one of similar but not exact
features. Parts and Service Information available call Alton Industry at 1-888-899-
0146. This warranty gives you specific legal rights. Youmay have other rights which
vary from state to state.
WARRANTY
·16·

版本 使用说明书-1.0
WDV01
ECOWELL
145x210(h)mm
157g铜版纸
2022-03-02
Norwin
单黑双面印刷
骑马装订
产品型号
品牌
尺寸
材质
印刷要求
日期
排版设计
