iSonic CDS-100 User manual

Digital Ultrasonic Cleaner
FEATURES
CDS-100
Stainless steel tank Tank capacity: 600 ml / 0.64 qt;
Tank size: 16.1x 8.5x 5.0 cm / 6.34” x 8.5” x 5.0”.
Longest item that can fit is 16.1 cm / 6.34”
Durable, reliable, resistant to water and
harsh chemicals
Detachable power cord
Convenient to use
Moisture-proofed PCB with
industrial IC
Capable for different working environments
with better anti-interference performance
Cooling fan
Good heat dissipation, capable for
continuous operations
Digital timer with 5 settings
Suitable for various applications
Control panel with capacitive
sensing technology
180S 300S 480S 600S 90S
CDS-100
600 ml
0.64 quart (US)
30 W (AC 100 V, 50/60 Hz)
35W ( AC 100-120 V, 50/60 Hz)
50 W (AC 220-240 V, 50/60 Hz)
8 pcs
Max.500 ml / 0.53 quart (US)
ABS
Description
Model
Tank Capacity
Tank Size
Power Supply
Digital Timer Settings
Ultrasonic Frequency
Tank Material
Housing Material
Net Weight
Gross Weight
Unit Size
Inner Carton Size
Qty per Master Carton
Master Carton Size
Digital Ultrasonic Cleaner
Stainless Steel SUS304

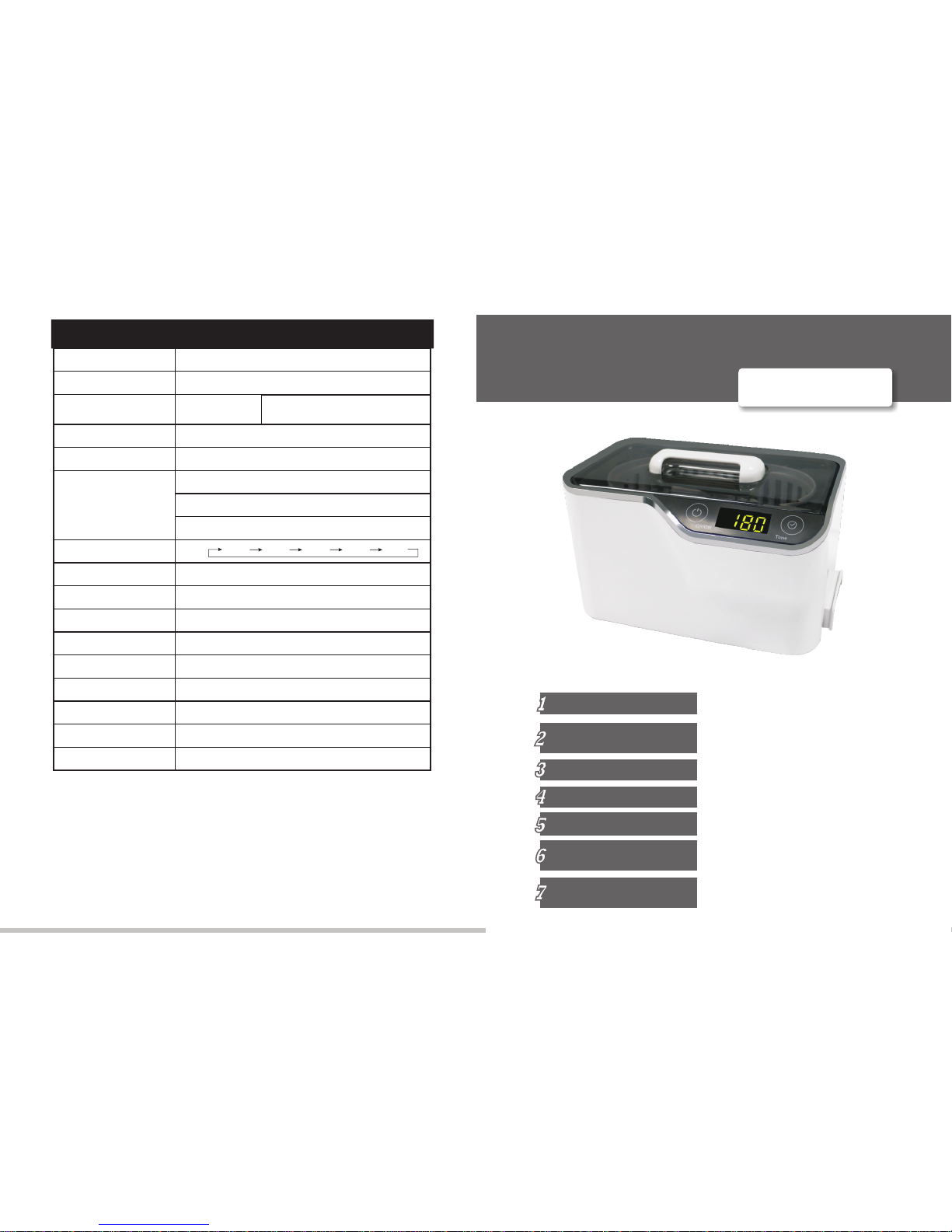

SPECIFICATIONS
Longest Item Fits
inside Tank
16.1x8.5x5.0 cm / 6.34 x3.35 x1.97” ” ”
16.1 cm / 6.34”
42,000 Hz
0.98 kg / 2.16 lb
1.23 kg / 2.72 lb
20.4x14.0x13.0 cm / 8.04” x 5.52” x 5.12”
23.8x16.7x16.1cm / 9.37” x 6.58” x 6.34”
49.2x36.0x34.2cm / 19.4 x14.2”x13.5” ”
12
USER MANUAL
Ultrasonic frequency
42,000Hz
Quiet, Effcient

The manual should be carefully reviewed before starting to use the device.
Warnings should be observed carefully. Please follow the manual for operations.
INTRODUCTION
Read the Manual First
目 录
Principles of ultrasonic cleaning:
Millions of tiny air bubbles are generated inside the liquid by high frequency vibration.
The air bubbles bust inside the liquid and shake off the debris to achieve the cleaning
effect.
Use tap water. Chemical solutions are unnecessary in most cases.
Main Features
600 ml / 0.64 qt; 16.1x8.5x5.0 cm/6.34"x3.35"x1.97"，
16.1 cm / 6.34"
Tank capacity: Size:
Longest item that can fit inside the tank is
Control panel with capacitive sensing technology. Durable, reliable, resistant to
water and harsh chemicals .
Digital timer with 5 settings, suitable for different applications
Industrial grade IC, moisture-proofed PCB and cooling fan. Improved product durability.
Detachable power cord, convenient to use.
Safety Precautions
Items Not Suitable for Ultrasonic Cleaning ----------------------------2
Applications ------------------------------------------------3
Sample Applications -------------------------------------------4
Product Exploded View ---------------------------------------5/6
Dirt Elimination Processes---------------------------------------7
Product Structure and Accessories ---------------------------------7
Common Cleaning Methods --------------------------------------8
Use of Optional Accessories --------------------------------------8
Operation Guidelines ----------------------------------------9/10
Care and Maintenance -----------------------------------------11
Specifications ----------------------------------------------12
-------------------------------------------½
CARE AND MAINTENANCE
MAX
MAX
MAX
11
Do not turn on the unit without water in the tank.
If it is turned on for over 30 seconds without water in the
tank, it may damage the unit or severely reduce the life
of the unit.
Do not run the unit for extended time or continuously.
Do not run the unit continuously for over 30 minutes. Stop
for about 10 minutes in between to prolong the life of the
unit.
Do not keep water in the cleaning tank for a long time.
After cleaning is completed, unplug the power cord then pour
the water out through the pouring recess. Avoid getting the
water inside the housing through the vents and causing
damage.
Do not spray water over the housing.
Use a towel to wipe the tank and the housing.
Do not expose the unit under direct sun shine for long.
Keep the unit in a dry, cool and ventilated area.
Purified water or distilled water has the same cleaning effect as regular tap
water for ultrasonic cleaning. Therefore using tap water is sufficient.
When cleaning silver or copper items where oxidation has darkened the items,
special solutions need to be added to the water to remove the oxidation.

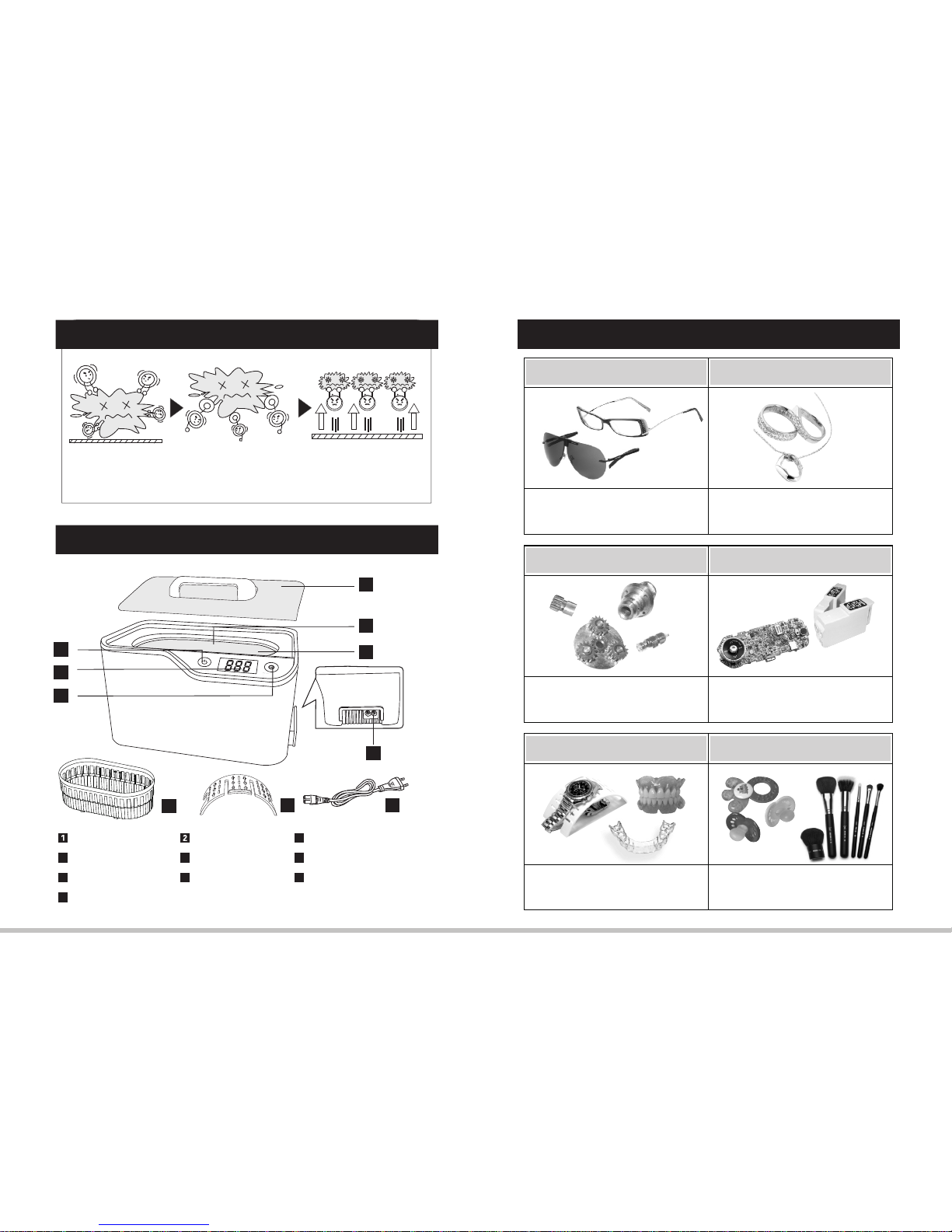

USE OF OPTIONAL ACCESSORIES

110
If you need to end the process ahead of time, press
"On/Off" button. If you need to repeat the cycle or
increase the time, press Time button to select desired
time then press "On/Off" button again to restart it.
Store the unit in a cool and dry place.
MAX
Important! Long cycle time will cause heat to build up inside the unit and water
temperature to rise. Do not use the unit for more than 30 minutes continuously.
Take a 10-minute break in between to prolong the life of the unit.
When cleaning is done, unplug the power cord, remove the lid,
pour water out in the direction shown. Wipe it clean.
Do not pour water over the power socket. If it's wet, stop using
and wait until it is dry.

2
9
Remove the lid, place the object to be cleaned inside the
basket then in the stainless steel tank.
Fill the tank with tap water.
The liquid must cover the object to be cleaned, but not
exceed "MAX" line.
Put the lid on, plug in the power cord.
- 180 appears in the display window.
- This is the default time and is good for normal cleaning.
When the timer counts down to zero, the cleaning process
stops automatically and the display shows 000.

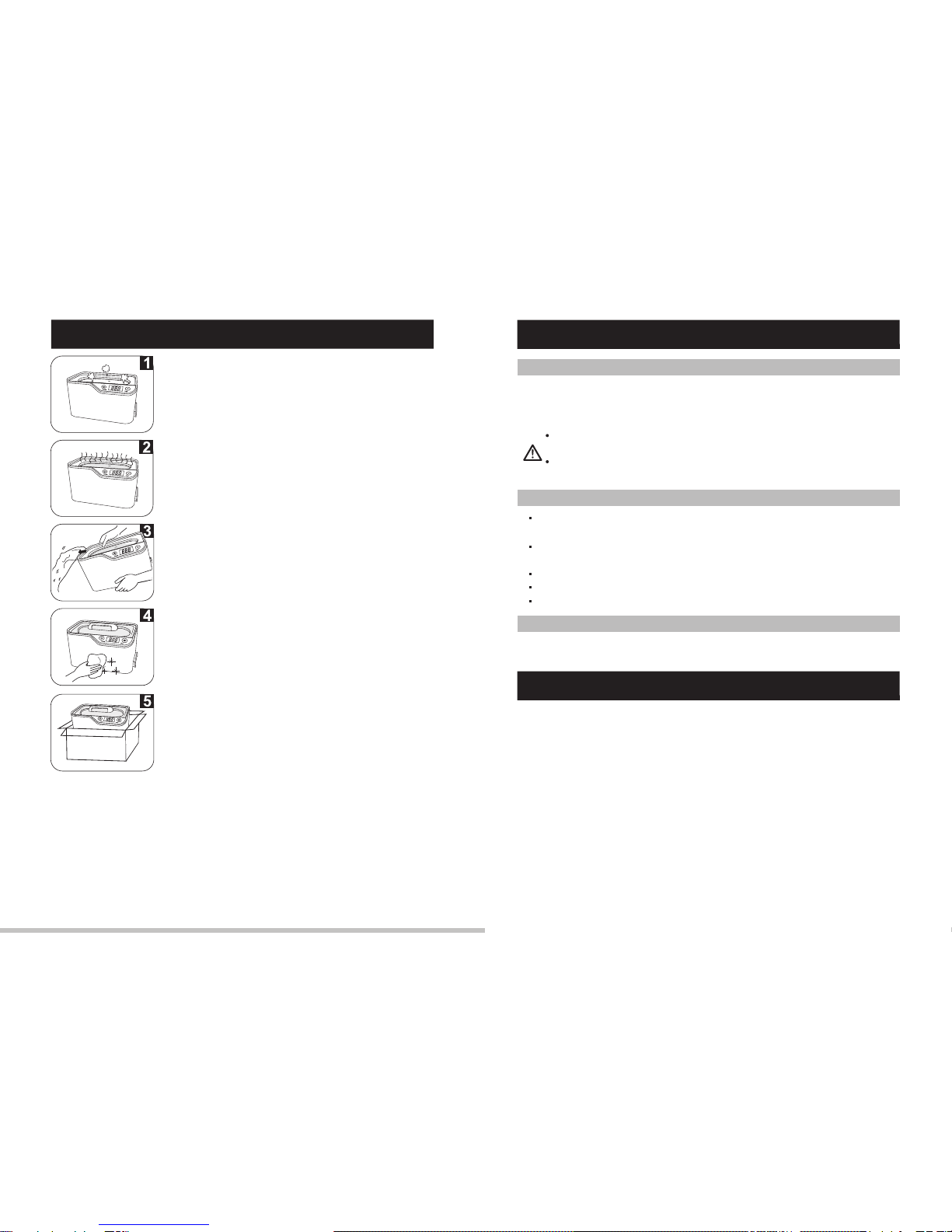

OPERATION GUIDELINES
Select desired time setting by pressing Time button:
180S 300S 480S 600S 90S
MAX
MAX
MAX
Note: Put small and delicate items with sharp edges into plastic
basket for cleaning to avoid scratches. Basket will absorb about
30%~40% of ultrasonic energy hence reduce cleaning
effectiveness.
Press button to start the cleaning process.
The timer starts to count down to zero.
"On/Off"
Note: You’ll hear buzzing sound which is normal.

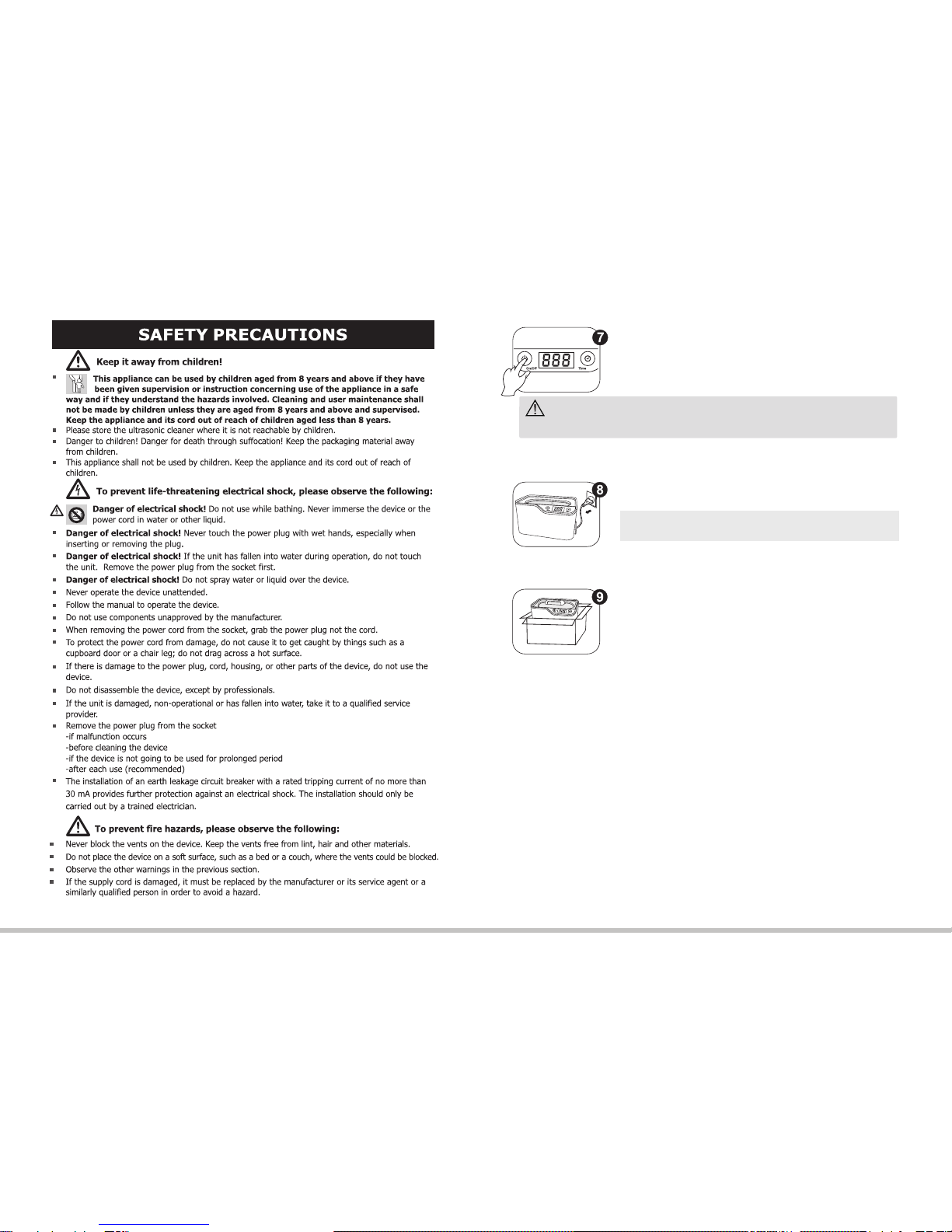

SAFETY PRECAUTIONS
Other observations:
Do not operate the product without filling the tank with water. Running dry will damage the unit.
Do not plug in the power cord before adding water to the tank. Do not fill the tank
line to avoid overspill.
above the Max
Do not use solution containing abrasive substances or strong corrosive chemical solution
recommended by the manufacturer or the supplier.
not
Place the device on a dry and flat surface for operation.
When the device is subjected to severe electromagnetic interference, it may malfunction,
operating or lose control functions. If this happens, unplug the power cord then reinsert it to
restart the device.
stop
Read all the instructions before using the appliance.
To reduce the risk of injury, close supervision is necessary when an appliance is used near children.
Only use attachments recommended or sold by the manufacturer.
Do not use outdoors.
To disconnect, turn all controls to the off (O) position, then remove plug from outlet. Do not
unplug by pulling on cord. To unplug, grasp the plug, not the cord. Unplug from outlet when not
in use and before servicing or cleaning.
To reduce the risk of electrical shock, do not put the appliance in water or other liquid. Do not
place or store appliance where it can fall or be pulled into a tub or sink.
All servicing of this product, including transducer replacement, is to be conducted by qualified
service personnel.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or
is dropped or damaged in any manner.
Return appliance to the nearest authorized service facility for examination, repair, or electrical or
mechanical adjustment.
IMPORTANT SAFETY INSTRUCTIONS
When using electric appliances, basic precautions should always be followed,
including the following :
ITEMS NOT SUITABLE FOR ULTRASONIC CLEANING
Soft Jewelry:
Pearls, emerald, ivory, coral, agate,
sea turtle shells, etc
These items are not hard, so scratches may occur
during cleaning.
Welded, Plated and Glued Items:
Welded or plated metal items, glued
items
Ultrasonic cleaning may enlarge the gaps inside
the welded joints, plated coating or glued items
and may cause separation.
Watches:
Except diver's watches with depth
rating over 50 m (150 ft) .
Because the strong penetration capability of the
ultrasonic waves, water may get into the watches
if they are not truly waterproof. Use the watch
stand supplied as a precaution if not sure.
Others:
Wood; coated glass, ceramic, camera
filters with preexisting cracks.
Ultrasonic cleaning may enlarge the cracks
pre-existed in the coating on the glasses, ceramic,
and glass. If the items have no pre-existing cracks,
then it is okay.
Dry burning over 30 seconds will reduce the lifespan of
machine, when the tank is empty without water. What’s worse, it
will damage the machine it self some times.

38
COMMON CLEANING METHODS
2
1
USE OF OPTIONAL ACCESSORIES
MAX
MAX
MAX

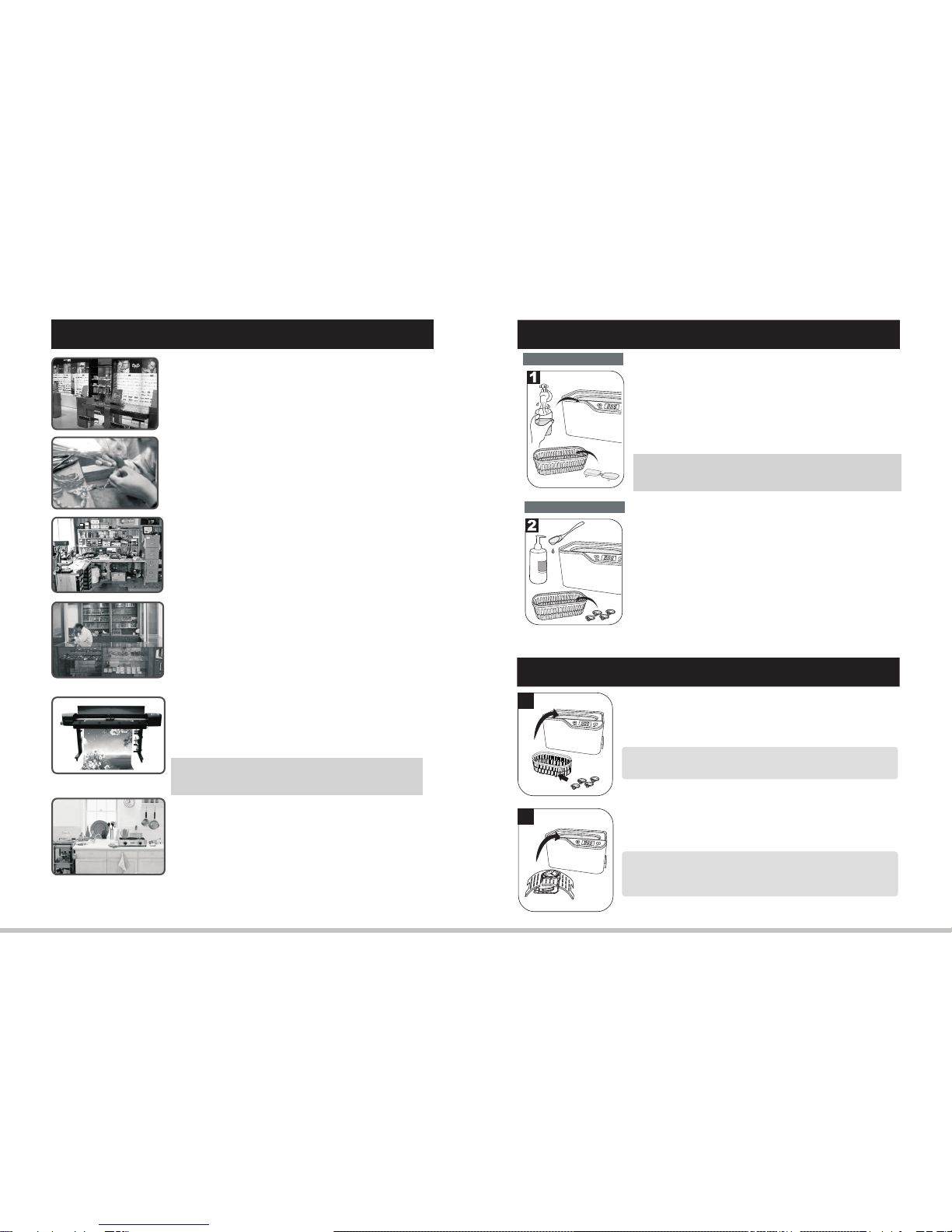

APPLICATIONS
Optical Stores:
Optical stores can use ultrasonic cleaners to provide valuable
services. Use ultrasonic cleaner and tap water to remove the
debris on the lenses, hidden in the rims and nose pads so the
eye wear gets professional cleaning and care.
Homes:
Children and baby items: Debris left in small holes and
crevices are difficult to clean by regular means. Bacteria and
mold can develop at these locations. Ultrasonic cleaners can
remove the debris and be combined with disinfection to
achieve true cleaning.
Eyewear, watch bands, shavers, razors and other household items: Ultrasonic cleaners
can be used to clean the debris between the rim and the lenses on eyewear, between razor
blades, and on the metal mesh of shavers to keep the blades sharp.
Jewelry Stores:
Jewelry stores can use ultrasonic cleaners to expand services.
Jewelry such as necklaces, diamond rings, rings, earrings can
be cleaned with tap water to recover shine.
Mobile Phone and Electronics Service Shops
PCB renewal: Non-operational electronics, after falling into
water, or non-operational key pads can be cleaned with
ultrasonic cleaners and pure alcohol to recover the functions.
Watch Service Shops
Precision parts cleaning: Put small parts in a beaker made of
stainless steel or glass filled with lubricant oil, then place the
beaker inside the cleaning tank and add water. Ultrasonic
waves will penetrate the beaker and act on the parts to make
them clean.
Printing Shops
Unblocking dried printer heads or ink cartridges:
Large printers and inkjet printers often have dried printer
heads or ink cartridges ports. Replacing them with new ones
is very costly. Adding acetone or special cleaning solution and
using an ultrasonic cleaner with a couple of minutes of
cleaning will remove the blockage and make them usable again.
Avoid acetone from contacting the plastic housing to prevent
corrosion. Use Indirect Cleaning explained later and a glass or
metal container for acetone.
REGULAR CLEANING
Use tap water only
Cleaning Method:
1. Put the items to be cleaned inside the basket and put the basket
inside the tank (or put the items inside the tank directly ).
2. Add water to the cleaning tank to a level between "MIN" and
"MAX" lines and above the area to be cleaned.
3. Press On/Off button to start cleaning.
Select desired
time setting by pressing Time button.
" "
Note: During cleaning, dirt will come off like smoke and the
water will become murky over time. When "smoke" stops coming,
the cleaning is basically done.
ENHANCED CLEANING
Add appropriate cleaning solutions to water
Cleaning solution can be added to enhance cleaning. Dish
detergent can be used in general.
Typical mixing ratio is one part of solution to ten parts of
water. Once it's done, run it with water only for another 90
seconds to remove residual cleaning solution.
BASKET
Use the basket to clean small and delicate items. Ensure items
not touching each other if cleaning multiple and delicate items.
WATCH STAND
Use the watch stand to keep watch body above water while
cleaning wristband.
Note: Plastic basket absorbs about 30% to 40% of ultrasonic
energy hence reduces cleaning effectiveness.
Important: For diver's watch with depth less than 50 m (150 ft),
water may get inside if watch body is submerged in the water
using an ultrasonic cleaner.

4
7
PRODUCT STRUCTURE AND ACCESSORIES
DIRT ELIMINATION PROCESSES
810
MAX
1
2
MAX
7
4
5
6
3
VIEWING WINDOW "MAX"MARK STAINLESS STEEL TANK
3
TIMER BUTTON
6
ON/OFF BUTTON
4DIGITAL DISPLAY
5
9
POWER SOCKET
7WATCH STAND
9
PLASTIC BASKET
8
POWER CORD
10
Eyeglasses, sunglasses, etc. Necklaces, rings,
earrings, bracelets, etc.
Jewelry
Precision Parts
Watch bands, diver’s watches,
braces etc.dentures, , shaver heads,
Toys, baby items,
cosmetic products, etc.
PCB, Inkjet Cartridges
PCBs from mobile phones
and MP4, ink cartridges, etc.
Personal Items
SAMPLE APPLICATIONS
Children and Baby Item
Cosmetic products
Eyeglasses
Precision bearings, gears and
watch parts, etc.
The dirt splits into tiny
particles thus separating
from the item.
Bubble are imploded
constantly under the
ultrasonic.
Many tiny bubbles are
created when ultrasonic
sound is passed through
liquid.

PRODUCT EXPLODED VIEW
56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
CDS-100
18
Lid handle
Lid-window
Top ring
ABS
AS
ABS
Type O sealing ring
Silicon seal
Standard part
Standard part
Standard part
Stainless steel tank
SUS304
Mini power PCB
Power socket
Water baffle
Inner tank
Main PCB
Main housing
Rubber grommets
cooling fan casing
Cooling fan
Cover film
Control panel cover
Control PCB
ABS
ABS
ABS
Silicone rubber
ABS
Standard part
PMMA
PC
94V
0
94V
Item
No.Material
94V
0
94V
94V
0
94V
