ecozone Super ActivO User manual

Environmentally activated by
Super ActivOTM
User Manual
for Europe
2014

Page | 2
2
User Manual
Table of contents
Unpacking…………………………………………………….………………..2
General Information ……………………………………………………….…3
Declaration ofConformity…….………………………………………….......4
Safety Precautions & Warnings……………………………………………...4

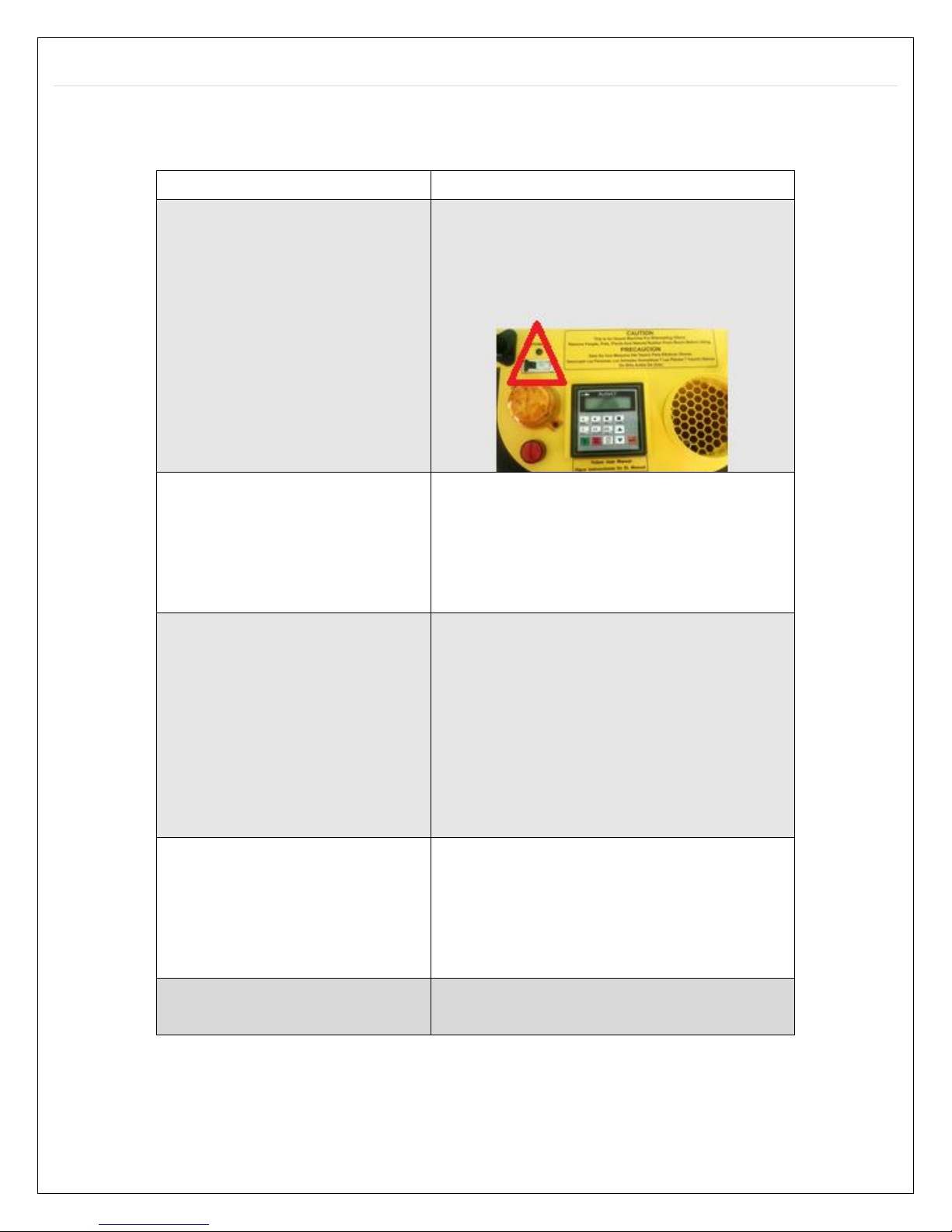

The Super ActivO control panel and other indicators……………………..5
Technical Specifications………………………………………………………6
Operation………………………………………………………………………7
Controller settings…………………….…………………………..……...........8
Activation, Deactivation and Total Operating Time……….………… …..13
Maintenance and Service……………………………………………….…....14
Troubleshooting………………………………………...…………….………18
Warranty…………………………………………………………….………..19
UNPACKING
PLEASE SEE OUR UNPACKING VIDEO PROCEDURE AT:
http://ecozone-technologies.com/Products/MobileGenerators/SuperActivO.aspx
ŒOpen top flaps of carton. Gentlyplace carton on its side.
Lift unit up slightlyand then pull out byrollingonits wheels.
•Place handle on top panel and fasten 3hexscrews on each side.

Page | 3
3
1. General Information
Ecozone’s Super ActivO is amobile and easy-to-use deodorizingsystemfor indoor use. This
robust, computer controlled and automatic systemis characterized byhighsafetystandards. The
system incorporates ECOZONE'sunique ADA system,adouble-stageoperatingcyclethat
creates ozone andsubsequentlyremoves it, allowingtheimmediate reoccupation oftreated
spaces.
Inthe first stage the roomis enriched with ozone (generated from the air usingEcozone’s multi-
patented technology)at aparticularlyhighrate inorder to reach homogeneous conditions and a
highconcentration levelwithin the shortest possible time. Inthe second stage, anyafter-
treatment residual ozone is decomposed into oxygen, so as to leave the treated room well within
the regulated levels.
2. Declaration of Conformity
Model No. POCS-500 (POCS= Portable Odour Control System)
This unit fullycomplies with CE &FCC rules of EMC regulations.
EN 61000-61, EN 61000-62, EN 61010-1, EN 5501 EMC, FCC Part 15
Safetyof Low VoltageDirective 73/23/EEC as Amended: EN 61010-1.

Page | 4
4
1 2 3
Safety Precautions& Warnings
Read this manual carefullybefore operatingthe unit.
Do not expose this equipment to rain or moisture. Should anyliquid
come into contact with the system, unplugit and have it serviced by
qualified personnel before operatingit further.
Unplugthe system power plugwhen it is not in use.
When unplugging, never pull the plugbythe cord itself.
DO NOT enter the treated room duringthe operation of the system,
or before hearingthe completion-of-cycle audio alert-signal.
This system is equipped with a ventilation inlet and a ventilation outlet.
DO NOT BLOCK inlet/outlet or place foreign objects in their vicinitywhich may
block air flow. Place unit in the CENTER of the room.
DO NOT disconnect cable cord from mains socket
before the operation ofthe system is completed.
This unit is supplied with a earthed cable.
Attempting to bypass the earth or to connect
the unit to an un earthed socket is strictly prohibited.
Under no circumstances should the unit be operated
with the front panel grill loose or missing.
Prior to removing the grill for maintenance, always
disconnect the unit frompower.
AVOID ELECTRICAL SHOCK
There areno userserviceable parts inside theSuper ActivO; removal ofback
panel byunauthorized personnel will result in voiding the WARRANTY!

Page | 5
5
3. Technical Specifications
5.1 Description
The Super ActivO system is a portable high-dutyand rugged system.
It features the most advanced technologyin the field of odour-
control and air-treatment. The Super ActivO employs Ecozone’s
state-of-the-art and patented Singlet Unit which is characterized
byrelativelyhighactivation rate and enhanced reliability.
5.2 Technical Specifications:
Input Voltage: 230V; 50Hz
Air Flow-Rate: 450 m³/h.
Ozone output: 12g/h (12,000 mg/h)
Operation: FullyAutomatic Activation &Deactivation Cycles.
Cycle time: Minimum 15 minutes, Maximum 48 hours.
With special input code: 72 hours, ozone generation only
Control: Digital keyboard
Display: LCD, 16 Digits.
Safety: Circuit breaker 5A
Amber FlashingLight Indicator (Super ActivO in operation)
Red Fault Indicator
Buzzer Alarm (operation has begun; operation has ended)
Differential Pressure Regulator (air flow obstructed)
Door Interlock (front panel not closed)
Dimensions: 50 x40 x100 cm, with handle attached
66 x53 x94 cm, packed for shipping, handle detached
Ozone outlet duct: 4diameter
Weight: 34 kg; packed for shipment 40 kg
Enclosure: Metal and ABS
Wheels: leave no tracks
LowEM Noise.
Certification: CE & FCC

Page | 6
6
5.3 Normal Environmental Conditions:
Indoor use only
Temperature: -5 ºC to 40 ºC
Humidity: maximum relative humidity: 95%;
ECOZONE Technologies has apolicyofcontinuous product improvement and reservesthe right
to modify or change thisspecification at any time without notice.

Page | 7
7
4. Operation
BEFORE TURNING ON YOUR ACTIVO PLEASE SEE OUR
OPERATION VIDEO AT:
http://ecozone-technologies.com/Products/MobileGenerators/ActivOVideos.aspx
Preparation and Connections
‹Connect power cordto socket on Super ActivO’s rear panel (bottom)
and onlythen connect it to the power source socket.
OZONE IS A POWERFULOXIDIZER. USE THIS EQUIPMENT WITH CARE
ONLY IN UNINHABITED AREAS CONTAININGNO PETS, PLANTS, NATURAL
RUBBER OR COMPOUNDS CONTAININGNATURAL RUBBER. READ ALL
OPERATINGINSTRUCTIONS BEFORE USINGTHIS MACHINE.
RE-OCCUPY TREATED ROOMONLY AFTER PRESETOPERATING TIMEHAS
ELAPSED AND THE AMBER FLASHINGLIGHTHAS STOPPED FLASHING
INDICATINGTHAT THE MACHINE IS NO LONGER IN OPERATION.
DO NOT ATTEMPT TO ENTER THE ROOMWHILE MACHINE
CAUTION

Page | 8
8
¡
¢
¾
6.1 Controller settings
ŒPress the ‘STOP’ (Red) button to Reset.
STOP / RESET
The displaywill present a code followed bythe alternating
prompt: Ready and SetRoomSize.
•Select ‘Room Size’ bypressingthe respective keypad button.
Note: You maychoose between the following4 room sizes:
Small; for room volumes below 30m3.
Medium; for room volumes between 30m3and 60m3.
Large; for room volumes between 60m3and 120m3.
X-Large; for room volumes from 120m3to 500m3
O

Page | 9
9
The displaywill now prompt: Set Time
ŽSelect the Short/Intermediate/Long time cycle bypressing
the respective button on keypad.
Short Cycle-Time (Light odor)
Intermediate Cycle-Time (Average odor)
LongCycle-Time(Strong odour)
•Refine Time setting (optional) bypressingthe Up or Down blue-arrow
buttons to extend or to shorten the operationcycle time, respectively.
Please refer to reference chart on page-13.
Up - to extend cycle-time
Down - to shorten cycle-time
6
66
666
Note: Select length of cycle to
correspond

Page | 10
10
Note: Time is indicated on LCD in hours and minutes.
h=hours and m=minutes.
For example 3 hours and 20 minutes would be indicated so:
3 h 20 m

Page | 11
11
•Press green (I) button for START.
EXAMPLES OF USE OF ITEMS CONTAINING NATURAL RUBBER
Items made of natural rubber (gum) are manyanddiffer in their rubber content; the more rubber content, the
greater their susceptibilityto degradation byozone.
Amongthe common items that maycontain natural rubber are computer keyboards (rubber under the keys),
floor squeegees, tubes (for bicycles), crepe soles (for shoes), rubber bands (various), gloves ('Latex'), smoked
sheets, underlay,and more. The common sense rule: when in doubt about whether the itemcontains
natural rubber remove the itembefore treating the space. Or alternatively, smear the item’s surface
with Vaseline or equivalent before exposing it to ozone.
Before starting operation verify that thetreated area has
been vacated of people, animals, plants and items
containing natural rubber
CAUTION

Page | 12
12
Important!
The systemwill begin generationof ozoneafter a
60 second delayin order to allow you to leave the
room.
START Operation
Place unit in CENTER of room. When treating smaller rooms you
do not need to use air movers in order to circulate ozone since
your Super ActivO sendsozone at a high rate of 265 CFM to the ceiling
where it spreads out and drifts downward to cover all surfaces.
Note: If treating a crawl space attach 4” diameter ducting to Super ActivO
Outlet (page 5). When using Super ActivO in this manner there will be no
ozone deactivation. However ozone in the crawl space will
deactivate naturally, typicallyin 3-6 hours.
The displaywill prompt you to ‘Get Out of Room’ and the amber
"Hazard" light will begin flashing.
‘You must leave theroomimmediately.Windowsand
doors should be closed to prevent ozone leakage.
’Outside the room youwill hear aprolonged audioalert-signal
indicatingthat ozone generation has begun.
I
Remaininginthe treated areawhileunitisin operation or
entering before completion of cycle may be hazardousto your
health.

Page | 13
13
“After the full operation cycleis completed includingremoval of the
ozone, you will heara secondaudioalert-signal indicatingthat
operation is completed.
”Upon enteringthe treated room, the displayshould read:
Operation Complete and the amber light should have stopped
flashing.
•Afterthe operation has endedand before moving the machine
elsewhere,
be sure to disconnect the power cord from the power socket.
STOP/ RESET
O
CAUTION
In the event indications donot correspond totheabove,
leave the roomimmediately and call for ECOZONE service.
If at any time you need to reset the keyboard settings
press:
STOP button (red O) on keypad.
ATTENTION!

Page | 14
14
Activation, Deactivation and Total Operating
Times
Generation Time = G
Decomposition = D
Total Cycle Time = T
Inter =Intermediate Default Default Default
Short Inter Long
Time (minutes) G D T G D T G D T
Room Volume
Small(<30m3) 2 11 15 25 18 45 118 60 180
Medium (30-60m3) 6 22 30 34 24 60 268 90 360
Large (60-120m3) 20 38 60 126 52 180 1318 120 1440
X-Large (>120m3) 178 120 300 598 120 720 2698 180 2880
Keyboard Controlled Maximum Change From Default Time
Up Up Down
Short Inter Long
Time (minutes) G D T G D T G D T
Room Volume
Small(<30m3) 17 11 30 70 18 90 28 60 90
Medium (30-60m3) 21 22 45 154 24 180 88 90 180
Large (60-120m3) 50 38 90 666 52 720 598 120 720
X-Large (>120m3) 238 120 360 1318 120 1440 1258 180 1440

Page | 15
15
5. Maintenance and Service
Maintenance ofyour Super ActivO is requiredevery500 hours in order to insure trouble-free
performance.The SuperActivO keyboard will displaya message indicatingthat 500hours of operation
have been reached bydisplaying ‘Needs Service’.
Ifyou have a ‘good pair of hands’ and follow these instructions carefully,this procedure should take you
about 1 hour. We recommend first watching our video demonstration ofthe ActivO maintenance
procedure:
http://ecozone-technologies.com/Products/MobileGenerators/ActivOVideos.aspx
CAUTION - DISCONNECT POWER FROM THE SUPER ACTIVO BEFORE BEGINNING
Step 1 Clean Dust Filter (picture at bottomofthis page)
a. Remove black front grill panel byunscrewing6 screws. Whatyou will
then see is shown in the picture below (FigA).
b. Loosen 6 screws in frame around dust filter (#25) so you can slide filter out.
Do not remove the earth cable connected to the grill.
Figure A

Page | 16
16

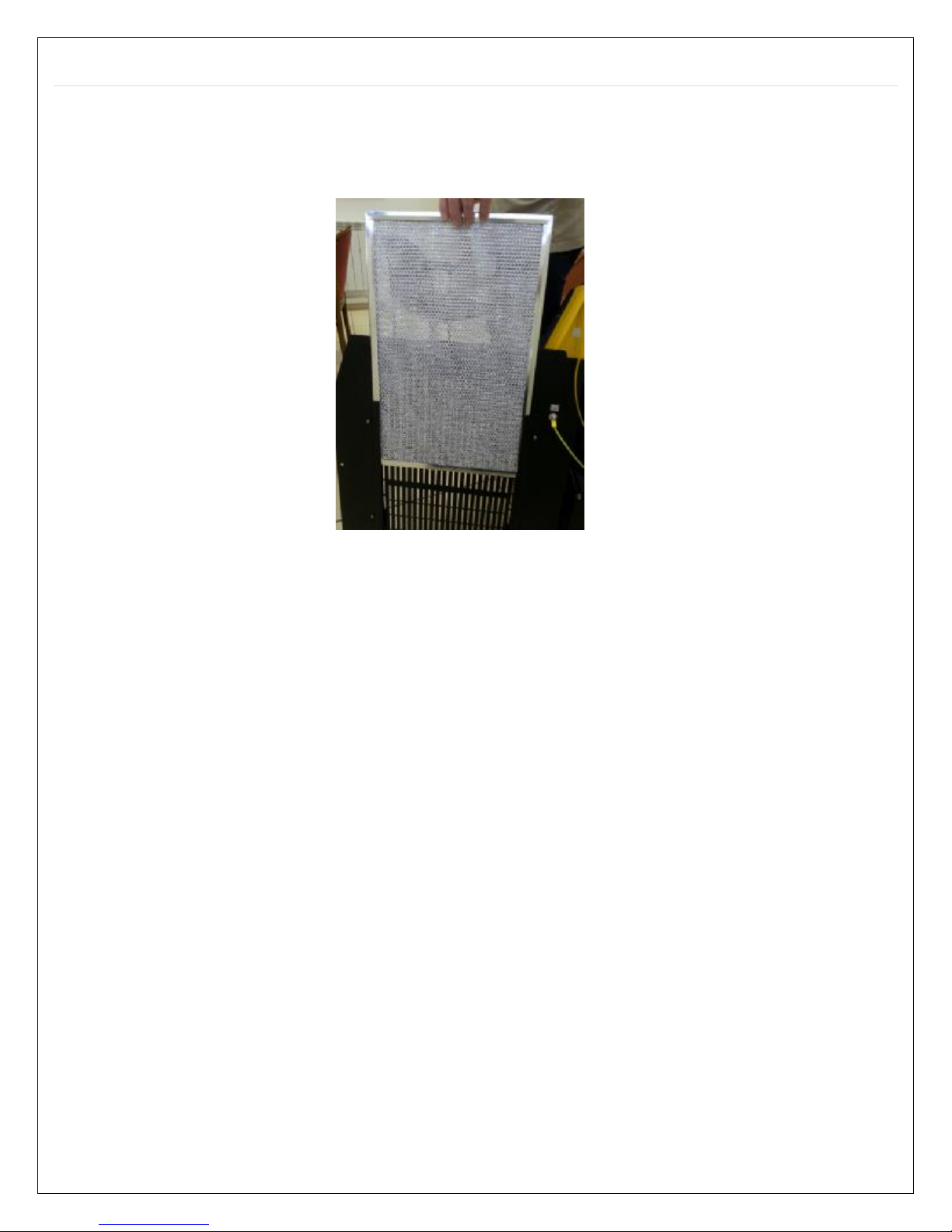

c. Gentlyslide filter up andout of its frame (FigBbelow)
Figure B
d. Place the filter under warm tap water and washout dust. It is ok to use a mild liquid soap if
needed to loosen the dust. Rinse and dry(ok to use hair dryer).
e. Slide Dust Filter back into its frame and retighten loosened screws.
Continued Next Page

Page | 17
17

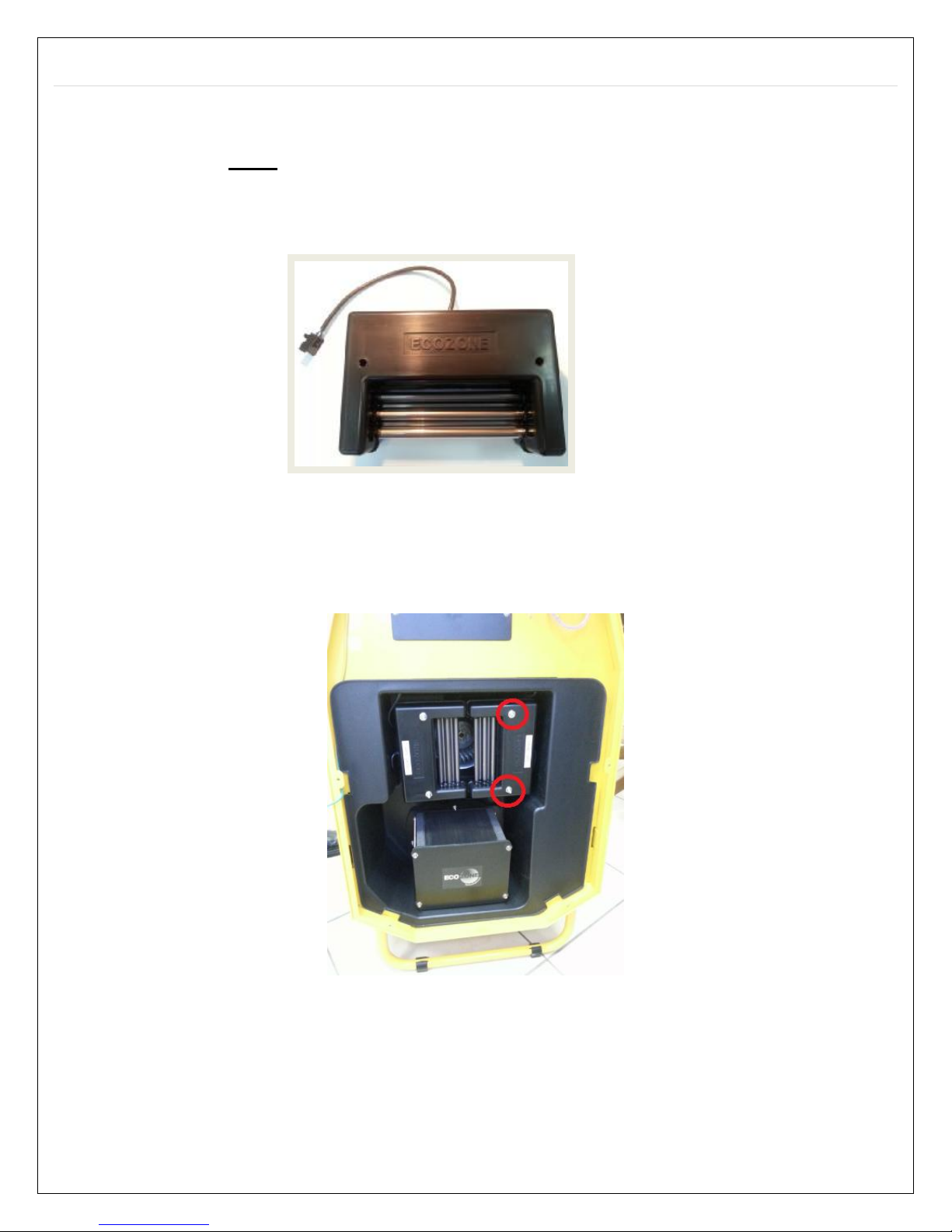

Step 2 Clean Ozone Generating Cores (Singlets)
a. There are two (2) Singlets to remove and clean.
Figure C Singlet Core
Theyare located side byside:
Figure D
b. Pull out the electrical cable of the Singlet core on the right side of Figure D and disconnect its
electrical connector. (Video is veryhelpful)
c. Unscrew the 2nuts holdingthe Singlet unit (red circles above).

Page | 18
18
d. Gentlypull out the Singlet in parallel motion from its supportingscrews. Be careful not to touch
or scratch theglass tubes.

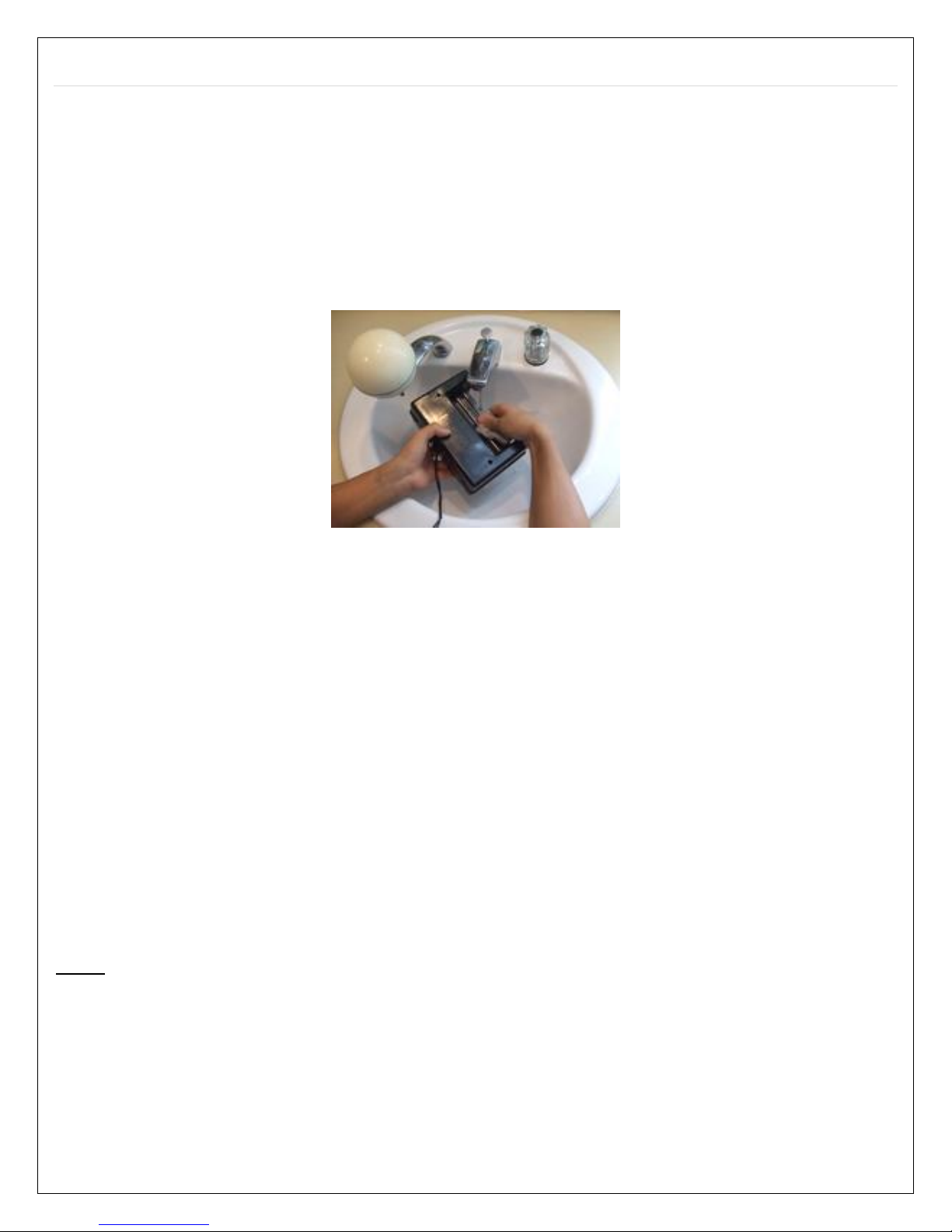

e. Clean the Singlet core under warm tap water, especiallythe gaps between the tubes.
You mayuse a soft brush to remove anyaccumulated dirt.
Use care not to wet the electrical connector.
f. Repeat the same procedure above for the second Singlet core on the left side of FigD.
g. Dryingmaybe done usinga soft towel or in air.
h. Re-mount each Singlet coreon its leadingscrews –slide in parallel. Be sure to re-insertSinglets so
that the 3 tubes are on the side facing you as shown in Figure C
i. Re-attach the electrical connector to each Singlet core
Be sure the connectors are dry.
j. Re-screw the two nuts onto each Singlet supportingscrew..
Step 3 Close black front grill panel
a. Replace the front grill makingsure the dust filter is on the inside of the unit.
Make sure the earth cable to the grillis completely inside the unit.
b. Re-screw the 6 screws around the frame of the panel.

Page | 19
19
6. Troubleshooting
Problem Possible Solution
Display is blank and keypad
does not function.
Check power cord connections.
Make sure the overloadswitch isflipped to
the right side and the green light indicator
above it is ON (see red triangle below).
Display prompts "Ready"but
keypad does not function. ŒDisconnect and reconnect power cord. •Wait for "Ready" prompt.
ŽPress STOP button (red) on keypad.
•Press hard RESET button (yellow)
on keypad.
Red light (fault indication)is
'ON'and the display indicates
one of the following fault
codes:
a. "AL: Presso-Stat"
b. "AL: Micro-Switch"
ŒMake note of fault code indicated on the
display.
•Disconnect power cord.
ŽCALL ECOZONE service.
Display shows:
“NeedsService”
This notification will appear every500hours
of use.
Upon notification, please referto Section 6
above, page 15.
Other Call local ECOZONE distributor for technical
support.

Page | 20
20
7. Warranty
WARRANTY
ECOZONE warrants to the original retail purchaser or licenseeof the Super ActivO (“Purchaser”) that the
Super ActivO will conform to and perform in accordancewith the published technical specifications and any
accompanyingwritten materials supplied byECOZONE andwill befreefrom defects in materials and
workmanship under normal use and conditions for the applicable warrantyperiod indicated below. This
warrantydoes not extend to Super ActivO’s thathave been subject to misuse, accident, exposure to corrosive
substances, tamperingoruse in amanner not approved byECOZONE in writing.The Ozone FilteringUnit
(shown in the picture on page 18 as #17) is a consumable and is expresslyexcluded from this warranty.
Warranty period is 1 year, commencing on the date ofpurchase.
Under this warranty,Purchasermust first returnthe SuperActivO to ECOZONE, togetherwith proof of
purchase from an authorized dealer of ECOZONE(a “Dealer”), either directly,orthroughthe Dealer from
whom Purchaserpurchased the SuperActivO,for examination byECOZONE of entitlement under the terms of
this warranty.All shipping,handling,travel, service call and/or otherincidental and/or relatedcharges are fully
payable byPurchaser onlyand are not included in this warranty.
In the case of machine's fault which requires reparation that can be done bythe customer on his
site but must be executed, upon manufacturer's exclusive discretion, at the manufacturer's
facilityor in the case of manufacturer's decisionto replace a machine, the customer should
arrange on his account to deliver the machine to manufacturer's facilityfor reparationor for
replacement bythe manufacturer.
