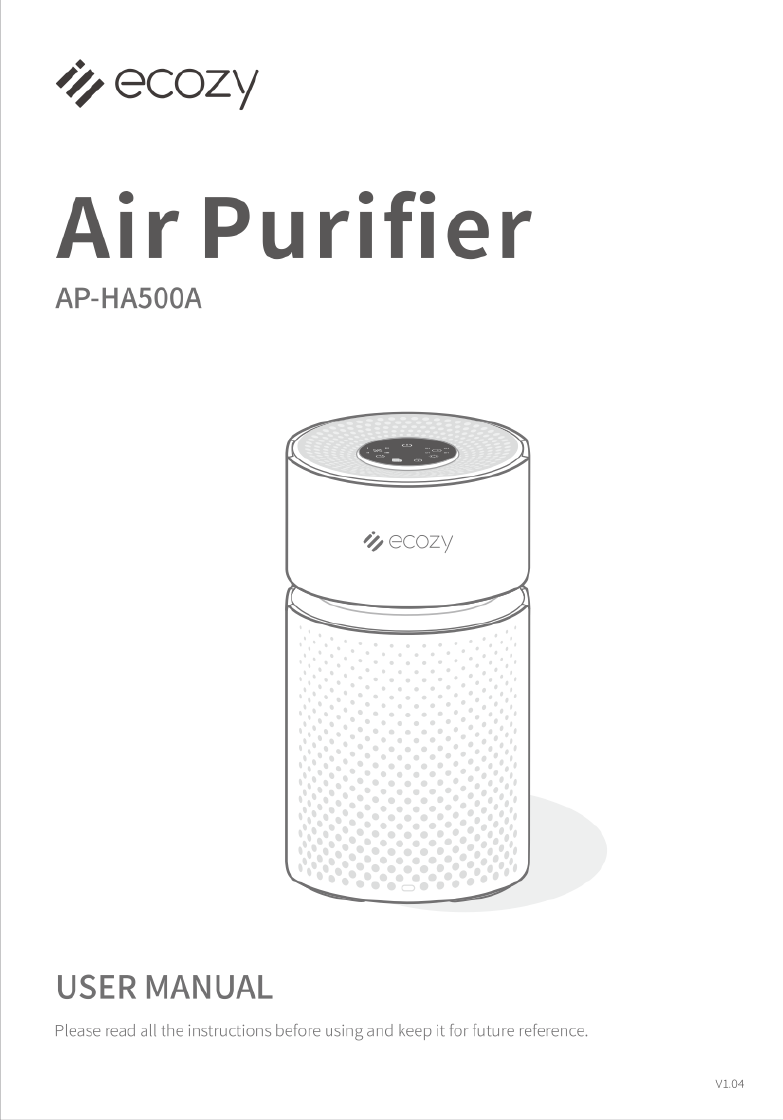

Ecozy AP-HA500A User manual

% ecozy
Air Purifier
AP-HA500A
% ecozy
к— —
USER MANUAL
Please read all the instructions before using апа keep it for future reference.

Thank you for purchasing from ecozy.
If you have any questions ог need further assistance,
please contact us at
[email protected]
or call us ма hotline
[phone] (UTC 14:00-22:00, Monday to Friday)

CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
WHAT'S INCLUDED ..o .03
KNOW YOUR AIR PURIFIER .........нненннненннныннынннннннннннннннннннннннннные 03
AIRPURIFIER .o 03
CONTROL PANEL 04
FILTRATION SYSTEM 05
SPECIFICATIONS ... . 06
GET STARTED .....ccccc..... .. 07
USE YOUR АВ PURIFIER . 09
Turn On/Off 09
Fan Speed AdJuStMent ... 09
Sleep Mode 10
Filter Replacement 10
Child Safety Lock 10
Night Light 11
Timer 11
MAINTENANCE AND CARE ‚ 12
CLEAN ТНЕ AIR PURIFIER 12
REPLACE THE HEPA&ACTIVATED CARBON FILTER 14
14

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Warning
* Users should only operate е а!г purifier опсе they have understood all the following
important safety instructions. Users who have а disability and need assistance are responsible
for seeking support and ensuring their омп safety in line with the instructions.
« Children should be supervised to ensure that they do not play with the appliance.
Moving
* Тит ой апа unplug the атг purifier before moving it
* Firmly grab the groove of the а!г purifier to avoid excessive vibration or injury due to falling,
Installation
* Keep а distance of а! least 38 cm/15 inches between the а!г inlets and walls ог other objects.
Power Supply
* Please do not over bend ог twist the power cord, а5 this may damage it. Do not use the power
adapter if the cable or plug appears to be damaged.
* Do not pull the cord 10 unplug the power adapter.
* Do not use any inapplicable АС outlets.
* Do not use the power adapter of this айг purifier оп other products.
Power Adapter
Please follow the instructions 1 use the power adapter. This 15 to prevent fire hazards, electric
shock, or other damages.
* Connect the power adapter 10 any applicable АС outlets.
+ This а!г purifier is compatible with а 12V/1.5A power supply.
+ Always unplug the power adapter before moving ог maintaining the air purifier.
While in Use
» Please immediately stop using the ат purifier if it overheats, makes unusual sounds, gives off
unpleasant odors, ог its fan rotates irregularly.
* Do not put your fingers ог other objects into the айг inlet, айг outlet, or filter compartment.
» Keep hair ог cloth away from the а!г purifier 10 avoid them getting into апа blocking the
inlet/outlet.
EN о

» Р\еасе do not sit on, lean on, or tilt the air purifier.
* Please ventilate when using the а!г purifier together with any combustion equipment, e.g.,
fireplace ог barbecue oven, etc., 10 keep you safe from carbon monoxide.
* Always place the айг purifier out of the reach of patients, children, ог pets.
* Please keep your а!г purifier away from any heat sources, such as stove, oven, electric heater,
efc.
Limitation in Use
To prevent electric shock, fire hazards, or other damage, please
* do not place the а!г purifier оп any uneven surfaces where it can easily fall over.
* do not use the а!г purifier in bathrooms ог other places that are hot or wet.
* do not use your air purifier outdoors. It's for household use only.
1. The effect that the safety device 15 10 be reinstalled or remounted а5 previously installed
2.To reduce the risk of fire or electric shock, do not use this ап with any solid-state speed
control device.
3. Warning-to reduce the risk offire, electric shock, or injury to persons, observe the following:
а) Use this unit only in the manner intended by е manufacturer. If you have questions, please
contact the manufacturer.
b) Before servicing ог cleaning unit, switch power оЁ at service panel and lock the service
disconnecting means to prevent power from being switched оп accidentally. When the
service disconnecting means cannot be locked, securely fasten а prominent warning device,
such аб а tag, to the service panel.
есогу will accept no liability or responsibility for fires ог electrical shocks caused by
improper operation ог not adhering to the above safety instructions.
02 EN

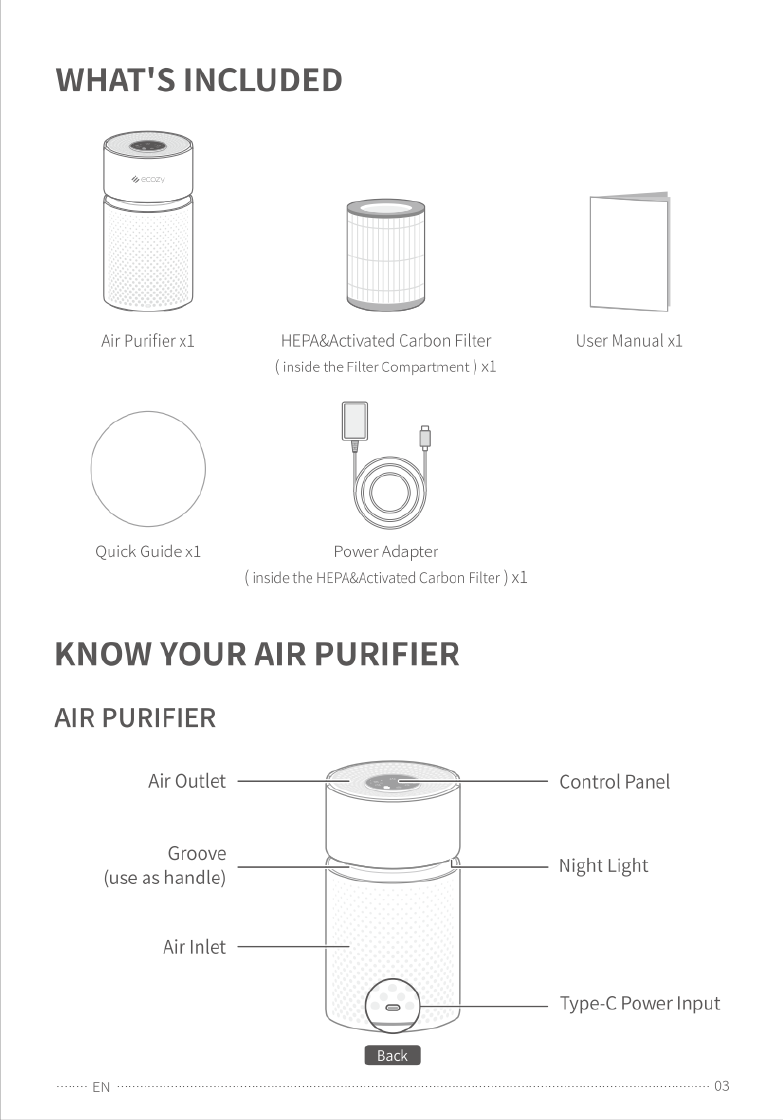

WHAT'S INCLUDED
Air Purifier x1 HEPARActivated Carbon Filter User Manual x1
(inside the Filter Compartment ) x1
( )
Quick Guide x1 Power Adapter
(inside the HEPA&Activated Carbon Filter ) x1
KNOW YOUR AIR PURIFIER
AIR PURIFIER
Air Outlet Control Panel
Groove
(use as handle)
Night Light
AirInlet — — —
Type-C Power Input
<—
ЕМ 03

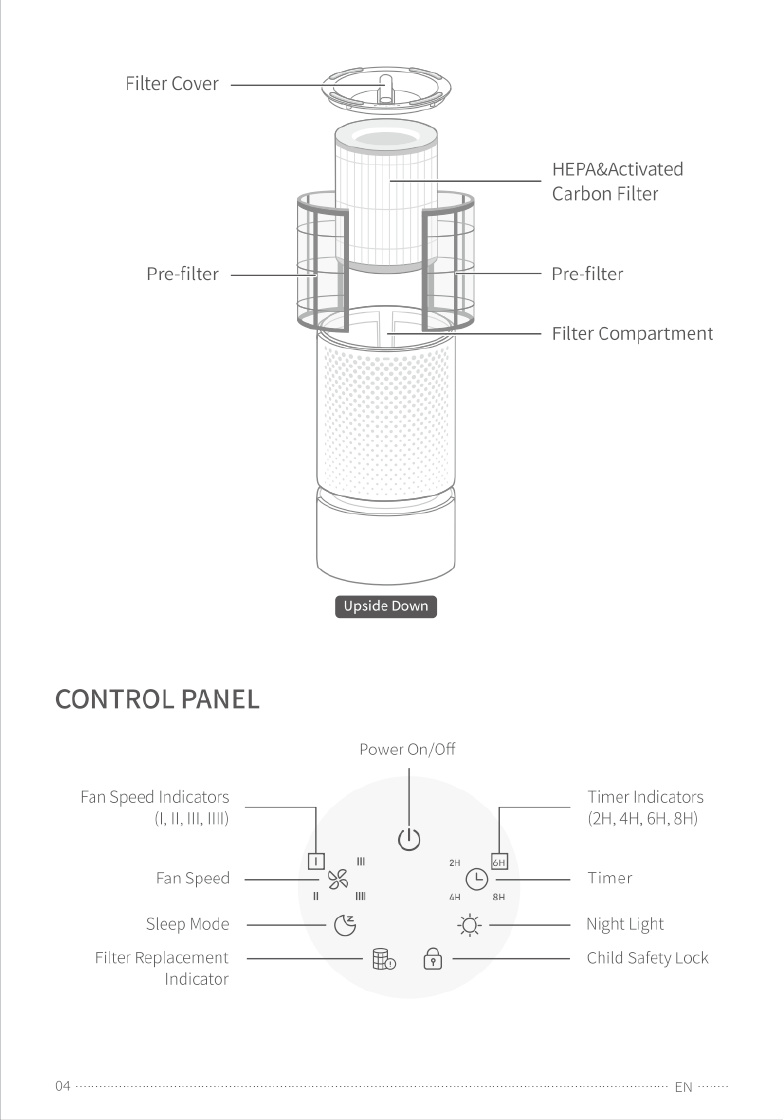

Filter Cover
Pre-filter
CONTROL PANEL
Fan Speed Indicators
(0 И, 1, 110
Fan Speed
Sleep Mode
Filter Replacement
Indicator
04
Power On/Off
HEPA&Activated
Carbon Filter
Pre-filter
Filter Compartment
Timer Indicators
(2H, 4H, 6H, 8H)
эн i
@ =
Timer
Night Light
Child Safety Lock
EN

Power On/Off
Turn on/off the айг purifier.
Fan Speed
Cycle through 4 fan speed options: I (low), I (default), Il (medium), апа и (high)
Sleep Mode
Enable ог disable sleep mode.
Filter Replacement Indicator
Light ир when the HEPA&Activated Carbon Filter should be replaced.
Child Safety Lock
Prevent the current settings from being changed accidentally by children or pets.
Night Light
Turn on/off е light for illumination аё night.
Timer
Set the time duration to automatically power off е айг purifier. O
P&
GRC
FILTRATION SYSTEM
The air purifier's filtration system consists of the Pre-filters апа the HEPA&Activated Carbon
Filter.
Pre-filter Pre-filter
HEPA&Activated Carbon Filter
1. Pre-filters
> The pre-filters are pre-assembled inside the housing о! the айг purifier. They can be easily
taken out to be cleaned, which maximizes the service life о! the whole filter part
> The pre-filters can filter large particles such а5 dust, lint, fibers, hair, апа pet fur.
EN
05

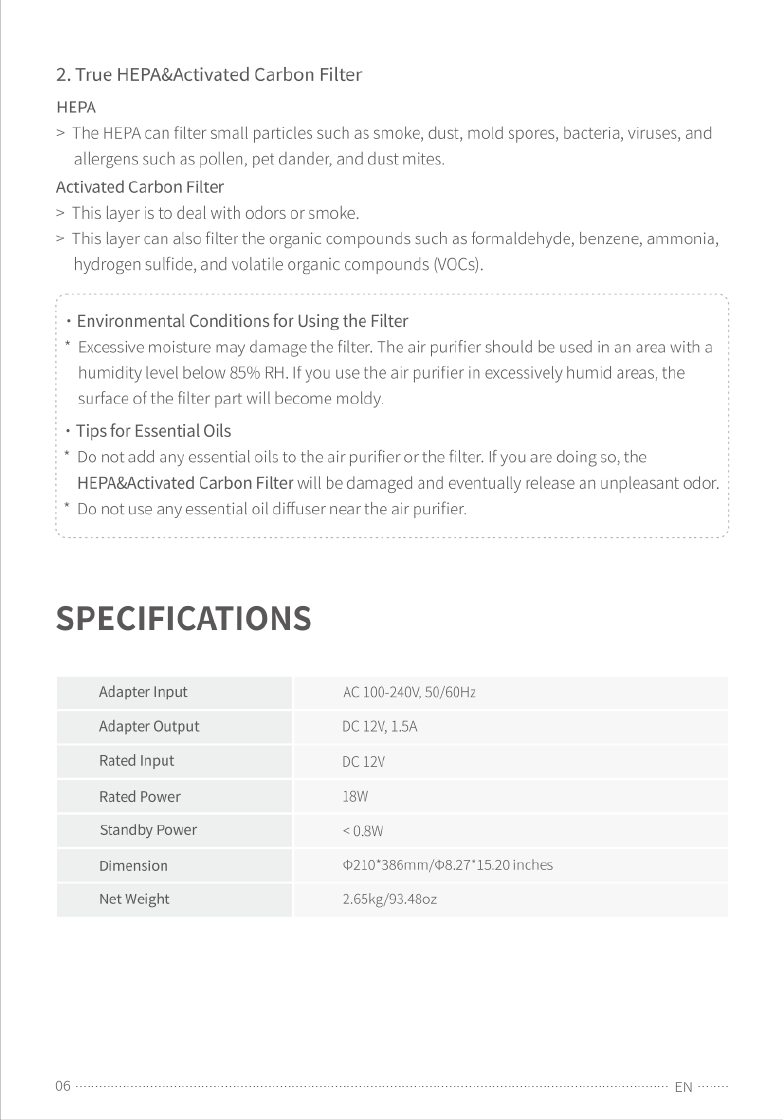

2. True HEPA&Activated Carbon Filter
HEPA
> The HEPA can filter small particles such а5 smoke, dust, mold spores, bacteria, viruses, and
allergens such as pollen, pet dander, апа dust mites.
Activated Carbon Filter
> This layer is 10 deal with odors ог smoke.
> This layer can also filter the organic compounds such а5 formaldehyde, benzene, ammonia,
hydrogen sulfide, апа volatile organic compounds (VOCs).
* Environmental Conditions Юг Using the Filter
* Excessive moisture may damage the filter. The air purifier should be used in ап area with а
humidity level below 859% RH. If you use the а!г purifier in excessively humid areas, the
surface of the filter part will become moldy.
* Tips Юг Essential Oils
* Do not add any essential oils to е а!г purifier ог the filter. If you are doing so, the
HEPA&Activated Carbon Filter will be damaged апа eventually release ап unpleasant odor.
* Do not use any essential ой diffuser near the air purifier.
SPECIFICATIONS
Adapter Input АС 100-240V, 50/60Hz
Adapter Output DC 12,154
Rated Input DC 12V
Rated Power 18W
Standby Power <08W
Dimension ©210*386mm/©8.27°15.20 inches
Net Weight 2.65kg/93.4802
06 EN

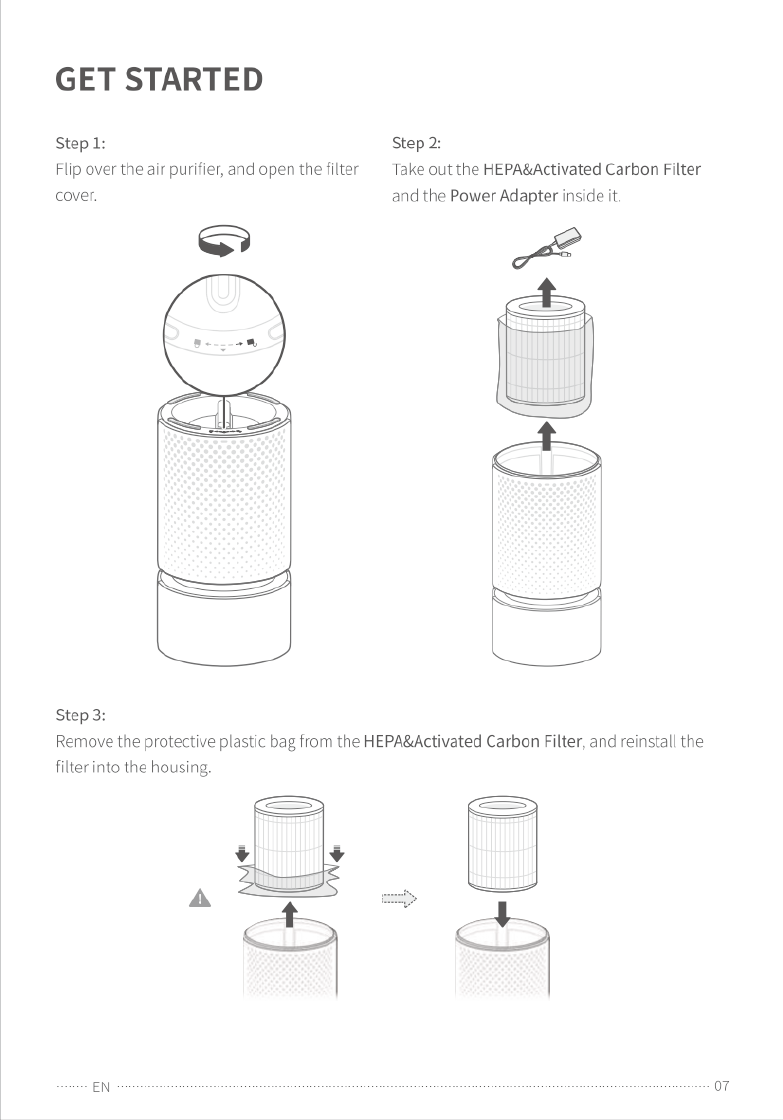

GET STARTED
Step 1: Step 2:
Flip over е а!г purifier, апа open the filter Take out the HEPA&Activated Carbon Filter
cover. апа the Power Adapter inside it.
2
Е
Step 3:
Remove the protective plastic bag from the HEPA&Activated Carbon Filter, апа reinstall е
filter into the housing.
EN о7

Step 4;
Close the filter cover, апа turn over the айг purifier to get it ready Юг use.
Step 5:
Place the а!г purifier in а ventilated area and оп а level surface. Keep the а!г inlet facing upwards
апа maintain а distance of а! least 38 cm/15 inches away from the wall or other objects.
38cm
15inches
=
'\| Ё |/Звст
15inches
Step 6:
Connect the Туре-С епа of the Power Adapter to the power input port оп the а!г purifier, апа
plug the Power Adapter into а working outlet.
08 EN

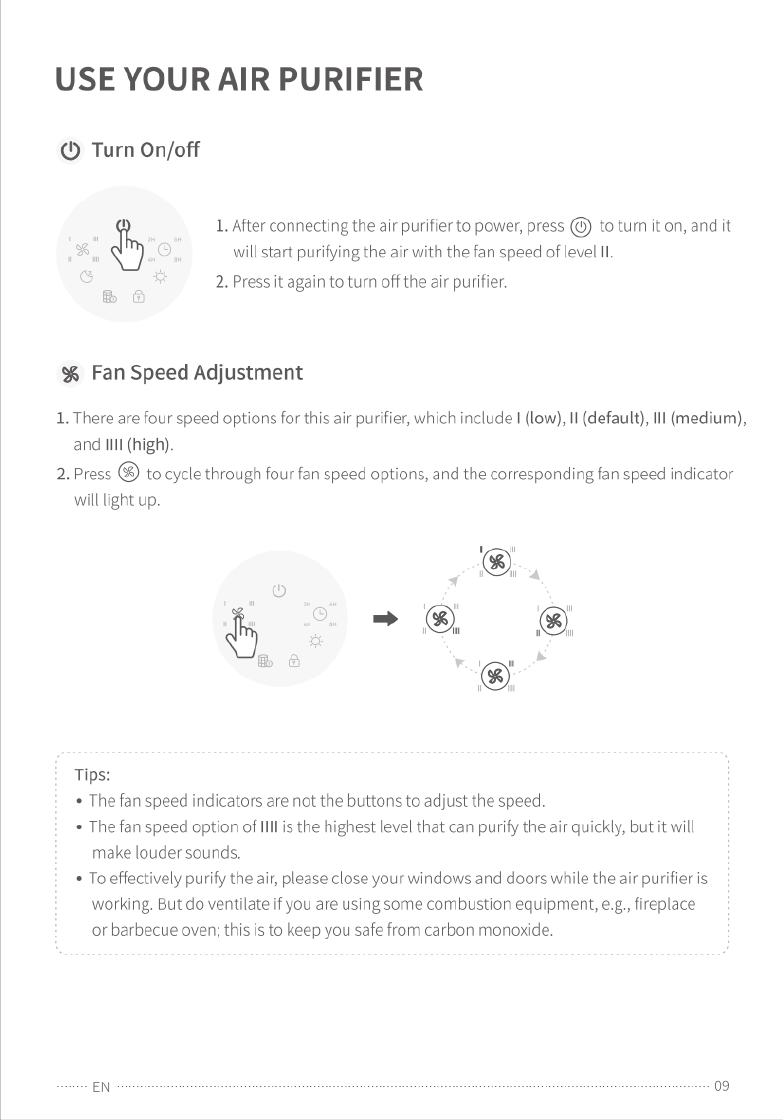

USE YOUR AIR PURIFIER
@ Turn On/off
i 1. After connecting the а!г purifier to power, press (@) to turn it on, апа it
K, will start purifying the а!г with the fan speed of level 1
г 5 2. Press it again to turn ой the а!г purifier.
B &
®% Fan Speed Adjustment
1. There аге four speed options for this а!г purifier, which include | (low), I (default), Il (medium),
and и (high)
to cycle through four fan speed options, апа the corresponding fan speed indicator
willlight up.
Tips:
* The ап speed indicators are not the buttons to adjust the speed.
* The fan speed option of ! 15 the highest level that can purify the а!г quickly, but it will
make louder sounds.
* To effectively purify the air, please close your windows апа doors while the айг purifier is
working. But do ventilate if you are using some combustion equipment, e.g,, fireplace
ог barbecue oven; this is to keep you safe from carbon monoxide.
EN 09

(& Sleep Mode
1. When the air purifier is working, press (@) ю enter the sleep mode. All
the lights, including the indicators апа night light, will be ой, апа the
air purifier will continue to work with the lowest fan speed.
2. Press @) again to exit the sleep mode, апа the air purifier will return
to the state before enabling the sleep mode.
Tips:
* п еер mode, timer апа fan speed adjustment are both available. The corresponding
indicator willlight ир for 15 when setting апа then turn оЁ.
* The Night Light can be turned оп огой when the айг purifier is in sleep mode.
® Filter Replacement
1. The indicator is off when the HEPA&Activated Carbon Filter works well.
2. When the filter is at the end of its service life, the indicator @) will light ир in white to remind
you to replace the filter with a new one.
3. Reset the service Чте оЁ the new filter after replacement. Please long press @) ог 3s until
the indicator flashes 3 times.
4. The indicator @) turns оЁ again [ Long press for 35 ]
o o
@ Child Safety Lock
This function is to prevent the current settings from being changed
" accidentally by children ог pets.
1. Long press (@ for 3s to enable the Child Safety Lock, апа the button
will light up in white. All the other buttons will be deactivated.
2. Long press @) for 3s again to exit this mode, and all the other buttons
[
Long
press
for
35
]
will
be
activated.
10
EN

£ Night Light
This function is to provide illumination for your convenience at night.
1. Press to turn оп the night light.
2. Longpress (&) Юг 1.55 0 gradually increase е brightness; release when you get your
desired brightness. Long press it Юг 1.55 again 10 decrease the brightness.
3. Press (@) again to turn off the night light
=
[ Long press for 155 ]
Tip:
The air purifier will remember the brightness of the night light if it's plugged in. The
brightness will return to the default level if the а!г purifier is unplugged апа turned оп
again.
© Timer
Four timer options are available, including 2H, 4H, 6H, and 8H.
1. Press (@) опсе ака time 10 select а timer. The corresponding indicator will light up.
2.Press @) the fifth Нте or long press it for 1.55 to disable the timer function. The timer
indicator will be о.
®
[Long press Юг 155 ]
в ©
3 Tips:
* The timer indicators are not the buttons to change the timer duration.
» The air purifier will automatically power ой once the timer ends.
EN 11

MAINTENANCE AND CARE
Filter Cleaning Frequency Replacing Frequency
pre-filter Once or twice per month When it's visibly damaged
HEPARActivated Carbon Filter Do not wash 3-6 months
CLEAN THE AIR PURIFIER
Step 1; Step 2:
Unplug the аг purifier before cleaning.
Step 3:
Turn омег the айг purifier, open е filter
cover, then take out HEPA&Activated
Carbon Filter апа the Pre-filters
Wipe clean the айг purifier's housing with
a soft, dry cloth ог brush. If necessary,
wipe clean the housing with а damp
cloth апа dry it immediately.
Step 4;
Vacuum inside the filter compartment.
EN

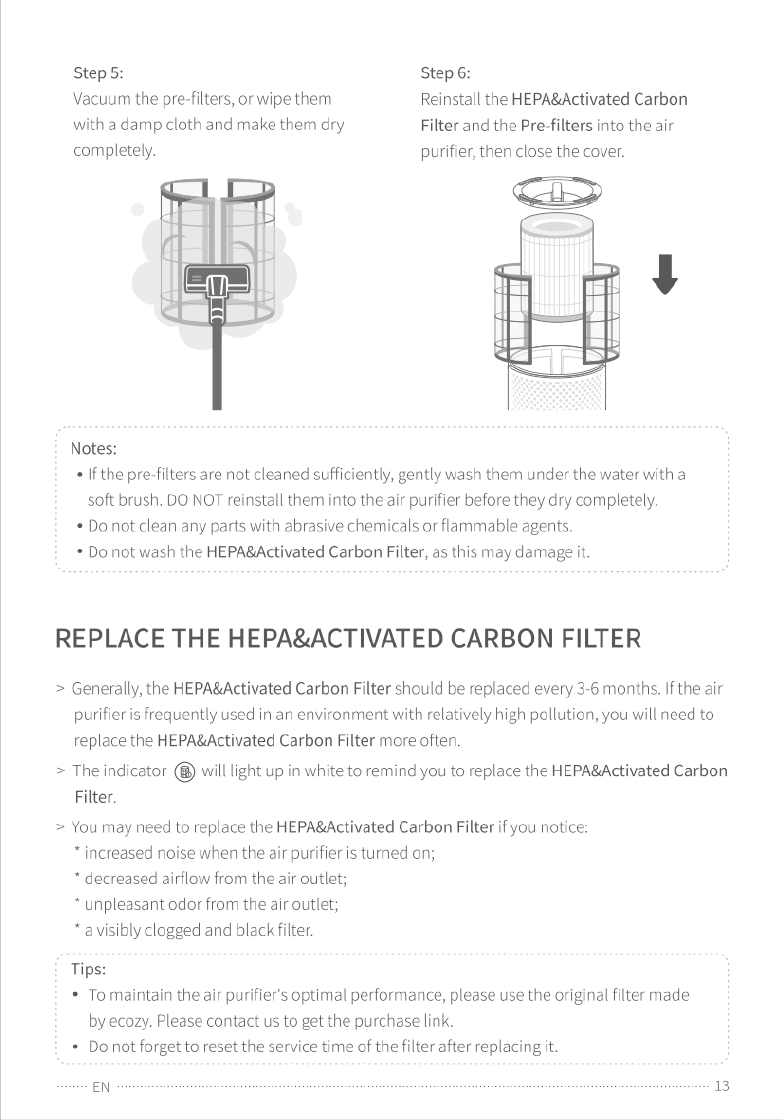

Step 5; Step 6:
Vacuum the pre-filters, or wipe them Reinstall the HEPA&Activated Carbon
with а damp cloth апа make them dry Filter and the Pre-filters into the air
completely. purifier, then close the cover.
Notes:
« Ifthe pre-filters аге not cleaned sufficiently, gently wash them under the water with а
soft brush. DO NOT reinstall them into the air purifier before they dry completely.
* Do ot clean any parts with abrasive chemicals ог flammable agents.
* Do not wash the HEPA&Activated Carbon Filter, а5 this may damage it.
REPLACE THE HEPA&ACTIVATED CARBON FILTER
> Generally, the HEPA&Activated Carbon Filter should be replaced every 3-6 months. If the air
purifier is frequently used in ап environment with relatively high pollution, you will need 10
replace the HEPA&Activated Carbon Filter more often
> The indicator @ willlight up in white to remind you to replace the HEPA&Activated Carbon
Filter.
> You may need to replace the HEPA&Activated Carbon Filter if you notice:
* increased noise when the а!г purifier is turned on;
* decreased airflow from the а!г outlet;
* unpleasant odor from the air outlet;
* avisibly clogged апа black filter.
Tips:
* To maintain the айг purifier's optimal performance, please use the original filter made
by есогу. Please contact us to get the purchase link.
* Do not forget to reset the service time of the filter after replacing it.
EN
13

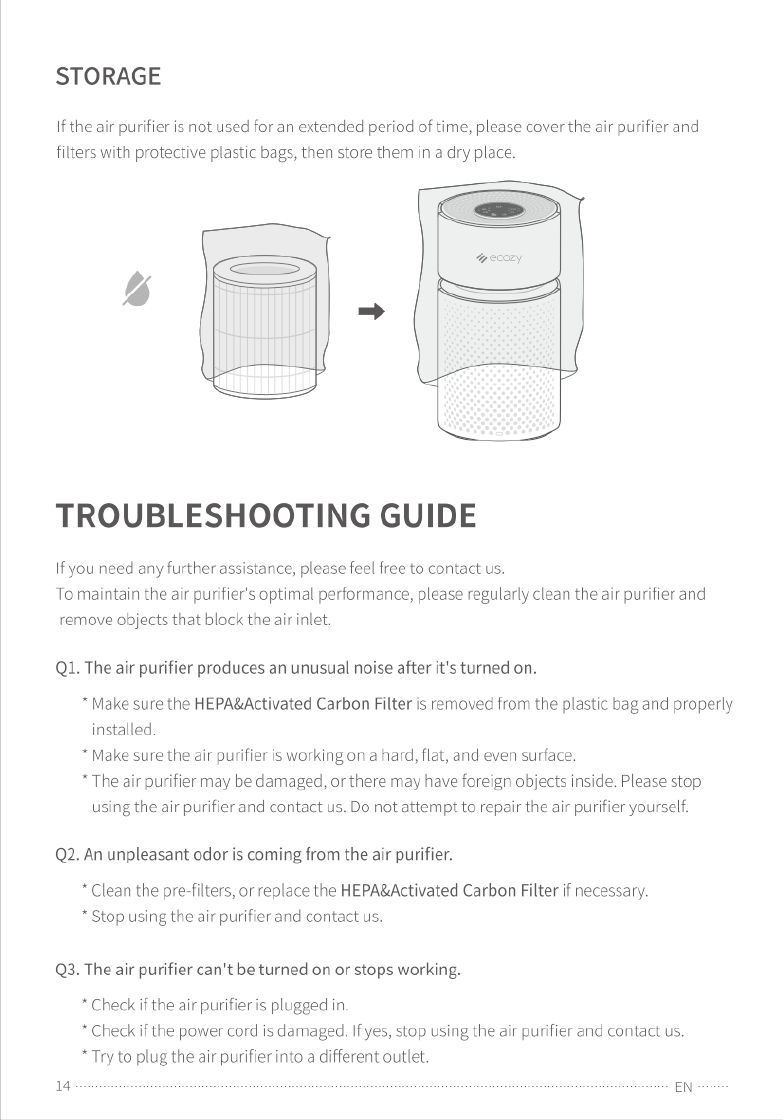

STORAGE
If the айг purifier is not used for an extended period оё time, please cover the а!г purifier and
filters with protective plastic bags, then store them in а dry place.
TROUBLESHOOTING GUIDE
If you need any further assistance, please feel free 10 contact us.
To maintain the а!г purifier's optimal performance, please regularly clean the а!г purifier апа
remove objects that block the airinlet.
QL. The а!г purifier produces ап unusual noise after it's turned on.
* Make sure the HEPA&Activated Carbon Filter is removed from the plastic bag апа properly
installed
* Make sure the air purifier is working оп а hard, flat, and even surface,
* The айг purifier may be damaged, or there may have foreign objects inside. Please stop
using the а!г purifier апа contact us. Do not attempt to repair the атг purifier yourself.
Q2. An unpleasant odor is coming from the air purifier.
* Clean the pre-filters, ог replace the HEPAActivated Carbon Filter if necessary.
* Stop using the айг purifier and contact us.
Q3. The air purifier can't be turned on or stops working.
* Спеск ! the air purifier 15 plugged in
* Check if the power cord 15 damaged. If yes, stop using the а!г purifier and contact us.
* Тгу 10 plug the а!г purifier into а different outlet.
14 EN

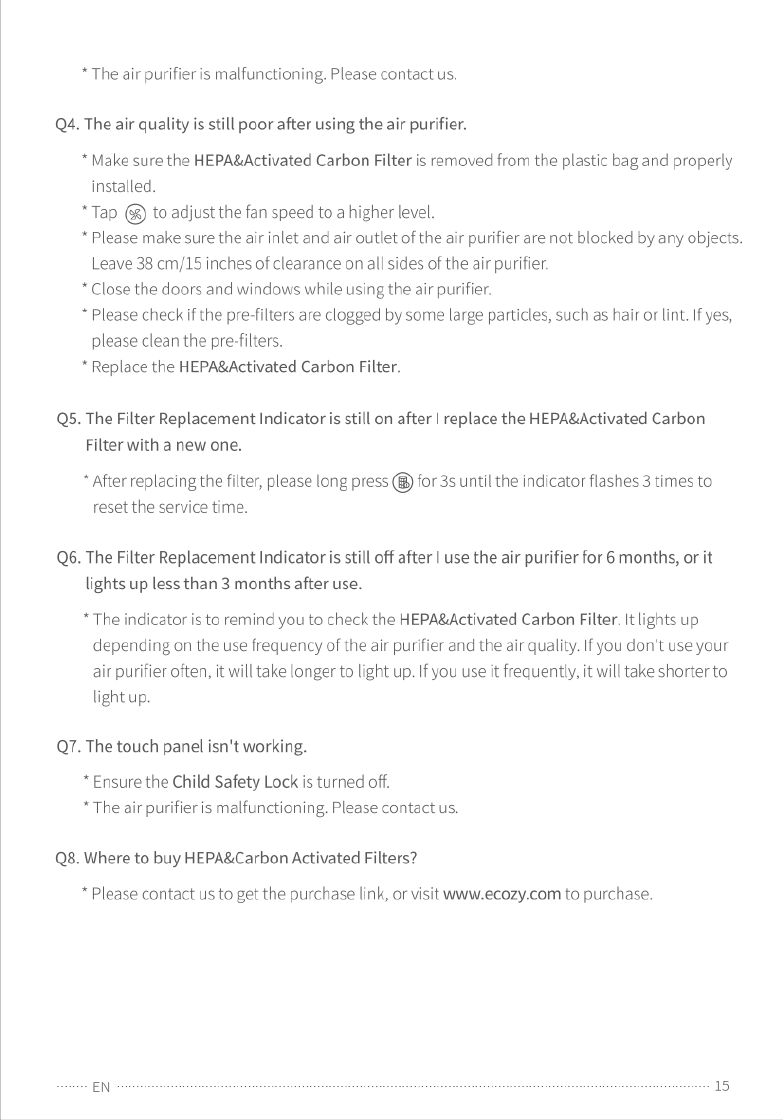

* The air purifier is malfunctioning. Please contact us.
Q4. The air quality is still poor after using the air purifier.
* Make sure the HEPA&Activated Carbon Filter is removed from the plastic bag апа properly
installed.
* Тар to adjust the fan speed to а higher level.
* Please make sure the айг inlet апа а!г outlet of the air purifier are not blocked by any objects.
Leave 38 cm/15 inches of clearance оп all sides of the а!г purifier.
* Close the doors апа windows while using the айг purifier.
* Please checkif the pre-filters are clogged by some large particles, such ас hair ог lint. If yes,
please clean the pre-filters.
* Replace the HEPA&Activated Carbon Filter.
Q5. The Filter Replacement Indicator is still оп after | replace the HEPA&Activated Carbon
Filter with a new one.
* After replacing the filter, please long press @) ог 35 until the indicator flashes 3 times to
reset the service time.
Q6. The Filter Replacement Indicator is still off after | изе the air purifier for 6 months, or it
lights ир less than 3 months after use.
* The indicator is to remind you to check е HEPA&Activated Carbon Filter. It lights ир
depending оп the use frequency of the а!г purifier and the айг quality. If you don't use your
air purifier often, it will take longer to light up. If you use it frequently, it will take shorter to
light up.
Q7. The touch panelisn't working.
* Ensure the Child Safety Lock is turned ой
* The а!г purifier is malfunctioning. Please contact us.
Q8. Where to buy HEPA&Carbon Activated Filters?
* Please contact us 10 get the purchase link, or visit www.ecozy.com to purchase.
EN 15
