ECS Liva M300-W User manual

Elitegroup Computer Systems Co., LTD.
No. 239, Sec. 2, Tiding Blvd., Neihu District, Taipei City, Taiwan (11493)
Tel: 02-21621177
Rockchip RK3399K
TM
M300-W

LIVAM300-WCOMPUTERUSERMANUAL
i
Preface
Disclaimer
The information in this document is subject to change without
notice. The manufacturer makes no representations or warranties
with respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. The manufacturer reserves the right to revise this
publication and to make changes from time to time in the content
hereof without obligation of the manufacturer to notify any person
of such revision or changes.
TrademarkRecognition
Rockchip is a registered trademark of Rockchip Electronics Co.,Ltd.
Other product names used in this manual are the properties of their
respective owners and are acknowledged.
Copyright
This publication, including all photographs, illustrations and
software, is protected under international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without written consent of
the author.
Version 1.0

ii
LIVAM300-WCOMPUTERUSERMANUAL
FederalCommunicationsCommission(FCC)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the
receiver
•Connect the equipment onto an outlet on a circuit
different from that to which the receiver is connected
•Consult the dealer or an experienced radio/TV
technician for help
Shielded interconnect cables and a shielded AC power cable must
be employed with this equipment to ensure compliance with the
pertinent RF emission limits governing this device. Changes or
modifications not expressly approved by the system’s manufacturer
could void the user’s authority to operate the equipment.

LIVAM300-WCOMPUTERUSERMANUAL
iii
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
Electromagnetic compatibility of multimedia
equipment - Emission requirements
EN 55032
EN 61000-3-2 Electromagnetic Compatibility(EMC)
Part 3-2: Limits-Limits for harmonic current
emissions (equipment input current 16A per
phase)
EN 61000-3-3 Electromagnetic Compatibility(EMC)
Part 3-3: Limits-Limitation of voltage changes,
voltage fluctuations and flicker in public low-
voltage supply systems, for equipment with
rated current 16A per phase and not subject
to conditional connection
EN 55024 Information technology equipment-Immunity
characteristics-Limits and methods of
measurement
EN 60950 Safety for information technology equipment
including electrical business equipment
CE marking
This device is in conformity with the following EC/EMC directives:
EN 62368 Safety for information technology equipment
including electrical business equipment

iv
LIVAM300-WCOMPUTERUSERMANUAL
SafetyInstructions
Your system is designed and tested to meet the latest standards of
safety for information technology equipment. However, to ensure
your safety, it is important that you read the following safety
instructions.
Settingupyoursystem
• Read and follow all instructions in the documentation
before you operate your system.
• Do not use this product near water or a heated source
such as a radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block
or cover these openings. Make sure you leave plenty of
space around the system for ventilation. Never insert
objects of any kind into the ventilation openings.
• Use this product in environments with ambient
temperatures between -10°C and +40°C.
• If you use an extension cord, make sure that the total
ampere rating of the devices plugged into the extension
cord does not exceed its ampere rating.
Attentionduringuse
• Do not step on the power cord or let anything rest on
top of it.
• Do not spill water or any other liquid on your system.
• When the system is turned OFF, a small amount of
electrical currentstill flows. Always unplug all power,
modem, and network cables from the power outlets
before cleaning the system.

LIVAM300-WCOMPUTERUSERMANUAL
v
• The power cord or plug is damaged.
• Liquid has been spilled into the system.
• The system does not function properly even if you
follow the operating instructions.
• The system was dropped or the cabinet is
damaged.
• The system performance changes.
The warranty does not apply to products that have been
disassembled by users.
CAUTION:
1. To assure continued FCC compliance:
Any changes or modifications not expressly approved by
the grantee of this device could void the user’s authority
to operate the equipment.
2. Exposure to Radio Frequency Radiation:
This equipment comlies with FCC radiation exposure lim-
its set forth for an uncontrolled environment.
This equipment should be installed and operated with
minimum distance 20cm between the radiator & your
body.
• If you encounter the following technical problems with
the product, unplug the power cord and contact a
qualified service technician or your retailer.

vi
LIVAM300-WCOMPUTERUSERMANUAL
Product disposal notice
1. Do not place this product underneath heavy loads or
in an unstable position.
2. Do not use or expose this product around magnetic
fields as magnetic interference may affect the
performance of the product.
3. Do not expose this product to high levels of direct
sunlight, high-humidity or wet conditions.
4. Do not block the air vents to this product or impede
the airflow in any way.
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION:
Danger of explosoin if battery is incorrectly replace only
with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Safetycautionsandwarnings
Product disposal notice
IMPORTANT:
This symbol if the crossed out wheeled bin indicates that
the product (electrical and electronic equipment) should
not be placed in municipal waste. Check local
regulations for disposal of electronic products.

LIVAM300-WCOMPUTERUSERMANUAL
vii
CanadianDepartmentofCommunications
This class B digital apparatus meets all requirements of the
Canadian Interference-causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences
du Réglement sur le matériel brouilieur du Canada.
SoftwareDevelopment
For Android app development details, please refer to the official
Android developer web site http://developer.android.com

viii
LIVAM300-WCOMPUTERUSERMANUAL
Memo

LIVA300-WCOMPUTERUSER MANUAL
ix
TABLE OF CONTENTS
Introducing the PC 1
Introduction....................................................1
Specifications..................................................2
Front and Rear I/O............................................4
Side I/O.............................................................6
Install the VESA Mount..................................7
Motherboard Components..............................9
Chapter 1 1
Preface i

x
LIVAM300-WCOMPUTERUSERMANUAL
Memo

LIVAM300-WCOMPUTERUSERMANUAL
1
Chapter 1
Chapter 1
Introducing the PC
Introduction
Thank you for choosing LIVA M300-W Computer featuring Rockchip®
RK3399K of great performance and with stylish and flexible design.
This computer is based on Rockchip®RK3399K Mobile platform. Low
power processor with ARM Dual-Core Cortex-A72 and Quad-Cor-
tex-A53 and integrates graphics, memory, and I/O interfaces into
one solution.
It supports DDR3L 2GB memory and a direct soldered down eMMC
up to 32 GB storage, and one M.2 slot is for extending usage, It also
can add additional storage from USB Flash Drive and Micro SD.
The system is equipped with a set of I/O ports at the front/rear panel,
including three USB 2.0 ports, one USB 3.0 port, one DP 1.2 port,
one COM connector, one Giga LAN connector, one HDMI 2.0 port,
one MIC_In port, one Audio_Out port, one DC port, one power but-
ton, one wireless antenna fixture.

2
LIVAM300-WCOMPUTERUSERMANUAL
Chapter 1
Panel I/O
CPU/Chipset
• Support eMMC 32 GB
Storage
• Rockchip® RK3399K
Dual-core Cortex-A72 up tp 1.8GHz
Quad-core Cortex-A53 up tp 1.4GHz
Specifications
Note:
ID design and specification may vary, please refer
to actual goods you purchase.
• 3 x USB 2.0 ports
• 1 x USB 3.0 port
• 1 x Giga LAN connector
• 1 x HDMI 2.0 port
• 1 x DP 1.2 port
• 1 x Wireless Antenna fixture
• 1 x DC port
• 1 x MIC_in port
• 1 x COM port
• 1 x Audio_Out port
• Onboard DDR3L-1600 2GB
Memory

LIVAM300-WCOMPUTERUSERMANUAL
3
Chapter 1
Power Supply • FSP050-DHAN3
AC Input:100~240V/1.8A 50-60Hz
DC Output: 12V/4.17A(50W Max.)
Dimension • 128mm x 128mm x 26mm
Color •Gray
• Power button
• Power LED Light
Button and LED
Light
Operation
System
• Android 8.1 / LINUX(Lubuntu 18.04)
Heatsink
Design
• Heatsink
Operation
Temp
• -10~+40OC
• Realtek RTL8211FDI
LAN
• Realtek ALC5640
Audio
• 1 x Micro SD card slot
• 1 x Micro SIM slot
Internal Headers
& Connectors
• M.2 key-B 3042 for 4G/5G moduleExpansion Slot

4
LIVAM300-WCOMPUTERUSERMANUAL
Chapter 1

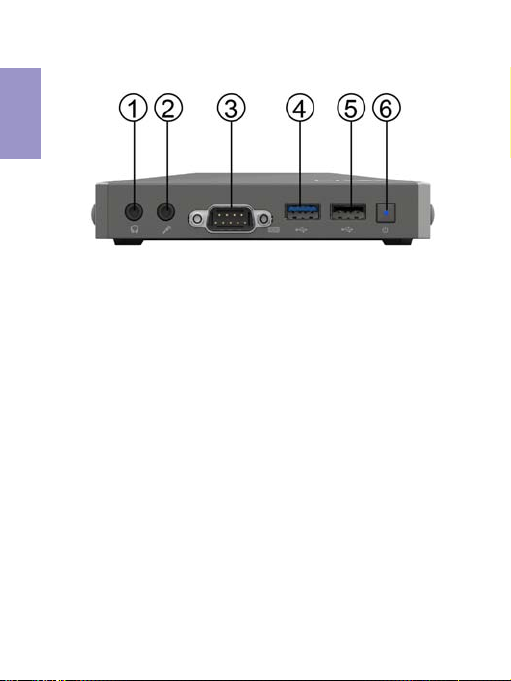

Front and Rear I/O
Note:
ID design and specification may vary, please refer
to actual goods you purchase.
1. Audio_Out It is used to connect to speakers or
headphones.
2. MIC_In It is used to connect to a microphone.
Use the COM port to connect the
serial port.
3. COM(RS232/422/485)
Connect your USB 3.0 device to this
port.
4. USB 3.0 Port
Connect your USB 2.0 device to this
port.
5&7. USB 2.0 Port
6. Power Button Use this button to power on/off the
system.

LIVAM300-WCOMPUTERUSERMANUAL
5
Chapter 1

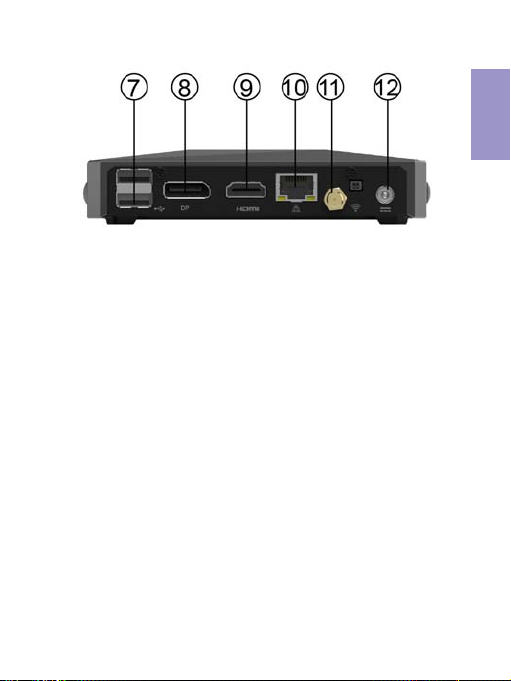

Connect the RJ-45 jack to the LAN
ports for Network connecting.
10. Giga LAN Port
You can connect the display device to
the HDMI port.
9. HDMI Port
You can connect the display device to
the DP port.
8. DP Port
Connect the DC_IN port to the power
adapter.
12. 12V DC_IN Port
11. Wireless Antenna This is wireless 802.11 b/g/n and
BT5.2 Antenna.

6
LIVAM300-WCOMPUTERUSERMANUAL
Chapter 1

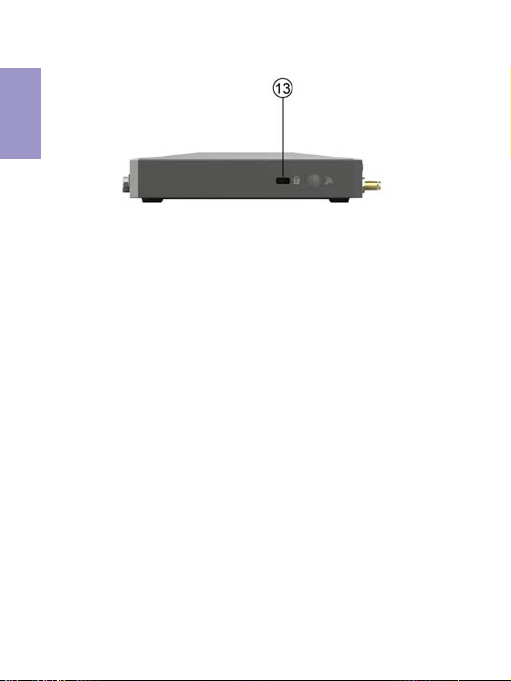

Side I/O
This is security key hole.13. Security Key hole

LIVAM300-WCOMPUTERUSERMANUAL
7
Chapter 1
Install the VESA Mount
1. Mount 4 screws on VESA bracket.
2. Fasten 2 screws under the case.

8
LIVAM300-WCOMPUTERUSERMANUAL
Chapter 1
3. Hold the case towards the VESA bracket and insert the screws
into the holes.
4. Slide the case down until it fixed.

LIVAM300-WCOMPUTERUSERMANUAL
9
Chapter 1
Motherboard Components
Table of contents
Popular Industrial PC manuals by other brands

Beckhoff
Beckhoff TF5200 manual

MSI
MSI MS-9A69-U Series manual

Neousys Technology
Neousys Technology Nuvo-5095GC Series user manual

Winmate
Winmate 7'' S-Series user manual

Siemens
Siemens SIMATIC IPC227G operating instructions

Digital Electronics Corporation
Digital Electronics Corporation PL-3600T Series installation guide
