Chipsee EPC-CM3-070 User manual

Industrial PC
EPC/PPC-CM3-070
PN: CS10600RA070
Revision 1.1
www.chipsee.com

Contents
31. EPC/PPC-CM3-070
41.1. Product Overview
51.2. Ordering Options
51.2.1. Operating System
51.2.2. Optional Features
61.3. Specications
71.4. Power Input
81.5. Touch Screen
91.6. Connectivity
91.6.1. RS232/RS485
101.6.2. GPIO Port
111.6.3. USB Connectors
121.6.4. LAN Connectors
121.6.5. WiFi & BT Module
131.6.6. 3G/4G/LTE Module
141.7. TF Card Slot
141.8. Audio Connectors
151.9. Boot DIP Switch
161.10. Mounting Procedure
161.10.1. CS10600RA070E
161.10.2. CS10600RA070P
171.11. Mechanical Specications
171.11.1. CS10600RA070E
171.11.2. CS10600RA070P
181.12. Disclaimer
181.13. Technical Support
Chipsee IPC Page 2 of 18

EPC/PPC-CM3-070

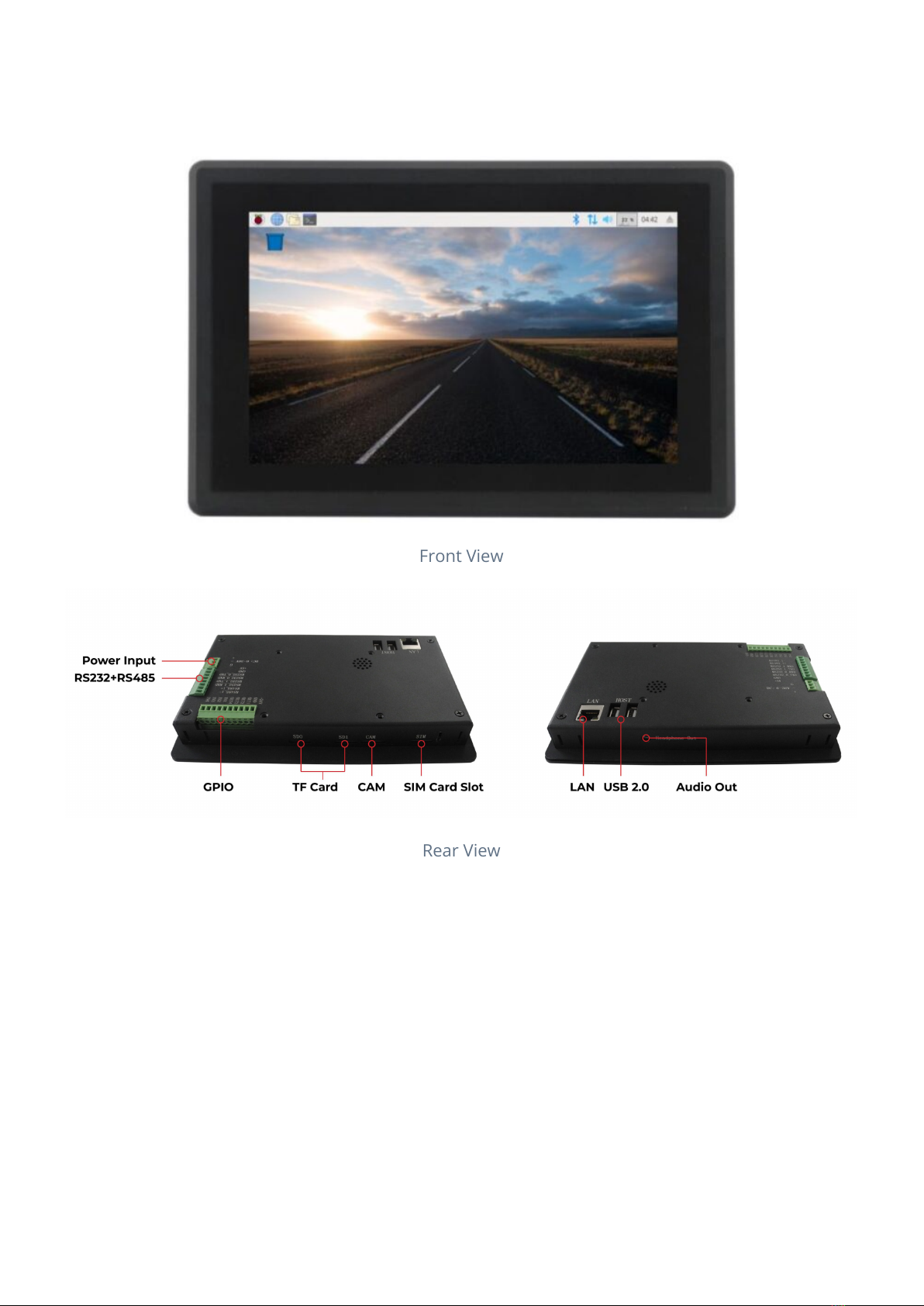

Front View
Rear View
EPC/PPC-CM3-070
Chipsee IPC Page 3 of 18

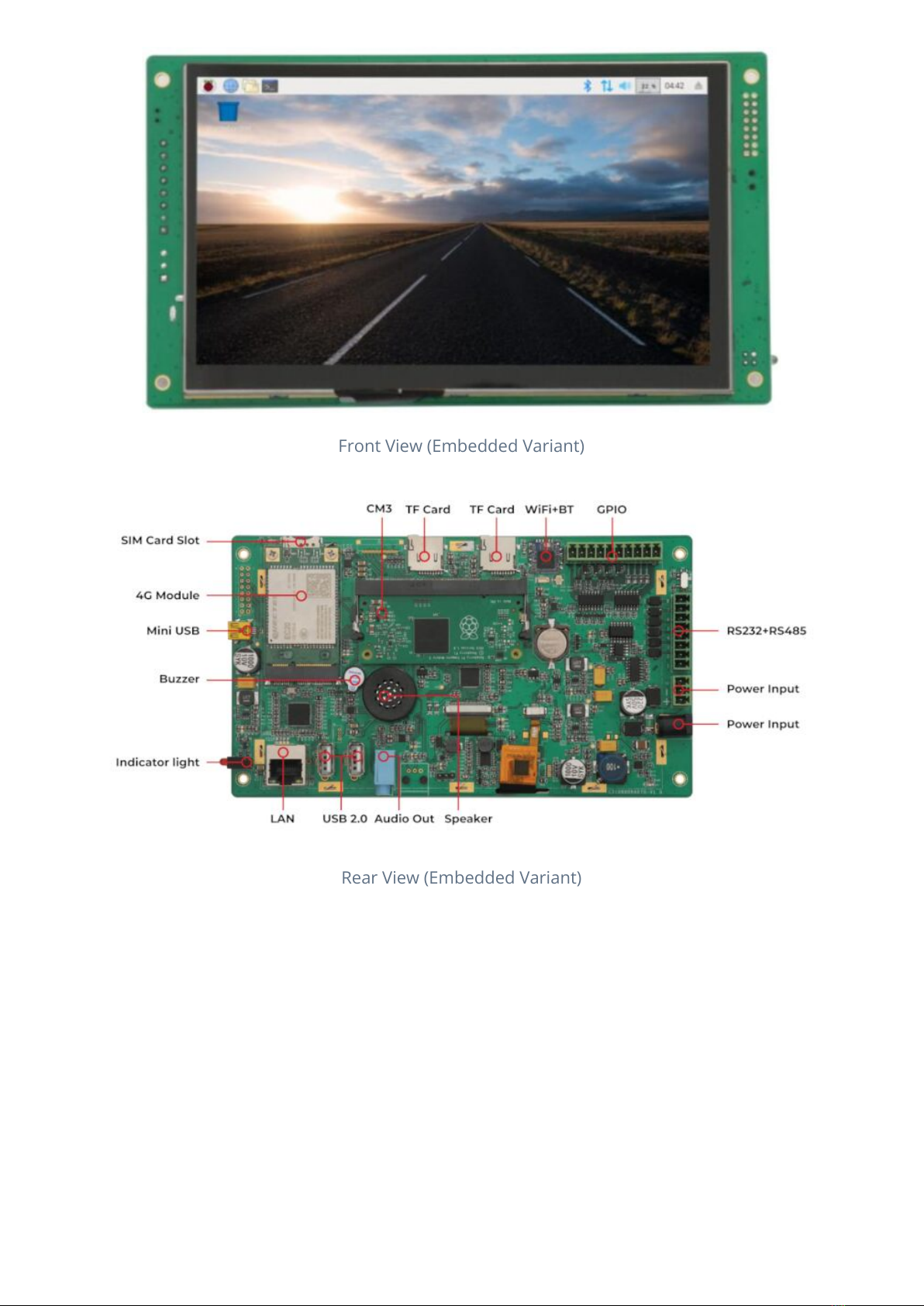

Front View (Embedded Variant)
Rear View (Embedded Variant)
Product Overview
The Cortex -A53 Raspberry Pi series EPC/PPC-CM3-070 (PN: CS10600RA070) is a high-
quality industrial Pi PC. It features a 7.0” ve-point capacitive touch screen with a resolution
of 1024 x 600 pixels and brightness of 500 cd/m .
Key Applications
Human Machine Interface HMI
Process Control
Process Monitoring
® ®
2
•
•
•
EPC/PPC-CM3-070 Product Overview
Chipsee IPC Page 4 of 18

HMI
IIoT node
Environmental Monitoring
PLC
Automotive applications
ATM…
It is available both as an embedded solution and as a device hosed in a casing with bezels,
thus facilitating dierent installation options:
Installation on an industrial cabinet
Integration with the existing equipment
The EPC/PPC-CM3-070 industrial Pi PC is based around the powerful Raspberry Pi
Compute Module 3, powered by the BCM2837 processor with a processor speed of 1.2GHz
and a 1GB RAM.
Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Specications section provides information about the default options bundled
with the product.
Operating System
This product comes with a pre-installed Debian OS. Chipsee software engineers have
created all the drivers, so every hardware feature is readily available for any standard
development tool.
If your project requires a dierent OS, please Contact us, and we’ll make a customized
version that suits your needs.
Optional Features
The EPC/PPC-CM3-070 industrial Pi PC does not include the 3G/4G/LTE modules by default.
These modules are optional and can be selected at the Chipsee store during the ordering
process.
•
•
•
•
•
•
•
•
®
Note
You can order EPC/PPC-CM3-070 from the ocial Chipsee Store or from your nearest distributor.

EPC/PPC-CM3-070 Ordering Options
Chipsee IPC Page 5 of 18

Specifications
The EPC/PPC-CM3-070 industrial Pi PC oers a board range of performance and connectivity
options for scalable integration, providing expandability according to future needs. Some of
the key features are listed in the table below.
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only.
Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.

EPC/PPC-CM3-070
CPU Raspberry Pi CM3, CM3 Lite;
Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ
Storage 2 TF Cards slots2
RAM 1GB DDR
eMMC 8GB
Display 7.0” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m
Touch 5-point capacitive touch
USB 2 x USB 2.0 Host
LAN 1 x Channel 100M LAN
Audio 3.5mm Audio Out Connector, 2W Speaker Internal
Buzzer Yes
RTC Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not
included)
RS232 2 x RS232
RS485 1 x RS4851
GPIO 8 Channels, 4 Input, 4 Output
WiFi/BT Onboard WiFi/BT
HDMI 1 Channel
SATA II 1 Channel
3G/4G/LTE Supported, not mounted by default
Camera Yes, not mounted by default
Power Input From 6V to 36V
Current at 12V 700mA Max
Power Consumption 8.4W Typical
Working
Temperature From -20°C to +70°C
®
2
EPC/PPC-CM3-070 Specications
Chipsee IPC Page 6 of 18

1
2
The RS485 multiplexes with the RS232_1, which means that you cannot use RS232_1 and RS485 at the same
time.
Chipsee designed one of the TF card slots for Lite version but it does not have an eMMC. We designed the
other one for storage expansion.
Power Input
The EPC/PPC-CM3-070 industrial Pi PC can be powered by a wide range of input voltages:
From 6V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm
screw terminal connector, and the other is a 2.1mm DC input head. The polarity and the
pinout is clearly marked on the housing of the CS10600RA070P version, as well as on the
board itself of the CS10600RA070E version, as shown in the gures below.

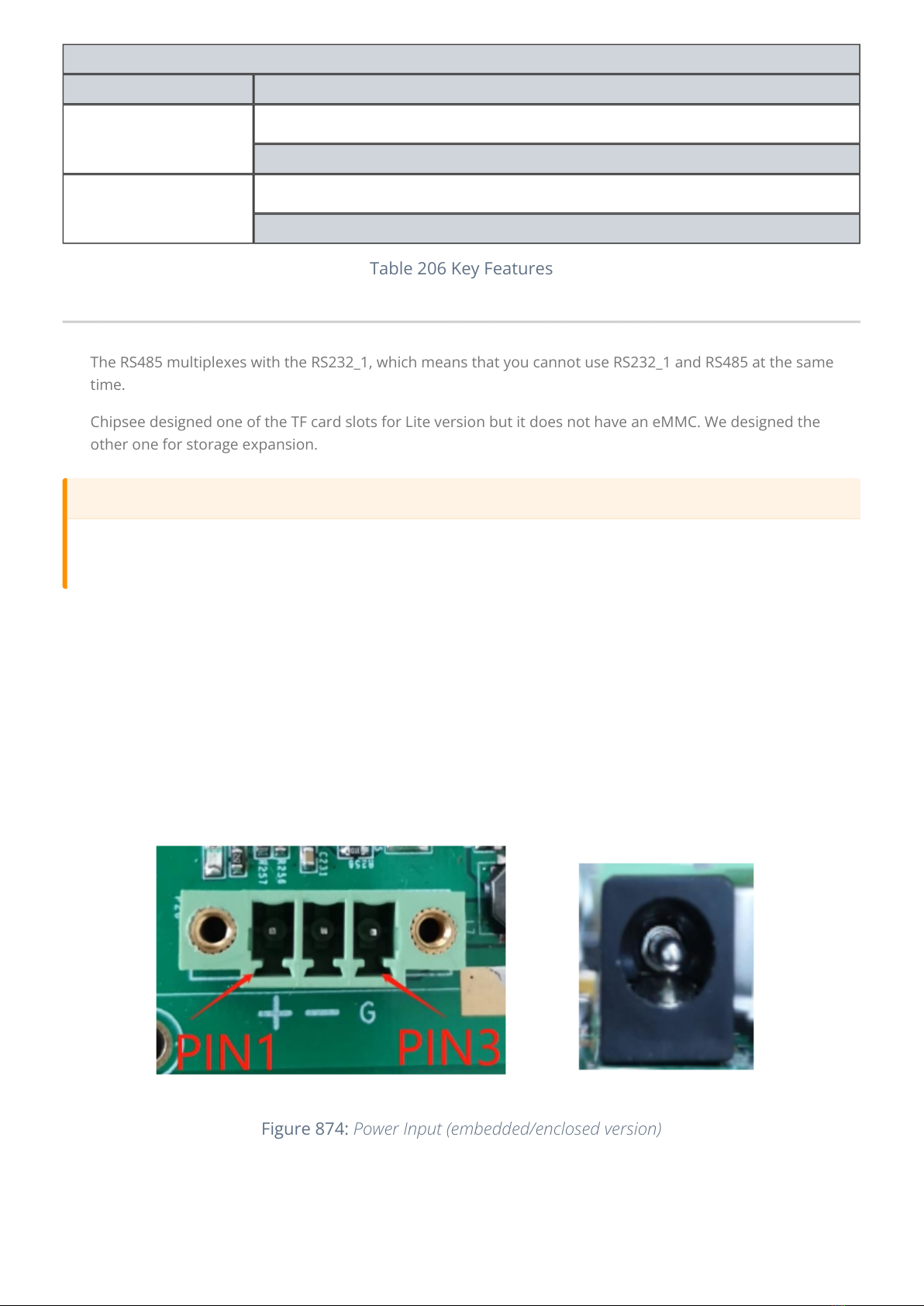

Figure 874: Power Input (embedded/enclosed version)
EPC/PPC-CM3-070
OS Debian
Dimensions CS10600RA070E: 190 x 107.8 x 27.7mm
CS10600RA070P: 206 x 135 x 30.1mm
Weight CS10600RA070E: 400g
CS10600RA070P: 700g
Table 206 Key Features
Attention
Chipsee does not install a lithium battery by default, as we cannot ship products with batteries. We recommend you
buy it locally and install it by yourself. The lithium battery part number is CR1220. Please Contact us if you need help.

EPC/PPC-CM3-070 Power Input
Chipsee IPC Page 7 of 18

Note that the “+” sign represents the positive power input, and it is printed both at the
casing and as a silk-screen on the board of the embedded version. The “-” terminal is
shorted to the ground.
Touch Screen
The EPC/PPC-CM3-070 industrial Pi PC uses a 5-point capacitive touch screen. The gure
below shows the capacitive touch screen connected to the motherboard via the FPC
connector.
Figure 875: Capacitive Touch Connector
Power Input Denition
Pin Number Denition Description
Pin 1 Positive Input DC Power Positive Terminal
Pin 2 Negative Input DC Power Negative Terminal
Pin 3 Ground Power System Ground
Table 207 Power Connector
Note
The system ground “G” is connected to power negative “-” on board.
The central pin is positive.

Attention
A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples
or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch
points oat erratically across the display. There are several solutions to this problem:
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.
Make sure that the EPC/PPC-CM3-070 Power Input connector (pin 3) is properly connected to the Power System
Ground to provide sucient EMI shielding and eliminate the problem entirely.

1.
2.
EPC/PPC-CM3-070 Touch Screen
Chipsee IPC Page 8 of 18

Connectivity
There are many connectivity options available on the EPC/PPC-CM3-070 industrial Pi PC. It
has 2 x USB 2.0 Host (can be customized to Host or OTG), 1 x Channel 100M LAN (RJ45)
Ethernet connector supporting up to 1 Gbps, and 2 x UART terminals (RS232/RS485).
RS232/RS485
The serial communication interfaces (RS485, RS482, and CAN) are routed to a 8-pin 3.81mm
terminal, as illustrated on the gure below.
Figure 876: Relation between serial pins on embedded vs. enclosed version of the EPC/PPC-CM3-070
Industrial PC
The table below oers more detailed description of every pin and its denition:
Bad GND problem can also be conrmed by touching pin 3 of the Power Input connector with one hand while
operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power
System Ground.
3.
RS232 / RS485 / CAN Pin Denition:
Pin Number Denition Description
Pin 8 RS485_1- CPU UART1, RS485 –(B) signal
Pin 7 RS485_1+ CPU UART1, RS485 +(A) signal
Pin 6 RS232_1_RXD CPU UART1, CPU RS232 RXD signal
Pin 5 RS232_1_TXD CPU UART1, CPU RS232 TXD signal
Pin 4 RS232_0_RXD CPU UART0, CPU RS232 RXD signal
Pin 3 RS232_0_TXD CPU UART0, CPU RS232 TXD signal
Pin 2 GND System Ground
Pin 1 +5V System +5V Power Output, No more than 1A Current output
EPC/PPC-CM3-070 Connectivity
Chipsee IPC Page 9 of 18

GPIO Port
The EPC/PPC-CM3-070 industrial Pi PC has a 10 Pin 3.81mm GPIO Connector, as shown on
the gure below. The table below gives details about the denition of every Pin.
Figure 877: GPIO Connector
Table 208 Connectivity Section
Attention
RS485_1 and RS232_1 share the same channel (UART1) and therefore you cannot use RS232_1 and RS485_1 at the
same time.

GPIO Connector Pin Denition:
Pin Number Denition Description
Pin 10 VCC Isolated Power +5V Input
Pin 9 GND Isolated Ground
Pin 8 OUT1 Isolated Output 1
Pin 7 OUT2 Isolated Output 2
Pin 6 OUT3 Isolated Output 3
Pin 5 OUT4 Isolated Output 4
Pin 4 IN1 Isolated Input 1
Pin 3 IN2 Isolated Input 2
Pin 2 IN3 Isolated Input 3
Pin 1 IN4 Isolated Input 4
Table 209 GPIO Connector Pin-out
EPC/PPC-CM3-070 GPIO Port
Chipsee IPC Page 10 of 18

USB Connectors
There are 2 x Type A USB HOST connectors onboard, as shown on the gure below.
Figure 878: USB HOST Connectors (embedded/enclosed PC version)
The product has one USB OTG connector that works as a slave by default. You can use it to
establish a connection with the host PC and for downloading the system to the eMMC of
CM3/CM3+.
Figure 879: USB OTG Connector
Attention
The GPIO has been Opt-Isolated and it uses the 5V Logic by default. You can use an external isolated power input
but the power input range should be from 5V to 24V DC.
The 4 output channels can drive at most 500mA current on each channel.

•
•
Warning

EPC/PPC-CM3-070 USB Connectors
Chipsee IPC Page 11 of 18

LAN Connectors
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as
shown the gure below. The integrated Ethernet interface supports up to 1 Gbps data
throughput.

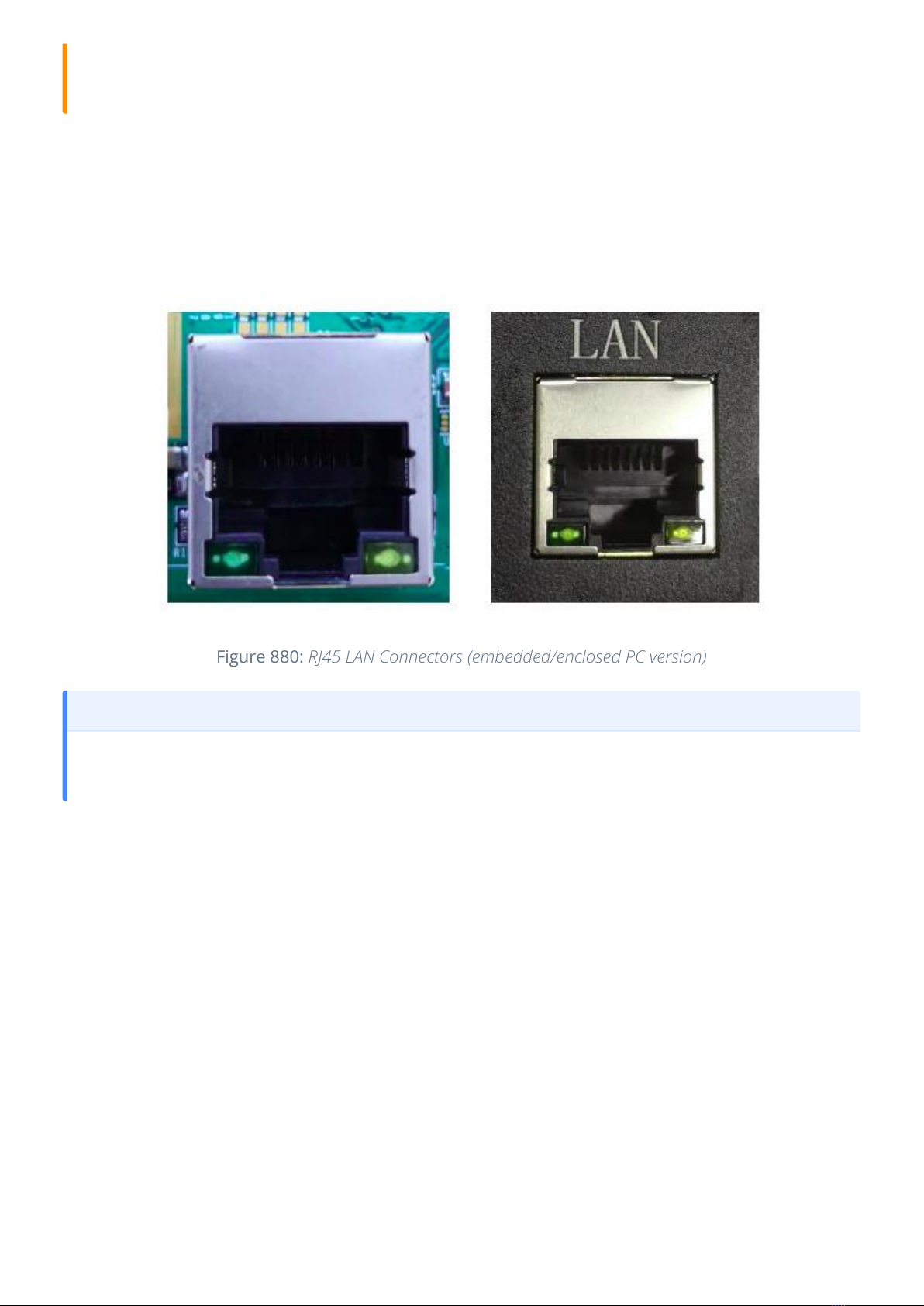

Figure 880: RJ45 LAN Connectors (embedded/enclosed PC version)
WiFi & BT Module
The EPC/PPC-CM3-070 industrial Pi PC is equipped with the popular Realtek RTL8723 WiFi/
BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4
GHz Wireless LAN (WLAN).
Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the
embedded Industrial PC version.
Note
Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T
standard (100m).

EPC/PPC-CM3-070 LAN Connectors
Chipsee IPC Page 12 of 18

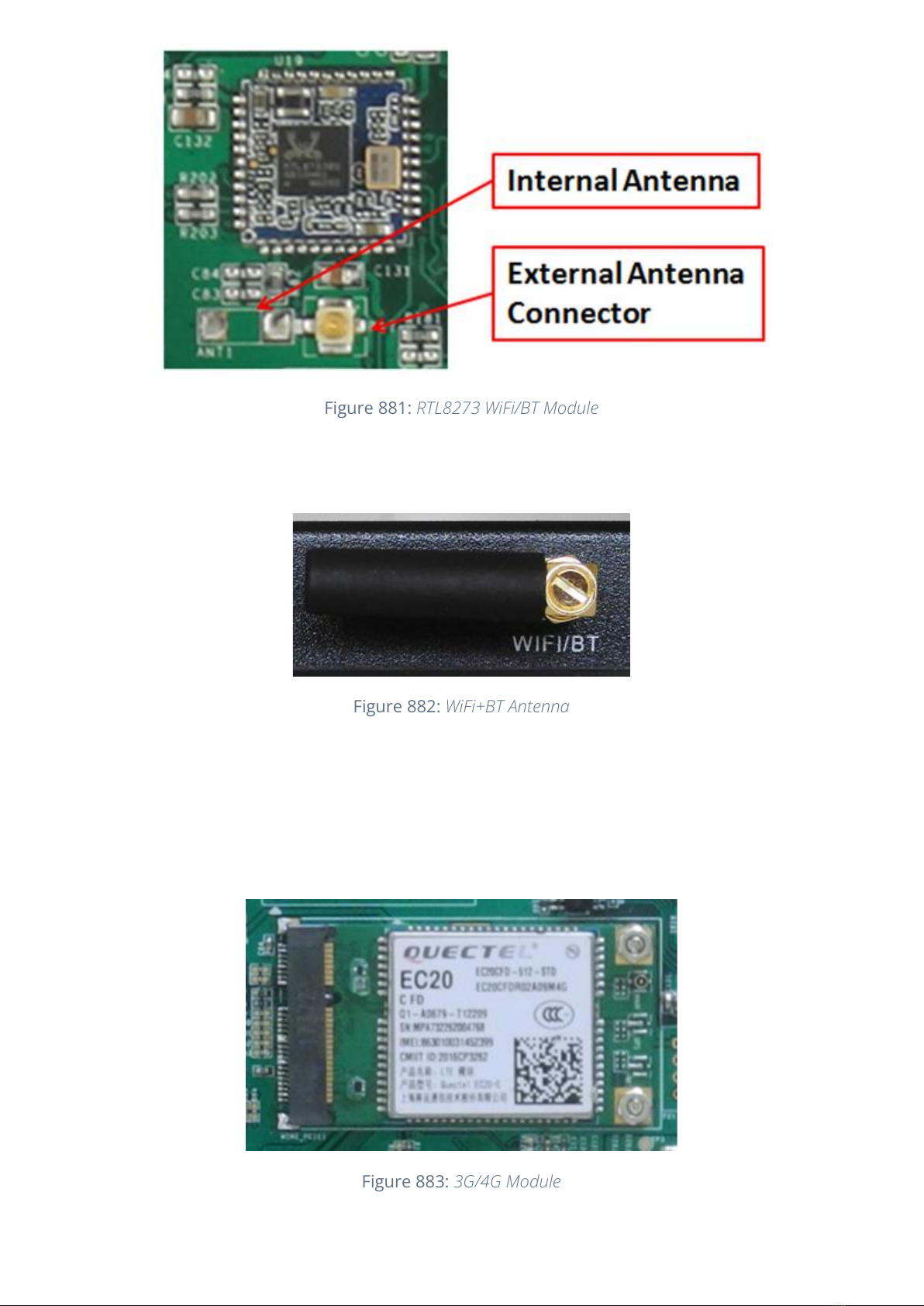

Figure 881: RTL8273 WiFi/BT Module
The enclosed (CS10600RA070P) variant of the product also includes an SMA connector for
an external WiFi/BT antenna, as illustrated in the gure below.
Figure 882: WiFi+BT Antenna
3G/4G/LTE Module
The EPC/PPC-CM3-070 industrial Pi PC is equipped with a mini-PCIe connector that can
connect to a 3G/4G module. The customer will also need a SIM Card Holder and a 3G/4G
Antenna Connector to ensure 3G/4G works on the EPC/PPC-CM3-070.
Figure 883: 3G/4G Module
EPC/PPC-CM3-070 3G/4G/LTE Module
Chipsee IPC Page 13 of 18

Figure 884: SIM Card Holder and 3G/4G Antenna Connector
TF Card Slot
The EPC/PPC-CM3-070 industrial Pi PC features 2 x TF Card (micro SD) slot: SD0 and SD1.
Both slots can address up to 32GB of memory.
The SD0 is used only for the Lite version of Compute Module that has no internal eMMC.
The SD1 is used for external storage.
Figure 885: TF (micro SD) Card Slot
Audio Connectors
The EPC/PPC-CM3-070 industrial Pi PC features some audio peripherals. It has 1 x 3.5mm
audio output jack.
Attention
The product does not come shipped with the 3G/4G module by default.

Note
The product does not come shipped with the TF Card by default.

EPC/PPC-CM3-070 TF Card Slot
Chipsee IPC Page 14 of 18

Also, the EPC/PPC-CM3-070 industrial Pi PC has a miniature 2W internal speaker for audio
reproduction, as well as a small buzzer for alarm/notication sounds.
Figure 886: Audio Connector (embedded/enclosed PC version)
Boot DIP Switch
The EPC/PPC-CM3-070 industrial Pi PC has one switch on the board marked as SW1, shown
in the gure below. It has two positions USB and eMMC.
When switch is in the USB position, the Raspberry Pi will boot from the USB connector. You
can use this function to download the OS software to the internal eMMC.
When switch is in the eMMC position, the Raspberry Pi will boot from internal eMMC.
There is no need to alter the DIP switch settings during regular operation. However, if you
need to reinstall the OS, please refer to the detailed information on how to re-ash the OS
from the Software Documentation.
Figure 887: Boot DIP Switch
EPC/PPC-CM3-070 Boot DIP Switch
Chipsee IPC Page 15 of 18

Mounting Procedure
The EPC/PPC-CM3-070 industrial Pi PC can be mounted with 4 x M4 screws, enabling
simplied installation onto any standard mounting xture.
CS10600RA070E
You can mount CS10600RA070E with the Embedded mounting method, as shown on the
gure below.
Figure 888: Embedded mounting
CS10600RA070P
You can mount CS10600RA070P with the Vesa (75 x 75mm) and Panel mounting methods,
as shown on the gure below.
Figure 889: Panel mounting
You can nd detailed information about mounting in the Mount IPC Guide.
Attention
Please make sure the display is not exposed to high pressure when mounting into an enclosure.

EPC/PPC-CM3-070 Mounting Procedure
Chipsee IPC Page 16 of 18

Mechanical Specifications
CS10600RA070E
The outer mechanical dimensions of CS10600RA070E are 190 x 107.8 x 27.7mm (W x L x H).
Please refer to the technical drawing in the gure below for details related to the specic
product measurements.

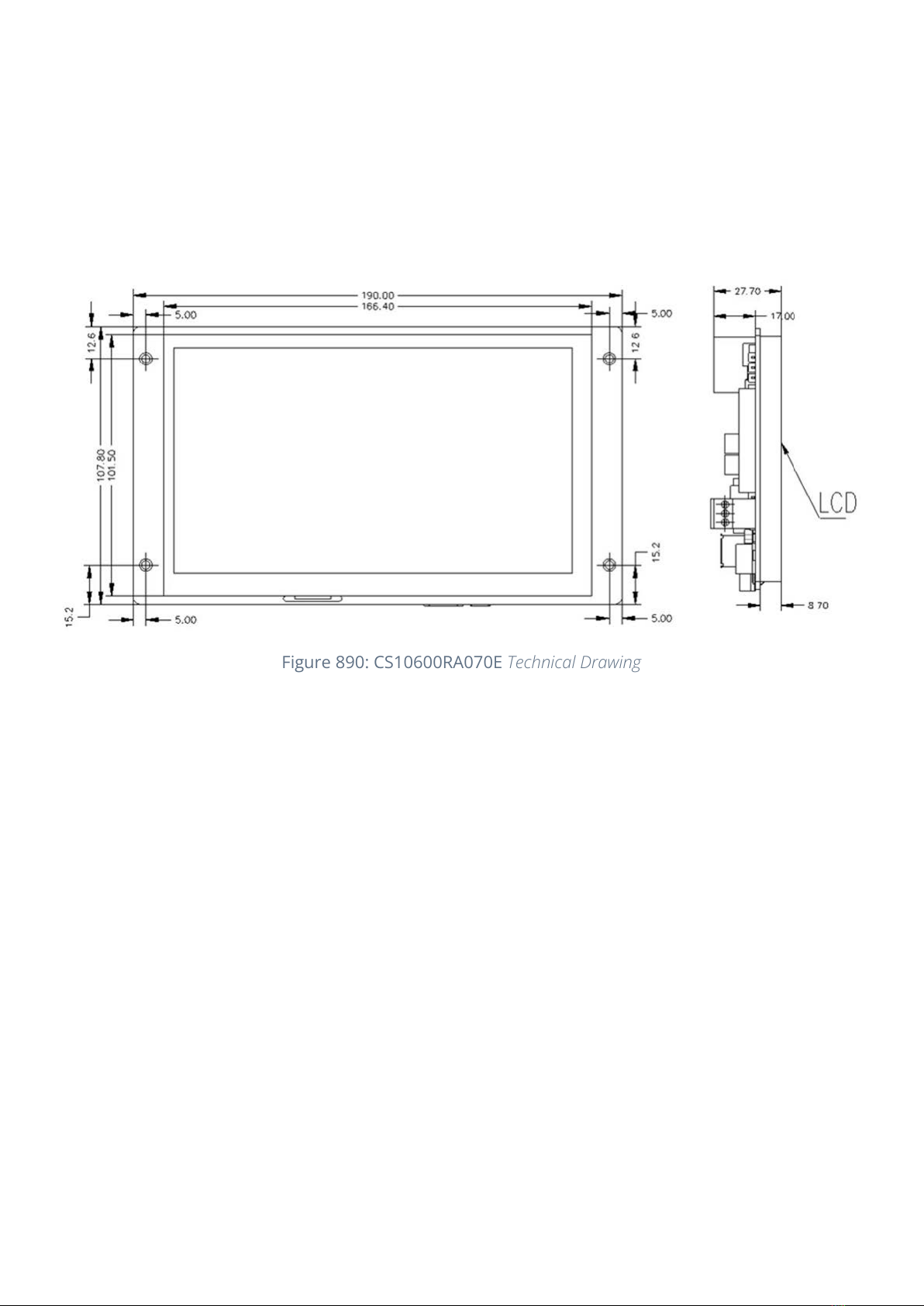

Figure 890: CS10600RA070E Technical Drawing
CS10600RA070P
For CS10600RA070P, the outer mechanical dimensions are 206 x 135 x 30.1mm (W x L x H).
EPC/PPC-CM3-070 Mechanical Specications
Chipsee IPC Page 17 of 18

Disclaimer
This document is provided strictly for informational purposes. Its contents are
subject to change without notice. Chipsee assumes no responsibility for any errors
that may occur in this document. Furthermore, Chipsee reserves the right to alter the
hardware, software, and/or specications set forth herein at any time without prior
notice and undertakes no obligation to update the information contained in this
document.
While every eort has been made to ensure the accuracy of the information
contained herein, this document is not guaranteed to be error-free. Further, it does
not oer any warranties or conditions, whether expressed orally or implied in law,
including implied warranties and conditions of merchantability or tness for a
particular purpose. We specically disclaim any liability with respect to this
document, and no contractual obligations are formed either directly or indirectly by
this document.
Despite our best eorts to maintain the accuracy of the information in this
document, we assume no responsibility for errors or omissions, nor for damages
resulting from the use of the information herein. Please note that Chipsee products
are not authorized for use as critical components in life support devices or systems.
Technical Support
If you encounter any diculties or have questions related to this document, we encourage
you to refer to our other documentation for potential solutions. If you cannot nd the
solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at
[email protected], providing all relevant information. We value your queries and
suggestions and are committed to providing you with the assistance you require.
EPC/PPC-CM3-070 Disclaimer
Chipsee IPC Page 18 of 18
