Portwell Rich-61e0 User manual

RICH-61E0

NUC form factor board

Version 2.0

RICH-61E0

Revision History

R1.0

Preliminary

R2.0

Add Power Button Function

RICH-61E0

Contents

1Introduction ............................................................................................................................................................................................................7

2Specifications .........................................................................................................................................................................................................8

2.1 Supported Operating Systems ............................................................................................................................................................................9

2.2 Mechanical Dimensions.........................................................................................................................................................................10

2.3 Power Consumption..............................................................................................................................................................................11

2.4 Environmental Specifications............................................................................................................................................................................12

3 Block Diagram ...........................................................................................................................................................................................................13

4 Hardware Configuration ..............................................................................................................................................................................................14

4.1 Connector Function .........................................................................................................................................................................................14

4.2 Jumper Settings ..............................................................................................................................................................................................15

5 System Resources .....................................................................................................................................................................................................20

5.1 Intel® Kaby Lake-U SoC ..................................................................................................................................................................................20

5.2 Main Memory ..................................................................................................................................................................................................20

5.3 Installing the Single Board Computer.................................................................................................................................................................20

5.3.1 Chipset Component Driver.....................................................................................................................................................................21

5.3.2 Intel® HD Graphics 620.........................................................................................................................................................................21

5.3.3 Intel LAN I219LM Gigabit Ethernet Controller ..........................................................................................................................................22

6 BIOS Setup Items.......................................................................................................................................................................................................23

RICH-61E0

6.1 Introduction.....................................................................................................................................................................................................23

6.2 BIOS Setup.....................................................................................................................................................................................................23

6.2.1 Main ....................................................................................................................................................................................................25

7.2.2 Advanced........................................................................................................................................................................................26

7.2.3 H/W Monitor ....................................................................................................................................................................................56

7.2.4 Security ..........................................................................................................................................................................................58

7.2.5 Boot ...............................................................................................................................................................................................60

7.2.6 Exit.................................................................................................................................................................................................64

7 Troubleshooting....................................................................................................................................................................................................66

7.1 Hardware Quick Installation..............................................................................................................................................................................66

7.2 BIOS Setting ...........................................................................................................................................................................................................67

7.3 FAQ 68

8 Portwell Software Service...................................................................................................................................................................................70

9 Industry Specifications........................................................................................................................................................................................71

RICH-61E0

Preface

This user’s guide provides information about the components, features, connectors and BIOS Setup menus available on the RICH-61E0. This document should

be referred to when designing 4" Embedded board application. The other reference documents that should be used include the following:

Intel Apollo Lake Design Guide

Intel Apollo Lake l Specification

Please contact PORTWELL Sales Representative for above documents.

Disclaimer

The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice.

Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties

of merchantability or fitness for any particular purpose with regard to any of the foregoing. PORTWELL assumes no liability for any damages incurred directly or

indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event

shall PORTWELL be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in

connection with this user’s guide or any other information contained herein or the use thereof.

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this User’s guide or the PORTWELL website, are the property of their

respective trademark holders. These trademark holders are not affiliated with PORTWELL, our products, or our website.

RICH-61E0

Warranty

PORTWELL makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited

Warranty”). PORTWELL may in its sole discretion modify its Limited Warranty at any time and from time to time.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, PORTWELL represents that the products are new and

warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed

upon specifications, will be repaired or exchanged, at PORTWELL’s option and expense.

Certification

PORTWELL is certified to DIN EN ISO 9001:2000 standard.

Technical Support

PORTWELL technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used

and implemented.

We request that you first visit our website at http://www.portwell.com.tw/support/ for the latest documentation, utilities and drivers, which have been made

available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at

[email protected]for further assistance. Thank you!

RICH-61E0

1Introduction

PORTWELL, Inc., (https://www.portwell.com) a world-leading innovator in the Medical Electronic market, today announces the release of the

RICH-61E0 utilizing the Intel®NUC form factor based on the Intel® Atom™ processor E3900 series, includes integrated, enhanced graphics and

memory controllers on 14nm process technology, delivering significant power reduction, performance improvements and smaller platform footprint over the

previous Intel®Atom™ processor E3900 series. The RICH-61E0 can provide the low power consumption for low profile fan-less applications such as

Medical, Panel PC, POS, Print Imaging, ATM, Kiosk, Digital Security and Digital Signage.

RICH-61E0

2Specifications

Main Processor

◆Intel® Kaby Lake-U Core™i Processors

System Chipset

System BIOS

◆AMI UEFI BIOS

Main Memory

◆Up to 32 GB in 2 slots DDR4 So-DIMM sockets. Supports dual channel DDR4_2133 MHz

SDRAM

Graphics

◆Controller: Intel® HD Graphics 620

◆DP: Supports DP up to resolution 4096 x 2304

◆HDMI: Supports HDMI up to resolution 4096 x 2304

Expansion Interface

◆One M.2 (Key E) support WiFi, B T, 3G & 4G

SATA Interface

◆One SATA ports(SATA 6Gb/s)

◆One M.2 (Key M) support SSD

Input/Output

◆3x USB 3.0 ports on REAR I/O

◆1x USB 3.0 type-C port on REAR I/O

◆Audio Interface: Mic-In / Line-Out

Ethernet

◆Supports single 10/100/1000 Mbps Ethernet port (s) via PCI Express x1 bus which provides 500 MB/s

data transmission rate

RICH-61E0

Mechanical and

environmental specifications

◆Operating temperature: 0 ~ 60° C

◆Storage temperature:-20 ~ 80° C

◆Humidity: 5 ~ 90% non-condensing

◆Power supply voltage: ATX

◆Board size: 170mm x 170 mm

2.1 Supported Operating Systems

The RICH-61E0 supports the following operating systems.

Windows 10* (64 bit)

Wind River* 8.0 Linux Distribution(64 bit)

Yocto* Tool-based Embedded Linux Distribution (64 bit)

Android* 6.0(64bit)

VxWorks*7.0 (RTOS) (64 bit)

RICH-61E0

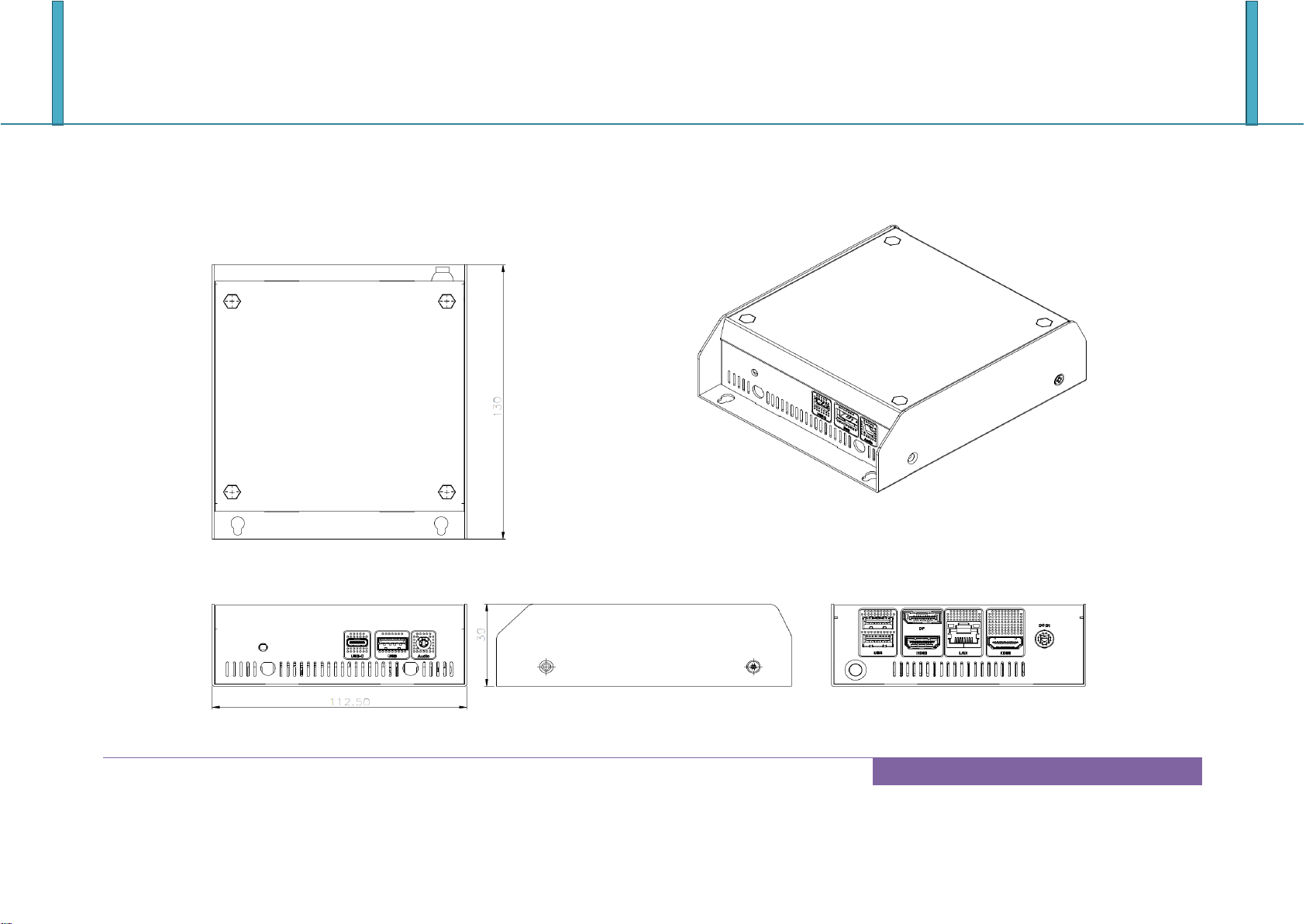

2.2 Mechanical Dimensions

RICH-61E0

2.3 Power Consumption

3Test Configuration

CPU Type

Intel® Core™ i5-7300U CPU @ 2.6GHz (ES), 3M Cache

SBC BIOS

Portwell, Inc. WUX-7XXXU SERIES TEST BIOS 2018/10/05

Memory

WARIS UB-DIMM DDR4 2133 8GB*2 (SEC K4A4G085WD)

LAN Card

Onboard Intel® Ethernet Connection(2) I219-LM

LAN Driver

Intel® Ethernet Connection(2) I219-LM Version: 12.15.22.6

Audio Card

Onboard Realtek ALC233 High Definition Audio

Audio Driver

Realtek ALC233 High Definition Audio Version: 6.0.1.7647

Chipset Driver

Intel® INF Version: 10.1.1.18

VGA Card

Intel® HD Graphics 620

VGA Driver

Intel® HD Graphics 620 Version: 24.20.100.6229

USB 3.0 Driver

Microsoft Version: 10.0.17134.1

SATA HDD

HITACHI Z5K320-250 250GB

Power Supply

FSP GROUP INC. FSP120-AHAN1

RICH-61E0

Power consumption(24V)

ATX:

Item

Power ON

Full Loading 10Min

Full Loading 30Min

CPU +12V

0.98A

2.05A

1.98A

System +12V

0.83A

1.48A

1.26A

System +3.3V

0.55A

0.65A

0.69A

System +5V

1.11A

1.37A

1.34A

System+ Device +12V

0.97A

1.81A

1.56A

System+ Device +5V

1.87A

USB3.0 Loading Test

4.93V/ 990 mA

2.4 Environmental Specifications

Storage Temperature : -40~85°C

Operation Temperature : 0~60°C

Storage Humidity : 5~90%

Operation Humidity: 10~90%

RICH-61E0

3 Block Diagram

RICH-61E0

4 Hardware Configuration

4.1 Connector Function

We have made a list of connector function. The following figure shows where the connectors are and what they are called in board file.

Figure1. RICH-61E0 System View

RICH-61E0

4.2 Jumper Settings

For users to customize RICH-61E0’s features. In the following sections, Users can refer to Figure 1& 2 for the Jumper allocations.

Jumper Table

The jumper settings are schematically depicted in this manual as follows:

RICH-61E0

Connector Function List:

Jumper Function List

Clear CMOS Pad(CLRMOS1)

Audio Jack(AUDIO1)

USB3.0 Port(USB3_2)

USB3.0 Type-C Port(USB3_TC_1)

SATA Power Output Connector(SATA_PWR1)

SATA3 Connector(SATA_1)

LPC Debug Header(LPC1)

Infrared LED(IR1)

DC-in Jack(DC_IN1)

HDMI Port(HDMI_2)

LAN Port(LAN1)

Top : Display Port(HDMI_DP_1)

Bottom: HDMI Port(HDMI_1)

USB3.0 Ports(USB3_3_4)

RICH-61E0

1: Clear CMOS Pad(CLRMOS1)

2: Audio Jack(AUDIO1)

3: USB3.0 Port(USB3_2)

4: USB3.0 Type-C Port(USB3_TC_1)

5: SATA Power Output Connector(SATA_PWR1)

6: SATA3 Connector(SATA_1)

7: LPC Debug Header(LPC1)

RICH-61E0

8: Infrared LED(IR1)

9: DC-in Jack(DC_IN1)

10: HDMI Port(HDMI_2)

11: LAN Port(LAN1)

12: Top : Display Port(HDMI_DP_1)

Bottom: HDMI Port(HDMI_1)

13: USB3.0 Ports(USB3_3_4)

RICH-61E0

Back Side:

Power Button Header (PWR_BTN1)

RICH-61E0

5 System Resources

5.1 Intel® Kaby Lake-U SoC

WUX-7300U/7100U is based on Kaby Lake-U SoC family

5.2 Main Memory

RICH-61E0 provides 2 x 260-pin So-DIMM sockets which supports DDR4 non-ECC memory. The maximum memory can be up to 32GB. Memory clock and

related settings can be detected by BIOS via SPD interface.

Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory
