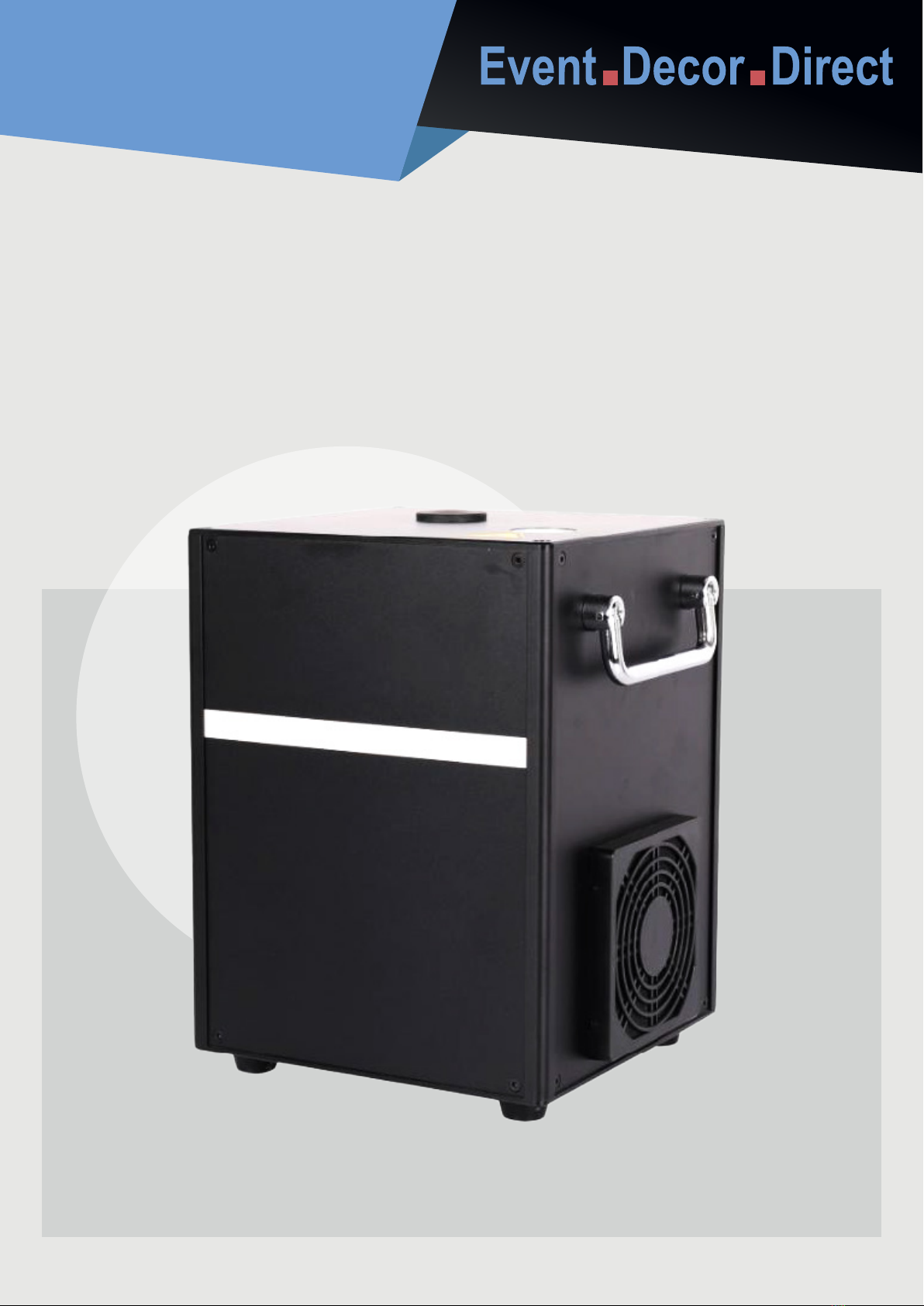

Eddylight Pro EDDY-HW-01 User manual

MODEL: EDDY-HW-01
EDDYLIGHT PRO
COOL SPARKLER MACHINE
USER MANUAL

Included in delivery:
• 1 x cold spark machine;
• 1 x power cord;
• 1 x signal cable;
• 1 x remote controller
1The machine adopts 3-pin signal wire connection (5-pin can be customized), with DMX IN and
DMX OUT double interfaces, which can be used for multiple connections and is suitable for
standard 512 signal control.
2Please refer to attached for the channel occupied by DMX and its description
3DMX address code adjustment.
Package Contents
DMX Instruction
888
DMX ADD
HEAT
：Means increasing DMX address code; long press helps increase fast.
：Means decreasing DMX address code; long press helps decrease fast.
Note: When used DMX 512 signal control mode, each device is connected through DMX signal
socket INPUT and OUTPUT of the device. The 3-pin XLRXL plug terminals of the connected
device must correspond to each other. It is recommended to use DMX signal terminators when
connecting device signals, and use double stranded shielded cables can avoid signal interference.

1Suitable models instruction: this remote controller be suitable for all of models with remote
function.
2Buttons usage instruction: the remote controller include two parts, one for basic functions,
another for special effects(the functions within black line)
READY：Green light When the "READY" green light turns from flashing into light on, it indicates
that the machine is ready to work.
DMX：Blue light Flashing shows that DMX signal is connected, otherwise no signal.
FAULT：Yellow light The light is on with any malfunction.
HEAT：Red light When the machine is heating, signal light is on.
Indicator Description
Remote Controller
888
DMX ADD
HEATFAULTDMXREADY
Power
STOP
HIGH
1
Speed
1/2/3
HIGH
2
HIGH
3
LR-M
A
L-R
A
M-LR
A
LR-M
B
L-R
B
M-LR
B
HIGH
1/2/3 +NO.-
CLE
HEAT
ON/OFF
Signal ConnectionEmergency Stop
Heat ON/OFF Clear Powder
Fountain Height
Number of Machines
Fountain Time
Special Effects A
Special Effects B
Fountain Height

Power：(Signal connection) Short press 1second is connect the machine, the display will show
“FHH” after connected, then “FHH” will change to special effects address as below show, that’s
connected successful. Long press 3 seconds is unconnected, the display show “OFF”, then
change to “001” as below:
HEAT ON/OFF: (Heat ON/OFF) Press button start to heat, red indicator light will lighting, the
display will show heating temperature; long press 3 seconds is stop heating, the heat indicator is
off, show the address code of the special effects.
STOP: (Emergency stop) Stop do fountain.
CLE: (Clear powder) The machine will do clear powder 30seconds automatically. (Please pour
out the rest powder from powder box of machine before do this function)
HIGH1/HIGH2/HIGH3: (Fountain height) High 1 - fountain lowest, high 3- fountain highest
Speed: (Fountain time adjustment) Multi-machines do fountain effects, the fountain time of
each machine is 1-3 seconds, can be adjusted by short press before do fountain.
L-R A: From left to right each machine do fountain on sequence.
LR-M A: From left & right side to middle, there have two machines do fountain at the same time.
M-LR A: From middle to left & right side, there have two machines do fountain at the same time.
L-R B: From left to right increase one machine do fountain, till all the machines in fountain.
LR-M B: From left & right side to middle increase two machines do fountain, till all the machines
in fountain.
M-LR B: From middle to left & right side increase two machines do fountain, till all the machines
in fountain.
HIGH1/2/3: Do special effects can adjust fountain height, will show different fountain height
press every-time.
+NO.-: The number of machines be adjustment, how many machines you need used, then
adjust the same number as used, the maximum add to fifteen machines.
DMX ADD DMX ADD
Signal connected
successful
DMX ADD DMX ADD
Signal
unconnected
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Short press “Power” 1 second to connect the machine, the display show “FHH” that be
connected successful.
Press “HEAT ON/OFF” start to heat till green indicator light always in lighting. (The display will
show real-time temperature)
Press “HIGH1/HIGH2/HIGH3” do fountain.
End of event -- Press “CLE” do clean powder (cleaning operation refer to point 7)
The diagram as follows:
1
2
3
4
1 2 3 4

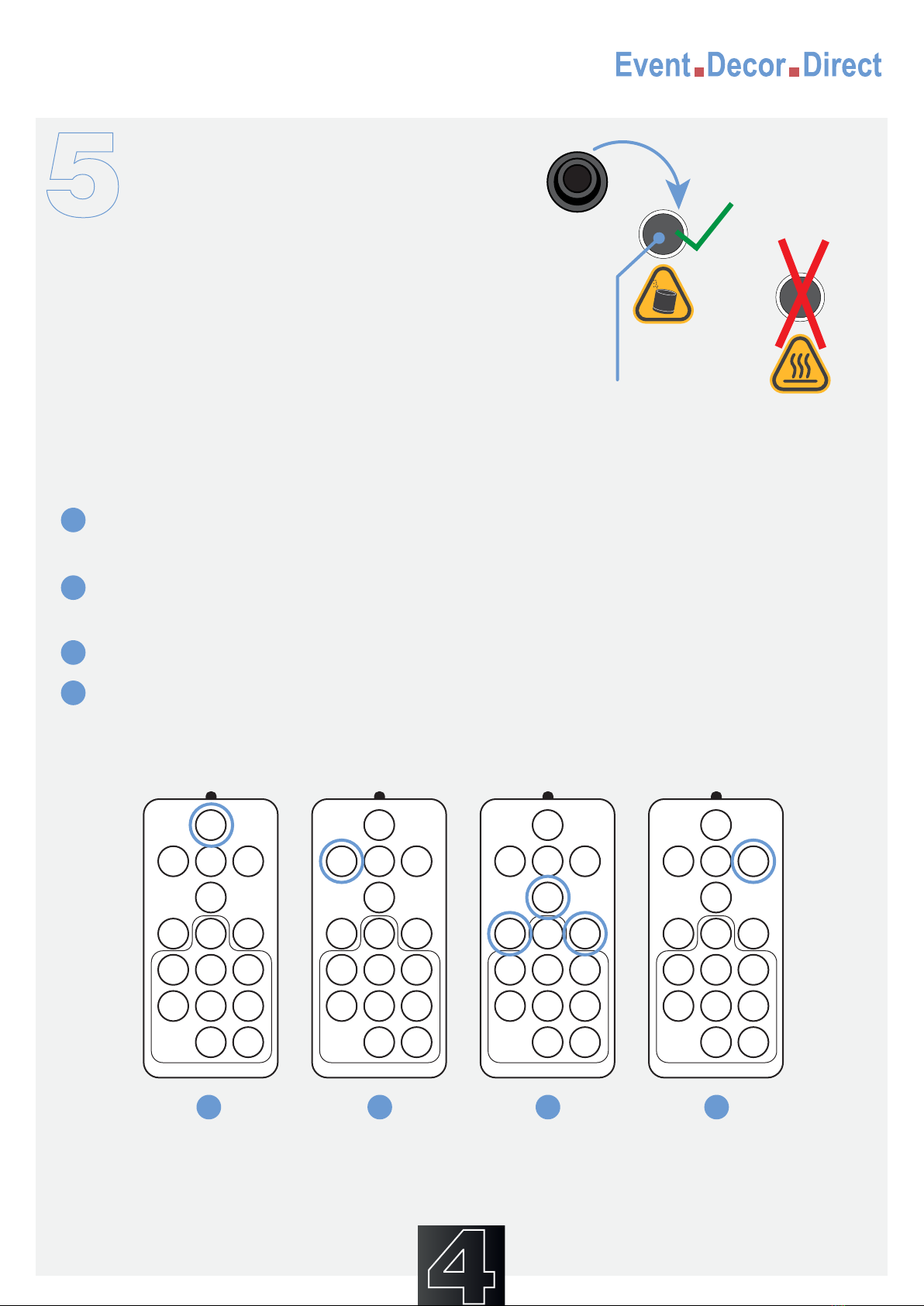

1) Use remote do normal fountain:
There have two operate modes: DMX 512 console,
Remote controller. Please ensure sufficient
consumables before use; After added consumables,
Cover the rubber plug (don’t add to wrong fountain
hole)
Operation Instruction
The hole add
consumables
Power
STOP
HIGH
1
Speed
1/2/3
HIGH
2
HIGH
3
LR-M
A
L-R
A
M-LR
A
LR-M
B
L-R
B
M-LR
B
HIGH
1/2/3 +NO.-
CLE
HEAT
ON/OFF
Power
STOP
HIGH
1
Speed
1/2/3
HIGH
2
HIGH
3
LR-M
A
L-R
A
M-LR
A
LR-M
B
L-R
B
M-LR
B
HIGH
1/2/3 +NO.-
CLE
HEAT
ON/OFF
Power
STOP
HIGH
1
Speed
1/2/3
HIGH
2
HIGH
3
LR-M
A
L-R
A
M-LR
A
LR-M
B
L-R
B
M-LR
B
HIGH
1/2/3 +NO.-
CLE
HEAT
ON/OFF
Power
STOP
HIGH
1
Speed
1/2/3
HIGH
2
HIGH
3
LR-M
A
L-R
A
M-LR
A
LR-M
B
L-R
B
M-LR
B
HIGH
1/2/3 +NO.-
CLE
HEAT
ON/OFF

Press “Power” to connect the machine, the display show “FHH” that be connected successful.
To adjust each machine special effects address code by each machine address code button as
picture show The display will show number or letter(A、B、C、D、E、F are correspond
number10 to 15 respectively), like below picture show “3” means this is the third machine.
1
Press “+NO.-”adjust the number of machines be used, the display will show number or letter(A、
B、C、D、E、F are correspond number 10 to 15 respectively), as below picture show the right
number “4” means total machines qty, number must be adjusted to meet you need used
machines qty.
3
Press “Heat ON/OFF” button start to heat, till green indicator light always in lighting, then can do
fountain, the display will show heating temperature.
Press special effects A or B buttons will have related special effects.
End of event -- Press “CLE” do clean powder (cleaning operation refer to point 7)
3
4
5
2
2) Use remote do special effects fountain:
Connect the power cable and DMX signal cable of machine, turn on green power button, DMX
blue indicator light keep in flashing, means DMX signal connected successful.
The first channel push to top start heating, till the green indicator light always in lighting, then can
do fountain.
1
2
3) Console operation(Occupied 2 channels):
DMX ADD
DMX ADD
Eg: there have eight machines do special effects, then the programme will show as below:
F18 F28 F38 F48 F58 F68 F78 F88
1 2 3 4 5 6
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
1st channel push to
top, start heating
(value: 240-255)

The consumables are classified as:
SMALL: the spark fountain height 1.0-3.5m (error 0.5m), and the spot is rarely dropped,use for
indoor.
LARGE: the spark fountain height 2.0-5.0m (error 0.5m), and the sprayed spot has dropped
ground,use for outdoor.
Consumables choice: Consumables are the customized formula for the test of our
machines. Please select our consumables to avoid affecting the effect of the machine; (No
warranty service is provided for machines damage caused by consumables not from our
company).
1
2
Consumables
Remark: The detail channel instruction, please refer to attached channel operation; if need use
console do special effects, then please do programme by yourself.
2nd channel do
fountain (adjust the
fountain height from
up to down)
Push the second channel do fountain.
3
1 2 3 4 5 6
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
1st channel down a
little bit clean powder
(between 221-239)
End of event -- Clean powder (cleaning operation refer to point 7)
4
1 2 3 4 5 6
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0

Clean and Maintenance
Consumables save: Consumables should be kept in a dry and sealed environment to
prevent moisture.(wet and sundry consumables should not be used)
Consumables add: Pls stop running the machines before add the consumables, to avoid
accidental injury.
3
Dust net cleaning：Please clean the dust net
regularly, to avoid block the dust net and influence heat
dissipation of machine. (The dust screen can be
removed directly from the outside)
External cleaning：Please wipe the machine gently
with soft cotton, to avoid scratch the machine housing.
2
3
Clear powder：Please must do Clear Powder after each events used, avoid be stuck by inside
powder for next use. The series of products designed two automatic modes of cleaning
remaining consumables.
Operation step: When the machine still in the
preparatory state after the event, clean the powder
directly (remote controller press button CLE; DMX
console use 1st channel push number between
221-239 ). The automatic cleaning time is 30 seconds,
also can stop the cleaning in advance by manually
(remote controller press HEAT button, the console to
stop the
cleaning, push number between 1-221 in 1st channel ).
The equipment will jump to non-working state
automatically after cleaning.
If you need to save the equipment, please pour out the remaining powder inside for separate
storage after cleaning, avoid to affect the next use of the remaining powder affected by
moisture.
1
4

Note：when the fault light is on, pls turn off the power of machine in time, to avoid extra damage, and
users are expected to restart the machine until the fault light is off.
Fault light (yellow) display and processing method
Warranty：1 Year (Subject to the date of manufacture)
Each machine is affixed with the factory code. The factory code shall be provided when
enjoying the warranty service. It is invalid if torn.
It’s may need provide some videos or pictures to confirm the problems.
1
2
3
After-sales
Display content Fault causes Solution
E01 Heating failure
1: Check if the heat dissipation plate is
normal. 2: Replace the heat dissipation plate or
heating board.
E03
1: Check the cooling fan. 2: stop
heating and operating, restart after 10
minutes.
E02 Heating is not
controlled Replace the heating board.
The internal
temperature of
the machine is
extremely high
E04 Check whether the feeding motor works
normally and whether the feeding motor is stuck
Feed motor
overcurrent
protection
E05 1:Check sensor socket. 2: replace the sensor.
The sensor is
faulty
E06 1: Pls restart the machine, don’t tilt machine again
after power on.
Anti-tilt safety
function is
enabled
E07 Shut down the machine to check whether the
blower motor is working properly
Safety protection
of blower motor

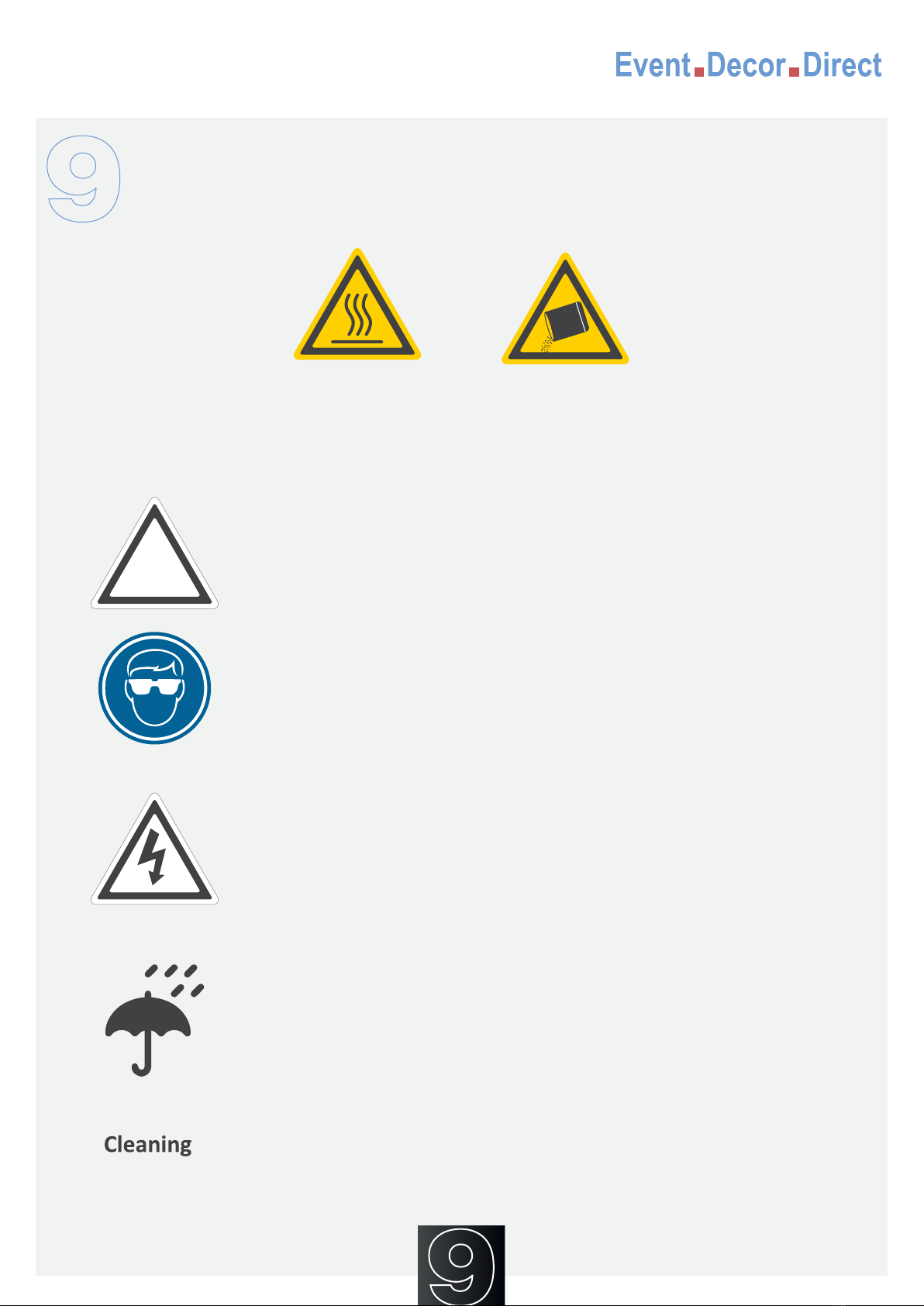

Warnings and Cautions
Warning: High
temperature warning,
high temperature at
exit.
The hole for adding
powder
The sign is to remind users of paying attention to risk and security.Please
note that the machines are not meant to be a continuous duration effect.
The maximum running time is 30 second and can be repeated but should
not be done to overheat the machine.
Eye protection warning sign is to remind you of protecting the eyes during
the machine operation.
Warning: Dangerous voltages are present in this machine when electrical
power is applied. There is a danger of injury from electric shock. Under no
circumstances are you to attempt to open the machine or attempt to
remove or adjust any components fitted within the machine.
Only fully trained engineers can open the equipment.
Use caution so that any liquids do not wet the machine. Keep the machine
and controller dry and not use rainy or snowy days unless covered.
Please inspect fountain nozzle before use and confirm whether there are
accumulation granulates.If it does, please clean out by inverting the
machine to clean out port.
!

The machine built-in protection procedures, will stop auto. once do fountain over 30s each time.
If need it to work again, please operate the second channel again. The continuous shooting time
is too long, the internal temperature will rise sharply and cause permanent damage. Suggest not
do continuous shooting over 1minutes.
Max connection is 6 pieces via power connecting cables, too many devices work together will
cause damage or fire.
If there is no spark out with enough consumables or other abnormal situation, pls stop running
machine and contact after-sale service for help.
After use the machines, do not immediately turn off the power. The heat-dissipating fan should
take out the internal air when the power is on. Otherwise, the internal heat is quickly transmitted
to the surface of housing.
Please place the equipment in an open place and keep a safe distance of more than 5 meters
from the personnel.
Make sure the device is off before filling the consumables
If the consumables are accidentally ignited, please use the sand to extinguish, do not use water.
Damage caused by improper use or human factors is not covered by the warranty.
1
2
3
4
5
6
7
8
Attached as below
13
14
15
18
19
888
DMX ADD
HEAT
FAULTDMXREADY
POWER IN OUT DMX IN DMX OUT
Cold Spark Fountain
220V.50-60HZ 750W 3.4A
N.W. 8.5kg
Max connections 8pcs
Fuse: 250V/6ADimensions: 230”195”300mm
7
8
9
10
11
12
17
1
2
3
4
5
6
16

Outlook function description
1 8
QC Remote receiver
signal 15 Dust Net
2 9
Cooling Fan Display 16 Spray Hole
3 10
Indicator Adjust Buttons 17 Powder hole
4 11
Fuse Parameter Label 18 Paws
5 12
Power Switch DMX Port
6 13
Power Port Foldable Handle
7 14
Factory Code Access Hole
19 Cleaning hole
Product Parameters
Working Height
Fountain Direction
Working Temperature
Heating Power
Fuse
1-5 m
Up
-10°C-50°C
750w 6.8A(110V)
750w 3.4A (220V)
110V/10A, 220V/6A
Interface
Control Mode
Hpusing Material
N.W
Size
Double DMX input,
Double AC power
DMX / Remote
Aluminum
7.8kg
220*250*310mm

1st channel
Function
Display
Display
2nd channel
Function
Display
2nd channel
Function
0-10
Pre-heat
turn off
Add. code
OFF
0-15
Turn off
F6
136-159
Fountain 6
11-220
Emergency
stop
Add. E57
F1
16-39
Fountain 1
F7
160-183
Fountain 7
221-239
Clear
Powder
CLE
F2
40-63
Fountain 2
F8
184-207
Fountain 8
240-255
Pre-heat
turn on
0-500
F3
64-87
Fountain 3
F9
208-231
Fountain 9
F4
88-111
Fountain 4
F10
232-255
Fountain 10
F5
112-135
Fountain 5
DMX Channel (2 Channels)
