FXLD2512B516 LED FIXTURE
Version 0.2 OWNERS MANUAL 09/14/17
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 757 486 3588
FEATURES AND SPECIFICATIONS
LEDS: 12, 25W each (RGBWA, 5in1)
Beam angle: 60ᵒ
Control system: DMX512 + Stand Alone Modes
DMX channels: 5/9
DMX connectors: 3 pin XLR I/O
Refresh Rate: >3000 Hz)
Voltage: 100 - 240 VAC 50/60Hz
Max power consumption: 330 Watts
Cooling: Internal Fan
Body material: Sheet steel
Body color: Black
Size: 39.4"L x 5"W x 3.4"H
DESCRIPTION
The FXLD2512B516 is a RGBWA LED lighting fixture. It
is suitable for stage, disco, night club, and other artistic
applications. It has several stand-alone control modes and
can operate via a DMX512 external signal.
INSTALLATION
LOCATION
The FXLD2512B516 is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from moisture
and heat. Keep the vent holes clear. Holes are provided on
the brackets to install a lighting bar pipe clamp. Use a safety
cable when hanging the fixture.
POWER CONNECTIONS
The FXLD2512B516 has a blue turn and lock connector for
power input. A compatible power cable is provided for
connection to a 120 VAC, 15 Amp, 60Hz, grounded service.
Push the blue connector on the cable straight into the blue
connector on the unit and twist approx. 1/8 turn clockwise to
latch it. The white turn and lock connector on the unit is
used to pass power on to another FXLD2512B516 unit. A
mating white connector is also provided.
Caution is advised since the line cord is rated for approx. 7
Amps maximum.
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using DMX control must be connected as a chain
of devices. In other words the control signal cable should
proceed from the controller to the first receiving device and
then to others in a continuous "daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector to be
used to connect the chain. The control cable should NOT be
split into a multiple run star arrangement with a cable
running from the controller directly to each receiving device
pack.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors which can be used for
DMX control. They are both XLR type connectors.
This unit uses 3 pin XLR type connectors. The
FXLD2512B516 receives a DMX signal on the 3 pin MALE
connector on one side of the unit.
3 Pin Pinout
DMX TERMINATION
A DMX chain should be terminated at the last receiving
device on the chain. This is done by installing a commonly
available 1/4 Watt, 120 Ohm resistor across the DATA - and
DATA + wires at the last device. If you have only a few
fixtures very close together and a very short run to the
controller then you may be able to operate without the
terminator.
PIN #
SIGNAL NAME
1
DMX COMMON
2
DMX DATA -
3
DMX DATA +
CAUTION
RISK OF ELECTRIC SHOCK

Page 2 of 6
FXLD2512B516 LED FIXTURE
Version 0.2 OWNERS MANUAL 09/14/17
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 757 486 3588
OPERATION
A control panel on the back of the unit is used to set the
operating options. It consists of an LED display and four
buttons (MENU, UP, DOWN, and ENTER)
Push MENU to access the operating options. Press UP or
DOWN to cycle through options. When you reach the
option you want to set or change use the ENTER button to
select the option to change. Then use the UP and DOWN
buttons to modify the values. Push ENTER to save your
changes and deactivate the option. See the "MENU
NAVIGATION" diagram for additional details.
There are 9 operation modes: DMX 5 channel, DMX 9
channel, Color Fade, Color Change, Color Select, Manual
Level (5 selections), Demo, Sound, delo.
DMX OPERATION
For DMX operation the FXLD2512B516 fixture can be
configured as a 5 channel or 9 channel unit.
Use the dXXX (5 ch) or AXXX (9 ch) menu to set the
starting address of the unit. You can select the starting
address of the unit with the UP and DOWN buttons.
Detailed information on DMX channel operation is given in
the tables DMX VALUES AND FUNCTIONS.
MANUAL OPERATION
Color Select (CSXX)
For additional manual operations you can use the Color
Select menu (CSXX) to select a color and level.
Color Change (CCXX)
The color change mode cycles through a variety of colors at
a user defined speed. Use the CCXX menu to set the rate of
speed at which the colors change. The range is from 01 to
99. 99 is fastest and 01 is slowest.
COLOR FADE (CFXX)
The Color Fade mode cycles smoothly through a sequence
of colors. Use the CFXX menu to set the speed and activate
the option. The range is from 1 to 99. 99 is fastest.
R, G, B, W, A MANUAL LEVEL CONTROL
You can operate the individual color levels manually using
the r.000, g.000, b.000, E.000, and Y.000 menus. Use the
UP and DOWN buttons to change the level, Push ENTER
when done. The range is 000 - 255 (255 is maximum).
DEMO MODE (dENo)
This option is currently not operable with this unit.
SOUND MODE (Soun)
The unit reacts to sounds by changing colors randomly.
There are no other settings within this mode.
DELAY MODE (dELO)
Option not supported at this time.
MENU
UP
DOWN
ENTER
CONTROL PANEL

Page 3 of 6
FXLD2512B516 LED FIXTURE
Version 0.2 OWNERS MANUAL 09/14/17
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 757 486 3588
MAINTENANCE AND REPAIR
TROUBLESHOOTING
Check that you have power applied to the unit.
Check the DMX control cable.
Check the address settings of the unit and the controller.
CLEANING
Do not use harsh chemicals or solvents when cleaning the
fixture. A mild detergent can be used sparingly if needed.
Ensure that the unit is completely dry before re-use.
REPAIR
The fixture contains a 2 Amp 250VAC, fast acting, 5mm x
20mm externally accessible fuse. Replace the fuse ONLY
with the same size and type.
The FXLD2512B516 does not contain any other user
serviceable parts. Internal service on the unit by other than
Lightronics authorized agents will void the warranty.
If service is required, contact the dealer from whom you
purchased the item, or contact the Lightronics, Service
Department, 509 Central Drive, Virginia Beach, VA 23454.
Tel: [phone].
CAUTION DO NOT OPEN UNIT
RISK OF ELECTRIC SHOCK
RISK OF FIRE

Page 4 of 6
FXLD2512B516 LED FIXTURE
Version 0.2 OWNERS MANUAL 09/14/17
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 757 486 3588

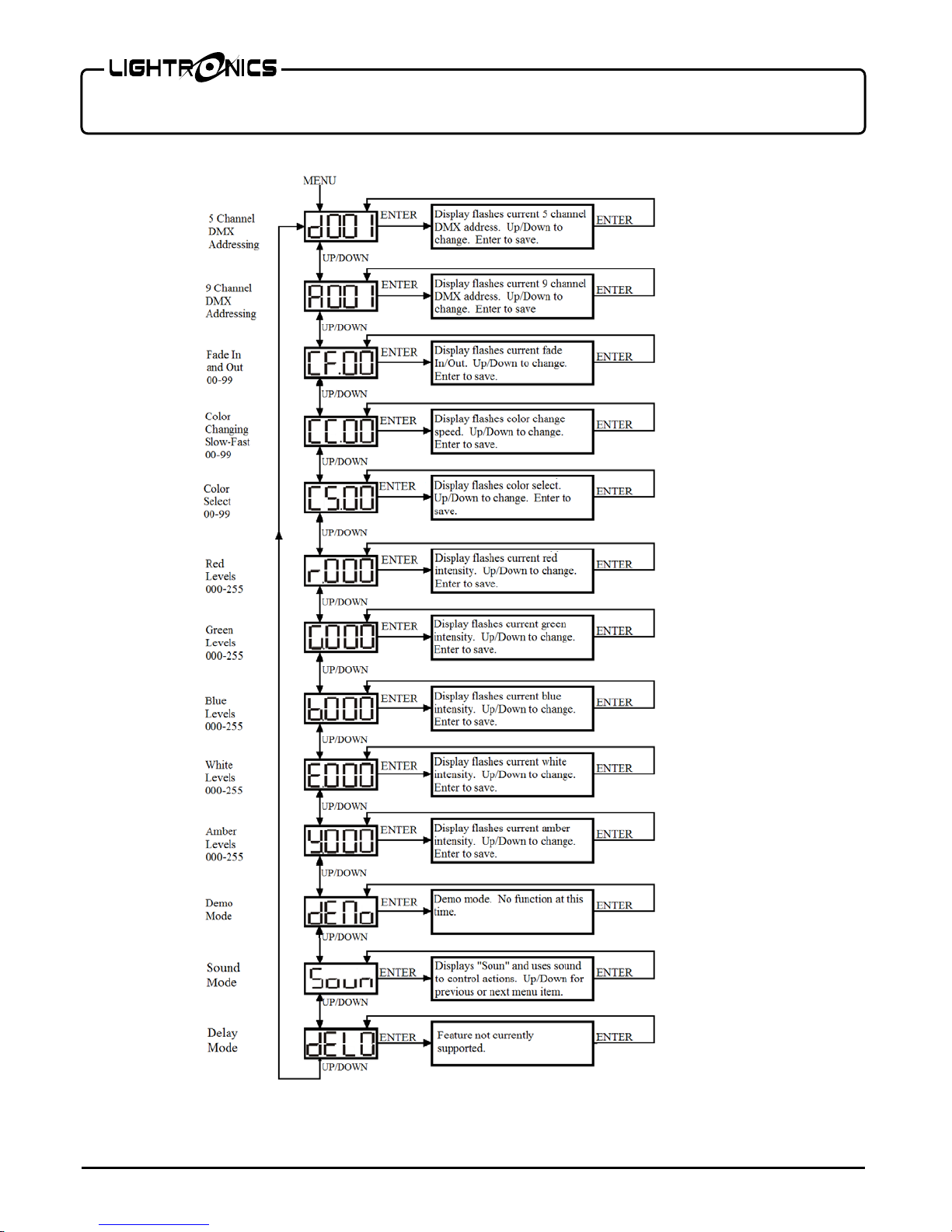

MENU NAVIGATION

Page 5 of 6
FXLD2512B516 LED FIXTURE
Version 0.2 OWNERS MANUAL 09/14/17
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 757 486 3588
5 CHANNEL MODE (MODE dXXX)
9 CHANNEL MODE (MODE AXXX)
CHANNEL NO. FUNCTION
1 0 - 255 Red Level
2 0 - 255 Green Level
3 0 - 255 Blue Level
4 0 - 255 White Level
5 0 - 255 Amber Level
CHANNEL NO. FUNCTION
1 Master Dimmer
2 Strobe Control
3 0 - 255 Red Level
4 0 - 255 Green Level
5 0 - 255 Blue Level
6 0 - 255 White Level
7 0 - 255 Amber Level
8 0 - 32 Red
33 - 88 Red/Green
66 - 130 Green/Blue
97 - 185 Blue/Purple
130 - 255 Purple/White
9 0 - 9 No Function
10 - 63 G + R Auto
64 - 127 B + R Auto
128 - 191 A + W Auto
192 - 239 B + G Auto
240 - 255 Audio Strobe
DMX VALUES AND FUNCTIONS

This product is warranted for a period of TWO YEARS from the date of purchase against defects in
materials and workmanship.
This warranty is subject to the following restrictions and conditions:
A) If service is required, you may be asked to provide proof of purchase from an authorized
Lightronics dealer.
B) This warranty is valid only for the original purchaser of the unit.
C) This warranty does not apply to damage resulting from abuse, misuse, accidents, shipping, and repairs
or modifications by anyone other than an authorized Lightronics service representative.
D) This warranty is void if the serial number is removed, altered or defaced.
E) This warranty does not cover loss or damage, direct or indirect arising from the use or inability to
use this product.
F) Lightronics reserves the right to make any changes, modifications, or updates as deemed
appropriate by Lightronics to products returned for service. Such changes may be made without prior
notification to the user and without incurring any responsibility or liability for modifications or changes to
equipment previously supplied. Lightronics is not responsible for supplying new equipment in
accordance with any earlier specifications.
G) This warranty is the only warranty either expressed, implied, or statutory, upon which the equipment
is purchased. No representatives, dealers or any of their agents are authorized to make any warranties,
guarantees, or representations other than expressly stated herein.
H) This warranty does not cover the cost of shipping products to or from Lightronics for service.
I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty without
prior notification.
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 20100211
WARRANTY
