Edge REVOLVER User manual

User Manual

BEFORE YOU BEGIN .................................................................................................3
LIST OF COMPONENTS ................................................................................. 3
REVOLVER INSTALLATION 95-97 Trucks .................................................................4
REVOLVER INSTALLATION 98-03 Trucks .................................................................7
SWITCH INSTALLATION ..........................................................................................12
SAFETY WARNING & CAUTION ..............................................................................14
SAFETY GUIDELINES ..............................................................................................15
LIMITED 1 YEAR WARRANTY..................................................................................16
VEHICLE WARRANTY INFO.....................................................................................18
2
TABLE OF CONTENTS

3

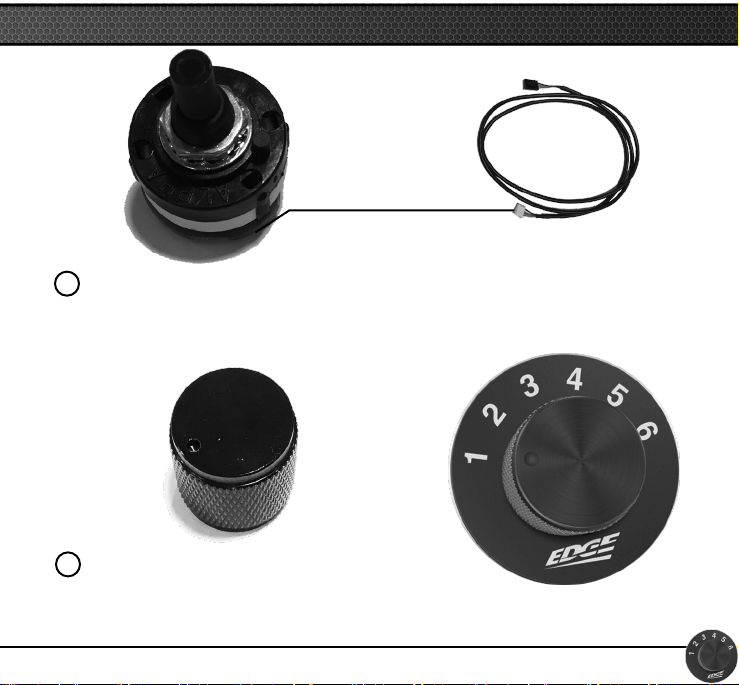

LIST OF COMPONENTS
REVOLVER
BEFORE YOU BEGIN
Iso-
propyl
SWITCH HARNESS
SCOTCH-BRITE PAD
ALCOHOL PREP PAD
PCM COVER STICKER
SWITCH

1 Remove the keys from the ignition and disconnect both batteries. Failure to do
so may cause damage to the PCM and Revolver.
2 Remove the driver’s side kick panel.
3 Remove the emergency brake bracket by removing the (3) 13mm nuts from the
braket and lay the entire assembly on the oor.
Required Tools
- 13mm Socket
- Screw driver
4
REVOLVER INSTALLATION 1995-1997 Trucks

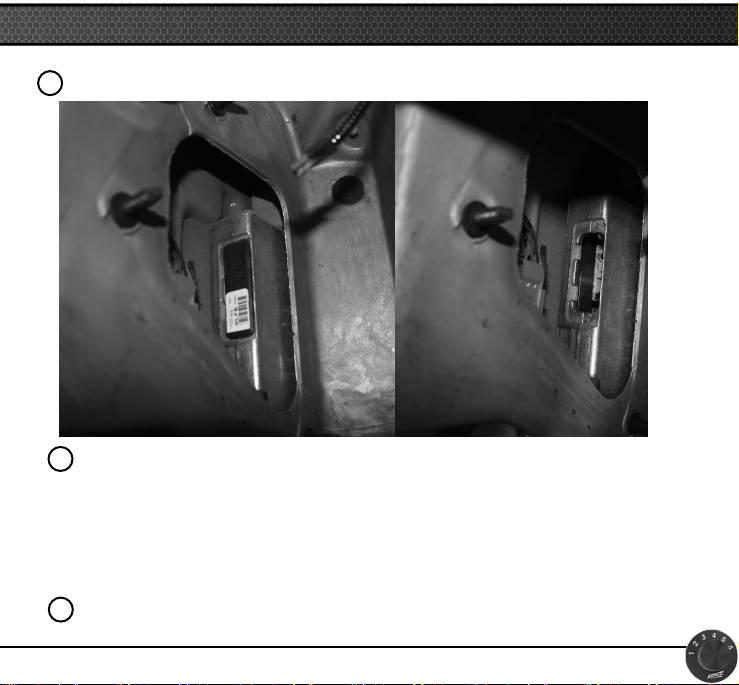

4 Remove the plastic cap to expose the terminal.
5 With the provided Scotch-Brite pad clean the rubberized protective coating off
of the terminal contacts. Both sides of the terminal need to be cleaned. It is
important that the contacts are sufciently clean to avoid any connection issues.
CAUTION: Be careful when cleaning the connector to not damage the contact
with excessive force.
6 Use the Alcohol Prep pad to wipe away any debris on the terminal contacts.
5

7 Connect the Switch harness to the Revolver and slide the Revolver into the
PCM.
NOTE: Make sure the connector clips together before
installing or the harness could slide out.
8 Cover the opening with the provided PCM cover sticker.
9 Replace the Emergancy Brake and kick panel.
Continue to the Switch installation section.
6
INSTALLATION CONTINUED

7
1 Remove the keys from the ignition and disconnect both batteries. Failure to do
so may cause damage to the PCM and Revolver.
2 Locate the wiring harness on the re wall in the engine compartment that
connects to the PCM. Using a 10mm socket remove the bolt and slide the
connection out of the rewall.
Required Tools
- 10mm Socket - 5.5mm Socket
- 7mm Socket - Screw driver
REVOLVER INSTALLATION 1998-2003 Trucks

3 From inside the cab remove the (2) 7mm bolt holding the computer in place.
For manual trucks this will be a 10mm bolt holding the top and a 10mm nut on
the bottom.
4 Remove the PCM from the truck by sliding it out slowly.
8
INSTALLATION CONTINUED

5 Remove the PCM from the plastic housing and remove the plastic cap exposing
the terminal.
6 With the provided Scotch-Brite pad clean the rubberized protective coating off
of the terminal contacts. Both sides of the terminal need to be cleaned. It is
important that the contacts are sufciently clean to avoid any connection issues.
CAUTION: Be careful when cleaning the connector to not damage the contacts
with excessive force.
NOTE: For better access to clean the terminal contacts. The (6) 5.5mm bolts can be
removed and the PCM split open. This needs to be done in a clean enviroment.
7 Use the Alcohol Prep pad to wipe away any debris on the terminal contacts.
9

8 Connect the Switch harness to the Revolver and slide the Revolver into the
PCM.
NOTE: Make sure the connector clips together before
installing or the harness could slide out.
9 Cover the opening with the provided PCM cover sticker.

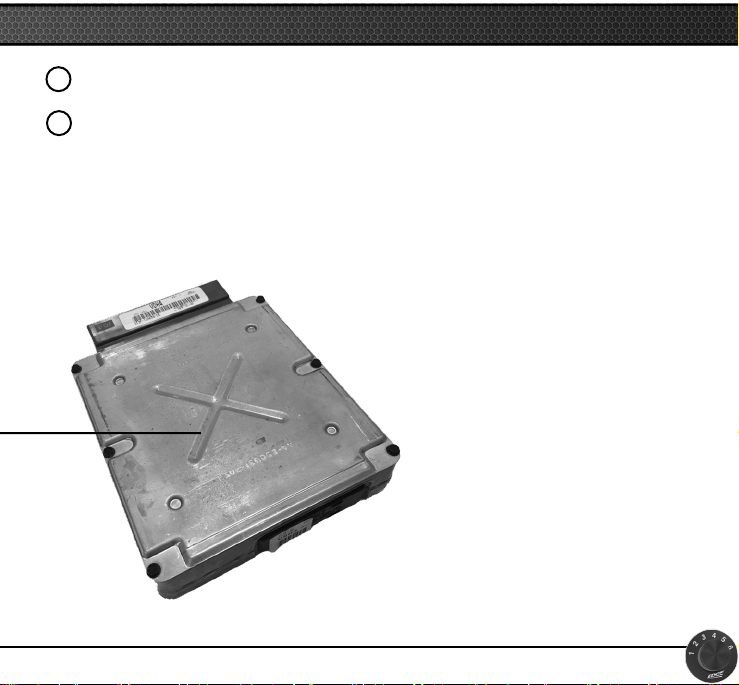

10 Slide the PCM back into the plastic housing with the “X” side of the PCM facing
toward the fender.
10
INSTALLATION CONTINUED

11 Replace the bolts or nuts removed earlier holding the PCM in place.
12 Reconnect the wiring harness in the engine compartment going through the
rewall and tighten the 10mm bolt.
Continue to the Switch installation section.
11

1 Route the Switch harness from the PCM to the desired mounting location of the
Switch.
2 With a 3/8” drill bit, drill a hole to mount the Switch in.
3 Align and adhere the level indicator label around the hole as desired.
4 Mount the Switch in the hole and connect the Switch harness to the Switch.
CAUTION: The Switch has a nut and two washers. The smooth washer must
remain on the bottom with the tab located in hole between 6 and 7. If it falls
out, turn the Switch fully counter clockwise and place the washer back with
the pin in the hole between 6 and 7. Make sure the Switch moves exactly 5
clicks clockwise. If not, turn the switch back fully counterclockwise, move the
pin, and try again.
12
SWITCH INSTALLATION
Required Tools
- 3/8” Drill bit
- Allen wrench

13
5 Rotate the Switch fully counter-clockwise. Then align the knob and tighten the
set screw, with the indicator pointing to level 1 with the Allen wrench.
NOTE: Loosen the set screw before installing the knob
6 Reconnect the batteries and start the truck.

14
SAFETY TERMS
Throughout this User Guide, you will see important messages regarding
your safety or the protection of your vehicle. These messages are
designated by the words WARNING or CAUTION.
WARNING: indicates a condition that may cause serious injury or
death to you, your passengers or others nearby. Pay careful attention
to these Warning messages, and always comply with them. They
could save a life.
CAUTION: indicates a condition that could cause damage to your vehicle. It is
important to install and operate your Edge Products product in conformance
with instructions in this Manual. Caution alerts you to particularly important
things that will keep your vehicle operating properly.
The product you have bought is a high-performance product. As such, it does
present some risks of which you should be fully aware. Do not use this product
until you have carefully read the following safety information and the Owner
Agreement.
SAFETY WARNING & CAUTION
WARNING: Misapplication or misuse of this product could lead to a
serious or fatal accident. Comply with all safety information in this
manual, and your vehicle owner’s manual. Follow safety, installation
and operating instructions in this User Manual to assure proper use.

15
1. Do not exceed legal speed limits on public roadways. Use any enhanced
speed capabilities of this product only in closed circuit, legally sanctioned racing
environments expressly for this purpose. Loss of control from speeding on a public
road could seriously injure you, your passengers, or others on the roadway.
2. Do not operate the device while driving. Perform all adjustments or changes
while stopped. Changing a setting while under way can interfere with your
attention to roadway conditions.
3. “Stacking” performance-enhancing devices or other improper installation
can cause power train failure on the road. Other products may have features
incompatible with your Edge Products device. Follow all installation and operating
instructions, and do not stack products.
4. Some modications may affect other parts of your vehicle. For example, if
you remove/adjust the speed limiter in your vehicle, be sure your tires and other
components are rated for the increased speeds they will have to withstand. Not
doing so can lead to loss of vehicle control. Modify the speed limiter only for use
in closed circuit, legally sanctioned racing environments, not for use on public
roadways.
SAFETY GUIDELINES

16
LIMITED 1 YEAR WARRANTY
Powerteq, LLC, (hereafter “SELLER”), subject to the conditions and limitations
set forth herein, warrants to the original consumer purchaser only that each
Revolver product sold by SELLER (the “Product”) through an authorized dealer
will be free from defects in material and workmanship under normal operating
conditions for one (1) year after the date of purchase. SELLER will repair or
replace, at SELLER’s option, any Product that is found to be defective in material
or workmanship under normal operating conditions during the one-year period
after the date of purchase by the original consumer purchaser.
What Is Not Covered by This Warranty?
This warranty does not apply to any of the following:
1. Loss, damage, repairs, or maintenance required as a result of accident,
abuse, negligence, or misuse.
2. Loss, damage, repairs, or maintenance required as a result of any third-party
tuning software.
3. Loss, damage, repairs, or maintenance required as a result of re, water, hail,
theft, earthquake, wind, ice, lightening, acts of god, accident, animals, corrosive
atmosphere, or other external causes beyond the control of SELLER.
4. Any special, indirect, incidental, consequential, or punitive damages, including
property damage, arising out of or related to the use or loss of use of the Product
under this Limited Warranty.
5. Any Products purchased through auction websites.

17
Limitation of Liability
The terms of this Limited Warranty constitute the entire agreement between the
parties with respect to the Product. The original consumer purchaser’s exclusive
remedy shall be limited to the repair or replacement of the defective product.
EXCLUDING THE LIMITED WARRANTY PROVIDED ABOVE, SELLER, TO
THE MAXIMUM EXTENT PERMITTED BY LAW, MAKES NO WARRANTIES,
EXPRESSED OR IMPLIED, AND DISCLAIMS ALL WARRANTIES, DUEITES
AND CONDITIONS, WHETHER EXPRESS, IMPLIED, OR STATUTORY, WITH
RESPECT TO THE WORK, INCLUDING WITHOUT LIMITATION ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. ANY REMEDY IS LIMITED TO THE PURCHASE PRICE OF THE
PRODUCT.
How to Make a Warranty Claim
Contact Powerteq Customer Service. BUYER will be required to submit proof of
purchase from an authorized dealer within 5 days of the warranty claim.
THE INSTALLATION OF THIS PRODUCT INDICATES THAT THE BUYER HAS
READ AND UNDERSTANDS THIS AGREEMENT AND ACCEPTS ITS TERMS
AND CONDITIONS. IN THE EVENT THAT THE BUYER DOES NOT AGREE
WITH THIS AGREEMENT, THE BUYER MAY PROMPTLY RETURN THIS
PRODUCT, IN A NEW AND UNUSED CONDITION, WITH A DATED PROOF
OF PURCHASE, TO THE PLACE OF PURCHASE WITHIN THIRTY (30) DAYS
FROM DATE OF PURCHASE FOR A FULL REFUND.

18
VEHICLE WARRANTY INFO
Many of our customers ask, “Will your product void my vehicle’s
manufacturer’s warranty?” Powerteq is committed to providing
quality products that are safe to use. Our products do not cause
damage to a vehicle when used as intended in accordance
with the User Manual and should not void your vehicle’s
manufacturer’s warranty.
However, the reality is that many dealerships have been known
to improperly void warranties on vehicles that use aftermarket
products as a matter of policy. This applies in particular to
those aftermarket products that produce horsepower, such as
performance enhancement “chips,” modied intake manifolds,
or aftermarket exhaust systems, regardless of product brand.
Consumers of aftermarket products are protected by the
Federal Magnus- son-Moss Warranty Act. The Act provides
that if something breaks on your vehicle and you take it in for
warranty repair, the dealer must honor your warranty unless

19
whatever modications you have added to your vehicle
actually caused the problem in question.
In order to understand your rights under the Federal
Magnuson-Moss Warranty Act, Powerteq recommends that
you contact qualied legal counsel.

Copyright© 2017 Rev 00
For additional questions not found in the user guide call:
Edge Products Technical Support: (801)-476-3343 6:00 am - 6:00 pm MST
To expedite your support call, please have your Vehicle Information,
Part Number, and Serial Number ready prior to calling Technical Support.
