Edimax WD-1000TR User manual

0


1
TableofContents
TABLEOFCONTENTS............................................................................................................0
1.IMPORTANTINFORMATION.............................................................................................2
SAFETYPRECAUTIONS ...........................................................................................................2
DANGER:BECAREFULWITHELECTRICITY.............................................................................2
2.INTRODUCTION................................................................................................................6
2.1PACKINGCONTENT .........................................................................................................6
2.2OVERVIEW ....................................................................................................................7
3.INSTALLATION ..................................................................................................................9

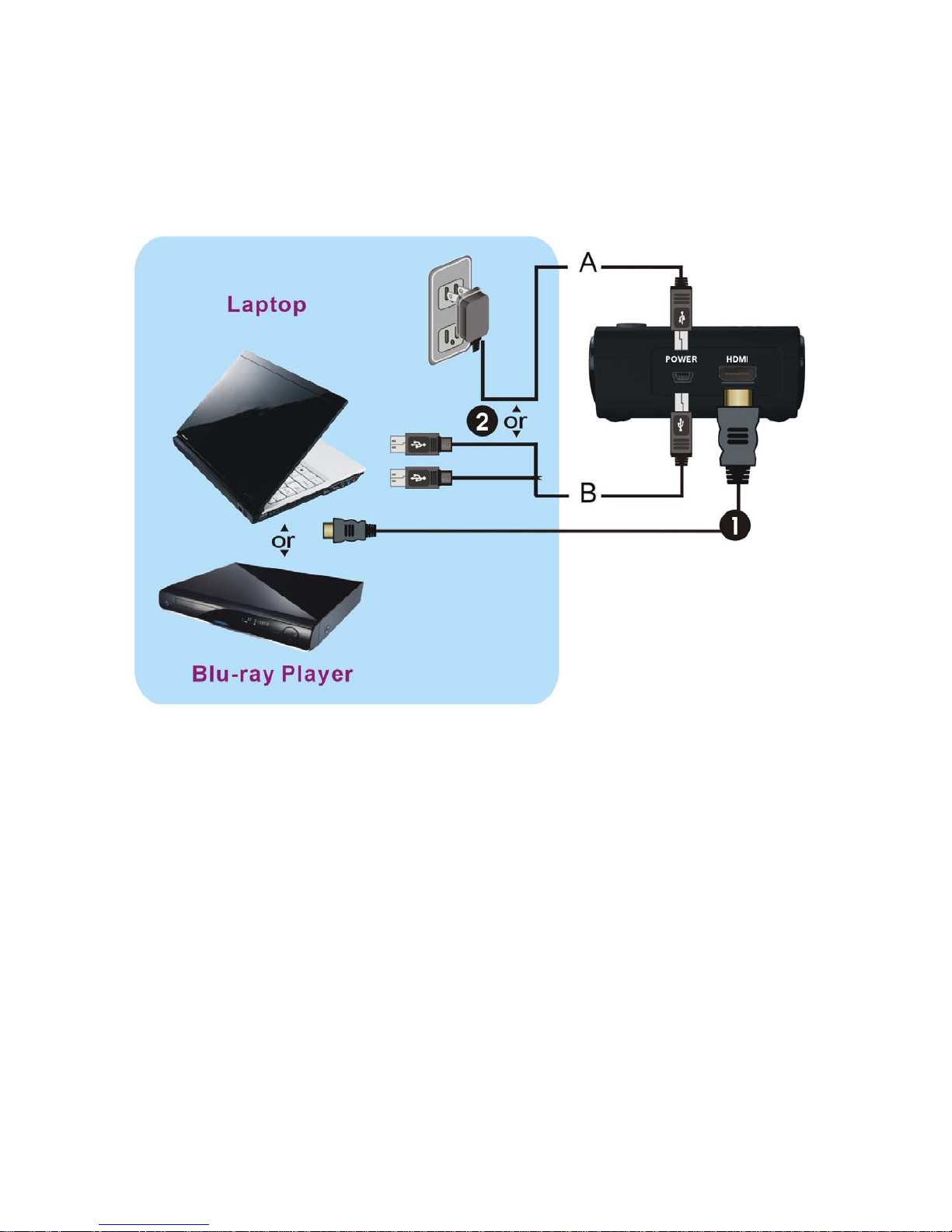

STEP1:SETUPTHEWD‐1000TXTRANSMITTER .......................................................................9

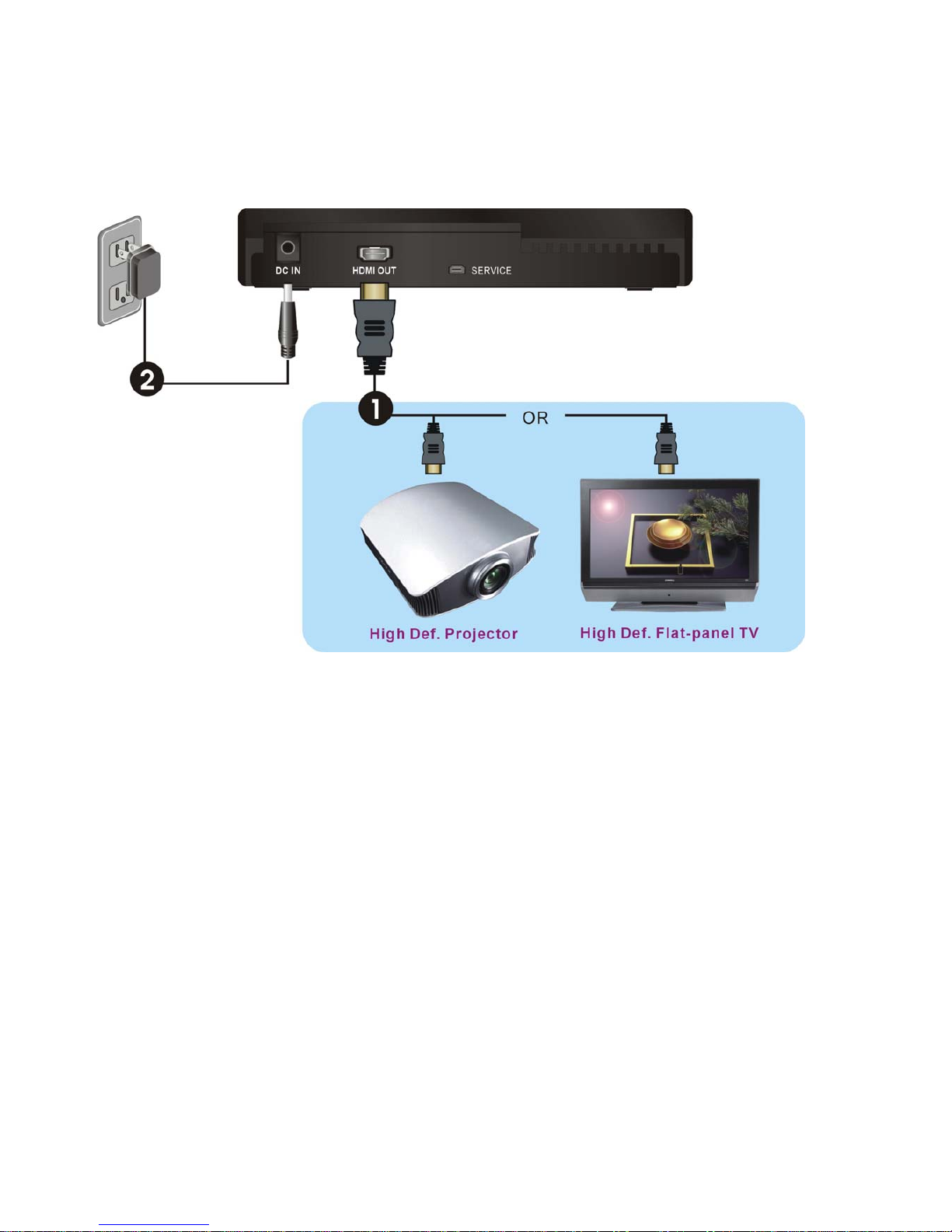

STEP2:SETUPTHEWD‐1000RXRECEIVER ...........................................................................10

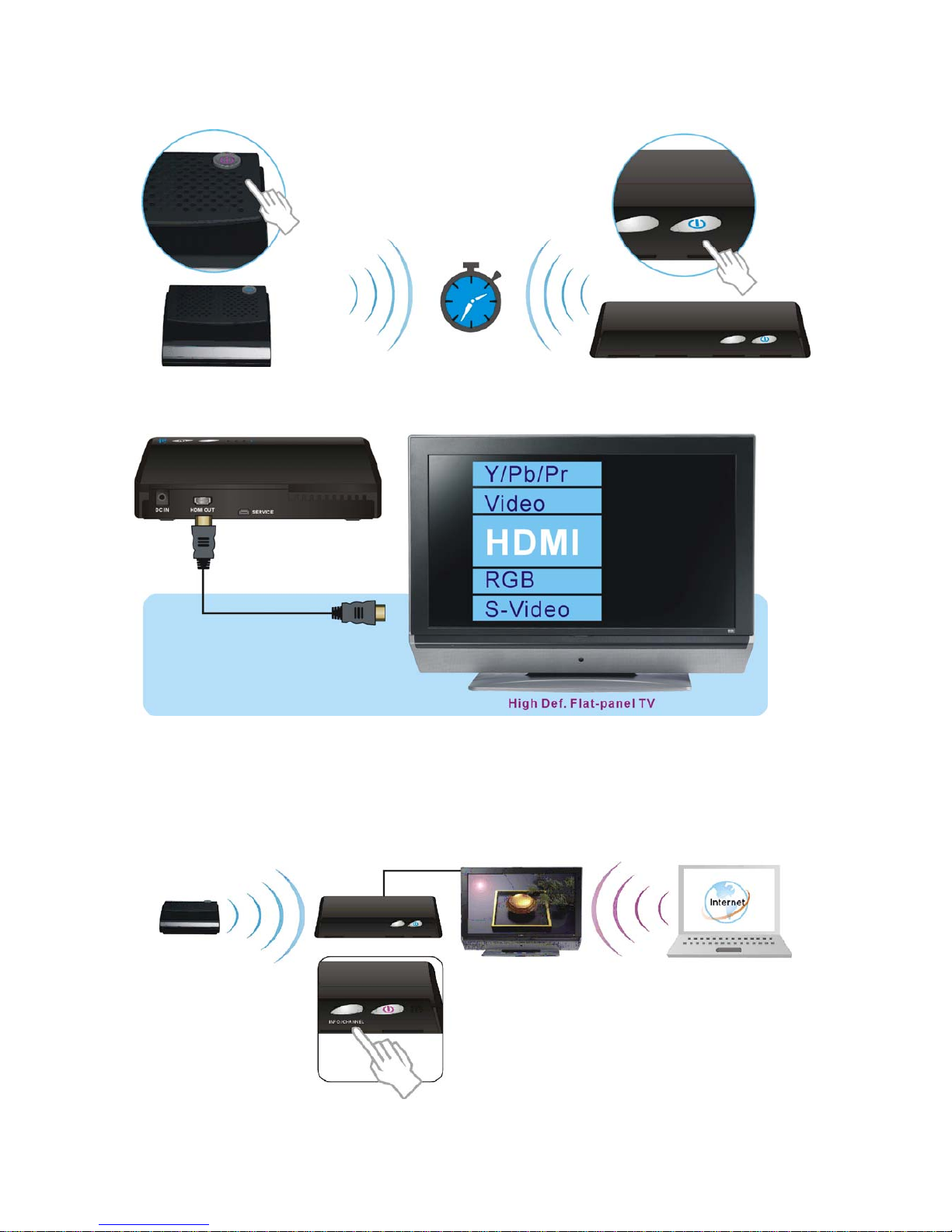

STEP3:BOOTUPTHEWD‐1000TXANDWD‐1000RX .......................................................... 11

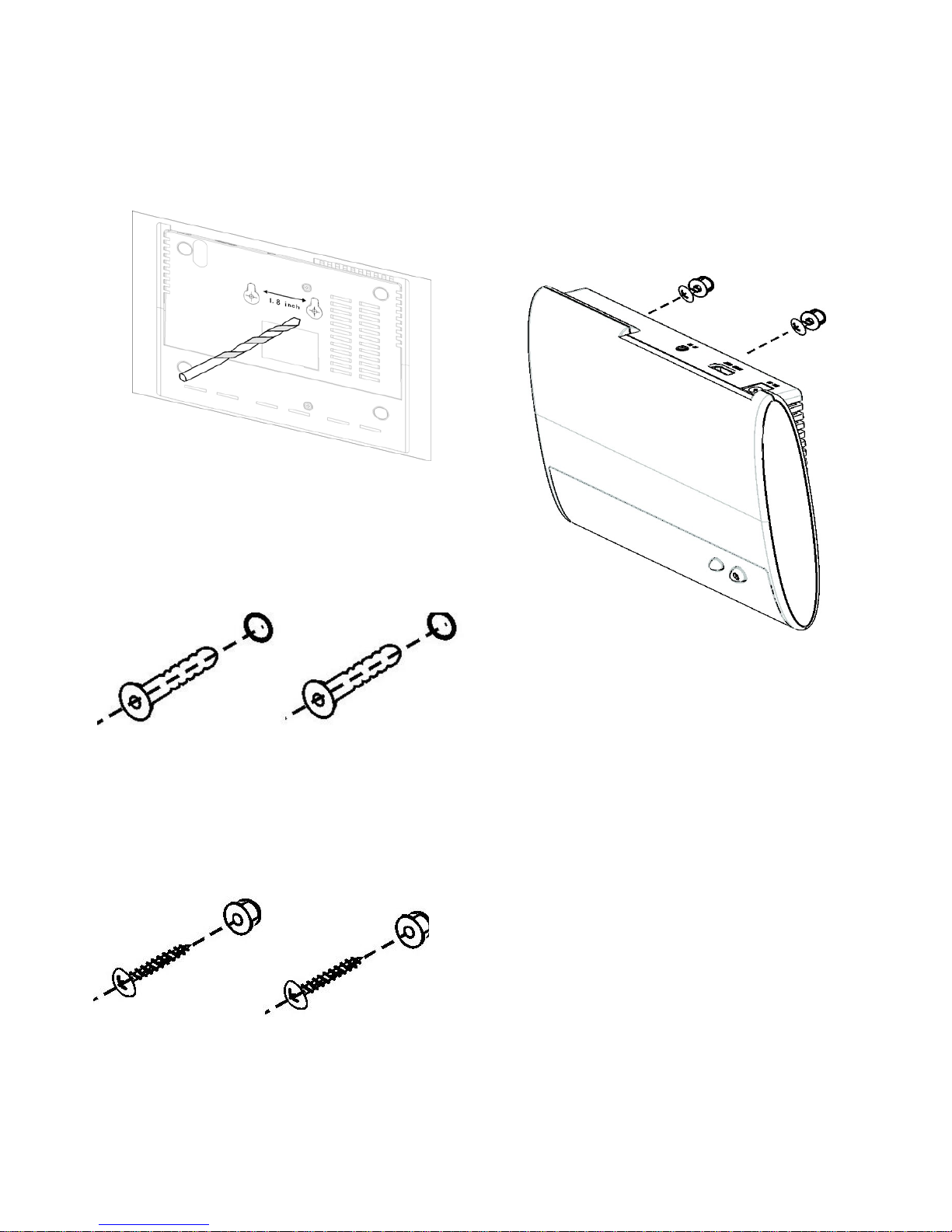

STEP4:MOUNTINGTHEWD‐1000RXTOTHEWALL ..............................................................17
4.TROUBLESHOOTING.......................................................................................................18
4.1WINDOWSOSDISPLAYSETTINGOFLAPTOPFORENABLESEXTERNALDISPLAY ..19
4.2MACOSDISPLAYSETTINGOFLAPTOPFORENABLESEXTERNALDISPLAY............21
4.3WINDOWSOSAUDIOSETTINGOFLAPTOPFORSWITCHTOHDMIOUTPUT .......21
5.SUPPORTEDRESOLUTION..............................................................................................23
6.AUDIOBITRATESUPPORT .............................................................................................24
7.PRODUCTSPECIFICATION ..............................................................................................25


2
1.ImportantInformation

Pleasetakethetimetoreadthisusermanual
beforeusingtheWD‐1000TXandWD‐1000RX.
Itcontainsimportantinformationabout
operatingyourPCtoTVwirelesskit.

Ourcompany’slimitedwarrantyapplieswhen
theproductishandledproperlyforintendeduse,
inaccordancewithitsoperatinginstruction.
However,thewarrantymaybevoidinthe
followingcases:
zRepair,productmodificationoralteration
havebeenperformedbyunauthorized
servicepersonnel
zDamagescausedbyaccidents,including
butnotlimitedto,lightning,water,fire,or
moisture
zUseofanACadapternotcompatiblewith
theproductanditsvoltagerating
zThemodelnumberontheproducthas
beenaltered,deleted,removedormade
illegible.

SafetyPrecautions
WARNING! 
RISKOF
ELECTRICAL
SHOCK
DONOTOPEN
WARMING:
TOREDUCETHERISKOFELECTRICALSHOCK
DONOTREMOVETHECOVER
NOUSER‐SERVICEABLEPARTSAREINSIDE
REFERSERVICINGTOQUALIFIED
PERSONNEL

Danger:Becarefulwithelectricity.

zPowertotheunitsmustbeswitchedoff
beforeanyworkisundertaken,suchas
anyAVdeviceconnectionorTV
connection.
zPoweroutlet:Topreventelectricshock,
makesuretousetheappropriateAC
adaptersaspowersupplytothe
transmitterandthereceiver.
zPowercord:Besurethepowercordis
routedsothatitwillnotbesteppedonor
pinchedbyheavyitems.
zPoweroverloading:Avoidoverloading
electricaloutletsorextensioncordswhich
otherwisecouldresultinelectricshockor
fire.
zLightning:Disconnecttheproductfrom
thepowersourceifitisleftunattended
foralongperiodoftime,andtoprotect
theproductfromlightning.
zAlwaysdisconnectthepowercordfrom
thepoweroutletwhenyouarenotusing
yourFullHDVideowirelesskit.This
reducestheriskofelectricshocksorfire.

Warning
zThisproductshouldnotbeexposedto
drippingorsplashing.Noobjectfilled
withliquids,suchasvases,shouldbe
placedontheproduct.
zObjectEntry:Toavoidelectricshock,
neverstickanythingintheslotsonthe
caseorremovethecover.
zPlacereceiver/transmitteronaflat,hard
andstablesurface
zVentilation:Donotblocktheventilation
slotsonthereceiver/transmitterorplace
anyheavyobjectonthetopcover.
Blockingtheairflowcoulddamagethe
receiver.Arrangecomponentssothatair
canflowfreelyaroundthereceiver.
Ensurethatthereisadequateventilation
ifthereceiverisplacedinastand.
Putthereceiver/transmitterinaproperty
ventilatedarea,awayfromdirectsunlight
oranysourceofheat.
zWaterExposure:Toreducetheriskoffire
orelectricshock,donotexposethe
receiver/transmittertorainormoisture.
zThisisindoorsolution.
zOurcompanyhastherighttomodifythis
documentwithoutanynotice.

3





























































SpecialNotice
zNeverusethisproductnearbyanaircraft
ormedicalfacility.Itcancause
interferenceorundesirableeffectonthe
operationresult.
zUseofthisproductinthefollowing
locationsmayresultinabnormalvideo
andaudiooutput(noise,blockedimage...
etc,).
¾Productinstalledinthewallsmade
ofconcrete.
¾Productsituatednearthe
refrigeratorormetalfitment.
¾Aclutteredroomwherethe
wirelesssignalsmaybeblocked
zThisproducthasbeentestedand
manufacturedtocomplywitheach
country’ssafetyrules.However,thereis
noguaranteethatinterferencewillnot
occurinsomeinstallationscenario.Ifthe
interferencehappens,increasethe
distancebetweenthetransmitterand
receiver.
zWD‐1000TRmayinterfere5GHzwireless
devices,suchasroutersorotherwireless
devices.Therefore,ifyouhavean
802.11nrouter,configureittothe2.4
GHzbandratherthanthe5GHzband.
zOptimalrangebetweenWD‐1000TR
transmitterandreceiverisbetween2and
10meterswithinlineofsight.
EN55022Informationtechnology
equipment‐‐‐‐
Radiodisturbancecharacteristics‐‐‐Limits
andmethodsofmeasurement
EN61000‐3‐2Electromagnetic
compatibility(EMC)‐‐‐
Part3‐2:Limits‐‐‐Limitsforharmoniccurrent
emissions(equipmentinputcurrentupto
andincluding16Aperphase)
EN61000‐3‐3Electromagnetic
compatibility(EMC)‐‐‐
Part3:Limits‐‐‐Section3:Limitationof
voltagechanges,voltagefluctuationsand
flickerinpubliclow‐voltagesupplysystems,
forequipmentwithratedcurrent≦16Aper
phaseandnotsubjecttoconditional
connection
EN55024Informationtechnology
equipment‐‐‐‐
Equipment‐‐‐Immunity
characteristics‐‐‐Limitsandmethodsof
measurement
EN301489‐1
ElectromagneticcompatibilityandRadio
spectrumMatters(ERM);ElectroMagnetic
Compatibility(EMC)standardforradio
equipmentandservices;
Part1:Commontechnicalrequirements
DECLARATIONOFCONFORMITY
ThisdevicecomplieswithPart15oftheFCC
Rules.Operationissubjecttothefollowing
twoconditions:
(1)Thisdevicemaynotcauseharmful
interference,and
(2)Thisdevicemustacceptanyinterference
received,includinginterferencethatmay
causeundesiredoperation.
EMI(ElectroMagneticInterference)tested.
TRADEMARKINFORMATION

zHDMI,theHDMILogoand
High‐DefinitionMultimediaInterface
aretrademarksofHDMILicensingLLC.
EN301489‐17
ElectromagneticcompatibilityandRadio
spectrumMatters(ERM);Electromagnetic
Compatibility(EMC)standardforradio
equipment;
Part17:Specificconditionsfor2,4GHz
widebandtransmissionsystems,5GHzhigh
performanceRLANequipmentand5,8GHz
BroadbandTransmittingSystems
EN60065Audio，videoandsimilar
electronicapparatus—Safetyrequirements

4
CAUTION:UsingtheRFmodulein
theUS
zAnychangesormodificationsnot
expresslyapprovedbythegranteeofthis
devicecouldvoidtheuser'sauthorityto
operatetheequipment.
zThisequipmentmustbeinstalledand
operatedinaccordancewithprovided
instructionsandtheantenna(s)usedfor
thistransmittermustbeinstalledto
provideaseparationdistanceofatleast
20cmfromallpersonsandmustnotbe
co‐locatedoroperatinginconjunction
withanyotherantennaortransmitter.
End‐usersandinstallersmustbeprovide
withantennainstallationinstructionsand
transmitteroperatingconditionsfor
satisfyingRFexposurecompliance.
zOutdooroperationsinthe5150~
5250MHz,5600~5650MHzbandare
prohibited.
zThisdevicehasnoAd‐hoccapabilityfor
5250~5350MHzand5470~5725MHz.
zOutdooroperationsinthe
5470~5725MHzbandareprohibited.This
devicecouldnotbeusedinthe
5600~5650MHz.
zTheDevicenotoperationin
5600~5650MHz.
zIndustryCanadaregulatoryinformation
Operationissubjecttothefollowingtwo
conditions:(1)thisdevicemaynotcause
interference,and(2)thisdevicemust
acceptanyinterference,including
interferencethatmaycauseundesired
operationofthedevice.

zTheuseriscautionedthatthisdevice
shouldbeusedonlyasspecifiedwithin
thismanualtomeetRFexposure
requirements.Useofthisdeviceina
mannerinconsistentwiththismanual
couldleadtoexcessiveRFexposure
conditions.
zThefollowingstatementmustbeincluded
withallversionsofthisdocument
suppliedtoanOEMorintegrator,but
shouldnotbedistributedtotheenduser.
¾ThisdeviceisintendedforOEM
integratorsonly.
¾PleaseSeethefullGrantof
Equipmentdocumentforother
restrictions.
¾Thisdevicemustbeoperatedand
usedwithalocallyapprovedaccess
point.

zThefollowingregulatoryandSafety
noticesmustbepublishedin
documentationsuppliedtotheenduser
oftheproductorsystemincorporatingan
adapterincompliancewithlocal
regulations,Hostsystemmustbelabeled
with“ContainsFCCID:XXX‐XXXXX”,FCC
IDdisplayedonlabel.

SystemWarning
FEDERALCOMMUNICATIONSCOMMISSION
INTERFERENCESTATEMENT
Thisequipmenthasbeentestedandfoundto
complywiththelimitsforaClassBdigitaldevice,
pursuanttoPart15oftheFCCRules.These
limitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceina
residentialinstallation.Thisequipment
generates,usesandcanradiateradiofrequency
energyand,ifnotinstalledandusedin
accordancewiththeinstructions,maycause
harmfulinterferencetoradiocommunications.
However,thereisnoguaranteethat
interferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevision
reception,whichcanbedeterminedbyturning
theequipmentoffandon,theuseris
encouragedtotrytocorrecttheinterferenceby
oneormoreofthefollowingmeasures:
zReorientorrelocatethereceiving
antenna.
zIncreasetheseparationbetweenthe
equipmentandreceiver.
zConnecttheequipmentintoanoutleton
acircuitdifferentfromthattowhichthe
receiverisconnected.
zConsultthedealeroranexperienced
radio/TVtechnicianforhelp.

5
CAUTION:UsingtheSystemin
theUS
zAnychangesormodificationsnot
expresslyapprovedbythegranteeofthis
devicecouldvoidtheuser'sauthorityto
operatetheequipment.
zThisequipmentmustbeinstalledand
operatedinaccordancewithprovided
instructionsandtheantenna(s)usedfor
thistransmittermustbeinstalledto
provideaseparationdistanceofatleast
20cmfromallpersonsandmustnotbe
co‐locatedoroperatinginconjunction
withanyotherantennaortransmitter.
End‐usersandinstallersmustbeprovide
withantennainstallationinstructionsand
transmitteroperatingconditionsfor
satisfyingRFexposurecompliance.
zOutdooroperationsinthe
5150~5250MHz,5600~5650MHzband
areprohibited.
zThisdevicehasnoAd‐hoccapabilityfor
5250~5350MHzand5470~5725MHz.
zOutdooroperationsinthe
5470~5725MHzbandareprohibited.This
devicecouldnotbeusedinthe
5600~5650MHz.
zThedevicenotoperationin
5600~5650MHz.
CAUTION:UsingthisSystemin
Canada

zIndustryCanadaregulatoryinformation
Operationissubjecttothefollowingtwo
conditions:
1. Thisdevicemaynotcause
interference,
2. Thisdevicemustacceptany
interference,includinginterference
thatmaycauseundesired
operationofthedevice.
zTheuseriscautionedthatthisdevice
shouldbeusedonlyasspecifiedwithin
thismanualtomeetRFexposure
requirements.Useofthisdeviceina
mannerinconsistentwiththismanual
couldleadtoexcessiveRFexposure
conditions.






6
2.Introduction

WD‐1000TX(TX)andWD‐1000RX(RX)wireless
HDaudio/videotransmissionsolutionallows
userstoseeontheHDTVagreatvarietyof
uncompressed1080pcontentorweb
entertainmentthat’savailableonthiefcomputer,
freeoftheconstraintofcables.Justconnectthe
HDTVtotheWD‐1000RX(receiver)withan
HDMIcable,andconnecttheHDMI‐ready
computeroranyHDMIsourcetothe
WD‐1000TX(transmitter).

Thissolutiondeliversuncompressed1080pfull
HDvideoandaudiocontenttoyourexisting
HDTVsetwirelessly.Itoperatesthetransmission
in4.9GHz~5.9GHzfrequenciesanditcan
adjustitscommunicationfrequency
automaticallyincaseofinterferencefrom
anotherRFsystem.Withbuilt‐in
Omni‐directionalantennas,itcantransmit
uncompressedvideocontentto10meters(30
feet)LOS(Lineofsight)withnolatency.



2.1PackingContent

Pleasecheckwhetherthefollowingitemsare
presentinthepackage.Ifanyitemsmissedor
damaged,pleasecallyourdealer.



7

2.2Overview

WD‐1000TX(TX):PCtoTVTransmitter















FrontPanelButtonsandLEDs


XPowerButtonwithLEDIndicator
Presstoturnthetransmitteronandoff.The
indicatorinthepowerbuttonislitsolidblue
whenthepowerison,andturnsredinstandby
mode.



Note:
MakesureyouhaveconnectedtheWD‐1000RX
correctlytoyourHDTVsetwithanHDMIcable,
andhaveselectedthecorrectHDMIinputon
yourTV.
IfyouhavemorethanonepairofWD‐1000TR,
eachtransmitterandreceivershouldbeatleast
6.5feetawayfromoneanother..
Ifboththetransmitterandthereceiverexistin
thesameroom,thesuggestedthedistance
betweenthetwois6.5feetminimum.
















MainUnitBackPanel


XHDMIIN
ConnectTransmittertoPC/Notebookorany
SourcedevicethathaveanHDMIportusinga
providedHDMIcable.

YUSBPower
Youcanconnectthetransmittertothedesktop
orlaptop’sUSBportwiththeprovidedUSB
Y‐cable,OrusethepoweradapterwithminiUSB
connectorincludedinthepackagetosupplythe
power.Thetransmitterwillthenbe
USB‐powered.Inmostcases,onlyoneUSBport
isneeded,butinothercases2USBportsofthe
computermaybetakenupforsufficientpower
supply.



8
WD‐1000RX(RX):PCtoTVReceiver
FrontPanelButtonsandLEDs


XPowerButtonwithLEDindicator
Presstoturnthereceiveronandoff.The
indicatorinthepowerbuttonlightsupinblue
whenthepowerison,andturnsredin
standbymode.

YINFO./CHANNELSelectionButton
PressthisbuttononceforOSDdisplayedthe
informationontheHDTVscreen.
Keeppressingthisbuttonover3secondsfor
manualswitchingChannelfunctionifuser
experiencesthevideonoise.


MainUnitBackPanel


XHDMIOUT
ConnecttheHDTVsetviaanHDMIcable.

YDCIN
Connectthereceiver’spoweradapter.




9
3.Installation


Step1:SetuptheWD‐1000TXtransmitter

ConnectanHDMI‐readycomputertotheWD‐1000TX:


(1) ConnecttheWD‐1000TX’s(transmitter)“HDMIIN”totheHDMI‐readycomputer’s“HDMIOUT”
orSourceplayer’s“HDMIOUT”withanHDMIcable(included).

(2) PowerConnection:
A.ConnectdualUSBportsofHDMI‐readycomputerwithminiUSBport(POWERlabeledon
backpanel)ofWD‐1000TRtransmitterthroughtheUSBY‐cableforpowersupply.
OneminiUSBconnectorislocatedononeendofUSBY‐cableandanothertwoUSBtypeA
connectorsarelocatedonanotherendofUSBY‐cable.

B.ConnectthepoweradapterwithaminiUSBconnectortotheminiUSBportofthe
WD‐1000TRforpowersupply,andthentoawallsocket.

TheLEDindicatorinthePOWERbuttonshouldlightsupinbluewhentheWD‐1000TXis
connectedtothecomputerthroughUSB.





10

Step2:SetuptheWD‐1000RXreceiver

HDTVsetConnectionwithWD‐1000RX:




(1) ConnecttheHDMIcabletothe
HDMIOUTjackofthe
WD‐1000RXandtoyourHDTV
set(oranHDprojector).



(2) Connectthesuppliedpoweradapterto
theDCINjackoftheWD‐1000RXanda
wallsocket.TheLEDindicatoronthe
POWERbuttonlightsupinsolidpurple
whentheWD‐1000RXisconnectedtothe
powermains.


11
Step3:BootuptheWD‐1000TXandWD‐1000RX


(1) Afterthepowercordispluggedintotheelectricaloutlet,theWD‐1000TRwillbeturnedon
automatically.








(2) IfitisinStandbymode(BothPOWERLEDoftransmitterandreceiverarelitinred),pressthe
POWERbuttononbothtransmitterandreceivertoturnontheWD‐1000TXandWD‐1000RX.It
willtakeabout1minuteforthesystemtobootup.












(3) IfitisinListenmode(TransmitterPOWERLEDislitinRedandReceiverPOWERLEDislitin
Purple),pressthePOWERbuttonofTransmitter(OrjustpluginTransmitter’spowercord)to
turnontheWD‐1000TXandWD‐1000RX.
Note:Duringthisperiod,WD‐1000RXwillenterListenmodeandoncetheTransmitterbootup,
theTransmitterwillautomaticallywakesuptheReceivertoestablishalink.














12
(4) Duringthewarm‐upperiod,thePOWERLEDwillblinkinblueuntilthesignallinkbetweenthe
WD‐1000TXandtheWD‐1000RXisestablished.











EnsureyourTVsetorprojectorisin“HDMIinput”mode,andisalreadypoweredon.
(5) Ifyouhaveelectronicdevicessuchasacordlessphone,wirelessaccesspoint/routersharing
the5GHzchannelfrequency,whenyouuseitneartheWD‐1000TR,youmayexperience
disturbedpictureordiminishedsoundquality.PresstheINFO./CHANNELbuttononthetop
ofReceiverboxtochangetheWD‐1000TRtodifferentchannels. 











Note:
A.ChangingtheWD‐1000TRtoadifferentwirelesschannel:

13


B.ChannelNumberIndicatingtheWirelessFrequency:

Frequency
[MHz]
US(DFS)Europe(DFS)Taiwan(DFS)
Support
Region
Channel Support
Region
Channel Support
Region
Channel
5190V1V1VX
5230V2V2VX
5270V3V3VX
5310V4V4V1
5510V5V5V2
5550V6V6V3
5590X XV X XX
5630X XV X XX
5670V7V7V4
5755V8X X X5
5795V9X X X6


Note:
A. GraybackgroundareindicatestheDFSregion.
B. *means“Limitedtoindooruse”.
C. NOTuseWeatherSatelliteChannelsonDFSregion:
CenterFrequency5590MHz&5630MHz


1.EnterthewirelessRF
channeladjustmentmode
2.Changestothenext
availableRFwirelesschannel
3.Exitthewireless
RFchannel
adjustmentmode
Method
PresstheINFO./CHANNEL
buttononthetopofReceiver
boxover3secondsforcurrent
channelstatusdisplay.
PresstheINFO./CHANNEL
buttononthetopofReceiver
boxagainwithin5secondsto
switchchannelrandomly.
Nobuttonispressed
for5seconds.
OSDDisplay
Status
▃▆█HDMI[CH8]1280x1024
PressagaintochangechannelExit.

14
(6) Ifalloperationisnormal,thePOWERLEDandINFO./CHANNELLEDwillglowinsolidblue.
PleaserefertothenextformcontainingdetailedLEDdescription:

Note:
A. MakesurethedisplayforyourHDMI‐readycomputerconnectedtotheWD‐1000TXhas
alreadybeenturnontheexternaldisplay.PleaseseetheChapter4.1forthedetail
operation.
B. Warming‐uporsourceswitchingtimeshouldtakeapproximately15~20secondsifthe
operationisinnormalcondition.


(7) TRANSMITTER/RECEIVERStatusIndicatorLEDLightandOSD:

a.StatusindicatorLEDlightonthefrontdisplaythefollowingmessages:

PowerLED
INFO./Channel
LED
ModeStatusDescriptionOSDDisplay
StaticPurple
onRX

StaticRedon
TX
offListen
Userdoesnotneedto
pressRXpowerkeyfor
systemwakeup.TX
willwakeupRX
automaticallywhenit
boots up.
▃▆█HDMICH101280x1024
StandbyMode

StaticRedOffStandbyForlowerpowersaving
used.
▃▆█HDMICH101280x1024
StandbyMode
BlinkingBlueBlinking
Booting
or
Linking
Systeminitialize
Or
RFlinking(NoteA)
HDMICH
Searchingavailablechannels…..
StaticBlue
Blinking
3times/sec.
(Quickly)
Linked
Noinputdetected
fromselectedsource.
(NoteB)
▃▆█HDMICH
NoSignal
Blinking
1time/sec.
(Slowly)
Videoframerateor
resolutioncannotbe
recognized.(NoteC)
▃▆█HDMICH
NotSupportedFormat
StaticBlue
Videoframerateor
resolutionis
recognized.
Transmissionis
availablewithstable
RFsignal.





15
Note:
A. IftheRFconnectionover80secandstillnotestablished,itmightlinkislostorthetransmitter
ismostlikelyoutofrange.Youmayhavetoverifytherangeandadjustorshortenthedistance
betweenyourHDTVsetwiththetransmitterandthereceiver.Themaximumvideo
transmissionrangefor1080pcontentisupto30feetinlineofsight(LOS).<Theminimum
rangeis6.5feet.>

B. PleasemakesurethecomputerhavebeenpoweronandswitchedthesignaloutputtoHDMI
out;alsotrytore‐plugtheHDMIcabletomakesuretheHDMIconnectorhadsettledwell.

C. IfthereisnovideodisplayedandOSDdisplayed“NotSupportedFormat”,thisisanindication
thatthevideoframeratefromthecomputerisnotsupported,pleasereferchapter5toswitch
asupportedvideotiming.

16

(8) TRANSMITTER/RECEIVERStatusonOSDvs.buttons:

XPressthePOWERbuttononthetopofTransmitter(orReceiver)toenter“Standbymode”from
“activemode”.
OSDDisplayed:

▃▆█HDMICH101280x1024
StandbyMode


YPresstheINFO./CHANNELbuttononthetopofReceiver,theSignalQuality,Source,Channel
andresolutionwillbedisplayedforuserreference.
OSDDisplayed:

▃▆█HDMICH101280x1024
PressagaintoexittheOSD


ZPresstheINFO./CHANNELbuttononthetopofReceivertomanuallyswitchwirelesschannels
iftheuserexperiencesvideonoise.
Keeppress“INFO./Channel”buttonover3secondsforcurrentChannelstatusdisplayedon
theOSD:

▃▆█HDMI[CH10]1280x1024
PressagaintochangeChannel

Pressthe“INFO./Channel”buttonagainwithin5secondstoswitchChannelmanually.

▃▆█HDMI[CH8]1280x1024
PressagaintochangeChannel


17
Step4:MountingtheWD‐1000RXtotheWall

(1) Referthedrawingofthebottompage
thathaverelativepositionofthekey
holesandattachthispaperonwall.


(2) Drillpilotholes.

(3) InsertthesuppliedtwoAnchorsintothe
wall.


(4) Inserttwoscrewsintotheanchors.Leave
1/8 ” lengthformountingtheTransmitter
orreceiver.








(5) PlaceWD‐1000RXkeyholesoverthe
protrudingscrewsandslidedowninto
position.

























18
4.Troubleshooting
ProblemSolution
TheWD‐1000TRfront
panelpowerindicator
(redLED)doesn'tlight
up.
•CheckifthepowerplugsofWD‐1000TX/WD‐1000RXareproperly
insertedintoafunctioningpoweroutlet.
•MakesurebothPOWERLEDofWD‐1000TX/ZWD1222Rarelitinthe
blue.
Thereisnovideo
displayedonyourTV
screen.
•Thewirelesslinkmightrequire80secondstoconnectbetween
transmitterandreceiver,andshowvideoontheTVscreen.Please
bepatientandwaitforawhile.
•Verifythatthepropercableshavebeenselectedandinstalled
betweentheWD‐1000TX(transmitter)inputandyourHigh‐endPC
output.
•OnyourTVside(connectedtotheWD‐1000RX),selecttheHDMIas
inputsource.
•VerifythePOWERLEDandINFO./CHANNELLEDindicatorof
WD‐1000TR.

PowerLEDFlashinginBlue
OSDdisplayed:Searchingavailablechannels…..
*Ensurethetransmissionrangebetweenthetransmitterandthe
receiverisnotover30feet(LOS‐lineofsight)transmissiondistance.
Movethetransmitterclosertothereceiver.
*PressINFO./CHANNELonthetopofreceiverboxtomanuallychange
thewirelesschannel.PleasereferChapter3/Step3/Section8/Item3
forthedetailoperation.

POWERLEDinSolidBlue+SlowandFlashingSOURCELED
OSDdisplayed:NotsupportedVideoformat
*Ensureyourvideoresolutionandframerateisrecognized/supported
andwithinthetransmissionrange.
*ConnectthesourcedevicetoyourTVtocheckandmodifythevideo
formatcompatibility.
*CheckyourvideoresolutionwithHDMIinputfromyourdeviceis
1080p,1080i,720p,576p,480p.PleasereferChapter5forthedetail
supportedResolution.

POWERLEDinSolidBlue+STATUSLEDFlashQuickly
OSDdisplayed:NoSignal
*Ensurethepropercablesareconnectedbetweenthetransmitterand
yourPC(orNotebook)devices.
*Ensureyour PC(orSourcedevice) devicesconnectedto the

19
WD‐1000TRtransmitterarepoweredon.
*EnsurethedisplaysettingforyourPC(orlaptop)hadbeenswitched
toclonemode,Projectoroutmodeordualdisplaymodeforenable
externaldisplay.(ReferChapter4.1forthedetailoperation.)
Poorpicturequalityor
intermittentvideo
play.
•CheckifyourvideoresolutionwithHDMIinputfromyourPCdevice
iseither1080p,1080i,720p,576p,or480p.Pleaserefertothe
“SupportedResolution”chapterwherethevideoframeratefrom
yourPCdeviceWD‐1000TRcansupportisdefined.
•PressINFO./CHANNELonthetopofWD‐1000RXboxtomanually
changethewirelesschannel.
•Ensurethetransmissiondistanceislessthan30feet(LOS).

Noaudio.
•CheckifyourTV’svolumeisproperlysetandnotin"MUTE".
•CheckifyourPC’s(orlaptops)audiooutputhasbeenswitchedto
HDMIout.
•CheckifyourPC’s(orlaptop’s)audiovolumehasbeenturnedup.
•Ensurethebitrateofaudiofromthesourcedevicecanbesupported
byWD‐1000TR.PleaserefertothedetailsinChapter6,AudioBit
RateSupport.

Ifnoaudio/video
whenresumefrom
PC’ssleepmode.
•Pleasetrytore‐plugtheHDMIcableofTXforre‐detecttheexternal
HDMIdevice
•PleasetrytorebootWD‐1000TRforre‐synchronizethedisplay
setting.
•PleasetrytorebootyourPC(orlaptop)


4.1WindowsOSDisplaysettingofLaptopforenablesexternaldisplay

OnWindows7OS:
1. Presskey+Pkey
2. ThereisaPopicondisplayedonthescreen,likesbelow:

3. SelectClonemodeorExtendDisplayorProjectoutonlytoenableexternaldisplay.

