1-1 Introduction and safety information
Thank you for purchasing this Portable 3G Router! The smallest router
also integrated with Li-battery inside, assists you to set up a wireless
network using mobile phone, 3G USB modem or an Ethernet connections
anytime and anywhere. When the 3G(UMTS/HSDPA/EVDO) USB
modem card or 3G mobile phone is connected, all computers and network
devices can easily to share the 3G mobile Internet connection at high
speed. This router also supports xDSL / cable modem internet connection;
it is the most cost- efficiency choice for you.
With built-in IEEE 802.11b/g/Draft-N wireless network capability, all
computers and wireless-enabled network devices (including PDA,
cellular phone, game console, and more!) can transfer files for up to
150Mbps (transfer data rate).
Stable wireless connection and high bandwidth enable you to enjoy the
network applications without any interruption.
You can configure the router by running the Setup Wizard in the
CD-ROM provided in the package. The wizard provides quick setup for
wireless 3G/3.5G Internet connection, Ethernet WAN Internet connection,
SSID, wireless security, firmware upgrade and changing router’s
password. When you start the Setup Wizard, you will get the following

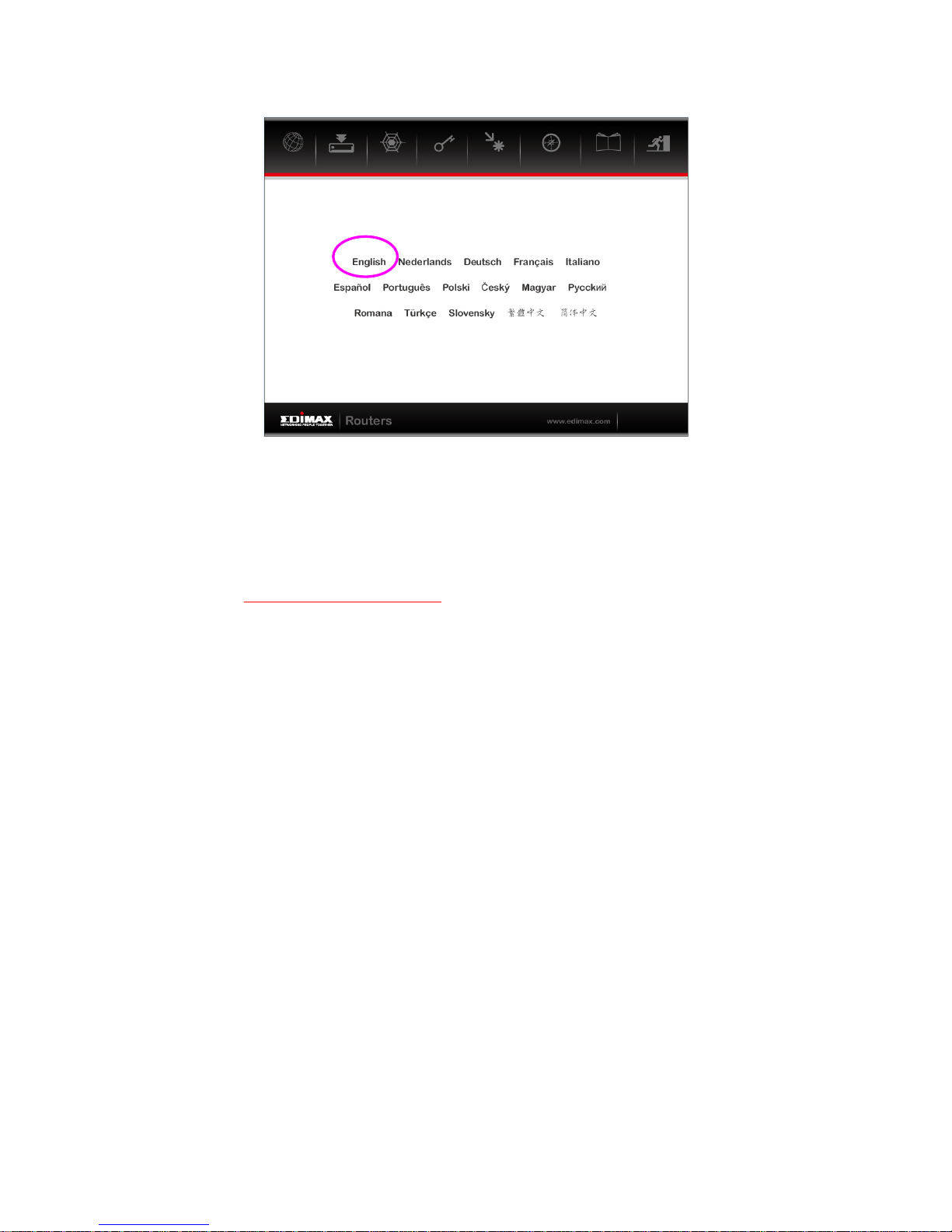

Welcome screen. Please choose the language to start with and follow the
easy steps in the Wizard. No instruction for the Setup Wizard is given
here.
If you lost the CD-ROM or you prefer the traditional web setup, please
follow the procedures in Manual to configure the router

2
Note 1: Only one Internet connection (wireless 3G or xDSL/Cable) can
be used at the same time.
Note 2: To prevent the compatibility problem between 3G USB Modem
cad and 3G router, it is recommended that you upgrade the latest
firmware of 3G router from Edimax website
http://www.edimax.com .
Other features of this router including:
•High Internet Access throughput
•Allow multiple users to share a single Internet line
•Supports up to 253 users
•Share a single Cable or xDSL internet connection
•Share 3G USB Cellular Modem
•LAN/WAN function switchable on the Ethernet Port (10/100M)
•Work with IEEE 802.11b/g/Draft-N wireless LAN capability
•Supports UMTS/HSDPA/EVDO cellular network device
•Support 3G and xDSL/Cable modem connection fail over
•Support DHCP (Server/Client) for easy IP-address setup
•.Advanced network and security features like: Special Applications, QoS,
DMZ, Virtual Servers, Access Control, Firewall.
•Allow you to monitor the router’s status like: DHCP Client Log, System
Log, Security Log and Device/Connection Status, Modem Info.
•Easy to use Web-based GUI for network configuration and
management purposes

3
•Remote management function allows configuration and upgrades from
a remote computer (over the Internet)
•Auto MDI / MDI-X function for all wired Ethernet ports.

4
1-2 Safety Information
In order to keep the safety of users and your properties, please follow the
following safety instructions:
1. This router is designed for indoor use only; DO NOT place this router
outdoor.
2. DO NOT put this router at or near hot or humid places, like kitchen or
bathroom. Also, do not left this router in the car in summer.
3. DO NOT pull any connected cable with force; disconnect it from the
router first.
4. If you want to place this router at high places or hang on the wall,
please make sure the router is firmly secured. Falling from high places
would damage the router and its accessories, and warranty will be void.
5. Accessories of this router, like antenna and power supply, are danger to
small children under 3 years old. They may put the small parts in their
nose or month and it could cause serious damage to them. KEEP THIS
ROUTER OUT THE REACH OF CHILDREN!
6. The router will become hot when being used for long time (This is
normal and is not a malfunction). DO NOT put this router on paper,
cloth, or other flammable materials.
7. There’s no user-serviceable part inside the router. If you found that the
router is not working properly, please contact your dealer of purchase and
ask for help. DO NOT disassemble the router, warranty will be void.
8. If the router falls into water when it’s powered, DO NOT use your
hand to pick it up. Switch the electrical power off before you do anything,
or contact an experienced technician for help.
9. If you smell something strange, or even see some smoke coming out
from the router or power supply, remove the power supply or switch the
electrical power off immediately, and call dealer of purchase for help.

5
10. Always switch the device off before removing the battery.
11. Use only battery and power adapter supplied with the product. The
use of any other types may be dangerous.
1-3 System Requirements
zInternet connection, provided by xDSL or cable modem or 3G/3.5 USB
modem.
zComputer or network devices with wired or wireless network interface
card.
zWeb browser (Microsoft Internet Explorer 4.0 or above, Netscape
Navigator 4.7 or above, Opera web browser, or Safari web browser).
zAn available AC power socket (100 – 240V, 50/60Hz)
1-4 Package Contents
Before you starting to use this router, please check if there’s anything
missing in the package, and contact your dealer of purchase to claim for
missing items:
□Portable 3G Router (main body, 1 pcs)…………………………….1
□ Quick Installation Guide (1 pcs) …………………………………. 2
□ CD-ROM ( With EZmax Wizard, Multi-languages QIG and User
Manual) (1 pcs) ……………………………….……………… 3
□ Mini USB Power Adapter (1 pcs) ……………………………..... 4
□ Li-Battery (1 pcs) ………………………………............................ 5

6
1-5 Familiar with your new Portable 3G Router
LED Definitions
LED Name Light Status Description
PWR/CHG
Green On Router is switched on and correctly
powered or the battery is charged
completely.
Orange On The battery is charging.
Orange
Flashing Battery power is not enough, only 30 minutes remains.
Orange
Flashing
Fast
Battery power is not enough, only 10
minutes remains.
Off Router is powered off.
WLAN Off Wireless network is switched off.
Flashing Wireless LAN activity (transferring or
receiving data).

7
WPS On Wireless WPS function is enabled.
Off Wireless WPS function is not enabled or
the connection is successfully.
ETHERNET
On ETHERNET port is connected.
Off ETHERNET port is not connected.
Flashing ETHERNET activity (transferring or
receiving data).
INTERNET
On Router is connected to the Internet.
Off Router is not connected to the Internet.
Flashing Router is connecting to the Internet.

8
Right and Left Side Panel
Item Name Description
LAN/WAN
Switch Switch the Ethernet port to LAN or WAN. Switch to WAN function if you want to access to the Internet through your xDSL or Cable
modem network service. WAN access can also be a back up for 3G
network. Please refer to Section 3-4 for more details.
WPS Start WPS function or reset the router to factory default settings (clear
all settings). Press this button and hold for over 10 seconds to restore
all settings to factory defaults, or press this button for less than 5
seconds to start WPS function.
ON/OFF Switch the button to activate or deactivate the router.
DC in Connect the supplied power adapter to this mini USB port to charge
the battery.
RJ-45 Port Local/ Wide Area Network (LAN/WAN) port.
RJ-45

9
Chapter II: System and Network Setup
2-1 Getting Started
Before you using the router, please follow the following instructions to
charge the router.
1. Remove the battery cover in the rear side of the router and insert the
supplied battery into the slot and then put back the cover.
2. Connect the power adapter to the wall socket, and then connect it to
the mini USB port of the router to charge the battery.

10
Note: It takes about four hours to charge the battery.
3. When the battery is charged, the ‘Power’LED is lit in orange color.
When the ‘Power’LED is not lit, the battery is charged completely.
Note: The ‘Power’LED is lit in green color when the battery is
charged completely if router is activated before charged.
4. Switch the button to ‘ON’to activate the router.
Warning:
1. Always switch the device off before removing the battery.

11
2. Use only battery and power adapter supplied with the product. The use
of any other types may be dangerous.
2-2 Build network connection
Please follow the following instruction to build the network connection
between your new portable 3G router and your computers, network
devices:
1. Connect your 3G/3.5G USB modem to the USB port located on the
top side of the router.
