Edis C121-U User manual

4K Ultra HD Camera With Autofocus User Manual

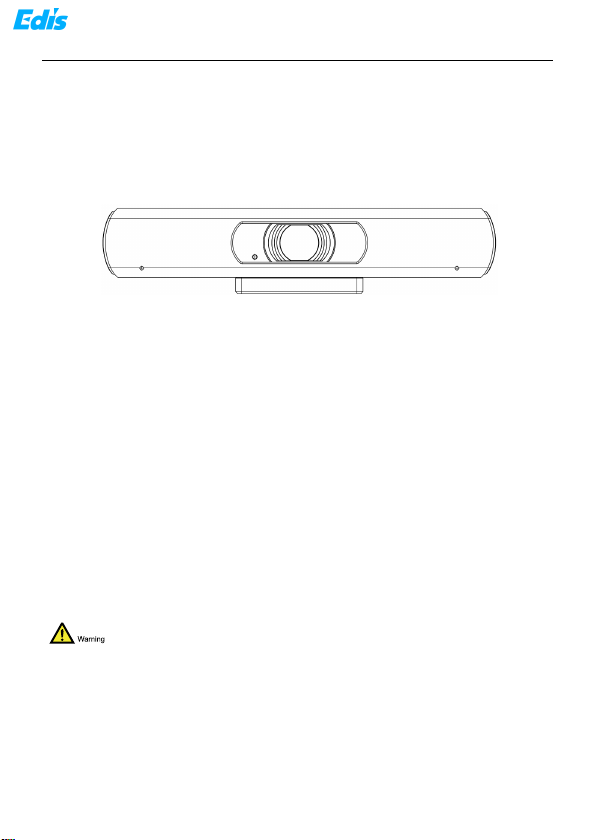

C121-U 4K Auto Framing Camera
User Manual
English（V1.0）
Copyright Notice
All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which were
referred to in this document are for reference only. We may change, delete, or update any content at any
time and without prior notice.
This is class A production. Electromagnetic radiation at specific frequencies may affect the image quality
of TV in home environment.

4K Ultra HD Camera With Autofocus User Manual
Catalogue
1Note........................................................................................................1
2Supplied Accessories.............................................................................1
3Quick Start.............................................................................................1
4About Product........................................................................................1
4.1 Features.......................................................................................................1
4.2 Product Specification ................................................................................... 2
4.3 Interfaces and buttons .................................................................................4
4.4 Dimension .................................................................................................... 4
4.5 Remote Control............................................................................................4
5Menu Settings........................................................................................6
5.1 MENU ..........................................................................................................6
5.2 EXPOSURE .................................................................................................6
5.3 COLOR ........................................................................................................6
5.4 IMAGE .........................................................................................................7
5.5 NOISE REDUCTION ...................................................................................7
5.6 SETTING .....................................................................................................7
5.7 INFORMATION ............................................................................................8
5.8 RESTORE DEFAULT................................................................................... 8
6Network Function...................................................................................8
6.1 Operating Environment ................................................................................ 8
6.2 Equipment Installation..................................................................................8
6.3 Internet Connection......................................................................................9
6.4 IP camera controlled by LAN .......................................................................9
6.5 Camera Controlled by WAN.......................................................................10
6.6 IP Camera Parameter Setup...................................................................... 11
6.7 Download the Camera Upgrade Program ................................................. 16
7Maintenance and Troubleshooting........................................................16

4K Ultra HD Camera With Autofocus User Manual
1
1 Note
Electric Safety
Installation and operation must accord with
electric safety standard.
Use caution to transport
Avoid stress, vibration or soakage in
transport, storage and installation.
Polarity of power supply
The power supply of this product is +12V,
the max electrical current is 2A. Polarity of
the power supply plug drawing shows as
below.
Installation Precautions
Do not grasp the camera lens when carrying
it. Don’t touch camera lens by hand.
Mechanical damage may be caused by
doing so.
Do not use in corrosive liquid, gas or solid
environment to avoid any cover (plastic
material) damage. Make sure there is no
obstacle within rotation range.
Never power on before installation is
completed.
Do not dismantle the camera
We are not responsible for any
unauthorized modification or dismantling.
Specific frequencies of electromagnetic field
may affect the image of the camera!
2 Supplied Accessories
When you unpack, check that all the
supplied accessories are included:
Name
Quantity
Camera
1
AC Power Adaptor 1
Remote Controller
1
User Manual 1
3 Quick Start
Please check connections are correct
before starting.
4 About Product
4.1 Features
4K ultra high definition
Support 4K ultra high definition, ultra high
definition with ultra high resolution, the
maximum can provide 4K@30fps/25fps
image output, while down compatible with
1080p, 720p and other resolutions.
Intelligent teaching tracking (optional)
The built-in leading image recognition and

4K Ultra HD Camera With Autofocus User Manual
2
tracking algorithm, without any auxiliary
positioning camera or tracking host, can
achieve smooth and natural tracking effect.
Local storage
The local storage function is supported and
the local direct recording of the U disk can
be realized without the need of NVR.
AF lens
Full custom auto focus without distortion
lens, wide angle field of view up to 120
degrees, small lens, big eye. At the same
time support EPTZ, with unmovable brake,
more larger, more clear.
Built-in microphone
With a built-in microphone array, you can
pick up a full range of sounds, and pick up
the sound distance up to 12 meters. The
unique noise suppression algorithm makes
your voice perfect.
Low-light
The new CMOS image sensor with high star
level ultra high noise ratio can effectively
reduce the image noise in the low
illumination condition.
Meanwhile, the application of 2D and 3D
noise reduction algorithm greatly reduces
the image noise. Even under the condition
of ultra-low illumination, it still keeps the
picture clean and clear, and the SNR of
image is as high as 55dB.
Support wireless (optional)
It supports wireless WiFi connections and is
easy to deal with network connections in
different environments.
Support PoE
The wired network supports PoE power
supply, control, power supply, video, and
audio only one network line to complete.
4.2 Product Specification
Name 4K Ultra HD Camera
With Autofocus
Camera
Sensor 1/2.5'', CMOS,
Effective Pixel: 8.51M
Scanning
Mode Progressive
Lens Mount M12
Lens 1 Focus: f=7.35mm,
FOV: 46°
Lens 2
(Default)
Focus: f=3.5mm,
FOV: 84°
Lens 3 Focus: f=2.8mm,
FOV: 120°
Autofocus Support
Minimal
Illumination
0.05 Lux @
(F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor,
One Push, Manual, VAR
Digital Noise
Reduction
2D, 3D digital noise
reduction
Camera
bracket
Optional
Backlight
Compensation
Support

4K Ultra HD Camera With Autofocus User Manual
3
PoE Support
Local Storage Support
Auto Tracking
Function
Teacher mode/Student
mode (optional)
Network Features
Video
Compression
H.264/H.265/MJPEG
Video Stream Main Stream,
Sub Stream
First Stream
Resolution
3840x2160, 1920x1080,
1280x720, 1024x576,
960x540, 640x480,
640x360
Second
Stream
Resolution
1920x1080,
1280x720, 1024x576,
720x576(50Hz support),
720x480(60Hz support),
720x408, 640x360,
480x270, 320x240,
320x180
Third Stream
Resolution
960x540,
720x576(50Hz support),
720x480(60Hz support)
Video Bit Rate 32Kbps ~ 102400Kbps
Bit Rate Type
Variable Rate, Fixed
Rate
Frame Rate 50Hz：1fps ~ 25fps，
60Hz
：
1fps ~ 30fps
Audio
Compression AAC
Audio Bit Rate 48Kbps, 64Kbps,
96Kbps, 128Kbps
Support
protocols
TCP/IP, HTTP, RTSP,
R T MP, O NVIF, DHCP,
Multicast, etc.
Input/Output Interface
Network
Interface
1xRJ45: 10/100/1000M
Ethernet Interface
Wireless
Interface
1xWireless Wi-Fi
(optional)
USB Interface
1xUSB 2.0: Type A,
female
Power
Interface DC 12V
Physical Parameter
Input Voltage DC 12V / PoE
(IEEE 802.3af)
Current
Consumption
0.5A (Max)
Operating
Temperature
-10°C ~ 40°C
(14°F ~ 104°F)
Storage
Temperature
-40°C ~ 60°C
(-40°F ~ 140°F)
Power
Consumption
3W
Size 194mm x
34mm x
42mm (without bracket)
Net Weight 0.34 Kg
MTBF ＞30000h

4K Ultra HD Camera With Autofocus User Manual
4
4.3 Interfaces and buttons
Item
Name
1
Network Interface
2
USB 2.0 Interface
3
Power Interface
4.4 Dimension
4.5 Remote Control
Key Description
1. Standby Button (not supported)
Press this button to enter standby mode.
Press it again to enter normal mode.
Note: Power consumption in standby mode is
approximately half of the normal mode.
2. Position Buttons
To set preset or call preset.

4K Ultra HD Camera With Autofocus User Manual
5
3. *Button
Used with other buttons.
4. Set/Preset Buttons
Set preset: Store a preset position.
[SET PRESET] + Numeric button (0-9):
Setting a corresponding numeric key preset
position.
5. Pan-Tilt control Buttons
Pressing the Pan-Tilt back to the middle
position.
6. Back buttons
Press the OSD menu return to the superior.
7. Zoom Buttons
Slow Zoom: Zoom In [+] or Zoom Out [-]
slowly
Fast Zoom: Zoom In [+] or Zoom Out [-] fast
8. Pan-Tilt L/R set
Press with 1 buttons and 2 buttons setting the
direction of the Pan-Tilt.
L/R Set +1[STD]: set the Pan-Tilt turn the
same direction as the L/R Set.
L/R Set +2[REV]: set the Pan-Tilt turn the
opposite direction as the L/R Set.
9. Focus Buttons
Used for focus adjustment.
Press [AUTO] adjust the focuses on the
center of the object automatically. To adjust
the focus manually.
Press [MANUAL] adjust the focus on the
center of the object manual.
MANUAL button, and adjust it with [Far]
(Focus on far object) and [NEAR] (Focus on
near object).
10. Camera Select Buttons
Press the button corresponding to the
camera you want to operate with the remote
controller.
11. # Button
Used with other buttons.
12. Set Camera IR Address Buttons
[*]+[＃]+[F1]: Address 1
[*]+[＃]+[F2]: Address 2
[*]+[＃]+[F3]: Address 3
[*]+[
＃
]+[F4]: Address 4
13. Clear Preset Buttons
Clear preset: Erase a preset position.
[CLEAR PRESET] + Numeric button (0-9)
Or: [*]+[#]+[CLEAR PRESET]: Erase all the
preset individually.
14. Pan/Tilt Control Buttons
Press arrow buttons to perform panning and
tilting after zoom. Press [HOME] button to
face the camera back to front.
15. MENU
MENU: enter or exit OSD MENU.
16. BLC (Backlight Compensation) Button
BLC ON/OFF: Press this button to enable the
backlight compensation. Press it again to
disable the backlight compensation.
NOTE:
Effective only in auto exposure mode.
If a light behind the subject, the subject
will become dark. In this case, press the
backlight ON/OFF button. To cancel this
function, press backlight ON/OFF button.
17. Pan/Tilt reset
This function is only applicable to the PTZ
cameras.

4K Ultra HD Camera With Autofocus User Manual
6
5 Menu Settings
5.1 MENU
Press [MENU] button to display the main
menu on the normal screen, using arrow
button to move the cursor to the item to be
set. Press the [HOME] button to enter the
corresponding sub-menu.
MENU
Exposure
Color
Noise Reduction
Setting
Information
Restore Default
Exit
5.2 EXPOSURE
Move the main menu cursor to
[EXPOSURE], and press [HOME] key enter
the exposure page, as shown in the
following figure.
EXPOSURE
Mode
Full Auto
ExpCompMode
Off
Gain Limit
3
Backlight
Off
DRC Strength
3
Anti Flicker
50Hz
Return
Mode: Optional items: Full Auto, Shutter
Priority, Bright.
Shutter: Optional items: 1/30s, 1/60s, 1/90s,
1/100s, 1/125s, 1/200s, 1/250s, 1/350s,
1/500s, 1/725s, 1/1000s, 1/1500s, 1/2000s,
1/3000s, 1/4000s, 1/6000s, 1/10000s
(Effective only in Shutter Priority mode).
ExpCompMode: Optional items: On, Off
(Effective only in Full Auto mode).
ExpComp: Exposure compensation value,
optional items: -7 ~ 7 (Effective only in
ExpCompMode item to On).
Gain Limit: Maximum gain limit, optional
items: 0 ~ 15 (Effective only in Full Auto,
Bright mode).
Backlight: Optional items: On, Off (Effective
only in Full Auto, Bright mode).
DRC Strength: Optional items: 0 ~ 8.
Anti Flicker: Optional items: Off, 50Hz, 60Hz
(Effective only in Full Auto, Bright mode).
5.3 COLOR
Move the main menu cursor to [COLOR],
and press [HOME] key enter the color page,
as shown in the following figure.
COLOR
WB Mode
Auto
AWB Sens
Low
RG Tuning
2
BG Tuning
1
Saturation
100%
Hue
7
Return
WB-Mode: White balance mode, optional
items: Auto, Indoor, Outdoor, One Push,
Manual, VAR.
AW B Sens: The white balance sensitivity,
optional items: Low, Normal, High.

4K Ultra HD Camera With Autofocus User Manual
7
R Gain: Red gain, optional items: 0~255
(Effective only in Manual mode).
B Gain: Blue gain, optional items: 0~255
(Effective only in Manual mode).
colortemp: Optional items: 2500K ~ 8000K
(Effective only in VAR mode).
RG Tuning: Red gain fine-tuning, optional
items: -10 ~ +10 (Effective only in AW B
Sens is Low).
BG Tuning: Blue gain fine-tuning, optional
items: -10 ~ +10 (Effective only in AW B
Sens is Low).
Saturation: Optional items: 60% ~ 200%.
Hue: Optional items: 0 ~ 14.
5.4 IMAGE
Move the main menu cursor to [IMAGE],
and press [HOME] key enter the image
page, as shown in the following figure.
Luminance
11
Contrast
9
Sharpness
3
Flip-H
Off
Flip-V
Off
Gamma
Default
Style
Clarity
LDC
Off
Return
Luminance: Brightness adjustment, optional
items: 0 ~ 14.
Contrast: Contrast adjustment, optional
items: 0 ~ 14.
Sharpness: Sharpness adjustment, optional
items: Auto, 0 ~ 14.
Flip-H: Image flipped horizontally, optional
items: On, Off.
Flip-V: Image Flip Vertical, optional items:
On, Off.
Gamma: Optional items: Default, 0.45, 0.5,
0.56, 0.63.
Style: Optional items: Norm, Clarity, Bright,
Soft.
LDC: Optional items: Off, -10 ~ 10.
5.5 NOISE REDUCTION
Move the main menu cursor to [NOISE
REDUCTION], and press [HOME] key enter
the noise reduction page, as shown in the
following figure.
NOISE REDUCTION
2D NR
1
3D NR
2
Return
2D NR: 2D noise reduction, optional items:
Close, Auto, 1 ~ 5.
3D NR: 3D noise reduction, optional items:
Close, 1 ~ 8.
5.6 SETTING
Move the main menu cursor to [SETTING],
and press [HOME] key enter the setting
page, as shown in the following figure.

4K Ultra HD Camera With Autofocus User Manual
8
SETTING
Language
English
Protocol
VISCA
Visca Addr
1
AF Sense
Low
EPTZ
On
Zoom Limit
3x
Return
Language: Optional items: English,
Chinese.
Protocol: Optional items: VISCA, PELCO-D,
PELCO-P.
Visca Addr: Optional items: 1 ~ 7.
P-D Addr: Optional items: 0 ~ 254.
P-P Addr: Optional items: 0 ~ 31.
AF Sense: Optional items: Low, Middle,
High.
EPTZ: Optional items: On, Off.
Zoom Limit: Optional items: 1.5x, 2x, 3x, 4x,
8x (Effective only in EPTZ item to On)
5.7 INFORMATION
Move the main menu cursor to
[INFORMATION], and press [HOME] key
enter the information page, as shown in the
following figure.
INFORMATION
Version
8.1.26
Model
O10.V
Date
2017-11-24
IP
192.168.100.88
Gateway
192.168.100.1
Netmask
255.255.255.0
Return
5.8 RESTORE DEFAULT
Move the main menu cursor to [RESTORE
DEFAULT], and press [HOME] key enter the
restore default page, as shown in the
following figure.
RESTORE DEFAULT
Yes
No
Return
Yes: Confirm restore factory settings.
No: Cancel restore factory settings.
Note: Press [HOME] button to confirm, all
parameter restore default, include IR
Remote address and VISICA address.
6 Network Function
6.1 Operating Environment
Operating System: Windows 2000/2003/XP/
vista/7/8/10
Network Protocol: TCP/IP
Client PC: P4/128M RAM/40GHD/support
scaled graphics card, support DirectX8.0 or
more advanced version.
6.2 Equipment Installation
1) Connect internet camera to your internet
or to your PC directly via internet cable.
2) Turn on DC 12V power.
3) When the network connection is normal,
the connection light (Green) is lit up at
the network interface within 5 seconds,
which indicates that the physical
connection of the camera is completed.
