EDISON Professional EN-1600 User manual

OPERATIONSMANUALFOREDISONPROFESSIONAL
EN-1600

OPERATIONSMANUALFOREDISONPROFESSIONAL
Introduction:
Congratulations on your purchase of an EN-1600 powered loudspeaker, engineered
and manufactured by Britelite Enterprises. The EN-1600 includes a high-output
compression driver, and 15” woofer to produce an even, smooth studio quality sound
in a sound reinforcement speaker. Our design goal was to build a speaker with
accurate playback, smooth dispersion of mid and high frequencies and an ergonomic
design for easy transport and setup. The result is a sound reinforcement system
dynamic enough to use at home, in the studio, parties or in home theater.
Features:
2-way amplified Active Speaker
1X15” Long-throw woofer with high-temperature voice coil
Ultra-wide, smooth dispersion of high and mid frequencies
Mic/Line input and pass-thru connector
USB & SD Card input supports .wav & MP3
Bluetooth Compatible with TWS
LED lighting
Cautions:
1. All Operating Instructions should be read before using this equipment.
2. To reduce the risk of electrical shock, do not open this unit. There are NO
REPLACEABLE PARTS INSIDE. Please refer servicing to a qualified service
technician.
3. Do not expose this unit to direct sunlight or to a heat source such as a radiator or
stove.
4. This unit should only be cleaned with a damp cloth. Avoid solvents or other
cleaning detergents.
5. When moving this equipment, it should be placed in its original carton and
packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7. DO NOT US ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR
SWITCHES
8. Make sure All of your equipment is completely OFF and lower ALL VOLUME,
LEVEL & GAIN controls before connecting a sound source.
9. Only LINE LEVEL SIGNALS SHOULD BE SENT TO YOUR SPEAKER.
Disregardinganyoftheabovewillvoidyourwarranty!!!!



OPERATIONSMANUALFOREDISONPROFESSIONAL



OPERATIONSMANUALFOREDISONPROFESSIONAL

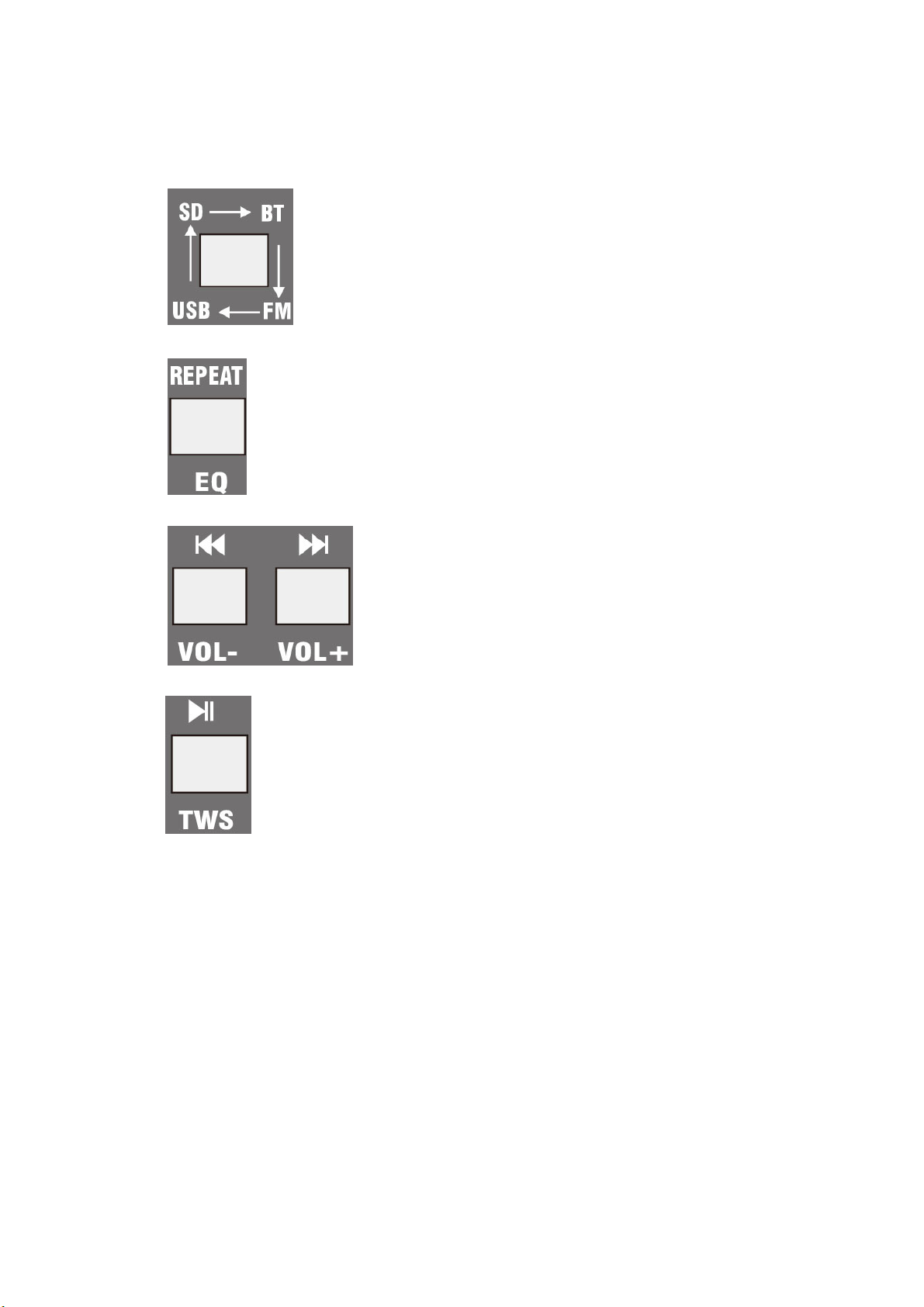

1. MP3 module:
Short press: Bluetooth, SD, USB, FM radio switch
Short press: REPEAT; Long press: EQ setting
Short press: Last and next; Long press:Volume – or +
2. Line/MP3 input volume: Control the Volume of line/MP3 input
3. Master volume : Control the Volume of speaker .
4. Line input / MP3 input switch
5. Treble volume : Control the Volume of treble
6. Line input/Line output:RCA jack
7. Bass volume : Control the Volume of bass
8. Microphone volume 2: Control the Volume of microphone input
9. Microphone volume 1: Control the Volume of microphone input
10. Mircophone input 2: XLR microphone input
11. Mircophone input 1: XLR microphone input
12. Mircophone input 1: 6.35JACK microphone input
13. Mircophone input 2: 6.35JACK microphone input.
14. Power Cord Connector - Connect here an IEC main power cable in order to supply
the unit

15. Power on/off
16. LED lighting on/off
PlacementTips
-Avoid placing loudspeakers in the corners of a room. This increases the
low-frequency output and can cause the sound to be muddy and indistinct.
-Avoid placing loudspeakers against a wall. This, too, increases the low frequency
output, though not as much as corner placement. However, if you do need to
reinforce the low frequencies, this is a good way to do it.
-Avoid placing the active speakers directly on a hollow stage floor. A hollow stage can
resonate at certain frequencies, causing peaks and dips in the frequency response
of the room. It’s better to place the speakers on a sturdy table or tripod stands.
-Position the speakers so the high-frequency drivers are two to four feet above ear
level to the audience to maintain high frequency quality.
Troubleshooting
NoPower
-First check to make sure the speaker is plugged in to a live AC outlet.
Make sure the POWER switch is on.
NoSound
-Make sure input LEVEL control turned up.
-Make sure signal source is working and the connecting cables are in good shape and
securely connected at both ends. Make sure the output volume control on the mixing
console is turned up.
-Make sure the preamp or mixer does not have a Mute button engaged.
BadSound–Noise-Humming
If the sound is loud and distorted, verify that the levels are set properly on the speaker
and mixing console.
Make sure all connectors are secure and they are plugged in to the proper connector
(i.e., Mic cable plugged in to MIC input, Line level source plugged in to Line Level
Input. It is a good idea to periodically clean all electrical connections with a
non-lubricating electrical contact cleaner.
Make sure none of the signal cables are routed near AC cables, power transformers
or other electrical power cords.
If humming occurs, turn the LEVEL control of the speaker all the way down. If the
noise disappears, it’s coming from the signal source. If not, try disconnecting the
cable connected to the INPUT jack. If the noise disappears, it could be a “ground
loop,” Try the following ideas:
o Use balanced connections throughout your system for best noise rejection. (XLR

OPERATIONSMANUALFOREDISONPROFESSIONAL

cables, balanced ¼” jacks; RCA cables are not balanced)
o Whenever possible, plug all the audio equipment’s power cords into the same outlet.
o The hum may appear when using an unbalanced source (CD player, iPod, etc.).
Use can use an RCA to XLR adapter to turn an unbalanced cable to a balanced cable.
o If the hum persists, try removing components one at a time from the back of the
mixer and check each for hum. Reducing the Bass or Treble levels (10 and 11) may
reduce humming.
Information to Users
According to the FCC Part 15.19, 15.21, and 15.105 rules, for this EUT, the instructions or
operation manual furnished the user shall include the following or similar statement, placed in a
prominent location in the text of the manual:
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
CareandMaintenance

Your active speakers will provide many years of reliable service if you follow these
guidelines:
Avoid exposing the loudspeaker to moisture. If they are set up outdoors, be sure they
are under cover if you expect rain
Avoid exposure to extreme cold. If you must operate loudspeakers in a cold
environment, warm up the voice coils slowly by sending a low-level signal through
them for about 15 minutes prior to high-power operation.
Use a dry cloth to clean the cabinets. Only do this when the power is turned off. Avoid
getting moisture into any of the openings of the cabinet, particularly where the drivers
are located.
LimitedWarranty
This Limited Product Warranty is provided by Britelite Enterprises. Britelite warrants to
Customer that the product is free from defects in materials and workmanship under
normal use during the Warranty Period of 90 days for parts and 1-year labor. If the
product fails to conform to the warranty then Britelite or its authorized service will
either repair or replace any nonconforming product, provided that Customer gives
notice of noncompliance within the Warranty Period to Britelite by emailing
[email protected] or calling 310-363-7110 (Mexico customers can call 0155 4624
0251). Please retain the original dated receipt as evidence of proof of purchase.
Pleasedonotreturntheproducttothedealerorplaceofpurchase.
ContactBritelitedirectlyforwarrantysupport.

FCCRadiationExposureStatement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
