eelo 1885 User manual

®1885
USER GUIDE

CONTENTS
• Product Overview
• Package Contents
• How To Fold
• Modes of Operation
• Charger and Battery Information
• Maintenance
• Warranty
• Returns and Exchange
• Notices When Riding
• Precautions
• Warnings

PRODUCT OVERVIEW
Folding
Lever
Saddle
Seat post
Mudguard
Rear Tyre
Motor
Front Tyre
Brake Brake
Front Fork
LED Light
Quick Release Clamp
Brake Levers Throttle
Control
Folding Clamp & Lock
Hidden
Battery
Battery
charging
port
Chain
Mudguard
PACKAGE CONTENTS
1 x Folding Bike
1 x Bike Computer
1 x User Guide
1 x Charger
Bike Computer
Speed Control Lever

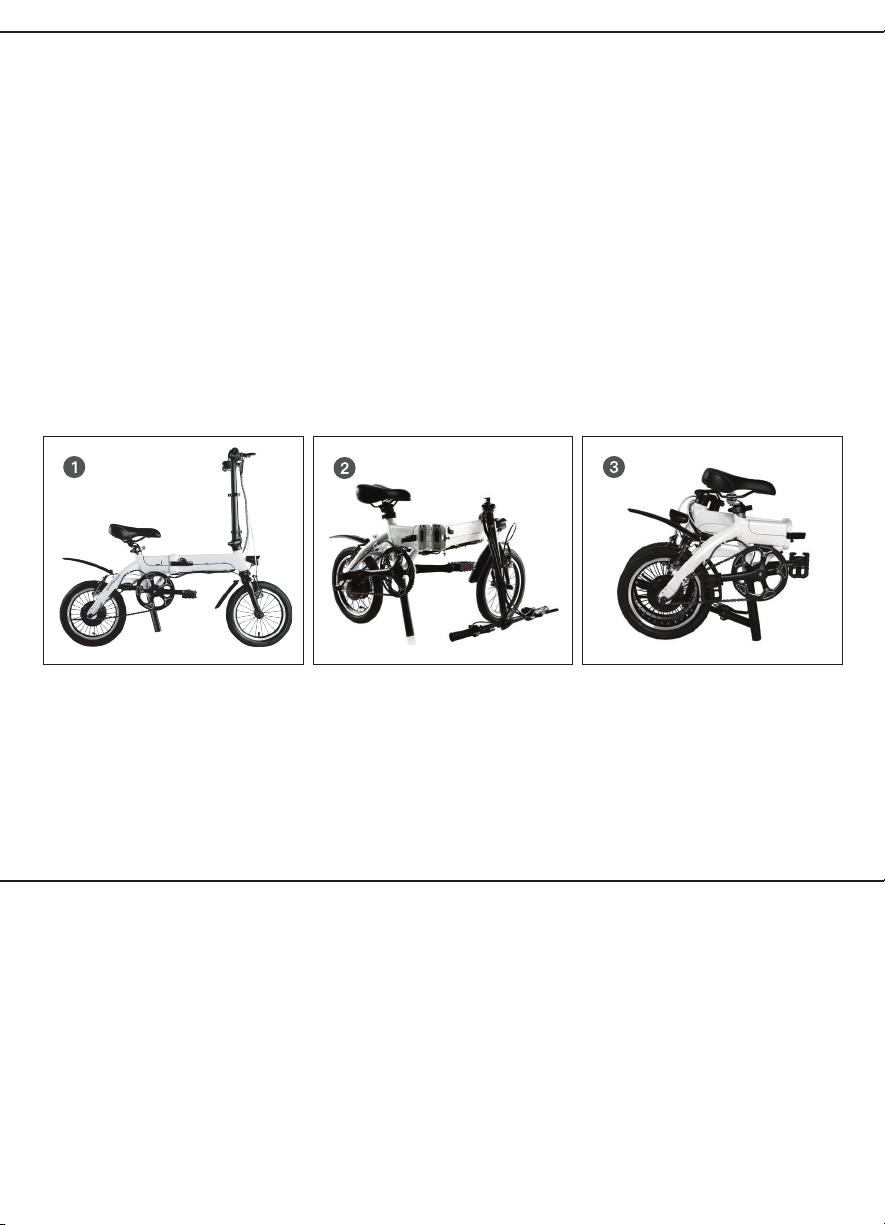

HOW TO FOLD
1. Open the quick-release clamp on the seat post and push the seat
all the way down.
Move the pedals to the 3/9 o’clock position. (See images 1 & 2)
2. Push inward and fold both pedals.
3. Unlock and release the handlebar stem quick-release clamp and
fold the stem. (Images 2 & 3)
4. Unlock and release the Folding Clamp, fold the bike until both
wheels are parallel.
MODES OF OPERATION
Hybrid Mode: Turn the power-switch ON, the motor will provide power
assist when you pedal.
Manual Mode: Turn the power-switch OFF, and the eelo 1885 behaves
and operates identical to an ordinary bike.
Electric Mode: Turn power-switch ON, use the throttle on the right
handle to accelerate and control your speed.
BIKE COMPUTER
The eelo 1885 comes with a pre-attched bike computer that allows you
to view your speed, battery level and distance travelled. For more
information on your bike computer, please refer to its user guide.

CHARGER AND BATTERY INFORMATION
• Charge the battery in a well-ventilated environment. First, insert the
charging plug into the charging socket beneath the frame, then
connect the adapter to the power source.
• On average, it takes between 4 – 6 hours to fully charge the battery.
When fully charged, the LED indicator on the adapter will turn from
Yellow to Green. DO NOT charge the battery for more than 6 hours.
• After charging, disconnect the adapter from the power source first,
then remove the charging plug from the bike. Do not leave the adapter
plugged into the power source when not in use.
BATTERY CARE
• Do not over charge or fully drain the battery.
• Do not cover the charger or battery with anything when charging –
doing so would create a risk of overheating and fire.
• Only use the charger supplied in the original packaging. The usage on
an unapproved charger will void the warranty.
• You don’t need to fully drain the battery before recharging it.
Leaving a fully drained battery for a prolonged time will have a
permanent, negative impact on battery life. Proper charging of
the battery can maintain the battery capacity to a level of 85% after
5000 cycles. But due to the characteristics of the li-ion batteries, a
decrease of the total capacity over the course of time in inevitable.
• Keep the battery away from direct exposure to the sun. If not using
the bike for a long time, charge it at least once every 30 days.
• Do not short circuit the battery or it will create a risk of fire and will
void the warranty.
• Always dispose of the battery according to local laws and regulations.
• Please contact our customer service team if you have any questions
regarding the battery.

USING THE CHARGER
The charger supplied with the electric bicycle should be regularly examined for
damage to the cord, plug, enclosure and other parts. In the event of such
damage, the eelo 1885 must not be charged until the charger has been repaired
by a suitable technician or replaced.
• Use only with supplied charger.
• Use caution when charging.
• The charger is not a toy. The charger should be operated by an adult.
• Do not operate the charger near flammable or hazardous materials. Always
charge in a well-ventilated area.
• Unplug the charger and disconnect from eelo 1885 and main power source
when not in use.
• Always disconnect the eelo 1885 charger prior to wiping down and cleaning
your bike with a damp cloth.
MAINTENANCE
• Front and Rear wheel should always be aligned with the centre of the front
and rear fork. Tension of each spoke should be similar so that there is no
bouncing or oscillating of the wheel. There should be no missing or broken
spokes. Wheels should have a smooth rotation - otherwise you risk serious
injury or death.
• Your eelo 1885 is equipped with a high quality chain – please keep it clean
and clear from foreign objects and make sure it is lubricated at all times.
• Check the break pads regularly and have them replaced if they are worn.
Please do not attempt to replace the brake pads by yourself – these should
be replaced by a bicycle technician. Do not lubricate the wheel rim – this will
impact the performance and risk injury.
• Check the tyres regularly for damage. Damaged or worn tyres should be
replaced.
• Regularly maintain, clean and lubricate your bike. Please contact our
customer service team if you have any questions.

WARRANTY
Please refer to our website www.eeloproducts.com/warranty for all warranty
terms, conditions and how to make a claim.
RETURNS AND EXCHANGE
Please refer to our website www.eeloproducts.com/returns for all product
and exchange information and procedures.
Please keep the original packaging for return shipping. The warranty does not
include damage from shipping in inadequate packaging.
NOTICES WHEN RIDING
• It is essential that tyre pressures are checked regularly
Min 35 psi Max 85 psi (Min. 2.5 BAR. Max. 5.9 BAR)
• Actual mileage is affected by the battery level, tyre pressure, mode of
operation and frequent turning OFF/ON of the system.
• Before riding, always check if the battery is sufficiently charged, tyre
pressure is normal, and brakes are working properly. When braking, always
use the rear brake first to avoid risk of injury.
• Always wear a helmet and other appropriate protective gear when using the
eelo 1885.
• Obey local traffic rules.
• Use the head light when riding at night or in poorly lit areas.
• Never ride in snow/rain or on wet surfaces as these conditions will severely
impact the braking performance. Riding in these conditions creates a
risk of serious injury or death.
• This eelo 1885 is for riding on a paved road only – this is not an off-road
vehicle and severe injury could occur if used off-road or on unpaved
surfaces.
• Do not modify your eelo 1885 without consulting us first.

PRECAUTIONS
• If lending your eelo 1885 to others, please let the other user read this guide
as well. This will reduce the chance for injury and accidents.
• Please wear a helmet and other suitable safety gear at all times and
reflective or light-emitting gear when riding at night.
• Please do not exceed local speed limits.
• Please do not touch any of the power connectors or couplers with bare
hands to avoid the risk of accidental electrical discharge.
• Full throttle starts, frequent braking, riding against the wind, riding with
heavy loads and insufficient tyre pressure will cause more pronounced
battery consumption and will affect electrical/hybrid use. In order to
obtain optimum battery capacity, we advise that you:
- Avoid full throttle starts and frequent braking (unless necessary).
- Use manual mode when riding uphill or against wind.
- Avoid heavy loads
- Check and maintain proper tyre pressure regularly.
• Avoid prolonged exposure to sunlight or rain, avoid storing the bike in a high
temperature / high humidity environment or near corrosive / hazardous
materials. These may damage electrical components and can compromise
the bikes performance.
• The eelo 1885 is not a toy! A person must be 16 years old to operate an eelo
1885. Always follow the local laws and regulations of your area when using
this product.
• This guide may not cover every situation you may encounter using this
product. For more information please contact our customer support team.

WARNINGS
We want you to be able to fully enjoy this bicycle. Please read this section
carefully.
RIDE AT YOUR OWN RISK AND USE COMMON SENSE.
FAILURE TO USE COMMON SENSE AND HEED THE WARNINGS BELOW
ONLY SERVES TO INCREASE THE RISK OF SERIOUS INJURY AND/OR
DEATH. USE AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS
ATTENTION TO SAFE OPERATION. USE CAUTION AT ALL TIMES.
Using any electric bicycle presents potential risks/hazards – suitable caution
and common sense is required at all times. There are inherent hazards
associated with the use of this product (such as falling off). It is, of course,
possible to lose control or otherwise get into dangerous situations even with
taking all appropriate precautions. All riders and any person supervising them
much recognise that a rider can be seriously injured or die even when using
safety equipment and other precautions.
THIS BICYCLE IS NOT A TOY – IT IS A MACHINE CAPABLE OF SPEEDS UP
TO 15.5 mph.
WARNING: PARENTAL AND ADULT RESPONSIBILITY AND SUPERVISION IS
NECESSARY: because products, like electric bicycles, can and do present a
potential hazards plainly associated with their use, it is well recognised THE
NEED FOR EXERCISE OF PARENTAL RESPONSIBILITY IN SELECTING RIDING
PRODUCTS APPROPRIATE TO THE AGE OF THE CHILD, OR PARENTAL
SUPERVISION IN SITUATION IN WHICH CHILDREN OF VARIOUS AGES MAY
HAVE ACCESS TO THE SAME RIDING PRODUCTS, IS IMPORTANT.
Not every product is appropriate for every person and the recommendations
found within this section are intended to reflect the nature of the hazards
which could be encountered during use and the expected mental or physical
ability, or both, of a rider to cope with the hazards. The recommended minimum
rider age is 16 and older. Any rider, regardless of age, who is unable to fit
comfortably on the bicycle should not attempt to ride it. A parent’s decision to
allow his or her child to ride this product should be based on the child’s
maturity, skill and ability to follow rules.

Keep this product away from small children and remember that it is intended
for use only by persons who are, at a minimum, completely comfortable and
competent while operating the bicycle.
Persons with any condition (mental or physical) that may make them
susceptible to injury, impair their physical dexterity or mental capabilities to
recognise and follow safety instructions and to be able to understand the
hazards inherent in bicycle use, should not use or be permitted to use this
product. Persons with heart conditions, head, back or neck ailments (or prior
surgeries to these areas of the body) should be cautioned not to operate such
products. Pregnant women should never use this product.
DO NOT EXCEED THE WEIGHT LIMIT OF 100kg. Rider weight does not
necessarily mean a person’s size is appropriate to fit or maintain control of the
bicycle.
CHECK AND MAINTAIN THE BICYCLE BEFORE EACH USE. Before each use,
check to confirm that the bicycle frame is in good condition with no cracks or
other breaks. Check that the brakes are functioning properly, that the tyres are
securely fastened and rotate smoothly. The bicycle should be maintained and
repaired in accordance with the manufacturer’s specifications, using only that
manufactures authorised replacement parts, and should not be modified from
the manufacturer’s original design and configuration.

THANK YOU
FOR PURCHASING THE
eelo 1885 Electric Bike
If you have any questions regarding your purchase or require assistance
using the eelo 1885 please contact our friendly customer service team.
Phone: [phone]
Email: [e-mail]
Website: www.eeloproducts.com

®
1885
®
e
B
i
k
e
T
e
c
h
n
o
l
o
g
y
