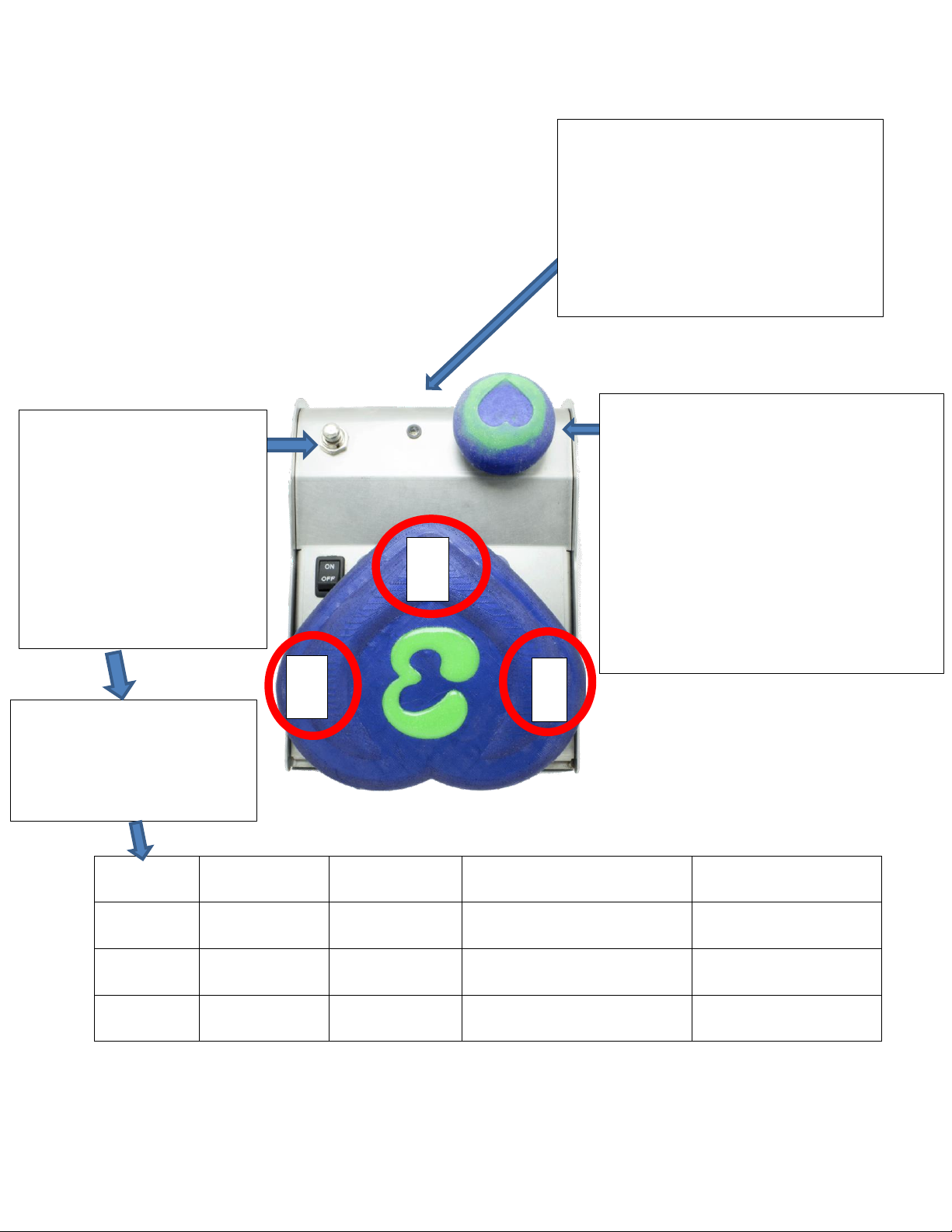

Effigy Control Pedal
Quick Start Guide and Limited Warranty
Knob
Top Plate
Mode
Switch
7-16v DC MIDI USB-B
Power In DIN-5 Out In/Out
Position 1/Left
Position 3/Center
Position 2/Rt
Knob: either a
sensitivity ctl
or a 4th Position
Backstop
On-Off
Switch
Mix
Zone!
Mix
Zone!
Press on the top
plate to select a
mode and play!
Press
Here
Press
Here
Press
Here
Mix zones: Sides
and center can
work together!
Comm
Light

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 2of 14
Quick Start to Play:
1. Connect MIDI or USB cable
2. Turn Pedal On (LED blinks)
3. Select Mode 1, 2, or 3
(try mode 2 first, Pitch+MOD)
4. Turn the Knob left or up
5. Play!
Out of the Box Factory Preset:
Mode
Pos 1
Pos 2
Pos 3
Pos 4
1
Pitch 
Pitch 
Sustain (CC64)
Vol(CC11)
2
Pitch 
Pitch 
MOD (CC1)
Vol(CC11)
3
Pitch 
Pitch 
CC74
Vol(CC11)
The comm light shows
what’s happening: red,
blue, or purple, blinking
or phasing. It also reacts
to your playing!
1
4
2
3
The Sensitivity Knob
adjusts Dynamic Range.
Left/counter-clockwise is
more range,
right/clockwise less.
You can adjust the knob
with your foot. Try it!
To switch modes
at any time, hit the
Mode Switch
briefly, then hit
the position of the
mode you want.
A “Mode” is what
the positions do at
the same time:

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 3of 14
Stored Presets:
Pedal stores one bank onboard (5 presets)
Preset 1, the “live” preset’s modes:
Mode
Pos 1
Pos 2
Pos 3
Pos 4
1
Pitch 
Pitch 
Sustain (CC64)
Vol(CC11)
2
Pitch 
Pitch 
MOD (CC1)
Vol(CC11)
3
Pitch 
Pitch 
CC74
Vol(CC11)
Live preset modes (same as previous page)
Presets 2-5 are the same:
Mode
Pos 1
Pos 2
Pos 3
Pos 4
1
Pitch 
Pitch 
Sustain (CC64)
Vol(CC11)
2
Pitch 
Pitch 
MOD (CC1)
Vol(CC11)
3
Pitch 
Pitch 
CC74
Vol(CC11)

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 4of 14
Changing Presets:
1. Hold Mode Switch for
5 seconds and release
(light blinks 6x)
2. Turn knob to left
for presets 1-3, right
for presets 4-5
3. Press the position on the top plate to
load the preset you want.
•Preset 1 is loaded at start up (can be
customized in Control Panel App)
•Mode selected by user at startup (can
be auto-selected or customized in
Control Panel App)
L
R
1
4
2
5
4
(5)
3
R
L

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 5of 14

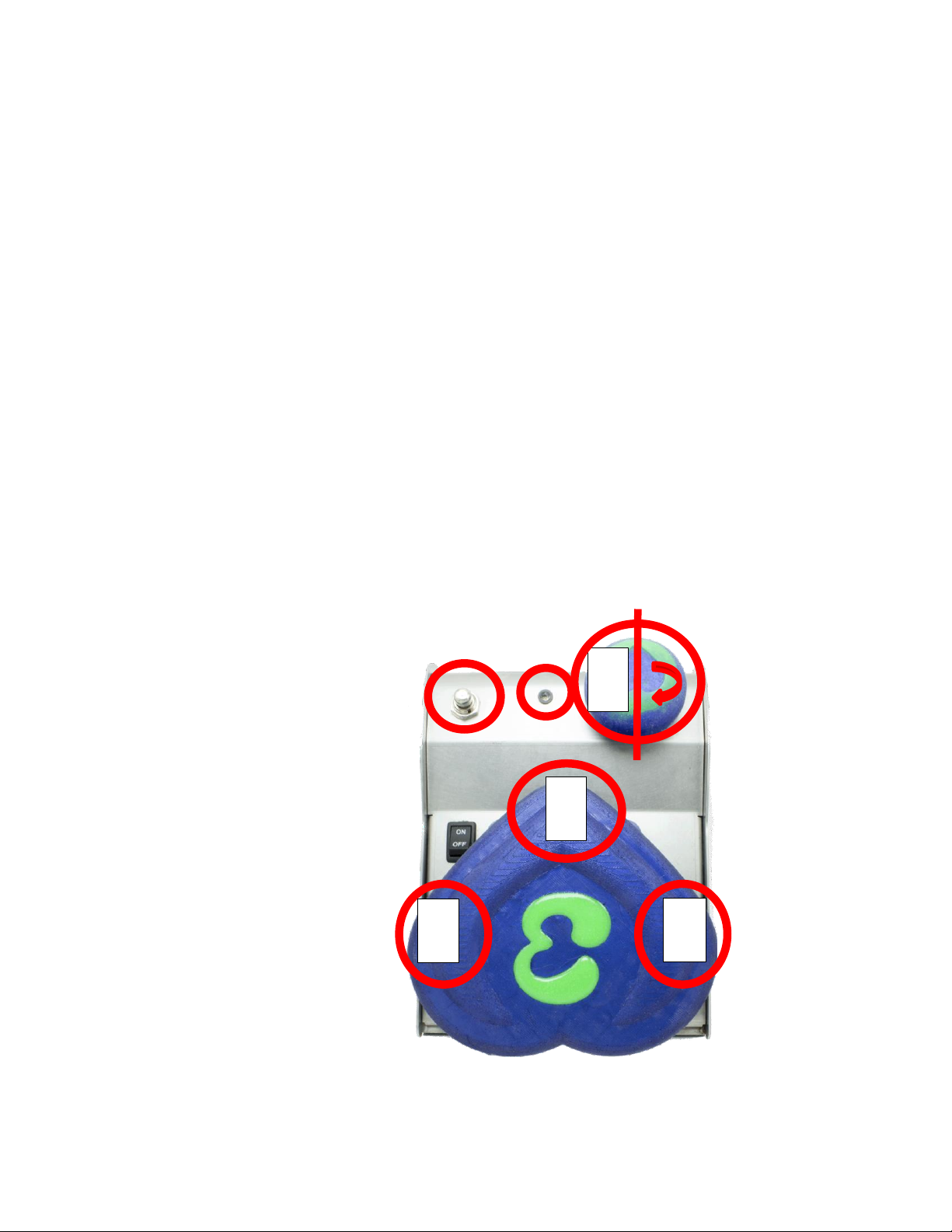

Changing MIDI Channel: knob zones
1. Hold Mode Switch for
9 seconds and release
(light blinks 10x)
2. Turn knob to zone 1-6
3. Press the position on
the top plate to set the
MIDI channel you want
Position
Knob Zone
1
2
3
1
1
2
3
2
4
5
6
3
7
8
9
4
10
11
12
5
13
14
15
6
16
(still 16)
(still 16)
6
5
2
3
4
1
4
2
4
3
1
2
3
1

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 6of 14
Using the Sensitivity/Position 4 Knob:
The knob has two functions:
1) Sensitivity control (factory), or
2) A fourth position controller.
To switch the knob between these two:
1. Hold down Mode Switch for 3
seconds and release (light blinks 4x)
2. Knob flips between Position 4 and
Sensitivity Control for the other 3
positions
1
4
2
4
3
4

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 7of 14
Adjusting Tension Action:
Pedal feel or “action” is adjustable from light to firm
depending on player’s physical size and playing style.
Located in bottom as shown below, adjust action with
the tension nut against the rubber washer. Ensure the
wide part of the nut goes on the rubber washer.
When attaching, Tighten until top plate seats in tongue
with no “wiggle”.
Adjust only ¼ to ½ turn at a time.
Turn clockwise for more tension and
a firmer feel, counter-clockwise for
less tension and a lighter feel
Reset by adjusting as shown,
about ¼ inch above end of bolt
1.Re-tighten if nut loosens
2.Turn pedal off then on after
adjusting tension
3.Don’t overtension, finger-tight only

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 8of 14
Troubleshooting Guide
•Light blinks red 6x at startup: pedal is overtensioned.
Loosen tension nut. Nut should only need to have no
slack, any firmer is player’s preference. Pedal should
only need a turn or two from loosest to firmest setting.
•Pedal outputs “noise” data while idling: tension is too
tight or too loose. If loose, tighten until noise
disappears. If tight, loosen until noise disappears. If
warbling persists, contact Effigy support.
•Sensitivity Knob doesn’t work: check to see if knob is
flipped in position 4 mode. To flip knob, hold down
knob for 3 seconds and release (light blinks 4 times.)
•Pedal functions behave as in “on-off” mode: Your
sensitivity may be turned all the way to the right. If you
don’t want this, adjust the sensitivity. If you can’t seem
to adjust the sensitivity, see the above bullet.
•Mode switch seems to miscount seconds to flip the
knob/switch presets/channels – Notice the LED flashes
red as soon as you hit the mode switch – at moment
“zero”, then every second. For example, the light will

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 9of 14
blink four times to count off three seconds. Think of it
as “zero, one, two, three” if you like, or use the
“Mississippi” method – 3 seconds is at the end of three
“Mississippi”s.
•Light off, no output or activity: Determine if pedal
has been subjected to prolonged liquids or heat, or a
high fall. Battery connector wires may have been
subjected to a strong pull.
Comm LED Light communication:
Purple (blinking) – waiting for input, press on a
position (1-3) to select. Some input selections also pay
attention to the position of the sensitivity knob when a
position is pressed.
Blue – normal operation
Slower phasing (idle) = lower sensitivity
Slower phasing (active) = less pressure
Faster phasing (idle) = higher sensitivity
Faster phasing (active) = more pressure
Red (solid) - in startup – wait

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 10 of 14
Red (blinking) – problem or error
2x = software problem
3x = preset data problem
6 x = overtensioning
12 x = emitter fail
Off – Off, dead battery, no power, or bad external
power. If pedal is on, light should be on. See
troubleshooting section for more.
Additional Information:
External Power: 2.1mm, tip +, 7-16vDC
Battery: 9v
Customer Support, Web Site, Control Panel
app, software and downloads, player
communities, and more: EffigyLabs.com

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 11 of 14

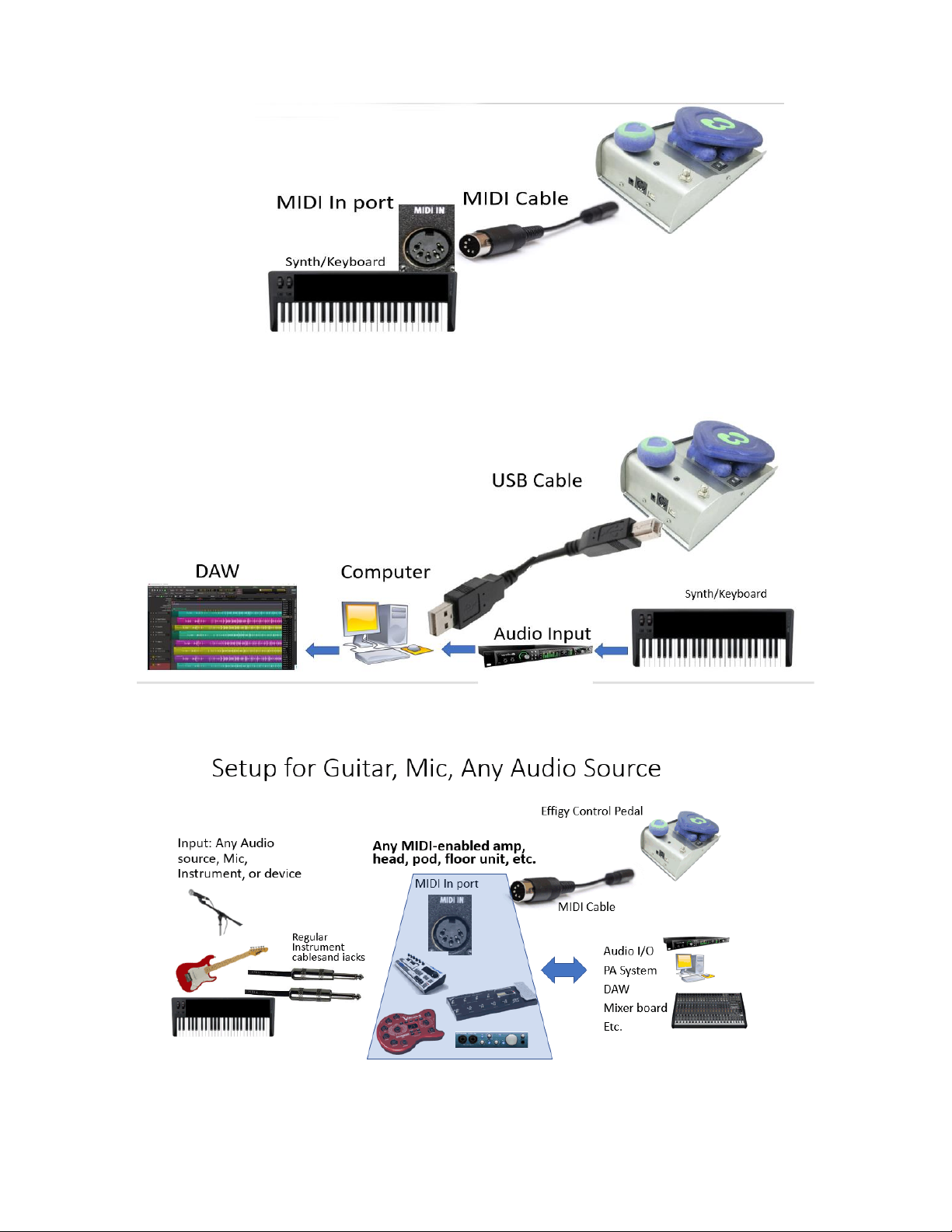

Setups
Simple Keyboard / Synth Setup MIDI Connect to Instrument Directly
DAW setup –Any audio source. USB connect to computer.
General setup –Any audio source. A MIDI-enabled interface device is used for control.

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 12 of 14
Control Panel and Customization
Control Panel app download:
Windows:
http://community.effigylabs.com/community/download/Effigy%20Labs%20Control%20panel%201.0.zip
Mac:
https://community.effigylabs.com/community/download/Effigy%20Labs%20Control%20Panel1.0.dmg
1. Connect pedal (and turn on) and run app. App will download bank from
pedal and should look like this:
→
USB
2. Notice the positions are the same as the pedal. Change the CMD and anything else required for
your sound for a slot. Remember, you get three slots per position per mode. For example if you
wanted position 1 slot 1 to be CC 59, select CMD to be “0B Control Code”and the SUB to be 59.
3. Changes made will be updated in the pedal in real time of the “Auto”Red button is checked.

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 13 of 14
Limited Warranty
Effigy Labs LLC ("Effigy") warrants the Effigy Labs Control Pedal (“Product“) against defects in material or
workmanship for the time periods and as set forth below. Pursuant to this Limited Warranty, Effigy will,
at its option, (1) repair the product using new or refurbished parts or (2) replace the product with a new
or refurbished product. For purposes of this Limited Warranty, "refurbished" means a product or part
that has been returned to its original specifications.
In the event of a defect, these are your exclusive remedies.
This Limited Warranty is valid for a period of thirty (30) calendar days from the original date of purchase
of the product. This Limited Warranty covers only the hardware components packaged with the
product. It does not cover technical assistance for hardware or software usage and it does not cover
any software products whether or not contained in the Product; any such software is provided "AS IS"
unless expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, the product must be delivered, freight prepaid, in either its original
packaging or packaging affording an equal degree of protection to Effigy. The shipping address is:
Effigy Labs LLC
6005 Pinto Circle
Plano, TX 75023-4715
It is your responsibility to backup any presets or settings you may have stored or preserved on your
pedal. Customized presets or system settings may be lost during service. Effigy will not be responsible
for any such loss or any related damages.
A dated purchase receipt or purchase number is required. For specific instructions on how to obtain
warranty service for your product, product support, online knowledge database, frequently asked
questions and free updates via the Internet: Visit the Effigy Labs web site at www.EffigyLabs.com.
Repair/Replacement Warranty: This Limited Warranty shall apply to any repair, replacement part or
replacement product for the remainder of the original Limited Warranty period or for thirty (30) days,
whichever is longer. Any parts or product replaced under this Limited Warranty will become the
property of Effigy.
This Limited Warranty only covers product issues caused by defects in material or workmanship during
ordinary consumer use; it does not cover product issues caused by any other reason, including but not
limited to product issues due to commercial use, global or local apocalypses, misuse, limitations of
technology, or modification of or to any part of the Effigy product.
This Limited Warranty does not cover Effigy products sold AS IS or WITH ALL FAULTS, gray market
product, or consumables, including fuses, batteries, cables, or adapters.

Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 14 of 14
This Limited Warranty is invalid if the factory-applied serial number has been altered or removed from
the product or from the system software settings in the device EEPROM.
This Limited Warranty is valid only in the country of purchase.
LIMITATION ON DAMAGES: EFFIGY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT.
DURATION OF IMPLIED WARRANTIES: EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY
IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states or
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or allow
limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply
to you. This Limited Warranty gives you specific legal rights and you may have other rights which vary
from state to state or jurisdiction to jurisdiction.
