OPERATOR’S MANUAL
56-VOLT BACKPACK BATTERY
MODEL NUMBER BAX1500

1
6
3
7
8
9
15
16
10
11 14
12
13
5
4
2
A

1
2
3
4
5
PUSH
PUSH
B
F
C
G
I
E
H
D
1
3
4
2
D-1
D-3
C-1
D-2
E-2
E-1
E-3

J

56-VOLT BACKPACK BATTERY — BAX1500 5
EN
READ ALL INSTRUCTIONS!
READ OPERATOR’S MANUAL
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all repairs
and replacements should be performed by a qualied
service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them deserve your careful attention
and understanding. The symbol warnings do not, by
themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident
prevention measures.
WARNING: Be sure to read and understand all
safety instructions in this Operator’s Manual, including
all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to follow all
instructions listed below may result in electric shock, re,
and/or serious personal injury.
WARNING: Risk of re and burns. Do not
disassemble, heat above 100 °C, or incinerate. Keep
battery pack out of reach of children and in original
package until ready to use. Dispose of used battery pack
promptly according to local recycling or waste regulations.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble
and operate it.

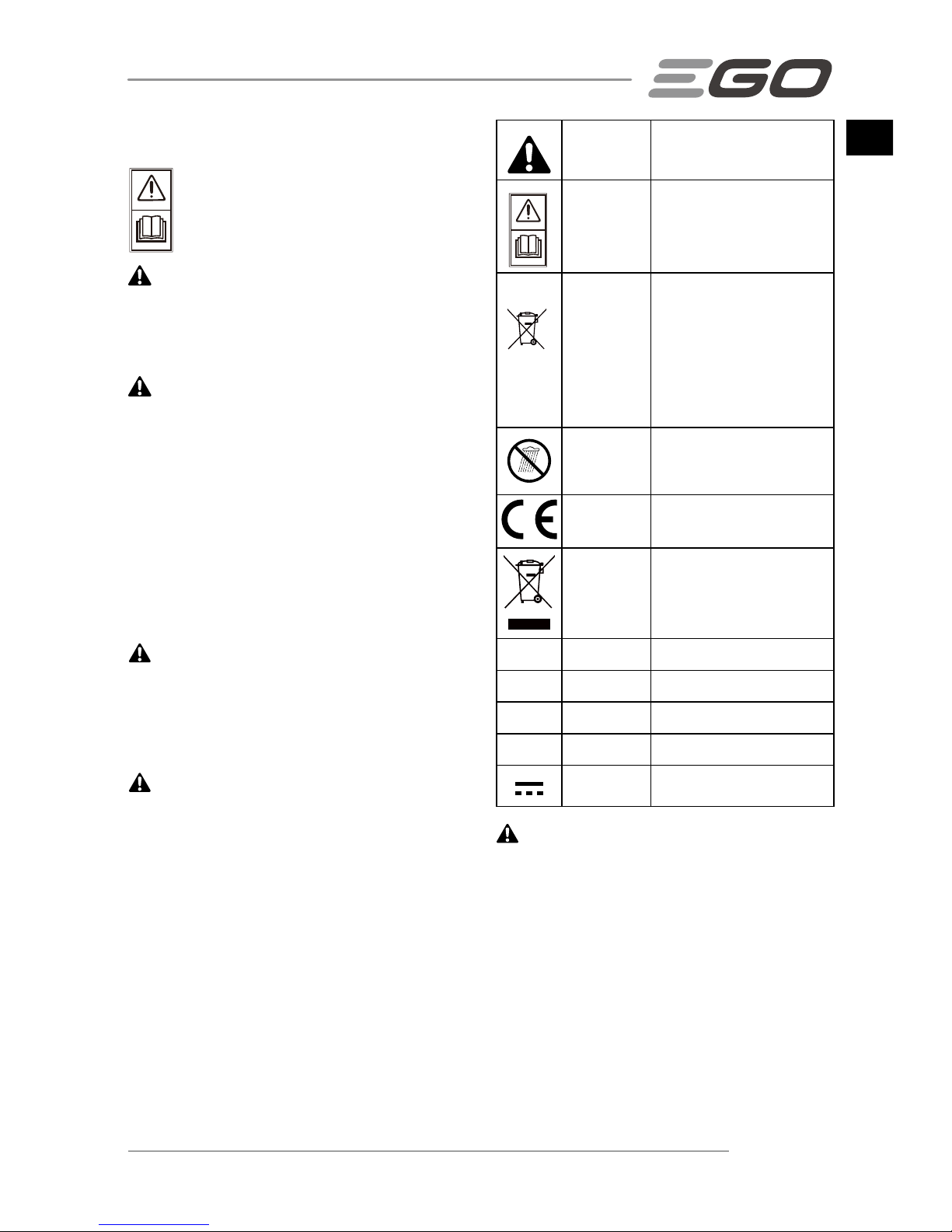

Safety Alert Indicates a potential
personal injury hazard.
Read
operator’s
manual
To reduce the risk of
injury, user must read and
understand operator’s
manual before using this
product.
Li-ion
Recycle
Symbols
Do not dispose of
battery packs/batteries
into household waste,
re or water. Battery
packs/batteries should
be collected, recycled
or disposed of in an
environmental friendly
manner.
Do Not
Expose To
Rain
Do not use in the rain or
leave outdoors while it is
raining.
CE
This product is in
accordance with applicable
EC directives.
WEEE
Waste electrical products
should not be disposed of
with household waste. Take
to an authorized recycler.
V Volt Voltage
A Amperes Current
WWatt Power
min Minutes Time
Direct
Current
Type or a characteristic of
current
WARNING: Read and understand all instructions.
Failure to follow all instructions may result in electric
shock, re and/or serious personal injury. The term “power
tool” in most of warnings listed refers to EGO Power+
battery operated (cordless) Lawn & Garden machines.
WORK AREA SAFETY
◾Keep the work area clean and well lit. Cluttered or
dark areas invite accidents.
◾Do not operate power tools in explosive
environments, such as in the presence of ammable
liquids, gases, or dust. Power tools create sparks,
which may ignite the dust or fumes.

56-VOLT BACKPACK BATTERY — BAX15006
EN
ELECTRICAL SAFETY
◾Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
◾Use only with chargers and power tools listed in
“SPECIFICATIONS”.
BATTERY PACK USE AND CARE
◾When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys,
nails screws or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
◾Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
◾Do not dismantle, open or shred secondary battery.
◾Do not expose the battery to heat or re. Avoid
storage in direct sunlight.
◾Do not short-circuit a cell or a battery. Do not store
cells or batteries haphazardly in a box or drawer where
they may short-circuit each other or be short-circuited
by other metal objects.
◾Do not remove a battery from its original packaging
until required for use.
◾Do not subject cells or batteries to mechanical
shock.
◾Keep the battery out of the reach of children. Seek
medical advice immediately if a battery has been
swallowed.
◾Keep the battery clean and dry.
◾Wipe the battery terminals with a clean dry cloth if
they become dirty.
◾Secondary battery need to be charged before
use. Always use the correct charger and refer to the
manufacturer’s instructions or equipment manual for
proper charging instructions.
◾Do not leave a battery on prolonged charge when
not in use.
◾After extended periods of storage, it may be
necessary to charge and discharge the batteries
several times to obtain maximum performance.
◾Retain the original product literature for future
reference.
◾Use only the battery in the application for which it
was intended.
◾When possible, remove the battery from the
equipment when not in use.
◾Dispose of properly.
SERVICE
◾Follow instructions in the Maintenance section of
this manual. Use of unauthorized parts or failure to
follow Maintenance instructions may create a risk of
shock or injury.
SPECIFIC SAFETY RULES
◾Know your power tool. Read the operator’s manual
carefully. Learn the applications and limitations, as
well as the specic potential hazards related to the
tool. Following this rule will reduce the risk of electric
shock, re, or serious injury.
◾Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool. Always remove the
battery before changing accessories. Following this
rule will reduce the risk of electric shock, re or serious
personal injury.
◾Do not crush, drop or damage the battery pack.
Do not use a battery pack or charger that has
been dropped or received a sharp blow. A damaged
battery is subject to explosion. Properly dispose of a
dropped or damaged battery immediately.
◾Do not charge the battery in a damp or wet location.
Following this rule will reduce the risk of electric shock.
◾For best results, your battery should be charged in
a location where the temperature is greater than
0℃and less than 40℃.Do not store it outside or in
vehicles.
◾Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. These
substances contain chemicals that can damage,
weaken or destroy plastic.

56-VOLT BACKPACK BATTERY — BAX1500 7
EN
◾Have your battery pack serviced by a qualied
repairperson using only identical replacement
parts. This will ensure that the safety of the battery
pack is maintained.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
lend someone this tool, lend them these instructions also
to prevent misuse of the product and possible injury.
SPECIFICATIONS
Rated Voltage 56V
Max Capacity 1568 Wh
Matched Charger CHX5500E
Charging Current Rapid Charging: 8A,
Normal Charging: 4.2A
Charging Time Rapid Charging: Approximately 3.5h
Normal Charging: Approximately 7h
Matched Power
Tools LBX6000, HTX6500, BCX3800
Weight 8.7 kg
Specied ambient
temperature range
for discharging
-20℃~40℃
DESCRIPTION
KNOW YOUR CHARGER (Fig. A)
1. Cable
2. Handle
3. USB Port
4. USB/DC Switch
5. 12 DC Port
6. Power Indicator and Switch Button
7. Shoulder Strap Fixation Spring
8. Belt Strap Fixation Spring
9. Fuse Service Cover
10. Shoulder Strap
11. Frame
12. Wet
13. Belt
14. Harness (Sold Separately)
15. Hip-pad Accessory (Sold separately)
16. Adaptor (Sold separately)
OPERATION
POWER INDICATOR ON BATTERY PACK (Fig. B)
This lithium-ion backpack battery is equipped with a
power indicator, which indicates the charge capacity level
and error of the battery pack. Press the power indicator
to display the capacity level when then battery is not in
charge. The LED indicator will shine for 10 seconds.
◾In the case of charging, the LED indicator may display
various interfaces listed below without pressing the
switch button.

56-VOLT BACKPACK BATTERY — BAX15008
EN
CHARGING
Battery Capacity / Error LED’s Remarks
1 2 3 4 5
<20% Flashing
green Off Off Off Off 1 blinking
20% ≤ Capacity < 40% On Flashing
green Off Off Off 1 on, 1 blinking
40% ≤ Capacity < 60% On On Flashing
green Off Off 2 on, 1 blinking
60% ≤ Capacity < 80% On On On Flashing
green Off 3 on, 1 blinking
80% ≤ Capacity < 100% On On On On Flashing
green 4 on, 1 blinking
Capacity = 100% (fully
charged) On On On On On 5 on for several mins, then switch off
Battery can’t be charged Off Off Off Off Off 5 LED lights will all be
switched off
Over-temperature
Battery Off Off Off Off Off 5 LED lights will all be
switched off
If the backpack battery is discharging or remains unused, PRESS THE SWITCH BUTTON, the LED indicator will exhibit a
different interface as shown below from the charging one.
DISCHARGING/UNUSED
Battery Capacity / Error LED’s Remarks
1 2 3 4 5
80% < Capacity≤ 100% On On On On On
5 LED lights on for 10
seconds after button-
pressing
60% < Capacity≤ 80% On On On On Off
4 LED lights on for 10
seconds after button-
pressing
40% < Capacity≤ 60% On On On Off Off
3 LED lights on for 10
seconds after button-
pressing
20% < Capacity≤ 40% On On Off Off Off
2 LED lights on for 10
seconds after button-
pressing
10% < Capacity≤ 20% On Off Off Off Off
1 LED light on for 10
seconds after button-
pressing
≤10% Flashing
green Off Off Off Off
1 LED light blinks
for 10 seconds after
button-pressing
Under voltage (<2.7V) Flashing red Flashing red Flashing red Flashing red Flashing red
5 red light blinks for 10
seconds after button-
pressing
Over-temperature
Battery Shining red Shining red Shining red Shining red Shining red
5 red light on for 10
seconds after button-
pressing

56-VOLT BACKPACK BATTERY — BAX1500 9
EN
3. If the battery pack is in the normal charging, the
green LED1 on the charger will ash. After green
button-pressing for at least 1s, the normal charging
(charging current 4A) will transform to rapid charging
(charging current 8A) and green LED2 on the charger
will ash with LED1 off.
4. 5 LEDs of battery pack shining green continuously
means the battery pack is fully charged. Wait until the
cooling fan of the charger stops, remove the battery
pack from the charger and disconnect the charger
from power supply.
5. The battery pack will fully charge if left on the
charger, but it will not overcharge.
NOTICE:
◾Following the instructions in the Operator’s Manual for
the EGO CHX5500E charger for more details.
◾A signicantly reduced running after fully charging the
battery pack indicates that the batteries are near the
end of their usable life and must be replaced.
◾If you have not inserted the plug into its place
completely, LED of charger light would ash continually.
◾The charger may warm during charging. This is part of
the normal operation of the charger. Charge in a well-
ventilated area.
USB / 12V DC
Uncover the rubber covers and insert the USB/DC plugs
into USB/DC ports (Fig. C & D). Then press the USB/DC
switch button, the battery pack will supply the devices
connected with the battery pack through the USB or DC
ports.
C-1 Rubber Covers D-2 12V DC Port
D-1 USB Port D-3 USB/DC Switch
NOTICE:
◾The functions of USB and 12V DC power can work
with 56V power source simultaneously. After using of
USB/12V DC, pull out the USB/DC plugs and put the
rubber covers into its place.
◾Should not use the USB/12V DC while the battery pack
is charging.
BATTERY PROTECTION
The battery circuitry protects the battery pack from extreme
temperature, over-discharge and over-charge. To protect
the battery from damage and prolong its life, the battery
pack circuitry will turn off the battery pack if it becomes
overloaded or if the temperature becomes too high or too
low during use. This may happen in extremely high torque,
binding, and stalling situations.
◾In the case of charging, the battery pack will shut down
with all 5 LEDs being switched off when its temperature
exceeds 60°C or below 0°C. Once the temperature
returns back to normal in 90 minutes, the battery will
return to work automatically. Otherwise, the battery will
shut down, reinsert the plug into the charger again, can
reactivate charging.
◾The battery pack will also shut down with all 5 LEDs
being switched off when the voltage of a battery cell
exceeds its protective voltage. It is recommended to
discharge the battery pack immediately. If this tip is
repeated many times, please contact with EGO service
centers.
◾In the case of discharging, when the temperature of
battery pack exceeds 70°C or below -20°C, the battery
pack will shut down with the 5 LED shining red for
10s after button-pressing. The battery pack will return
to work in both conditions when normal temperature
resumes and will allow the power tool to restart.
◾When the voltage of a battery cell is less than 2,7V, the
battery pack will shut down with the 3 LED blinking
red for 10s after button-pressing. It is recommended to
stop work and charge your battery pack immediately.
If this tip is repeated many times, contact your service
technician for assistant.
WARNING: You should never heat the battery pack
under any circumstances.
CHARGE THE BATTERY PACK
The battery pack is shipped partially charged. Before using
it for the rst time the battery should be charged.
WARNING: Do not charge the battery pack outdoors
or expose it to wet or damp conditions. Water entering the
charger or battery pack will increase the risk of electric
shock. For any additional details, please refer to the
Operator’s Manual for the EGO CHX5500E Charger.
1. Connect the charger to the power supply
(220-240V~50Hz).
2. Insert the battery plug into the charger.

56-VOLT BACKPACK BATTERY — BAX150010
EN
CONNECT AND DISCONNECT HARNESS TO/FROM
BATTERY PACK
To Connect
Align the location slot on the frame and belt with the
mounting groove and belt xation spring of backpack
battery, slide the harness up until a click happening (Fig. E).
E-1 Mounting Groove E-3 Belt location slot
E-2 Frame Location Slot
To Disconnect
Press the two release buttons on harness behind the frame
and slide the harness out (Fig. F).
PUT ON THE BATTERY PACK
In normal operation, the battery pack with the harness
is worn on the back. To prevent fatigue and work
comfortably, the harness is equipped with a lap belt joint
and shoulder strap joint, which guarantees freedom of
movement.
The belt length of the lap belt and shoulder straps can
be adjusted freely. The back cushion should t rmly and
securely on your back.
◾Adjust the belt and shoulder strap length to make
yourself comfortable before normal work, the length
should t your body size through the lap belt and
shoulder strap joint.
◾Insert the two parts of the belt buckle and chest buckle
into each other until a click occurs (Fig. G & H).
◾Adjust the height of the chest buckle to make yourself
comfortable (Fig. I).
◾Readjust the length of the belt strap and chest strap.

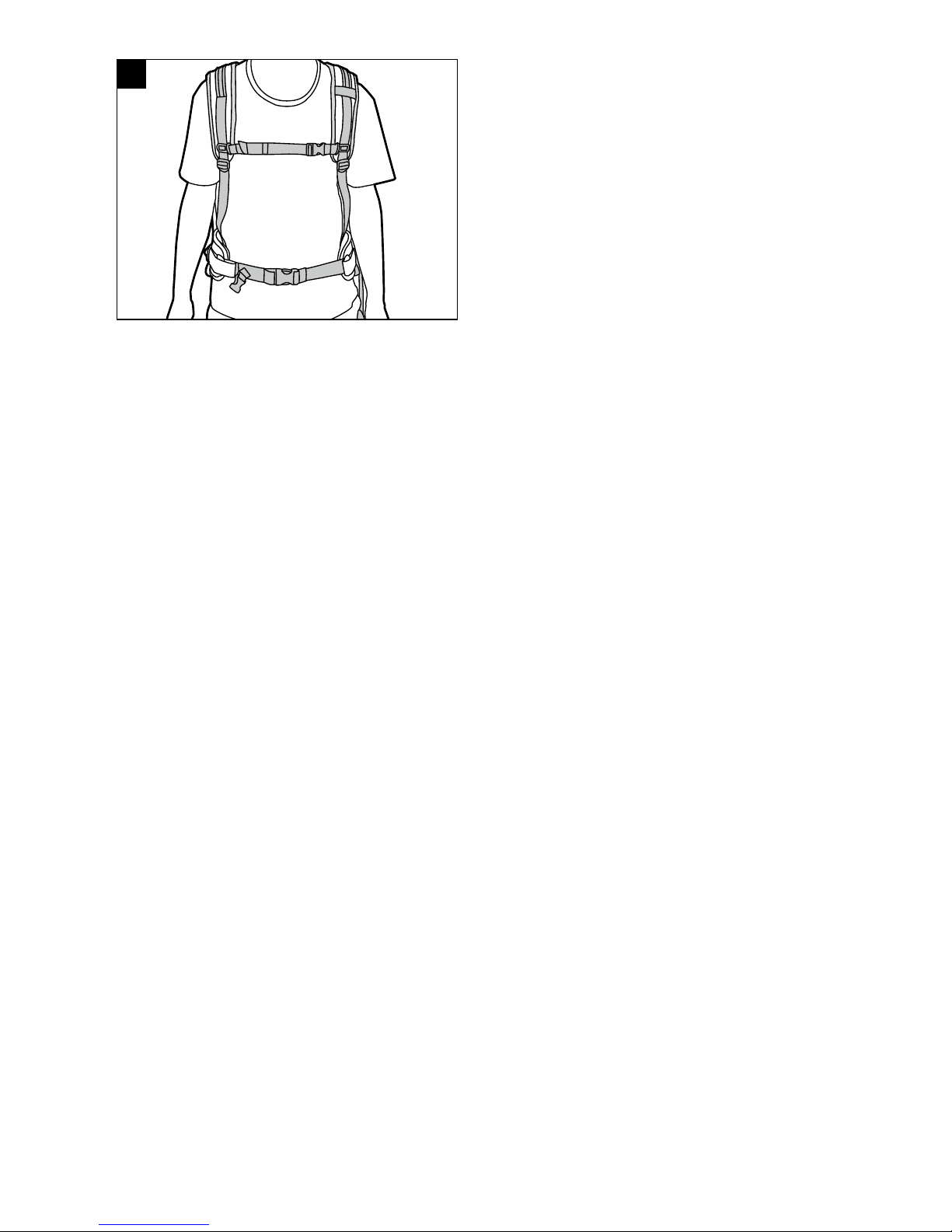

◾Insert any extra length of belt around the waist and
chest strap into the elastic (Fig. J).
TO ATTACH AND DETACH THE BATTERY PACK
Guide the battery pack cable around the side of the body,
and connect the power tools to the 1.5m connection cable.
Follow the instructions in the Operator’s Manual for the
individual EGO product.
WARNING: When emergency occurs, take off the
battery pack from your shoulder immediately. Releasing
the belt and strap buckle, then taking off the shoulder
harness at each side is a quick release method.
WARNING: Do not over tighten the shoulder straps as
it may make it difcult to remove the battery pack.
WARNING: Only certain EGO products can match
the battery pack, which is listed in “SPECIFICATION”. We
recommend you should not use the battery pack on other
power tools.
MAINTENANCE
WARNING: The battery pack must be repaired or
replaced in EGO qualied service centre and technicians.
WARNING: To avoid serious personal injury, always
remove the battery pack from the tool when changing
accessories, cleaning or performing any maintenance.
WARNING: When servicing, use only identical EGO
replacement parts. Use of any other parts may create a
hazard or cause product damage.
WARNING: If cleaning with compressed air is the
only method to apply, always wear safety goggles or safety
glasses with side shields. If the operation is dusty, also
wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean clothes to remove dirt, dust, oil, grease, etc.
WARNING: Do not at any time let brake uids,
gasoline, petroleum-based products, penetrating oils, etc.
come in contact with plastic parts. Chemicals can damage,
weaken or destroy plastic which may result in serious
personal injury.
BATTERIES
Do not disassemble the battery pack or attempt to
replace the cells. Handling of the batteries, especially
when wearing rings and jewelry could result in serious
burns. To obtain the longest possible battery life, read and
understand the operator’s manual.
WARNING: It is good practice to unplug the charger
and remove the battery pack when not in use.
