Eguana Evolve ESS Series User manual

DO 58159
Evolve ESS™
Owner’s Manual

DO 58159
IMPORTANT INSTRUCTIONS
This manual contains important product information for your Evolve home energy storage system. This
document is accurate at the time of publishing. Eguana reserves the right to make updates to the product
without notice. For the latest Evolve documents, please visit our website at www.eguanatech.com
WARNING! Read this document in its entirety before using this product. Failure to follow instructions or
warnings can result in electrical shock, serious injury, or death. Operating the product in a way that it was
not intended can also result in permanent damage to the product.
This manual applies to the following products:
Evolve 0513 ESS - Energy Storage System
Evolve Hub - Energy Management System EMS-A

Table of Contents
1 SAFETY.............................................................................................................................................................................. 1
1.1IN CASE OF EMERGENCY............................................................................................................................................ 1
1.2GENERAL SAFETY PRECAUTIONS.............................................................................................................................. 2
1.3ENVIRONMENTAL PROTECTION................................................................................................................................. 2
2 INTRODUCTION.............................................................................................................................................................. 3
2.1OVERVIEW................................................................................................................................................................... 3
3 SYSTEM MONITORING................................................................................................................................................. 4
3.1 SETTING THE EMERGENCY RESERVE CAPACITY .......................................................................................................... 4
4 OPERATION..................................................................................................................................................................... 5
4.1 LED DISPLAY INDICATORS.......................................................................................................................................... 5
4.2 LED DISPLAY DEFINITIONS.......................................................................................................................................... 5
5 BACKUP POWER OPERATION ................................................................................................................................. 5
5.1 BACKUP POWER DISPLAY MODES. ............................................................................................................................. 6
5.2 RESTARTING THE BATTERY SYSTEM IN BACKUP MODE .............................................................................................. 6
6 MAINTENANCE............................................................................................................................................................... 7
7 TROUBLESHOOTING.................................................................................................................................................... 7
8 WARRANTY..................................................................................................................................................................... 8
9 INSTALLATION RECORDS.......................................................................................................................................... 8

1
1 Safety
Throughout this manual, the following symbols will be used to highlight important information and
procedures:
Symbol
Definition
WARNING! A dangerous voltage or other condition exists. Use extreme caution when
performing these tasks.
CAUTION! This information is critical to the safe installation and or operation of the system.
Follow these instructions closely.
NOTE: This statement is important. Follow instructions closely.
1.1 In case of emergency
In all cases:
If safe to do so, switch off the AC breakers (external to the system) for the system.
Contact the fire department or other required emergency response team.
Evacuate the area, and if applicable, follow your emergency evacuation plan if others are in proximity to
the installed location.
In case of fire:
When safe, use a fire extinguisher suitable for use; including A, B, and C dry chemical fire extinguishers or
carbon dioxide extinguishers. Do not use type D extinguishers.
In case of flooding:
Stay out of water if any part of the system or wiring is submerged.
Do not attempt to operate batteries that have been submerged in water even after they have been dried.
In case of unusual noise, smell or smoke:
If safe to do so, ventilate the area.
In case of weather alerts including tornado, hurricane or potentially wind-damaging risk:
The system is capable of automatically generating emergency backup power on loss of utility power,
however, in the case where winds are potentially threatening to your building structure and safety, it is
recommended to shut down your system in advance of, and for the duration of, the extreme weather
event, and to return to operation only after it appears safe to do so.

2
1.2 General safety precautions
Important! Never operate the system in a manner not described by this manual.
Only qualified personnel should service this product.
Risks of Fire
Do not expose the system to temperatures exceeding 45 degrees Celsius.
Avoid installation in direct sunlight.
Do not store objects on top of the cabinet.
Do not obstruct the intake or exhaust of the forced airflow system.
Do not store combustible objects and corrosive chemicals directly adjacent to the system.
Risks of Shock
WARNING! Hazardous Voltages. The Inverter contains hazardous voltage and energy that may be lethal. It may
only be installed by qualified personnel who have read this manual and are familiar with its operation and hazards.
Only connect the PCS cabinet to a compatible electrical service as defined in the model specifications. The PCS must
be connected to a dedicated branch circuit in the main electrical panel.
Ensure proper electrical grounding in accordance with code requirements.
CAUTION! Both AC and DC voltage sources are terminated inside this equipment. Each circuit must be disconnected
before servicing.
Risks of Damage
The PCS is compatible with the LG Chem battery model EM048126P3S7 only. Do not attempt to connect any other
battery to the system.
Do not connect any other loads directly to the battery power bus.
Do not drop, tip, or puncture the cabinet during transport and installation. Visible damage to the cabinet and/or
internal components should be reported to the manufacturer immediately.
Do not store this system for periods longer than six months without a battery maintenance charge. This may result in
permanent damage to the batteries.
Do not operate the system outside the operating temperature range (-10 to 45C)
1.3 Environmental Protection
Do not dispose of the system or any of the components within the cabinet. Batteries, electronics, cables,
and metal parts are recyclable. Consult your municipal waste management authority to determine
required methods of component recycling.

3
2 INTRODUCTION
2.1 Overview
This manual contains instructions for the operation of the Eguana Evolve™ home energy storage system.
This product is intended to operate in parallel with a utility connected solar PV system, and is designed to
optimize the delivery of utility or solar energy within the home. The system is capable of providing limited
backup power to the home in case of a power outage, with the ability to charge batteries from the solar PV
system.

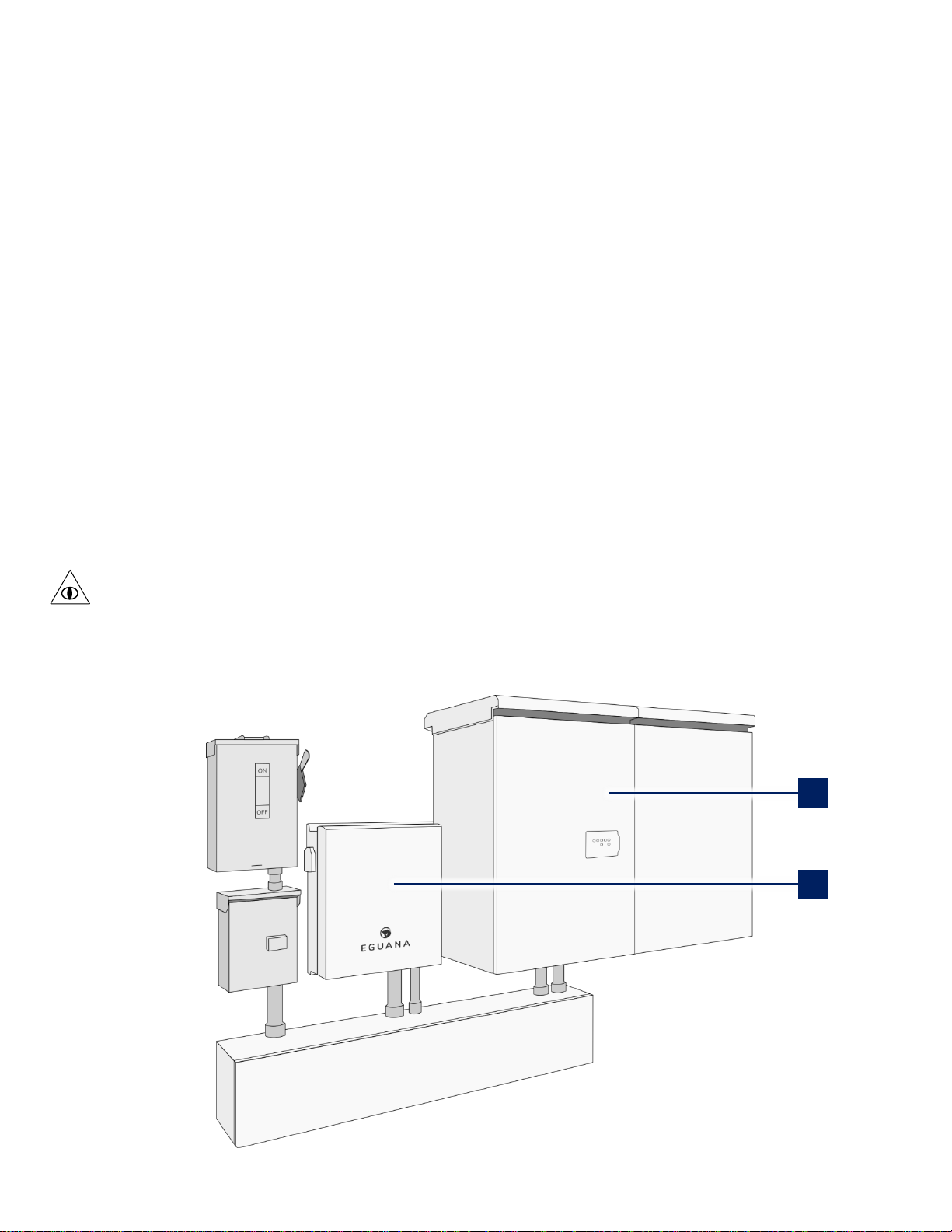

A sample diagram below demonstrates a typical layout of an installed system. The energy storage system
consists of two main components:
1. Evolve ESS: includes the power control system (PCS), and the battery.
2. Evolve Hub : includes equipment which,
connects the monitoring system to the home’s internet connection,
manages electricity flow to the home’s electrical loads from a combination of solar, battery,
utility power sources, and,
provides the automatic transfer to the home’s emergency backup loads during a power
outage.
Note: The system will require additional equipment to complete the installation, as supplied by the electrical installer. .
Safety shutdown switches may be added to your installation in order to comply with electrical code requirements –see
[A] below. Systems that support emergency backup power will require a dedicated electrical sub-panel –see [B]
below.
[A]
[B]
1
2

4
3 System Monitoring
The system can be viewed online at www.mypowermyway.com. You will receive
an automated invitation to setup your account after the installer has completed
the system installation.
From the monitoring system, you will be able to:
Monitor your solar, battery, and home energy
consumption.
Manually adjust the emergency battery reserve
capacity.
For a complete tutorial on the monitoring system,
login to your account, and select tutorial in the
support widget at the center of the dashboard
menu.

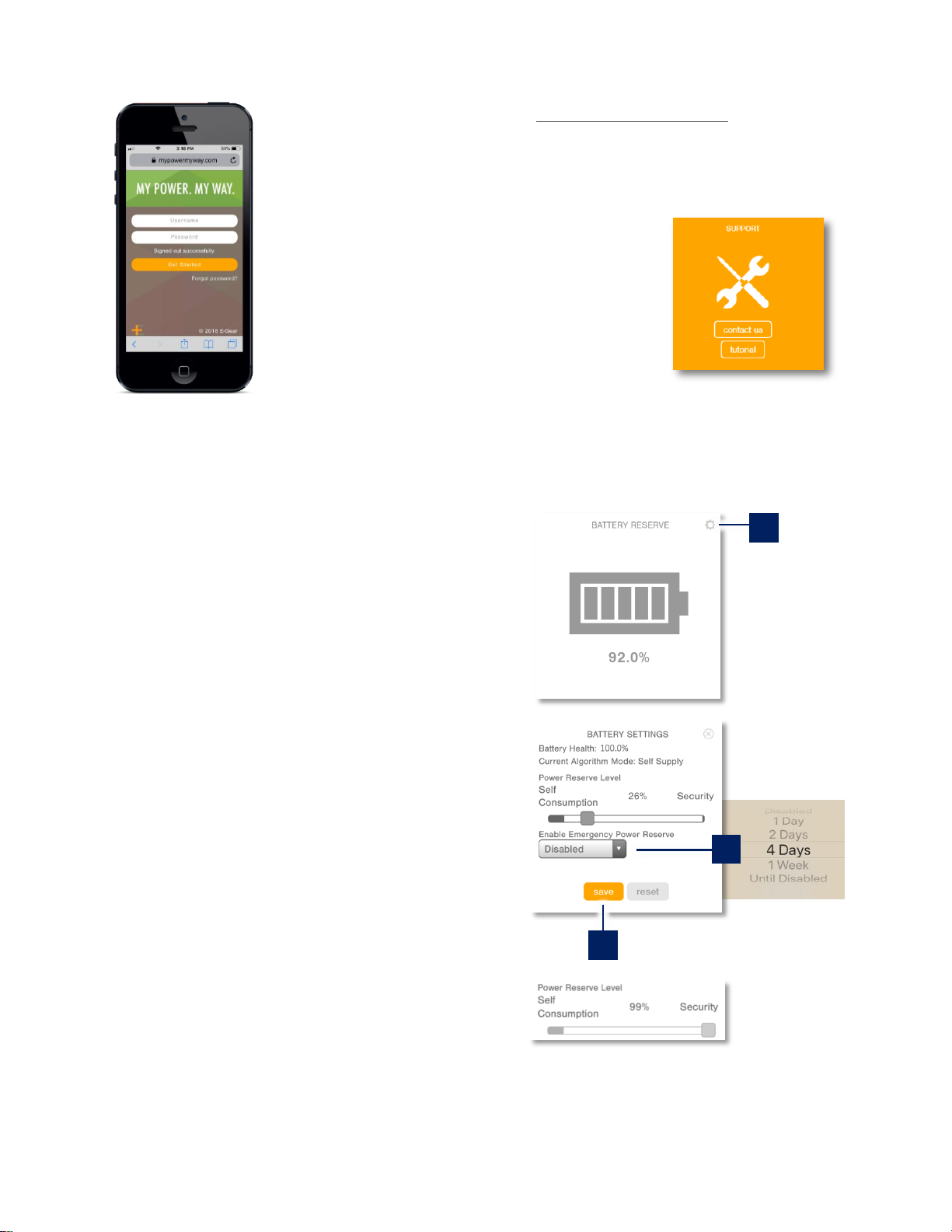

3.1 Setting the emergency reserve capacity
The default operating mode of the system will be set to
maximize energy savings while the utility supply is
operating; either through a time-of-use plan*, or via a
solar self consumption plan . While in this operating
mode, the battery capacity’s default partition will assign
75% of the battery for daily energy savings, and 25% for
emergency backup power.
* where applicable.
In the event of a planned utility outage, or due to an
extreme weather event forecast, the battery reserve
capacity can be changed to prioritize the entire battery for
emergency backup power use.
1. Click on the gear icon at the top-right of the
Battery Reserve widget.
2. Click the “Enable Emergency Power Reserve”
drop-down list, and select the desired duration.
3. Click on the save button to update the settings.
The battery will return to the default mode after the
selected day/week duration expires. Manual updates will
be required if “until disabled” is selected.
1
2
3

5
4 Operation
The system automatically runs the default energy savings
mode after the system is powered. The monitoring
system provides online access to the battery. With loss
of internet, the operating state can be viewed on the front
panel of the battery system.

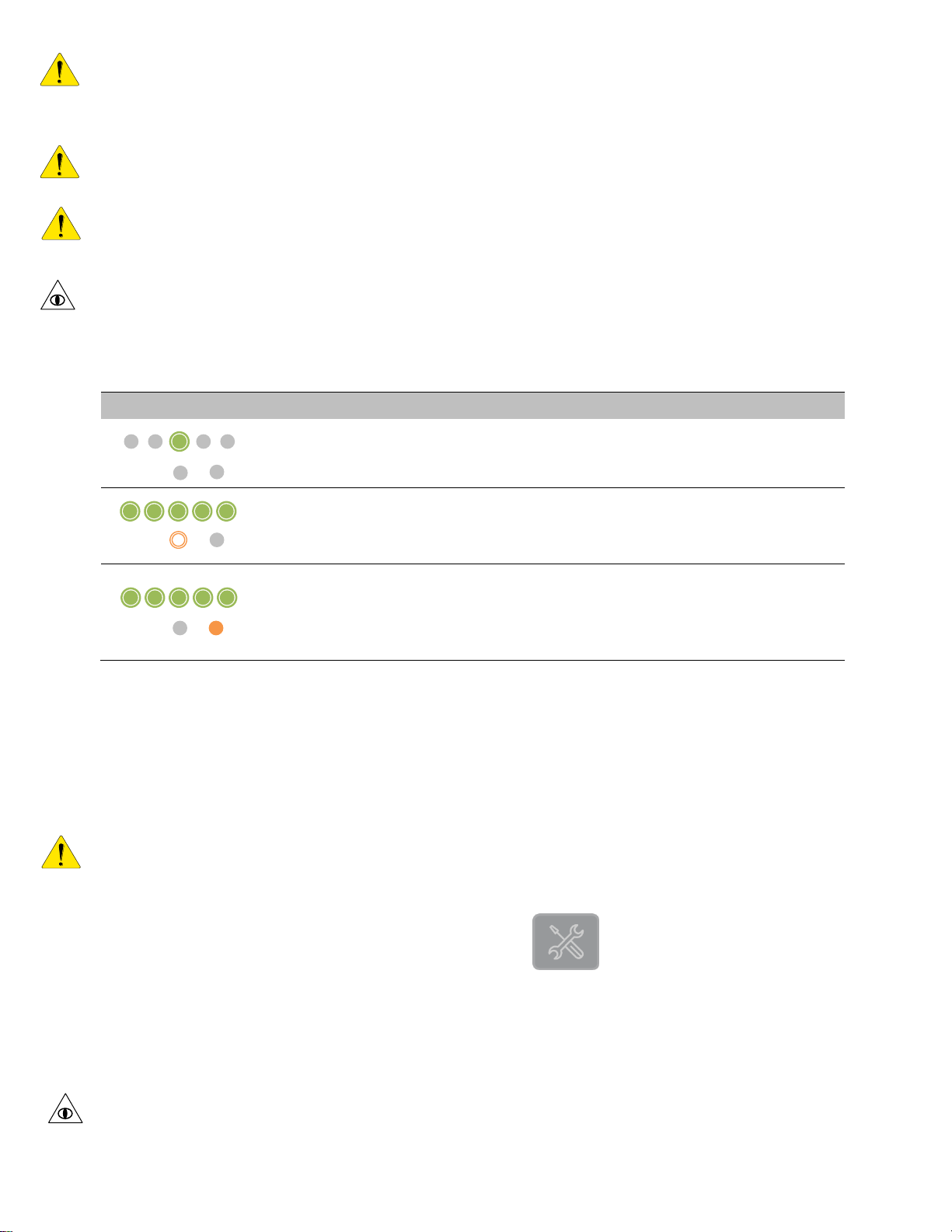

4.1 LED display indicators
The PCS display panel indicates the following:
Battery state of charge (SOC)
PCS operating mode
Service mode
4.2 LED display definitions.
5 Backup Power Operation
This system will provide backup power to dedicated electrical circuits within the home via a permanently
wired electrical sub-panel, referred to as the backup panel. Backup power is limited in rating and duration,
both of which are dependent on the nature of the loads connected to the system, and the availability of the
solar PV supply. This system is designed to reliably provide power to a refrigerator, home lighting, home
electronics, and small appliances.
NOTE: This product is not an uninterrupted power source (UPS). Following a utility outage, a four second
power interruption will occur before the backup power source commences. As a result of this interruption,
a desktop or portable UPS is recommended if continuous operation is desired for any electronic devices.
LED
Mode
Definition
State of charge. Each LED represents 20%
SOC. Solid = battery idle.
Charge = flash right. Discharge = flash left.
Low battery.
Sleep / Standby mode.
Grid timing mode.
Grid synchronization mode. Ten second test
before grid connect mode.
Grid connected mode.
System OK.
System out of service.
User initiated service mode.
Blink
Flash
Solid
Battery SOC
Service button
PCS Operating Mode
Service Mode

6
IMPORTANT! Surge rated loads, ie) power tools, portable air conditioners, may cause an overload
shutdown. Equipment of this type that is connected to the backup panel should be inspected and tested
regularly as per manufacturer suggested schedules. Permanent damage to the battery system and/or your
equipment may occur if exposed to chronic overloading cycles.
IMPORTANT! Portable extension cords connected to a backup circuit should be limited to 10 meters.
IMPORTANT! This product does not support automatic gas generator integration. Do not attempt to
connect a gas generator to the battery system. If generator support is required, consult your installer
regarding a separate manual transfer to your backup electrical panel.
NOTE: The power output / surge rating will be further limited when the battery is below 10% SOC.
5.1 Backup power display modes.
Display
Definition
Battery status LEDs indicate the following:
Charge = flash right. Discharge = flash left.
PCS and service lights off.
Low SOC shutdown in backup mode. See section 5.2 to restart the system.
Low SOC shutdown initiated while out of service. See troubleshooting –section 7,
“service light on in backup mode”.
5.2 Restarting the battery system after low battery shutdown
The system will shutdown when the battery reaches a critically low level during backup operation.
To restart the system:
IMPORTANT! Ensure there is adequate sunlight for the solar PV system to charge the battery before
restarting the system. If the battery system is installed without a PV system connected to the backup
panel, do not attempt to restart the system. Wait for the utility power to return.
1. Press and hold the service button for 5 seconds.
The backup power will restart, allowing the PV system to reconnect* and begin charging the battery. The
system will continue to operate if the battery charges to its minimal normal operating range. If the battery
does not charge within 15 minutes of restart, the system will shut down to preserve the battery.
*PV system reconnect time is approximately 5 minutes.
Note: If necessary, the load circuits can be shut off inside the backup panel to increase the battery charge
rate. Do not shut off the PV circuit.

7
6 Maintenance
The Evolve home energy storage system is a maintenance free product. Regularly scheduled inspection of
the airflow path for the active cooling fans on the bottom side of the PCS cabinet is all that is required.
This inspection should occur on an annual basis, or coincide with PV inspection. If the fan vents are
obstructed with dust / debris, a soft-bristled brush can be used to wipe them clean. Do not use any
solvents, scouring, or corrosive materials to clean the unit. Never remove or unplug connections or plugs
during cleaning.
7 Troubleshooting
System faults are reported and logged in the monitoring system. All fault logs are also accessible remotely
by your installer.
IMPORTANT! Contact your system installer as recommended below if any of the following conditions are
present on the front display of the energy storage system.
Condition
Definition
Service light ON in
grid mode
System is prevented from normal operation due to internal fault. Notify service personnel.
Service light ON in
backup mode
If the system faults into service in backup operating mode, there may be an overload condition
which prevents the system from operating safely. If the battery charge level is greater than
20% (one or more Green LEDs), reduce the load by shutting off circuits in the backup electrical
panel, then press and hold the service button 5 seconds to resume backup power operation. If
the battery low SOC shutdown mode is displayed, shut off all load circuits (keep PV ON) in the
backup panel, and do not attempt to resume backup operation until adequate sunlight is
present to provide a solar charge of the battery.
All panel lights
flashing
System is attempting to communicate with the battery modules. Notify service personnel if this
condition persists more than 30 minutes.
All panel lights OFF
after service button
wake command
This indicates loss of both AC And DC power sources to the PCS. Check the circuit breaker in
the main electrical panel for the energy storage system.
Online monitoring
system not
accessible
Check the internet connection. If connection is via wi-fi, reboot the wireless router, and make
sure the login user and password have not been changed since time of original installation.
Check power to the energy management system via the orange indicator light on the right side
of the panel. Note: the energy management system may lose power after an extended utility
outage where there is not enough solar generation to maintain battery system power.
Note: monitoring system servers may occasionally be down for service. If first attempts are not
successfully, try again the following day before contacting your installer.

8
8 Warranty
The Eguana Evolve ESS includes a 10 year standard warranty with a performance pro-rating for the
battery modules. Please review your warranty statement included with your product.
IMPORTANT! This product requires an internet connection for warranty claims of the battery.
9 Installation Records
Ensure your installer has provided you with the following information for your personal records. Note that
we may ask you for this information in the event you need to make a warranty claim:
Record of purchase, including date of installation, installer name and contact details.
Serial numbers for the EMS and Battery System cabinets (PCS & Battery).
EMS gateway UID –this is the unique identifier of your EMS gateway that connects to your internet
service.
Copy of the electrical permit.
Further to the information provided above, ask your installer to identify the following within your system
installation:
Location of circuit breakers and safety shutdown switches that operate this equipment.
Location of the backup electrical panel, including a list and identifier of each circuit within the panel.
Record of all loads tested at the time of installation.
