ehang GHOSTDRONE 2.0 User manual

EHANG VR GOGGLES
OPERATING MANUAL
GHOSTDRONE 2.0 created by EHang, Inc.

1
English
Before using EHang VR goggles, please read the
operating manual carefully and familiarize yourself
with the operations, warnings and applications. Please
avoid improperly installing antennas, using non-propri-
etary charger or gimbal. EHang shall not bear any
liability or responsibility of the damage of the VR
goggles, the gimbal, the camera, the copter or any
other related accessories or the accidents arised from
improper use.
Disclaimer

2
EHang VR goggles features data and real-time video transmission func-
tions. While wearing the goggles, users can easily see real-time image
through head tracking as well as adjusting pitch angles of the camera
which is attached on GHOSTDRONE 2.0.
Packing List
Introduction
USB Cable*1
5.8G Antenna*1
Goggles Cleaning Cloth*1
VR Goggles*1
2.4G Antenna*1
VR Goggles Carry Case*1

3
Diagram
Back
Binocular Display Screen
Bottom
USB /
Charging Portal
AV Output
Above
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G
①
②
③⑩
⑨
⑧
⑦⑥⑤
④
Menu Vision Signal Channel Search
⑨⑤①
Up Data Signal ON/OFF
⑩⑥②
Down Power Indicator 2.4G Antenna Interface
⑦③
5.8G Antenna Interface Copter/ Front Camera
⑧④
USB AV OUT

4
Specifications
Weight
Power
Charging Voltage
Battery
Image Size
Interpupillary Distance
Battery Life
255 g
4.5 W
DC 5 V
3.7 V 1500 mAh
800*480
63 mm
about 60 min
Communication Bluetooth /Wi-Fi + 2.4 GHz data transmission
+ 5.8 GHz video transmission
Charging the Goggles
Please use EHang USB cable for charging. It takes about 3 hours to fully
charge the goggles.When charging through a USB adapter, the required
input current is 500 mA or higher.
USB AV OUT
Bottom

5

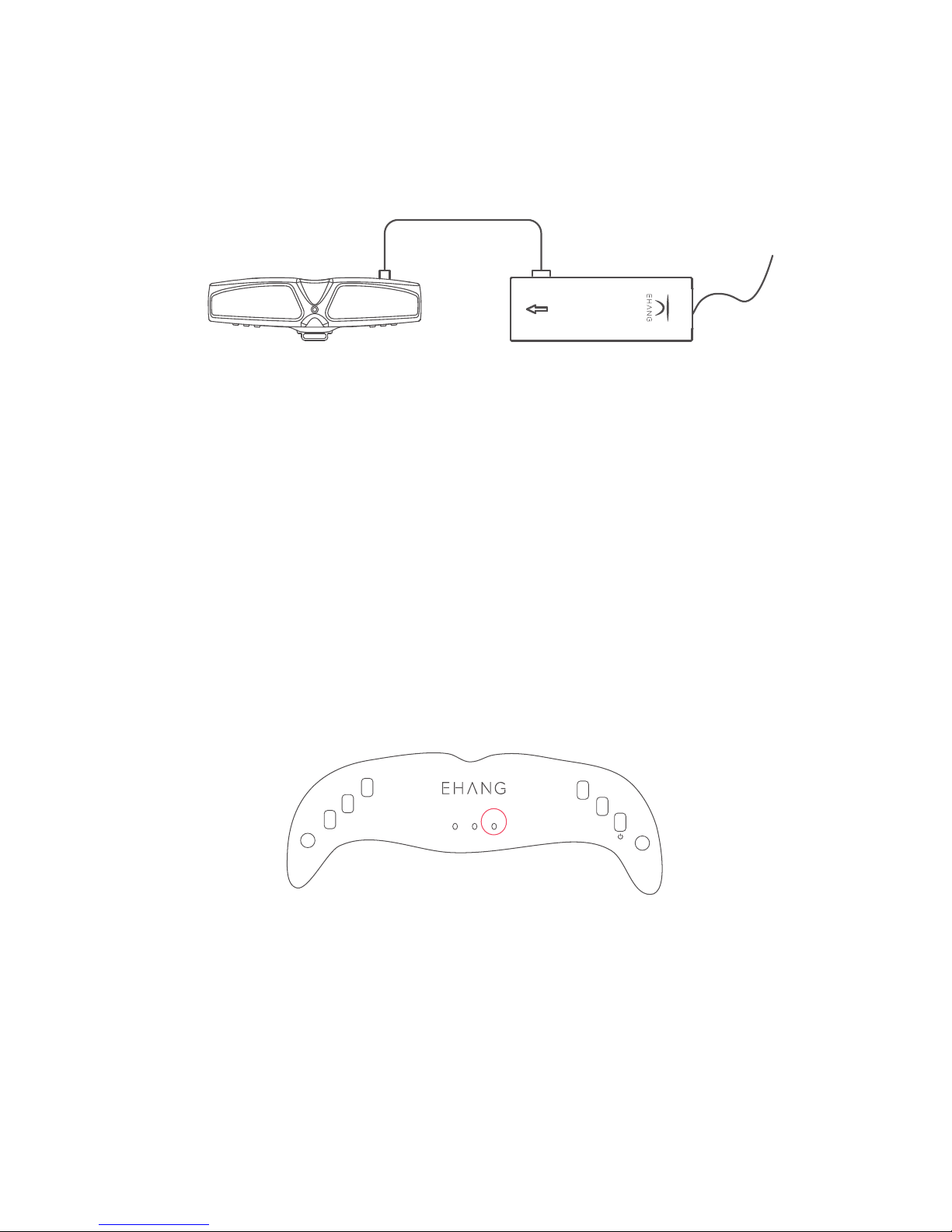

Charging VR Gogles (with power adapter)
Note: VR goggles can also be charged with EHang power adapter for
GHOSTDRONE 2.0. VR goggles and smart flight battery can be charged with
power adapter at the same time.
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G
Power Indicator Status:
Charging: Slow Flashing
Fully Charge: Off

6
Instructions
5.8G antenna2.4G antenna
1. Install 5.8G antenna and 2.4G antenna to the corresponding antenna
interfaces;
Press and hold
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G
2. Press and hold the power button to turn the VR goggles on. Power
indicator displays solid red.DATA signal indicator flashes blue.

7
iOS:
Android:
4. Tap “Bind” in the App, then turn on the GHOSTDRONE 2.0, data will
be showed on the App interface once binding successfully.
Note: If the image is not clear enough, press CHANNEL SEARCH button to
search again.
5. Press CHANNEL SEARCH button to automatically search for the right
channel. Vision signal indicator turns solid green from flashing when
connection is successfully established.
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G
Press CHANNEL SEARCH
3. Bluetooth / Wi-Fi Connection
1) Android version: Launch the App to search for Bluetooth connection. Once
the connection is established, the DATA signal indicator will display solid blue.
2) iOS version: Turn the iPhone’s Wi-Fi switch on. Once the Wi-Fi connection
is established, launch the App, then the DATA signal indicator will display solid
blue. And confirm Wi-Fi connection in App.

8
Note:
1. Press VIEW SWITCH button to switch from video transmission mode to front
camera. Users can watch the front view through the front camera. To switch
back to video transmission mode, press this button again.
2. After automatically searching the channel successfully, the channel will be
recorded and no need to search again next time.
3. It is normal to observe some white noise on the screen.
6. Choose ‘Goggles’ in settings in App before flight.
8. Press and hold the power button to turn off the VR goggles if not in use.
7. Put on the VR goggles, the gimbal
can be controlled to adjust the pitch
angle by looking up or down. Thus
users can adjust the camera angle.

9
Menu Settings
The parameters in the menu have been correctly set to general settings before
delivery. Adjust only when necessary.
When turning the goggles on, press the MENU button to enter the menu.
Press “+” or “-”button to move up or down to choose the parameter for
adjustment. Press the MENU Button again to select the parameter.
Adjust the parameter with the “+” or “-” button. Press MENU Button
again to exit.
B
S
C
CH
CH
RESET DATA
CONNECT ON
ANGLE +-90
6
10
8
17
SRCH
Brightness
Saturation
Contrast
Current 5.8G Channel (Adjustable)
5.8G Automatically Search Channel
Reset to Factory Settings
Connection Status
Head Tracking Angle
Frequency Band
CH NUM 32
EXIT MENU Exit Menu
Note:
(1) After entering menu, if no further command is given in 2 seconds, the menu
will disappear.
(2) If unbale to find a clear channel, please enter into Menu to change the
frequency band or switch between CH NUM 32 or CH NUM 5 and try
researching.

10
Power
Data
Vision
Power On
Battery life≤30%
Charging
Power Off/ Fully Charged
Searching for Bluetooth
Bluetooth/ Wi-Fi Connects Successfully
Power Off
Image Transmission Mode On
Searches Channel Successfully.
Power off/ Switch to Front Camera
Indicator
Signal
Indicator
Signal
Indicator
Note: DATA indicator light of Android version VR goggles shows the Bluetooth
connection status; DATA indicator light of iOS version VR goggles shows the
Wi-Fi connection status.
Legend
Low Frequency Flash
Solid Off
High Frequency Flash
Indicator Lights Instructions
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G

11
Warnings
1.Keep the smartphone and the VR goggles within 3 meters when using the
goggles.
2. Use the goggles in widely open space. Avoid using it in dangerous areas
(such as near cliffs.)
3. Those have eye diseases are not suggested to used the VR goggles.
4. It is suggested not to wear the VR goggles contantly for over 90 minutes.
5. When the battery life of the goggles is less than 10%, it is not suggested to
keep using it. Please charge before using it again.
6. Please get familiar with the Menu and the buttons’ functions before using
the VR goggles.
7. Do NOT use the goggles in direct sunlight (Please use the goggles in less
than 30 minutes if you have to use in direct sunlight)
8. Do NOT dissemble or damage the case of the goggles.
9. Do NOT pierce or damage the adjustable headband.
10.Do NOT leave the battery on combustibles or unattended when charging
for a long time.
11.Do NOT bend the antennas of the goggles. If the antennas are damaged
due to improper use, EHang will not offer complimentary maintenance.
Storage Instructions
1. Please store the goggles at a room temperature.
2. The goggles must be stored in places away from children, water, fire
especially heat.
3. Do NOT discard batteries in general household waste. Damaged or
unusable goggles batteries must be disposed in containers specially reserved
for this purpose. When disposing of batteries, follow appropriate local
guidelines and regulations.

12
Warranty
Strict quality control will be conducted before delivery. Please read the manual
and get familiar with the operations before use. 6 months’ warranty is
guaranteed for problems not caused by users’ improper use. Removal of the
products’ manufacturing label will be regarded as waiver of warranty. We will
not offer complimentary maintenance if the label is removed or damaged. But
limited warranty is still provided.
Contact Us
Business Hour: Monday – Friday 10:00 A.M – 6:00 P.M (PST)
Customer Service Phone: [phone]
Customer Service Email: [email protected]
EHang, Inc. reserves all right to interpret this warranty.

13
简体中文
使用 VR 眼镜前，请仔细阅读说明书，了解具体
使用步骤及注意事项。了解产品的使用方法及应
用范围。若出现产品使用方法错误，天线安装不
正确或采用的电源输入、参数与说明书所标性能
参数不符等现象，均属使用不当。因使用不当而
造成的 VR 眼镜、飞行器及周边连接件的损坏，
或非 VR 眼镜本身质量问题产生的损坏所导致的
财产和人身的损害，本公司均不承担任何责任。
免责声明

14
亿航 VR 眼镜具有数据传输和实时图像传输功能。用户操控
GHOSTDRONE 2.0 拍摄时，可通过 VR 眼镜的头部追踪功能，实时看
到空中拍摄图像，同时可以调节拍摄角度。
■清单
■介绍
USB线*1
5.8G天线*1
眼镜布*1
VR眼镜*1
2.4G天线*1
眼镜盒*1

15
■结构图
VR眼镜顶部
5.8G
天线接口
菜单键
+键
-键
图像信号灯 数据信号灯 电源指示灯
5.8G图像/
前置摄像头切换键
频段搜索键
电源键
2.4G
天线接口
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G
VR眼镜背面
显示屏
VR眼镜底部
USB接口/
充电接口
AV OUT
USB AV OUT

16
■参数
重量
功耗
充电电压
电池
图像尺寸
瞳距（IPD）
满电连续使用时长
255 g
4.5 W
DC 5 V
3.7 V 1500 mAh
800*480
63 mm
约60 min
通讯 蓝牙/Wi-Fi+数传频率2.4 GHz+图传频率5.8 GHz
请使用亿航专用USB线进行充电。通过USB线连接电脑直充情况下，充满
电时间约3小时。若使用充电头连接USB充电，电流不可低于500 mA。
■充电
VR眼镜底部
USB AV OUT

17
充电示意图
（使用电源适配器）
注：可使用亿航专用电源适配器连接 VR 眼镜充电。电源适配器可给
GHOSTDRONE 2.0 智能飞行器和 VR 眼镜同时充电。
Power指示灯状态
充电中：慢闪 满电：熄灭
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G

18
■使用说明
5.8G天线2.4G天线
1. 安装5.8G天线和2.4G天线到对应的眼镜天线接口。
长按开机
5.8G
VIEW SWITCH
MENU
+
_
VISION DATA POWER CHANNEL SEARCH
2.4G
2. 长按电源键打开VR眼镜，此时POWER灯红色常亮, DATA灯呈蓝色闪烁
状态。
