eHealthyNet MBC-033-B User manual
Body Fat Analyzer
MBC-033-B
User Manual
3
TABLE OF CONTENT
INTRODUCTION............................................ 4
PACKAGE CONTENT .................................... 4
INTENDED USE............................................. 5
PARTS............................................................ 5
HARDWARE SET UP..................................... 6
eHealthyNet APP............................................ 6
MODE SETTING ............................................ 9
MEASUREMENT.......................................... 10
ABOUT BMI.................................................. 12
ABOUT BODY FAT....................................... 13
ABOUT BODY WATER CONTENT .............. 14
SPECIFICATION .......................................... 15
SAFETY PRECAUTIONS............................. 16
CARE & MAINTENANCE............................. 17
TROUBLESHOOTING ................................. 18
WARRANTY ................................................. 19
EXPLANATION OF SYMBOL....................... 20
4
INTRODUCTION
Thank you for purchasing the eHealthyNet Body Fat
Analyzer. The eHealthyNet Body Fat Analyzer is easy
to use that applys the Bioelectrical impedance Analysis
(BIA) technology to measure your body weight and cal-
culate your body composition such as body fat, body fat,
visceral fat, muscle mass, bone mass Body Mass Index
(BMI) and Basal Metablolic Rate (BMR). The analyzer
works with your mobile device to track your data and
share it with your family via eHealthyNet App.
PACKAGE CONTENT
• 1 eHealthyNet Body Fat Analyzer
• 1 User Manual
• 4 AAA Batteries
5
INTENDED USE
The eHealthyNet Body Fat Analyzer is intended for
use at home or domestic setting only. It is designed to
measure the body weight and compositions of a healthy
adult individual. The measurement result might not be
optimal for children, elderly, pregnant or professional
athlete. Please follow the instruction of this user manual
in order to use the anlayzer safely and properly. The
maximum weight can be measurred is 180kg (400lb).
PARTS
LCD Screen
Main Body
Electrode Electrode
6
HARDWARE SET UP
eHealthyNet APP
Download eHealthyNet App
The App is available in both Google Play and Apple App
Store. Before the rst use of the monitor, download the
“eHealthyNet” App from Google Play and Apple Store.
Batteries
Remove the battery cover. Insert 4 AAA
batteries into the compartment.
Battery Cover
Unit Button Batttery Cover
7
Account Setting
Follow the on-screen instruction to register and set up
your personal account.
Connect the monitor with mobile device
1. Switch “bluetooth” on under the “Settings” menu on
IOS or Andriod devices.
2. Select the “Measure” button in the main screen and
then “+” button in the upper right corner.
3. Press and hold the Unit button in the back of the
analyzer. The machine displays and as
the screen in next page, showing that the pairing
process is undergoing.
8
Wait for the analyzer pairs with your mobile device,
it may last for 30 seconds. If succeed, the machine
displays following screen.
If failed, the screen displays the error sign 1 (E1,
also see the section “TROUBLESHOOTING”.)
9
4. After successful pairing, select the paired device
under “Measure” Button of the App. And Press
Start/Stop Button on the monitor to start measure-
ment.
MODE SETTING

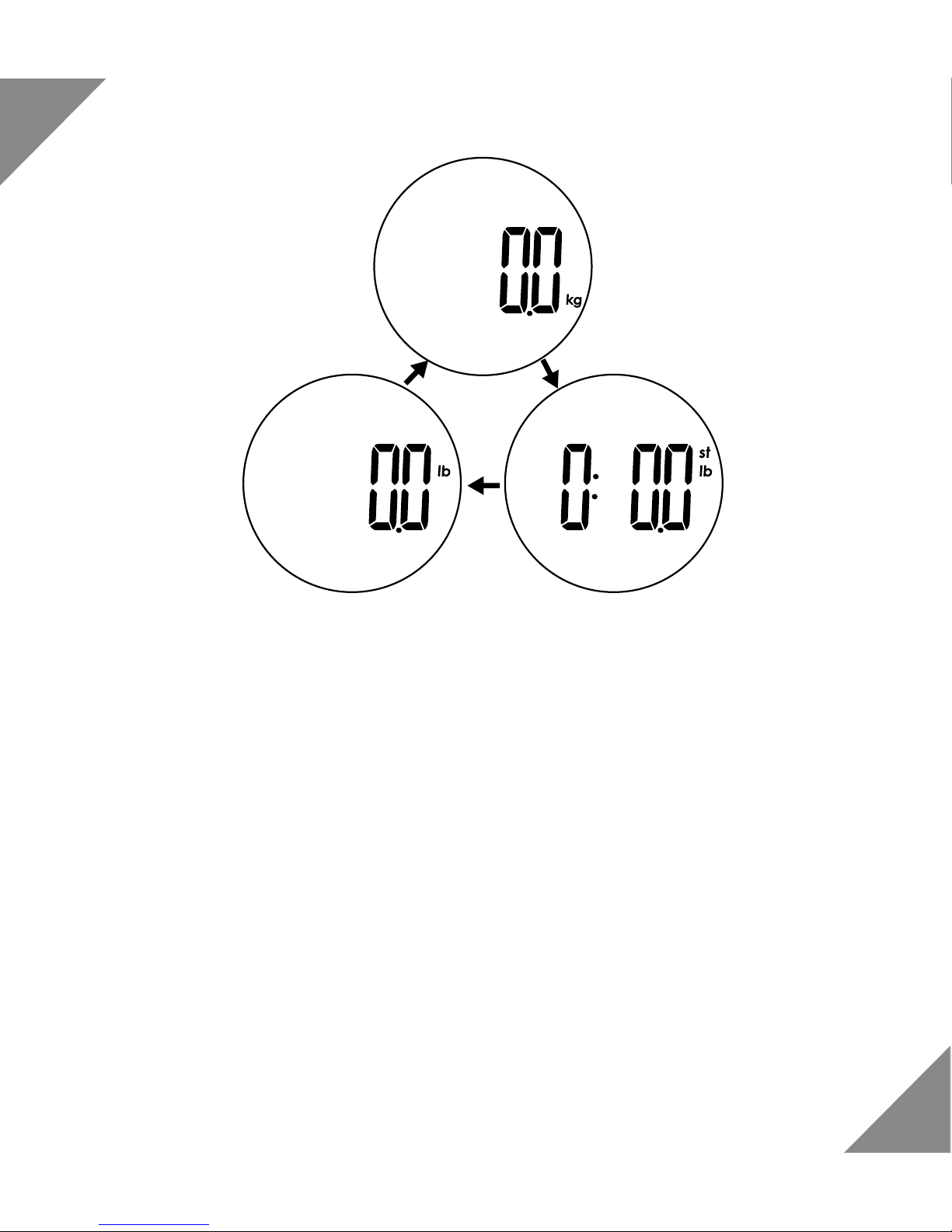

Measurement Unit
Press Unit Button at the back of the analyzer when pow-
er is off, the screen displays as the picturein the next
page, press Unit Button to switch between kilogram (kg)
Stone (st) and Pound (Ib) units.
10
MEASUREMENT
Pre-measurement
Take off your shoes and socks before measurements,
avoid use the analyzer after doing exercises.
Take Measurements with Mobile Devices
1. Switch on bluetooth, launch the “eHealthyNet” App
in your mobile device.
kilogram
Pound Stone
11
2. Select the paired analyzer under “Measure” Button
of the App.
3. Step on the analyzer, do not move, lean forward or
backward on the machine.
Take Measurements without Mobile Devices
The analyzer can work without pairing with a mobile de-
vice. Step on the analyzer to start measurements.
Note: Stop the measurement process at any time by
stepping down the analyzer. The power will be automat-
ically switched off after 30 seconds of Idling.
4. If you are taking measurement with
bare feet, the screen displays “o” mov-
ing from left to right, wait until it stop.
5. After the measurement, the screen
displays a bluetooth sign showing that
the data is transmited to your mobile
device.
12
ABOUT BMI
The National Heat, Lung, And Blood Institute (NHL-
BI) have created the following guide to classify BMI of
healthy adult individual.
BMI Classicaon BMI Color indicator
Underweight <18.5 Cyan
Normal 18.6-24.9 Green
Overweight 25-59.9 Yellow
Obesity I 30-34.9 Orange
Obesity II 35-39.9 Orange
Obesity III ≥40 RED
13
ABOUT BODY FAT
According to University of Illinois Department of Food
Science and Human Nutrition, the body fat level can be
classied as the following table.
Standard for Men
Standard for Women
Rating
low
Normal
Moderately High
High
Age
20-29
<13 <14 <16 <17 <18
14-20 15-21 17-23 18-24 19-25
21-23 22-24 24-26 25-27 26-28
>23 >24 >26 >27 >28
30-39 40-49 50-59 60+
Rating
low
Normal
Moderately High
High
Age
20-29
<19 <20 <21 <22 <23
20-28 21-29 22-30 23-31 24-32
29-31 30-32 31-33 32-33 33-35
>31 >32 >33 >34 >35
30-39 40-49 50-59 60+
14
ABOUT BODY WATER CONTENT
According to Wang & Denrenberg et, al. in “Hydration
of fat-free body mass”, American Jounal Clin Nutr 1999,
69833-841. The Body water content is classied as the
following table.
Note: These charts are not intended to provide a basis
for any type of emergency condition or diagnosis based
on the color indicator; these charts only depict different
classication of BMI, body fat and water. Consult your
physician to interprete the results properly.
Men
Women
BF % RANGE
4 to 14%
15 to 21%
22 to 24%
25 and over
4 to 20%
21 to 29%
30 to 32%
33 and over
70 to 63%
63 to 57%
57 to 55%
55 to 37%
70 to 58%
58 to 52%
52 to 49%
49 to 37%
OPTIMAL TBW % RANGE
15
SPECIFICATION
Product Name
Dimension Scale: 310x310x31mm
Net Weight Approxim ately 1.63kg ( Excluding the dry cells)
Display Digital LCD with White Backlight
Measurement Unit Kilogram / Stone/ Pound
Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
Division 0.1kg / 0.2lb
Accuracy 50kg: ±0.3kg;
150kg: ±0.5kg;
Working Environment Temperature: 10℃to 40℃Humidity: 15% - 90% RH
Storage Environment Temperature: -20℃to 55℃
Power Source 6V (Four AAA-size Batteries)
Turn on Method SENSE ON technology
Auto-OFF
Accessories 1. Four AAA-size batteries
2. User Manual
100kg: ±0.4kg;
180kg: ±0.7kg
Mode of Operation Continuous Operation
The scale will turn off after about 10 seconds if there is
no operation
Body Fat Analyzer (MBC-033-B)
16
SAFETY PRECAUTIONS
1. Read all of the information in the User Manual and
other provided instructions before operating the
Analyzer.
2. Consult your physician if there is any concern about
using the Analyzer.
3. Do not move or jump on the analyzer as it may lead
to inaccurate result.
4. Do not use the analyzer on the wet or slippy oor.
5. Keep your feet dry while taking measurement.
6. Do not drop the Analyzer or subject it to strong im-
pact.
7. Replace all the batteries at once.
8. Take out the batteries if the Analyzer will not be
used in 3 months.
Patients having medical implants with electronic
components such as pacemakers are nor recom-
mneded to use the analyzer.
17
The product might not meet its performace spec-
ications if not stored or used within the specied
range of temperature, relative humidity and air
pressure in the section “SPECIFICATION”.
Keep the analyzer away from high radiation device
such as microwave oven.
CARE & MAINTENANCE
Cleaning the Monitor
Clean the monitor with a piece of cloth soaked with de-
tegent. Do not use any abrasive and volatile cleaning
agent.
Maintenance
1. Do not load the analyzer if it is unused to prevent
any damages.
2. Always Keep the analyzer dry.
18
Storage
1. Store the analyzer in a dry and clean environment,
avoid direct sunlight (see the storing environmental
condition in the section “SPECIFICATION”).
2. Remove the batteries if the monitor will not be used
in 3 months.
TROUBLESHOOTING
Error Sign
Error signs are displayed on the monitor’s screen if
there are abnormalities during measurement.
Sign Cause Correcon
Overloading
Check if there is any object of
this weight put on the analyzer
Stop using the analyzer if you
are of this weight, consult your
physician for any problem.
Pairing Error
Follow the instrucon of this
manual and take measurements
again.
19
WARRANTY
The eHealthyNet Body Fat Analyzer is warranted to be
free from defects in materials and workmanship within
two year from the date of purchase when used in accor-
dance with the provided instructions. The Warranty ex-
tends only to the end user. We will, at our option, repair
or replace without charge the eHealthyNet Body Fat An-
alyzer covered by the warranty. Repair or replacement
is our only responsiblity and your only remedy under the
warranty.
Sign Cause Correcon
Low Baery Replace all the baeries at once
20
EXPLANATION OF SYMBOL
Symbol for “WARNING”
Symbol for “TYPE B APPLIED PART”
Symbol for “ENVIRONMENTAL PROTECTION”
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authority or
retailer for recycling advice.
Symbol for “THE OPERATION GUIDE MUST BE
READ”
Symbol for “MANUFACTURER”
Symbol for “SERIAL NUMBER”
Symbol for “EUROPEAN REPRESENTATIVE”
Symbol for “CE MARK” - Conforms to essential
requirements of the Medical Device Directive
93/42/EEC.
