Eidos 106 User manual

Model 106
ChairMaster
www.eidosergonomics.com
Warranty: Eidos products are covered by a
limited warranty for a period of ve years from
date of purchase.
*Online Product Registration :
http://www.eidosergonomics.com/product-registration.html
GS-07F-0033U
www.eidosergonomics.com
Eidos Corporation
4755 N. 48th Street, P.O. Box 29666, Lincoln,NE 68504
Telephone: [phone] FAX [phone]
E-mail: [email protected]
Web : www.eidosergonomics.com
Assembly Instructions
No tools are needed for assembly.
Note: These instructions are also
used for the Contour and Wide prole seats,
Model 106 Option - A & B. Caster guards are pre-assembled.

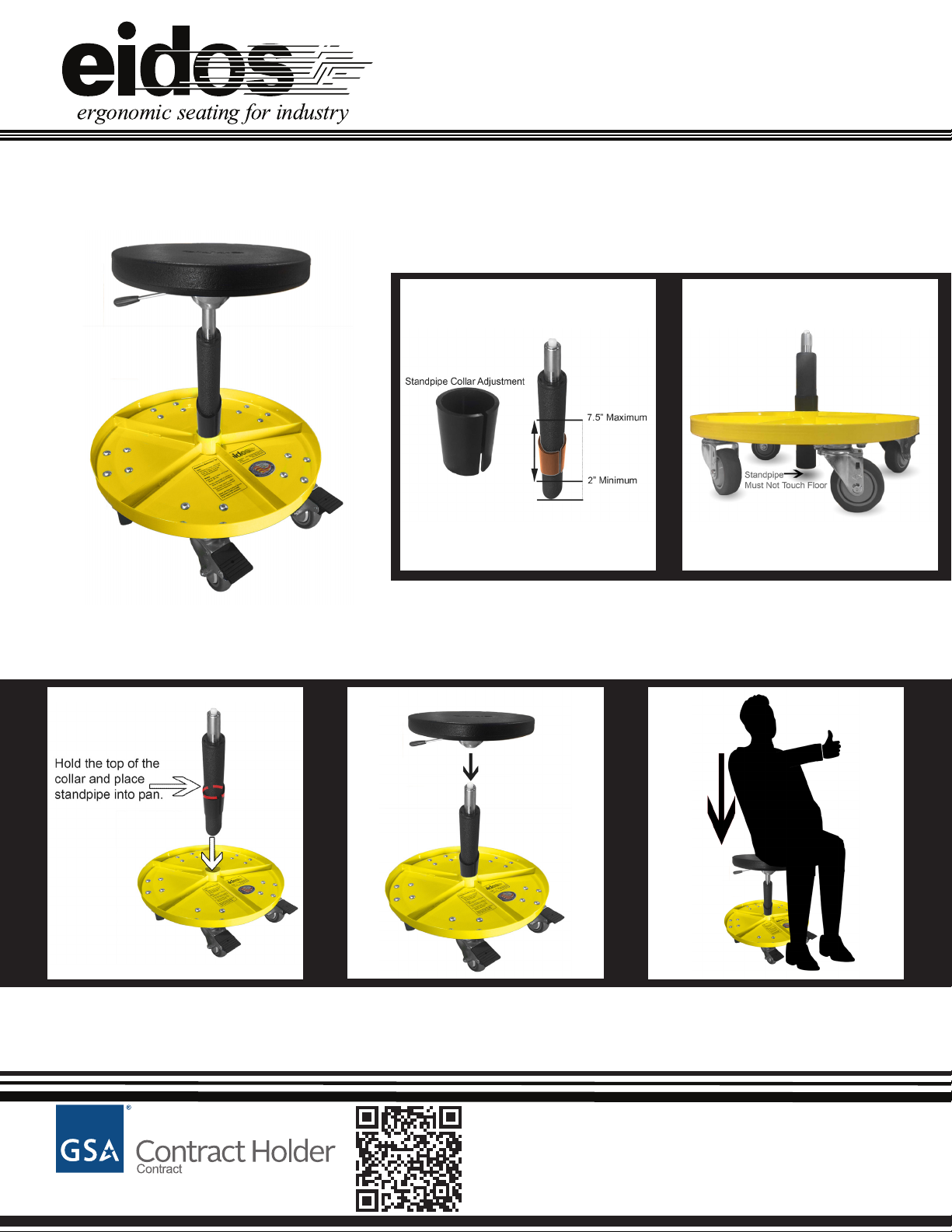

Step 1: The Model 106 standpipe collar placement will determine
the overall seat height. The higher the collar is placed on the standpipe, the lower
the seat height and vice versa. Note: 7.5” measured from the bottom of the standpipe
to the top lip of the collar Is the Maximum (lowest position) ensuring the
standpipe will not touch the ground.
Do Not apply weight until the desired position has been congured.
Step 3: Place the round, contour or
wide-prole seat onto the gas spring.
Step 2: Place the standpipe and collar
into the pan by holding the top of the col-
lar (minimize vertical movement of collar)
apply pressure downward.
Step 4: Apply weight and enjoy your
Eidos Ergonomics Model 106.
NSN 4910-01-395-4251

Model 106-C & CW
ChairMaster with Backrest or Wide Backrest
www.eidosergonomics.com
Warranty: Eidos products are covered by a
limited warranty for a period of ve years from
date of purchase.
*Online Product Registration :
http://www.eidosergonomics.com/product-registration.html
GS-07F-0033U
www.eidosergonomics.com
Eidos Corporation
4755 N. 48th Street, P.O. Box 29666, Lincoln,NE 68504
Telephone: [phone] FAX [phone]
E-mail: [email protected]
Web : www.eidosergonomics.com
Assembly Instructions
No tools are needed for the
backrest assembly.
Step 1: Place horizontal backrest
attachment into the seat connector.
(Loosen knob under the seat to allow the
connector to t).
Step 2: Attach vertical upright tube &
backrest assembly into horizontal
backrest attachment.(Loosen the knob on
the seat connector).
Step 3: (Find your desired position)
Then tighten both backrest
adjustment knobs.
