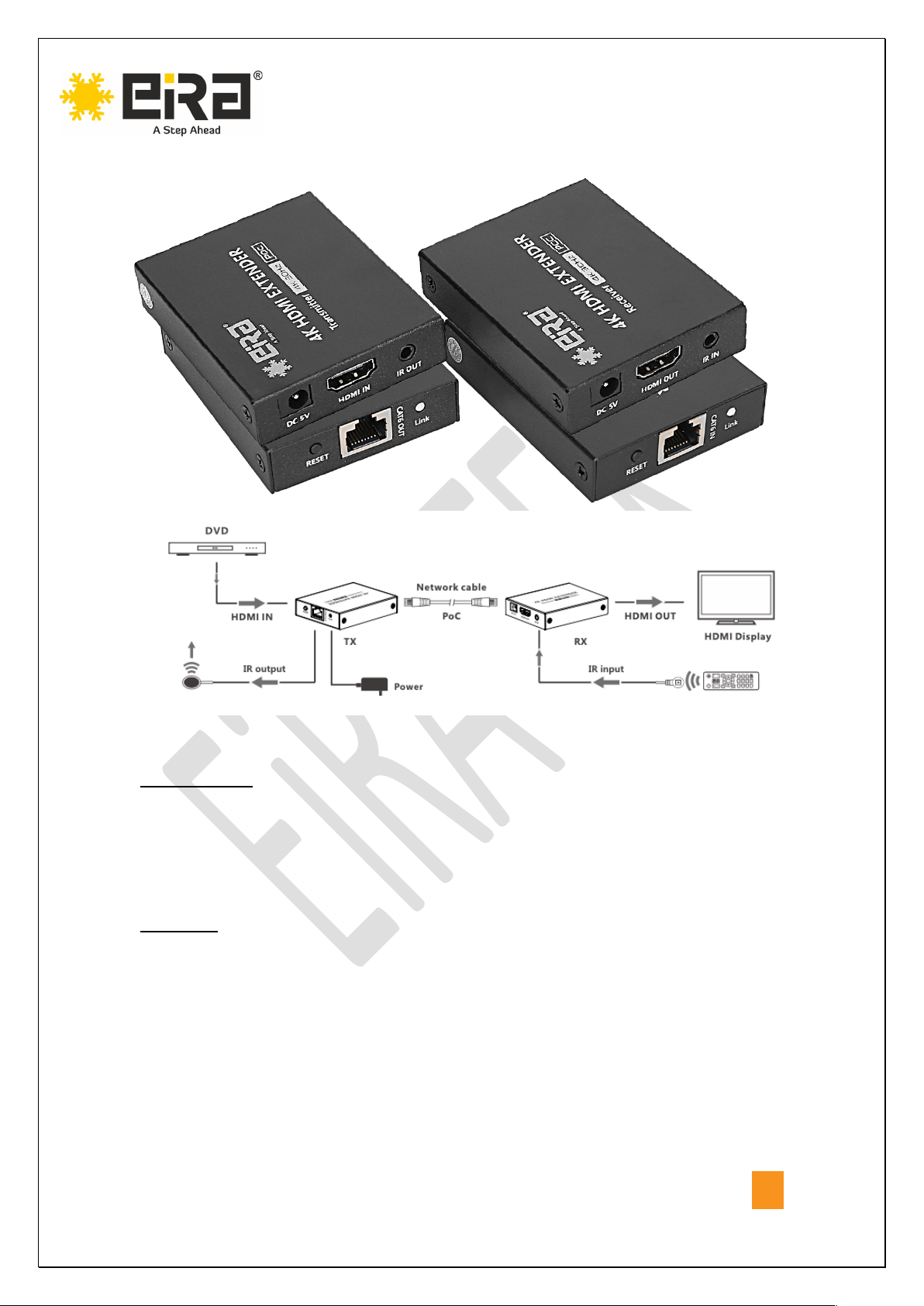

EiRA ER2601EXP User manual

HDMI Extender Over CAT6 70m
(ER2601EXP)
www.eiratek.com
1
Introduction
EiRA ER2601EX HDMI Extender includes a transmitter unit and a receiver unit, allows the
HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network
cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect
for outdoor advertising, monitor system, home entertainment, conference, etc.
Features
• Zero latency.
• Support up to 4K@30Hz resolution.
• Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to
70meters, 4K@30Hz transmission distance is up to 40 meters.
• Support IR pass-back function (20~60KHz). Innovative IR pass back function, perfect
improved infrared remote control experience
• Support HDR10.
• Support EDID passthrough.
• Support PoC network cable power supply, only TX power supply is needed.

HDMI Extender Over CAT6 70m
(ER2601EXP)
www.eiratek.com
2
Specifications
Brand
EiRA
SKU Code
ER2601EXP
Product Name
HDMI EXTENDER OVER CAT6 (70m)
Power Supply
Voltage/Current
DC 5V/2A
Power Consumption
TX+RX < 8W
HDMI Performance
and Interface
HDMI compliance
HDMI 1.4
HDCP compliance
HDCP 1.4
HDMI resolution
800x600, 1024x768, 1280x720,
1280x960, 1366x768, 1440x900,
1680x1050, 1920x1080, 480i@60Hz,
480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz,
1080p@24/25/30/50/60Hz,
3840x2160@24/25/30Hz
Audio Formats
DTS, DTS-HD, PCM, LPCM
HDR
Support
EDID through
Support
IR Pass-back
Frequency Range : 20 ~ 60KHz
Input and output TMDS signal
0.7 ~ 1.2Vp-p (TMDS)
Input and output DDC signal
5Vp-p (TTL)
Transmission Distance
CAT6/6A/7
1080p@60Hz transmission 70 meters
4K@30Hz transmission 40 meters
Protection Level
Electrostatic protection of the
whole machine
implementation of the standard:
IEC61000-4-2
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Operating
Environment
Working Temperature
-20 ~ 60°C
Storage Temperature
-30 ~ 90°C
Humidity (no condensation)
0 ~ 90%RH
Body Properties
Dimensions
75.0(L) x 60.0(W) x 16.5(H) mm
Weight
TX: 127g RX: 127G
Colour
Black
Material
Aluminium Alloy
Warranty*
1 year

HDMI Extender Over CAT6 70m
(ER2601EXP)
www.eiratek.com
3
Package Contents
Interface
1. Transmitter (TX)
1
Power input
Connect to the 5V/2A DC power adapter.
2
HDMI input
Connect to a HDMI source device.
3
IR out
Connect the IR blaster extension cable, please keep the infrared
transmitter as close as possible to the signal source device when
using.
4
Reset button
Press the button to restart the device.
5
RJ45 signal output
Output modulated HDMI signal.
6
Signal Indicator
No HDMI signal is transmitted, the indicator flashes.
HDMI signal is transmitted, the indicator stays on.

HDMI Extender Over CAT6 70m
(ER2601EXP)
www.eiratek.com
4
2. Receiver (RX)
1
Power input
PoC, only TX power supply is needed.
2
HDMI output
Connect to a HDMI display device.
3
IR in
Connect the IR receiver extension cable to ensure that the remote
control used is within the range of the IR receiving device.
4
Reset button
Press the button to restart the device.
5
RJ45 signal input
Input modulated HDMI signal.
6
Signal Indicator
No HDMI signal is transmitted, the indicator flashes.
HDMI signal is transmitted, the indicator stays on.
