Eizo RadiForce MX270W User manual

English Deutsch Français 中文
• ElManualdeinstalaciónenespañolsepuededescargardelsitio:http://www.eizo.com
• IlManualediinstallazioneinItalianoèdisponibileperildownloadnelsitoWeball’indirizzo:
http://www.eizo.com
• Installationshandbokenpåsvenskagårattladdanedfrånvårwebbplats:http://www.eizo.com
• ΜπορείτενακάνετελήψητουΕγχειριδίουεγκατάστασηςσταΕλληνικάαπότονιστότοπόμας:
http://www.eizo.com
• Руководствопоустановкенарусскомязыкедоступнодлязагрузкиснашегосайтапоадресу:
http://www.eizo.com
••中文的設定操作手冊可以從我們的網站下載：http://www.eizo.com
• Instalačnípříručkavčeštinějedostupnákestaženíznašichstránek:http://www.eizo.com
• Eninstallationsvejledningpådanskkanhentesfravoreswebsted:http://www.eizo.com
• Asennusopassuomeksionladattavissaosoitteesta:http://www.eizo.com
• 한국어로된설치설명서를당사웹사이트에서다운로드할수있습니다:http://www.eizo.com
• DeinstallatiehandleidinginhetNederlandskanwordengedownloadvanonzesite:
http://www.eizo.com
• Installasjonsveiledningpånorskkanlastesnedfravårtområde:http://www.eizo.com
• Podręcznikinstalacjiwjęzykupolskimmożnapobraćznaszejwitrynyinternetowej :
http://www.eizo.com
• OManualdeinstalação(emportuguês)estádisponívelparadownloadnonossowebsite:
http://www.eizo.com
• TürkçeKurulumKılavuzusitemizdenindirilebilir:http://www.eizo.com
• http://www.eizo.com:
Instructions for Use: ■SetupManual
Important: PleasereadPRECAUTIONS,thisSetupManualandtheUser’sManual
storedontheCD-ROMcarefullytofamiliarizeyourselfwithsafeand
effectiveusage.Pleaseretainthismanualforfuturereference.
Gebrauchsanweisung: ■Installationshandbuch
Wichtig: LesenSiedieVORSICHTSMASSNAHMEN,diesesHandbuchzur
EinrichtungunddasBenutzerhandbuch(aufderCD-ROM)aufmerksam
durch,umsichmitdersicherenundefzientenBedienungvertrautzu
machen.BewahrenSiediesesHandbuchzumspäterenNachschlagenauf.
Notice d’instruction: ■Manueld’installation
Important : VeuillezlireattentivementlesPRECAUTIONS,ceManueld’installation
ainsiqueleManueld’utilisationinclussurleCD-ROM,andevous
familiariseravecceproduitetdel’utiliserefcacementetentoutesécurité.
Veuillezconservercemanuelpourréférenceultérieure.
使用说明书:•■设定手册
重要事项：• 请仔细阅读储存在光盘上的用户手册、本设定手册和预防措施、掌握如何安
全、有效地使用本产品。请保留本手册、以便今后参考。

Compatible Resolutions
Kompatible Auösungen
Résolutions compatibles
兼容的分辨率
The monitor supports the following resolutions.
Der Monitor unterstützt die folgenden Auösungen.
Ce moniteur prend en charge les résolutions suivantes.
本显示器支持下列分辨率。
√:Supported
Resolution Applicable signal Vertical scan
frequency Dot Clock DVI DisplayPort
720×400 VGATEXT 70Hz
242MHz
(Max.)
√ √
640×480 VGA 60Hz √ √
800×600 VESA 60Hz √ √
1024×768 VESA 60Hz √ √
1280×1024 VESA 60Hz √ √
1600×1200 VESA 60Hz √ √
2560×1440 VESACVTRB 60Hz √ √
2560×1440 SingleLink8bit 40Hz √ -

1
English
Location of the Caution Statements
Symbols on the unit
Symbol This symbol indicates
MainPowerSwitch: Presstoturnthemonitor’smainpoweroff.
MainPowerSwitch: Presstoturnthemonitor’smainpoweron.
Powerbutton: Presstoturnthemonitor’spoweronoroff.
Alternatingcurrent
Alertingelectricalhazard
CAUTION: RefertoSAFETYSYMBOLSsectioninPRECAUTIONS.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,
electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation. EIZO Corporation
is under no obligation to hold any submitted material or information condential unless prior arrangements are made
pursuant to EIZO Corporation's receipt of said information. Although every effort has been made to ensure that this
manual provides up-to-date information, please note that EIZO monitor specications are subject to change without
notice.

2
Package Contents
Checkthatallthefollowingitemsareincludedinthepackagingbox.Ifanyitemsaremissingordamaged,contact
yourlocaldealer.
Note
• Please keep the packaging box and materials for future movement or transport of the monitor.
• Monitor
• Powercord
• Digitalsignalcable(DisplayPort):PP300
• Digitalsignalcable(DualLink):DD300DL
• EIZOUSBcable:UU300
• EIZOLCDUtilityDisk(CD-ROM)
• SetupManual(thismanual)
• PRECAUTIONS
Controls and Functions
15 17
1011 12 1314
1 2 3 4 5 6 7 8
9
16
Adjustmentmenu*
1. Ambient light sensor UsedfortheilluminancechangemonitoringfunctionofRadiCS/RadiCSLE.For
details,refertoRadiCS/RadiCSLEUser’sManual(ontheCD-ROM).
2. button Switchesinputsignalsfordisplay.
3. button SwitchestheCALSwitchmode.
4. button Cancelsthesetting/adjustmentandexitstheAdjustmentmenu.
5. button Choosesandincreases/decreasesadjustmentsettingsforadvancedadjustment
usingtheAdjustmentmenu.
6. button DisplaystheAdjustmentmenu,determinesanitemonthemenuscreen,andsaves
valuesadjusted.
7. button Turnsthepoweronoroff.
8. Power indicator Indicatesthemonitor’soperationstatus.
Blue:Operating,Orange:Powersavingmode,Off:Mainpower/Poweroff
9. Integrated Front Sensor
(slide type)
UsedforcalibrationandGrayscaleCheck.
10. Main power switch Turnsthemainpoweronoroff.
11. Power connector Connectsthepowercord.
12. Input signal connector Left:DVI-Dconnector/Right:DisplayPortconnectorconnector
13. USB upstream port ConnectstheUSBcabletousethesoftwarethatneedsUSBconnection,ortouse
USBHubfunction.
14. USB downstream port ConnectsaperipheralUSBdevice.
15. Security lock slot ComplieswithKensington’sMicroSaversecuritysystem.
16. Stand Usedtoadjusttheheightandangleofthemonitorscreen.
17. Cable holder Coversthemonitorcables.
* Forinstructionsforuse,refertotheUser’sManual(ontheCD-ROM).

3
English
Connecting Cables
Attention
• Check that the monitor and the PC are powered off.
• When replacing the current monitor with this monitor, be sure to change the PC settings for resolution and vertical scan
frequency to those that are available for this monitor. Refer to the compatible resolution table (back of cover page) before
connecting the PC.
Note
• When connecting multiple PCs to this product, refer to the User’s Manual (on the CD-ROM).
1. Connect the signal cables to the input signal connectors and PC.
Check the shape of the connectors, and connect the cables.
After connecting the signal cable, tighten the screws of the connectors to secure the coupling.
Digitalconnection
(DisplayPort) PP300
Digitalconnection
(DVI) DD300DL
or
2.
Plug the power cord into a power outlet and the power connector on the
monitor.
3.
Connect the USB cable when using RadiCS LE or ScreenManager Pro for
Medical.
ConnectingtotheMonitor ConnectingtoaComputer
4.
Press to turn on the monitor.
The monitor’s power indicator lights up blue.
5.
Turn on the PC.
The screen image appears.
If an image does not appear, refer to “No picture” (page 6) for additional advice.
Attention
• Turn off the monitor and PC after using them.
• For the maximum power saving, it is recommended that the Power button be turned off. Turning off the main power switch
or unplugging the power cord completely shuts off power supply to the monitor.

4
Adjusting the Screen Height and Angle
Hold left and right edge of the monitor with both hands, and adjust the screen height, tilt and swivel of the screen to the
best condition for working.
Attention
• Be sure that the cables are correctly connected.
Showing Button Guide
Press the front buttons (except button), the Button Guide appears above the button.
MODE
SIGNAL RETURN ENTER
Note
• The Button Guide will continue to appear while the Adjustment menu or mode menu is showing.
• The Button Guide is displayed differently depending on the selected menu or status.

5
English
Selecting Display Mode
This function allows easy selection of a desired mode according to monitor application.
Mode Purpose
1-DICOM AvailabletodisplayinDICOMmode.
2-Custom Availableforthesettingaccordingtoyourpreference.
3-CAL Displaysthescreenadjustedbycalibrationsoftware.
4-Text Suitablefordisplayingtextsforwordprocessingorspreadsheets.
Themodemenu
appears.
Procedure
1. Press .
The mode menu appears at the bottom left of the screen.
2. The mode among the list is highlighted in turn each time is pressed.
You can switch the mode with or while the mode menu is displayed.
→1-DICOM←→2-Custom←→3-CAL←→4-Text←
Controlling Monitor Quality
The quality control software “RadiCS LE” (for Windows) is included with this monitor.
To calibrate the monitor and manage the calibration history, install RadiCS LE with reference to the RadiCS LE User's
Manual (on the CD-ROM). Use the RadiCS SelfQC function and built-in Integrated Front Sensor to perform periodic
calibration and Grayscale Check for the monitor independently. For details, refer to the User’s Manual (on the CD-
ROM).
Attention
• Connect the monitor to the PC with a USB cable when using RadiCS LE.
Note
• To perform advanced quality control that conforms to medical standards, use the optional monitor quality control software
kit “RadiCS UX1”.

6

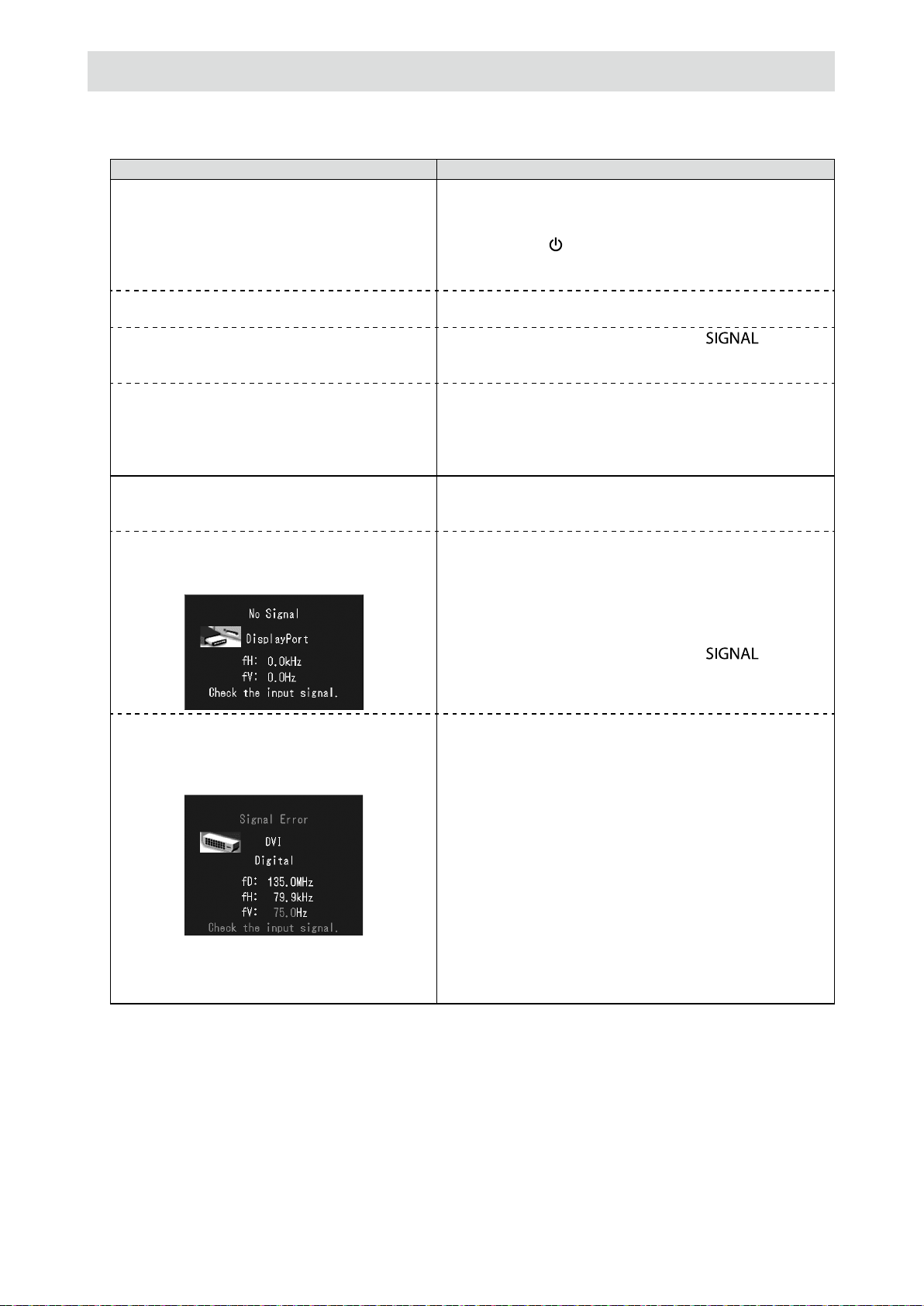

No picture
If a problem still remains after applying the suggested remedies, contact your local dealer.
Problem Possible cause and remedy
1. No picture
• Powerindicatordoesnotlight.
• Checkwhetherthepowercordisconnectedproperly.
• Turnthemainpowerswitchon.
• Press .
• Turnoffthemainpower,andthenturnitonagainafew
minuteslater.
• Powerindicatorislightingblue. • Increase“Brightness”,“Contrast”,and/or“Gain”inthe
Adjustmentmenu.
• Powerindicatorislightingorange. • Switchtheinputsignalwith .
• Operatethemouseorkeyboard.
• CheckwhetherthePCisturnedon.
• Powerindicatorashesorangeandblue. • ThereisaprobleminthedevicethatusesDisplayPort
connection.Solvetheproblem,turnoffthemonitor,and
thenturnitonagain.Refertotheuser’smanualofthe
devicethatusesDisplayPortconnectionfordetails.
2. The message below appears. Thismessageappearswhenthesignalisnotinputcorrectly
evenwhenthemonitorfunctionsproperly.
• Thismessageappearswhennosignalis
input.
Example:
• Themessageshownleftmayappear,becausesomePCs
donotoutputthesignalsoonafterpower-on.
• CheckwhetherthePCisturnedon.
• Checkwhetherthesignalcableisconnectedproperly.
• Switchtheinputsignalwith .
• Themessageshowsthattheinputsignalis
outofthespeciedfrequencyrange.
Example:
fD:DotClock
fH:HorizontalScanFrequency
fV:Verticalscanfrequency
• CheckwhetherthePCisconguredtomeettheresolution
andverticalscanfrequencyrequirementsofthemonitor
(see“CompatibleResolutions”).
• RebootthePC.
• Selectanappropriatedisplaymodeusingthegraphics
board’sutility.Refertothemanualofthegraphicsboard
fordetails.

1
Deutsch
Stelle der Warnungshinweise
Symbole am Gerät
Symbol Bedeutung
Hauptnetz-Schalter: Drücken,umdasNetzteildesMonitorsauszuschalten.
Hauptnetz-Schalter: Drücken,umdasNetzteildesMonitorseinzuschalten.
Netzschalter: Drücken,umdenMonitorein-undauszuschalten.
Wechselstrom
WarnungvorelektrischemSchlag
ACHTUNG: InformationenzudenSICHERHEITSSYMBOLENnden
SieindenVORSICHTSMASSNAHMEN.
Kein Teil dieses Handbuchs darf ohne die vorherige schriftliche Zustimmung von EIZO Corporation in irgendeiner
Form oder mit irgendwelchen Mitteln – elektronisch, mechanisch oder auf andere Weise – reproduziert, in einem
Suchsystem gespeichert oder übertragen werden. EIZO Corporation ist in keiner Weise verpichtet, zur Verfügung
gestelltes Material oder Informationen vertraulich zu behandeln, es sei denn, es wurden mit EIZO Corporation beim
Empfang der Informationen entsprechende Abmachungen getroffen. Obwohl größte Sorgfalt aufgewendet wurde, um
zu gewährleisten, dass die Informationen in diesem Handbuch dem neuesten Stand entsprechen, ist zu beachten, dass
die Spezikationen der Monitore von EIZO ohne vorherige Ankündigung geändert werden können.

2
Verpackungsinhalt
PrüfenSie,obsichallederfolgendenGegenständeinderVerpackungbenden.SollteeinerderGegenstände
fehlenoderbeschädigtsein,wendenSiesichanIhrenFachhändler.
Hinweis
• Heben Sie die Verpackung sowie die Verpackungsmaterialien für evtl. Transporte des Monitors gut auf.
• Monitor
• Netzkabel
• DigitalesSignalkabel(DisplayPort):PP300
• DigitalesSignalkabel(DualLink):DD300DL
• EIZOUSB-Kabel:UU300
• EIZOLCDUtilityDisk(CD-ROM)
• Installationshandbuch(dasvorliegendeHandbuch)
• VORSICHTSMASSNAHMEN
Steuerelemente und Funktionen
Justierungsmenü*
15 17
1011 12 1314
1 2 3 4 5 6 7 8
9
16
1. Umgebungslichtsensor WirdfürdieÜberwachungsfunktionderBeleuchtungsänderungvonRadiCS/
RadiCSLEverwendet.InformationenhierzundenSieimRadiCS/RadiCSLE-
Benutzerhandbuch(aufderCD-ROM).
2. Taste SchaltetzwischendenEingangssignalenfürdieAnzeigeum.
3. Taste WechseltdenCALSwitch-Modus.
4. Taste AbbruchderEinstellung/JustierungundBeendendesJustierungsmenüs.
5. Taste Wähltunderhöht/verringertJustierungseinstellungenfürdieerweiterteJustierung
mithilfedesJustierungsmenüs.
6. Taste ZeigtdasJustierungsmenüan,wählteinElementimMenübildschirmundspeichert
geänderteWerte.
7. Taste ZumEin-undAusschalten.
8. Netzkontroll-LED ZeigtdenBetriebsstatusdesMonitorsan.
Blau:InBetrieb,Orange:Energiesparmodus,Aus:Hauptnetz/Netzschalteraus
9. Integrierter Frontsensor
(Schiebe-Typ)
DientfürKalibrierungundGrauskalenprüfung.
10. Hauptnetz-Schalter SchaltetdasHauptnetzeinoderaus.
11. Netzanschluss DientzumVerbindendesNetzkabels.
12. Signaleingäng Links:DVI-D-Anschluss/Rechts:DisplayPort-Anschluss
13. USB-Eingang DientzumAnschließendesUSB-KabelszurVerwendungvonSoftware,dieeine
USB-Verbindungbenötigt,oderzurVerwendungderUSB-Hub-Funktion.
14. USB-Ausgang VerbindeteinUSB-Peripheriegerät.
15. Öffnung für
Diebstahlsicherung
KompatibelmitdemKensingtonMicroSaver-Sicherheitssystem.
16. Standfuß WirdzumJustierenderHöheunddesWinkelsdesMonitorbildschirmsverwendet.
17. Kabelabdeckung VerdecktdieMonitorkabel.
* InformationenzurVerwendungentnehmenSiedemBenutzerhandbuch(aufderCD-ROM).
