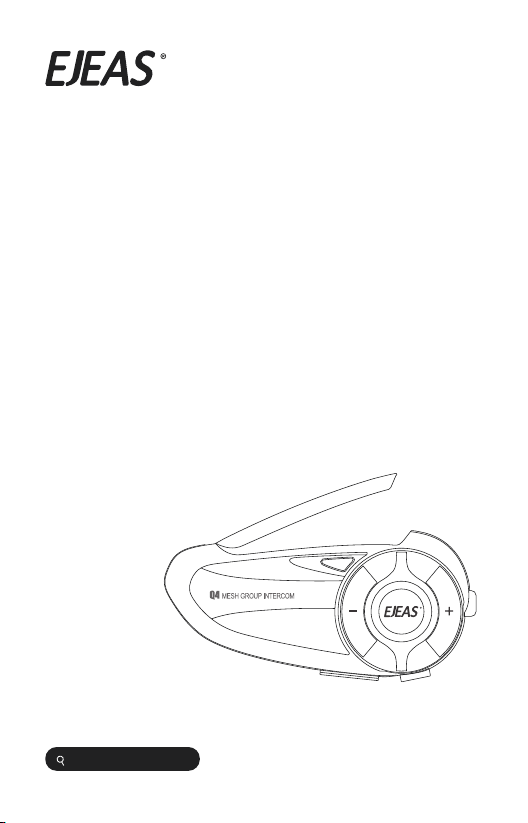

EJEAS Q4 User manual

Q4
MESH Group Intercom
User manual
www.ejeas.com

1. PRODUCT INSTALLATION 3
Product installation 3
2. PACKING LIST 4
4Packing list
3. MESH GROUP TALKING OPERATION 4
Basic operation diagram
ON / OFF
Intercom pairing
Intercom reconnect
Exit MESH network
4
4
5
5
6
4. PHONE PAIRING 6
Phone pairing
Phone re-connection
Telephone answering
Hang up the call
Call rejection
Last num redial
Cancel the redial
Volume control
Music play / pause
Music switching
Voice assistant
Power query
Reset default setting
6
6
6
7
7
7
7
7
7
7
8
8
8
5. PRODUCT CHARACTERISTICS 9
9Product Characteristics
CONTENTS

English
2
Q4 MESH Group Intercom System is a multi-rider
mesh network communication model developed for all the
motorcycle enthusiasts.
Allows for maximum 4 riders freely group talking and
ensures connected for varies of directions movement under
the effective distance. The mesh network technology
enables each unit to pair with the nearest Q4 automatically
while the riders changing their queue outside. If one is out
of the distance, it will make a own group itself. When it
reaches to the effective distance, it will back to the previous
group again.
The development of EJEAS MESH Group Intercom
System solved the problem of intercom disconnection that
most motorcycle riders often encounter during outdoor
riding, promoted a better communication though out the
group. The Q4 is a necessary communication tool for all the
motor riders.
MESH button
Type-C Earphone interfaceVolume -
AntennaIndicator
Volume +
Power/
Phone key
Image shown is for illustration purposes only

3
English
1. Product Installation
Loosen the screws of the
clip, install it on your
helmet for fixed.
Install the intercom
on the clip.
Use the Velcro stick inside
your helmet, choose the
stick/soft mic for your need.
Organize the inside
messy cables, and put
them inside your helmet
foam for easy wearing.
1
2
3
4

4
English
2. Packing List
Host
Manual
Earphone EUC remote control
handle
Microphone Cable
Soft microphone
UNIVERSALCONTROLLER
Adapter:5V1A
SIN:EUC19070000
EJEASTechnologies.Inc
MabeinChina
Model
EUC
A/D
+
B/E
C/F
FM
Type-C charging cable
Mounting clip
Single-click Double-click Long press for 5s Simultaneous click
5s
Basic operation diagram
3. Mesh Group Talking Operation
Q4
MESH Group Intercom
User manual
www.ejeas.com
ON Press the phone and Mesh
button simultaneously for 1s
"Ding~Ding~Ding~Ding~"
Standby Blue light flashes slowly
Power OFF
Lights off
1s 1s
ON/OFF Please charge before use.
Optional

5
English
Intercom pairing
"Create Mesh Network"
"Mesh Network Pairing"
Power on, press the MESH button
for 5s to enter the pairing mode
Choose any one unit as the creator,
single-click the MESH button to
create MESH group network
Start searching & automatically
paring
Red & Blue lights flash twice, then red
light flashes
Red & Blue lights flash once, then red
light flashes
Single-click creator's MESH
button to start communication
Under standby, single-click
the MESH button of all Q4 to
join the MESH talking
Creator
Creator
Red & Blue lights flash slowly
"Mesh Pairing Finish"
(If pairing failed, please re-operation)
3
Red & Blue lights quick flash
"Mesh Pairing Successful"
Pairing successful
1
2
There is no creator anymore after pairing finished.
Intercom reconnect
Red and Blue lights quick flash
"Join the MESH"
1
Red & Blue lights flash slowly
"Do Di"
Start communication
5s

6
English

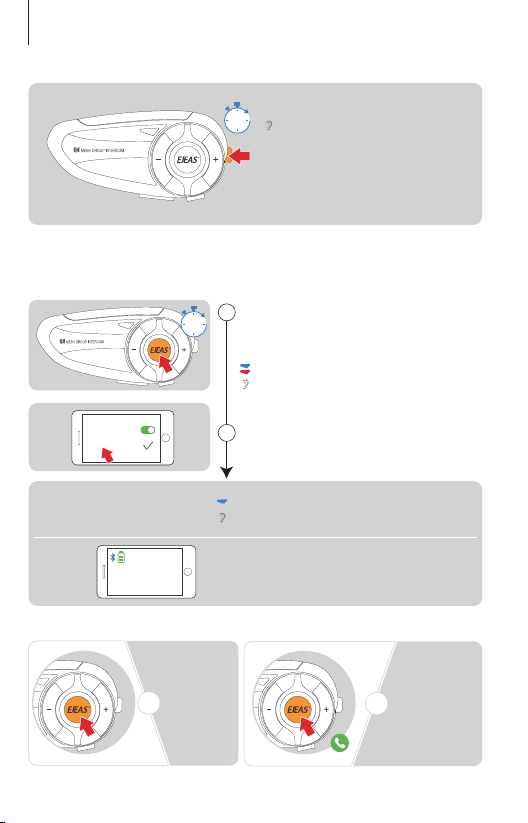

Phone pairing
Pairing successful Blue light twice flashes slowly
(Phone must support HFP)
"Pairing Successful, Connected"
(If need re-connect, single-press the
MESH button)
All members could exit the MESH
intercom, the rest member's intercom
won't be affected.
Press the MESH button for 1s
Exit MESH network
"Quit the Mesh"
1s
Phone re-connection
Automatically
connect
back to
last paired
or
Telephone answering
Auto
answering
within 8s
if no any
operation
or
4. Phone Pairing
Current power will be shown on
your phone
Red & blue lights flash fast alternately
"Pairing"
1
2
Bluetooth
Q4
5s
Press the phone button for 5s to enter
the pairing mode
Open your phone's Bluetooth, search
and pair with Q4
(If no phone connected, it will exit pairing mode
after 2 mins)

7
English
Music play/pause Music switching
2s 2s
Volume control MESH intercom & Music allow working simultaneously.
Music / TEL MESH intercom
Last num redial Cancel the redial
Hang up the call Call rejection
2s
TEL priority When listening to music/intercom, & receiving a phone call.
music intercom
music intercom
Call Interrupt Hang up Restore

8
English
Low battery indication
Red light flashes twice
"Low battery"
Charging indicator
Charging Constantly Red
Full The red light out
Power query
"Battery level high"
"Battery level medium"
"Battery level low"
or
3s
Phone must support & open the voice assistant (Google assistant & Siri).
Voice assistant
Voice
assistant
1 2
Turn on voice assistant Press the phone button for 1 second
1s
Reset default setting
Red light quick flashes three time,
blue light flashes once
"Restore Default Setting"
5s Long press the “+” , “-” , “Phone”
button for 5s at the same time

9
English
Bluetooth 5.0
MESH V2.0
SBC and AAC
-10~50°C
3.7V/750mAh
DC 5V/1A
About 2 hours
About 8 hours
22 hours
Type-C
IP65
V1.0
CVC noise reduction, 3D sound
Up to 1.2km in opened terrain,
4-rider up to 3.6km
5. Product Characteristics
Audio encoding format:
Support:
Bluetooth version:
MESH version:
Intercom communication distance:
Intercom time:
Music time:
Temperature:
Manual version:
Battery parameter:
Power adapter:
Waterproof rating
Charging:
Charging interface:
1.
2.
3.
Warning
The use of this device on public transportation may not be authorized by law. Please
check your local laws and use this product only in private Spaces or on closed roads.
If local law prohibits the use of both headphones while riding a motorcycle, use only one
headset while riding. If you don't comply with this warning, the company doesn't accept
any responsibility.
Use this product at a high volume for a long time will cause damage to your ears and
hearing. Please keep the volume at an appropriate level.

10
English
1.
2.
3.
4.
5.
6.
7.
8.
9.
Precautions for battery use
Please don't put the discarded batteries together with the general household garbage.
In areas with relevant laws and regulations on recycling and disposal of waste batteries,
please follow the relevant regulations of the local administrative department to make a
contribution to environmental protection.
The battery's electrolyte enters the eye & can lead to blindness. If you splash the
battery electrolyte into your eyes, don't rub your eyes with your hands. Rinse thoroughly
with water immediately & contact the hospital for treatment. If the battery's electrolyte
sticks to the skin and clothes, wash them immediately with soapy water and clean
water, and seek medical attention if necessary.
Don't transfer batteries from other uses. Don't use any damaged charger or battery. If
the temperature of the battery is too high during use, charging or storage, or abnormal
phenomena such as discoloration, deformation, bulging and leakage occur in the
battery, please stop using and replace the battery, so as not to cause safety problems.
The battery is not waterproof, don't use or charge the battery in the kitchen, bathroom
and other high temperature and humidity places.
When charging, since the battery temperature will rise, please don't put the battery and
flammable objects (such as: bedside, clothes, books, etc.) to avoidfire.
Don't disassemble, weld or modify the battery. Don't place the battery in a place with
strong mechanical impact. Don't puncture the battery with a hard object. Otherwise, the
battery will leak, overheat, burst or catch fire.
Don't remove, squeeze, heat or burn the battery inside the product. It is strictly prohibited
to use sharp objects, screwdrivers or other devices to puncture or pry the battery. The
above operation may cause the battery to catch fire or burn.
Don't put the battery on fire or place it in a hot place to avoid leakage, overheating, bursting or fire.
Don't short-circuit the battery. A short circuit occurs when metal objects (keys, jewelry,
wires, COINS, or other conductors) accidentally connect the positive and negative
electrodes of a battery. A short circuit can damage batteries or connectors and may cause
significant property damage or personal injury. Please keep the charged batteries properly
and don't leave them in your pocket, wallet or other treasure bag with metal objects.
4.
7.
1.
2.
3.
5.
6.
8.
Attention
Installing equipment on the helmet is a modification of the helmet, which may cause the
helmet's warranty to fail or hinder the helmet's function. This may cause danger in the
event of accidents, so please fully understand the facts when using the helmet. If not,
please return the product.
Before driving, please makesure that the product is firmly and correctly mounted on the
helmet. If the product falls off during driving, it will cause injury oraccident.
To ensure riding safety, please use this product carefully while on the road to avoid
serious body injury, death or injury.
In order to ensure the communication distance when riding, please try to use it in an open place.
If the electronic function fails, please power off and try again.
In the case of rain, please put the device jack down, USB rubber plug tight; During use,
ensure that the headphone jack is fully plugged into the device to prevent water from
entering the device.
When using this product when operating vehicles or vehicles, the safety precautions of
the vehicle manufacturer must be observed.
The product contains 3.7V/750mAh battery. The battery capacity will change with the
temperature. When the battery is used at low temperature or below 0° C, the battery life
of the product may attenuate to different degrees.

11
1. Keep out of reach of children and pets:
Please keep the products and all spare parts out of reach of children and pets. Children or
pets may swallow small parts that can cause suffocation or other dangerous conditions.
2. Safe startup:
When it is forbidden to use electronic products or the use of electronic products may
cause interference or danger, please do not turn on this product.
3. Pay attention to traffic safety:
Please comply with all relevant laws and regulations of the place of use. Traffic safety
should be taken into consideration when using this product. Never use this product after
drinking alcohol or using drugs, or when you are extremely tired.
4. Interference:
All wireless product equipment may be interfered, which affects its performance.
5. Shut down near medical devices:
Hospitals & health care facilities may see the use of radio-frequency sensitive equip-
ment.Please effectively follow therules and regulations of any medical institution and
turn off the product when necessary.
6. Power off on an airplane:
Please comply with any restrictions related to aviation. The use of wireless devices on
the aircraft will interfere with the aircraft, so please shut down the aircraft during flight.
7. Gas stations should shut down:
Don't use this product near a gas station (service station) or where fuel or chemical
agents are stored.
8. Power off near the blasting site:
Please observe any blasting regulations and don't use this product in the place where
blasting is performed.
9. Accessories andbatteries:
Please use accessories and batteries approved by the company. Using other accesso-
ries and batteries may damage the product and cause danger.
10. Connect to other devices:
When connecting to other devices, please read the device's instructions carefully for detailed
safety instructions and correct product operation. Don't connect incompatible products.
Safety Precaution
Environmental friendliness
Toxic and harmful substances or elements and content table.
Toxic or harmful
substances or elements
Part name
Host Battery Accessories
X
O
O
O
O
O
X
O
O
O
O
O
X
O
O
O
O
O
Plumbum (Pb)
Mercury (Hg)
Cadmium (Cd)
Polybrominated Biphenyls
(PBB)
Polybrominated diphenyl ethers
(PBDE)
Chromium VI (Cr6+)
English

12
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equi pment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does caus harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Changes or modifications not expressly approved by the party responsible
for compliancecould void the user's authority to operate the equipment.
This device complies with Part15 of the FCC Rules. Operation is subject to
the following two conditions:
