Ekobom BOECO-450 Installation instructions

User Instruction
Combi Fridge Freezer
No-Frost
Content
1. Safety Information Page 1~5
2. Overview Page 6
3. Installation Page 7~10
4. Daily Use Page11~17
BOECO-450

k

Health is starting from the kitchen!

In the interest of your safety and to ensure the correct use, before
installing and first using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety features. Save
these instructions and make sure that they remain with the appliance if
it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user’s
instructions as the manufacturer is not responsible for damages
caused by omission.
yThis appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given super
vision or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
yChildren should be supervised to ensure that they do not play with
the appliance.
yCleaning and user maintenance shall not be made by children unless
they are aged from 8 years and above and supervised.
yKeep all packaging well away from children. There is risk of
suffocation.
yIf you are discarding the appliance pull the plug out of the socket, cut
the connection cable (as close to the appliance as you can) and
remove the door to prevent playing children to suffer electric shock or
to close themselves into it.
yIf this appliance featuring magnetic door seals is to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to
make that spring lack unusable before you discard the old appliance.
This will prevent it from becoming a death trap for a child.
Safety information
Childrenandvulnerablepeoplesafety
General safety
WARNING! Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
1

yDo not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
yThe refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of
environmental compatibility, which is nevertheless flammable.
yDuring transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become
damaged.
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
yIt is dangerous to alter the specifications or modify this product in any
way. Any damage to the cord may cause a short circuit, fire and/or
electric shock.
yThis appliance is intended to be used in household and similar
applications such as
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING! Do not use other electrical appliances (such as ice
cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacture.
WARNING! Any electrical components(plug, power cord,
compressor and etc.) must be replaced by a certified service agent
or qualified service personnel.
Safety information
WARNING! The light bulb supplied with this appliance is a “special
use lamp bulb” usable only with the appliance supplied. This “special
1)
use lamp” is not usable for domestic lighting.
1) If there is a light in the compartment.
WARNING! Do not touch the light bulb if it has been on for a long
1)
period of time because it could be very hot.
2

yDo not put hot on the plastic parts in the appliance.
yDo not place food products directly against the rear wall.
1)
yFrozen food must not be re-frozen once it has been thawed out.
yStore pre-packed frozen food in accordance with the frozen food
,1)
manufacture s instructions.
,
yAppliance s manufactures storage recommendations should be
strictly adhered to. Refer to relevant instructions.
yDo not place carbonated of fizzy drinks in the freezer compartment as
it creates pressure on the container, which may cause it to explode,
1)
resulting in damage to the appliance.
yIce lollies can cause frost burns if consumed straight from the
1)
appliance.
Daily use
1) If there is a freezer compartment.
2) If there is a fresh-food storage compartment.
Care and cleaning
yBefore maintenance, switch off the appliance and disconnect the
mains plug from the mains socket.
yDo not clean the appliance with metal objects.
yDo not use sharp objects to remove frost from the appliance. Use a
1)
plastic scraper.
yRegularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect in
2)
te bottom of the appliance.
Safety information
yPower cord must not be lengthened.
yMake sure that the power plug is not squashed or damaged by the
back of the appliance. A squashed or damaged power plug may
overheat and cause a fire.
yMake sure that you can come to the mains plug of the appliance.
yDo not pull the mains cable.
yIf the power plug socket is loose, do not insert the power plug. There
is a risk of electric shock or fire.
yYou must not operate the appliance without the lamp.
yThis appliance is heavy. Care should be taken when moving it.
yDo not remove nor touch items from the freezer compartment if you
hands are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
yAvoid prolonged exposure of the appliance to direct sunlight.
3

Service
yAny electrical work required to do the servicing of the appliance
should be carried out by a qualified electrician or competent person.
yThis product must be serviced by an authorized Service Center, and
only genuine spare parts must be used.
Energy saving
yDon’t put hot food in the appliance;
yDon’t pack food close together as this prevents air circulating;
yMake sure food don’t touch the back of the compartment(s);
yIf electricity goes off, don’t open the door(s);
yDon’t open the door(s) frequently;
yDon’t keep the door(s) open for too long time;
yDon’t set the thermostat on exceeding cold temperatures;
ySome accessaries, such as drawers, can be removed to get larger
storage volume and lower energy consumption.
Safety information
Installation
Important! For electrical connection carefully follow the instructions
given in specific paragraphs.
yUnpack the appliance and check if there are damages on it. Do not
connect the appliance if it is damaged. Report possible damages
immediately to the place you bought it. In that case retain packing.
yIt is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
yAdequate air circulation should be around the appliance, lacking this
leads to overheating. To achieve sufficient ventilation follow the
instructions relevant to installation.
yWherever possible the spacers of the product should be against a
wall to avoid touching or catching warm parts (compressor, con-
denser) to prevent possible burn.
yThe appliance must not be located close to radiators or cookers.
yMake sure that the mains plug is accessible after the installation of
the appliance.
4

This appliance does not contain gasses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance
shall be disposed according to the appliance regulations to obtain from
your local authorities. Avoid damaging the cooling unit, especially the
heat exchanger. The materials used on this appliance marked by the
symbol are recyclable.
Environment Protection
The materials with the symbol are recyclable. Dispose the packaging in
a suitable collection containers to recycle it.
Packaging materials
Disposal of the appliance
Safety information
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it
should be taken to the appropriate collection point for the
recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product,
please contact your local council, your household waste disposal
service or the shop where you purchased the product.
5

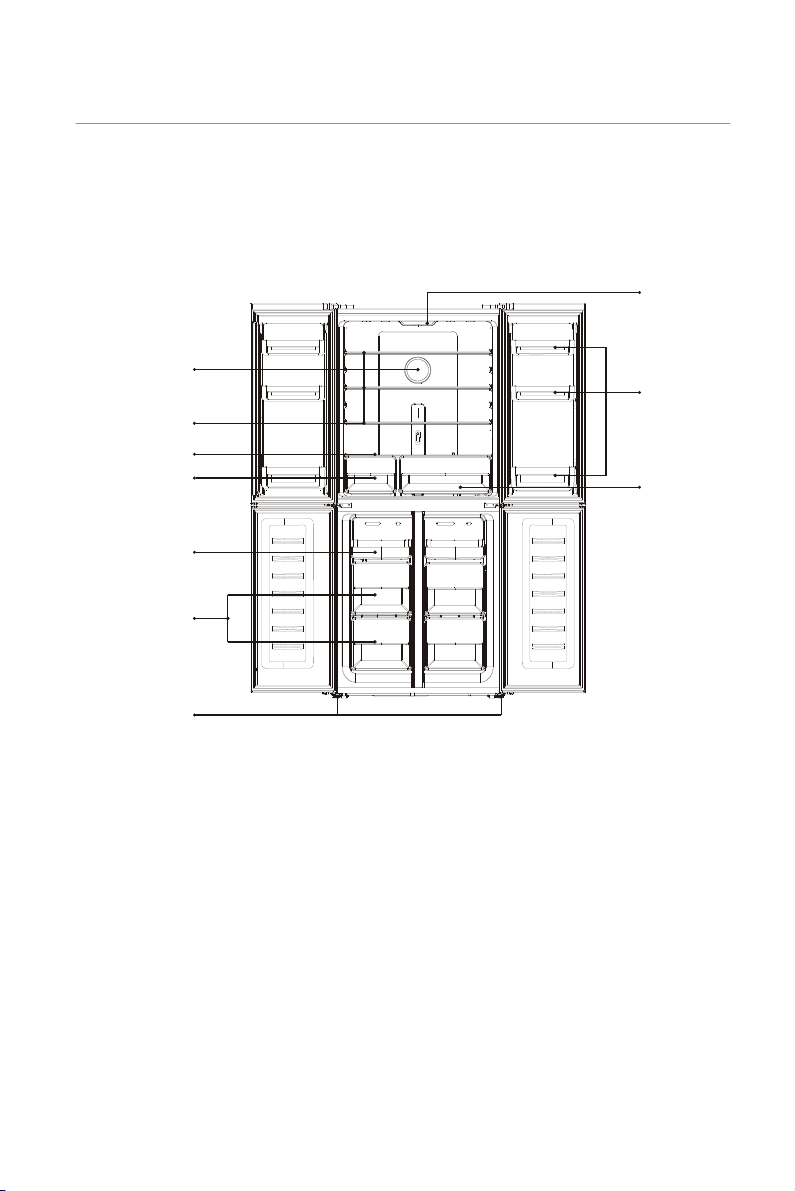

Overview
Note: Above picture is for reference only. Real appliance probably is different.
Door Balcony
Freezer Drawer
Leveling Feet
Crisper Zone
LED Light
Refrigerator Shelves
Crisper Cover
Chiller Zone
Sliding Tray
Anti-Bacteria and
Deodorization Module
6




00
-0
-0

 0
12
1
2
1342
2
!!$&
$
1380mm
1030mm
7


Level doors
After transportation or door balconies are loaded by food or beverage, upper two doors may not be
aligned. There are 3 C type washers which are used to adjust doors. Please follow below process to
level doors.
1.Before check alignment of doors, please make sure appliance stand levelly .
2.If top of upper two doors looks not in a line, please slightly lift lower door and insert a pieces of C
type washer by a clip between bottom of door and middle hinge.
WARNING!Please be careful to avoid fingers are clipped by door.
Please use tool.
WARNING! Please keep C type washers far away children to
avoid them are swallowed by children. They are small parts.
8

Rubber blocks
There is one rubber block on each door. They function as spring to relieve impact when door
closes .
Please not pull the rubber blocks. If they absent from the doors, please take one from accessary
bag and insert it to the hole of door.
WARNING!Please keep rubber blocks far away children to
avoid them are swallowed by children. They are small parts.

9


#
8

6 
19
9
1&
&

:0 6: 6

:" 6: 6

:" 6: .6

:" 6:+ 6
&!!
$&!
!5
00#!!
7

,
#2


;!<
&&
#$!
!<
&
&6(
10

Daily UseDaily Use
Using the Control Panel
A.Temperature Control of Fridge Compartment
B.Temperature Control of Freezer Compartment
C.Mode/ Locking / Unlocking
1.1 KEY OPERATION
2.1.1The panel will be lit up for 2 minutes once the door of fridge compartment or freezer
compartment is opened. (one door signal is sensed at a time)

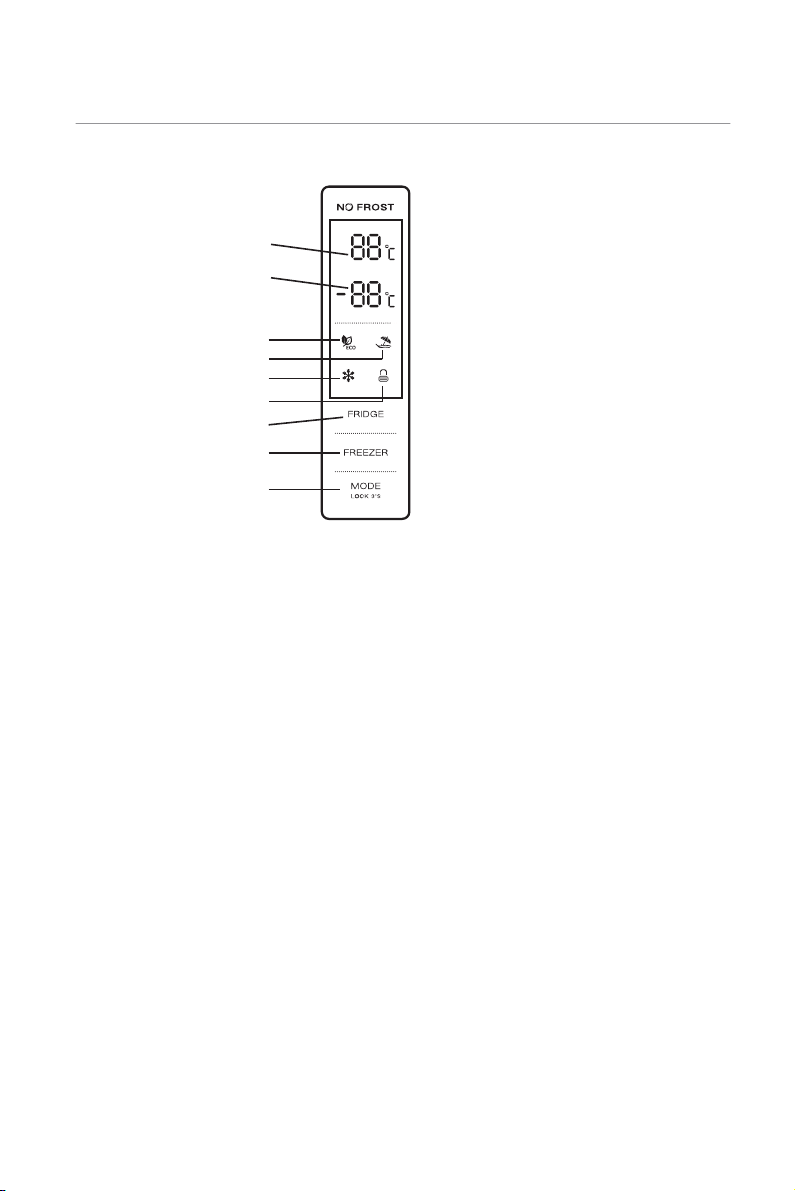

2.1 DISPLAY
1.Temperature of Fridge Comparment
2.Temperature of Freezer Comparment
3.ECO Mode
4.Holiday Mode
5.Super Mode
6.Locking / Unlocking
1.2 LED DISPLAY
a.The control panel is 100% lit up for 3 seconds, which operates exactly as per the setting
(mode and temperature) before the poweroff. The system will be automatically locked 25
seconds after the last key operation. After locking, the light of the panel would be out 120
seconds after the last key operation.
b.Both preset temperatures of fridge compartemnt and freezer compartment would be shown
on the display.
2.0 OPERATING CONDITION
1
2
3
4
5
6
A
B
C
11

Daily UseDaily Use
2.1.2 The panel will be lit up by any key operation whereas the light would be out 2 minutes
after the last operation.
2.1.3 Display during normal operation
Temperature Display of the Fridge Compartment: Indicating the temperature of the
current setting.
Temperature Display of the Freezer Compartment: Indicating the temperature of the
current setting.
3.1 Temperature Control of the Fridge Compartment
a.Temperature Control of the Fridge Compartment:
This key is workable both in User Defined Mode as well as Super Mode. After entering
the temperature control of the fridge compartment, this key flashes. By touching the key
consecutively, the temperature would change in a circle of “2℃, 3℃, 4℃, 5℃, 6℃, 7℃,
8℃, OFF”, after which 5-second flashing means the selection of temperature is settled.
b. Shutoff of the Fridge Compartment:
Press the key of “Temperature Control of Fridge Compartment”, choose “OFF”, a 5-second
flashing means the selection of temperature is made, namely the fridge compartment would
stop refrigeration.
3.2 Temperature Control of the Freezer Compartment
Temperature Control of the Freezer Compartment: This key is workable both in User Defined
Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment,
the key flashes. By touching the key consecutively, the temperature would change in a circle from
-1℃to -22℃, after which a 5-second flashing means the selection of temperature is settled.
3.3 Mode/ Locking / Unlocking
a.By touching this key consecutively, the operation mode of the refrigerator will change in a circle
of “ECO Mode-Holiday Mode-Super Mode-User Defined Mode. A 5-second flashing means the
selection of temperature is settled.
b.Long Press to Enter / Exit Locking Mode
·Unlocking: Press for 3 seconds in the mode of locking, all the keys would be unlocked after
the a beep.
·Locking: Press for 3 seconds in the mode of unlocking, all the keys would be locked after the
a beep.
3.4 Press Button
Short beep after per press button
All buttons will only valid under unlock mode.
3.5 Lock Fnciton
N operation in 25 sec will lock the display automatically.
3.0 ILLUSTION OF THE KEY
12

Daily UseDaily Use
Press mode to choose Holiday Mode, the icon keeps bright after 5 sec flashing, entering
holiday mode.
Temperature fix 17°in fridge compartment, “fridge” button in vain, while holiday icon will
flash three times in alarm.
Exit holiday mode: choose mode, exit holiday mode after 5 sec, entering the selected mode.
4.1 Holiday Mode
Choose mode, icon keeps bright after 5 sec flashing, entering freezing mode.
Freezing mode:
Temperature nonadjustable in freezing compartment, “freezer” button in vain, while freezing
icon will flash three times in alarm.
Exit freezing mode: meeting below conditions.
-manually exit freezing mode
-freezing period more than 50 hours
Mode remains the same before entering super freezing mode.
4.2 Super Freezing mode
Press mode to choose ECO mode, ECO icon keeps bright after 5 sec flashing.
5°in fridge compartment and -18°in freezer compartment under eco mode,
“Freezer”&“Fridge“ button in vain while eco icon will flash three times in alarm.
Exit eco mode
Press mode again to exit eco mode after 5 sec, entering the selected mode.
4.0 ECO mode
13

Daily Use
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Daily use
Freezing fresh food
yThe freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for
a long time.
yPlace the fresh food to be frozen in the bottom compartment.
yThe maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
yThe freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storing frozen food
When first starting-up or after a period out of use. Before putting the product in the compartment let the
appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been off for longer than the
value shown in the technical characteristics chart under “rising time”, the defrosted food must be
consumed quickly or cooked immediately and then re-frozen (after cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room
temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take
longer.

'HIURVW'HVFULSWLRQ1R)URVW

,WLVDWRWDOQRIURVWUHIULJHUDWRUIUHH]HUZKLFKZLOOEHGHIURVWHGD WRPDWLFDOO\
Helpful hints and tips
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
ythe maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
ythe freezing process takes 24 hours. No further food to be frozen should be added during this period;
yonly freeze top quality, fresh and thoroughly cleaned, foodstuffs;
yprepare food in small portions to enable it to be rapidly and completely frozen and to make it possible
subsequently to thaw only the quantity required;
ywrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
ydo not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in
temperature of the latter;
ylean foods store better and longer than fatty ones; salt reduces the storage life of food;
ywater ices, if consumed immediately after removal from the freezer compartment, can possibly cause
the skin to be freeze burnt;
yit is advisable to show the freezing in date on each individual pack to enable you removal from the
freezer compartment, can possibly cause the skin to be freeze burnt;
yit is advisable to show the freezing in date on each individual pack to enable you to keep tab of the
storage time.
14

Daily UseDaily Use
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible
time;
not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.

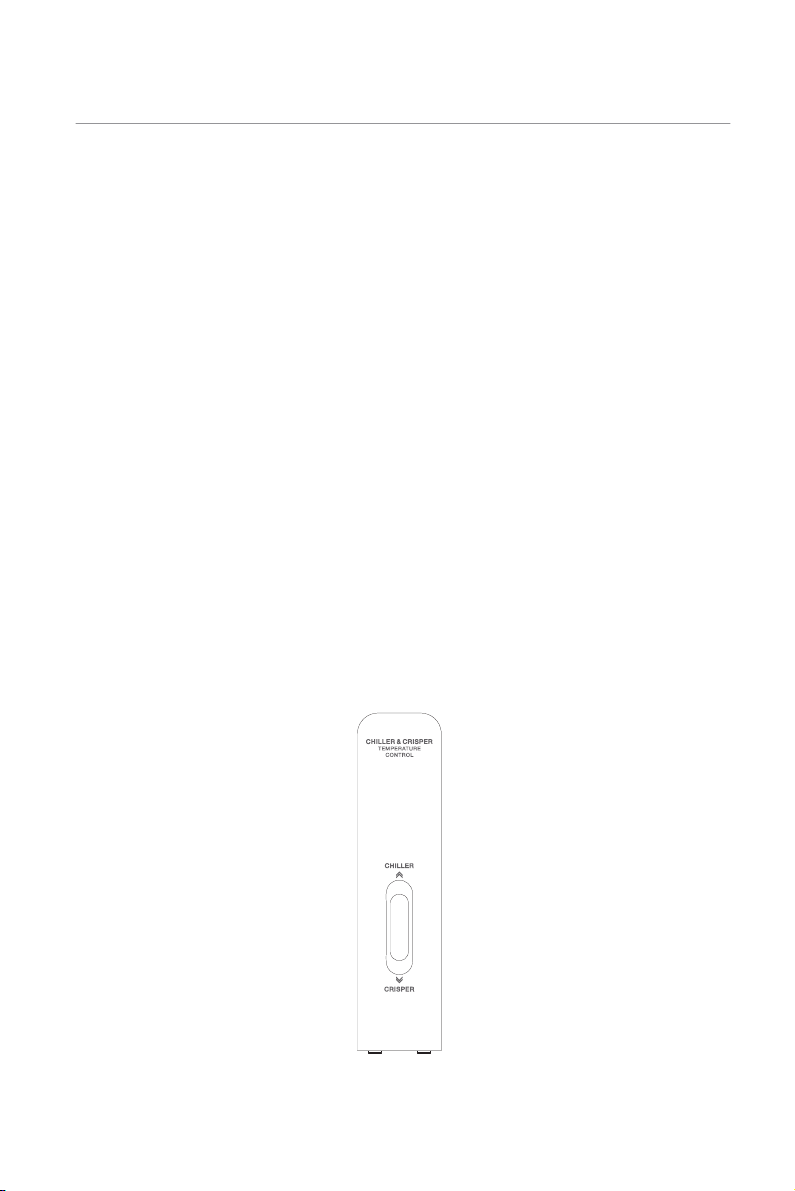

Fresh Zone Temperature Control
7HPSHUDW UHRIWKHIUHVKFDQEHDGM VWHGDFFRUGLQJWRWKHW\SHRIVWRUDJHIRRG
y3 VKWKHNQRE SZDUGIURPWKHERWWRPWHPSHUDW UHLQWKHIUHVK]RQHZLOOEHJUDG DOO\GHFUHDVHG
y:KHQWKHNQRELVSODFHGDWWKH&5,63(5SRVLWLRQWKHIUHVK]RQHFDQEHI QFWLRQHGDVD
FULVSHU]RQHDQGPDLQWDLQWKHDSSURSULDWHWHPSHUDW UHDQGK PLGLW\IRUIU LWVDQGYHJHWDEOH
y:KHQWKHNQRELVSODFHGDWWKH&+,//(5SRVLWLRQLWLVV LWDEOHIRUVKRUWWHUPVWRUDJHRIILVKRURWKHU
IUHVKIRRG7KHIRRGZLOONHHSIUHVKE WQRWIUR]HQZKLFKPDNHVLWWKHEHVWFKRLFHIRUVWRULQJIUHVKIRRG
y7LSV:KHQ\R FKRRVH&+,//(5I QFWLRQLWLVUHFRPPHQGHGWRVHWWKHUHIULJHUDWRUWHPSHUDW UH
EHORZ&DQGSUHVHUYHGOHDGWLPHQRPRUHWKDQGD\VLQRUGHUWRNHHSWKHEHVWIUHVKQHVV
Hints for fresh food refrigeration
To obtain the best performance:
yDo not store warm food or evaporating liquids in the refrigerator
yDo cover or wrap the food, particularly if it has a strong flavour
Hints for refrigeration
Useful hints:
yMake (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
yFor safety, store in this way only one or two days at the most.
yCooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
yFruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
ybutter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or
polythene bags to exclude as much air as possible.
yMilk bottle: these should have a cap and should be stored in the balconies on the door.
yBananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.
y
15

Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical
shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or
turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage
of plastic parts. The appliance must be dry before it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form
orange peel, butyric acid, cleanser that contain acetic acid.
yDo not allow such substances to come into contact the appliance parts.
yDo not use any abrasive cleaners
yRemove the food from the freezer. Store them in a cool place, well covered.
ySwitch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker
of fuse.
yClean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe
with fresh water and rub dry.
yAfter everything is dry place appliance back into service.
Daily UseDaily Use

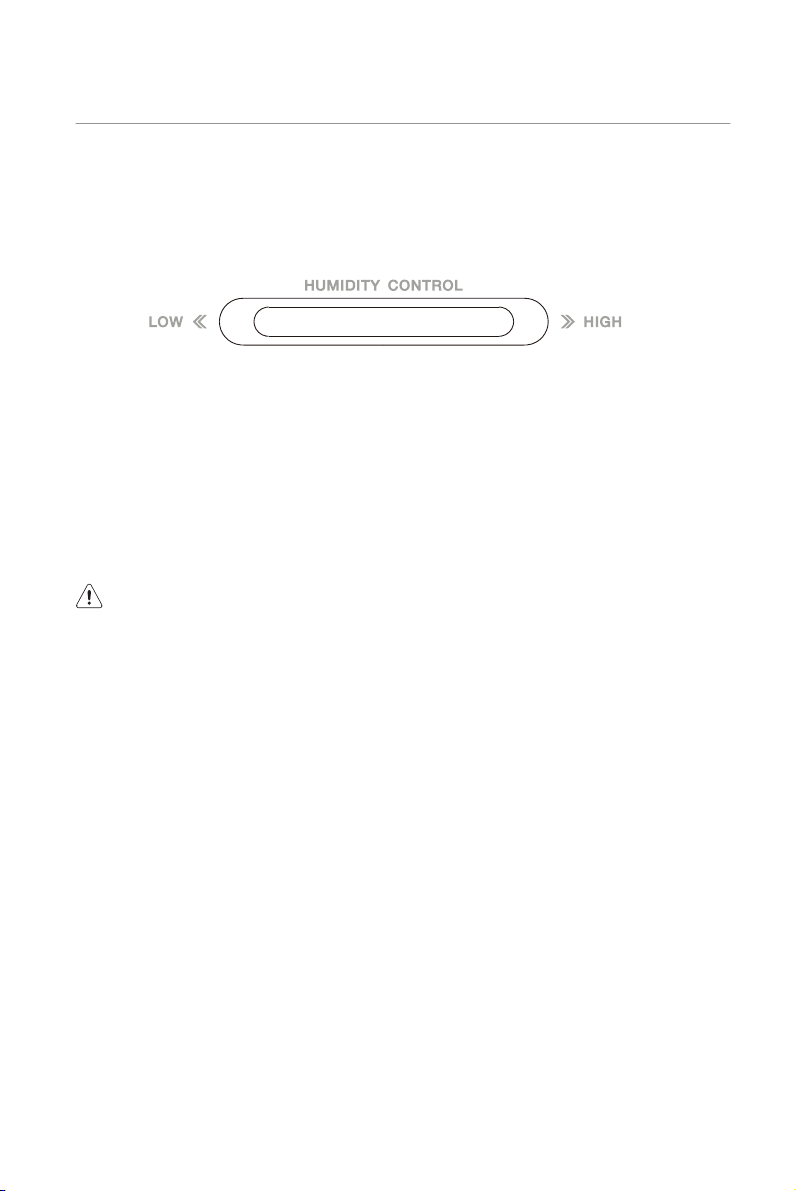

Humidity Adjustment for Crisper Zone
y:KHQWKHNQRELVSODFHGDWWKH+,*+SRVLWLRQWKHFULVSHUK PLGLW\LVKLJKZKLFKLVV LWDEOHIRU
YHJHWDEOH
y:KHQWKHNH\LVSODFHGDWWKH/2:SRVLWLRQK PLGLW\LQWKHFULVSHULVORZHUZLWKLVV LWDEOHIRUIU LWV
16

Daily UseDaily Use
Troubleshooting
Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of
competent person must do the troubleshooting that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulation).
Appliance dose not
work
Mains plug is not plugged in
or is loose
Check fuse, replace if necessary.
Socket is defective
Mains malfunctions are to be
corrected by an electrician.
Problem Solution
Fuse has blown or is defective
Insert mains plug.
Appliance freezes or
cools too much
Turn the temperature regulator to a
warmer setting temporarily.
Unusual noises
Appliance is not level.
The appliance is touching the
wall or other objects.
Re-adjust the feet.
Move the appliance slightly.
A component, e.g. a pipe, on
the rear of the appliance is
touching another part of the
appliance or the wall.
If necessary, carefully bend the
component out of the way.
Door seal is not air tight.
Heavy build up of
frost on the door
seal.
Carefully warm the leaking sections of
the door seal with a hair dryer (on a cool
setting). At the same time shape the
warmed door seal by hand such that it
sits correctly.
Temperature is not properly
adjusted.
Please look in the initial Temperature
Setting section.
Door was open for an extended
period.
Open the door only as long as
necessary.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
Turn the temperature regulation to
a colder setting temporarily.
The food is not frozen
enough.
Please look in the installation
location section.
The appliance is near a heat
source.
Temperature is set too cold
or the appliance runs at SUPER
modes.
Possible cause
If the malfunction shows again, contact the Service Center.
These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the
rating plate.
=#,7!
=#
.#"!
17
