CAR BATTERY CHARGER ULG 3.8 A1

www.ekt2.com
Electronics Katrangi Trading
A
1 3 4 52
678
C
9
10
12
B
16
1112
15 14 13
The following pictograms are used in these operating instructions /on the device:
Read instruction manual! V~Volt (AC)
Observe caution and safety notes! Safety class II
Caution–electric shock!
Danger to life! For indoor use only!
Risk of explosion! Keep children away from
electrical devices!
Risk of fire! Check that the device, mains lead
and plug are in good condition!
WWatts (Effective power)

www.ekt2.com
Electronics Katrangi Trading
Car battery charger ULG 3.8 A1
Q
Introduction
Please carefully read these operating
instructions and fold out the page with
the illustrations. Keep these operating
instructions in a safe place and hand them over to
anyone to whom you pass on the appliance.
Q
Proper Use
The ULTIMATE SPEED ULG 3.8 A1 is a battery
charger with a pulse trickle charge mode and is
suitable for charging and maintenance charging of
the following 6V or 12 V lead rechargeable batter-
ies with wet cell or gel electrolyte:
• 6V:withacapacityof1.2Ahto14Ah
• 12V:withacapacityof1.2Ahto14Ah
• 12V:withacapacityof14Ahto120Ah
You can also used it to regenerate completely dis-
charged batteries. The battery charger has protective
circuits to prevent sparking and overheating. Any in-
correct or improper use leads to loss of the warranty.
The manufacturer takes no responsibility for damage (s)
arising out of usage that is contrary to the instructions
laid down. The appliance is not meant for commer-
cial use.
Q
Delivery Contents
Check the appliance and all accessories for damage
immediately after unpacking. Do not put a defective
appliance or parts into operation.
1 Charger ULTIMATE SPEED ULG 3.8 A1
2 Quick/ contact clamps (1 red, 1 black)
1 Operating manual
Q

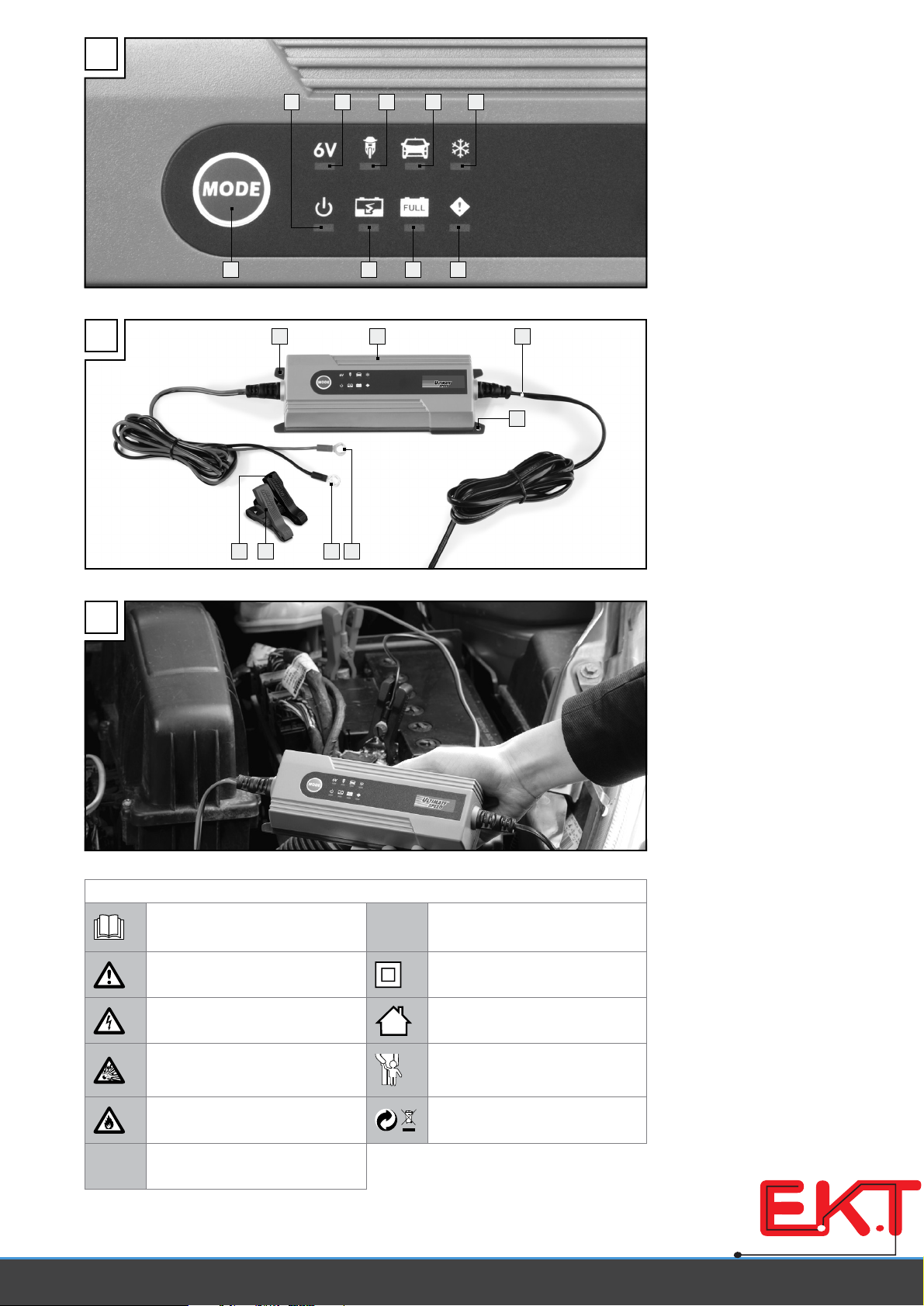

Component description
see Fig. A:
1LED display (standby)
2„6V“ LED display „Mode 1“
3LED display „Mode 2“
4LED display „Mode 3“
5LED display „Mode 4“
6LED display „incorrect polarity /fault“
7LED display „fully charged“
8LED display „Charging process active“
9Q
Selection button „MODE“
see Fig. B:
10 Charging station
11 Mains lead
12 Mounting holes
13 „+“-Pole connection cable (red), incl. ring shoe
14 „–“-Pole connection cable (black), incl. ring shoe
15 „+“-Pole quick-contact terminal (red), incl. red
fixing screw
16 „–“-Pole quick-contact terminal (black), incl.
black fixing screw
Q
Technical Data
Input voltage: 220–230–240V ~
50/ 60Hz
Power consumption: 60W
Reverse current*: < 5mA (no AC input)
Nominal output voltage: 6V /12 V
Nominal output current: 0.8A /3.8 A
Charging voltage: 7.3V or 14.4 V or 14.7V
Charging current: 0.8A ± 10 %
3.8A ± 10 %
Battery type: 6V lead-acid battery
1.2Ah–14 Ah
12V lead-acid battery
1.2Ah–120 Ah
Temperature (min.): 0°C
Temperature (max.): 40°C
Housing protection type: IP 65 (dust-tight, protected
against water jets)
Safety class: II/
* = Return current is the current used by the
charging station battery, when no mains
current is connected.
Q
Safety
Safety information
DANGER! Avoid danger to life and limbs
caused by improper use!
CAUTION! Do not operate the appliance
with a damaged cable, power cord or
plug. A damaged power cord causes danger
to life by electric shock.
If damaged, have the power cord repaired by
authorised and trained technicians only! Please
contact the service department for your country!
PROTECT YOURSELF FROM
AN ELECTRIC SHOCK! When
connecting the charging station, use
a screwdriver and a spanner with an insulated
handle!
DANGER OF ELECTRIC SHOCK! Do not
operate the vehicle if you are charging a battery
while it is still in the vehicle! Switch off the igni-
tion and park the vehicle. Apply the parking
brake (e.g. in cars) or secure with a mooring
rope (e.g. electric boat)!
DANGER OF ELECTRIC SHOCK! Disconnect
the battery charger from the mains before you
make or break the connections to the battery.
- First connect the clamp that is not connected
to vehicle bodywork, then connect the other
clamp to the vehicle bodywork at a point
away from the battery and the fuel line. After
this is done, you can connect the battery
charger to the mains.
- After charging, disconnect the battery charg-
er from the mains. Then disconnect the clamp
attached to the vehicle bodywork before you
disconnect the clamp from the battery.
DANGER OF ELECTRIC SHOCK! Handle
the connecting cables („–“ and „+“) by their
insulated areas only!
DANGER OF ELECTRIC SHOCK! Ensure
that there is complete protection from moisture
at the connections to the battery and at the
mains outlet socket!
DANGER OF ELECTRIC SHOCK! Carry out
the mounting, maintenance and cleaning of the
battery charger only when it is disconnected
from mains!
DANGER OF ELECTRIC SHOCK! After
completion of the charging and maintenance
charging process on a battery mounted in a
vehicle, first disconnect the negative connection
cable (black) of the battery charger from the
negative terminal of the battery.

www.ekt2.com
Electronics Katrangi Trading
Do not leave small children
unattended with the battery
charger! Children are too young
to assess the possible dangers associated with
electrical devices. Children should be supervised
in order to ensure that they do not play with
the device.
Children or persons who lack the knowledge or
experience to use the device or whose physical,
sensory or intellectual capacities are limited
must never be allowed to use the device without
supervision or instruction by a person responsi-
ble for their safety.
EXPLOSION HAZARD!
Protect yourself from a high-
ly explosive oxyhydrogen gas
reaction! Gaseous hydrogen can leak from
the battery during the charging and discharging
process. Oxyhydrogen gas is an explosive mixture
of gaseous hydrogen and oxygen. The result is
the so-called oxyhydrogen reaction upon con-
tact with open fire (flames, embers or sparks)!
Carry out the charging or discharging proce-
dure in a wellventilated room protected from
the weather. Make sure that there are no sourc-
es of open fire (flames, embers or sparks) in the
vicinity when charging or discharging batteries!
RISK OF EXPLOSION OR FIRE!
Ensure that the use of the battery
charger cannot ignite any explosive
or combustible substances, e.g. petrol or solvents!
EXPLOSIVE GASES!
AVOID FLAMES AND SPARKS! Ensure
that there is adequate ventilation during the
charging process.
Stand the battery on a well ventilated surface
while charging. Otherwise the device could be
damaged.
DANGER OF EXPLOSION! Ensure that the
positive terminal connection cable does not come
into contact with a fuel line (e.g. petrol line)!
DANGER OF CHEMICAL BURNS!Protect
your eyes and skin against chemical
burns caused by acid (sulphuric acid)
upon contact with the battery! Wear:
Acid-resistant glasses, clothing and gloves! If
your eyes or skin come into contact with sulphuric
acid, rinse the affected part of the body with
plenty of clear running water and seek immedi-
ate medical assistance!
Avoid causing an electrical short-circuit when
connecting the battery charger to the battery.
Connect the minus pole connecting cable only
to the minus pole of the battery or to the car
body. Connect the plus pole connecting cable
only to the plus pole of the battery!
Before connecting to the mains, make sure that
the mains current is equipped with standard
230V~50 Hz, PEN conductor, a 16A fuse and
a residual-current circuit-breaker! Otherwise the
device could be damaged.
Do not place the battery charger near fire, heat,
or subject it to prolonged temperatures of over
50°C! The output from the battery charger
drops automatically in high temperatures.
Avoid damaging any lines carrying fuel, electricity ,
brake fluid, hydraulic oil or water. Be particularly
careful not to cause damage when mounting the
charger in place with screws! Failure to observe
this advice risks loss of life or injury!
Use only the supplied original manufacturer’s
parts with the battery charger!
Do not allow any objects to cover the battery
charger! Otherwise the device could be dam-
aged.
Protect the electrical contacts of the battery
against short-circuiting!
Use the battery charger only for charging and
maintenance charging of undamaged 6 V / 12 V
lead batteries (wet cell or gel electrolyte)!
Otherwise damage to property could occur.
Do not use the battery charger for charging or
maintenance charging of disposable batteries.
Otherwise damage to property could occur.
Do not use the battery charger for charging or
maintenance charging of damaged or frozen
batteries! Otherwise damage to property
could occur.
Before connecting the charging station, read
the information on battery maintenance in the
operating instructions of the battery! Otherwise
personal injury and /or damage to the device
could occur.
Before connecting the charging station to a
battery permanently installed in a vehicle, read
the information on electrical safety and mainte-
nance in the operating instuctions of the vehicle!
Otherwise personal injury and /or damage to
the device could occur.
Unplug the charger from the mains supply when
not being used! This also benefits the environment.
Consider how much electricity is consumed,
even in standby mode.
Remain alert at all times and always watch what
you are doing. Always proceed with caution
and do not use the battery charger if you can-
not concentrate or feel unwell.
Q
Product features
This appliance has been designed for charging a
variety of SLA batteries (sealed lead acid batteries),
as mainly used in cars, motorbikes and several other
vehicles. They may be of types e.g. WET (with liquid
electrolyte), GEL (with mit gel-type electolyte) or AGM
(absorbed glass mat) batteries. A special design of
the appliance (also named „three-phase-charging
strategy“) enables the recharging of the batttery to
almost 100% of its original capacity. Connecting
the battery for a long period to the battery charger
is also a good way of ensuring that your battery is
kept in optimum condition.
Q
Connection
Before starting the charging or discharging
procedure on a permanently installed battery
in a vehicle, first disconnect the minus pole con-
necting cable (black) of the vehicle from the
minus pole of the battery. The minus pole of the
battery is usually connected to the car body.
Then disconect the plus pole connecting cable
(red) of the vehicle from the plus pole of the
battery.
First attach the „+“ quick-release clamp (red) 15
of the battery charger to the „+“ terminal of the
battery (see Fig. C).
Attach the „–“ quick-release clamp (black) 16
of the battery charger to the „–“ terminal of
the battery (see Fig. C).
Connect the mains lead 11 of the battery
charger to an electrical power outlet socket.
Q
Disconnecting
Disconnect the appliance from the power supply.
Detach the „–“ quick-release clamp (black) 16
from the „–“ terminal of the battery.

www.ekt2.com
Electronics Katrangi Trading
Q
Operation
Before you carry out any work
on the battery charger always pull the mains
plug out of the mains socket.
DANGER OF ELECTRIC
SHOCK! DANGER OF DAMAGE TO
PROPERTY! DANGER OF INJURY! Ensure
that you do not strike electrical cables, gas or
water pipes when you are drilling into the wall.
If necessary, check the wall using a suitable
detector before you drill.
You may find it convenient to attach the battery
charger on to a board or a wall. Screw the two
screws through the mounting holes 12 into the
board or wall.
Detach the „+“ quick-release clamp (red) 15
from the „+“ terminal of the battery.
Reconnect the plus pole connecting cable of
the vehicle to the plus pole of the battery.
Reconnect the minus pole connecting cable of
the vehicle to the minus pole of the battery.
Q
Select charging mode
You can select different charging modes for charging
different batteries at different ambient temperatures.
In comparison with conventional battery charging
stations, this appliance has a special function for
reusing an empty battery or rechargeable battery.
You can recharge an empty battery/ rechargeable
battery. Safe charging is ensured by means of a
protection function against incorrect connection and
short circuiting. Due to the installed electronics, the
charging station does not begin operation directly
after connecting the battery, but only starts after a
charging mode has been selected.
This avoids sparking, which often occurs when
connecting. The battery charger is controlled by an
internal MCU (Micro-Computer Unit).
Q
Reset/deleting settings
After connection to the power supply, the appliance
automatically returns to its basic setting and remains
in STANDBY mode
Q
Switching between modes 1,
2, 3 and 4
Press the MODE selection button 9the appro-
priate number of times.
The device switches between charging modes in
the following order: Standby , MODE 1
„6V“, MODE 2 , MODE 3 , MODE 4
and then repeats the cycle
NOTE: If a 12V battery is connected, MODE 1 “6V”
cannot be selected. If a 6V battery is connected,
MODES 2, 3 and 4 “12V” cannot be selected.
NOTE: If you press the selector button 9, charging
mode automatically switches over to the next mode
and begins operation in that mode.
NOTE: However, if a battery is not disconnected
from the charging station after a full charge, the
appliance remains in trickle-charge mode, even if
the user switches over to another mode. This pro-
tects the battery from being damaged.
Q
Mode 1 „6V“ (7.3V /0.8A)
This mode is suitable for charging 6V lead-acid
batteries with a capacity less than 14Ah.
Press the selection button MODE 9, to select
mode 1. After doing so, the corresponding LED
display „6V“ 2lights up. If you do not activate
an-other process afterwards, the electronic sys-
tem will automatically start the charging process
together with the LED display 8at (with a
current of) 0.8A ± 10 %. If the procedure runs
without any problems, the LED display 8
remains on during the entire charging proc
ess, un-
til the battery is fully charged at 7.3V /±
0.25V.
When the battery is fully charged, LED display
7lights up and LED display 8goes
out. The device now switches automatically into
maintenance charging mode.
Q
Mode 2 „12V“ (14.4V/0.8A)
This mode is suitable for charging 12V lead-acid
batteries with a capacity less than 14Ah.
Press the selection button MODE 9, to activate
mode 2. After completion of this process, the
appropriate LED indicator 3lights up.
Then if you do not take any further action, the
electronic control and the LED indicator 8
automatically switches on and starts the charg-
ing process. If the procedure runs without any
problems, the LED display 8remains on
during the entire charging process, until the
battery is fully charged. When the battery is
fully charged, LED display 7lights up and
LED display 8goes out. The device now
switches automatically into maintenance charging mode.
Q
Mode 3 „12V“ (14.4V/3.8A)
This mode is mainly suitable for charging 12V
lead-acid batteries with a capacity greater than
14Ah under normal conditions.
Press the selection button MODE 9, to activate
mode 3. Then if you do not take any further ac-
tion, the electronic control and the LED indicator
4switches on and starts the charging pro-
cess. If the process runs without any problems,
the LED indicator 8remains on during the
whole charging process until the battery is
charged. When the battery is fully charged, the
LED indicator 7and the die LED indicator
8go out. The device now switches auto-
matically into maintenance charging mode.
Q
Mode 4 „12V” (14.7V/3.8A)
This mode is used for charging 12V lead-acid bat-
teries with a capacity greater than 14Ah under
cold conditions or for charging some AGM (Absor-
bent Glass Mat) batteries with a capacity greater
than 14Ah.
Press the MODE selection button 9to select
mode 4. As you select the desired mode, the
appropriate LED indicator 5lights up im-
mediately. If you take no further action, the elec-
tronic control switches on after a preset delay

www.ekt2.com
Electronics Katrangi Trading
to begin the charging process. In this mode the
charging current is the same as in “mode 3”. If
the process runs without any problems, the LED
indicator 8lights up, the electronic control
switches on and remains in this state until the
battery is charged. As soon as this point is
reached, the battery charger switches to main-
tenance charging mode. Now the LED indicator
8goes out and the LED indicator 7
lights up to indicate the present status.
Q
Regenerating/charging
empty (used, overcharged)
12V batteries
The battery charger detects the battery voltage au-
tomatically once the battery charger is connected
to a battery and the charging process has started.
It changes to pulse charging mode if the voltage is
in the range of 7.5V ± 0.5 to 10.5V ± 0.5 V.
This pulse charging process is continued until the
battery voltage has increased to 10.5V ± 0.5V.
As soon as this state is reached, the battery charger
switches into the normal charging mode that you
selected earlier.
Now the battery can be charged quickly and safely.
Most empty batteries can be charged and used
again using this procedure.
NOTE: The LED indicator 8flashes during
the pulse-charging process.
Q
Protective function of the device
As soon as a deviating situation, such as short-circuit,
critical voltage drop during the charging process,
open circuit or reversed connection of the output
clamps, occurs, the battery charger switches the
electronics off and resets the system directly into the
default settings to avoid causing any damage. If you
do not activate any settings, the system will remain
in STANDBY mode. With the inverse connection of
the output clamps the LED display „incorrect polari-
ty/fault“ 6lights up additionally.
Q
Overheating protection
If the appliance becomes too hot during charging,
the power output is automatically reduced. This
protects the appliance from damage.
Q
Maintenance and care
Before you carry out any work
on the battery charger always pull the mains
plug out of the mains socket.
Do not under any circum-stances use solvents
or other aggressive cleaning agents.
The appliance is maintenance-free.
Switch off the appliance.
Clean the plastic surfaces of the device with
a dry cloth.
