SAFETY AND SET-UP
Please read this instruction manual thoroughly before using this appliance. Follow all the safety instruc-
tions to avoid damage caused by improper use.
Keep this instruction manual for future reference. Should this appliance be given to a third party, then the
instruction manual must also be handed over.
• Use this appliance for its intended purpose.
• Only use this appliance indoors. Do not use this appliance in the bathroom or outside.
• No liability can be assumed for possible damages that may have been caused by incorrect usage or
mishandling of the appliance.
• Do not leave this device unattended as long as it is in use. Extreme caution is advised when being used
near children and persons who are restricted in their physical, sensory or mental abilities.
• The appliance should not be used by the following persons, including children: those with limited physical,
sensory or mental capabilities or those with a lack of experience and know-ledge. This does not apply to
the latter if they were instructed in the use of the appliance or if they use it under the supervision of a per-
son responsible for their safety. Children should always be supervised to ensure that they do not play with
the appliance.
• Do not place this appliance on hotplates (gas, electric / coal stoves, etc.). Keep this device away from all
hot surfaces.
• Always operate this appliance on a at, solid, clean and dry surface.
• Do not open the outer casing under any circumstance. No liability can be assumed for damages caused
by improper use.
• Our GRUNDIG Household Appliances meet all the applicable safety standards; thus if the appliance
or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly
qualied and authorized service person to avoid any danger. Faulty or unqualied repair work may cause
danger and risk to the user.
• Never use this appliance with damp or wet hands.
• Only use the original accessories or those that are recommended by the manufacturer.
• Danger of suffocation!
Keep all packaging materials away from children.
• Dispose of the packaging materials properly.
• Please contact your local authority in regard to disposal and recycling in your area.
• Remove all packaging materials and labels, and dispose of them according to the applicable legal regu-
lations.
• Clean all parts prior to usage.
• This appliance is only suitable for household use.
• Make sure that your local power supply corresponds to the information on the label. The only way to dis-
connect the appliance from the power supply is to pull the power plug out of the power outlet.
3
SAFETY AND SET-UP
• For additional protection, this appliance should be connected to a household residual current device with
a rating of no more than 30 mA. Consult your electrician for advice.
• Dry off the appliance and all accessories prior to connecting it to a power supply and prior to attaching
the accessories.
• Make sure you do not accidentally trip on the power cable when the appliance is in use.
• Position the appliance in such a way that the power plug is always accessible.
• Never touch the power plug with damp or wet hands.
• Unplug the appliance before each cleaning and when the device is not in use.
• Avoid damages to the power cable by not squeezing, bending or rubbing it on sharp edges. Keep the
power cable away from hot surfaces and open ames.
• Do not pull on the power cable to disconnect the appliance from the power supply and do not wrap the
power cable around the appliance; use the cable storage holder provided.
• Do not use this appliance with an extension cord.
• Do not submerge the appliance, the power cable or the power plug in water or in any other liquid.
• Only clean this device with a slightly damp cloth.
• Always keep hair, clothing and other objects away from the appliance while it is in use in order to prevent
injury and damages.
• Warning - Danger of Burns!
Do not touch the hot soleplate. Do not lean over the iron while it is in use. Heat will rise from the device
during usage! Only touch the iron by the handle.
• If this appliance falls, if water leaks or other defects occur, it must be inspected and repaired by an au-
thorized specialist.
• Do not use this appliance until the defect has been repaired.
• Do not iron over zippers, metal buttons or other metal parts, as this could damage the soleplate.
• To guarantee the safety of the appliance, do not alter the safety features in any way.
• When walking away or leaving the appliance for only a brief amount of time, ensure you always place the
iron on the storage base and switch it off.
• An unsupervised, hot iron can result in burn injuries!
• Never point the hot soleplate towards people, animals or electrical devices whilst steam is being emitted.
• After use, always let the iron cool down completely in a location out of reach of children and persons who
are restricted in their physical, sensory or mental abilities. Wait until the appliance has completely cooled
down before storing it away.
4
Control and Parts
OPERATION
See the gure on Page 2
A Soleplate
B Water lling opening with closure
D Cord bushing
E Temperature control screen
D Cord bushing
F Mode Led
C Steam & Burst steam button
H Water tank
Preparation
1. Remove all packaging material, stickers and protective foil and dispose of them according to the appli-
cable statutory regulations.
2. Clean the outer parts of the appliance as described in the section “Cleaning and Care“.
3. Place the appliance on an even, stable, dry and non-slip surface.
Notes
• During rst use, a slight odor may occur as a result of manufacturing residues being burnt off. This is
harmless and will only last a short amount of time. Ensure for sufcient ventilation.
• Do not ll with vinegar, descaling agents, starch, perfume or ironing aids into the water tank.
• When ironing for the rst time, use an old, clean cloth so that manufacturing residues can be removed
from the soleplate (A).
General specications - temperature and steam setting
AUTO vs PRO MODE
The smart manager technology includes also the possibility to iron in two different ways in terms of steam
management:
PRO MODE
The iron does not produce continuous steam. The user is just able to produce the steam shot pushing the
steam button below the handle.
5
OPERATION
AUTO MODE
The iron produce continuous steam without pushing the trigger (just one push to start and one push to stop
for safety reasons). The continuous steam is just produced when the user moves the iron. The shot is not
available in AUTO mode.

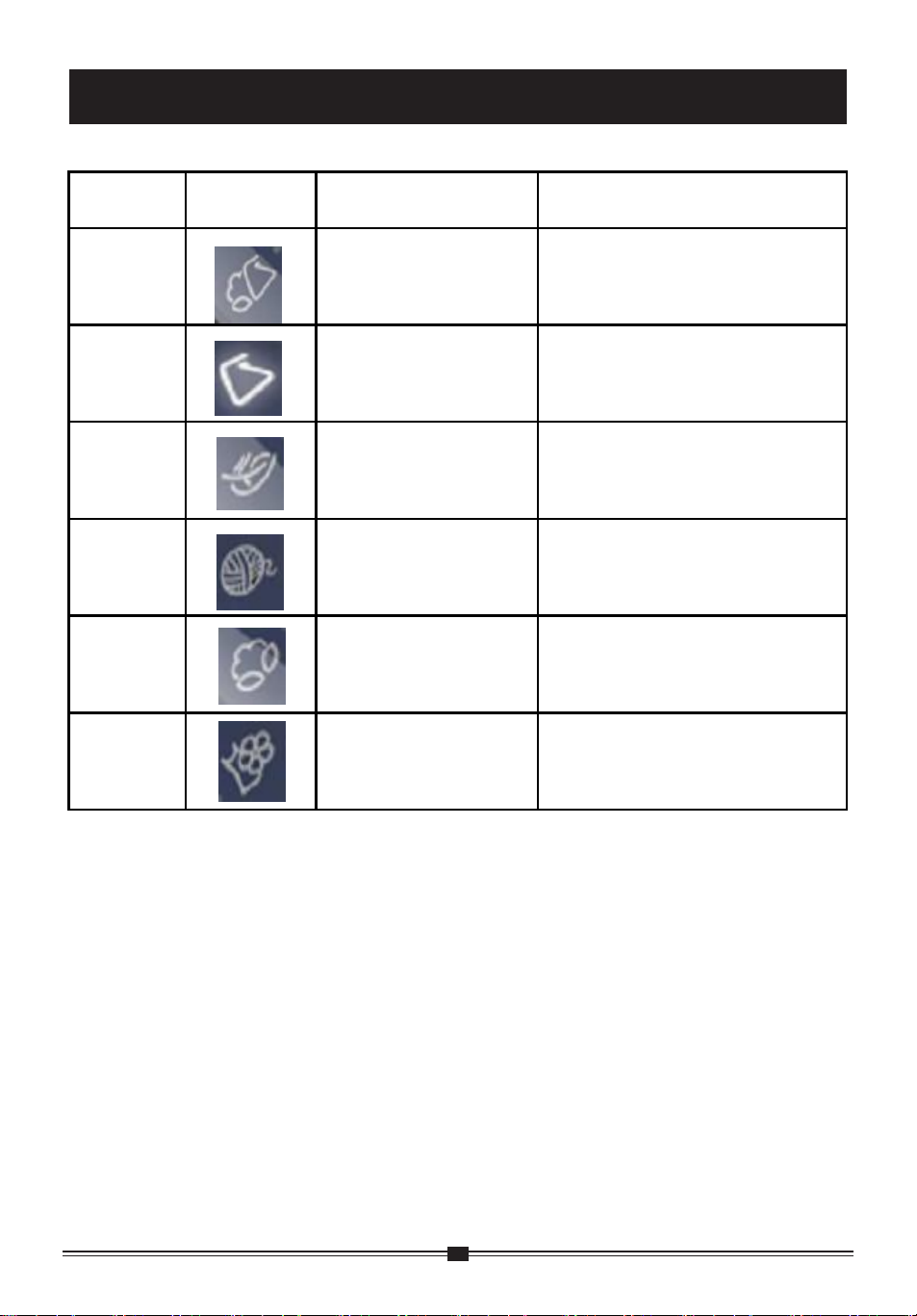

Level Marks Tempertuare ℃ Suitable materials
1 90<T<130 All
2 90<T<130 Cupro, polyester fibre ，
polyester,silk
3 100<T<140 silk
4 130<T<170 wool
5 170<T<205 cotton
6 180<T<235 flax
6
General specications - others
Steam rate: target: 60 gr/min
reference model: 50 gr/min (acceptable)
Steam shot: 150 gr (follow IEC spec….)
Water tank capacity: > 300 ml
Detachable water tank: no
Spray: no
Cable storage: wind around the iron
Tap water: not allowed
Anti-scale system: yes (automatic washing cycle)
Dry ironing
Place the appliance on an even, dry and non-slip surface.
2. Insert the power plug into the wall socket.
3. Turn the temperature control button to your desired setting, which is depended on the fabric of the
garment. And the temperature indicator light (H) illuminates. Then put the iron on its heel.
OPERATION
Level Marks Tempertuare ℃ Suitable materials
1 90<T<130 All
2 90<T<130 Cupro, polyester fibre ，
polyester,silk
3 100<T<140 silk
4 130<T<170 wool
5 170<T<205 cotton
6 180<T<235 flax
7
OPERATION
Caution
Always read the care label on your garment before setting the temperature.
The temperature indicator light lights up red. The red temperature indicator light ashs whilst the iron is
heating up. As soon as the iron reaches the set temperature, the temperature indicator light remains. The
temperature indicator light will go on during usage to indicate that the set temperature is being regulated.
As soon as the temperature indicator light remains, the steam iron is ready to use.
5. The ironing process can begin.
6. After ironing, let the appliance cool down in a location that is safely out of reach of children.
Filling of the water tank
1. Open the tank cover, tilt the iron backwards at an angle of 45 degree to the horizontal（see Fig.3）,
and ll proper water into the tank by a measuring cup. After lling, close the cover.
2. Close the cover of the water lling opening. Make sure that it clicks into place properly.
Note: If your tap water is very hard it is recommended that the tap water is mixed with distilled water on
50:50 ratio, or use distilled water only.
Steaming iron
1. Fill the water tank as described in the section “Filling the water tank”.
2. Insert the power plug into the wall socket.
3. Turn the temperature control button to your desired setting, which is depended on the fabric of the
garment. And the temperature indicator light illuminates. Then put the iron on its heel.
Caution
Always read the care label on your garment before setting the temperature.
The temperature indicator light (H) lights up red. The red temperature indicator light ashs on whilst the iron
is heating up. As soon as the iron reaches the set temperature, the temperature indicator light remains. The
temperature indicator light will go on during usage to indicate that the set temperature is being regulated.
4. As soon as the temperature indicator light remains, the steam iron is ready to use. Then set the steam
knob (D) to your desired steam output.
5. Hold the iron in horizontal position at the garments. Continue to move the iron when ironing.
Caution: Never direct the steam at people or pets.
6. Press the spray button (E) a couple of times to moisten the laundry if necessary. Before spraying, make
sure there is enough water in the tank.
7. Burst steam button (F) had better be used at maximum temperature, as it helps remove stubborn creases.
Wait a while before using the shot of steam button again to avoid splattering.
8. After ironing, disconnect the plug from the power, let the appliance cool down in a location that is safely
out of reach of children.
8
Caution:
• Never touch the hot soleplate with bare hands. Danger of Burns!
Vertical steam ironing
Note:
Vertical steam ironing can be applied to hanging curtains or clothes (suits, jackets
and coats).
Caution:
Never direct the steam at people or pets.
1. The steam settings refer to section Steam ironing.
2. When the temperature indicator light remains, it indicates that the appliance is ready for steam ironing.
3. Hold the iron in vertical position at the garments or curtains. Continue to move the iron when ironing.
Automatic shut-off
• The electronic shut-off function automatically switches the heating element off if the iron has not been
moved for a while.
1. The light starts blinking and several beep sounds will be heard to indicate that the iron has been
switched off by the safety shut-off function.
1) In horizontal position, this will happen after 30 seconds.
2) In side position, this will happen after 30 seconds.
3) In vertical position, this will happen after 8 minutes.
2. To let the iron heat up again
1) Pick up the iron or move it slightly. The light stops blinking.
2) If the light goes on, wait for it to go out before you start ironing.
3) If the light does not go on, the iron is ready for use.
Self-clean function
The self-clean function helps remove the scale particles. Use the self-clean function regularly according
to hardness of water and using frequency. If the water in your area is very hard (i.e. akes come out of the
soleplate during ironing), the self-clean function should be used more frequently.
Fill the water tank to MAX level.
Put the plug in the wall socket.
Set the temperature control button to self-clean function.
Gently shake the iron until all water in the tank has been used up.
Repeat the self-clean process if the water coming out of the iron still contains scale particles.
OPERATION
9
OPERATION
Tips for ironing
Prior to ironing, always check the garment label to ensure the correct temperature setting is on the iron.
Since the iron heats up much quicker than it cools down, synthetic textiles, silk or similar fabrics should be
ironed using lower temperature settings rst.
If the garment is made of combined types of fabric, always begin with the lowest temperature setting rst.
Silk and other textiles that tend to shine should be ironed inside out. Velvet and other types of fabric that
shine should be ironed with very little pressure and only in one direction. Always keep moving the iron
while ironing.
Do not use the steam function when ironing colored silk. This could cause stains.
Garments made of 100% pure wool can be ironed using steam. Set the temperature control dial preferably
to the MAX setting and lay a dry towel between the garment and the iron.
Ironing wool garments can cause them to ‘shine’. It is therefore recommended to iron such garments inside out.
Caution
Never iron on metal parts, such as zippers, rivets, or metal buttons as they could damage the soleplate.
Always iron around these metal parts.
Cleaning and care
Caution
Do not under any circumstance use petrol, solvents, abrasive cleaners, or hard brushes to clean this
product.
Do not touch the hot soleplate with bare hands directly after ironing. Danger of Burns!
Never hold the steam iron under running water and never submerge it in water or any other liquid.
Never clean the soleplate with chemicals, steel wool, wood or other abrasive cleaning agents.
1. Prior to each cleaning, turn the device off and disconnect the power plug from the power outlet.
2. Let the steam iron cool down completely.
3. Use a slightly damp cloth to clean the exterior of the iron. Then dry it off thoroughly.
4. Wipe deposits off the soleplate with a slightly damp cloth or if necessary, with a mild, non-
abrasive liquid cleaner.
Storage
If you will not be using the steam iron for a long period of time, please store it away carefully.
Make sure that the iron is disconnected from the power supply and completely dry when storing it away.
Empty the water tank.
Please try to store the steam iron and the attachments in their original packaging.
Store it in a cool, dry place.
Make sure the appliance is always kept out of the reach of children.
This product has been manufactured with high quality parts and materials which can be reused and are
suitable for recycling. Therefore, do not dispose of the product with normal domestic waste at the end of
its service life. Take it to a collection point for the recycling of electrical and electronic equipment. This is
indicated by this symbol on the product, in the operating manual and on the packaging.
Please consult your local authorities to nd out where the nearest collection point is.
Help protect the environment by recycling used products.
Power supply: 220-240V 50-60Hz
Power consumption: 2400-2800W
Steam quantity: 24g/min.
Water tank capacity: 300ml.
Environmental note
Technical data
MAX
F
MAX
H
H
D
E
°23002
°22001
°21001
°17002
°14001
°13001
°20001
°15001
°13002
IEC
AUTO
AUTO
°23050
°22040
°21030
°20010
°17030
°15020
°14020
°13010
°13030
A
B
D
E
F
C
H
A
PROAUTO
PRO
•
GRUNDIG
TST-2400ETST-2400E
وﺪﻴﻧرﻮﺗ رﺎﺨﺑ ةاﻮﻜﻣ
ﻞﻴﻐﺸﺘﻟا ﻞﻴﻟد
ﻰﺑﺮﻌﻟا ﺔﻛﺮﺸﺑ ﺔﺻﺎﺧ ﺔﻠﺠﺴﻣ ﺔﻳرﺎﺠﺗ ﺔﻣﻼﻋ ﻰﻫ وﺪﻴﻧرﻮﺗ ﺔﻣﻼﻌﻟا هﺬﻫ
تﻼﻳدﻮﻣ
وﺪﻴﻧرﻮﺗ - رﺎﺨﺑ ةاﻮﻜﻣ كرﺎﻴﺘﺧ ﺮﻜﺷ
Table of contents
Languages:
