Elation Lumina Matrix User manual

Lumina Matrix
USER MANUAL
40-3402

Lumina Matrix LED
1. The unit power cable (x1) + Yoke Assembly (x1)
2. Axle Bush(x2) + L Type Hexagon Spanner(x1) + M10 Washer(x4)
3. M10*20 S Type Bakelite Screws(x2) + Belleville Washer(x2)
4. M6*12 Screw(x4) + M6*20 Screw(x2) + Profile gasket(x2)
Standard DMX 5-pin In/Out
48 built-in programs except for Auto subject to Speed and Dimmer
0-100% dimming level
Standard DMX-512 protocol
01 Thru 100 Chase Speed adjustment
Power failure memory
MAIN FEATURES
LED display window-shows current activity and function state
On/Off switch
Fuse protection
Accessories(Included):
Lumina Matrix LED is provided with the ability to hang via truss hooks, clamps, etc.(sold separately). Simply attach
hook clamp, etc. to the Lumina Matrix LED’s mounts in the provided M13 holes. Before use, make sure the screws are
secured firmly.
INSTALLATION
07, 08, 10, 14, 16, 22 DMX Channels selection
Note :
Once this unit is for hanging application, it is required to use a safety rope (sold separately, which can hold at least
10 times the weight of the fixture ) to ensure the mounting safety of the fixture by attached through the holder.
Yoke Assembly(x1)
S Type Bakelite Screw(x2)
M10 Washer(x4)
Belleville Washer(x2)
Profile Gasket (x2)
M6*20 Screw(x2)
Axle Bush(x2)
2

Lumina Matrix LED
GENERAL INSTRUCTIONS
WARNINGS
After use, the front panel is extreme hot. Please wait at least 15 min. for absolute cool before touching it.
Otherwise, it causes the result of burning.
Thanks for your purchasing Elation Lumina Matrix LED lighting equipment, which is available in Warm White
(WW) version. The Lumina Matrix LED is compatible of both DMX & RDM and with 16 channel LED intensity
adjustable. Programs can be updated via RDM interface. It is available in master and slave control connection.
It is easy for users to install and operate.
For the optimum operation and best performance, please read the instruction in this manual carefully and
thoroughly.
This device is not suitable for direct mounting on normally flammable surfaces. To keep a minimum 0.2m
safety distance to any flammable materials.
DO NOT make any inflammable liquids, water or metal objects enter the unit.
This unit contains no user serviceable parts inside. This unit contains dangerous voltages, always remove
the power plug from the wall socket before any service operation and when not in use for a long time.
Earth connection is so essential.
Stop using the unit immediately in the event of serious operation problems and either contact your local
dealer for a check or contact us directly.

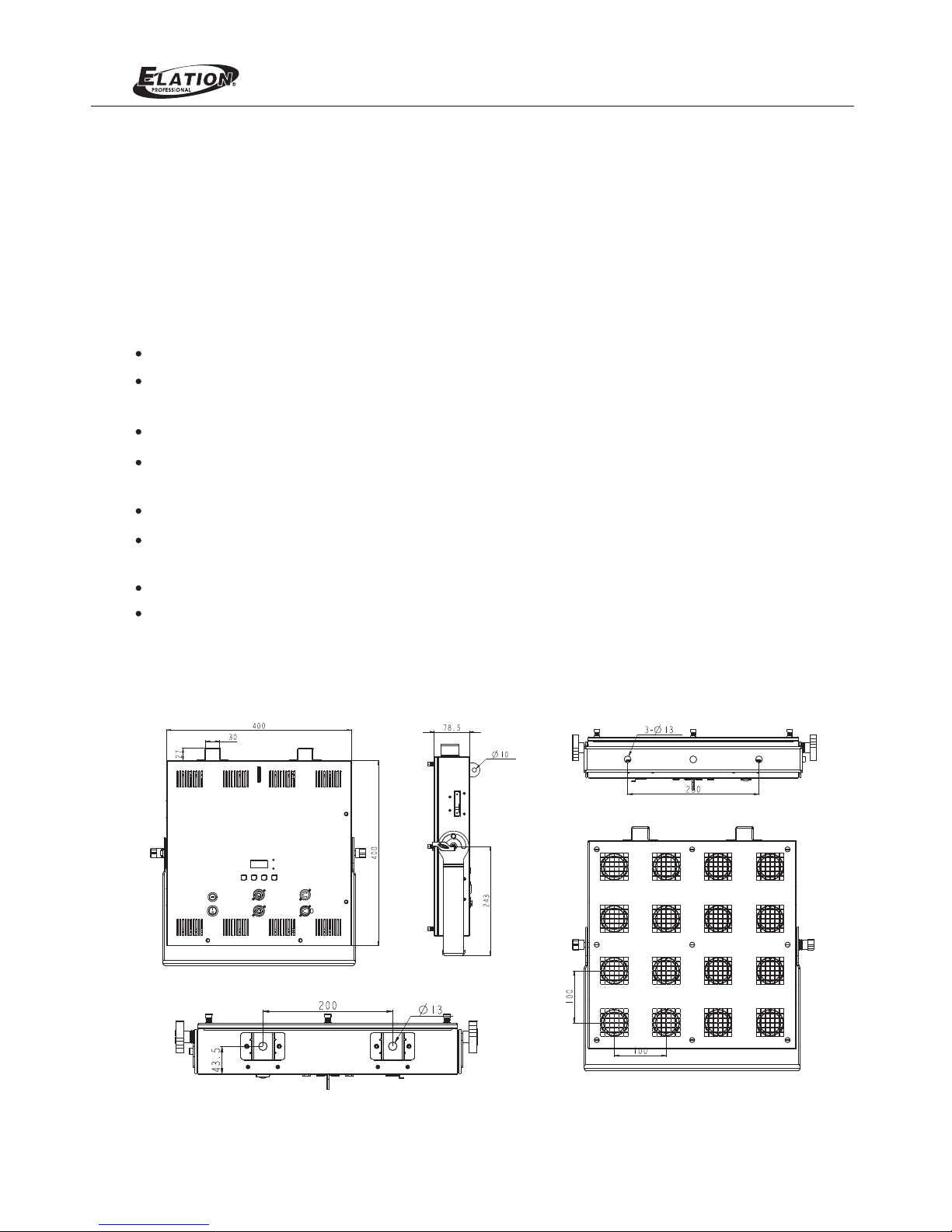

PHYSICAL DIMENSIONS
To protect against high electric shock and injury to person, DO NOT open or dismantle the unit.
NEVER try to repair the unit yourself. Repair by unqualified people could cause damage or mis-operation.

Lumina Matrix LED
Lock Details
Multi-Lumina Matrix LEDs can be installed together for hanging application via a L type spanner(included). Line up
the products side by side, then insert the L type spanner into the mounting hole on the back of the product, and then
turn the L type spanner in clockwise, the products will be locked together. (see the illustrations as below)
WARNING! Never install over 5 units together in a vertical row. Or else, there will be overweight danger.
Fasten

Lumina Matrix LED

Lumina Matrix LED
Fuses:
The Lumina Matrix LED electric system is protected by T3.15A 250V 5x20mm. Please see the printing on the case
and these fuses prevent you from overloading damaging your unit. To replace the protective fuse, use a flat head
screwdriver to unscrew the fuse holder. Pull out the old fuse and replace it with a new one. Insert the fuse back
into the slot and tighten. Always replace with exact same type fuse removed unless otherwise specified by an
authorized service technician,
Power:
Before plugging your unit in, be sure the resource voltage in your area matches the unit required voltage.
The unit is available in 100-240 VAC. Because the line voltage may vary from venue to venue, you should be
sure to plug the socket into a matching wall outlet before attempting to operate your unit.
SYSTEM CONNECTION
3pin Power Cable
5pin DMX Cable
DMX IN
DMX OUT
DMX IN
DMX OUT
DMX IN
DMX OUT
DMX IN
DMX OUT
POWER IN
DMX IN
Connect to12pcs(AC100-120V) / 21pcs(AC230V)
Maximum amount of this units that may be connected is 12pcs(AC100-120V) or 21pcs(220-240V). One universe
DMX candrive up to 32pcs of Lumina Matrix LED, please add DMX booster if Lumina Matrix LEDs are connected
together in line over 32pcs or data cable over 100M. the connections may be illuminated as following.

MODE M NE U
RDM/DMX
POWER
UP DOWN
Lumina Matrix LED
LCD Display
Mode Key
Menu Key Up Key
Power indicator
RDM/DMX indicator
Down Key
LCD DISPLAY/MENU SYSTEM
OPERATION MODES
The “ ” has two different operation modes. It can be used as a 07, 08, 10, 14, 16, 22 channel DMX Lumina Matrix LED
dimmer. Tap “Mode” button to switch the operation mode between “DMX Control Mode” and “Built-in Program Mode”.
Please follow illustrations below to operate the unit in your desired mode.
Mode Parameter Parameter Value Function
DMX
Program
Address
Channel
No DMX
Glide
Program
Speed
Master
Lamp Mode
Fade Time
001-512
07/08/10/14/16/22
OFF/Hold/Program
OFF/ON
01--48/AUTO
01-100
00-100
Tungsten/LED
00-100
To set the initial DMX receiving address
To set the DMX Control Mode
To set the status of the fixture when no DMX signal input
To set the output of the DMX Data
To select a built-in program
To set the speed level of the built-in Program
To set the intensity
To set the mode of Lamp
To set the speed of the Fadetime

Lumina Matrix LED
Use this operation mode only when you are about to use the unit as a DMX dimmer. This function can allow
you set your unit dimmer function as a 07, 08, 10,14, 16 or 22 channel DMX dimmer and DMX address.
DMX Mode
DMX Channel Functions Details
10 Channel Mode
DMX
Channel
LED 1-LED4 Dimmer LED 1-LED8 Dimmer LED 1-LED16 Dimmer
LED 9-LED16 Dimmer
LED 5-LED8 Dimmer
LED 9-LED12 Dimmer
LED 13-LED16 Dimmer
Lamp Mode
DMX Channel 22 Channel Mode
LED1 Dimmer LED1 Dimmer LED1-LED2 Dimmer
LED3-LED4 Dimmer
LED13-LED14 Dimmer
LED11-LED12 Dimmer
LED9-LED10 Dimmer
LED7-LED8 Dimmer
LED5-LED6 Dimmer
LED15-LED16 Dimmer
Program
Speed
Play Mode
Lamp Mode
Fade Time
Master
LED15 Dimmer LED15 Dimmer
LED14 Dimmer LED14 Dimmer
LED13 Dimmer LED13 Dimmer
LED12 Dimmer LED12 Dimmer
LED11 Dimmer LED11 Dimmer
LED10 Dimmer LED10 Dimmer
LED9 Dimmer LED9 Dimmer
LED8 Dimmer LED8 Dimmer
LED7 Dimmer LED7 Dimmer
LED6 Dimmer LED6 Dimmer
LED5 Dimmer LED5 Dimmer
LED4 Dimmer LED4 Dimmer
LED3Dimmer LED3Dimmer
LED2 Dimmer LED2 Dimmer
LED16 Dimmer LED16 Dimmer
16 Channel Mode 14 Channel Mode
Program
Master
Play Mode
Lamp Mode
Fade Time
Speed
17
18
19
20
21
22

Lumina Matrix LED
2. Chase Speed Menu:
3. Master (Intensity) Menu:
Use the "UP" and "DOWN " buttons to adjust the light output
intensity between 000 ~ 100. A set value of 000 will give you
the weakest output intensity and a set value of 100 will give
you the full intensity.
Speed
001
MODE MENU UP DOWN
Speed
100
MODE MENU UP DOWN
Dimmer
100
MODE MENU UP DOWN
Dimmer
001
MODE MENU UP DOWN
Press “MENU’ button to select and activate “Chase Speed”
menu. In this menu, you can adjust the program chase speed.
Use the "UP " and "DOWN" buttons to adjust the chase speed
from 001 thru 100. A set value of 100 will give you the fastest
chase speed(approx.1/10th of a second) . While a set value of
001 will give you the slowest chase speed (once every 30 second.).
To adjust the output intensity, you must activate the
Chase Dimmer Menu as the previous step. Press “MENU”
button and select “Chase Dimmer” menu, the LCD will display
“Dimmer” followed by three digits.
Selecting any program of Program01-48 will activate the selected
program; while selecting “Auto” will automatically play the built-in 48
chase programs.
Auto
MODE MENU UP DOWN
Program
01
MODE MENU UP DOWN
Program Mode:
The unit has 48 built-in programs except for Auto. Of course, you can select any of these programs to chase for
a the speed at which the set programs will be chased. more dramatic lighting show, and you can also control
1. Setting your desired Chase Program:
Once you have activated the Chase Mode, you can tap the “MENU”
button to select and activate “Chase Program” menu. The chase pattern
is displayed in the LCD by "Program " followed by two digits 01~48 or
only "AUTO" appears. You can tap “UP” and “DOWN” button
to select any of them to run at a single time.

Lumina Matrix LED
2. Selecting the DMX Channel
1. Selecting DMX Address
Press “MENU” button and select DMX channel address menu after having
activated the Receive Mode. The DMX Address Mode is indicated by
"Address” followed by three digits 001~ 512. You can tap the “UP” and
“DOWN” buttons to change the DMX Address Value.
Note: There is no DMX input in the master unit of the connection.
Address
001
Channel
01
MODE MENU UP DOWN
MODE MENU UP DOWN
Press “MENU” button and select Channel Mode. The Channel Mode is
indicated by "Channel" followed by two digits 07,08, 10, 14, 16, 22. You can
tap the "UP” and "DOWN" buttons to change the setting from 07, 08, 10,14
16 or 22 which you wish to run.
Channel Parameter details：
Functions
LED Dimmer DMX value 0---100% equal to intensity
0---100%
Program
DMX 0--3 for local DMX Dimmer Mode
DMX 4--7 Program 1
DMX 8--11 Program2
DMX 12 --15 Program3
DMX 16 -- 19 Program4
…
DMX 192 --195 Program48
DMX 196 --255 Auto
Speed
The bigger DMX value is, the faster the Programe runs
FadeTime
DMX value 0---100% equals to FadeTime 0---100%
LampMode
DMX 0-- 127 for choosing the work mode of the LED
DMX 128--255 for choosing Tungsten
Play Mode
DMX 0--80 to stop the Program
DMX 81 --160 to pause the Program
DMX 161--255 to play the Program
Master
DMX value 0--- 100% 100%
equals to Program intensity
0---
Parameters
4. Lamp Mode Menu:
5. Fade Time Menu:
LampMode
LED
MODE MENU UP DOWN
FadeTime
000
MODE MENU UP DOWN
Press “MENU” button and select “Lamp Mode” menu, the LCD will
display “LampMode Tungdten”, user can press “UP” or “DOWN” button
to switch to “LampMode LED” menu.
Press “MENU” button and select “Fade Time” menu, the LCD will
display “FadeTime” followed by three digits, user can press “UP”
or “DOWN” button set the desired Fade time value from 000 to 100.

Lumina Matrix LED

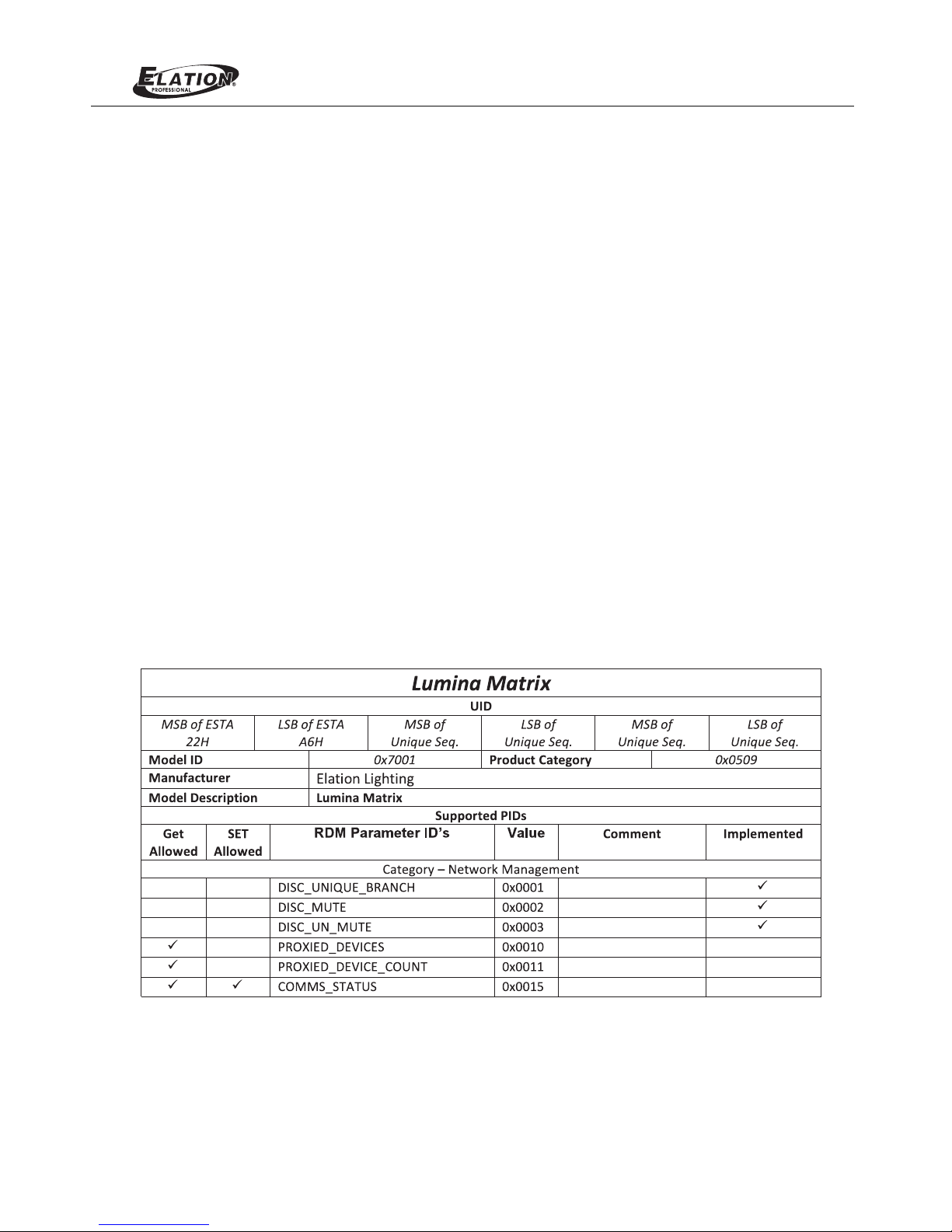

Lumina Matrix LED RDM Parameter IDs
The following tables outline and describe all the RDM parameters IDs associated with Lumina Matrix LED.
Table 1: Lumina Matrix LED RDM Parameter IDs
NOTE:
1. When CH:07 is displayed, overall channels will be controlled by DMX channel 1, and the DMX2~7 will control
to run a 1~48 sequential program.
2. When CH:08 is displayed, channel 1~8 will be controlled by DMX channel 1, channel 9~16 will be controlled by
DMX channel 2. The DMX channel 3~8 will control to run a 1~48 sequential program.
3. When CH:10 is displayed, channel 1~4 will be controlled by DMX channel 1, channel 5~8 will be controlled by
DMX channel 2, the rest will be deduced by analogy... and channel 13~16 will be controlled by DMX channel
4. The DMX channel 5~10 will control to run a 1~48 sequential program.
4. When CH:14 is displayed, channel 1~2 will be controlled by DMX channel 1, channel 3~4 will be controlled
by DMX channel 2, channel 5~6 will be controlled by DMX channel 3, the rest can be deduced by analogy
... and channel 15~16 will be controlled by DMX channel 8. The DMX channel 9~14 will control to run a 1~48
sequential program.
5. When CH:16 is displayed, each channel will be controlled by one DMX channel. This is the factory default
setting.
6. When CH:22 is displayed, DMX channel1~16 will control the LED, and the DMX channel 17~22 will control
to run a 1~48 sequential program.

Lumina Matrix LED

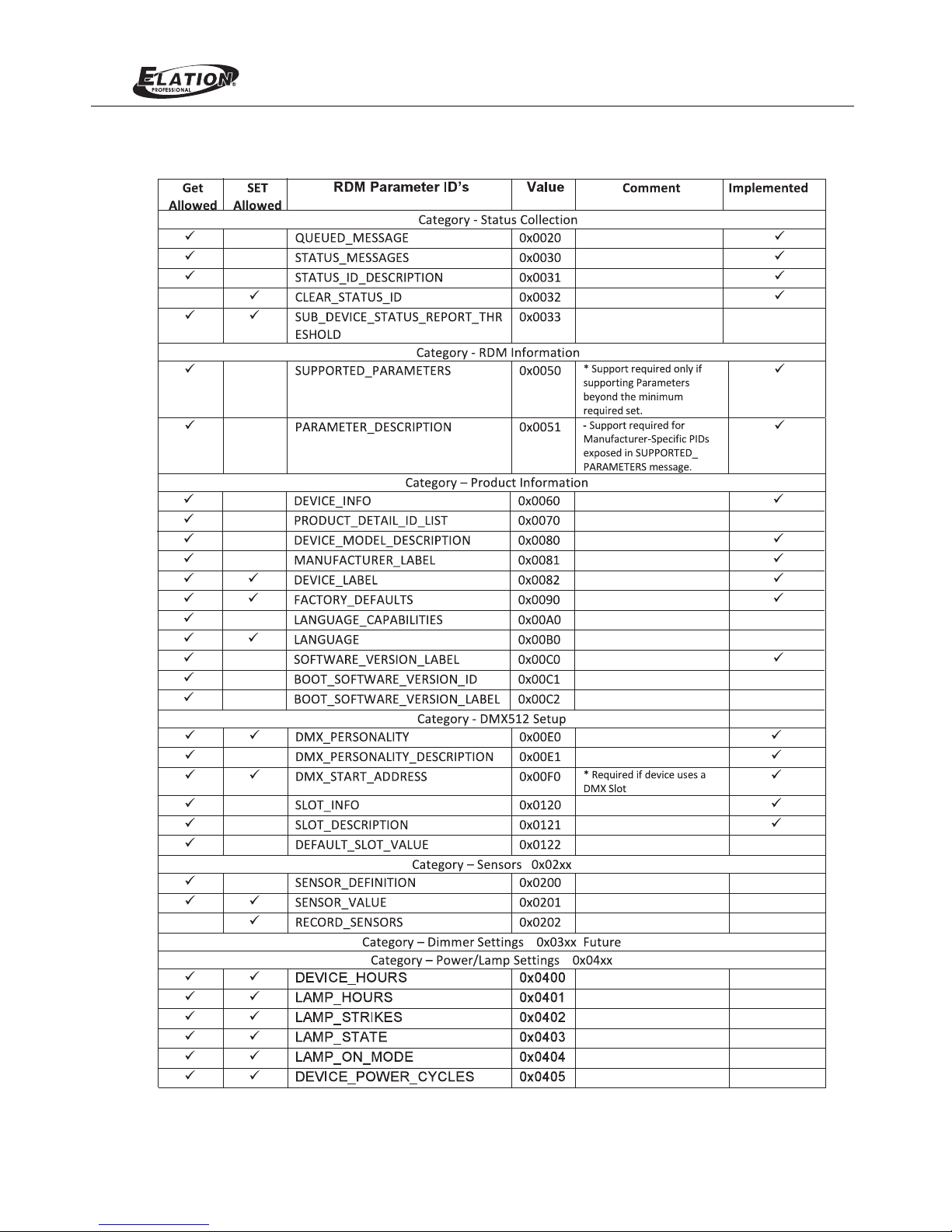

Table 1: Lumina Matrix LED RDM Parameter IDs

Lumina Matrix LED
Table 2: Lumina Matrix LED Manufacturer Status IDs
Table 3: Lumina Matrix LED Manufacturer Specific PIDs
Manufacturer Defined Status IDs
Manufacturer Specific messages are in the range of 0x8000 —0xFFDF. Each Manufacturer-specific
Status ID shall have a unique meaning, which shall be consistent across all products having a given
Manufacturer ID. See Table B-2, ANSI E1.20-2010
Status Message ID Value Data Value 1 Data Value 2 Status ID Description
8100H 00H 00H ALL OK
Manufacturer Specific PIDs
Manufacturer Defind PIDs range is 0x8000-0xffdf. See Table A-3, ANSI E1.20-2010
Get
Allowed
SET
Allowed
RDM Parameter
ID’s TYPE UNIT PREFIX MIN MAX DEFAULT DESCRIPTION
Program
Speed
Master
Lamp mode
FadeTime
Glide
No DMX
8A08H
8A09H
8A01H
8A42H
8A0BH
8A0CH
8A0DH
U8
U8
U8
U8
U8
U8
U8
100 48
180 1100
1
1
1
100
0
1
0
0
1
11000 100
1
1
0
0
100
2
1
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
LENGTH
Table 1: Lumina Matrix LED RDM Parameter IDs

Lumina Matrix LED
Light Source Warm White LED Array
Beam Angle 15 Degrees
Color Temperature 2700K
Power Thru/Input
Light Output
Power Consumption 150W Max.
TECHNICAL SPECIFICATIONS
Please note: Specifications and improvements in the design of this product and this manual are subject to
change without any prior notice.
Weight 9.8Kg
Dimension 400(L)*460(W)*90(H)mm.
Fuse T3.15A 250V 5x20mm
IP Rating IP20
> 4,500 lm
AC100~240V, 50/60Hz

MODE MENU DISPLAY
Address 001 - 512
7 / 8 / 10 / 14 / 16 / 22 (8bit)
8 / 10 / 14 / 22 / 38 (16bit)
No DMX OFF/Hold/Program
Dim Mode Standard/Stage/TV/Archi/Theatre
Program 01-48 / Auto
Speed 0 - 100
Fade 0 - 100
Master 0 - 100
Master 0 - 100
LED 1-16 0 - 100
All 0 -100
DMX
Program
Manual
Channel

MENU MAP
Dim Mode
001--512
7/8Bit
8/8Bit
10/16Bit
Standard
DMX
Address
Channel
No DMX
10/8Bit
14/8Bit
16/8Bit
22/8Bit
8/16Bit
14/16Bit
OFF/Hold/Program
16/16Bit
22/16Bit
38/16Bit
Stage
TV
Architectural
PROGRAM Program 01--48/Auto
Theatre
Speed 01---100
FadeTime 00-100
Master
00-100
MANUAL
Master
00-100
00-100
00-100
00-100
00-100
00-100
LED1
LED2
LED3
LED4
LED5
LED9
00-100
LED10
00-100
LED6 00-100
LED7 00-100
LED8 00-100
LED11
00-100
LED12 00-100
LED13 00-100
ALL 00-100
LED14 00-100
LED15
00-100
LED16
00-100

DMX MAP
Program FadeTime
Dim Mode
8/8Bit
LED 1&8
LED 9&16
Master (16bit)
Master (16bit Fine)
Program
Program Speed
Program FadeTime
7/8Bit
LED 1&16
Master (16bit)
Master (16bit Fine)
Program
Program Speed
LED 10
22/8bit
LED 1
Dim Mode
14/8Bit
LED 1&2
LED 3&4
LED 5&6
LED 7&8
LED 9&10
LED 11&12
LED 13&14
LED 15&16
Program Speed
Program FadeTime
Dim Mode
Master (16bit)
Master (16bit Fine)
LED 11
LED 12
Program
16/8Bit
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
LED 9
LED 10
LED 5
LED 6
LED 7
LED 8
LED 9
8/16Bit
LED1&16(16bit)
LED1&16(16bit Fine)
Master (16bit)
Master (16bit Fine)
Program
LED 2
LED 3
LED 4
LED9&10(16bit Fine)
38/16Bit
LED1(16bit)
LED1(16bit Fine)
LED2(16bit)
LED2(16bit Fine)
10/16Bit
LED1&8(16bit)
LED1&8(16bit Fine)
LED9&16(16bit)
LED9&16(16bit Fine)
Master (16bit)
Master (16bit Fine)
Program
Program Speed
Program FadeTime
Dim Mode
6
7
8
9
10
LED9(16bit Fine)
LED11&12(16bit)
LED11&12(16bit Fine)
22/16Bit
LED1&2(16bit)
LED1&2(16bit Fine)
LED3&4(16bit)
LED3&4(16bit Fine)
LED4(16bit)
LED4(16bit Fine)
LED5(16bit)
LED5(16bit Fine)
LED6(16bit)
LED6(16bit Fine)
LED5&6(16bit)
LED5&6(16bit Fine)
LED7&8(16bit)
LED7&8(16bit Fine)
LED9&10(16bit)
4
5
LED3(16bit Fine)
DMX Channel
1
2
3
23
24
LED7(16bit)
LED7(16bit Fine)
LED8(16bit)
LED8(16bit Fine)
LED9(16bit)
LED3(16bit)
17
18
19
11
12
13
14
15
16
25 LED13(16bit)
LED13(16bit Fine)
LED10(16bit)
LED10(16bit Fine)
LED11(16bit)
LED11(16bit Fine)
LED12(16bit)
LED12(16bit Fine)
26
20
21
22
Program Speed
Program FadeTime
Dim Mode
Master (16bit)
Master (16bit Fine)
Program
Program Speed
Program FadeTime
Dim Mode
LED 13
LED 14
LED 15
LED 16
LED 11
LED 12
LED 13
LED 14
LED 15
LED 16
LED13&14(16bit)
LED13&14(16bit Fine)
LED15&16(16bit)
LED15&16(16bit Fine)
Program
Program Speed
Program FadeTime
Dim Mode
Master (16bit)
Master (16bit Fine)
Program
Program Speed
Program FadeTime
Dim Mode
LED14(16bit)
LED14(16bit Fine)
LED15(16bit)
LED15(16bit Fine)
LED16(16bit)
LED16(16bit Fine)
Master (16bit)
Master (16bit Fine)
Program
Program Speed
Program FadeTime
Dim Mode
28
29
30
31
32
33
34
35
36
37
27
38
10/8Bit
LED 1&4
LED 5&8
LED 9&12
LED 13&16
Master (16bit)
Master (16bit Fine)
Program
Program Speed
Program FadeTime
Dim Mode
14/16Bit
LED1&4(16bit)
LED1&4(16bit Fine)
LED5&8(16bit)
LED5&8(16bit Fine)
LED9&12(16bit)
LED9&12(16bit Fine)
LED13&16(16bit)
LED13&16(16bit Fine)
Master (16bit)
Master (16bit Fine)

CH1 CH2 CH3 CH4 CH5 CH6
LED 1-16
Master
Dimmer
Master Dim
Fine
Programs Program Speed Program Fade
16-bit Standard (dr 1) 0-20
0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40
(dim→(dim→(dim→(Slow→Less→TV (dr 3) 41-60
bright) bright) bright) Fast) More)
Architectural
(dr 4)
61-80
Theatre (dr 5) 81-100
101-255
CH7
Dim Mode
Default to Unit
Setting
7 Channel Configuration (8 Bit)

CH1 CH2 CH3 CH4 CH5 CH6 CH7
LED 1-8 LED 9-16
Master
Dimmer
Master Dim
Fine
Programs Program Speed Program Fade
16-bit Standard (dr 1) 0-20
0-255 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40
(dim→(dim→(dim→(dim→(Slow→Less→TV (dr 3) 41-60
bright) bright) bright) bright) Fast) More)
Architectural
(dr 4)
61-80
Theatre (dr 5) 81-100
101-255
8 Channel Configuration (8 Bit)
Dim Mode
Default to Unit
Setting
CH8

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9
LED 1-4 LED 5-8 LED 9-12 LED 13-16
Master
Dimmer
Master Dim
Fine
Programs
Program
Speed
Program
Fade
16-bit
Standard (dr
1)
0-20
0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40
(dim→(dim→(dim→(dim→(dim→(dim→(Slow→Less→TV (dr 3) 41-60
bright) bright) bright) bright) bright) bright) Fast) More)
Architectural
(dr 4)
61-80
Theatre (dr
5)
81-100
101-255
10 Channel Configuration (8 Bit)
CH10
Dim Mode
Default to
Unit Setting
