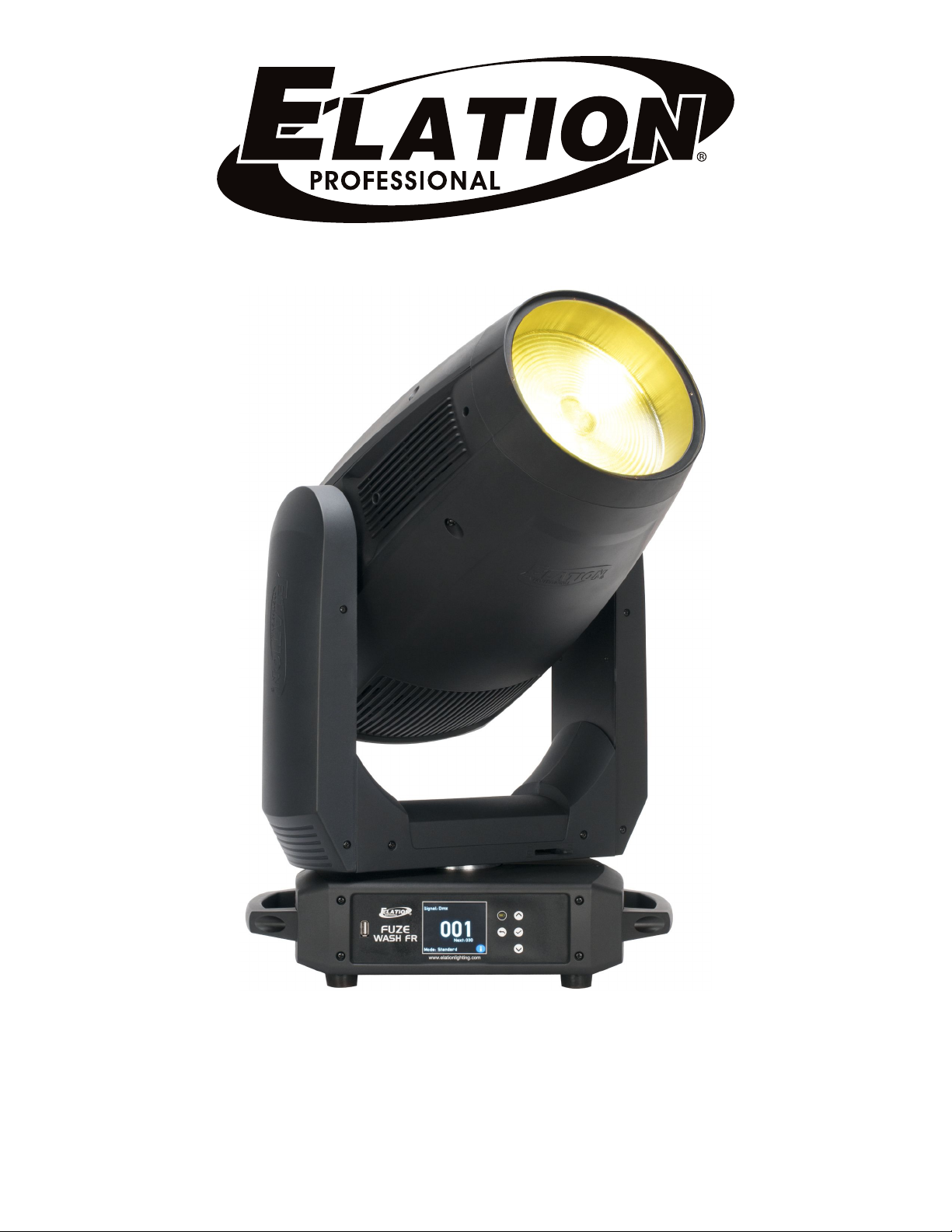

Elation FUZE WASH FR User manual

FUZE WASH FR™
user manual

2
©2020 ELATION PROFESSIONAL all rights reserved. Information, specications, diagrams,
images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL
logo and identifying product names and numbers herein are trademarks of ELATION
PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable
materials and information now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged. All non-ELATION brands and product names
are trademarks or registered trademarks of their respective companies.
ELATION PROFESSIONAL and all aliated companies hereby disclaim any and all liabilities for
property, equipment, building, and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of any information contained within
this document, and/or as a result of the improper, unsafe, insucient and negligent assembly,
installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. |Los Angeles, CA. 90040
323-582-3322 |323-832-9142 fax |www.elationlighting.com |[e-mail]
Elation Professional B.V.|Junostraat 2 |6468 EW Kerkrade, The Netherlands
[phone] |[phone] fax |www.elationlighting.eu |[e-mail]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online. Please scan the QR Code with your mobile
device or visit www.elationlighting.com for the latest revision/update of this
manual, before installation and/or programming.
Date Document Version SoftwareVersion
≥
DMX Channel Modes Notes
08/03/2020 1.0 1.04 Standard, Extended, CMY,
CMY Extended Initial Release

3
General Information 4
Warranty Returns (USA Only) 5
Safety Guidelines 6
Maintenance Guidelines 8
Fixture Overview 9
Colors 10
Snoot Installation 11
Installation Guidelines 12
System Menu 15
LED Color Programming Guidelines 18
DMX Channel Functions and Values 19
Color Temperature Table 25
Virtual Gel Swatch Book Table 26
Error Codes 27
Specifications 28
Optional Accessories 30
CONTENTS

4
GENERAL INFORMATION
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this device. These instructions contain important safety and use
information.
Unpacking
Every device has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary
to install and operate the device have arrived intact. In the event damage has been found or parts
are missing, please contact our customer support team for further instructions. Please do not
return this device to your dealer without rst contacting customer support. Please do not
discard the shipping carton in the trash. Please recycle whenever possible.
BOX CONTENTS
Omega Brackets (x2)
Locking Power Cable
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [e-mail]
REPLACEMENT PARTS please visit parts.elationlighting.com
IMPORTANT NOTICE!
There are no user serviceable parts inside this unit.
Do not attempt any repairs yourself; doing so will void your manufactures warranty.
Damages resulting from modications to this xture and/or the disregard of safety
instructions and guidelines in this manual void the manufactures warranty and are not
subject to any warranty claims and/or repairs.

5
WARRANTY RETURNS (USA ONLY)
To obtain warranty service, a Return Materials Authorization (RMA) number must rst be obtained from
ELATION. It is the Customer’s responsibility to provide product proof of purchase and serial number by
acceptable evidence such as an invoice copy or an approved ELATION Extended Warranty Certicate
(“EWC”) and any relevant maintenance records at the time warranty service is sought. Failure to provide
acceptable evidence of product proof of purchase or EWC and any relevant maintenance records may be
cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e., power, data, and safety
cables, brackets, clamps, rigging hardware, frost lters, gel frames, barn doors, lens, hoses, nozzles, rack
mounting hardware, etc.), must be boxed using the original and/or suitable packaging materials (double-
box and foam) that provides ample product protection for ground and/or air freight transit, and must be
shipped freight pre-paid and insured to ELATION in Los Angeles, CA or an ELATION Authorized Service
Center. The RMA number must be clearly written on the outside of the return box, and a brief description
of the problem and the RMA number must be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of the
package will be refused and returned to the shipper at the Customer’s expense. Products returned for
warranty service, which are received damaged due to inadequate and/or improper packaging and/or due
to damage caused by shipping carrier, may incur additional repair charges before warranty service begins
and/or may void this warranty. If any product accessories (included and/or optional) are shipped with the
product, ELATION and/or the ELATION Authorized Service Center shall have no liability what so ever for
the loss and/or damage to any such accessories, nor the safe return thereof. If the requested warranty
repairs or service (including parts replacement) are within the terms of this warranty, ELATION will pay
return ground transportation shipping charges to a single designated point within the United States.

6
SAFETY GUIDELINES
This xture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it
is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC is not
responsible for injury and/or damages resulting from the misuse of this xture due to the
disregard of the information printed in this manual. Only qualied and/or certied personnel
should perform installation of this xture and only the original rigging parts included with this
xture should be used for installation. Any modications to the xture and/or the included
mounting hardware will void the original manufacturer’s warranty and increase the risk of
damage and/or personal injury.

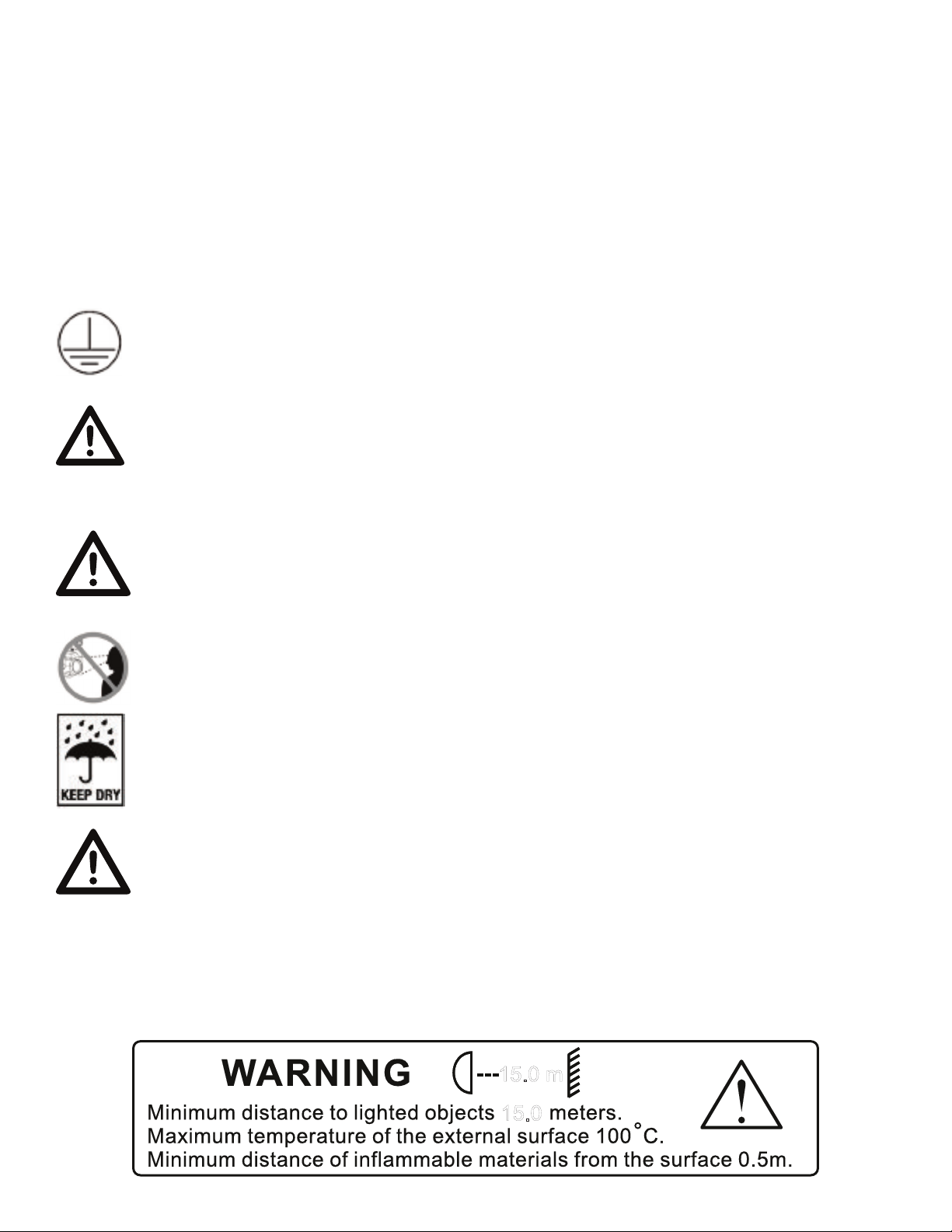

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURE’S WARRANTY AND ARE
NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
INDOOR / DRY LOCATIONS USE ONLY!
DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 6.6 FEET (2 METERS)
MAXIMUM TEMP OF EXTERNAL SURFACE 185° F (85°C)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)
15.0 m
15.0

7
SAFETY GUIDELINES
DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the xture to cool down before serving.
DO NOT shake xture, avoid brute force when installing and/or operating xture.
DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power
cord connectors are damaged and do not insert into the xture securely with ease. NEVER force
a power cord connector into the xture. If the power cord or any of its connectors are damaged,
replace it immediately with a new one of similar power rating.
DO NOT block any air ventilation slots.
All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between xture and other devices or a wall for proper cooling.
Always disconnect xture from main power source before performing any type of service and/or
cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by
tugging the wire portion of the cord.
During the initial operation of this xture, a light smoke or smell may emit from the interior of the
xture. This is a normal process and is caused by excess paint in the interior of the casing burning
o from the heat associated with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure xture will function properly for many years.
ONLY use the original packaging and materials to transport the xture in for service.

8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the xture
operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt
on the xture’s optics. Clean the external lens surface at least every 20 days with a soft cloth
to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life.
There are no user serviceable parts inside this xture, please refer all other service issues to an
authorized Elation service technician. Should you need any spare parts, please order genuine
parts from an authorized Elation dealer.
Please refer to the following points during routine inspections:
A detailed electric check by an approved electrical engineer every three months, to make sure the
circuit contacts are in good condition and prevent overheating.
Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during
normal operation resulting in damage or injury as larger parts could fall.
Check for any deformations on the housing, color lenses, rigging hardware and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the
xture. Damaged rigging points or unsecured rigging could cause the xture to fall and seriously
injure a person(s).
Electric power supply cables must not show any damage, material fatigue or sediments.
NEVER remove the ground prong from the power cable.

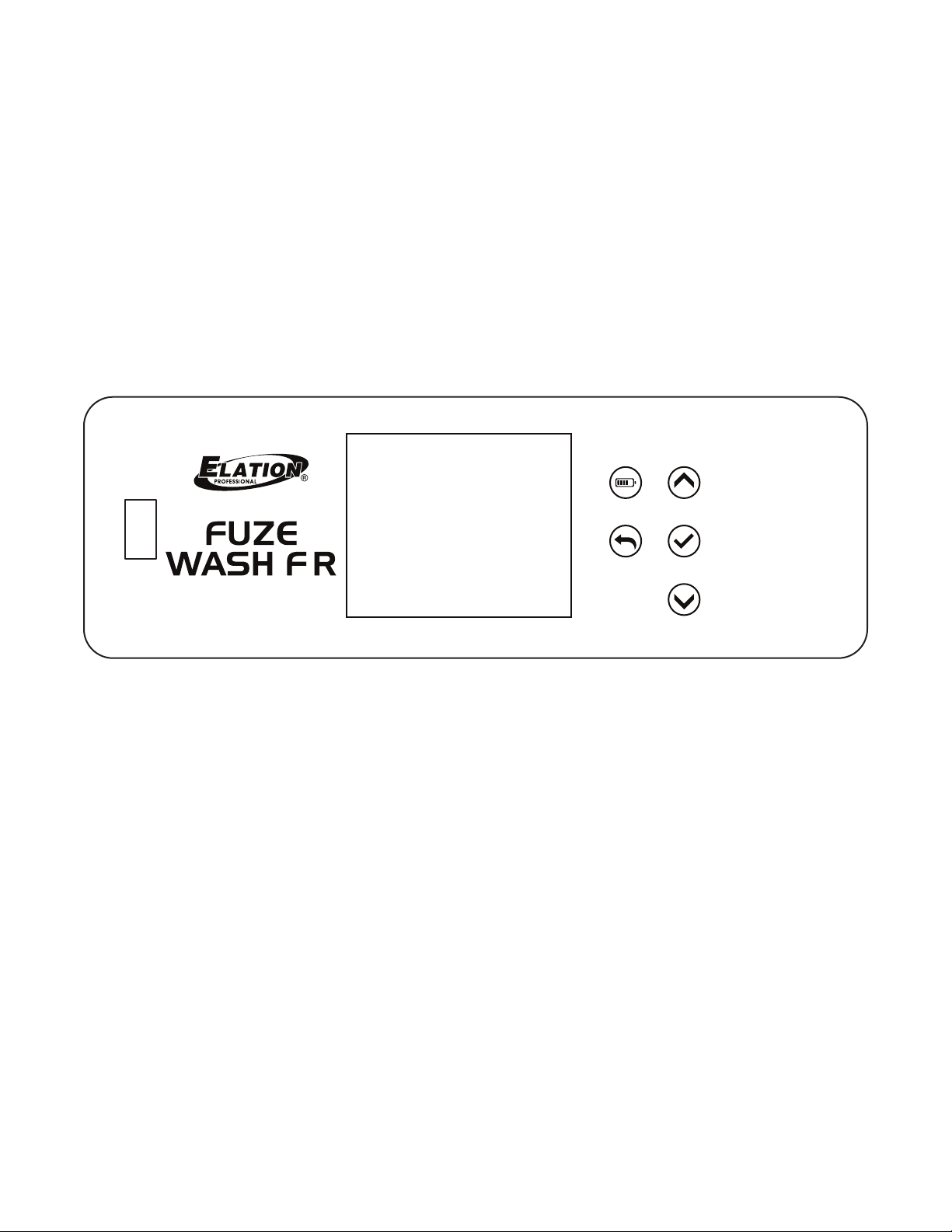

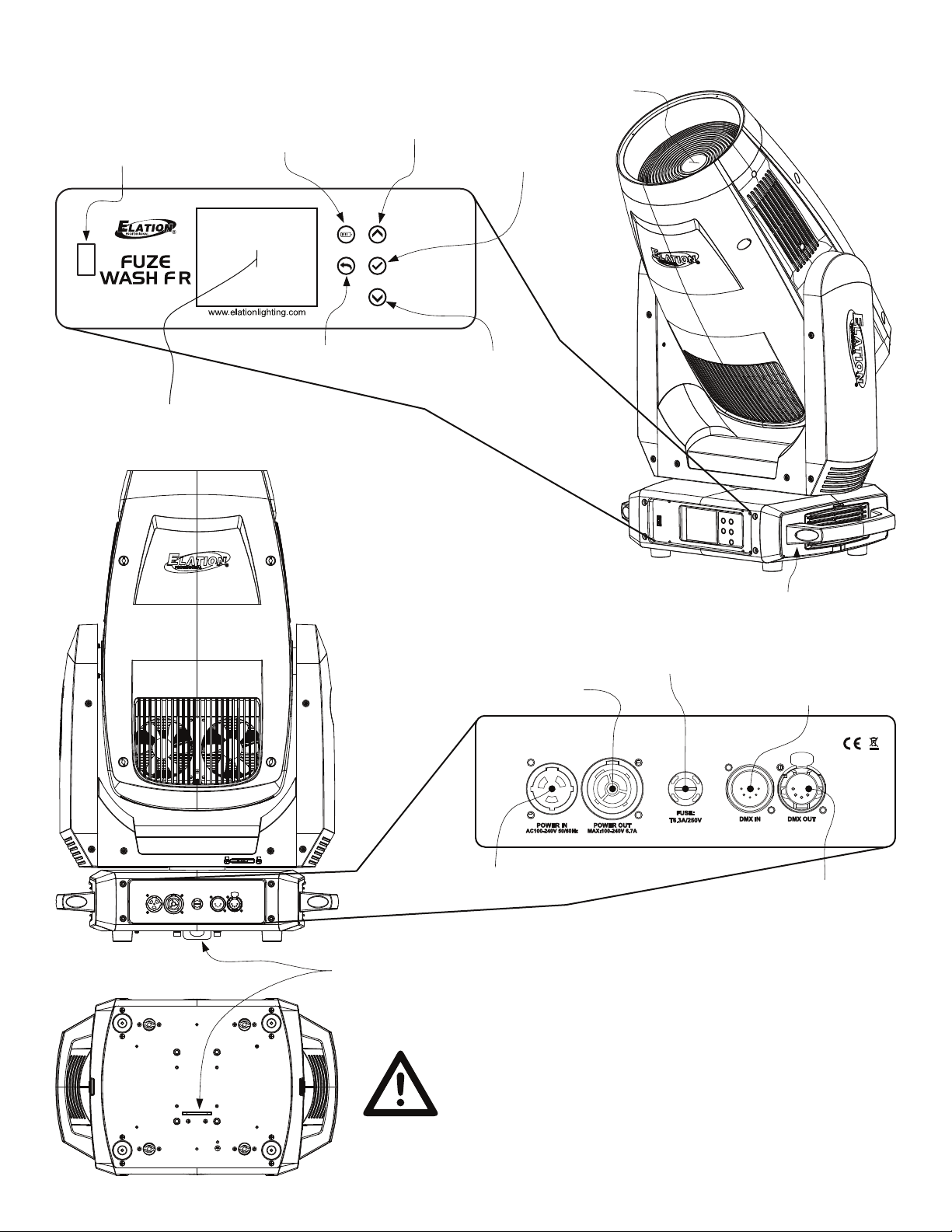

9
Lens
Service Port
MENU Button
ENTER Button
UP Button
Battery
Level
Indicator
DOWN Button
System Menu Display
5pin DMX IN
5pin DMX OUT
Locking Power Output
Locking Power Input
Fuse (T6.3A)
Safety Cable
Attachment Point
ALWAYS ATTACH A SAFETY CABLE WHENEVER
INSTALLING THIS DEVICE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE
WILL NOT DROP IF THE CLAMP FAILS.
FIXTURE OVERVIEW

10
Colors Color Temperature Green Shift
Cyan
2700K – 8500K
Full Minus Green to
Neutral
Magenta
Yellow
Red Neutral White
Green
Blue
Neutral to Full Plus Green
Mint
Amber
COLORS
Virtual Gel Swatch Book Colors
7 Pale Yellow 157 Pink 68 Sky Blue
103 Straw 36 Medium Pink 143 Pale Navy Blue
151 Gold Tint 111 Dark Pink 131 Marine Blue
100 Spring Yellow 128 Bright Pink 115 Peacock Blue
10 Medium Yellow 148 Bright Rose 172 Lagoon Blue
101 Yellow 332 Special Rose Pink 116 Medium Blue Green
104 Deep Amber 793 Vanity Fair 90 Dark Yellow Green
15 Deep Straw 113 Magenta 139 Primary Green
179 Loving Amber 46 Dark Magenta 122 Fern Green
21 Gold Amber 48 Rose Purple 89 Moss Green
105 Orange 126 Mauve 124 Dark Green
158 Deep Orange 49 Medium Purple 88 Lime Green
22 Dark Amber 58 Lavender 138 Pale Green
778 Millennium Gold 199 Palace Blue 203 Quarter CT Blue
135 Deep Golden Amber 119 Dark Blue 202 Half CT Blue
24 Scarlet 132 Medium Blue 201 FULL CT Blue
106 Primary Red 120 Deep Blue 200 Double CT Blue
26 Bright Red 165 Daylight Blue 206 Quarter CT Orange
27 Medium Red 161 Slate Blue 205 Half CT Orange
19 Fire 118 Light Blue 204 FULL CT Orange

11

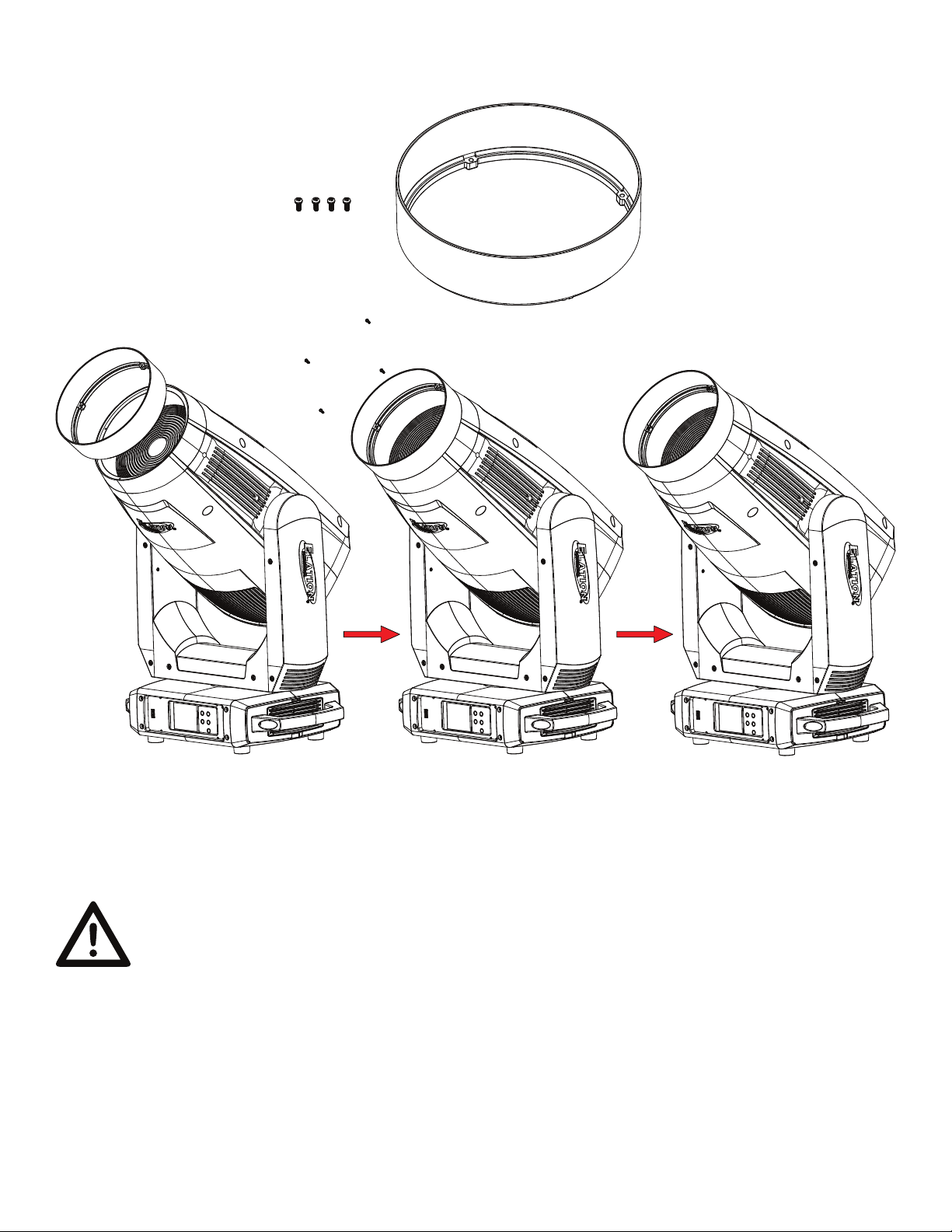

SNOOT INSTALLATION
1. Place xture on the stable at surface and let cool for 15mins.
2. Align Snoot onto front lens so 4 screw holes on snoot match 4 screw holes on lens.
3. Carefully using a hand screwdriver, insert/secure included 4 screws.
4. Check Snoot to conrm it is seated properly and all 4 screws are secure.
DO NOT OVER TIGHTEN SCREWS! DO NOT USE A POWER SCREWDRIVER!

12
INSTALLATION GUIDELINES
FLAMMABLE MATERIAL WARNING
Keep xture minimum 5.0 feet (1.5m) away from ammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER
CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON
THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 1 FOOT (0.3 METERS)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)
MAXIMUM AMBIENT TEMPERATURE 113° F (45°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or
placing the xture(s) on any surface, a professional equipment installer MUST be consulted to
determine if the metal truss/structure or surface is properly certied to safely hold the
combined weight of the xture(s), clamps, cables, and accessories.
Overhead rigging requires extensive experience, including amongst others calculating working
load limits, installation material being used, and periodic safety inspection of all installation
material and the xture. If you lack these qualications, do not attempt the installation yourself.
Improper installation can result in bodily injury.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas
were unauthorized personnel might reach the xture by hand.
NEVER stand directly below the xture(s) when rigging, removing or servicing.
Overhead xture installation must always be secured with a secondary safety attachment, such
as an appropriately rated safety cable.
Allow approximately 15 minutes for the xture to cool down before serving.

13
INSTALLATION GUIDELINES

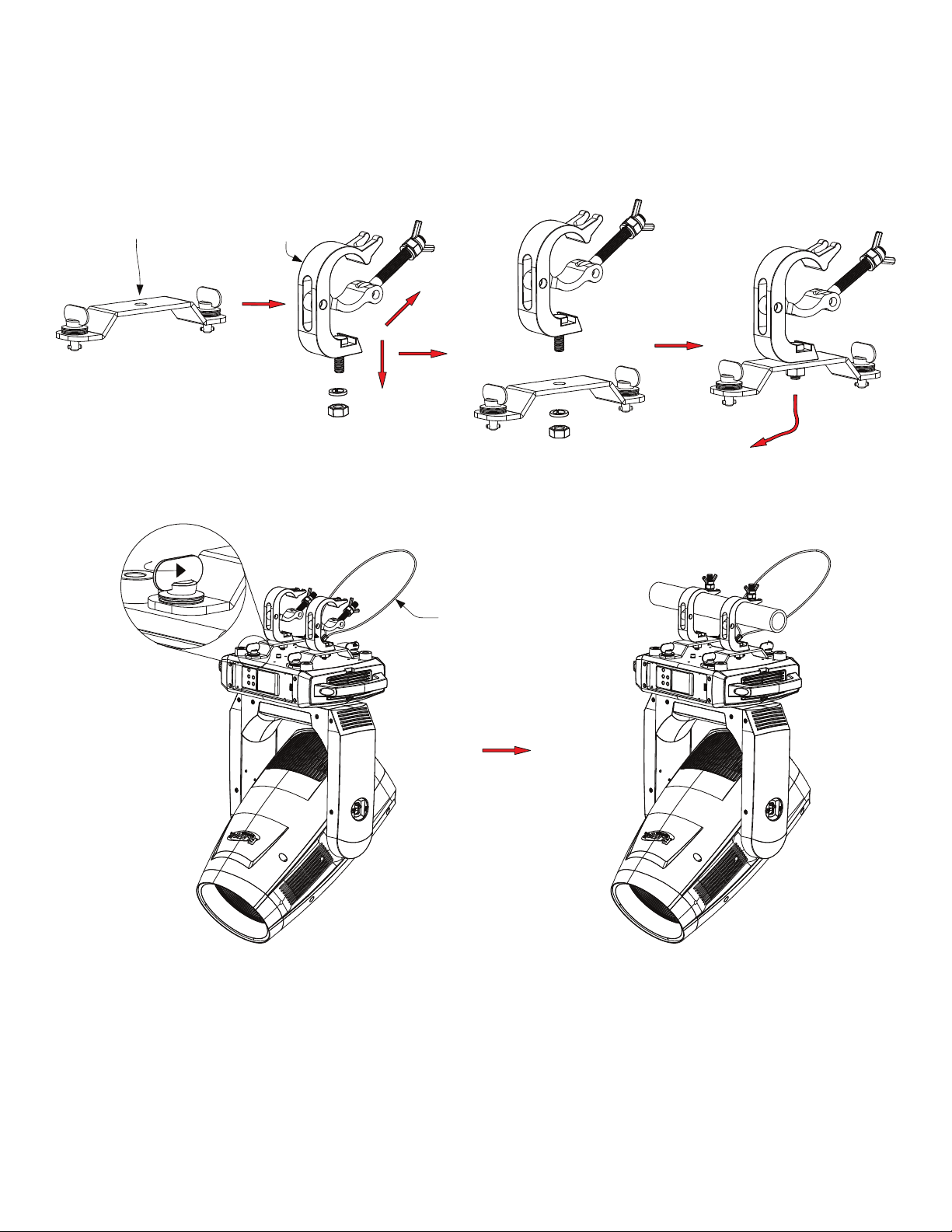

OMEGA BRACKETS INSTALLATION
Insert the Omega Brackets into the matching holes on the bottom of the xture. Secure the
Omega Brackets to the xture by turning each quick-lock fastener ¼ turn clockwise; making sure
the fastener is completely locked. Omega Brackets can be installed into the xture base as
illustrated below.
1
Omega Bracket
2
Clamp
34
SAFETY CABLE
ALWAYS ATTACH A SAFETY WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS.
5
Safety Cable
6
CLAMP INSTALLATION
When mounting xture to truss, be sure to secure an appropriately rated professional grade
rigging clamp to the included Omega Brackets using an M10 screw tted through the center hole
of the Omega Brackets. The xture provides built-in rigging points for a SAFETY CABLE (not
included). Be sure to only use one of the designated rigging points for the safety cable and never
secure a safety cable to a carrying handle.
RIGGING
Overhead rigging requires extensive experience, including amongst others calculating working
load limits, installation material being used, and periodic safety inspection of all installation
material and the xture. If you lack these qualications, do not attempt the installation yourself.
Improper installation can result in bodily injury.

14
INSTALLATION GUIDELINES

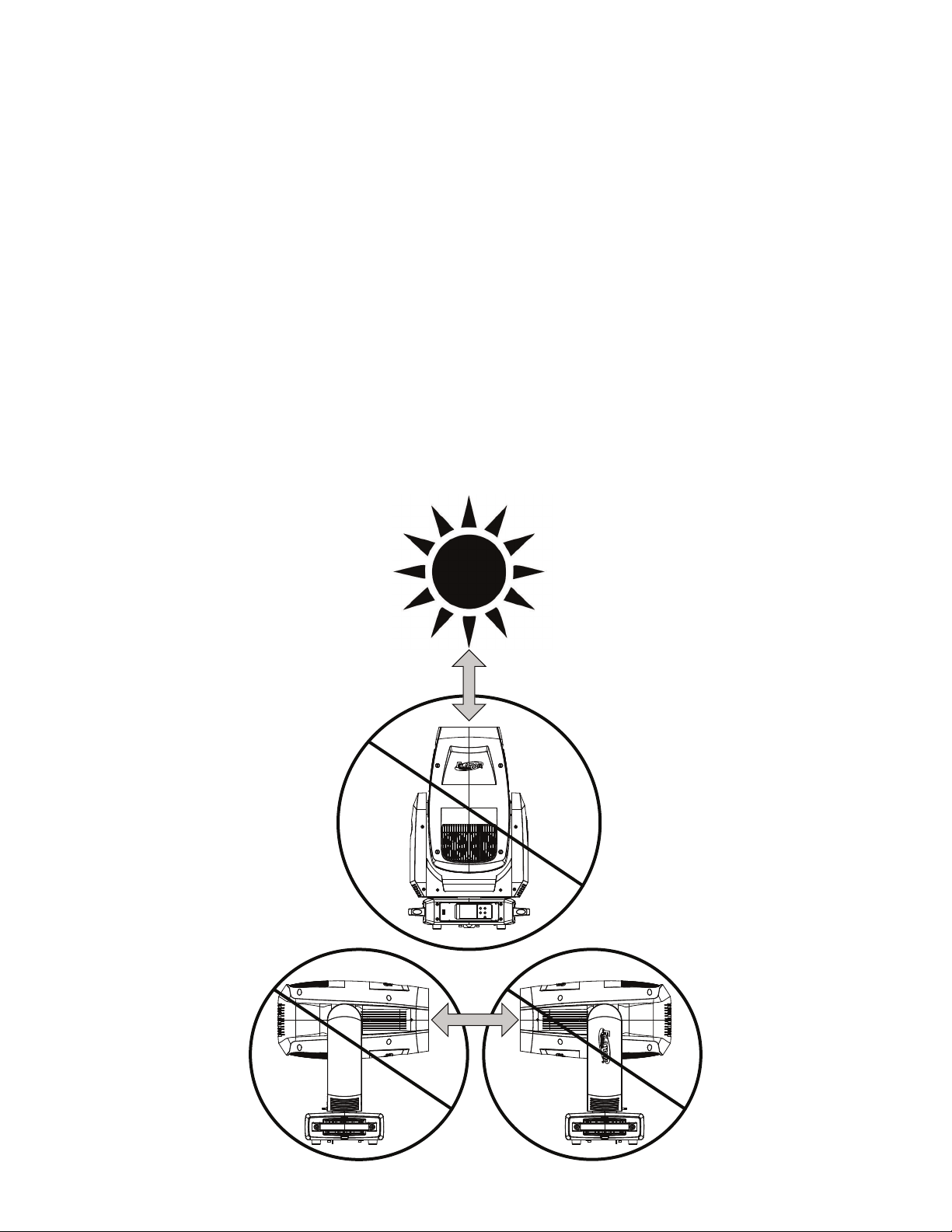

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting moving head xtures, and lasers,
which are focused directly towards the exterior housing and/or penetrate the front lens opening
of ELATION lighting xtures, can cause severe internal damage including burning to optics,
dichroic color lters, glass and metal gobos, prisms, animation wheels, frost lters, iris,
shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not specic only to ELATION lighting xtures, it is a common issue with lighting
xtures from all manufacturers. Although there is no true way to fully prevent this issue from
happening, the guidelines below can prevent any potential damage from occurring if followed.
Contact ELATION Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS
FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND
LASERS WHILE UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES
OUTDOORS. DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE
DIRECTLY TOWARDS ANOTHER.

15
S Y S T E M M E N U
The xture includes an easy to navigate system menu. The LCD touch panel display located on the
front of the xture (see image below), provides access to the main system menu and is where all
necessary system adjustments are made to the xture. During normal operation, pressing the
ENTER (Check Mark) button once will access the xture’s main menu. Once in the main menu you
can navigate through the dierent functions and access the sub-menus with the UP and DOWN
buttons. Once you reach a eld that requires adjusting, press the ENTER button to activate that
eld and use the UP and DOWN buttons to adjust the eld. Pressing the ENTER button once more
will conrm your setting. You may exit the main menu at any time without making any
adjustments by pressing the ESC (Back Arrow) button.
To access the LCD Menu Control Display via the internal battery, press and hold the BATTERY
ICON button for 3 seconds. The LCD Menu Control Display will shut OFF automatically about 1
minute from the last button press.

16
ELATION FUZE WASH FR
Default setting shown in bold
Supports Software Versions: ≥1.04
MAIN MENU OPTIONS / VALUES (Default Settings in BOLD)DESCRIPTION
DMX Setting
DMX Presets A001~AXXX Used to set the units desired DMX
mode.
DMX Channel
Mode Standard, Extended, CMY, CMY Extended Used to set the units desired DMX mode.
No DMX
Status
Blackout
Blackout option shall take all
channels to zero (0) when signal is
lost.
Hold Last
Hold Last shall be the default setting
and unit shall hold all last channel
values received from the console
when signal is lost.
Internal Programs
Internal Programs option shall take
all channels to the last set Internal
Programs channel settings when
signal is lost.
Personality
Primary ON/OFF
Secondary ON/OFF
Status
Settings
Pan Invert ON/OFF
Tilt Invert ON/OFF
Pan/Tilt Feedback ON/OFF
Pan Degree 630/540
Pan/Tilt Speed Speed 1~4
Hibernation OFF, 01M~99M, 15M
When DMX signal is not present for
the set time, the unit shall go into
standby mode after the set time.
When set to OFF, unit shall never go
into hibernation mode. The unit
should have 01M to 99M options… so
01M, 02M, 03M… 99M (M=Minutes).
15M should be default.
Fan Settings
Auto
High
Low
Studio
Mute
Dim Mode
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dim Speed 0S~10S
Dim Curves
Linear
Square
Square Inverse
S-Curve
LED Refresh
Rate
900, 910, 920, 930, 940..., 1200, 1210, 1220,
1230..., 1500, 2500, 4000, 5000, 10K, 15K, 20K,
25KHZ
Reset Motors
Reset All Motors YES/NO
Pan/Tilt Reset YES/NO
Focus and Zoom reset YES/NO
Other motor reset YES/NO
Display Screen Saver Delay 01M~10M/OFF Touch Screen Lock OFF/ON
Rotate Display 180° YES/NO
Temp Unit C/F
Service Passcode
Calibration
Pan 000-255
Tilt 000-255
Red 000-255
...
USB Software
Update YES/NO
Factory
Restore YES/NO
S Y S T E M M E N U

17
MAIN MENU OPTIONS / VALUES (Default Settings in BOLD)DESCRIPTION
Manual
Pan, Tilt, Red, Green, Blue, Mint,
Amber, ..., Control 000-255
Set Manual Control values remain
set when no DMX signal is present,
including through a power cycle.
Tilt 000-255
Red 000-255
Green 000-255
Blue 000-255
Mint 000-255
Amber 000-255
... ...
Control 000-255
Internal
Programs
Program 0 Speed 000-255
Fade 000-255
Program 1 Speed 000-255
Fade 000-255
Program 2 Speed 000-255
Fade 000-255
Program 3 Speed 000-255
Fade 000-255
...
Program 16 Speed 000-255
Fade 000-255
Information
Fixture Life
Time Power On Time xxxxxx Hours Fixing running total time
Fixture Last
Run Time
Power On
Resettable Time XXXXXX Hours Fixture last running time
Power On Time
Reset Passcode YES/NO Clear xture total running time
Fixture
Temperatures
LEDs
Current xxxF/xxxC
Max Resettable xxxF/xxxC
Max Not Resettable xxxF/xxxC
Reset LED Temp Passcode YES/NO
Base Temp Current xxxF/xxxC
Fan Info.
LED_fan RPM
1_fan xxxx
2_fan xxxx
3_fan xxxx
4_fan xxxx
Base_fan RPM Base_fan xxxx
Blade_fan RPM Blade_fan xxxx
DMX Values
Pan
Tilt
...
Zoom
Product IDs RDM UID
Error Logs Fixture Errors
Reset Error Log Passcode YES/NO
Software
Version
1U:V1.04
2U:V1.04
3U:V1.04
4U:V1.04
5U:V1.04

18
COLOR LED PROGRAMMING GUIDELINES
The xture utilizes an advanced additive LED light engine that contains Red, Green, Blue, Mint
and Amber LED which when combined, provides a brilliant high CRI White. Using a 5-color LED
engine allows the xture to have a wide color gamut which oers robust saturated colors as well
as a wide range of pastel and theatrical colors.
Programming a 5-color LED engine is a bit more time consuming than the more common 3-color
CMY (Cyan, Yellow, Magenta) or RGB (Red, Blue Green) systems. To help ensure optimal
performance of the xture, it is highly suggested to try out the multiple DMX control modes to
understand specically how they work with color before programming a full show. A couple
suggested modes are listed below.
The CMY Extended DMX control mode provides a “natural” color mix which is compatible with
color pickers of most lighting consoles and includes 16-bit color control.
The Extended RGBMA (Red, Green, Blue, Mint, Amber) DMX control mode provides slightly higher
precision color mixes but may be require additional time to nd the right values for all 5-color
LEDs to achieve a specic desired color.

19
ELATION FUZE WASH FR
DMX Channel Values / Functions
Supports Software Versions: ≥ 1.04
Features subject to change without notice.
MODE/CHANNEL VALUE FUNCTION DEFAULT SNAP
Standard Extended CMY CMY Extended
1 1 1 1 PAN Movement 8bit: 127
000-255 Pan Movement
2 2 2 2 Pan Fine 16bit: 127
000-255 Fine control of Pan movement
3 3 3 3 TILT Movement 8bit: 127
000-255 Tilt Movement
4 4 4 4 Tilt Fine 16bit: 127
000-255 Fine control of Tilt movement
55Cyan: 0
000-255 Cyan (0-100% Cyan)
6Cyan Fine: 0
000-255 Cyan Fine
6 7 Magenta: 0
000-255 Magenta (0-100% Magenta)
8Magenta Fine: 0
000-255 Magenta Fine
7 9 Yellow: 0
000-255 Yellow (0-100% Yellow)
10 Yellow Fine: 0
000-255 Yellow Fine
5 5 Red: 255
000-255 Cyan (0-100% Cyan)
6Red Fine: 255
000-255 Cyan Fine
6 7 Green: 255
000-255 Magenta (0-100% Magenta)
8Green Fine: 255
000-255 Magenta Fine
7 9 Blue: 255
000-255 Yellow (0-100% Yellow)
10 Blue Fine: 255
000-255 Yellow Fine
8 11 Mint: 255
000-255 Cyan (0-100% Cyan)
12 Mint Fine: 255
000-255 Cyan Fine
9 13 Amber: 255
000-255 Magenta (0-100% Magenta)
14 Amber Fine: 255
000-255 Magenta Fine
10 15 8 11
CTO:
0
0-23 Open
24 -85 CTO 2400K - 8500K (see separate sheet)
86-255 8500K
DMX TRAITS: CHANNEL FUNCTIONS & VALUES

20
MODE/CHANNEL VALUE FUNCTION DEFAULT SNAP
Standard Extended CMY CMY Extended
11 16 9 12
Color Wheel:
0
0 Open
1-60 Virtual Swatch Book (see separate sheet)
61-179 Open
Color Scroll
180-201 Clockwise,fast→slow
202-207 Stop
208-229 Counter-clockwise,slow→ fast
230-234 Open
Random Slots
235-239 Fast
240-244 Medium
245-249 Slow
250-255 Open
12 18 10 14 Focus: 127
0-255 Continuous adjustment from near to far
13 19 11 15 Zoom: 127
0-255 Zoom adjustment from small to big
23 19
Dim Modes
0 X
0-20 Standard
21-40 Stage
41-60 TV
61-80 Architectural
81-100 Theatre
101- 120 Stage 2
Dimmer Delay Time
121 0s
122 0.1s
123 0.2s
124 0.3s
125 0.4s
126 0.5s
127 0.6s
128 0.7s
129 0.8s
130 0.9s
131 1.0s
132 1.5s
133 2.0s
134 3.0s
135 4.0s
136 5.0s
137 6.0s
138 7.0s
139 8.0s
140 9.0s
141 10s
142 - 255 Idle
