Elation PALADIN CUBE User manual

PALADIN CUBE™
User Manual

2
©2019 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams,
images, and instructions herein are subject to change without notice. ELATION
PROFESSIONAL logo and identifying product names and numbers herein are trademarks of
ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or
registered trademarks of their respective companies and are hereby acknowledged. All
non-ELATION brands and product names are trademarks or registered trademarks of their
respective companies.
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities
for property, equipment, building, and electrical damages, injuries to any persons, and direct
or indirect economic loss associated with the use or reliance of any information contained
within this document, and/or as a result of the improper, unsafe, insufficient and negligent
assembly, installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 |323-832-9142 fax | www.elationlighting.com |[e-mail]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] |[phone] fax |www.elationlighting.eu |[e-mail]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
DOCUMENT VERSION
Due to additional product features and/or enhancements,
an updated version of this document may be available
online. Please scan the QR Code with your mobile device or
visit www.elationlighting.com for the latest revision/update of
this manual, before installation and/or programming.
Date
Document
Version
Software
Version ≥
DMX
Channel Modes
Notes
08/19/19
1.0
1.0.1
RGB – 3/4/8/10/16/24/26/32
HSI – 4 / 10 / 17
Initial release.
08/28/19
1.1
N/C
NO CHANGE
Updated length dimension.

3
CONTENTS
General Information
4
Warranty Returns (USA Only)
5
Safety Guidelines
6
Maintenance Guidelines
8
Fixture Overview
9
Fixture Installation
10
System Menu
15
Pixel Zone Control
19
E-FLY Wireless DMX Set Up
20
DMX Channel Functions and Values
22
Specifications
31
Optional Accessories
33

4
GENERAL INFORMATION
INTRODUCTION
Please read and understand all the safety and use instructions in this manual carefully and
thoroughly before attempting to operate this device.
IP65 RATED
An IP rated lighting fixture is one, which is commonly installed in outdoor environments and
has been designed with an enclosure that effectively protects the ingress (entry) of external
foreign objects such as dust and water. The International Protection (IP) rating system is
commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e. IP65) where
the numbers define the degree of protection. The first digit (Foreign Bodies Protection)
indicates the extent of protection against particles entering the fixture and the second digit
(Water Protection) indicates the extent of protection against water entering the fixture. An
IP65 rated lighting fixture is one, which has been designed and tested to protect against the
ingress of dust (6) and high-pressure water jets from any direction (5).
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating
condition. Carefully check the shipping carton for damage that may have occurred during
shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all
accessories necessary to install and operate the device have arrived intact. In the event
damage has been found or parts are missing, please contact our customer support team for
further instructions. Please do not return this device to your dealer without first contacting
customer support. Please do not discard the shipping carton in the trash. Please recycle
whenever possible.
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | suppo[email protected]
REPLACEMENT PARTS please visit parts.elationlighting.com

5
WARRANTY RETURNS (USA ONLY)
To obtain warranty service, a Return Materials Authorization (RMA) number must first be
obtained from ELATION. It is the Customer’s responsibility to provide product proof of
purchase and serial number by acceptable evidence (i.e. invoice copy and/or Extended
Warranty Certificate), and any applicable maintenance records at the time warranty service
is sought. Failure to provide acceptable evidence of product proof of purchase, serial
number, and applicable maintenance records may be cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e. power,
data, and safety cables, brackets, clamps, rigging hardware, frost filters, gel frames, barn
doors, lens, hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original
and/or suitable packaging materials (double-box and foam) that provide ample product
protection for ground and/or air freight transit, and must be shipped freight pre-paid and
insured to ELATION in Los Angeles, CA or to an ELATION Authorized Service Center. The
RMA number must be clearly written on the outside of the return box and a brief description
of the problem and the RMA number must be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the
outside of the package will be refused and returned to the shipper at the customer’s expense.
Products returned for warranty service, which are received damaged due to poor and
improper packaging and/or due to damage caused by shipping carrier, may incur additional
repair charges before warranty service begins and/or may void this warranty. If any product
accessories (included and/or optional) are shipped with the product, ELATION and/or the
ELATION Authorized Service Center shall have no liability what so ever for the loss and/or
damage to any such accessories, nor for the safe return thereof. If the requested warranty
repairs or service (including parts replacement) are within the terms of this warranty,
ELATION will pay return shipping charges to a single designated point within the United
States.

6
SAFETY GUIDELINES
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth
operation, it is important to follow all instructions and guidelines in this manual. Elation
Professional is not responsible for injury and/or damages resulting from the misuse of this
fixture due to the disregard of the information printed in this manual. Only qualified and/or
certified personnel should perform installation of this fixture and only the original rigging
parts (omega brackets) included with this fixture should be used for installation. Any
modifications to the fixture and/or the included mounting hardware will void the original
manufactures warranty and increase the risk of damage and/or personal injury.
M
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID
YOUR MANUFACTURES WARRANTY. DAMAGES RESULTING FROM
MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF
SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID
THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY
SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST
ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR
ELECTRICAL SHORT CIRCUIT.

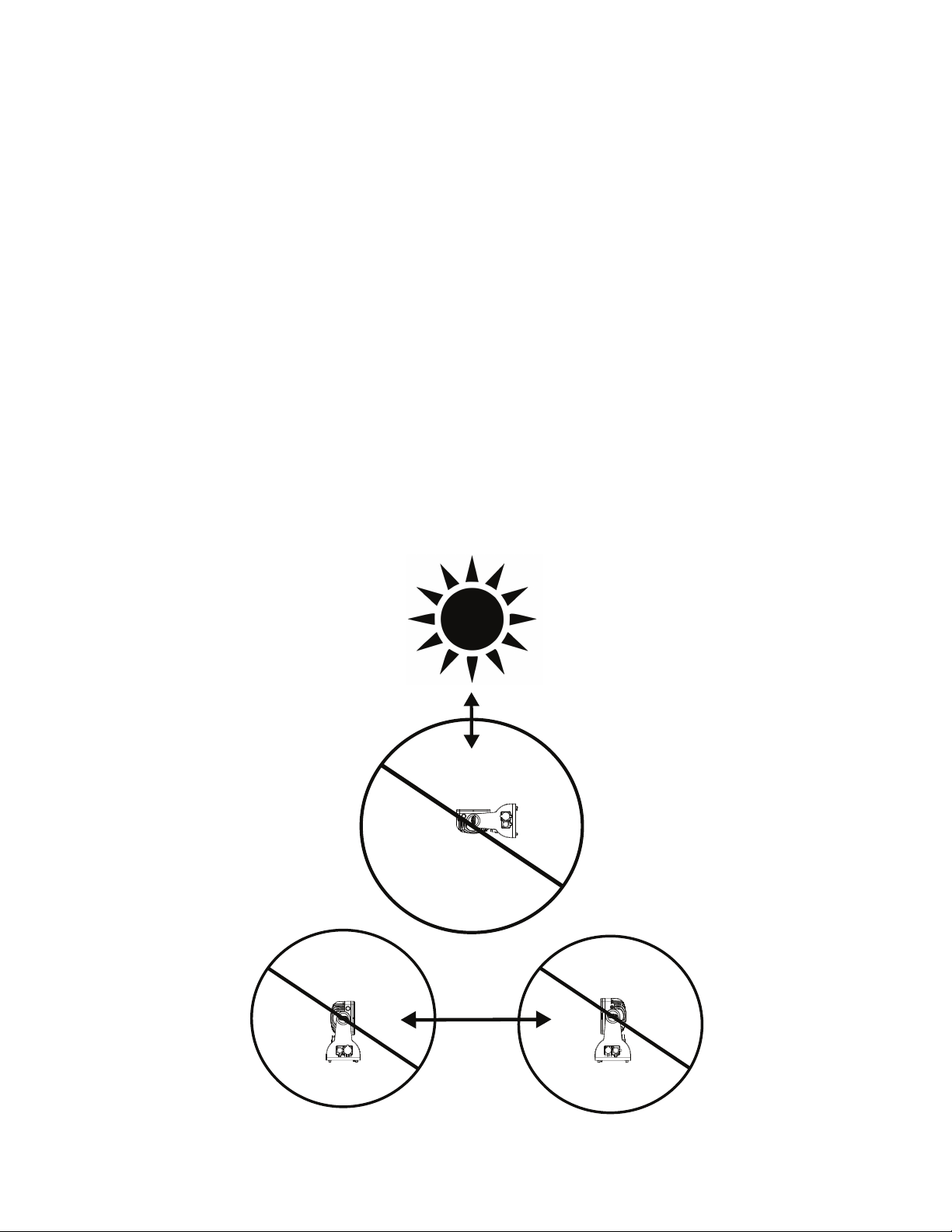

MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 1.6 FOOT (0.5 METER)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)
MAXIMUM AMBIENT OPERATING TEMPERATURE 113°F. (45°C)

7
SAFETY GUIDELINES
DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the fixture to cool down before serving.
DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the
power cord connectors are damaged and do not insert into the fixture securely with ease.
NEVER force a power cord connector into the fixture. If the power cord or any of its
connectors are damaged, replace it immediately with a new one of similar power rating.
DO NOT block any air ventilation slots.
All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
Always disconnect fixture from main power source before performing any type of service
and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the
plug by tugging the wire portion of the cord.
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the casing
burning off from the heat associated with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure fixture will function properly for many years.
ONLY use the original packaging and materials to transport the fixture in for service.

8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output, and
an extended life. The frequency of cleaning depends on the environment in which the
fixture operates: damp, smoky or particularly dirty environments can cause greater
accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every
20 days with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life.
There are no user serviceable parts inside this fixture, please refer all other service issues
to an authorized Elation service technician. Should you need any spare parts, please order
genuine parts from your local Elation dealer.
Please refer to the following points during routine inspections:
A detailed electric check by an approved electrical engineer every three months, to make
sure the circuit contacts are in good condition and prevent overheating.
Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out
during normal operation resulting in damage or injury as larger parts could fall.
Check for any deformations on the housing, color lenses, rigging hardware and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to
enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture
to fall and seriously injure a person(s).
Electric power supply cables must not show any damage, material fatigue or sediments.
NEVERremove the ground prong from the power cable.

9
FIXTURE OVERVIEW
FRONT
LED Array
Removable Magnetic Frost Filter
OLED Control System Menu Display

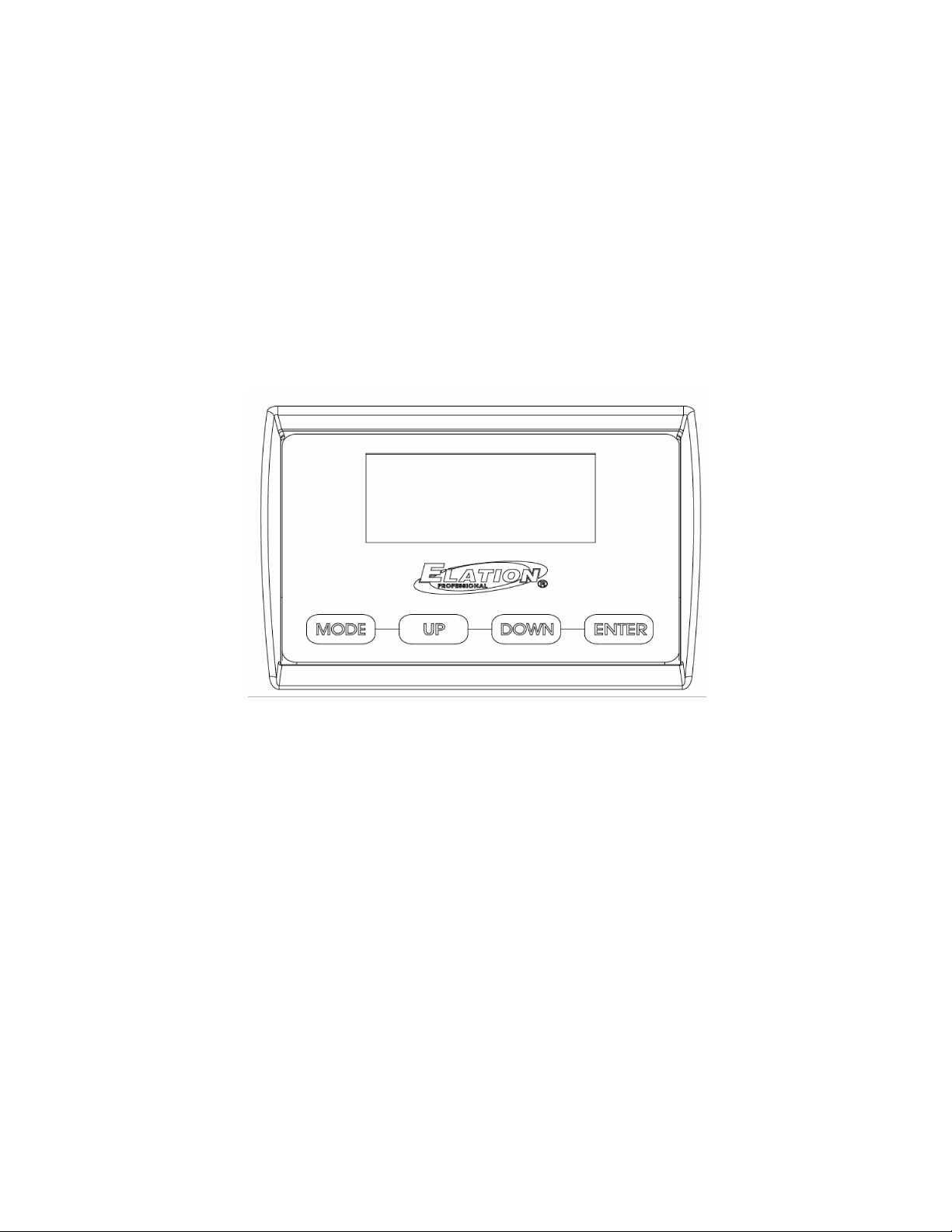

Mode, Down, Up, Enter Buttons
BACK
E-FLY Wireless DMX Antenna

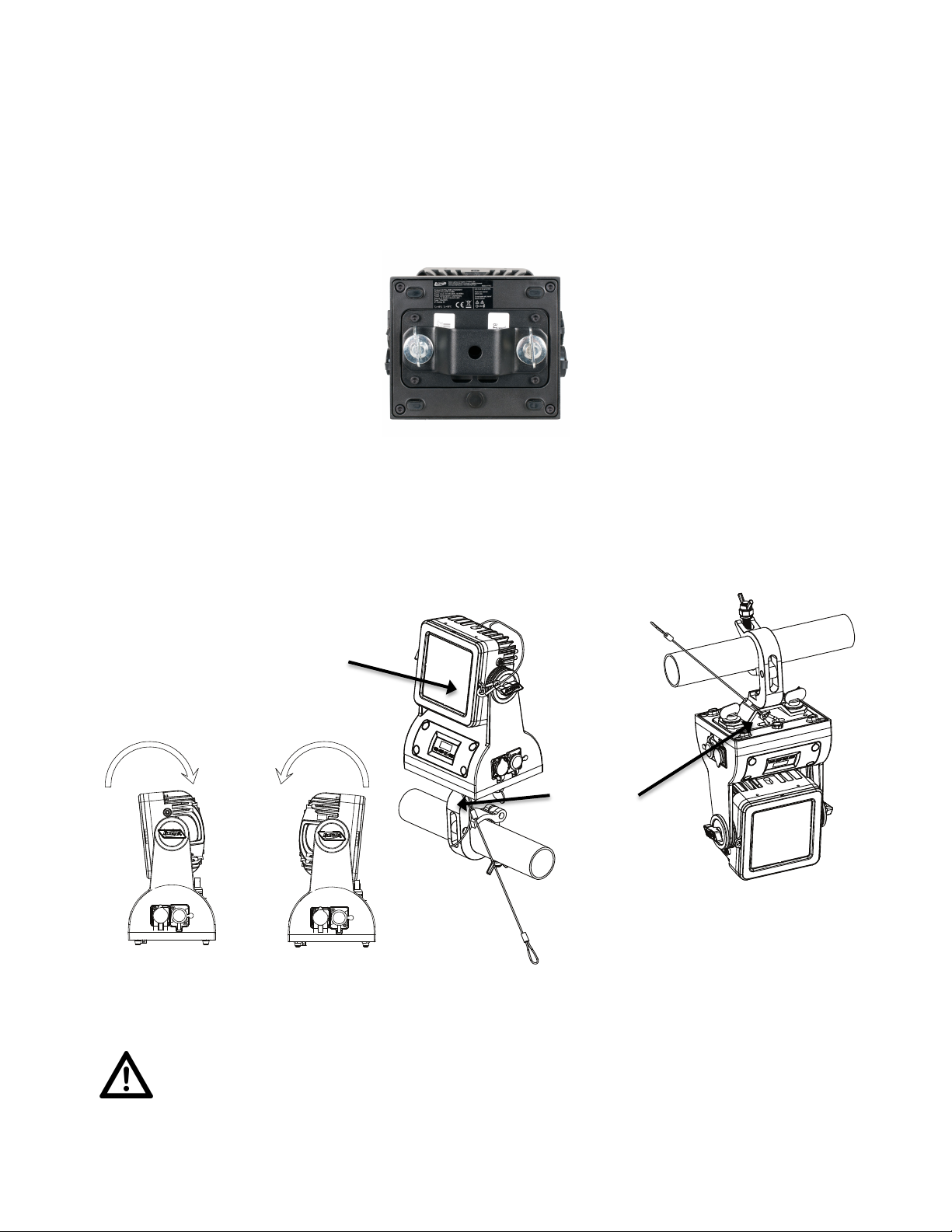

SIDES
Manual Tilt Adjustment Knobs
IP65 Twist Lock Power In/Out
IP65 5pin DMX In/Out
BOX CONTENTS
Magnetic Frost Filter
Frost Filter Safety Cable
Fixture Safety Cable
Omega Bracket
IP65 Twist Lock Power Cable

10
FIXTURE INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE
POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX
POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 1.6 FOOT (0.5 METER)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)
MAXIMUM AMBIENT OPERATING TEMPERATURE 113°F. (45°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or
placing the fixture(s) on any surface, a professional equipment installer MUST be consulted
to determine if the metal truss/structure or surface is properly certified to safely hold the
combined weight of the fixture(s), clamps, cables, and accessories.
Overhead rigging requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
Maximum ambient operating temperature is 113°F. (45°C)
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from
areas were unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before serving.

11
FIXTURE INSTALLATION
OMEGA BRACKET INSTALLATION
Insert 1 or both Omega Brackets into the matching holes on the bottom of the fixture. Secure
the Omega Bracket to the fixture by turning each quick-lock fastener ¼turn clockwise;
making sure the fastener is completely locked. Omega Bracket can be installed into the
fixture base as illustrated below.
CLAMP INSTALLATION
When mounting fixture to truss, be sure to secure an appropriately rated professional grade
rigging clamp to the included Omega Bracket using an M10 screw fitted through the center
hole of the Omega Bracket. The fixture provides a built-in rigging points for a FIXTURE
SAFETY CABLE and FROST FILTER SAFETY CABLE. Be sure to use the designated
rigging points for the FIXTURE and FROST FILTER SAFETY CABLES and never secure a
safety cable to a carrying handle.
TILT POSITION ADJUSTMENT
The fixture head tilt position can be manually adjusted by loosening the tilt adjustment knobs
on both sides and positioning the head to a desired tilt position.
TIGHTEN/SECURE BOTH TILT ADJUSTMENT KNOBS TO
PREVENT UNWANTED FIXTURE HEAD MOVEMENT.
FIXTURE
SAFETY CABLE
FROST FILTER
SAFETY CABLE

12
FIXTURE INSTALLATION
RIGGING
Overhead rigging requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
ALWAYS ATTACH AN APPROPRIATELY RATED SAFETY CABLE (NOT INCLUDED)
THAT MEETS ALL LOCAL, NATIONAL, AND COUNTRY CODES AND REGULATIONS
WHENEVER INSTALLING FIXTURE IN A SUSPENDED ENVIRONMENT!
POWER AND DATA CABLES
TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL
CABLES MUST BE RUN TOWARDS THE GROUND TO PREVENT WATER
ACCUMULATION AROUND THE CONNECTIONS. (see illustration below)
SAFETY CABLE
ATTACHMENT POINT
CABLES
CABLES

13
FIXTURE INSTALLATION
POWER AND DATA CONNECTIONS
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED
WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO
PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM
ENTERING THE FIXTURE, SEAL ALL UNUSED CONNECTION RUBBER CAPS.

14
FIXTURE INSTALLATION
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting moving head fixtures, and
lasers, which are focused directly towards the exterior housing and/or penetrate the front
lens opening of ELATION lighting fixtures, can cause severe internal damage including
burning to optics, light pipes, dichroic color filters, glass and metal gobos, prisms, animation
wheels, frost filters, iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting
fixtures from all manufacturers. Although there is no true way to fully prevent this issue from
happening, the guidelines below can prevent any potential damage from occurring if
followed. Contact ELATION Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO
LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING
HEAD FIXTURES, AND LASERS WHILE UNPACKING, INSTALLATION, USE,
AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS A LIGHT
BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

15
SYSTEM MENU
The fixture includes an easy to navigate system menu. The control panel (see image below)
located on the front of the fixture, provides access to the main system menu and is where
all necessary system adjustments are made to the fixture. During normal operation, pressing
MODE button once will access the fixture’s main menu. Once in the main menu you can
navigate through the different functions and access the sub-menus with the UP and DOWN
buttons. Once you reach a field that requires adjusting, press the ENTER button to activate
that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button
once more will confirm your setting. You may exit the main menu at any time without making
any adjustments by pressing the MODE button.
To unlock and access the system menus press and hold the MODE button for 5+ seconds.
DISPLAY KEY LOCK FUNCTIONS (ON / ON1)
When the Key Lock sub menu is set to ON, the LCD display will turn OFF and lock after 30
seconds and the display will show LOCKED*****.
Press and hold the MODE button for 5+ seconds to unlock and access the system menus.
When Key Lock sub menu is set to ON1, the LCD display will turn OFF and lock after 30
seconds the display will show LOCK*****.
Follow these steps to unlock and access the system menus:
1. Press MENU, the display shows: LOCK*****
2. Press UP, then the display will change to: LOCK**** (one * disappears)
3. Press DOWN, then the display will change to: LOCK*** (two * disappear)
4. Press UP, then the display will change to: LOCK** (three * disappear)
5. Press DOWN, then the display will change to: LOCK* (4 * disappear)
6. Press ENTER, then the display will unlock, and system menus can now be accessed.

16
ELATION PALADIN CUBE™ - SYSTEM MENU
Supports Software Versions: ≥1.01
Features are subject to change without notice.
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Address
Set ADDR
001 - 497
Set DMX Address
Mode
Extended 16CH
Set DMX Channel Mode
Cells 24CH
Cells+Dim 26CH
Extended+Cells 32CH
HSI 4CH
HSI Extended 10CH
HIS+Cells 17CH
RGB 3CH
8bit 4CH
16bit 8CH
16+Dim 10CH
Function
No DMX
Hold / Black / Program
Fixture State When NO DMX Signal
LCD. Set
Display
On / Off
Enable Display Screensaver
Key Lock
On / On1 / Off
Display Lock Functions
Flash
On / Off
Display Flashes When NO DMX Signal
Inverse
On / Off
Flip Display 180°
Te m p . C / F
C / F
Set Te m p e r a t u re Display C° or F°
DimMode
0.0, 0.1 ~ 1.0 (increments of 0.1), 1.5, 2.0 ~ 10.0
Set Dimming Speed / Dim Mode
Standard
Stage
TV
Architec
Theatre
Stage2
Disp. Set
ADDR
ADDR:xxx
Displays Fixture Current DMX Address
Disp. CH
ALL, Strobe, Dimmer, DimFine, DimMode, Red1,
Green1, Blue1, White1, Red2, Green2, Blue2,
White2, Red3, Green3, Blue3, White3, None, Chase,
Chase. Sp, Chase F, Macro, R1Fine, G1Fine, B1Fine,
W1Fine, R2Fine, G2Fine, B2Fine, W2Fine, R3Fine,
G3Fine, B3Fine, W3Fine
Displays Current DMX Values
Fan
Auto / High / Low
Set Fan Speed
Flip
Standard / Flip1
Set Pixel Flip
DimCurve
Linear
Set Dimming Curve
Square
InSquare
S-Curve

17
ELATION PALADIN CUBE™ - SYSTEM MENU
Supports Software Versions: ≥1.01
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Function
Frequen
900 HZ, 1000HZ, 1100HZ, 1200HZ, 1300HZ, 1400HZ, 1500HZ,
2500HZ, 4000HZ, 5000HZ, 10kHZ, 15kHZ, 20kHZ, 25kHZ
Set LED Refresh Frequency Rate
FLY_CH
00 ~ 14
Set E-FLY Wireless Channel
FLY_Swit
On / Off
Enable E-FLY Wireless
Defaults
Cancel / Reset?
Reset Factory Default Settings
Program
Speed
01 ~ 99
Set Speed of Color Change/Fade
Programs
Color
STATIC
STROBE
0 ~ 255
STATIC
R, G, B, RG, GB, RB, RGB, BLACK
Set Internal Programs
CHANG15
STROBE
0 ~ 255
CHANG30
STROBE
0 ~ 255
FADE
STROBE
0 ~ 255
Macros
0~ 63
Select Internal Program Macros
Slave
SLAVE / OFF
Set Fixture Slave Mode
Info
TimeInfo
Current
XX (H)
Current Fixture Running Time (Hours)
To t a l
XX (H)
To t a l Fixture Operating Time (Hours)
Last
XX (H)
Fixture Running Time After Last
Cleared (Hours)
Password
Password=XXX (050 or 060)
Clear Password (050) or (060)
Clear
On / Off
Clear Fixture Running Time
Te m p I nf o
LED Temp XXF°
Displays Fixture Temperature
Err. Info
Errors
Displays Fixture Errors
ModelInf
Paladin Panel
Displays Model Name
Software
V1.01
Displays Software Version
Manual
Strobe
000 ~ 255
Manual Control Settings
Dimmer
000 ~ 255
DimFine
000 ~ 255
DimMode
000 ~ 255
Red
000 ~ 255
Green
000 ~ 255
Blue
000 ~ 255
White
000 ~ 255

18
ELATION PALADIN CUBE™ - SYSTEM MENU
Supports Software Versions: ≥1.01
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Calibrat
Password
Password=XXX (050)
Channel Data Calibration Password
Red1
050 ~ 255
Set Calibration Values
Green1
050 ~ 255
Blue1
050 ~ 255
White1
050 ~ 255
Red2
050 ~ 255
Green2
050 ~ 255
Blue2
050 ~ 255
White2
050 ~ 255
Red3
050 ~ 255
Green3
050 ~ 255
Blue3
050 ~ 255
White3
050 ~ 255

19

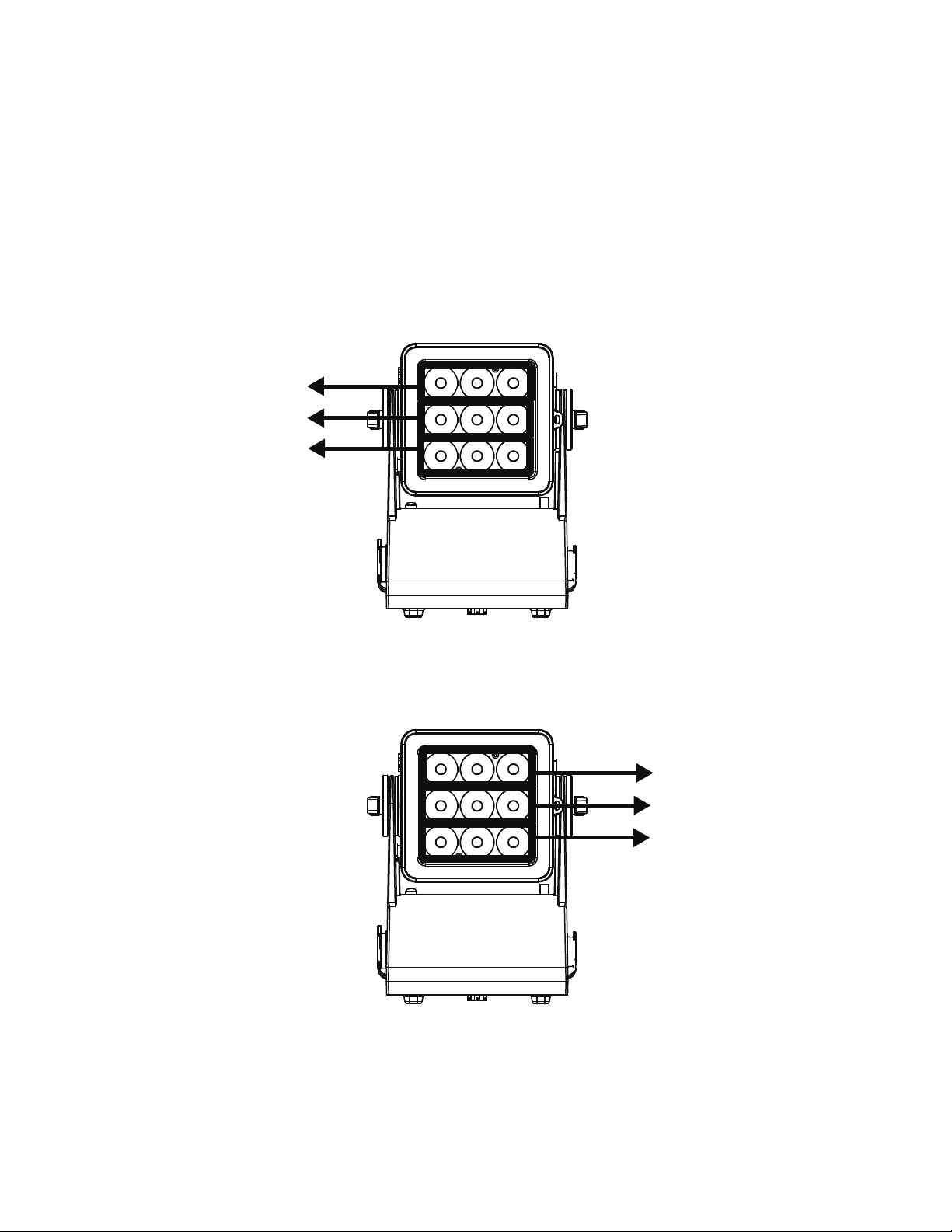

PIXEL ZONE CONTROL
This fixture includes 3-pixel zones, each zone containing 3 LED pixels which can be
controlled when specific DMX channel modes are selected. The system menu includes a
FLIP setting which flips the pixel zones to support unique fixture mounting scenarios.
NOTE: Pixel zones control varies depending on the DMX Channel and FLIP modes selected
and/or the fixture head tilt position. (see diagrams below)
STANDARD
FLIP1
1
2
3
1
3
2

20
E - FLY WIRELESS DMX SET UP
BEFORE SETTING THE WIRELESS CHANNEL ON ANY E-FLY
FIXTURE, MAKE SURE THE CONTROLLING E-FLY WIRELESS
DMX TRANSCEIVER DEVICE IS OFF.
TO CONTROL FIXTURE WITH E-FLY WIRELESS DMX SIGNAL
1. Ensure the controlling E-FLY wireless DMX Transceiver device is powered OFF and the
fixture is powered OFF and NO DMX cable is connected to the fixture.
2. Power ON fixture and from the OLED control panel navigate to the sub menu FLY_CH in the
FUNCTION main system menu, then set the desired E-FLY wireless channel (00-14) to the same
channel of the controlling E-FLY DMX Transceiver device.
3. Navigate to sub menu FLY_Swit in the FUNCTION main system menu and select ON.
NOTE: Erratic fixture movement may occur if other E-FLY wireless DMX products are in use in
the same area and are using the same E-FLY wireless channel. The fixture may immediately start
to respond to the DMX wireless signal from another E-FLY wireless DMX Transceiver immediately
when E-FLY is enabled. Make sure to know what E-FLY wireless channels are being used in the
area where the fixture is being installed.
4. Repeat this process for all E-FLY compatible fixtures in the E-FLY wireless network,
making sure all fixtures are assigned the same E-FLY wireless channel.
5. After all fixtures in the E-FLY wireless network have been set to the same E-FLY wireless
channel and powered ON, now power ON the controlling E-FLY DMX Transceiver device.
6. Test all fixtures connected to the E-FLY wireless network to confirm proper functionality.
