Elba ED-F7160(WH) User manual

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
TUMBLE DRYER
MODEL: ED-F7160(WH)

2
REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS
APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY
SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a
safe place for future reference.
SAFETY PRECAUTIONS
1. Keep this appliance out of reach from children. Do not let them to operate the
appliance without supervision.
2. Check the current rating on the rating plate and make sure the current supplied is
matched with the appliance before using.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
5. If the power cord or plug is damaged, it must be replaced by the service centre or a
qualified service technician to avoid hazard.
6. Any electrical work required to install this appliance should be carried out by a
qualified technician or competent personnel.
WARNING - to reduce the risk of fire or injury to persons or property, please
read and follow below instructions carefully:
Do not operate this appliance if it has malfunctioned, damaged or appears damaged in
any way. Make enquiry to our service centre and return the complete set to the place
of purchase for inspection, repair or replacement.
This appliance must be grounded and the ground wire should not be connected to any
heating pipe and gas pipe.
Avoid placing any objects into the appliance such as coins, nails, screws, or objects
which may cause severe damage to the drum.
Objects made with rubber or any latex material such as hand gloves and shower caps
should not be dried in the tumble dryer at any time.
Laundry which has been contaminated with flammable substance such as petrol,
kerosene, cooking oil or turpentine should be washed in hot water with detergent
before drying with this appliance. Only tumble dry laundry washed with water.
If the tumble dryer is place on top of a washing machine, it is compulsory to use the
stacking kit (optional accessory) to hold the appliance.
Do not overload the appliance. Laundry which is dripping wet should not be dried with
the appliance.

3
INSTALLATION
Position the tumble dryer so that the plug remains accessible after
installation. Do not block the back of the dryer, as this will impair the
working of the machine. Leave a space of 10cm between the rear of
the tumble dryer to the wall.
This appliance must not be installed behind a lockable door, a sliding
door or a door with hinges on the opposite side to that of the tumble
dryer.
Your tumble dryer will release warm, damp air during operation.
REAR VENTING
The dryer vents through a vent hose on the back of dryer.
Vent hose must be installed if they are placed under a work
surface or against a wall. To minimize condensation it is
preferable to vent outdoor. This may be through an open
door or window. The best solution is to connect the vent
hose to a permanent connection through a wall or a single
glazed window. This is particularly recommended for small,
cool rooms.
When using a vent hose, remember the following points:
- The vent hose must be at 10cm (4 in) in diameter.
- No more than three right-angled bends should be allowed when positioning the vent
hose.
- Do not distort or constrict the vent hose as this will reduce the airflow.
- The vent hose must not be shared with other appliances, for example, a cooker
hood outlet.
FINAL INSTALLATION
Push the filter into its operating position located under the door. Remove any dust by
wiping the drum and door with a damp cloth. Any initial smell of burning will be caused by
dust on the heater for the first use and will quickly disappear.

4
SAFETY PRECAUTIONS
Install or store the appliance where it will not
be direct exposed to water or sun, this may
cause permanent damage or malfunction of
the appliance.
Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust and dirt. An
obstructed port might reduce the airflow.

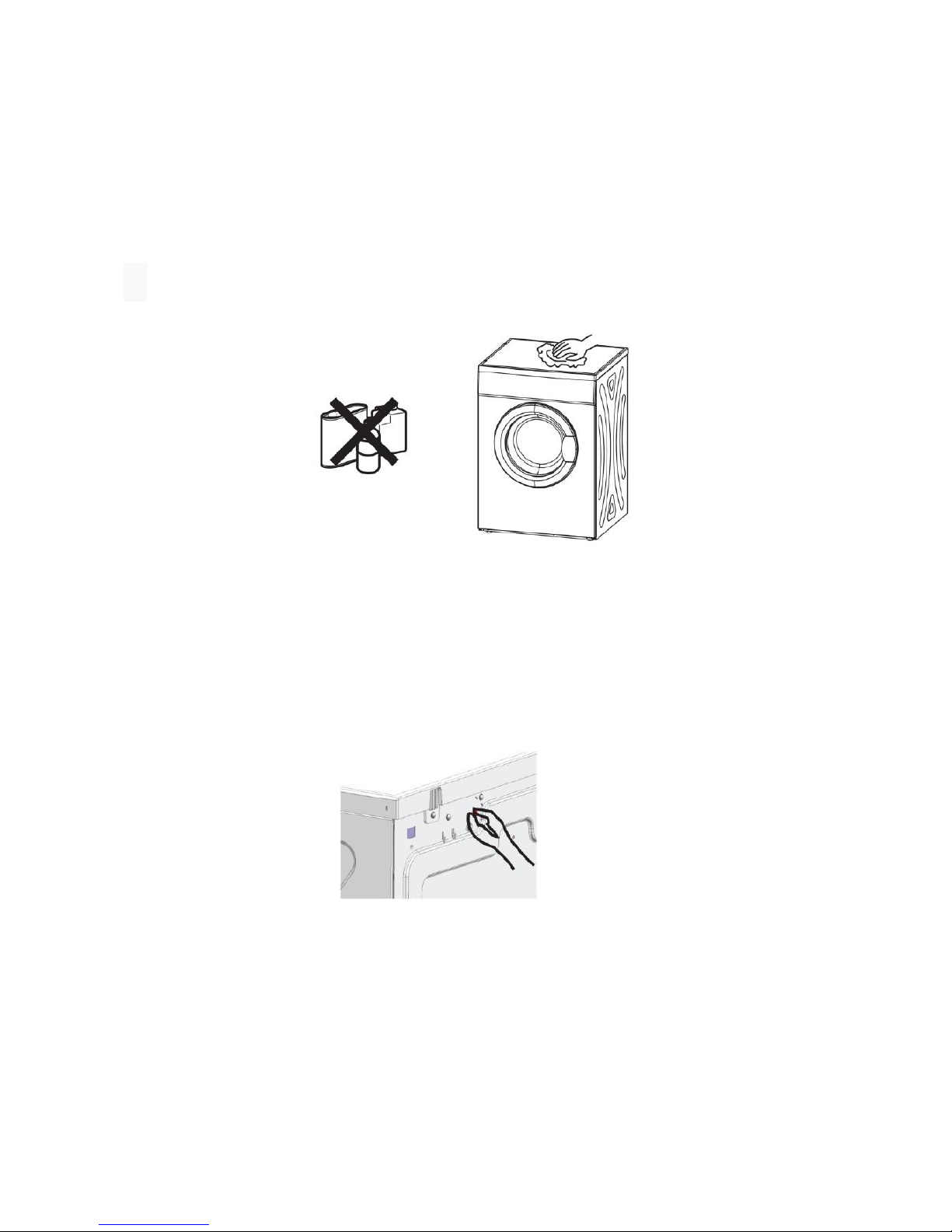

Do not store plastic, paper or clothing that
may burn or melt on the top of the
appliance during operation.
The exhaust air must not be discharged
into a flue which is used for exhausting
fumes from appliance of burning gas or
other fuels.
Do not dry the laundry that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
(such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) as it
will damage the appliance.
Never attempt to operate this appliance if
it is damaged, malfunctioning, or broken
parts such as a damaged on power cord
or plug.
Do not allow children to operate this
appliance. Close supervision of children is
necessary when the appliance is used.
Please do not reach the appliance when
your foot or hand is wet.

5
This product belongs to type I electronic products and please take note of safety problem
accordingly:
1. It is always beware of the power which is buried in the earth and will not touch any
social equipment such as gas pipe or water pipe etc. Make sure the difference of
different lines and they are not connected.
2. When you are using the appliance, please make sure the maximum current will
reach 10A. Therefore, please make sure the power supply units (current, voltage
and cable) can meet the normal load requirements for the machine.
Do not dry laundry that contain rubber, plastic
or similar materials such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs,
baby pants, raincoat, plastic bags or pillows
that may cause melt or burn. Some of the
rubber materials will cause fire when heated
and will permanently damage the appliance.
It is prohibited to open the door before the
drying program had finished as it will cause
injury from being scalded by hot steam or
over heated by the appliance.

6
PREPARATION
Please pay attention to use the appliance if the labels inside the garments cannot be dried
or contain the symbols as follows:
1. To avoid the need to iron easy-care polyester / cotton items, it is better to only dry
small loads (half fill drum) with small and large articles together.
2. Do not overload the dryer or dry large bulky items such as duvets, quilt, curtain or
sleeping bags as it is important to make sure the air flow through the dryer is not
obstructed.
3. Before drying, thoroughly spin the laundry in washing machine. Higher spin speed
can reduce the drying cycle time and save energy consumption.
4. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
5. Do not over dry the clothes. This will cause over dried clothes easily creases.
6. Do not dry the articles containing rubber or similar elastic materials.
7. The door can be opened only once the program of the drying completed.
8. Clean the lint filter and empty container after each use to avoid extension of drying
time and energy use.

7
PROGRAM TABLE The above program is for reference only. Users may choose the appropriate program according to their needs and the condition of
laundry. For fabrics that are thick and multi-layered such as bedlinen, jeans, and jackets that not easily to dry, please choose mix
extra program and set to the maximum drying intensity level.
Program
Capacity
(max)
Descriptions Delay Start
Cotton
For fabrics such as cotton or linen.
Extra
7.0kg
To dry cotton made laundry. Drying level: extra dry.
Y
Standard
To dry cotton made laundry. Drying level: standard dry.
Less
To dry cotton made laundry. Drying level: less dry.
Mix
To dry fabrics that mix with delicate cottons and synthetics together.
Extra
7.0kg
To dry mix made laundry. Drying level: extra dry.
Y
Standard
To dry mix made laundry. Drying level: standard dry.
Synthetics
For synthetic fabrics such as polyester, nylon and rayon
Extra
3.0kg
To dry synthetics made laundry. Drying level: extra dry.
Y
Standard
To dry synthetics made laundry. Drying level: standard dry.
Time
30 min
-
30 minutes laundry time.
Y
40 min
40 minutes laundry time.
50 min
50 minutes laundry time
60 min
60 minutes laundry time
Special Delicate -
To dry delicate laundry such as lingerie, hand washable fabrics, machine wash,
dry woollens, and heat sensitive items labelled tumble dry-low temperature.
Y
Refresh
Remove the smell of the laundry which had been kept for long time.
Quick
Rapidly warm the laundry.
Airing
Airing
-
To air clothes without hot air.
Y
Wool Wool-
For a fluffy and fresh wool effect. Cannot be used for drying wool clothing).
When the drying cycle is done, take out the clothes and dry it in open area.
Y

8
Note:
1. The dryer will blow cold wind for final cool down for 3 minutes before finishing the
laundry cycle done.
2. If anti-crease program is selected, the anti-crease process will prolonged to 2
hours, otherwise it keeps 30 minutes (by default).
3. The temperature and humidity inside the dryer will affect the drying performance.
4. Check the label attached on clothes and choose the right temperature and time
according to the program table.
The reference weight of laundry.
PRODUCT DESCRIPTION
1. Top Board
2. Control Panel
3. Door
4. Front Panel
5. Side Panel
6. Lint Filter
7. Vent Hose
8. Power Plug
9. Door Latch
10.Drum

9
CONTROL PANEL DESCRIPTIONS
1. On/Off
Turn on or turn off the tumble dryer.
2. Start/Pause
Starts or Pause the selected program.
3. Buzzer
Press the Buzzer button to select the “On” or “Off”buzzer function. The
buzzer will prompt from the dryer when the drying cycle has completed.
4. Intensity
Press the Intensity button to select the dryness level of the laundry. The level has
three grades. The drying time increases 3 minutes in every grade.
Intensity Level 3
Intensity Level 2
Intensity Level 1
(i).The intensity functions can be activated only before the drying program start.
(ii).Press the Intensity button repeatedly to select the correct dryness level.
Note: Program such as delicate, refresh, quick, airing and wool cannot
activate this function.
5. Delay Start
Press the Delay Start button to start the drying program in the specific start time.
You can press this key continuously. It can be delay up to 24 hours. The delay start
sign “” will be light up once the function is activated.

10
6. Anti-Crease
Press the Anti-Crease button to select the function. At the end of the drying cycle,
the anti-crease operation time is 30 minutes by default with this function, the anti-
crease operation will prolonged to 120 minutes. The anti-crease sign “” will be
light up once the function is activated. This function will prevent the laundry from
creases after the drying cycle has completed.
7. Program Knob
Turn the program knob to select the drying program.
8. Child Lock
If users need child lock function, pressing the Anti-Crease and Delay buttons
simultaneously for over 5 seconds to activate the child lock function. The child lock
sign “” will be light up once the function is activated. This child lock can be
activated once the drying program started. (Child lock will lock all the program from
alteration but not included the door)
9. Lint Filter Full
Dryer will stop operate once the link filter is full. Please clean the link filter when the
“Filter” light is on.
OPERATION
1. Press On/Off button to activate the tumble dryer.
2. Open the door and insert the laundry. Close the door once all the laundry had been
inserted.
3. Turn the program knob and select the right program to dry the laundry. (Please
refer to program table)
4. Select the intensity level if you wish to have better drying result. (must be select
before start the drying program)
5. Select the anti-crease program if you wish to activate the anti-crease function after
drying. (30 minutes by default)
6. Select the delay start if you wish to delay the program. (delay up to 24 hours)
Note: If you do not require for the above function, please skip the step 4 until
step 6.
7. Press the Start/Pause button to start the program.
8. Press the buzzer button to prompt when drying cycle has completed (this option is
to on or off the buzzer when drying cycle completed).
9. Once the drying cycle has completed, please turn off the power from the plug
before removing the laundry from tumble dryer.

11
NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM DUE TO
THE RISK OF FIRE.
CLEANING AND MAINTENANCE
ALWAYS CLEAN THE LINT FILTER AFTER EACH USE. FAILURE TO DO SO COULD
CAUSE THE SAFETY CUTOUT TO OPERATE.
1. Pull the lint filter upwards and away from the appliance.
2. Remove any threads or fluff by hand or with a soft brush.
3. Slide the lint filter back.
4. Wash the lint filter occasionally in detergent solution using a soft brush to remove
small particles.
5. If your lint filter has damaged, replace it to ensure no damage is caused to the
dryer.
6. Do not use chemical, steel, wooden or abrasive cleaners to clean the appliance.
7. This appliance should not be left unused for a long period. To stop using the
appliance, disconnect the main power. Clean the interior and dry it completely.

12
CLEANING THE CABINET AND DRUM
Use a soft damp cloth wipe when cleaning the cabinet and drum.
1. Not to rinse with water directly.
2. Not to use scouring pad to clean the drum.
3. Not to use any abrasive powders or corrosive substances which could damage the
surface.
※Make sure to open the front door for airing after cleaning the drum.
SAFETY RESET
1. These dryers have a safety cut out switch which is activated by temperature.
2. The safety reset button is on the rear of the dryer. If your dryer not operating,
please press the reset button before the dryer start operate again. Please wait for
10 minutes to cool down the appliance before activate the reset button. Use your
finger or a pencil to press the white button in until you feel the reset click.
3. The most common factor of the dyer to overheat is due to the blocked filter. Please
clean the lint filter before the laundry start as to prevent overheating of the dryer.
The cut out switch may operate for the following reason:
1. Lint filter is blocked.
2. Exhaust outlets blocked at the back of the dryer.
3. Poor ventilation in the dryer area.
4. Lightweight garment or foreign object had been blocked over the lint filter.

13
TROUBLESHOOTING
If the laundry is not dried after normal drying program.
1. Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.
2. If the cut-out continues to operate after checking the above points, you should
contact the after sales service centre. Do not attempt to repair the unit.
3. Check that the appliance has the correct weight load in the drum before starting the
appliance.
4. If your appliance does not work properly, check the following before calling the after
sales service centre:-
a) Check that there is a supply of electricity.
b) Check that the door has been properly closed.
c) Check the fuse in the moulded plug.
d) Check that the lint filter has inserted properly in place.
e) Check that the safety cut-out has been operated. Press the reset button at the
rear of the appliance to reset.
Trouble Cause Solution
Dryer not able to
start
• The power plug is not plug in proper
way.
• Dry clothes exceed the capacity.
• The temperature fuse is cut.
• Check the power socket, make sure power
plug insert properly to power socket.
• Make sure the drying clothes cannot exceed
7kg.
• Please contact the service centre to replace
the temperature fuse.
Dryer is external
hot
• The lint filter is almost full.
• The vent hose is dirty.
• Make sure clean the lint filter all the time.
• Clean out the vent hose.
Clothes not
completely dry
• The clothes in machine is too full.
• Not to take out the clothes
immediately when laundry done.
• The clothes use the wrong program
• Make sure the clothes are not too full.
• Keep the laundryin the dryer longer before
taking out.
• Observe the label on clothes.
Clothes shrink
• Thetemperature istoo high
• Observe the label on clothes, if the clothes is
easy to shrink, partially dried, take out the
clothes and then hang the clothes until fully
dry.

14
OTHER ERROR
Error
code
Description
Criteria
Action
E36
Temperature
Sensor error
Temperature Sensor
is open or short
Please contact technician for service.
TECHNICAL SPECIFICATION
Model
ED-F7160(WH)
Drying Capacity
7.0KG
Voltage
220–240V
Frequency
50/60Hz
Rated Power
2,000W
Rated Current
10A
Ambient Temperature
5°C ~ 35°C
Product Dimension (mm)
595 (W) x 840 (H) x 550 (D)
Carton Dimension (mm)
665 (W) x 890 (H) x 575 (D)
Net / Gross Weight
33 KGS / 38 KGS

15
IMPORTANT USER INFORMATION
This tumble dryer is intended for DOMESTIC USE ONLY.
- Adequate ventilation must be provided to avoid back flow of gases into the room
from appliances burning other fuels, including open fires.
- Exhaust air must not be discharged into a flue which is used for exhausting fumes
from appliances burning gas or other fuel.
- It is not recommended that the dryer is placed directly next to ovens, cookers or
other heating appliances as the performance of the dryer may be affected.
- A carpet must not obstruct the ventilation openings in the base of the dryer.
- Do not stack the tumble dryer on top of other appliances without the correct
stacking kit.
- Any electrical work required to install the appliance should be carried out by a
qualified person.
- It is important to clean the lint filter after each drying cycle or the restrictions to
airflow will extend drying times and could cause the safety cut-out to trip.
- Under no circumstances should anything other than the recommended articles be
placed in the tumble dryer.
- The dryer should be serviced by an authorized service centre and only genuine
parts used.
- Do not attempt to alter or modify the product in any way.
- We recommend that the appliance is unplugged each time after use. It should
always be disconnected from the electricity supply if not in use for long periods.
- The rear of the dryer gets hot during use. Position the dryer so that the back is not
accessible while in operation, but ensure that the sides have a space available to
allow airflow.
- The special mains cable and plug assembly must only be replaced with a genuine
part from the manufacturer or authorized service centre.
- It is important to clean fluff from the window of the dryer and around the door seal
after each drying cycle.
- Children should be supervised to ensure they do not play with the appliance.
WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items
are quickly removed and spread out so that heat is dissipated. Remove all objects from
pockets such as lighters and matches.

16
DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its
own socket.
DO NOT block the air inlets at the front, base, rear and side of your dryer.
DO NOT allow fluff to accumulate around the tumble dryer.
DO NOT exceed the recommended maximum load.
DO NOT dry unwashed items in the tumble dryer
DO NOT place articles in the dryer if anything other than a water solution has been used
in the cleaning process.
DO NOT tumble dry anything other than water washed laundry.
DO NOT attempt to dry dripping wet articles.
DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no
circumstances should you attempt to repair the appliance yourself. Repairs carried out by
inexperienced persons may cause serious injury. Consult your local authorized service
centre and insist on genuine spare parts.
NOTICE
This product must not be disposed together with domestic waste. It has to be
disposed at an authorized place for recycling of electrical and electronic
appliances. By collecting and recycling waste, you help to save natural resources
and make sure the product is disposed in an environmental friendly and healthy
way.
