Eldes ESIM120 User manual

ESIM120
GSM SWITCHGATE CONTROLLER

2
2
EN ESIM120 Manual v.3.6
User Manual v3.6
Valid for ESIM120 v21.05.00 and up

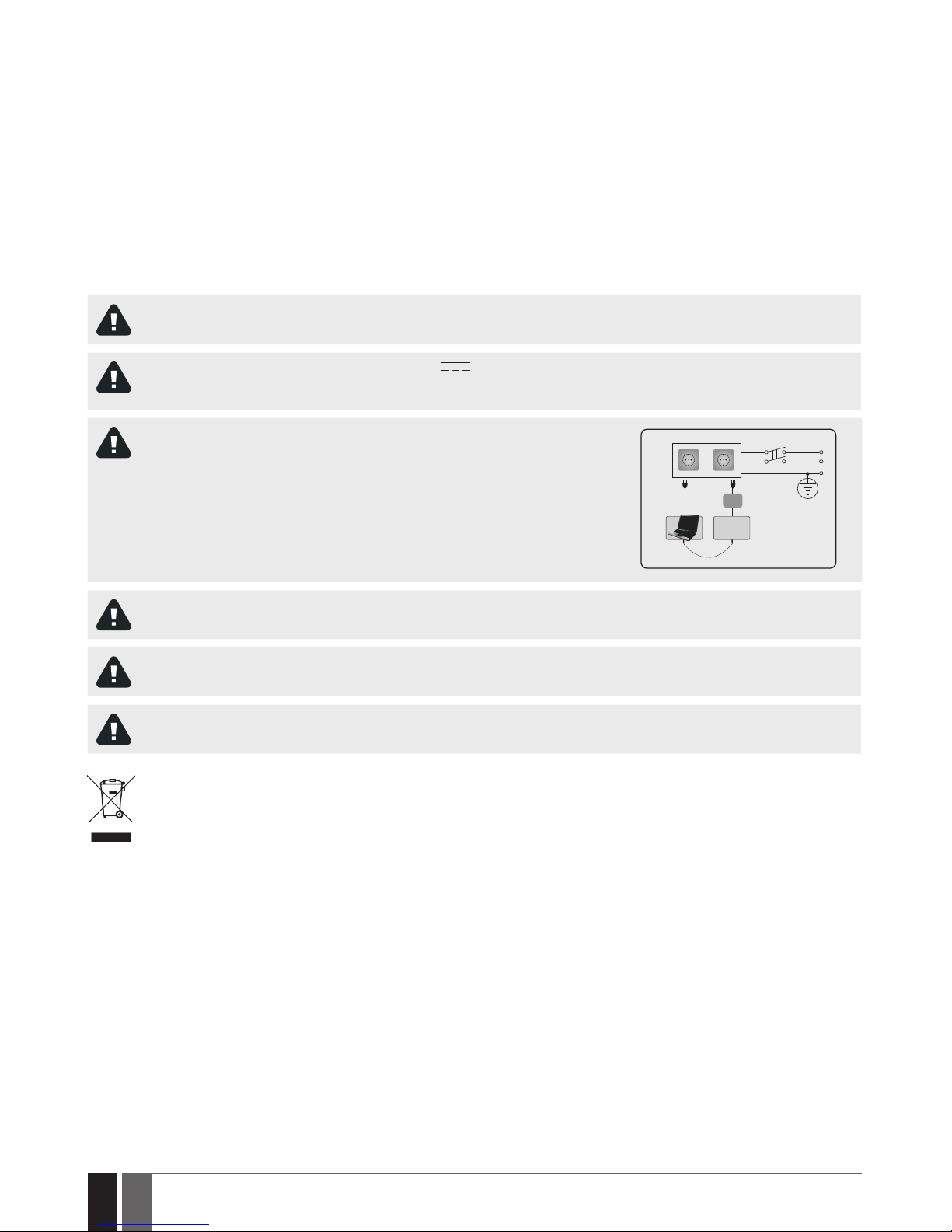

SAFETY INSTRUCTIONS
Please read and follow these safety guidelines to safeguard yourself and others:
• GSM switch-gate controller ESIM120 (later referred to as “the system” or “ the device”) contains a built-in radio transceiver operating in
GSM 850/900/1800/1900 MHz bands.
• DO NOT use the system where it can cause potential danger and interfere with other devices – such as medical devices.
• DO NOT use the system in hazardous environment.
• DO NOT expose the system to high humidity, chemical environment or mechanical impact.
• DO NOT attempt to repair the system yourself – any repairs must be carried out by fully qualied personnel only.
Disconnect the mains power before installing. Never install or carry out maintenance during stormy weather. The electric sock-
et that powers the system must be easily accessible.
Please use the 10-24V 50Hz ~200mA AC or 10-24V 200mA DC power supply unit that meets the EN 60950-1 standard.
Any additional device you connect to the system, such as a computer, must also be powered by an EN 60950-1 approved
supply. When connecting the power supply to the system, switching the polarity terminal places does not have any aect.
External power supply can be connected to AC mains only inside installation room
with automatic 2-pole circuit breaker capable of disconnecting circuit in the event of
short circuit or over-current condition. Open circuit breaker must have a gap between
connections of more than 3mm (0.12in) and the disconnection current 5A.
Phase
AC 230V
50 Hz/DC 24V
USB cable
Null
PE
ESIM120
AC/DC
To switch the system o, unplug the external electric power supply from or any other linked device that the system is powered
from.
A blown fuse cannot be replaced by the user. The replacement fuse has to be of the kind indicated by the manufacturer (fuse
F1 model – MINISMDC050F 0.5A).
If you use a computer for the device conguration, it must be earthed.
The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates that the
product must not be disposed of together with household waste. To prevent possible harm to human health and/or the envi-
ronment, the product must be disposed on in an approved and environmentally safe recycling process. For further information
on how to dispose of this product correctly, contact the system supplier, or the local authority responsible for waste disposal
in your area.

3
3
EN
ESIM120 Manual v.3.6
CONTENTS
1. GENERAL INFORMATION ...........................................................................................................................................................6
2. TECHNICAL SPECIFICATIONS ....................................................................................................................................................6
2.1. Electrical and Mechanical Characteristics.....................................................................................................................................................6
2.2. Main Unit, LED Indicator and Connector Functionality ...............................................................................................................................7
2.3. Wiring Diagrams ................................................................................................................................................................................................8
3. INSTALLATION ...........................................................................................................................................................................9
4. GENERAL OPERATIONAL DESCRIPTION..................................................................................................................................10
5. CONFIGURATION METHODS ....................................................................................................................................................10
5.1. SMS Text Messages.........................................................................................................................................................................................10
5.2. ELDES Conguration Tool Software.............................................................................................................................................................10
5.2.1. Remote Connection ........................................................................................................................................................................................10
5.2.2. Ending the Remote Connection Session.....................................................................................................................................................10
6. SYSTEM LANGUAGE................................................................................................................................................................. 11
7. SMS PASSWORD.......................................................................................................................................................................11
8. ADMINISTRATOR PHONE NUMBERS.......................................................................................................................................12
9. DATE AND TIME........................................................................................................................................................................13
9.1. Automatic Date and Time Synchronization ................................................................................................................................................13
10. USER PHONE NUMBER DATABASE.........................................................................................................................................14
10.1. User Validity and Access Restriction ...........................................................................................................................................................16
11. OUTPUTS ................................................................................................................................................................................18
11.1. Output Names..................................................................................................................................................................................................18
11.2. Output Control by Free of Charge Phone Call .............................................................................................................................................18
11.3. Output Control by SMS Text Message..........................................................................................................................................................19
11.4. Output Control Conrmation by Call Back ...................................................................................................................................................21
11.5. Output Control from any Phone Number.....................................................................................................................................................21
11.6. Automatic Output Control..............................................................................................................................................................................22
12. SCHEDULERS ..........................................................................................................................................................................23
13. EVENT LOG ..............................................................................................................................................................................25
14. INPUTS................................................................................................................................................................................... 26
14.1. Input Names and Alarm Notications......................................................................................................................................................... 26
14.2. Disabling and Enabling Inputs.......................................................................................................................................................................27
15. SYSTEM INFORMATION. INFO SMS........................................................................................................................................ 28
15.1. Periodic Info SMS............................................................................................................................................................................................ 28
16. SYSTEM NOTIFICATIONS ....................................................................................................................................................... 29
16.1. SMS Text Message Delivery Restrictions ................................................................................................................................................... 29
16.2. SMSC (Short Message Service Center) Phone Number............................................................................................................................ 29
17. GPRS NETWORK SETTINGS ................................................................................................................................................... 30
18. INCOMING PHONE NUMBER VERIFICATION SETTINGS .........................................................................................................31
19. REMOTE SYSTEM RESTART....................................................................................................................................................31
20. TECHNICAL SUPPORT ............................................................................................................................................................32
20.1. Troubleshooting ..............................................................................................................................................................................................32
20.2. Restoring Default Parameters ......................................................................................................................................................................32
20.3. Updating the Firmware via USB Cable.........................................................................................................................................................32
21. ELDES CLOUD SERVICES .........................................................................................................................................................33
22. RELATED PRODUCTS ............................................................................................................................................................. 34

4
4
EN ESIM120 Manual v.3.6

5
5
EN
ESIM120 Manual v.3.6
Limited Liability
The buyer agrees that the system will reduce the risk of re, theft, burglary or other danger but that it does not guarantee against the oc-
currence of such events. “ELDES UAB” will not take any responsibility for the loss of personal eects, property or revenue whilst using the
system. The liability of “ELDES UAB” is limited to the value of the system purchased. “ELDES UAB” is not aliated with any mobile/wireless/
cellular provider and is therefore not responsible for the quality of such services.
Manufacturer Warranty
The system carries a 24-month manufacturer warranty from “ELDES UAB”. The warranty begins the day the system is purchased by the
user and the receipt must be retained as proof of purchase date. The warranty remains valid only if the system is used as intended, fol-
lowing all guidelines outlined in this manual and in accordance with the operating conditions specied. The warranty is void if the system
has been exposed to mechanical impact, chemicals, high humidity, uids, corrosive and hazardous environments or force majeure factors.
Dear Customer,
Thank you for choosing to purchase the GSM switch-gate controller ESIM120. Your thoughtful decision will ensure reliable solution for
many years as all ELDES products are manufactured to meet the highest standards.
We are condent that you will be completely satised with your product. However, in the unlikely event that you do experience a
problem, please contact the dealer from whom you made your purchase.
UAB ELDES
www.eldes.lt
Contents of Pack
Item Quantity
1. ESIM120...................................................1
2. User manual............................................1
3. GSM/GPRS antenna...............................1
Not included:
• SIM card – we recommend you get a contract SIM, not Pay As You Go.
• mini-USB cable – can be obtained from your local distributor.
Copyright © “ELDES UAB”, 2015. All rights reserved.
It is strictly forbidden to copy and distribute information in this document or pass to a third party without an
advanced written authorization from “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this
document and/or related products without a warning. Hereby, “ELDES UAB” declares that the GSM switch-gate
controller ESIM120 is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt.

6
6
EN ESIM120 Manual v.3.6
1. GENERAL INFORMATION
ESIM120 is a micro-controller based device intended to provide access control for gate automatics, road barriers or to remotely turn ON/OFF
any electrical appliance via the GSM network.
Examples of using the system:
• Access control.
• Parking lot control of residential houses or oces.
• Gate control of private houses.
• Any electrical appliance control: lighting, watering, heating etc.
• Remote reboot of the “frozen” systems, such as computer network or a server.
Main features
• Manual output control by free of charge phone call.
• Automatic output control in accordance with the scheduled time.
• Congurable output pulse duration.
• Automatic date and time synchronization.
• Up to 5 administrators for system conguration by SMS text messages, acceptance of input alarm SMS text messages, output control
by SMS text message and free of charge phone call.
• User database capacity – up to 2000 users for output control by free of charge phone call.
• User phone number validity limitation in accordance with a set deadline (date/time) or number of rings to the system.
• Output control restriction for users in accordance with the specied weekdays and time.
• Event log of 1000 events containing date and time as well as administrator/user phone number and user name who controlled the
output.
• 3 inputs with customizable alarm texts for notication on gate state or in case it gets jammed.
• Periodic self-test notication by SMS text message to administrator phone number.
2.TECHNICAL SPECIFICATIONS
2.1. Electrical and Mechanical Characteristics
Supply voltage...............................................................10-24V 50Hz ~ 200mA max / 10-24V 200mA max
Current used in idle state.............................................up to 50mA
GSM modem frequency................................................850/900/1800/1900 MHz
Number of outputs .......................................................2
Output type....................................................................Relay; NO (normally-open) or NC (normally-closed) - congurable
Maximum commuting output values.........................24V 50Hz ~ 0,5A / 24V 1A
Number of low-level (negative) inputs .....................2
Number of high-level (positive) inputs.....................1
Low-level (negative) input value range....................0... 16V -0.8... -0.4mA
High-level (positive) input value range.....................5... 50V 0.17 .... 1.7mA
Low-level (negative) and high-level .........................NO (normally-open)
(positive) input connection type
Dimensions ....................................................................87x107x29mm (3.43x4.21x1.14in)
Operating temperature range ....................................-20…+55 °C (-30...+55 °C with limitations) (-4... +131°F (-22... +131°F))
Humidity.........................................................................0-90% RH @ 0... +40°C (0-90% RH @ +32... +104°F) (non-condensing)

7
7
EN
ESIM120 Manual v.3.6
2.2. Main Unit, LED Indicator and Connector Functionality
1
AC/DC RELAY1 RELAY2 COM Z5 Z4 Z3 Z2 Z1
ANT
MIC
USB
F1
SIM CARD
G S M
MO DE M
SIM STAT
NETW
DEF
Main Unit Functionality
ANT GSM/GPRS antenna SMA type connector
USB Mini USB port
SIM CARD SIM card slot / holder
GSM MODEM GSM network 850/900/1800/1900 MHz modem
MIC N/A
SIM STAT Red light-emitting diode indicating SIM card status
NETW Green light-emitting diode indicating GSM signal strength
DEF Pins for restoring default settings
F1 0.5A fuse
Connector Functionality
AC/DC Power supply terminals
RELAY1 Output C1 terminal
RELAY2 Output C2 terminal
COM Common terminal
Z5 N/A
Z4 N/A
Z3 Low-level (negative) input terminal
Z2 High-level (positive) input terminal
Z1 Low-level (negative) input terminal

8
8
EN ESIM120 Manual v.3.6
LED Indicator Functionality
SIM STAT indication SIM card status
OFF No mains power / micro-controller fault
Steady ON SIM card is attempting to connect to the GSM network / SIM card is not present / PIN code enabled
Flashing GSM connection failed
NETW indication GSM signal strength
OFF No GSM signal
Flashing every 1 sec. Poor
Flashing several times per sec. Medium
Steady ON Excellent

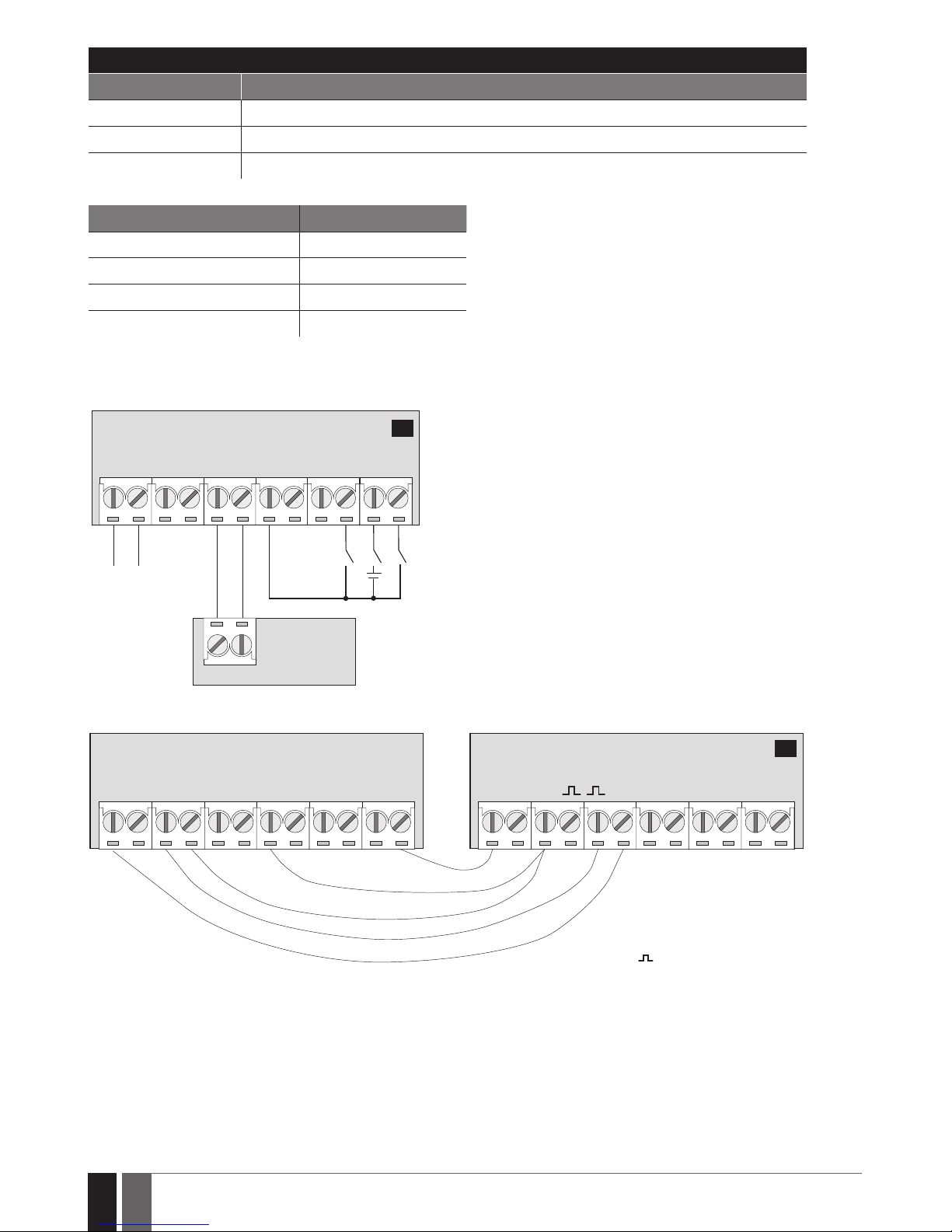

2.3. Wiring Diagrams
General wiring
ESIM120
AC/DC
Power
supply
GATE
AUTOMATION
DEVICE
RELAY2RELAY1 COM Z3 Z2 Z1
+
-
2
Example of ESIM120 system wiring to gate automation device
FO Fault output; open
collector type
+24V Power supply
output for powering
aux. equipment
Pulse input
GND Common terminal
ESIM120 GATE AUTOMATION DEVICE
AC/DC RELAY1 RELAY2 COM Z5 Z4 Z3 Z2 Z1 F0 +24vGND
3

9
9
EN
ESIM120 Manual v.3.6
3.INSTALLATION
• The system should be installed indoors, in stationary environment ONLY.
• For the connection of input/output terminals, use 0.50 mm2(0.02in2) thread unshielded cable of up to 100m (328.08ft) length.
1. Wire up the system in accordance with the wiring diagrams (see 2.3 Wiring Diagrams for more details).

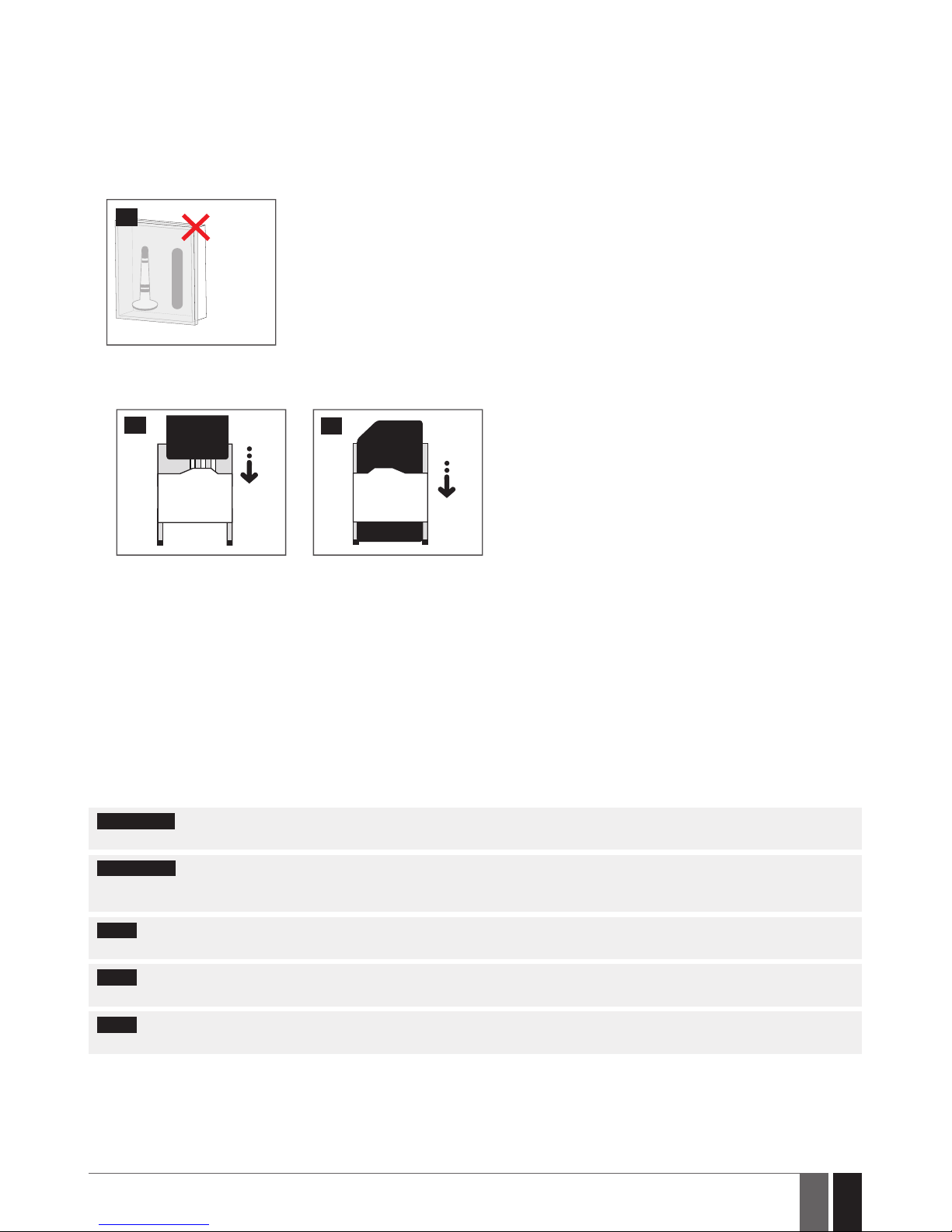

2. Connect the GSM/GPRS antenna. Based on the type of the GSM/GPRS antenna supplied with ESIM120 unit, follow the recommenda-
tions for the antenna installation:
GSM/GPRS
antenna
4
Never install in the following
locations:
• inside the metal cabinet
• closer than 20cm (7.87in) from the
metal surface and/ or power lines
3. Disable the PIN code request of the SIM card by inserting it into a mobile phone and following the proper menu steps.
4. Once the PIN code is disabled, insert the SIM card into the SIM card slot / holder of ESIM120 system.
5
6
5. Power up the system and wait until indicator SIM STAT lights up indicating SIM card status.
6. Once the indicator SIM STAT lights OFF, the illuminated indicator NETW lights up indicating that the system has successfully connected
to the GSM network. To nd the strongest GSM signal, position the GSM/GPRS antenna and follow the indications provided by NETW
indicator (see 2.2. Main Unit, LED Indicator and Connector Functionality for more details).
7. Change the system language if necessary (see 6. SYSTEM LANGUAGE for more details).
8. Change the default SMS password (see 7. SMS PASSWORD for more details).
9. Set the phone number for Admin 1 (see 8. ADMINISTRATOR PHONE NUMBERS for more details).
10. Set system date and time (see 9. DATE AND TIME for more details).
11. Once the system is fully congured, it is ready for use. However, if you fail to receive a reply by SMS text message from the system,
please check the SMSC (Short Message Service Center) phone number. For more details regarding the SMS center phone number,
please refer to 16.2. SMSC (Short Message Service Center) Phone Number.
ATTENTION: The system is NOT compatible with pure 3G SIM cards. Only 2G/GSM SIM cards and 3G SIM cards with 2G/GSM prole en-
abled are supported. For more details, please contact your GSM operator.
ATTENTION: We also recommend you to disable call forwarding, voice mail/text message reports on missed/busy calls and
similar services that might cause incorrect system operation. Please contact your GSM operator for more details on these services and
how to disable them.
NOTE: For maximum system reliability we recommend you do NOT use a Pay As You Go SIM card. Otherwise, in the event of insucient
credit balance on the SIM card, the system would fail to make a phone call or send SMS text messages.
NOTE: We advise you to choose the same GSM SIM provider for your system as for your mobile phone. This will ensure the fastest, most
reliable SMS text message delivery service and phone call connection.
NOTE: Even though the installation process of ESIM120 is not too complicated, we still recommend to perform it by a person with basic
knowledge in electrical engineering and electronics to avoid any system damage.

10
10
EN ESIM120 Manual v.3.6
4.GENERAL OPERATIONAL DESCRIPTION
When a phone call is made to the phone number of the SIM card inserted in ESIM120, the system will verify if the caller’s phone number ex-
ists in the memory. If the caller is one of the 5 administrators or the phone number belongs to one of the 2000 database users, the system
will reject the phone call, thus making the phone call free of charge, and open the gate. By ringing to ESIM120 again, it will close the gate.
If the phone number is not recognized, the system will reject the phone call and ignore it. The GSM switch-gate controller can also control
your gate automatically in accordance with the scheduled time or by sending an SMS text message from the administrator’s phone number.
By connecting a sensor to one of the 3 inputs, the administrators can receive SMS text messages regarding the gates that failed to close
during the set time period.
User/Admin
ESIM120
CALL
7
5.CONFIGURATION METHODS
5.1. SMS Text Messages
In this document the underscore character ”_” represents one space character. Every underscore character must be re-
placed with a single space character. There must be no spaces or other unnecessary characters at the beginning and at the
end of the SMS text message.
SMS
In order to congure and control the system by SMS text message, send the text command to the ESIM120 system phone num-
ber from one of the listed administrator phone numbers. The structure of SMS text message consists of 4-digit SMS password
(the default SMS password is 0000 – four zeros), the parameter and value. For some parameters the value does not apply e. g.
STATUS. The variables are indicated in lower-case letters, while a valid parameter value range is indicated in brackets.
5.2. ELDES Conguration Tool Software
Cong
Tool
Software ELDES Conguration Tool is intended for ESIM120 GSM switch-gate controller conguration locally via USB port or
remotely via GPRS network connection. This software simplies system conguration process by allowing to use a personal
computer in the process. Before starting to use ELDES Conguration Tool software, please read the user guide provided in the
software’s HELP section.
ELDES Conguration Tool is freeware and can be downloaded from at: www.eldes.lt
NOTE: ELDES Conguration Tool software is secured with SMS password. The default SMS password is 0000 (see 7. SMS PASSWORD).
5.2.1.Remote Connection
ATTENTION: When ELDES Cloud Services feature is enabled (see 21. ELDES CLOUD SERVICES), remote connection via ELDES Cong-
uration Tool software becomes inaccessible. In such case you may use the remote conguration feature by accessing your ELDES Cloud
Services account via web-browser.
ELDES Conguration Tool software provides remote system conguration ability via Internet using one of the following methods:
• ELDES proxy server (recommended). The connection can be established on the system via GPRS network.
• Running TCP/IP server on ELDES Conguration Tool (advanced). The connection can be established on the system via GPRS network.
In order to start using the remote conguration feature, please run the step-by-step wizard and follow the steps provided in the start page
of ELDES Conguration Tool software. Please, note that it will be necessary to send an SMS text message to the system’s phone number
in order to initiate the remote connection. By following the steps you will be instructed on what text must be sent to the system’s phone
number in such case.
5.2.2. Ending the Remote Connection Session
After the system conguration is complete, use one of the following methods to end the conguration process:
• Click Disconnect or Stop button and close ELDES Conguration Tool software;
• The session will automatically expire in 20 minutes. Before the last 5 minutes, the software will oer the user to extend the session
for another 20 minutes.
• Alternatively, the connection with the server can be terminated at any time by sending an SMS text message.
Terminate the
connection
SMS text message content:
ssss_ENDCONFIG
Value: ssss – 4-digit SMS password.
Example: 1111_ENDCONFIG
Once the session is expired or terminated, the system will reply with an SMS text message conrming the end of the session.

11
11
EN
ESIM120 Manual v.3.6
6.SYSTEM LANGUAGE
The system comes equipped with a multiple languages for communication with the administrator by SMS text messages. The default sys-
tem language depends on the rmware, which is based on the customer’s location.
List of currently available system languages:
• English
• Estonian
• German
• Lithuanian
• French
• Slovak
Set system language SMS
SMS text message content:
LN
Value: LN – language index; range – [EN – English, EE – Estonian, DE – German, LT – Lithua-
nian, FR – French, SK – Slovak].
Example: LT
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
NOTE: To change the language once the system has already been congured, you need to reset the device to the default conguration. For
more details on how to do this, please refer to 20.2. Restoring Default Parameters.
7.SMS PASSWORD
For security reasons, the system uses the following type of password:
• SMS password – 4-digit password used for system conguration and control from administrator phone number by SMS text mes-
sages and logging in to ELDES Conguration Tool software . By default, SMS password is 0000, which MUST be changed!
Set SMS password SMS
SMS text message content:
wwww_PSW_ssss
Value: wwww – 4-digit default SMS password; ssss – 4-digit new SMS password; range –
[0001... 9999].
Example: 0000_PSW_1111
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
NOTE: The system rejects the SMS text messages containing wrong SMS password even from a listed administrator phone number.

12
12
EN ESIM120 Manual v.3.6
8.ADMINISTRATOR PHONE NUMBERS
The system supports up to 5 administrator phone numbers identied as Admin 1 through 5. When the phone number is set, the administra-
tor will be able to congure and control the system by SMS text messages as well as by free of charge phone call and receive the input alarm
SMS text messages from the system (see 14.1. Input Names and Alarm Notication). The system allows to assign output C1, output C2
or both outputs (simultaneous control) to a certain administrator.
By default, the system accepts incoming calls and SMS text messages from any phone number. Once the administrator phone number is
listed, the system will ignore any incoming calls and SMS text messages from a non-listed phone number as well as it will reject the SMS
text messages containing wrong SMS password even from a listed administrator phone number. For more details on how to enable output
control from a non-listed phone number, please refer to 11.5. Output Control from any Phone Number.
To set Admin 1 phone number is mandatory, while the other 4 are optional. The supported phone number format is the following:
• International (w/o plus) – The phone numbers must be entered starting with an international country code in the following format:
[international code][area code][local number], example for UK: 44170911XXXX1.
Set administrator
phone number SMS
SMS text message content:
ssss_NRas:ttteeellnnuumm
Value: ssss – 4-digit SMS password; as – administrator phone number slot, range – [1... 5];
ttteeellnnuumm – up to 15 digits administrator phone number.
Example: 1111_NR1:44170911XXXX1
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
View administrator
phone numbers SMS
SMS text message content:
ssss_HELPNR
Value: ssss – 4-digit SMS password.
Example: 1111_HELPNR
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Assign output
(-s) to individual
administrator
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Delete administrator
phone number SMS
SMS text message content:
ssss_NRas:DEL
Value: ssss – 4-digit SMS password; as – administrator phone number slot, range – [2... 5].
Example: 1111_NR2:DEL
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
ATTENTION: NEVER set a phone number of the device’s SIM card as an administrator phone number!
ATTENTION: Once Admin 1 phone number is set, the system will restrict only to modify it.
ATTENTION: Multiple administrator phone numbers can be set by a single SMS text message, Example: 1111_NR1:44170911XXXX1_
NR5:44170911XXXX2_NR2:44170911XXXX3_NR3: 44170911XXXX4
NOTE: Multiple administrator phone numbers can be deleted by a single SMS text message, Example: 1111_NR2:DEL_NR4:DEL_
NR3:DEL
NOTE: The administrator can control any output by SMS text message regardless of the output assigned to the administrator phone num-
ber (see 11.3. Output Control by SMS Text Message).
NOTE: By default, the system is restricted to send out up to 25 SMS text messages daily and up to 400 SMS text messages monthly. For
more details on SMS text message delivery restriction management, please refer to 16.1. SMS Text Message Delivery Restrictions
For more details on output control, please refer to 11. OUTPUTS.

13
13
EN
ESIM120 Manual v.3.6
9.DATE AND TIME
The system comes equipped with internal real-time clock (RTC) that keeps track of the current date and time. Once the system is up and
running, the user must set the correct date and time, otherwise the system will not operate properly. By default, after shutting down and
starting up the system, the date and time must be set again. In order to avoid manual date and time set up, please use the automatic date
and time synchronization feature (see 9.1. Automatic Date and Time Synchronization).
Set date and time SMS
SMS text message content:
ssss_yyyy.mm.dd_hr:mn
Value: ssss – 4-digit SMS password; yyyy – year; mm – month, range – [01... 12]; dd – day,
range – [01... 31]; hr – hours, range – [00... 23]; mn – minutes, range – [00... 59].
Example: 1111_2013.03.16_14:33
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
9.1. Automatic Date and Time Synchronization
This feature enables the system to set the date and time automatically without the user being involved in this process. The system sup-
ports the following methods of automatic date and time synchronization that are used automatically on system start-up and periodically
(by default – every 30 days):
• Via GSM network – Once enabled, the system automatically sends a date/time request to the GSM operator. This method is the
most accurate synchronization method. Some GSM operators might not support it.
• By SMS text message – Once enabled, the system automatically sends the SMS text message to its own phone number and re-
trieves the date and time from the SMS text message reply, as the included date and time is set by the SMSC (SMS center). This
method is not as accurate as the synchronization via GSM network, but always eective.
By default, synchronization via GSM network is disabled. To enable/disable automatic date and time synchronization via GSM network,
please refer to the following conguration methods.
Enable/disable
synchronization via
GSM network
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
By default, synchronization by SMS text message is disabled. To enable/disable automatic date and time synchronization by SMS text
message, please enter/remove device phone number using one of the following conguration methods.
Enter/remove device
phone number for
synchronization by
SMS text message
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
By default, the date and time synchronization period is 30 days. To set a dierent period, please refer to the following conguration methods.
Set synchronization
period
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
NOTE: When setting up automatic date and time synchronization feature remotely, you may wish to restart the system when done.
For more details, please refer to 19. REMOTE SYSTEM RESTART.
NOTE: 0 value disables periodic date and time synchronization.
NOTE: When both synchronization methods are enabled, the system will always attempt to synchronize date and time via GSM network
every time the system shuts down and starts up again and in accordance with the set period value. In the event of rst method’s failure,
the system will attempt to use the SMS text message method as a backup.

14
14
EN ESIM120 Manual v.3.6
10. USER PHONE NUMBER DATABASE
The system comes equipped with a user database of 2000 user capacity. When the phone number is set, the user will be able to control the
output (-s) by free of charge phone call. The user database allows to assign output C1, output C2 or both outputs (simultaneous control) to
a certain user. The supported phone number format is the following:
• International (w/o plus) – The phone numbers must be entered starting with an international country code in the following for-
mat: [international code][area code][local number], example for UK: 44170911XXXX1 .
User database supports user validity and access restriction features. For more details, please refer to 10.1. User Validity and Access
Restriction.
Optionally, a user name can be set that typically species the owner’s name of a certain phone number, for example: John.
The phone number and user name (if any) are used when searching for a certain user in the database as well as they are automatically
added in the event log after the successful output control event (see 13. EVENT LOG).
Add user phone
number (and user
name)
SMS
SMS text message content:
ssss_N:ttteeellnnuumm or ssss_N:ttteeellnnuumm:user-name
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
user-name – up to 16 characters user name.
Example: 1111_N:44170911XXXX1:John
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
View user phone
numbers SMS
SMS text message content:
ssss_GETALLNUMBERS
Value: ssss – 4-digit SMS password.
Example: 1111_GETALLNUMBERS
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Search for user by
phone number or
name
SMS
SMS text message content:
ssss_T:ttteeellnnuumm or ssss_T:user-name
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
user-name – up to 16 characters user name.
Example: 1111_T:John
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Assign output (-s) to
individual user SMS
SMS text message content:
ssss_OUTPUT_ttteeellnnuumm_o or ssss_OUTPUT_user-name_o
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
o– output number; range - [1 – output C1; 2– output C2; 3– both outputs]; user-name – up
to 16 characters user name.
Example: 1111_OUTPUT_44170911XXXX1_2
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.

15
15
EN
ESIM120 Manual v.3.6
Delete individual user SMS
SMS text message content:
ssss_D:ttteeellnnuumm or ssss_D:user-name
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
user-name – up to 16 characters user name.
Example: 1111_D:John
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Delete all users SMS
SMS text message content:
ssss_D:ALL
Value: ssss – 4-digit SMS password.
Example: 1111_D:ALL
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
The user database can be exported/imported to/from a .csv le for backup purposes or for a convenient user database management. To
export/import an existing user database, please refer to the following conguration method.
Export/import
existing user database
from/to le
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
By default, the user database is enabled and output control by all database users is permitted. To deny output control instead of deleting
all users from the database, please disable the user database using one of the following conguration methods.
Disable user database SMS
SMS text message content:
ssss_DBM_OFF
Value: ssss – 4-digit SMS password.
Example: 1111_DBM_OFF
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
To enable user database, please refer to the following conguration methods.
Enable user database SMS
SMS text message content:
ssss_DBM_ON
Value: ssss – 4-digit SMS password.
Example: 1111_DBM_ON
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
ATTENTION: Space and colon characters are NOT allowed in the user names.
NOTE: Multiple users can be added by a single SMS text message, e. g. 1111_N:44170911XXXX1:John_ 44170911XXXX2:_ 44170911XXXX-
3:Tom
NOTE: Multiple users can be deleted by a single SMS text message, e. g. 1111_D:John_ 44170911XXXX3_Mark
For more details on output control, please refer to 11. OUTPUTS.

16
16
EN ESIM120 Manual v.3.6
10.1. User Validity and Access Restriction
The system allows to restrict access in accordance with the scheduler assigned to a certain user. When one or more schedulers are as-
signed, the user will be able to control the output only on the specied weekdays and time set up in the scheduler. The system allows to
assign up to 8 dierent schedulers. For more details on how to set up the schedulers, please refer to 12. SCHEDULERS.
In addition, the system allows to limit the user validity by the following methods:
• Deadline (valid until) – When a specied date and time hits, the user will be automatically deleted from the database.
• Ring counter – When a specied number of phone calls to the system expires, the user will be automatically deleted from the data-
base.
Assign scheduler to
individual user SMS
SMS text message content:
ssss_NSCHED_ttteeellnnuumm_c:ON or ssss_NSCHED_user-name_c:ON
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
c– scheduler number; range – [1... 8]; user-name – up to 16 characters user name.
Example: 1111_NSCHED_John_5:ON
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Remove scheduler
from individual user SMS
SMS text message content:
ssss_NSCHED_ttteeellnnuumm_c:OFF or ssss_NSCHED_user-name_c:OFF
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
c– scheduler number; range – [1... 8]; user-name – up to 16 characters user name.
Example: 1111_NSCHED_John_5:OFF
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Set deadline for
individual user SMS
SMS text message content:
ssss_EXPIRYTIME_ttteeellnnuumm_yyyy.mm.dd_hr:mn or ssss_EXPIRYTIME_user-name_
yyyy.mm.dd_hr:mn
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
yyyy – year; mm – month, range – [01... 12]; dd – day, range – [01... 31]; hr – hours, range
– [00... 23]; mn – minutes, range – [00... 59]; user-name – up to 16 characters user name.
Example: 1111_EXPIRYTIME_John_2015.06.29_19:35
Extend deadline for
individual user SMS
SMS text message content:
ssss_EXPIRYTIME_ttteeellnnuumm_extendmins or ssss_EXPIRYTIME_user-name_
extendmins
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
extendmins – time period, range – [1... 2147483648] minutes; user-name – up to 16
characters user name.
Example: 1111_EXPIRYTIME_John_2350
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Remove deadline from
individual user SMS
SMS text message content:
ssss_EXPIRYTIME_ttteeellnnuumm_0 or ssss_EXPIRYTIME_user-name_0
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
user-name – up to 16 characters user name.
Example: 1111_EXPIRYTIME_44170911XXXX1_0
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.

17
17
EN
ESIM120 Manual v.3.6
View set up deadline
for individual user SMS
SMS text message content:
ssss_EXPIRYTIME_ttteeellnnuumm_? or ssss_EXPIRYTIME_user-name_?
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number;
user-name – up to 16 characters user name.
Example: 1111_EXPIRYTIME_44170911XXXX1_?
Set ring counter for
individual user SMS
SMS text message content:
ssss_RCOUNT_ttteeellnnuumm_numofcalls or ssss_RCOUNT_user-name_numofcalls
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits administrator phone
number; user-name – up to 16 characters user name; numofcalls – number of phone calls,
range – [1... 4294967296].
Example: 1111_RCOUNT_44170911XXXX1_152
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
View set up ring
counter value for
individual user
SMS
SMS text message content:
ssss_RCOUNT_ttteeellnnuumm_? or ssss_RCOUNT_user-name_?
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits administrator phone
number; user-name – up to 16 characters user name.
Example: 1111_RCOUNT_John_?
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Remove ring counter
from individual user SMS
SMS text message content:
ssss_RCOUNT_ttteeellnnuumm_0 or ssss_RCOUNT_user-name_0
Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits administrator phone
number; user-name – up to 16 characters user name.
Example: 1111_RCOUNT_John_0
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
ATTENTION: If the date and time are not set, the system will NOT be able to manage user validity and access. For more details on how
to set date and time, please refer to 9. DATE AND TIME.
NOTE: Multiple schedulers can be assigned/removed by a single SMS text message, e. g. 1111_NSCHED_
John_2:ON_6:OFF_3:OFF_5:ON
NOTE: 0 value removes the set up deadline from the user.
NOTE: 0 value removes the set up ring counter from the user.

18
18
EN ESIM120 Manual v.3.6
11. OUTPUTS
The system comes equipped with 2 built-in outputs. The output is intended for connection and control of the gate automation device by
the following methods:
• Free of charge phone call from the user or administrator phone number (see 11.2. Output Control by Free of Charge Phone Call).
• SMS text message from the administrator phone number (see 11.3. Output Control by SMS Text Message).
• Automatically in accordance with the scheduled weekdays and time (see 11.6. Automatic Output Control).
To set an output type, please refer to the following conguration method.
Set output as NO
(normally-open) or NC
(normally-closed)
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
The system allows to view the current output state by the following conguration method.
View output state SMS
SMS text message content:
ssss_STATUS
Value: ssss – 4-digit SMS password.
Example: 1111_STATUS
ATTENTION: Once the scheduler, set up for automatic output control comes into eect, the user/administrator will NOT be able to
control the output by phone call and SMS text message (see 11.6. Automatic Output Control).
11.1. Output Names
The outputs have names that can be customized. Typically, the name species a device type connected to a determined output, for exam-
ple: Gate. The name can be used instead of output number when controlling the output by SMS text message.
By default, the output names are: C1 – Controll1, C2 – Controll2.
Set output name SMS
SMS text message content:
ssss_Co:out-name
Value: ssss – 4-digit SMS password; o– output number, range [1– output C1; 2 – output
C2]; out-name – up to 16 characters output name.
Example: 1111_C1:Gates
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
View output name SMS
SMS text message content:
ssss_STATUS
Value: ssss – 4-digit SMS password.
Example: 1111_STATUS
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
ATTENTION: Space, colon, semi-colon characters, parameter names and/or values, such as PSW, STATUS, ON, OFF etc. are NOT allowed
in output names.
11.2. Output Control by Free of Charge Phone Call
To open or close the gate, dial the system’s phone number from any available user or administrator phone numbers (see 10. USER PHONE
NUMBER DATABASE and 8. ADMINISTRATOR PHONE NUMBERS for phone number management). The phone call is free charge as the
system rejects it and turns ON/OFF the output (-s) for the listed time period (pulse; by default – 2 seconds) resulting in the gate opening or

19
19
EN
ESIM120 Manual v.3.6
closing, depending on the current gate state and selected output type NO or NC. If there is more than one listed caller dialing to the system
at the same time, the system will accept the incoming call from the caller who was the rst to dial while other caller (-s) will be ignored.
The system supports a conrmation phone call to user/administrator phone number. For more details, please refer to 11.4. Output Con-
trol Conrmation by Call Back
Set output pulse
duration SMS
SMS text message content:
ssss_TIMERo:pl
Value: ssss – 4-digit SMS password; o – output number, range [1– output C1; 2 – output C2];
pl – pulse duration, range – [1... 10] seconds.
Example: 1111_TIMER2:4
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
NOTE: ELDES Conguration Tool software allows to set the unlimited output pulse duration value.
11.3. Output Control by SMS Text Message
To open or close the gate, send the SMS text message from any of 5 available administrator phone numbers (see 8. USER PHONE NUM-
BER DATABASE for phone number management). The system will turn ON the output (-s) for a determined time period (pulse) resulting
in the gate opening or closing, depending on the current gate state. The conrmation reply by SMS text message, containing the output
name (see 11.1. Output Names), will be sent to the administrator phone number that the output control by SMS text message was ini-
tiated from.
To instantly turn ON/OFF the output and set its state to ON/OFF when the system starts-up, please refer to the following conguration
methods.
Turn ON output for
time period SMS
SMS text message content:
ssss_Co:ON:hr.mn.sc or ssss_out-name:ON:hr.mn.sc
Value: ssss – 4-digit SMS password; o– output number, range - [1... 2]; hr – hours, range –
[00... 23]; mn – minutes, range – [00... 59]; sc – seconds, range – [00... 59]; out-name – up
to 16 characters output name.
Example: 1111_C2:ON:00.00.09
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
Turn OFF output for
time period SMS
SMS text message content:
ssss_Co:OFF:hr.mn.sc or ssss_out-name:OFF:hr.mn.sc
Value: ssss – 4-digit SMS password; o– output number, range - [1... 2]; hr – hours, range –
[00... 23]; mn – minutes, range – [00... 59]; sc – seconds, range – [00... 59]; out-name – up
to 16 characters output name.
Example: 1111_C1:OFF:00.11.49
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
To instantly turn ON/OFF the specied output and set its state to ON/OFF when the system starts-up, please refer to the following con-
guration methods.
Turn ON output/Set
output start-up state
as ON
SMS
SMS text message content:
ssss_Co:ON or ssss_out-name:ON
Value: ssss – 4-digit SMS password; o– output number, range - [1... 2]; out-name – up to 16
characters output name.
Example: 1111_C1:ON
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.

20
20
EN ESIM120 Manual v.3.6
Turn OFF output/Set
output start-up state
as OFF
SMS
SMS text message content:
ssss_Co:OFF or ssss_out-name:OFF
Value: ssss – 4-digit SMS password; o– output number, range - [1... 2]; out-name – up to
16 characters output name.
Example: 1111_C2:OFF
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
NOTE: Output can be turned ON for a determined time period only when it is in OFF state.
NOTE: Output can be turned OFF for a determined time period only when it is in ON state.
NOTE: ELDES Conguration Tool software allows to set only the output start-up state.
NOTE: The administrator can control any output by SMS text message regardless of the output assigned to the administrator phone number
(see 8. ADMINISTRATOR PHONE NUMBERS).
