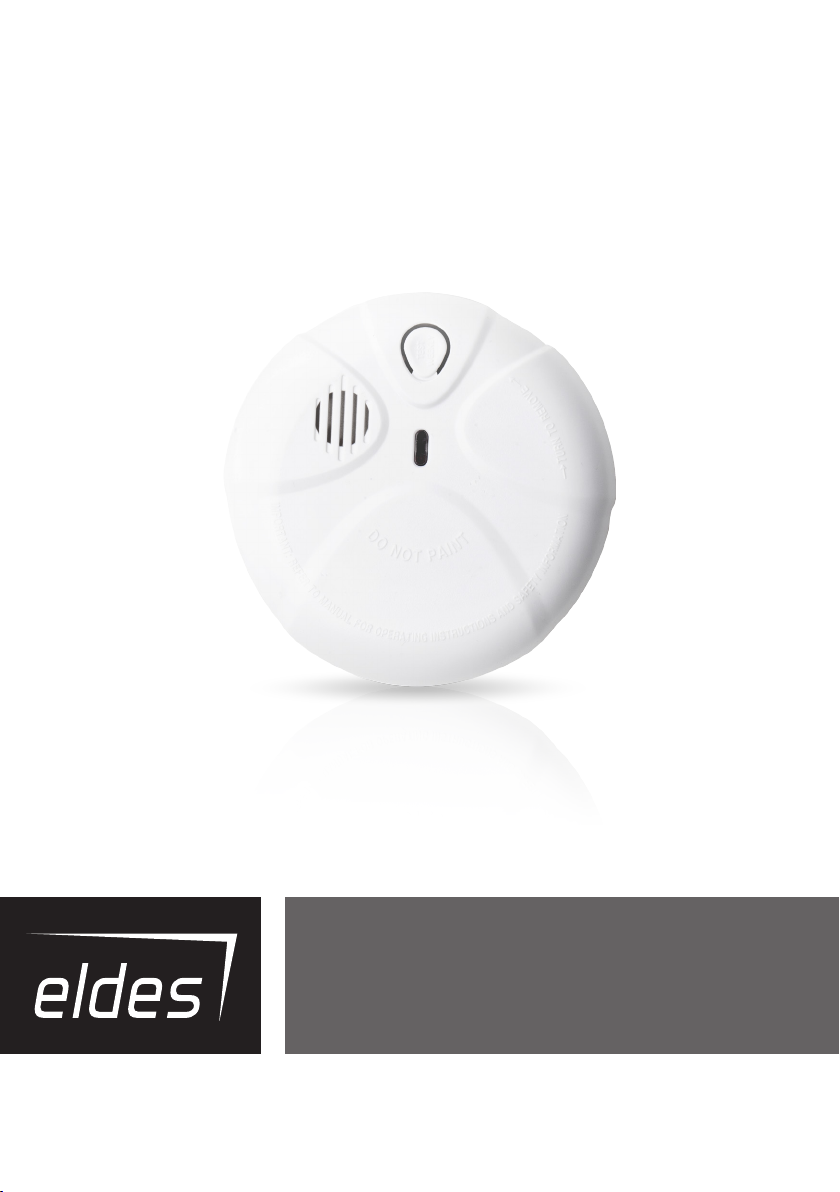

Eldes EWF1 User manual

EWF1
WIRELESS SMOKE DETECTOR

2
2EN EWF1 Manual v.1.0
User Manual v1.0
Compatible with:
• ESIM264 v7.11.30 and up + EWT1 16.14 and up.
• ESIM364 v02.04.01 and up.
• EPIR2 v01.01.02 and up.
Main Features
• Photoelectric sensor for slow smouldering res
• TEST button
• Non-radioactive technology for environmental friendly
• High and stable sensitivity
• Quick x mounting plate for easy installation
• LED operation indicator
• Built-in speaker for audio alarm indication
• Auto-reset when smoke clears
EWF1 is a wireless photoelctric type smoke detector intended to use with ELDES alarm systems. Photoelectric smoke detectors are gener-
ally more eective at detecting smouldering res which smoulder for hours before bursting into ame. An optical method is used for the
detection of visible smoke. When the concentration of smoke in the optical chamber exceeds a given threshold, EWF1 sounds the alarm
and sends out a signal to the ELDES alarm system using the wireless connection and the system triggers the alarm. By default, when more
than one EWF1 device is used, the system will automatically activate the interconnection feature. See 4.1. Interconnection.
ESIM264 and EPIR2 alarm systems support up to 16 EWF1 devices, while ESIM364 - up to 32 EWF1 devices. The maximum wireless con-
nection range is 150 meters (in open areas).
1. PACKAGE CONTENT
1. EWF1....................................... ................... qty. 1
2. User manual............................................. qty. 1
3. 9V battery................................ ................. qty. 1
4. Screws .......................................................qty. 2
2.TECHNICAL SPECIFICATIONS
2.1. Electrical & Mechanical Characteristics
Detection Type Photoelectric chamber
Alarm Sound Level 85 Decibels at 3 meters
Battery Voltage 9V
Battery Type 6LR61 alkaline
Number of Batteries 1
Battery Operation Time ~18 months*
Wireless Transmitter-Receiver Frequency 868 Mhz
Wireless Communication Range Up to 30 meters in premises; up to 150 meters in open areas
Range of Operating Temperatures 5oC to 45oC
Humidity 0-90% RH @ 0... +40 °C (non-condensing)
Sensitivity to Smoke 3.0-6.0 % Obs /m
Dimensions 110mm Ø
Compatible with Alarm Systems ELDES Wireless
* This operation time might vary in dierent conditions.
2.2. Main Unit & LED Functionality
TEST Button for testing / button for testing and restoring default parameters (if RESET button not available)
LED EWF1 status indication
SIREN Built-in speaker for audio alarm indication
RESET** Button for restoring default parameters
1
Siren
TEST button
LED indicator
FRONT SIDE BACK SIDE
RESET button**
BATTERY
** Unavailaible on some EWF1 models

3
3EN
EWF1 Manual v.1.0
3.PLACEMENT
1. Install the wireless smoke detector as close to the center of the ceiling as possible. If this is not practical, mount no closer than 10
centimeters from a wall or corner. Also, if local codes allow, install wireless smoke detectors on walls, between 10 and 30 centimeters
from ceiling/wall intersections.
2. Install a minimum of two wireless smoke detectors in every house, no matter how small the house is.
3. Install a wireless smoke detector in each room that is divided by a partial wall (either coming down from the ceiling at least 20 centim-
eters, or coming up from the oor).
NOTE: For best protection we recommend that you install a wireless smoke detector in every room.
Recommended EWF1 placement locations
Ceiling
Wall
HORIZONTAL DISTANCE
ANYWHERE
IN THIS AREA
NEVER
HERE
Acceptable
here
0,9 m (3 ft) 0,9 m (3 ft) Top of detector
acceptable here
(0,1 m)
(0,1 m)
Max.
(0,3 m)
Max.
4
NOTE: Measurements shown are to the closest edge of the detector.
3.1. Typical Single-Story House
Install a wireless smoke detector on the ceiling or wall inside each bedroom and in the hallway outside each separate sleeping area. If a
bedroom area hallway is more than 9 meters long, install a wireless smoke detector at each end.
If there is a basement: Install a wireless smoke detector on the basement ceiling at the bottom of the stairwell.
Bedroom
Bedroom
Family Room
Living Room
Kitchen
Dining Room Bedroom
2
LEGEND:
Minimum required smoke
detector locations.
Recommended additional
smoke detector locations

4
4EN EWF1 Manual v.1.0
3.2. Typical Multi-Story or Split-Level House
Install a wireless smoke detector on the ceiling or wall inside each
bedroom and in the hallway outside each separate sleeping area. If
a bedroom area hallway is more than 9 meter long, install a wire-
less smoke detector at each end. Please install a wireless smoke
detector on the top of a rst-to-second oor stairwell.
LEGEND:
Minimum required smoke detector locations.
Recommended additional smoke detector locations
Bedroom Bedroom
Basement
Living
Room
Dining
Room
3
3.3. Incorrect EWF1 Placement
DO NOT place EWF1 in the following locations:
• Nearappliancesorareaswherenormalcombustionregularlyoccurs(kitchens,nearfurnaces,hotwaterheaters).Usespecialized
wireless smoke detector with unwanted alarm control for this areas.
• Inareaswithhighhumidity,likebathroomsorareasneardishwashersorwashingmachines.Installatleast3metersawayfromthese
areas.
• Nearairreturnsorheatingandcoolingsupplyvents.Installatleast1meterawayfromtheseareas.Theaircouldblowsmokeaway
from the detector, interrupting its alarm.
• Inroomswheretemperaturesmayfallbelow5oC or rise above 45oC.
• Inextremelydusty,dirty,orinsect-infestedareaswherelooseparticlesinterferewithwirelesssmokedetectoroperation.
ATTENTION: Incorrect placement will result in a decrease of operational eectiveness.
4.INSTALLATION
1. Detach the mounting plate by turning it counter-clockwise from
the back of EWF1 (see Fig. No. 5).
2. Secure the mounting plate to ceiling or wall with mounting
screws.(see Fig. No. 5).
3. Lift to open the battery pocket door (see Fig. No. 7)
4. Insert the battery into the battery pocket considering the po-
larity terminals indicated on the enclosure of EWF1. Ensure the
battery is securely connected. Red LED may ash briey when
the battery is being installed.
5. Close the battery pocket door by snapping it into place.
6. Position the smoke detector to the mounting plate by turning
it clockwise to lock into place. Note that the device will not lock
into the mounting plate without the battery being present in
the battery pocket.
7. Push the TEST button to verify if the wirless smoke detector is
operational. See 4.1. Testing EWF1.
8. Bind the device to the alarm system using ELDES Conguration
Tool software. Open Wireless Device Management section
and enter a 8-digit wireless device ID located on the EWF1
enclosure and click the Add button (see Fig. No. 6). The device
can also be bind by sending a corresponding command via SMS
text message. For more details, please refer to the software‘s
HELP section and ELDES alarm system installation manual.
9. Upon the successful binding process, EWF1 device icon be-
comes visible in Wireless Device Management section as
well as Battery Level and Signal Level (see Fig. No. 6).
10. EWF1 wireless smoke detector is ready for use.
Mounting slot
Screws
Battery pocket door
Mounting plate
5
NOTE: If you are unable to bind the wireless device, please restore the parameters of the wireless device to default and try again. See
chapter 5.3. Restoring Default Parameters for more details.

5
5EN
EWF1 Manual v.1.0
6
4.1. Interconnection
The interconnection feature automatically links all wireless smoke detectors to each other that are connected to the same alarm system
unit. When any EWF1 detects smoke, it sounds the alarm and sends the signal to the alarm system that causes an instant alarm along
with the rest of EWF1 wireless smoke detectors. The device that detected smoke will auto-reset when the smoke clears, while the rest of
EWF1 detectors will sound according to the set time period (by default - 60 seconds). By default, the interconnection feature is enabled,
but can be disabled using ELDES Conguration Tool software.
5.MAINTENANCE
5.1. Testing EWF1
• TheTESTbuttonveriesifEWF1isoperational.FirmlypushtheTESTbuttonandthewirelesssmokedetectorwillsoundaloudbeep.
The alarm will stop sounding after releasing the TEST button. When testing EWF1 using ELDES Conguration Tool software, the
detector will provide short beeps.
• Standatarm’slengthfromthewirelesssmokedetectorwhentesting.
• Testwirelesssmokedetectorsweeklyanduponreturningfromvacationorwhennoonehasbeeninthehouseholdforseveraldays.
• Testeachwirelesssmokedetectortobesureitisinstalledcorrectlyandoperatingproperly.
• DONOTuseanopenametotestthiswirelesssmokedetector.Youmayigniteanddamagethewirelesssmokedetectororyour
home.
• Ifthewirelesssmokedetectordoesnotsound,pleasecheckthebatteryandsignallevelusingELDES Conguration Tool software.
ATTENTION: Test all wireless smoke detectors weekly to ensure proper operation.
5.2. Battery Replacement
1. Turn EWF1 counter-clockwise to detach it from the mounting
plate.
2. Gently pull down the wireless smoke detector.
3. Remove the old battery from the battery pocket.
4. Postition the new 9V battery according to the appropriate
battery slot positive/negative terminals indicated on the
enclosure of EWF1. Ensure the plastic battery holder is fully
depressed when the battery has been tted.
5. Using the TEST button, test the wireless smoke detector to
verify if it is operational. See 4.1. Testing EWF1.
6. Re-attach the wireless smoke detector to the mounting plate
by turning the wireless smoke detector clockwise until it snaps
into place.
9V battery
7

6
6EN EWF1 Manual v.1.0
ATTENTION: Only 9V 6F22 primary alkaline type battery can be used. Install only new, high quality and unexpired batteries.
ATTENTION: The battery must be removed if the device is not in use.
ATTENTION: In order to avoid re or explosion hazards, the system must be used only with approved battery. Special care must be taken
when connecting positive and negative battery terminals. Dispose old batteries only into special collection sites. Do not charge, disassemble,
heat or incinerate old batteries.
NOTE: The battery status can be monitored in real-time using ELDES Conguration Tool software.
NOTE: The system sends an SMS message to the preset user phone number as soon as the battery level runs below 5%.
5.3. Restoring Default Parameters
1. Remove the battery from EWF1.
2. Press and hold the RESET button.
3. Insert the battery back to EWF1.
4. Hold the RESET button until you hear a short beep.
5. Release the RESET button.
On some EWF1 models the RESET button is not available. On such EWF1 devices the reset process is as follows:
1. Remove the battery from EWF1.
2. Wait for 45 seconds.
3. Press and hold the TEST button.
4. Insert the battery back to EWF1.
5. Hold the TEST button for 10 seconds or more.
6. Release the TEST button.
: ATTENTION: EWF1 built-in speaker will sound while pressing and holding the TEST button. Please, ignore the sound.
5.4. Cleaning
Clean the wireless smoke detector at least once a month to remove dust, dirt, or debris. Using the soft brush or wand attachment of a
vacuum cleaner, vacuum all sides and cover of wireless smoke detector. Be sure all the vents are free of debris.
If necessary, use a damp cloth to clean wireless smoke detector cover.
NOTE: Do not attempt to remove the cover to clean inside the wireless smoke detector. This will void your warranty.

7
7EN
EWF1 Manual v.1.0
Copyright © “ELDES UAB”, 2013. All rights reserved
It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authori-
zation by “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without
a warning. Hereby, “ELDES UAB” declares that wireless smoke detector EWF1 is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt
6.ADDITIONAL INFORMATION
Limited Liability
The buyer must agree that the system will reduce the risk of re, theft, burglary or other dangers but does not guarantee against such
events.“ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB”
liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not aliated with any of the Internet pro-
viders therefore is not responsible for the quality of Internet service.
Manufacturer Warranty
This device carries a 24-month warranty by the manufacturer “ELDES UAB”. Warranty period starts from the day the system has been
purchased by the end user. The warranty is valid only if the system has been used as intended, following all guidelines listed in the manual
and within specied operating conditions. Receipt must be kept as a proof of purchase date. The warranty is voided if the system has
been exposed to mechanical impact, chemicals, high humidity, uids, corrosive and hazardous environment or other force majeure factors.
Safety instructions
Please read and follow these safety guidelines in order to maintain safety of operators and people around:
• DONOTusethesystemwhereitcanbeinterferewithotherdevicesandcauseanypotentialdanger.
• DONOTusethesystemwithmedicaldevices.
• DONOTusethesysteminhazardousenvironment.
• DONOTexposethesystemtohighhumidity,chemicalenvironmentormechanicalimpacts.
• DONOTattempttopersonallyrepairthesystem.
The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates that
the product must not be disposed of together with household waste. To prevent possible harm to human health and/or the
environment, the product must be disposed on in an approved and environmentally safe recycling process. For further infor-
mation on how to dispose of this product correctly, contact the system supplier, or the local authority responsible for waste
disposal in your area.

Made in the European Union
www.eldes.lt
