Eldes EWF1 User manual

WIRELESS SMOKE DETECTOR
WIRELESS SMOKE & CO DETECTOR
COMPLIES WITH EN 14 6042005
USER GUIDE
V2.0
EWF1
EWF1CO
EN RU LT IT

EN
LT
RU
IT
EWF1 is a wireless smoke detector; EWF1CO is a wireless carbon monoxide
(CO) detector combined with smoke detector. In case of smoke detecion or car-
bon monoxide level increase, EWF1/EWF1CO will indicate the alarm and noify
ELDES system about the event.
EWF1     ; EWF1CO -
      ( ),
   .   
   CO, EWF1/EWF1CO    
     ELDES.
EWF1 yra belaidis opinio ipo dūmų juiklis; EWF1CO yra belaidis elektroche-
minis anglies monoksido (CO) ir opinio ipo dūmų juiklis. Apikus dūmus arba
viršytą CO lygį, EWF1/EWF1CO sukelia aliarmą ir belaidžiu ryšiu siunčia signalą
į ELDES apsaugos sistemą.
EWF1 è un rivelatore fotoeletrico di fumo senza ili; EWF1CO è un rivelatore
combinato fotoeletrico ed eletrochimico di monossido di carbonio (Co) sen-
za ili. Quando la concentrazione di fumo / Co supera un livello determinato,
EWF1/EWF1CO l’analizzatore indicherà il simbolo allarme e avvisare ELDES
system di eveni.

4
EWF1-EWF1COEN | RU | LT | IT

0,9m
(2.95 ft)
0,9m
(2.95 ft)
MIN
+5°C(41°F)
MAX
+45°C (113°F)
MIN
+5°C(41°F)
MAX
+45°C (113°F)
MIN
+5°C(41°F)
MAX
+45°C (113°F)

2
1
1
2
2
1
1
2
2
1
1
2

7
EWF1-EWF1CO EN | RU | LT | IT
2
1
1
2
3 MIN.
2
1
1
2

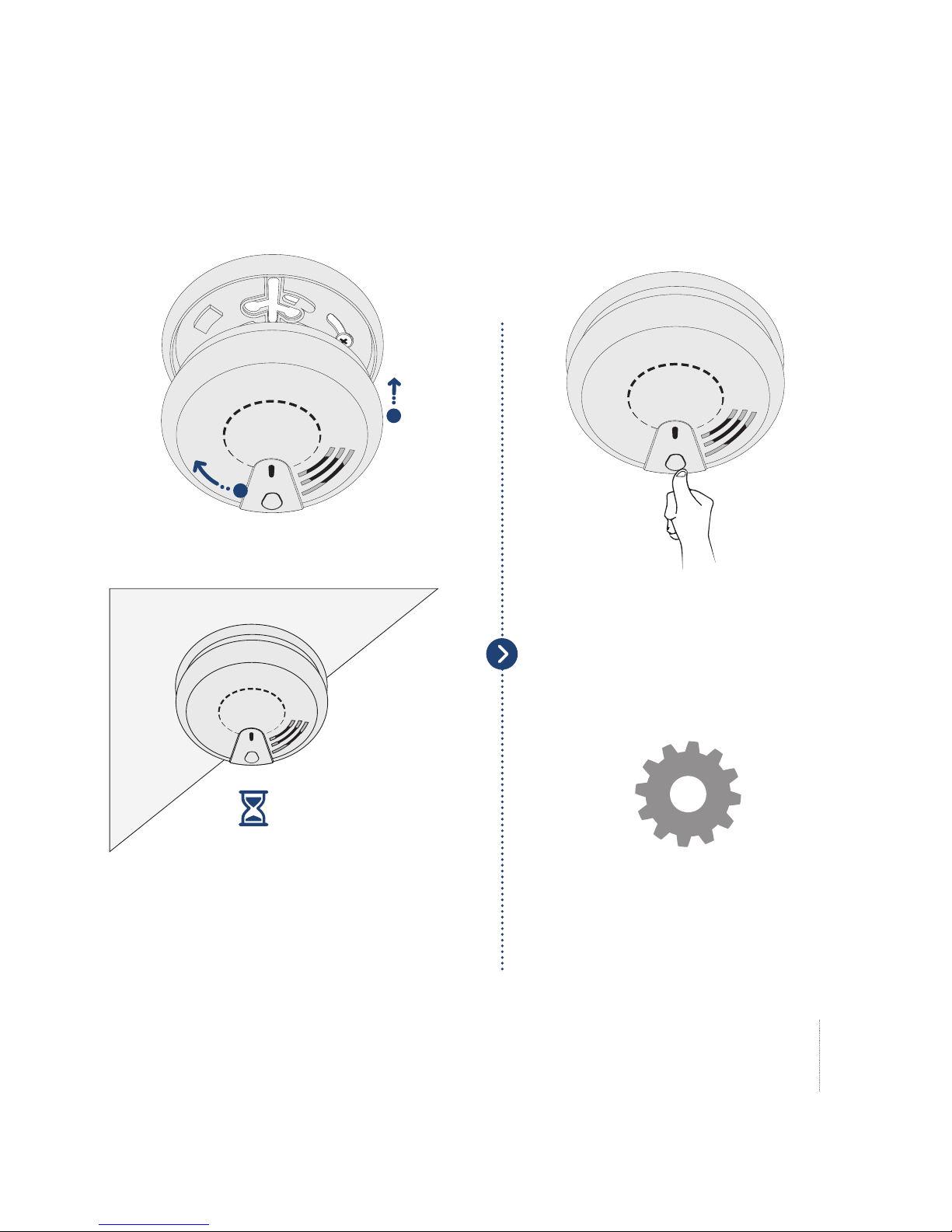

TEST
ELDES
Coniguraion
Tool
WAIT FOR 3 MIN.
 3 .
PALAUKITE 3 MIN.
ATTENDERE PER 3 MIN.
PRESS FOR 2 SEC.
   2 .
SPAUSKITE 2 SEK.
PREMERE PER 2 SEC.

8
EWF1-EWF1COEN

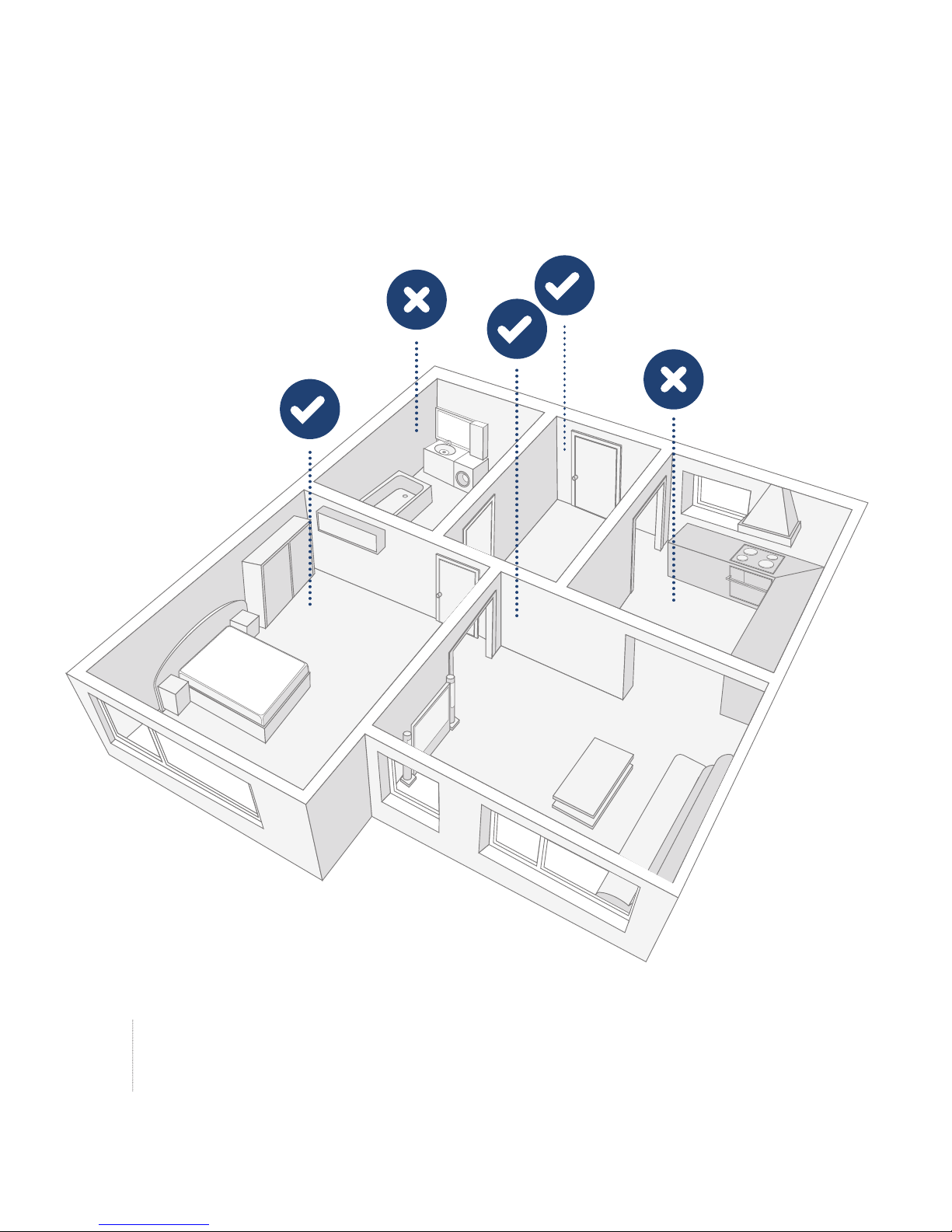

1. PLACEMENT
1. Place the detector as close as possible to the center of the ceiling. If not possible, mount no closer
than 10cm (0.33t) from a wall or corner. Also, if local codes allow, install the detectors on walls,
between 10 and 30cm (0.33 and 0.98t) from ceiling/wall intersecions.
2. Install a minimum of two units in every house, no mater how small the house is.
3. Place a detector in each room that is divided by a parial wall.
For best protecion we recommend that you install a detector in every room.
DO NOT place EWF1/EWF1CO in the following locaions:
• Near appliances or areas where normal combusion regularly occurs (kitchens, near furnaces,
hot water heaters). Use specialized detector with unwanted alarm control for this areas.
• In areas with high humidity, like bathrooms or areas near dishwashers or washing machines.
Install at least 3m (9.84t) away from these areas.
• Near air returns or heaing and cooling supply vents. Install at least 1m (3.28t) away from these
areas. The air could blow smoke away from the detector, interruping the alarm.
• In rooms where temperatures may fall below +5°C (+41°F) or rise above +45°C (+113°F).
• In extremely dusty, dirty, or insect-infested areas where loose paricles interfere with the detec-
tor operaion.
Incorrect placement will result in the decrease of operaional efeciveness.
EN

9
EWF1-EWF1CO EN
2. WHAT SHOULD I KNOW
2.1 CARBON MONOXIDE CO POISONING
Carbon monoxide is a product of incomplete combusion of organic mater. It is a toxic
gas, but, being colorless, odorless, tasteless, and iniially non-irritaing, it is very dii-
cult for people to detect.
CONCENTRATION SYMPTOMS
35 ppm (0.0035%) Headache and dizziness within six to eight hours of
constant exposure
100 ppm (0.01%) Slight headache in two to three hours
200 ppm (0.02%) Slight headache within two to three hours; loss of
judgment
400 ppm (0.04%) Frontal headache within one to two hours
800 ppm (0.08%) Dizziness, nausea, and convulsions within 45 min; insen-
sible within 2 hours
1,600 ppm (0.16%) Headache, increased heart rate, dizziness, and nausea
within 20 min; death in less than 2 hours
ppm - Parts Per Million - is used to describe concentraions of contaminants in air.
In the event of ALARM caused by a criical CO concentraion level, keep calm and
carry out the following acions in the priority order:
• Open all windows and doors to increase the rate of venilaion.
• Turn of the appliances and stop using them where possible.
• Evacuate the building leaving the windows and doors open. You may re-enter the
property only when the alarm has stopped.
• Get immediate medical assistance for anyone sufering the efects of carbon mon-
oxide poisoning (nausea, headache), and report that carbon monoxide inhalaion is
suspected. Contact the gas or other fuel supplier on their emergency phone number
in order to idenify and eliminate the source of carbon monoxide emissions.

10
EWF1-EWF1COEN
• Do not use the appliance again unil it has been veriied and conirmed by a compe-
tent person according to naional regulaions.
There could be other sources of carbon monoxide emissions. For example, large
amount of city gas, tobacco smoke or smoldering ire can cause CO concentra-
ion ALARM.
2.2 CO ALARM/RESTORE AND FAULT INDICATIONS
• Fresh air level - when CO concentraion is 0-29ppm. This level causes no alarm when reached
as well as it results in zone restore event when one of the criical levels has been reached and
decreased to 0-29ppm aterwards. The zone restore event is indicated by SMS text message
delivered to the listed user phone number and data message delivered to the monitoring staion
followed by silenced sirens. Also, data message noifying about CO gas fault is delivered to EL-
DES Cloud Services and added to the Event Log.
• CO criical level 1 – when CO concentraion of 30-49ppm remains for more than 120 minutes.
Indicated by fault indicaion displayed by EKB2 LCD keypad (only for ESIM364) and a warning
delivery to the listed user by SMS text message. This level causes no zone alarm when reached
as well as it results in zone restore event in case the CO concentraion of 300ppm or more (crit-
ical level 4) has been reached and decreased to 30-49ppm aterwards. Also, data messages
noifying about CO criical level 1 and gas fault detecion are delivered to ELDES Cloud Services
and added to both Event Log and Fault Log respecively.
• CO criical level 2 – when CO concentraion of 50-99ppm remains for more than 60 minutes.
Indicated by a 2-second beep every 5 seconds, LED indicator lash, fault indicaion displayed
by EKB2 LCD keypad (only for ESIM364) and a warning delivered to the listed user by SMS text
message. This level causes no zone alarm when reached. Also, data messages noifying about
CO criical level 2 and gas fault detecion are delivered to ELDES Cloud Services and added to
both Event Log and Fault Log respecively.
• CO criical level 3 – when CO concentraion of 100-299ppm remains for more than 10 minutes.
Indicated by a 2-second beep every 5 seconds, LED indicator lash and fault indicaion displayed

11
EWF1-EWF1CO EN
by EKB2 LCD keypad (only for ESIM364) and a warning delivered to the listed user by SMS text
message. This level causes no zone alarm when reached. Also, data messages noifying about
CO criical level 3 and gas fault detecion are delivered to ELDES Cloud Services and added to
both Event Log and Fault Log respecively.
• CO criical level 4 – when CO concentraion of 300ppm and more is reached. This level will
cause an alarm when reached resuling in the unit emiing a 2-second beep every 5 seconds
and LED indicator lash. Meanwhile the system will noify the listed user by SMS text message
and the monitoring staion as well as all wired and wireless sirens will emit a pulsaing sound
based on the Fire-type zone operaional descripion and acivate the interconnecion feature (by
default - enabled; see 4.2. Interconnecion). All wired and wireless sirens can be silenced by
disarming the system. However, EWF1CO built-in siren will remain acive unil the TEST WEEK-
LY buton has been pressed. Also, data messages noifying about CO criical level 4 and gas fault
detecion are delivered to ELDES Cloud Services and added to both Event Log and Fault Log
respecively.
• CO unit fault – when CO sensor’s 7-year lifeime period has ended or in case of any technical
issue that has occurred. Indicated by a fault indicaion displayed by EKB2 LCD keypad (only for
ESIM364) and noiicaion delivery to the listed user via SMS text message and the monitoring
staion. Please contact your local supplier for repair service.
2.3 CLEANING AND PRECAUTIONS DURING USE
Clean the detector at least once a month to remove dust, dirt, or debris. Using the sot brush or
wand atachment of a vacuum cleaner, vacuum all sides and cover of the detector. Be sure all the
vents are free of debris. If necessary, use a damp cloth to clean the detector cover.
Some household substances can afect the sensiivity of the detectors in a short or long term. Avoid
the use of model paint, model glue or nail polish remover close to the detector. Do not use aerosol
sprays, household cleaners, polishes or perfumes close to the device.
Do not atempt to remove the cover to clean inside the detector. This will void your warranty.

12
EWF1-EWF1COEN
3. CONFIGURING AND PAIRING WITH THE SYSTEM
ELDES
Coniguraion Tool
For more details on how to conigure and pair the device with the system,
please refer to ELDES Coniguraion Tool sotware’s HELP secion or to
ELDES alarm system’s installaion/user manual.
If you are unable to pair the wireless device, please restore the
parameters of the wireless device to default and try again (see
4.4 RESTORING THE DEFAULT PARAMETERS for more details).
4. MAINTENANCE
4.1 TESTING THE UNIT
• The TEST WEEKLY buton veriies if EWF1/EWF1CO is operaional. Firmly push the TEST
WEEKLY buton and the detector will sound a loud beep. The alarm will stop sounding ater
releasing the TEST WEEKLY buton. When tesing EWF1/EWF1CO using ELDES Coniguraion
Tool sotware, the detector will provide short beeps.
• The CO self-test on EWF1CO will be carried out by pushing the TEST WEEKLY buton at carbon
monoxide concentraion below 30ppm. The buton release will be followed by a built-in siren
sound ater a 10-second period:
• Successful test - 5 beeps each lasing for 100 ms.
• Failed test - 1 beep lasing for 1 sec. Please contact your local supplier for repair service.
• Stand at arm’s length from the detector when tesing.
• Test the detectors weekly and upon returning from vacaion or when no one has been in the
household for several days.
• Test each detector to be sure it is installed correctly and operaing properly.
• DO NOT use an open lame to test this detector. You may ignite and damage the detector or your home.
• If the detector does not sound, please check the batery and signal level using ELDES Conigu-
raion Tool sotware.

13
EWF1-EWF1CO EN
Test all detectors weekly to ensure proper operaion.
CO self-test is possible only ater more than 3 minutes of EWF1CO runime.
4.2 INTERCONNECTION
The interconnecion feature automaically links all wireless detectors that are paired with the alarm
system. When any EWF1/EWF1CO detects smoke/CO, it will sound the built-in siren and send the signal
to the alarm system resuling in an instant alarm followed by built-in siren sound caused by the rest of
EWF1/EWF1CO devices. EWF1/EWF1CO device that detected smoke will auto-reset when the smoke
clears, while the rest of EWF1/EWF1CO devices will coninue to sound in accordance with the set ime
period (by default - 30 seconds) that can be managed by ELDES Coniguraion Tool sotware.
Interconnecion will commence when CO criical level 4 has been reached (see 2.2. CO
Alarm/Restore and Fault Indicaions).
4.3 BATTERY REPLACEMENT

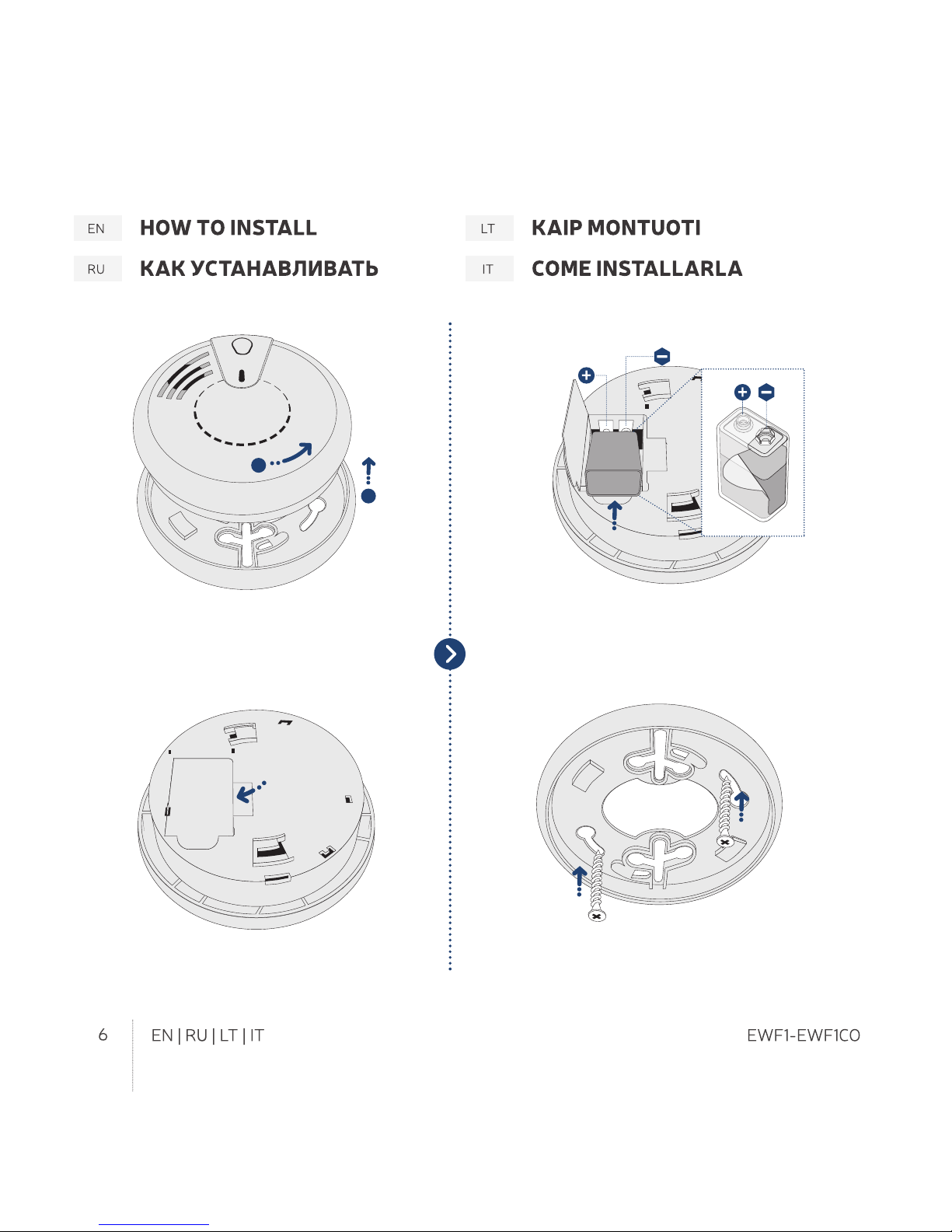

For more informaion on how to change the batery and perform a device test, see secion HOW TO
INSTALL on page 6-7.
Only Primary 9V Lithium 1200mAh batery can be used. Install only new, high quality and
unexpired bateries.
The batery must be removed if the device is not in use.

14
EWF1-EWF1COEN
In order to avoid ire or explosion hazards, the system must be used only with approved bat-
tery. Special care must be taken when connecing posiive and negaive batery terminals.
Dispose old bateries only into special collecion sites. Do not charge, disassemble, heat or
incinerate old bateries.
The batery status can be monitored in real-ime using ELDES Coniguraion Tool sotware.
The system sends an SMS message to the listed user phone number as soon as the batery
level runs below 5%.
We strongly recommend using EVE CR9V-P or Energizer LA522 batery.
4.4 RESTORING THE DEFAULT PARAMETERS
1. Remove the batery from EWF1/EWF1CO.
2. Press and hold the RESET buton.
3. Insert the batery back to EWF1/EWF1CO.
4. Hold the RESET buton unil you hear a short beep.
5. Release the RESET buton.
5. EWF1/EWF1CO ZONE AND TAMPER
Upon successful device pairing process, the system adds wireless zone (-s) as follows:
• EWF1 - 1 Fire-type zone intended for smouldering ire/smoke detecion.
• EWF1CO - 1 Fire-type and 1 CO-type zone intended for smouldering ire/smoke detecion and
carbon monoxide detecion respecively.
In case of tamper violaion, the alarm is caused regardless of system being armed or disarmed.
There are 2 ways to detect tamper violaion on EWF1/EWF1CO:

15
EWF1-EWF1CO EN
• By tamper switch. EWF1/EWF1CO comes equipped with a built-in tamper switch intended for
enclosure supervision: The tamper switch is located on the back of the PCB supervising the
back side of the enclosure in case the device is illegally detached.
Once the enclosure of EWF1/EWF1CO is tampered with, the tamper switch will become trig-
gered. This acion will be followed by an alarm, resuling in sending an SMS text message and/
or phone call to the user. The SMS text message contains the violated tamper name. Also, this
event is added to the Event Log, meanwhile data messages noifying about triggered tamper
are delivered to the Monitoring Staion and ELDES Cloud Services respecively.
• Wireless connecion loss. The wireless connecion loss between EWF1/EWF1CO and ELDES
alarm system leads to alarm. The system ideniies this event as a tamper violaion and sends
alarm by SMS text message and phone call to the user (-s) by default. The SMS text message
contains the wireless device model, wireless ID code and tamper name. The user will also be
noiied by SMS text message as soon as the wireless signal is restored. Also, this event is added
to the Event Log, meanwhile data messages noifying about wireless connecion loss will be
delivered to the Monitoring Staion and ELDES Cloud Services respecively.
The tamper will not operate if the wireless zone (-s) is disabled.
6. TEMPERATURE SENSOR
The device comes equipped with a built-in temperature sensor allowing to monitor the temperature
of the area surrounding EWF1/EWF1CO device. When using the with EPIR3 alarm system, you may
set the MIN and MAX temperature thresholds ranging from +5°C to +45°C resuling in SMS text mes-
sage delivery to the listed user phone number once exceeded. The accuracy of temperature measure-
ment is +/-1°C. Also, this event is added to the Event Log, meanwhile data messages noifying about
exceeded temperature threshold are delivered to the Monitoring Staion and ELDES Cloud Services
respecively.

16
EWF1-EWF1COEN
7. TECHNICAL SPECIFICATIONS
EWF1 compaible with:
• ESIM264 v7.11.30 and up + EWT1 16.14 and up.
• ESIM364 v02.04.01 and up.
• EPIR2 v01.01.02 and up.
• EPIR3 all versions.
• PITBULL EPIR3 all versions.
EWF1CO compaible with:
• ESIM364 v02.11.00 and up.
• EPIR3 v01.07.00 and up.
• PITBULL EPIR3 V02.01.00 and up.
Main features
• Photoelectric sensor for slow smouldering ires
(EWF1) / Combined photoelectric and electrochem-
ical sensor for slow smouldering ires and carbon
monoxide (CO) detecion (EWF1CO)
• TEST WEEKLY buton
• Non-radioacive technology for environmental
friendly
• High and stable sensiivity
• Quick ix mouning plate for easy
installaion
• LED operaion indicator
• Built-in speaker for audio alarm
indicaion
• Auto-reset when smoke clears
EWF1 is a wireless photoelectric-based smoke detector designed to detect smouldering ire before
bursing into lame, while EWF1CO is a wireless electrochemical-based carbon monoxide (CO) detec-
tor combined with photoelectric-based smoke detector designed to detect smouldering ire. When
the concentraion of smoke/CO exceeds a given threshold, the system will cause alarm, resuling
in built-in siren acivaion and SMS text message and phone call delivery (by default) to the listed
user’s phone number. By default, when more than one EWF1/EWF1CO device is used, the system will
automaically acivate the interconnecion feature. See 4.2. Interconnecion.
ESIM264, EPIR2 and EPIR3 alarm systems support up to 16 EWF1 devices, while ESIM364 - up to 32
EWF1 devices. Up to 16 EWF1CO can be connected to EPIR3 alarm system, while ESIM364 supports up
to 32 EWF1CO devices. The maximum wireless connecion range is 150m (492.13t) (in open areas).
For the complete informaion on device operaion with ELDES alarm system, please refer to
ELDES alarm system installaion manual located at www.eldes.lt/download.

17
EWF1-EWF1CO EN
ELECTRICAL & MECHANICAL CHARACTERISTICS
Batery ..................................................................Primary 9V Lithium 1604LC (ANSI/NEDA)
Number of bateries .........................................1
Batery operaion ime ....................................18 months*
Wireless band .....................................................ISM868/ISM915
Wireless communicaion range .....................Up to 30m (98.43t) in premises; up to 150m (492.13t)
in open areas
Smoke detecion type ......................................Photoelectric chamber
Smoke sensiivity .............................................3.0-6.0 % O bs/m
Carbon monoxide detecion type ..................Electrochemical
Carbon monoxide detecion range ................0-400 ppm
Alarm sound level ............................................85dB at 3m (85dB at 9.84t)
EWF1 lifeime .....................................................10 years
EWF1CO lifeime ................................................7 years
Range of operaing temperatures .................+5... +45°C (41... 113°F)
Humidity .............................................................0-90% RH @ 0... +40°C (0-90% RH @ +32... +104°F)
(non-condensing)
Dimensions ........................................................110mm (4.33in) Ø
* The speciied operaion ime applies in case of no alarms and when having the device tested
once a week. The operaion ime might vary in diferent condiions.
Technical support
If you experience diiculty during the installaion or subsequent use of a ELDES UAB system, you may con-
tact ELDES UAB distributor or dealer in your country/region.
Warranty procedures
To obtain warranty service, you may return a defecive system to your original point of purchase, or the autho-
rized ELDES UAB dealer or distributor from whom you purchased the ELDES product.
